Simple implementation of the abstract interface ICounterSvc. More...

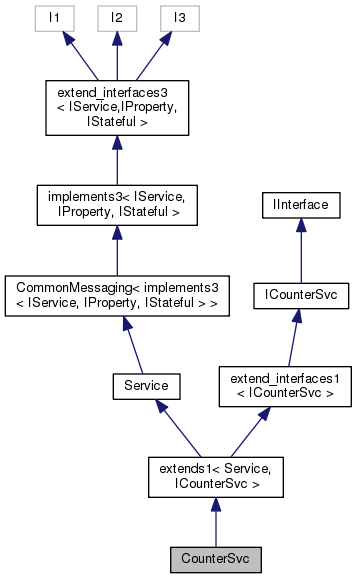

Inheritance diagram for CounterSvc:

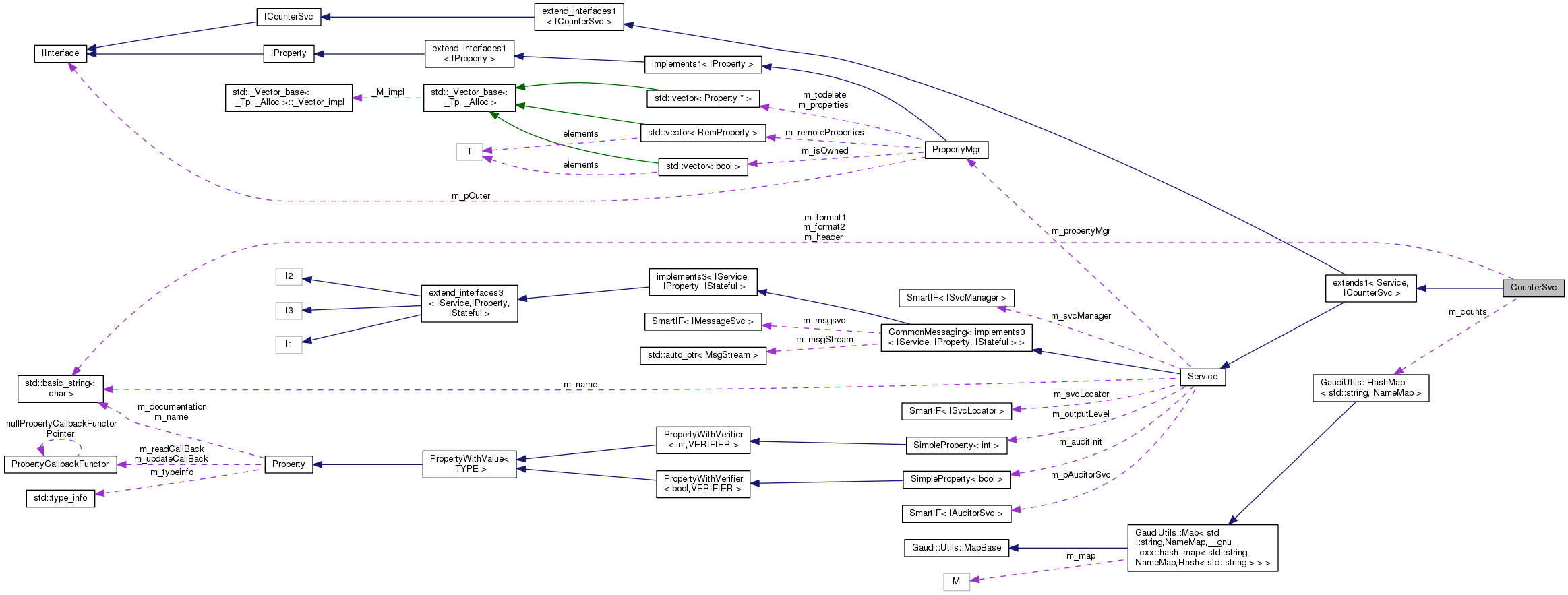

Collaboration diagram for CounterSvc:

Public Member Functions
	CounterSvc (const std::string &name, ISvcLocator *svcLoc)
	Standard Constructor.

virtual	~CounterSvc ()
	Standard destructor.

virtual StatusCode	finalize ()
	Finalization.

virtual Counter *	get (const std::string &group, const std::string &name) const
	Access an existing counter object.

virtual ICounterSvc::Counters	get (const std::string &group) const
	get all counters form the given group:

virtual StatusCode	create (const std::string &group, const std::string &name, longlong initial_value, Counter *&refpCounter)
	Create a new counter object.

virtual CountObject	create (const std::string &group, const std::string &name, longlong initial_value=0)
	Create a new counter object.

virtual StatusCode	remove (const std::string &group, const std::string &name)
	Remove a counter object.

virtual StatusCode	remove (const std::string &group)
	Remove all counters of a given group.

virtual StatusCode	remove ()
	Remove all known counter objects.

virtual StatusCode	print (const std::string &group, const std::string &name, Printout &printer) const
	Print counter value.

virtual StatusCode	print (const std::string &group, Printout &printer) const
	If no such counter exists the return code is COUNTER_NOT_PRESENT Note: This call is not direct access.

virtual StatusCode	print (const Counter *pCounter, Printout &printer) const
	Print counter value.

virtual StatusCode	print (const CountObject &pCounter, Printout &printer) const
	Print counter value.

virtual StatusCode	print (Printout &printer) const

virtual StatusCode	defaultPrintout (MsgStream &log, const Counter *pCounter) const
	Default Printout for counters.

void	print () const
	"standard" printout a'la GaudiCommon

Public Member Functions inherited from extends1< Service, ICounterSvc >
	extends1 (A1 a1, A2 a2, A3 a3)
	Templated constructor with 3 arguments.

	extends1 (A1 a1, A2 a2)
	Templated constructor with 2 arguments.

	extends1 (A1 a1)
	Templated constructor with 1 argument.

	extends1 ()
	Default constructor.

virtual void *	i_cast (const InterfaceID &tid) const
	Implementation of IInterface::i_cast.

virtual StatusCode	queryInterface (const InterfaceID &ti, void **pp)
	Implementation of IInterface::queryInterface.

virtual std::vector< std::string >	getInterfaceNames () const
	Implementation of IInterface::getInterfaceNames.

virtual	~extends1 ()
	Virtual destructor.

Public Member Functions inherited from Service
virtual unsigned long	release ()
	Release Interface instance.

virtual const std::string &	name () const
	Retrieve name of the service.

virtual StatusCode	configure ()

virtual StatusCode	initialize ()

virtual StatusCode	start ()

virtual StatusCode	stop ()

virtual StatusCode	terminate ()

virtual Gaudi::StateMachine::State	FSMState () const

virtual Gaudi::StateMachine::State	targetFSMState () const

virtual StatusCode	reinitialize ()

virtual StatusCode	restart ()

virtual StatusCode	sysInitialize ()
	Initialize Service.

virtual StatusCode	sysStart ()
	Initialize Service.

virtual StatusCode	sysStop ()
	Initialize Service.

virtual StatusCode	sysFinalize ()
	Finalize Service.

virtual StatusCode	sysReinitialize ()
	Re-initialize the Service.

virtual StatusCode	sysRestart ()
	Re-initialize the Service.

virtual StatusCode	setProperty (const Property &p)

virtual StatusCode	setProperty (const std::string &s)

virtual StatusCode	setProperty (const std::string &n, const std::string &v)

virtual StatusCode	getProperty (Property *p) const

virtual const Property &	getProperty (const std::string &name) const

virtual StatusCode	getProperty (const std::string &n, std::string &v) const

virtual const std::vector < Property * > &	getProperties () const

template<class TYPE >
StatusCode	setProperty (const std::string &name, const TYPE &value)
	set the property form the value

	Service (const std::string &name, ISvcLocator *svcloc)
	Standard Constructor.

SmartIF< ISvcLocator > &	serviceLocator () const
	Retrieve pointer to service locator.

StatusCode	setProperties ()
	Method for setting declared properties to the values specified for the job.

template<class T >
StatusCode	service (const std::string &name, const T *&psvc, bool createIf=true) const
	Access a service by name, creating it if it doesn't already exist.

template<class T >
StatusCode	service (const std::string &name, T *&psvc, bool createIf=true) const

template<class T >
StatusCode	service (const std::string &svcType, const std::string &svcName, T *&psvc) const
	Access a service by name and type, creating it if it doesn't already exist.

template<class T >
Property *	declareProperty (const std::string &name, T &property, const std::string &doc="none") const
	Declare the named property.

Property *	declareRemoteProperty (const std::string &name, IProperty *rsvc, const std::string &rname="") const
	Declare remote named properties.

SmartIF< IAuditorSvc > &	auditorSvc () const
	The standard auditor service.May not be invoked before sysInitialize() has been invoked.

Public Member Functions inherited from CommonMessaging< implements3< IService, IProperty, IStateful > >
	CommonMessaging (const A1 &a1, const A2 &a2, const A3 &a3)
	Templated constructor with 3 arguments.

	CommonMessaging (const A1 &a1, const A2 &a2)
	Templated constructor with 2 arguments.

	CommonMessaging (const A1 &a1)
	Templated constructor with 1 argument.

	CommonMessaging ()
	Default constructor.

virtual	~CommonMessaging ()
	Virtual destructor.

SmartIF< IMessageSvc > &	msgSvc () const
	The standard message service.

MsgStream &	msgStream () const
	Return an uninitialized MsgStream.

MsgStream &	msgStream (const MSG::Level level) const
	Predefined configurable message stream for the efficient printouts.

MsgStream &	always () const
	shortcut for the method msgStream(MSG::ALWAYS)

MsgStream &	fatal () const
	shortcut for the method msgStream(MSG::FATAL)

MsgStream &	err () const
	shortcut for the method msgStream(MSG::ERROR)

MsgStream &	error () const
	shortcut for the method msgStream(MSG::ERROR)

MsgStream &	warning () const
	shortcut for the method msgStream(MSG::WARNING)

MsgStream &	info () const
	shortcut for the method msgStream(MSG::INFO)

MsgStream &	debug () const
	shortcut for the method msgStream(MSG::DEBUG)

MsgStream &	verbose () const
	shortcut for the method msgStream(MSG::VERBOSE)

MsgStream &	msg () const
	shortcut for the method msgStream(MSG::INFO)

MSG::Level	msgLevel () const
	get the output level from the embedded MsgStream

bool	msgLevel (MSG::Level lvl) const
	get the output level from the embedded MsgStream

Public Member Functions inherited from extend_interfaces1< ICounterSvc >
virtual	~extend_interfaces1 ()
	Virtual destructor.

Public Member Functions inherited from ICounterSvc
	DeclareInterfaceID (ICounterSvc, 4, 0)
	InterfaceID.

Public Member Functions inherited from IInterface
virtual unsigned long	addRef ()=0
	Increment the reference count of Interface instance.

virtual unsigned long	release ()=0
	Release Interface instance.

virtual unsigned long	refCount () const =0
	Current reference count.

virtual	~IInterface ()
	Virtual destructor.

Private Types
typedef GaudiUtils::HashMap < std::string, Counter * >	NameMap

typedef GaudiUtils::HashMap < std::string, NameMap >	CountMap

Private Member Functions
std::pair< std::string, std::string >	_find (const Counter *c) const

size_t	num () const

Private Attributes
CountMap	m_counts
	the actual map of counters

bool	m_print
	boolean flag to print statistics

std::string	m_header
	the header row

std::string	m_format1
	format for regular statistical printout rows

std::string	m_format2
	format for "efficiency" statistical printout rows

bool	m_useEffFormat
	flag to use the special "efficiency" format

Additional Inherited Members
Public Types inherited from extends1< Service, ICounterSvc >
typedef extends1	base_class
	Typedef to this class.

typedef extend_interfaces1 < ICounterSvc >	extend_interfaces_base
	Typedef to the base of this class.

typedef extend_interfaces_base::ext_iids	interfaces
	MPL set of all the implemented interfaces.

Static Public Member Functions inherited from IInterface
static const InterfaceID &	interfaceID ()
	Return an instance of InterfaceID identifying the interface.

Protected Member Functions inherited from Service
virtual	~Service ()
	Standard Destructor.

int	outputLevel () const
	get the `Service's` output level

Protected Member Functions inherited from ICounterSvc
virtual	~ICounterSvc ()

Protected Attributes inherited from Service
IntegerProperty	m_outputLevel
	Service output level.

Gaudi::StateMachine::State	m_state
	Service state.

Gaudi::StateMachine::State	m_targetState
	Service state.

Detailed Description

Simple implementation of the abstract interface ICounterSvc.

Author: Markus FRANK; Vanya BELYAEV ibely.nosp@m.aev@.nosp@m.physi.nosp@m.cs.s.nosp@m.yr.ed.nosp@m.u

Date: 2007-05-25

Definition at line 27 of file CounterSvc.cpp.

Member Typedef Documentation

typedef GaudiUtils::HashMap<std::string,NameMap> CounterSvc::CountMap

private

Definition at line 217 of file CounterSvc.cpp.

typedef GaudiUtils::HashMap<std::string,Counter*> CounterSvc::NameMap

private

Definition at line 216 of file CounterSvc.cpp.

Constructor & Destructor Documentation

CounterSvc::CounterSvc	(	const std::string &	name,
		ISvcLocator *	svcLoc
	)

inline

Standard Constructor.

Definition at line 30 of file CounterSvc.cpp.

    : base_class(name, svcLoc)
    , m_counts ()
    , m_print  ( true )
    //
    // the header row
    , m_header  ( "       Counter :: Group         |     #     |    sum     | mean/eff^* | rms/err^*  |     min     |     max     |")
    // format for regular statistical printout rows
    , m_format1 ( " %|15.15s|%|-15.15s|%|32t||%|10d| |%|11.7g| |%|#11.5g| |%|#11.5g| |%|#12.5g| |%|#12.5g| |"         )
    // format for "efficiency" statistical printout rows
    , m_format2 ( "*%|15.15s|%|-15.15s|%|32t||%|10d| |%|11.5g| |(%|#9.7g| +- %|-#9.7g|)%%|   -------   |   -------   |" )
    // flag to use the special "efficiency" format
    , m_useEffFormat ( true )
    //
  {
    declareProperty ("PrintStat" , m_print ) ;
    //
    declareProperty
      ( "StatTableHeader"        , m_header                          ,
        "The header row for the output Stat-table"                   ) ;
    //
    declareProperty
      ( "RegularRowFormat"       , m_format1                         ,
        "The format for the regular row in the output Stat-table"    ) ;
    //
    declareProperty
      ( "EfficiencyRowFormat"    , m_format2                         ,
        "The format for the regular row in the outptu Stat-table"    ) ;
    //
    declareProperty
      ( "UseEfficiencyRowFormat" , m_useEffFormat                    ,
        "Use the special format for printout of efficiency counters" ) ;
  }

virtual CounterSvc::~CounterSvc ( )

inlinevirtual

Standard destructor.

Definition at line 65 of file CounterSvc.cpp.

{ remove().ignore() ; }

Member Function Documentation

std::pair<std::string,std::string> CounterSvc::_find ( const Counter * c ) const

inlineprivate

Definition at line 189 of file CounterSvc.cpp.

  {
    if ( 0 == c ) { return std::pair<std::string,std::string>() ; }
    for ( CountMap::const_iterator i = m_counts.begin() ; m_counts.end() != i ; ++i )
    {
      for ( NameMap::const_iterator j = i->second.begin() ; i->second.end() != j ; ++j )
      { if ( j->second == c ) { return std::make_pair( i->first , j->first )  ; } }
    }
    return std::pair<std::string,std::string>() ;
  }

StatusCode CounterSvc::create	(	const std::string &	group,
		const std::string &	name,
		longlong	initial_value,
		Counter *&	refpCounter
	)

virtual

Create a new counter object.

If the counter object exists already the existing object is returned. In this event the return code is COUNTER_EXISTS. The ownership of the actual counter stays with the service.

Parameters

group	[IN] Hint for smart printing
name	[IN] Counter name
initial_value	[IN] Initial counter value
refpCounter	[OUT] Reference to store pointer to counter.

Returns: StatusCode indicating failure or success.

Implements ICounterSvc.

Definition at line 269 of file CounterSvc.cpp.

{
  // try to find existing counter:
  refpCounter = get ( grp , nam ) ;
  if ( 0 != refpCounter ) { return COUNTER_EXISTS ; }                // RETURN
  // create the new counter
  Counter* newc = new Counter() ;
  refpCounter = newc ;
  if ( 0 != initial_value ) {
    refpCounter->addFlag ( static_cast<double>(initial_value) ) ; // icc remark #2259
  }
  // find a proper group
  CountMap::iterator i = m_counts.find  ( grp ) ;
  // (create a group if needed)
  if (  m_counts.end() == i )
  { i = m_counts.insert ( std::make_pair ( grp , NameMap() ) ).first ; }
  // insert new counter with proper name into proper group:
  i->second.insert( std::make_pair( nam , newc ) );
  return StatusCode::SUCCESS ;                                     // RETURN
}

CounterSvc::CountObject CounterSvc::create	(	const std::string &	group,
		const std::string &	name,
		longlong	initial_value = `0`
	)

virtual

Create a new counter object.

If the counter object exists already, a std::runtime_error exception is thrown. The ownership of the actual counter stays with the service.

Parameters

group	[IN] Hint for smart printing
name	[IN] Counter name
initial_value	[IN] Initial counter value
refpCounter	[OUT] Reference to store pointer to counter.

Returns: Fully initialized CountObject.

Implements ICounterSvc.

Definition at line 300 of file CounterSvc.cpp.

{
  Counter* p = 0;
  StatusCode sc = create ( group, name, initial_value, p ) ;
  if ( sc.isSuccess() && 0 != p ) { return CountObject ( p , group , name ) ; }
  throw std::runtime_error("CounterSvc::Counter('"+group+"::"+name+"') exists already!");
}

StatusCode CounterSvc::defaultPrintout	(	MsgStream &	log,
		const Counter *	pCounter
	)		const

virtual

Default Printout for counters.

Implements ICounterSvc.

Definition at line 437 of file CounterSvc.cpp.

{
  if ( 0 == c ) { return StatusCode::FAILURE ; }
  std::pair<std::string,std::string> p = _find ( c ) ;
  log << MSG::ALWAYS
      << CountObject( const_cast<Counter*>(c) , p.first , p.second )
      << endmsg ;
  return StatusCode::SUCCESS;
}

virtual StatusCode CounterSvc::finalize ( )

inlinevirtual

Finalization.

< finalize the base class

Reimplemented from Service.

Definition at line 67 of file CounterSvc.cpp.

  {
    if ( outputLevel() <= MSG::DEBUG || m_print ) { print () ; }
    remove().ignore() ;
    // finalize the base class
    return Service::finalize() ;
  }

CounterSvc::Counter * CounterSvc::get	(	const std::string &	group,
		const std::string &	name
	)		const

virtual

Access an existing counter object.

Parameters

group	[IN] Hint for smart printing
name	[IN] Counter name

Returns: Pointer to existing counter object (NULL if non existing).

Implements ICounterSvc.

Definition at line 239 of file CounterSvc.cpp.

{
  CountMap::const_iterator i = m_counts.find  ( grp ) ;
  if (  m_counts.end() == i ) { return 0 ; }                    // RETURN
  NameMap::const_iterator  j = i->second.find ( nam ) ;
  if ( i->second.end() == j ) { return 0 ; }                    // RETURN
  return j->second ;                                            // RETURN
}

ICounterSvc::Counters CounterSvc::get ( const std::string & group ) const

virtual

get all counters form the given group:

Implements ICounterSvc.

Definition at line 251 of file CounterSvc.cpp.

{
  ICounterSvc::Counters result ;
  CountMap::const_iterator i = m_counts.find  ( group ) ;
  if (  m_counts.end() == i ) { return result ; } // RETURN
  for ( NameMap::const_iterator j = i->second.begin() ; i->second.end() != j ; ++j )
  { result.push_back( CountObject ( j->second, i->first , j->first ) ) ; }
  return result ;
}

size_t CounterSvc::num ( ) const

inlineprivate

Definition at line 200 of file CounterSvc.cpp.

  {
    size_t result = 0 ;
    {
      for ( CountMap::const_iterator i = m_counts.begin(); i != m_counts.end(); ++i )
      {
        for ( NameMap::const_iterator j = i->second.begin() ; i->second.end() != j ; ++j )
        { if ( 0 != j->second ) { ++result ; } ; }
      }
    }
    return result ;
  }

StatusCode CounterSvc::print	(	const std::string &	group,
		const std::string &	name,
		Printout &	printer
	)		const

virtual

Print counter value.

Parameters

group	[IN] Hint for smart printing
name	[IN] Counter name
printer	[IN] Print actor

Returns: StatusCode indicating failure or success.

Implements ICounterSvc.

Definition at line 351 of file CounterSvc.cpp.

{
  const Counter* c = get( grp , nam ) ;
  if ( 0 == c ) { return COUNTER_NOT_PRESENT ; }                  // RETURN
  // create the stream and use it!
  MsgStream log ( msgSvc() , name() ) ;
  return printer ( log , c ) ;
}

StatusCode CounterSvc::print	(	const std::string &	group,
		Printout &	printer
	)		const

virtual

If no such counter exists the return code is COUNTER_NOT_PRESENT Note: This call is not direct access.

Parameters

group	[IN] Hint for smart printing
printer	[IN] Print actor

Returns: StatusCode indicating failure or success.

Implements ICounterSvc.

Definition at line 382 of file CounterSvc.cpp.

{
  CountMap::const_iterator i = m_counts.find ( grp ) ;
  if ( m_counts.end() == i ) { return COUNTER_NOT_PRESENT ; }
  MsgStream log(msgSvc(), name());
  // Force printing in alphabetical order
  typedef std::map<std::string, Counter*> sorted_map_t;
  sorted_map_t sorted_map(i->second.begin(), i->second.end());
  std::for_each(sorted_map.begin(), sorted_map.end(),
                conditionalPrint(printer, log));
  return StatusCode::SUCCESS;   // RETURN
}

StatusCode CounterSvc::print	(	const Counter *	pCounter,
		Printout &	printer
	)		const

virtual

Print counter value.

Parameters

pCounter	[IN] Pointer to Counter object
printer	[IN] Print actor

Returns: StatusCode indicating failure or success.

Implements ICounterSvc.

Definition at line 400 of file CounterSvc.cpp.

{
  MsgStream log(msgSvc(), name() ) ;
  return printer ( log , pCounter ) ;
}

StatusCode CounterSvc::print	(	const CountObject &	pCounter,
		Printout &	printer
	)		const

virtual

Print counter value.

Parameters

refCounter	[IN] Reference to CountObject object
printer	[IN] Print actor

Returns: StatusCode indicating failure or success.

Implements ICounterSvc.

Definition at line 410 of file CounterSvc.cpp.

{ return print( refCounter.counter() , printer ) ; }

StatusCode CounterSvc::print ( Printout & printer ) const

virtual

Parameters

printer [IN] Print actor

Returns: StatusCode indicating failure or success.

Implements ICounterSvc.

Definition at line 416 of file CounterSvc.cpp.

{
  MsgStream log ( msgSvc() , name() ) ;
  // Force printing in alphabetical order
  typedef std::map<std::pair<std::string,std::string>, Counter*> sorted_map_t;
  sorted_map_t sorted_map;
  for ( CountMap::const_iterator i = m_counts.begin(); i != m_counts.end(); ++i )
  {
    for ( NameMap::const_iterator j = i->second.begin() ; i->second.end() != j ; ++j )
    {
      sorted_map[std::make_pair(i->first, j->first)] = j->second;
    }
  }
  std::for_each(sorted_map.begin(), sorted_map.end(),
                conditionalPrint(printer, log));
  return StatusCode::SUCCESS;
}

void CounterSvc::print ( ) const

"standard" printout a'la GaudiCommon

Definition at line 452 of file CounterSvc.cpp.

{
  MsgStream log ( msgSvc() , name() ) ;
  // number of counters
  const size_t _num = num() ;
  if ( 0 != _num )
  {
    log << MSG::ALWAYS
        << "Number of counters : "  << _num << endmsg
        << m_header << endmsg ;
  }
  {
    // Force printing in alphabetical order
    typedef std::map<std::pair<std::string,std::string>, Counter*> sorted_map_t;
    sorted_map_t sorted_map;
    for ( CountMap::const_iterator i = m_counts.begin(); i != m_counts.end(); ++i )
    {
      for ( NameMap::const_iterator j = i->second.begin() ; i->second.end() != j ; ++j )
      {
        Counter* c = j->second ;
        if ( 0 == c ) { continue ; }
        sorted_map[std::make_pair(i->first, j->first)] = c;
      }
    }
    for (sorted_map_t::const_iterator i = sorted_map.begin(); i != sorted_map.end(); ++i )
      log << Gaudi::Utils::formatAsTableRow( i->first.second
                                           , i->first.first
                                           , *i->second
                                           , m_useEffFormat
                                           , m_format1
                                           , m_format2 )
          << endmsg ;
  }
}

StatusCode CounterSvc::remove	(	const std::string &	group,
		const std::string &	name
	)

virtual

Remove a counter object.

If the counter object does not exists, the return code is COUNTER_NOT_PRESENT. The counter may not be used anymore after this call.

Parameters

group	[IN] Hint for smart printing
name	[IN] Counter name
initial_value	[IN] Initial counter value
refpCounter	[OUT] Reference to store pointer to counter.

Returns: StatusCode indicating failure or success.

Implements ICounterSvc.

Definition at line 313 of file CounterSvc.cpp.

{
  CountMap::iterator i = m_counts.find  ( grp ) ;
  if (  m_counts.end() == i ) { return COUNTER_NOT_PRESENT ; }  // RETURN
  NameMap::iterator  j = i->second.find ( nam ) ;
  if ( i->second.end() == j ) { return COUNTER_NOT_PRESENT ; }  // RETURN
  delete j->second ;
  i->second.erase ( j ) ;
  return StatusCode::SUCCESS ;
}

StatusCode CounterSvc::remove ( const std::string & group )

virtual

Remove all counters of a given group.

If no such counter exists the return code is COUNTER_NOT_PRESENT

Parameters

group [IN] Hint for smart printing

Returns: StatusCode indicating failure or success.

Implements ICounterSvc.

Definition at line 327 of file CounterSvc.cpp.

{
  CountMap::iterator i = m_counts.find ( grp  ) ;
  if (  m_counts.end() == i ) { return COUNTER_NOT_PRESENT ; }  // RETURN
  for ( NameMap::iterator j = i->second.begin() ; i->second.end() != j ; ++j )
  { delete j->second ; }
  i->second.clear() ;
  return StatusCode::SUCCESS ;
}

StatusCode CounterSvc::remove ( )

virtual

Remove all known counter objects.

Definition at line 339 of file CounterSvc.cpp.

{
  // remove group by group
  for ( CountMap::iterator i = m_counts.begin() ; m_counts.end() != i ; ++i )
  { remove ( i->first ).ignore () ; }
  m_counts.clear() ;
  return StatusCode::SUCCESS;
}

Member Data Documentation

CountMap CounterSvc::m_counts

private

the actual map of counters

Definition at line 219 of file CounterSvc.cpp.

std::string CounterSvc::m_format1

private

format for regular statistical printout rows

Definition at line 225 of file CounterSvc.cpp.

std::string CounterSvc::m_format2

private

format for "efficiency" statistical printout rows

Definition at line 227 of file CounterSvc.cpp.

std::string CounterSvc::m_header

private

the header row

Definition at line 223 of file CounterSvc.cpp.

bool CounterSvc::m_print

private

boolean flag to print statistics

Definition at line 221 of file CounterSvc.cpp.

bool CounterSvc::m_useEffFormat

private

flag to use the special "efficiency" format

Definition at line 229 of file CounterSvc.cpp.

The documentation for this class was generated from the following file:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r6/GaudiCommonSvc/src/CounterSvc.cpp

Gaudi Framework, version v23r6

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
