Gaudi::RootTool Class Reference

Description: More...

#include <src/RootTool.h>

Inheritance diagram for Gaudi::RootTool:
Inheritance graph
[legend]

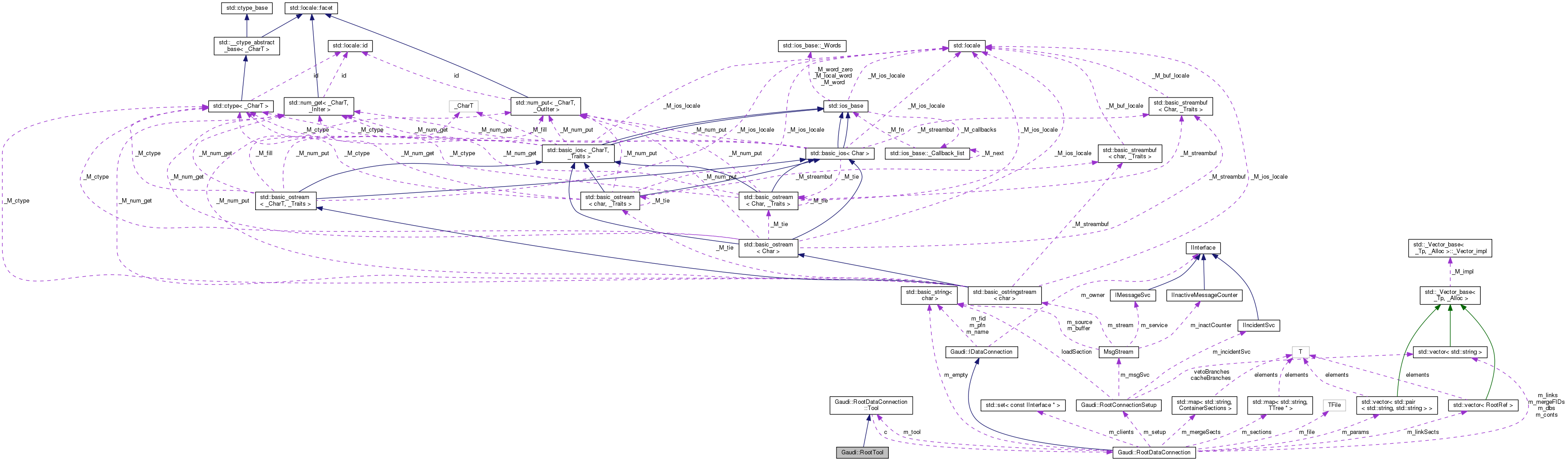

Collaboration diagram for Gaudi::RootTool:
Collaboration graph
[legend]

Public Member Functions

 RootTool (RootDataConnection *con)
 Standard constructor.

virtual TBranch * getBranch (CSTR section, CSTR branch_name)
 Access data branch by name: Get existing branch in read only mode.

virtual int loadRefs (CSTR section, CSTR cnt, unsigned long entry, RootObjectRefs &refs)
 Load references object from file.

void addParam (ParamMap &c, char *p)
 Helper function to read params table.

void addEntry (StringVec &c, char *val)
 Helper function to read string tables.

template<class C , class F >
StatusCode readBranch (TTree *t, const char *nam, C &v, F pmf)
 Helper function to read internal file tables.

bool get (const string &dsc, pair< string, ContainerSection > &e)
 Analyze the Sections table entries.

void analyzeMergeMap (StringVec &tmp)
 Build merge sections from the Sections table entries.

StatusCode readRefs ()
 Read reference tables.

string getEntry (const string &c)
 Helper function to convert string vectors to branch entries.

string getParam (const pair< string, string > &p)
 Helper function to convert parameter vectors to branch entries.

template<class C , class F >
StatusCode saveBranch (const char *nam, C &v, F pmf)
 Helper function to save internal tables.

StatusCode saveRefs ()
 Save/update reference tables.

- Public Member Functions inherited from Gaudi::RootDataConnection::Tool
TTree * refs () const

StringVec & dbs () const

StringVec & conts () const

StringVec & links () const

ParamMap & params () const

MsgStream & msgSvc () const

const std::string & name () const

Sections & sections () const

LinkSections & linkSections () const

MergeSections & mergeSections () const

virtual ~Tool ()
 Default destructor.

virtual void release ()
 Use releasePtr() helper to delete object.

virtual TBranch * getBranch (const std::string &section, const std::string &n)=0
 Access data branch by name: Get existing branch in read only mode.

virtual RootRef poolRef (size_t) const
 Internal overload to facilitate the access to POOL files.

virtual int loadRefs (const std::string &section, const std::string &cnt, unsigned long entry, RootObjectRefs &refs)=0
 Load references object.


Additional Inherited Members

- Protected Types inherited from Gaudi::RootDataConnection::Tool
typedef
RootDataConnection::StringVec 		StringVec

typedef
RootDataConnection::ParamMap 		ParamMap

typedef
RootDataConnection::Sections 		Sections

typedef
RootDataConnection::MergeSections 		MergeSections

typedef
RootDataConnection::LinkSections 		LinkSections

typedef
RootDataConnection::ContainerSection 		ContainerSection

typedef
RootDataConnection::ContainerSections 		ContainerSections

- Protected Attributes inherited from Gaudi::RootDataConnection::Tool
RootDataConnection * c
 Pointer to containing data connection object.


Detailed Description

Description:

Concrete implementation to read objects from POOL files.

Author
M.Frank
Version
1.0

Concrete implementation to read objects from ROOT files.

Author
M.Frank
Version
1.0

Definition at line 15 of file RootTool.h.

Constructor & Destructor Documentation

Gaudi::RootTool::RootTool ( RootDataConnection *  con)
inline

Standard constructor.

Definition at line 18 of file RootTool.h.

{ c = con; }

Member Function Documentation

void Gaudi::RootTool::addEntry ( StringVec &  c,
char *  val
)
inline

Helper function to read string tables.

Definition at line 107 of file RootTool.h.

{ c.push_back(val); }
void Gaudi::RootTool::addParam ( ParamMap &  c,
char *  p
)
inline

Helper function to read params table.

Definition at line 99 of file RootTool.h.

{
char* q = strchr(p,'=');
if ( q ) {
*q = 0;
c.push_back(make_pair(p,++q));
}
}
void Gaudi::RootTool::analyzeMergeMap ( StringVec &  tmp)
inline

Build merge sections from the Sections table entries.

Definition at line 155 of file RootTool.h.

{
StringVec::const_iterator i;
LinkSections& ls = linkSections();
MergeSections& ms = mergeSections();
pair<string,ContainerSection> e;
MsgStream& msg = msgSvc();
RootRef r;
int cnt = 0;
ls.clear();
ms.clear();
msg << MSG::VERBOSE;
r.dbase = r.container = r.link = r.clid = r.svc = r.entry = 0;
for(i=tmp.begin(); i!=tmp.end();++i) {
if ( get(*i,e) ) {
msg << "Added Merge Section:" << e.first << endmsg;
ms[e.first].push_back(e.second);
if ( e.first == "Links" )
r.link = e.second.start;
else if ( e.first == "Containers" )
r.container = e.second.start;
else if ( e.first == "Databases" )
r.dbase = e.second.start;
else if ( e.first == "Params" )
r.svc = e.second.start;
}
else if ( (*i) == "[END-OF-SECTION]" ) {
r.entry = cnt;
if ( msg.isActive() ) {
msg << "Link Section [" << r.entry << "," << ls.size()
<< "] -> D:" << r.dbase
<< " C:" << r.container
<< " L:" << r.link
<< " P:" << r.svc
<< endmsg;
}
ls.push_back(r);
cnt++;
}
}
}
bool Gaudi::RootTool::get ( const string &  dsc,
pair< string, ContainerSection > &  e
)
inline

Analyze the Sections table entries.

Definition at line 135 of file RootTool.h.

{
if ( dsc != "[END-OF-SECTION]" ) {
size_t id1 = dsc.find("[CNT=");
size_t id2 = dsc.find("[START=");
size_t id3 = dsc.find("[LEN=");
if ( id1 != string::npos && id2 != string::npos && id3 != string::npos ) {
string tmp;
string cnt = dsc.substr(id1+5, id2-1-5);
int section_start = ::atoi((tmp=dsc.substr(id2+7,id3-id2-8)).c_str());
int section_length = ::atoi((tmp=dsc.substr(id3+5,dsc.find("]",id3+5)-id3-5)).c_str());
e.first = cnt;
e.second = ContainerSection(section_start,section_length);
return true;
}
}
e.first = "";
e.second = ContainerSection(-1,-1);
return false;
}
virtual TBranch* Gaudi::RootTool::getBranch ( CSTR  section,
CSTR  branch_name
)
inlinevirtual

Access data branch by name: Get existing branch in read only mode.

Definition at line 20 of file RootTool.h.

{
std::string n = branch_name+".";
for(int i=0, m=n.length()-1; i<m; ++i) if ( !isalnum(n[i]) ) n[i]='_';
TTree* t = c->getSection(section);
TBranch* b = t ? t->GetBranch(n.c_str()) : 0;
if ( !b ) b = t ? t->GetBranch(branch_name.c_str()) : 0;
if ( b ) b->SetAutoDelete(kFALSE);
return b;
}
string Gaudi::RootTool::getEntry ( const string &  c)
inline

Helper function to convert string vectors to branch entries.

Definition at line 217 of file RootTool.h.

{ return c; }
string Gaudi::RootTool::getParam ( const pair< string, string > &  p)
inline

Helper function to convert parameter vectors to branch entries.

Definition at line 219 of file RootTool.h.

{ return p.first+"="+p.second; }
virtual int Gaudi::RootTool::loadRefs ( CSTR  section,
CSTR  cnt,
unsigned long  entry,
RootObjectRefs &  refs
)
inlinevirtual

Load references object from file.

Link manager:

Definition at line 30 of file RootTool.h.

{
TBranch* b = getBranch(section,cnt+"#R");
RootObjectRefs* prefs = &refs;
if ( b ) {
b->SetAddress(&prefs);
int nb = b->GetEntry(entry);
if ( nb >= 1 ) {
const MergeSections& ms = c->mergeSections();
if ( !ms.empty() ) {
MsgStream& msg = msgSvc();
msgSvc() << MSG::VERBOSE;
pair<const RootRef*,const ContainerSection*> ls = c->getMergeSection(cnt,entry);
if ( ls.first ) {
if ( ls.first->dbase >= 0 ) {
// Now patch the references and links 'en block' to be efficient
// First the leafs from the TES
if ( msg.isActive() ) {
msg << "Refs: LS [" << entry << "] -> "
<< ls.first->dbase << "," << ls.first->container
<< "," << ls.first->link
<< "," << ls.first->entry
<< endmsg;
}
for(size_t j=0, n=refs.refs.size(); j<n; ++j) {
RootRef& r = refs.refs[j];
if ( r.entry>= 0 && r.dbase >= 0 ) {
int db = r.dbase + ls.first->dbase;
if ( c->getDb(db) == c->fid() ) {
if ( r.dbase ) r.dbase += ls.first->dbase;
if ( r.container ) r.container += ls.first->container;
if ( r.link ) r.link += ls.first->link;
const string& rc = c->getCont(r.container);
MergeSections::const_iterator k = ms.find(rc);
if ( k != ms.end() ) {
const ContainerSections& cs = (*k).second;
r.entry = ( ls.first->entry >= 0 && ls.first->entry < (int)cs.size() )
? cs[ls.first->entry].start + r.entry : -1;
if ( msg.isActive() ) {
msg << "Add link [" << r.entry
<< "," << ls.first->entry
<< "," << ls.first->container
<< "," << r.container
<< "," << r.entry
<< "] to -> " << rc << endmsg;
}
}
else {
msg << MSG::WARNING << c->fid() << " [" << c->getDb(db)
<< "] Evt:" << entry << " Invalid link to " << rc << endmsg;
msg << MSG::VERBOSE;
}
}
}
}
for(vector<int>::iterator i=refs.links.begin(); i!=refs.links.end();++i) {
(*i) += ls.first->link;
}
}
return nb;
}
return -1;
}
return nb;
}
}
return -1;
}
template<class C , class F >
StatusCode Gaudi::RootTool::readBranch ( TTree *  t,
const char *  nam,
C &  v,
F  pmf
)
inline

Helper function to read internal file tables.

Definition at line 109 of file RootTool.h.

{
char text[2048];
TBranch* b = t->GetBranch(nam);
if ( b ) {
TLeaf* l = b->GetLeaf(nam);
if ( l ) {
StatusCode sc = StatusCode::SUCCESS;
b->SetAddress(text);
msgSvc() << MSG::VERBOSE;
for(Long64_t i=0, n=b->GetEntries(); i<n; ++i) {
if ( b->GetEntry(i)>0 ) {
char* p = (char*)l->GetValuePointer();
msgSvc() << "Add Value[" << b->GetName() << "]:" << p << endmsg;
(this->*pmf)(v,p);
}
else {
sc = RootDataConnection::ROOT_READ_ERROR;
}
}
return sc;
}
}
msgSvc() << MSG::ERROR << "Failed to read '" << nam << "' table." << endmsg;
return RootDataConnection::ROOT_READ_ERROR;
}
StatusCode Gaudi::RootTool::readRefs ( )
inlinevirtual

Read reference tables.

Implements Gaudi::RootDataConnection::Tool.

Definition at line 196 of file RootTool.h.

{
TTree* t = (TTree*)c->file()->Get("Sections");
StatusCode sc(StatusCode::SUCCESS,true);
StringVec tmp;
if ( t && !(sc=readBranch(t, "Sections", tmp, &RootTool::addEntry)).isSuccess() )
return sc;
else if ( refs() ) {
analyzeMergeMap(tmp);
if ( !(sc=readBranch(refs(),"Databases", dbs(), &RootTool::addEntry)).isSuccess() )
return sc;
if ( !(sc=readBranch(refs(),"Containers",conts(), &RootTool::addEntry)).isSuccess() )
return sc;
if ( !(sc=readBranch(refs(),"Links", links(), &RootTool::addEntry)).isSuccess() )
return sc;
if ( !(sc=readBranch(refs(),"Params", params(), &RootTool::addParam)).isSuccess() )
return sc;
return sc;
}
return StatusCode::FAILURE;
}
template<class C , class F >
StatusCode Gaudi::RootTool::saveBranch ( const char *  nam,
C &  v,
F  pmf
)
inline

Helper function to save internal tables.

Definition at line 221 of file RootTool.h.

{
Long64_t i, n;
string val, typ = nam;
StatusCode sc = StatusCode::SUCCESS;
TDirectory::TContext ctxt(c->file());
TBranch* b = refs()->GetBranch(nam);
if ( !b ) b = refs()->Branch(nam,0,(typ+"/C").c_str());
if ( b ) {
for(i=b->GetEntries(), n=Long64_t(v.size()); i<n; ++i) {
val = (this->*pmf)(v[size_t(i)]);
b->SetAddress((char*)val.c_str());
msgSvc() << MSG::VERBOSE << "Save Value[" << b->GetName() << "]:" << val << endmsg;
if ( b->Fill() < 0 ) sc = StatusCode::FAILURE;
}
return sc;
}
return StatusCode::FAILURE;
}
StatusCode Gaudi::RootTool::saveRefs ( )
inlinevirtual

Save/update reference tables.

Implements Gaudi::RootDataConnection::Tool.

Definition at line 240 of file RootTool.h.

{
if ( refs() ) {
if ( !saveBranch("Databases", dbs(), &RootTool::getEntry).isSuccess() )
return StatusCode::FAILURE;
if ( !saveBranch("Containers",conts(), &RootTool::getEntry).isSuccess() )
return StatusCode::FAILURE;
if ( !saveBranch("Links", links(), &RootTool::getEntry).isSuccess() )
return StatusCode::FAILURE;
if ( !saveBranch("Params", params(),&RootTool::getParam).isSuccess() )
return StatusCode::FAILURE;
return StatusCode::SUCCESS;
}
return StatusCode::FAILURE;
}
The documentation for this class was generated from the following file:
Generated at Wed Jan 30 2013 17:13:50 for Gaudi Framework, version v23r6 by Doxygen version 1.8.2 written by Dimitri van Heesch, © 1997-2004
