IDataStoreLeaves Class Reference

Interface for a tool or service that returns a list of leaves (paths) in a transient store. More...

#include <IDataStoreLeaves.h>

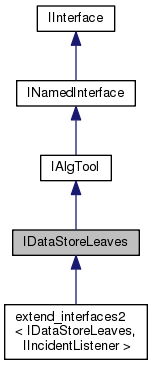

Inheritance diagram for IDataStoreLeaves:

Collaboration diagram for IDataStoreLeaves:

Public Types
typedef std::vector< DataObject * >	LeavesList
	Returned type.

Public Member Functions
	DeclareInterfaceID (IDataStoreLeaves, 1, 0)
	InterfaceID.
virtual const LeavesList &	leaves () const =0
	Return the list of leaves.
Public Member Functions inherited from IAlgTool
	DeclareInterfaceID (IAlgTool, 3, 0)
	InterfaceID.
virtual	~IAlgTool ()
	Virtual destructor.
virtual const std::string &	type () const =0
	The type of an AlgTool, meaning the concrete AlgTool class.
virtual const IInterface *	parent () const =0
	The parent of the concrete AlgTool.
virtual StatusCode	configure ()=0
	Configuration (from OFFLINE to CONFIGURED).
virtual StatusCode	initialize ()=0
	Initialization (from CONFIGURED to INITIALIZED).
virtual StatusCode	start ()=0
	Start (from INITIALIZED to RUNNING).
virtual StatusCode	stop ()=0
	Stop (from RUNNING to INITIALIZED).
virtual StatusCode	finalize ()=0
	Finalize (from INITIALIZED to CONFIGURED).
virtual StatusCode	terminate ()=0
	Initialization (from CONFIGURED to OFFLINE).
virtual StatusCode	reinitialize ()=0
	Initialization (from INITIALIZED or RUNNING to INITIALIZED, via CONFIGURED).
virtual StatusCode	restart ()=0
	Initialization (from RUNNING to RUNNING, via INITIALIZED).
virtual Gaudi::StateMachine::State	FSMState () const =0
	Get the current state.
virtual StatusCode	sysInitialize ()=0
	Initialization of the Tool.
virtual StatusCode	sysStart ()=0
	Initialization of the Tool.
virtual StatusCode	sysStop ()=0
	Initialization of the Tool.
virtual StatusCode	sysFinalize ()=0
	Finalization of the Tool.
virtual StatusCode	sysReinitialize ()=0
	Initialization of the Tool.
virtual StatusCode	sysRestart ()=0
	Initialization of the Tool.
virtual unsigned long	refCount () const =0
	Current number of reference counts.
Public Member Functions inherited from INamedInterface
	DeclareInterfaceID (INamedInterface, 1, 0)
	InterfaceID.
virtual const std::string &	name () const =0
	Retrieve the name of the instance.
virtual	~INamedInterface ()
	Virtual destructor (always needed for abstract classes).
Public Member Functions inherited from IInterface
virtual void *	i_cast (const InterfaceID &) const =0
	main cast function
virtual std::vector< std::string >	getInterfaceNames () const =0
	Returns a vector of strings containing the names of all the implemented interfaces.
virtual unsigned long	addRef ()=0
	Increment the reference count of Interface instance.
virtual unsigned long	release ()=0
	Release Interface instance.
virtual StatusCode	queryInterface (const InterfaceID &ti, void **pp)=0
	Set the void** to the pointer to the requested interface of the instance.
virtual	~IInterface ()
	Virtual destructor.

Additional Inherited Members
Static Public Member Functions inherited from IInterface
static const InterfaceID &	interfaceID ()
	Return an instance of InterfaceID identifying the interface.

Detailed Description

Interface for a tool or service that returns a list of leaves (paths) in a transient store.

Author

Marco Clemencic

Definition at line 15 of file IDataStoreLeaves.h.

Member Typedef Documentation

typedef std::vector<DataObject*> IDataStoreLeaves::LeavesList

Returned type.

Definition at line 22 of file IDataStoreLeaves.h.

Member Function Documentation

IDataStoreLeaves::DeclareInterfaceID	(	IDataStoreLeaves	,
		1	,
		0
	)

InterfaceID.

virtual const LeavesList& IDataStoreLeaves::leaves ( ) const

pure virtual

Return the list of leaves.

---

The documentation for this class was generated from the following file:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r6/GaudiKernel/GaudiKernel/IDataStoreLeaves.h
