#include <GaudiTools/ITupleTool.h>

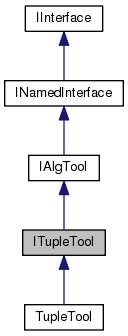

Inheritance diagram for ITupleTool:

Collaboration diagram for ITupleTool:

Public Types
typedef Tuples::TupleID	TupleID

typedef Tuples::Tuple	Tuple

Public Member Functions
	DeclareInterfaceID (ITupleTool, 2, 0)
	InterfaceID.

virtual Tuple	nTuple (const std::string &title, const CLID &clid=CLID_ColumnWiseTuple) const =0
	get N-tuple object ( book on-demand ) with unique identifier

virtual Tuple	nTuple (const TupleID &ID, const std::string &title="", const CLID &clid=CLID_ColumnWiseTuple) const =0

virtual Tuple	evtCol (const std::string &title, const CLID &clid=CLID_RowWiseTuple) const =0

virtual Tuple	evtCol (const TupleID &ID, const std::string &title="", const CLID &clid=CLID_RowWiseTuple) const =0

Public Member Functions inherited from IAlgTool
	DeclareInterfaceID (IAlgTool, 3, 0)
	InterfaceID.

virtual	~IAlgTool ()
	Virtual destructor.

virtual const std::string &	type () const =0
	The type of an AlgTool, meaning the concrete AlgTool class.

virtual const IInterface *	parent () const =0
	The parent of the concrete AlgTool.

virtual StatusCode	configure ()=0
	Configuration (from OFFLINE to CONFIGURED).

virtual StatusCode	initialize ()=0
	Initialization (from CONFIGURED to INITIALIZED).

virtual StatusCode	start ()=0
	Start (from INITIALIZED to RUNNING).

virtual StatusCode	stop ()=0
	Stop (from RUNNING to INITIALIZED).

virtual StatusCode	finalize ()=0
	Finalize (from INITIALIZED to CONFIGURED).

virtual StatusCode	terminate ()=0
	Initialization (from CONFIGURED to OFFLINE).

virtual StatusCode	reinitialize ()=0
	Initialization (from INITIALIZED or RUNNING to INITIALIZED, via CONFIGURED).

virtual StatusCode	restart ()=0
	Initialization (from RUNNING to RUNNING, via INITIALIZED).

virtual Gaudi::StateMachine::State	FSMState () const =0
	Get the current state.

virtual StatusCode	sysInitialize ()=0
	Initialization of the Tool.

virtual StatusCode	sysStart ()=0
	Initialization of the Tool.

virtual StatusCode	sysStop ()=0
	Initialization of the Tool.

virtual StatusCode	sysFinalize ()=0
	Finalization of the Tool.

virtual StatusCode	sysReinitialize ()=0
	Initialization of the Tool.

virtual StatusCode	sysRestart ()=0
	Initialization of the Tool.

virtual unsigned long	refCount () const =0
	Current number of reference counts.

Public Member Functions inherited from INamedInterface
	DeclareInterfaceID (INamedInterface, 1, 0)
	InterfaceID.

virtual const std::string &	name () const =0
	Retrieve the name of the instance.

virtual	~INamedInterface ()
	Virtual destructor (always needed for abstract classes).

Public Member Functions inherited from IInterface
virtual void *	i_cast (const InterfaceID &) const =0
	main cast function

virtual std::vector< std::string >	getInterfaceNames () const =0
	Returns a vector of strings containing the names of all the implemented interfaces.

virtual unsigned long	addRef ()=0
	Increment the reference count of Interface instance.

virtual unsigned long	release ()=0
	Release Interface instance.

virtual StatusCode	queryInterface (const InterfaceID &ti, void **pp)=0
	Set the void** to the pointer to the requested interface of the instance.

virtual	~IInterface ()
	Virtual destructor.

Protected Member Functions
virtual	~ITupleTool ()
	Destructor.

Additional Inherited Members
Static Public Member Functions inherited from IInterface
static const InterfaceID &	interfaceID ()
	Return an instance of InterfaceID identifying the interface.

Detailed Description

Author: Vanya BELYAEV Ivan..nosp@m.Bely.nosp@m.aev@i.nosp@m.tep..nosp@m.ru

Date: 2004-06-28

Definition at line 33 of file ITupleTool.h.

Member Typedef Documentation

typedef Tuples::Tuple ITupleTool::Tuple

Definition at line 40 of file ITupleTool.h.

typedef Tuples::TupleID ITupleTool::TupleID

Definition at line 39 of file ITupleTool.h.

Constructor & Destructor Documentation

ITupleTool::~ITupleTool ( )

protectedvirtual

Destructor.

virtual protected destructor

Definition at line 17 of file ITupleTool.cpp.

{}

Member Function Documentation

ITupleTool::DeclareInterfaceID	(	ITupleTool	,
		2	,
		0
	)

InterfaceID.

virtual Tuple ITupleTool::evtCol	(	const std::string &	title,
		const CLID &	clid = `CLID_RowWiseTuple`
	)		const

pure virtual

Implemented in TupleTool.

virtual Tuple ITupleTool::evtCol	(	const TupleID &	ID,
		const std::string &	title = `""`,
		const CLID &	clid = `CLID_RowWiseTuple`
	)		const

pure virtual

Implemented in TupleTool.

virtual Tuple ITupleTool::nTuple	(	const std::string &	title,
		const CLID &	clid = `CLID_ColumnWiseTuple`
	)		const

pure virtual

get N-tuple object ( book on-demand ) with unique identifier

ITupleTool* tool = .. ;
Tuple tuple = tool->nTuple( 'My tuple' ) ;
tuple->column( "A" , sin(0.1) );
tuple->column( "B" , cos(0.1) );
tuple->column( "C" , tan(0.1) );
tuple->write()

NTuple will be booked with automatically assigned numerical ID

Parameters

title	unique title for ntuple
clid	class identifier

Returns: ntuple object

Implemented in TupleTool.

virtual Tuple ITupleTool::nTuple	(	const TupleID &	ID,
		const std::string &	title = `""`,
		const CLID &	clid = `CLID_ColumnWiseTuple`
	)		const

pure virtual

Implemented in TupleTool.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r6/GaudiAlg/GaudiAlg/ITupleTool.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r6/GaudiAlg/src/lib/ITupleTool.cpp

Gaudi Framework, version v23r6
