#include <SmartRefVector.h>

Inheritance diagram for SmartRefVector< TYPE >:

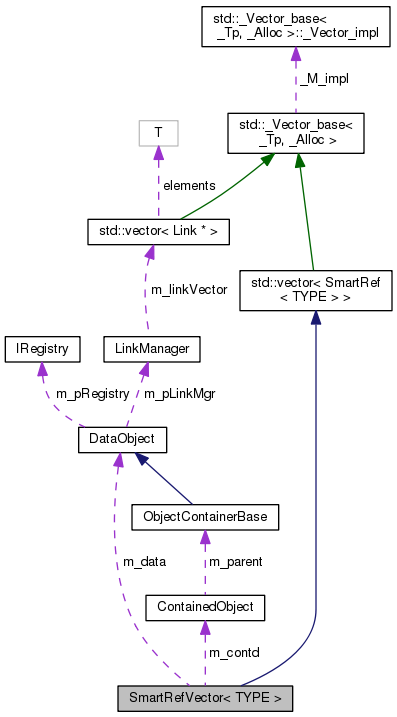

Collaboration diagram for SmartRefVector< TYPE >:

Public Member Functions
	SmartRefVector ()
	Standard Constructor.

template<class ITERATOR >
	SmartRefVector (ITERATOR first, ITERATOR last)
	templated Constructor

	SmartRefVector (const SmartRefVector &copy)
	Copy Constructor.

SmartRefVector< TYPE > &	operator() (ContainedObject *pObj)
	Standard destructor.

const SmartRefVector< TYPE > &	operator() (const ContainedObject *pObj) const
	operator() const: assigns parent object for serialisation

SmartRefVector< TYPE > &	operator() (DataObject *pObj)
	operator(): assigns parent object for serialisation

const SmartRefVector< TYPE > &	operator() (const DataObject *pObj) const
	operator() const: assigns parent object for serialisation

SmartRefVector< TYPE > &	operator= (const SmartRefVector< TYPE > &copy)
	Assignment.

const std::type_info *	type () const
	Access to embedded type.

StreamBuffer &	readRefs (StreamBuffer &s)
	Helper to read references.

StreamBuffer &	writeRefs (StreamBuffer &s) const
	Helper to write references.

Public Member Functions inherited from std::vector< SmartRef< TYPE > >
void	assign (_InputIterator __first, _InputIterator __last)

void	assign (size_type __n, const value_type &__val)

const_reference	at (size_type __n) const

reference	at (size_type __n)

const_reference	back () const

reference	back ()

const_iterator	begin () const

iterator	begin ()

size_type	capacity () const

void	clear ()

const_pointer	data () const

pointer	data ()

bool	empty () const

const_iterator	end () const

iterator	end ()

iterator	erase (iterator __first, iterator __last)

iterator	erase (iterator __position)

const_reference	front () const

reference	front ()

void	insert (iterator __position, _InputIterator __first, _InputIterator __last)

void	insert (iterator __position, size_type __n, const value_type &__x)

iterator	insert (iterator __position, const value_type &__x)

size_type	max_size () const

vector &	operator= (const vector &__x)

const_reference	operator[] (size_type __n) const

reference	operator[] (size_type __n)

void	pop_back ()

void	push_back (const value_type &__x)

const_reverse_iterator	rbegin () const

reverse_iterator	rbegin ()

const_reverse_iterator	rend () const

reverse_iterator	rend ()

void	reserve (size_type __n)

void	resize (size_type __new_size, value_type __x=value_type())

size_type	size () const

void	swap (vector &__x)

	vector (_InputIterator __first, _InputIterator __last, const allocator_type &__a=allocator_type())

	vector (const vector &__x)

	vector (size_type __n, const value_type &__value=value_type(), const allocator_type &__a=allocator_type())

	vector (const allocator_type &__a)

	vector ()

	~vector ()

SmartRef< TYPE > *	_M_allocate (size_t __n)

void	_M_deallocate (SmartRef< TYPE > *__p, size_t __n)

const _Tp_alloc_type &	_M_get_Tp_allocator () const

_Tp_alloc_type &	_M_get_Tp_allocator ()

allocator_type	get_allocator () const

Protected Types
typedef SmartRef< TYPE >	_Entry
	That's the type of crap I am hosting.

typedef std::vector< _Entry >	_Base
	Object types: typedef myself as Base.

typedef std::vector< _Entry > ::const_iterator	_BaseConstIter

typedef std::vector< _Entry > ::value_type	_BaseValueType

Protected Member Functions
void	_setEnvironment (const DataObject pObj, const ContainedObject pContd) const
	Set the environment for the vector and all contained objects references.

Protected Member Functions inherited from std::vector< SmartRef< TYPE > >
pointer	_M_allocate_and_copy (size_type __n, _ForwardIterator __first, _ForwardIterator __last)

void	_M_assign_aux (_ForwardIterator __first, _ForwardIterator __last, std::forward_iterator_tag)

void	_M_assign_aux (_InputIterator __first, _InputIterator __last, std::input_iterator_tag)

void	_M_assign_dispatch (_InputIterator __first, _InputIterator __last, __false_type)

void	_M_assign_dispatch (_Integer __n, _Integer __val, __true_type)

size_type	_M_check_len (size_type __n, const char *__s) const

void	_M_erase_at_end (pointer __pos)

void	_M_fill_assign (size_type __n, const value_type &__val)

void	_M_fill_initialize (size_type __n, const value_type &__value)

void	_M_fill_insert (iterator __pos, size_type __n, const value_type &__x)

void	_M_initialize_dispatch (_InputIterator __first, _InputIterator __last, __false_type)

void	_M_initialize_dispatch (_Integer __n, _Integer __value, __true_type)

void	_M_insert_aux (iterator __position, const value_type &__x)

void	_M_insert_dispatch (iterator __pos, _InputIterator __first, _InputIterator __last, __false_type)

void	_M_insert_dispatch (iterator __pos, _Integer __n, _Integer __val, __true_type)

void	_M_range_check (size_type __n) const

void	_M_range_initialize (_ForwardIterator __first, _ForwardIterator __last, std::forward_iterator_tag)

void	_M_range_initialize (_InputIterator __first, _InputIterator __last, std::input_iterator_tag)

void	_M_range_insert (iterator __pos, _ForwardIterator __first, _ForwardIterator __last, std::forward_iterator_tag)

void	_M_range_insert (iterator __pos, _InputIterator __first, _InputIterator __last, std::input_iterator_tag)

Protected Member Functions inherited from std::_Vector_base< _Tp, _Alloc >
_Tp *	_M_allocate (size_t __n)

void	_M_deallocate (_Tp *__p, size_t __n)

const _Tp_alloc_type &	_M_get_Tp_allocator () const

_Tp_alloc_type &	_M_get_Tp_allocator ()

	_Vector_base (size_t __n, const allocator_type &__a)

	_Vector_base (const allocator_type &__a)

	_Vector_base ()

allocator_type	get_allocator () const

	~_Vector_base ()

Protected Attributes
const DataObject *	m_data
	Object data: Pointer to the identifiable object the link originates.

const ContainedObject *	m_contd
	Object data: Pointer to the Contained object (if applicable)

Friends
StreamBuffer &	operator<< (StreamBuffer &_s, const SmartRefVector< TYPE > &ptr)
	Output Streamer operator.

StreamBuffer &	operator>> (StreamBuffer &_s, SmartRefVector< TYPE > &ptr)
	Input Streamer operator.

Additional Inherited Members
Public Types inherited from std::vector< SmartRef< TYPE > >
typedef _Alloc	allocator_type

typedef __gnu_cxx::__normal_iterator < const_pointer, vector_type >	const_iterator

typedef _Tp_alloc_type::const_pointer	const_pointer

typedef _Tp_alloc_type::const_reference	const_reference

typedef std::reverse_iterator < const_iterator >	const_reverse_iterator

typedef ptrdiff_t	difference_type

typedef __gnu_cxx::__normal_iterator < pointer, vector_type >	iterator

typedef _Tp_alloc_type::pointer	pointer

typedef _Tp_alloc_type::reference	reference

typedef std::reverse_iterator < iterator >	reverse_iterator

typedef size_t	size_type

typedef SmartRef< TYPE >	value_type

Public Attributes inherited from std::vector< SmartRef< TYPE > >
_Vector_impl	_M_impl

T	elements
	STL member.

Detailed Description

template<class TYPE>
class SmartRefVector< TYPE >

Kernel objects: SmartRefVector.

Description: The SmartRefVector class allows transparent handling of multiple object links within the data store. Links are unloaded a priori and will only be loaded "on demand", i.e. when dereferenced.

SmartRefVectors should behave in the same way as normal vectors of pointers;

Using SmartRefVectors the environment of the vector is automatically propagated to each contained reference.

In order to speed things up, an attempt was made to avoid any virtual functions.

Base Class: STL vector

Dependencies:

Base class: vector
SmartRef constructs: Gaudi/Kernel/SmartRef.h

History :

+---------+----------------------------------------------+--------+
|    Date |                 Comment                      | Who    |
+---------+----------------------------------------------+--------+
| 12/07/99| Initial version.                             | MF     |
+---------+----------------------------------------------+--------+

Author: M.Frank Version: 1.0

Definition at line 54 of file SmartRefVector.h.

Member Typedef Documentation

template<class TYPE>

typedef std::vector<_Entry> SmartRefVector< TYPE >::_Base

protected

Object types: typedef myself as Base.

Definition at line 59 of file SmartRefVector.h.

template<class TYPE>

typedef std::vector<_Entry>::const_iterator SmartRefVector< TYPE >::_BaseConstIter

protected

Definition at line 60 of file SmartRefVector.h.

template<class TYPE>

typedef std::vector<_Entry>::value_type SmartRefVector< TYPE >::_BaseValueType

protected

Definition at line 61 of file SmartRefVector.h.

template<class TYPE>

typedef SmartRef<TYPE> SmartRefVector< TYPE >::_Entry

protected

That's the type of crap I am hosting.

Definition at line 57 of file SmartRefVector.h.

Constructor & Destructor Documentation

template<class TYPE>

SmartRefVector< TYPE >::SmartRefVector ( )

inline

Standard Constructor.

Definition at line 78 of file SmartRefVector.h.

                    {
    m_contd  = 0;
    m_data   = 0;
  }

template<class TYPE>

template<class ITERATOR >

SmartRefVector< TYPE >::SmartRefVector	(	ITERATOR	first,
		ITERATOR	last
	)

inline

templated Constructor

Definition at line 84 of file SmartRefVector.h.

    :  std::vector< SmartRef<TYPE> >( first , last )
    , m_data  ( 0 )
    , m_contd ( 0 )
  {

  }

template<class TYPE>

SmartRefVector< TYPE >::SmartRefVector ( const SmartRefVector< TYPE > & copy )

inline

Copy Constructor.

Definition at line 92 of file SmartRefVector.h.

    :  std::vector< SmartRef<TYPE> >(copy) {
    *this = copy;
  }

Member Function Documentation

template<class TYPE>

void SmartRefVector< TYPE >::_setEnvironment	(	const DataObject *	pObj,
		const ContainedObject *	pContd
	)		const

inlineprotected

Set the environment for the vector and all contained objects references.

Definition at line 69 of file SmartRefVector.h.

                                                                                      {
    m_data  = pObj;
    m_contd = pContd;
    for ( _BaseConstIter i = _Base::begin(); i != _Base::end(); i++ )   {
      (*i)._setEnvironment(pObj, pContd);
    }
  }

template<class TYPE>

SmartRefVector<TYPE>& SmartRefVector< TYPE >::operator() ( ContainedObject * pObj )

inline

Standard destructor.

operator(): assigns parent object for serialisation

Definition at line 101 of file SmartRefVector.h.

                                                              {
    _setEnvironment((0==pObj) ? 0 : pObj->parent(), pObj);
    return *this;
  }

template<class TYPE>

const SmartRefVector<TYPE>& SmartRefVector< TYPE >::operator() ( const ContainedObject * pObj ) const

inline

operator() const: assigns parent object for serialisation

Definition at line 106 of file SmartRefVector.h.

                                                                               {
    _setEnvironment((0==pObj) ? 0 : pObj->parent(), pObj);
    return *this;
  }

template<class TYPE>

SmartRefVector<TYPE>& SmartRefVector< TYPE >::operator() ( DataObject * pObj )

inline

operator(): assigns parent object for serialisation

Definition at line 111 of file SmartRefVector.h.

                                                         {
    _setEnvironment(pObj,0);
    return *this;
  }

template<class TYPE>

const SmartRefVector<TYPE>& SmartRefVector< TYPE >::operator() ( const DataObject * pObj ) const

inline

operator() const: assigns parent object for serialisation

Definition at line 116 of file SmartRefVector.h.

                                                                          {
    _setEnvironment(pObj,0);
    return *this;
  }

template<class TYPE>

SmartRefVector<TYPE>& SmartRefVector< TYPE >::operator= ( const SmartRefVector< TYPE > & copy )

inline

Assignment.

Definition at line 121 of file SmartRefVector.h.

                                                                     {
    _Base::operator=(copy);
    // Harms.... MF
    // on copy we MUST make a 1 to 1 copy
    // _setEnvironment( copy.m_data, copy.m_contd );
    // use instead:
    m_data  = copy.m_data;
    m_contd = copy.m_contd;
    return *this;
  }

template<class TYPE >

StreamBuffer & SmartRefVector< TYPE >::readRefs ( StreamBuffer & s )

inline

Helper to read references.

Definition at line 163 of file SmartRefVector.h.

                                                               {
  long len;
  _Base::erase( _Base::begin(), _Base::end() );
  s >> len;
  for ( long i = 0; i < len; i++ )    {
    _BaseValueType entry;
    entry._setEnvironment(m_data, m_contd);
    entry.readRef(s);
    _Base::push_back( entry );
  }
  return s;
}

template<class TYPE>

const std::type_info* SmartRefVector< TYPE >::type ( ) const

inline

Access to embedded type.

Definition at line 132 of file SmartRefVector.h.

                                      {
    return &typeid(TYPE);
  }

template<class TYPE >

StreamBuffer & SmartRefVector< TYPE >::writeRefs ( StreamBuffer & s ) const

inline

Helper to write references.

Definition at line 152 of file SmartRefVector.h.

                                                                     {
  long len = _Base::size();
  s << len;
  for ( _BaseConstIter i = _Base::begin(); i != _Base::end(); i++ )   {
    (*i)._setEnvironment(m_data, m_contd);
    (*i).writeRef(s);
  }
  return s;
}

Friends And Related Function Documentation

template<class TYPE>

StreamBuffer& operator<<	(	StreamBuffer &	_s,
		const SmartRefVector< TYPE > &	ptr
	)

friend

Output Streamer operator.

Definition at line 141 of file SmartRefVector.h.

                                                                                        {
    return ptr.writeRefs(_s);
  }

template<class TYPE>

StreamBuffer& operator>>	(	StreamBuffer &	_s,
		SmartRefVector< TYPE > &	ptr
	)

friend

Input Streamer operator.

Definition at line 146 of file SmartRefVector.h.

                                                                                    {
    return ptr.readRefs(_s);
  }

Member Data Documentation

template<class TYPE>

const ContainedObject* SmartRefVector< TYPE >::m_contd

mutableprotected

Object data: Pointer to the Contained object (if applicable)

Definition at line 66 of file SmartRefVector.h.

template<class TYPE>

const DataObject* SmartRefVector< TYPE >::m_data

mutableprotected

Object data: Pointer to the identifiable object the link originates.

Definition at line 64 of file SmartRefVector.h.

The documentation for this class was generated from the following file:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r6/GaudiKernel/GaudiKernel/SmartRefVector.h

Gaudi Framework, version v23r6

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

template<class TYPE> class SmartRefVector< TYPE >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation

template<class TYPE>
class SmartRefVector< TYPE >
