#include <SmartRef.h>

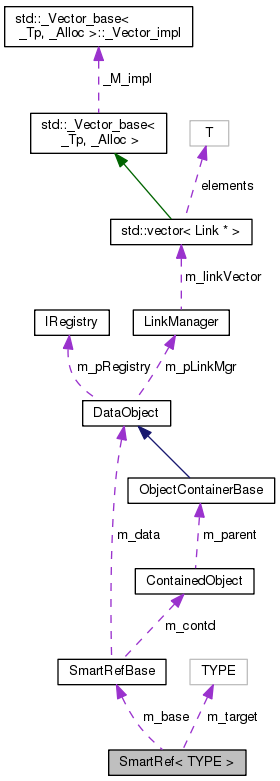

Collaboration diagram for SmartRef< TYPE >:

Public Types
enum	{ VALID = StreamBuffer::VALID, INVALID = StreamBuffer::INVALID }

typedef TYPE	entry_type
	Entry type definition.

Public Member Functions
	SmartRef ()
	Standard Constructor.

	SmartRef (TYPE *pObject)
	Standard Constructor with initialisation.

	SmartRef (const TYPE *pObject)
	Standard Constructor with initialisation from const object.

	SmartRef (const SmartRef &copy)
	Copy Constructor.

	SmartRef (long hint, long link, TYPE *obj=0)
	Constructor.

	SmartRef (const ContainedObject pObj, long hint, long link, TYPE obj=0)
	Constructor for references to contained objects passing environment.

	SmartRef (const DataObject pObj, long hint, long link, TYPE obj=0)
	Constructor for references to contained objects passing environment.

	SmartRef (const DataObject pObj, long hint, TYPE obj=0)
	Constructor for references to DataObjects passing environment.

bool	shouldFollowLink (const DataObject *) const
	Standard destructor.

bool	shouldFollowLink (const ContainedObject *) const
	Check if link should be followed: link must be valid and object not yet loaded.

long	hintID () const
	Access hint id:

long	linkID () const
	Access link id:

void	set (DataObject *pObj, long hint_id, long link_id)
	Setup smart reference when reading. Must be allowed from external sources.

const std::type_info *	type () const
	Access to embedded type.

TYPE *	data ()
	Access to raw data pointer.

const TYPE *	data () const

const TYPE *	target () const
	Access to the object.

TYPE *	target ()
	Access to the object.

const std::string &	path () const
	Return the path of the linked object inside the data store.

bool	operator== (const SmartRef< TYPE > &c) const
	Equality operator.

bool	operator!= (const SmartRef< TYPE > &c) const
	NON-Equality operator.

const SmartRef< TYPE > &	_setEnvironment (const DataObject pObj, const ContainedObject pContd) const
	Set the environment (CONST)

SmartRef< TYPE > &	_setEnvironment (const DataObject pObj, const ContainedObject pContd)
	Set the environment (CONST)

SmartRef< TYPE > &	operator() (ContainedObject *pObj)
	operator(): assigns parent object for serialisation

const SmartRef< TYPE > &	operator() (const ContainedObject *pObj) const
	operator() const: assigns parent object for serialisation

SmartRef< TYPE > &	operator() (DataObject *pObj)
	operator(): assigns parent object for serialisation

const SmartRef< TYPE > &	operator() (const DataObject *pObj) const
	operator() const: assigns parent object for serialisation

SmartRef< TYPE > &	operator= (const SmartRef< TYPE > &c)
	Assignment.

SmartRef< TYPE > &	operator= (TYPE *pObject)
	Assignment.

TYPE &	operator* ()
	Dereference operator.

const TYPE &	operator* () const
	Dereference operator.

TYPE *	operator-> ()
	Dereference operator.

const TYPE *	operator-> () const
	Dereference operator to const object.

	operator const TYPE * () const
	Implicit type conversion to const object.

	operator TYPE * ()
	Implicit type conversion.

StreamBuffer &	writeRef (StreamBuffer &s) const
	Write the reference to the stream buffer (needed due to stupid G++ compiler)

StreamBuffer &	readRef (StreamBuffer &s)
	Read the reference from the stream buffer (needed due to stupid G++ compiler)

Protected Attributes
SmartRefBase	m_base

const TYPE *	m_target
	Pointer to target data object.

Friends
class	SmartRefArray< TYPE >
	The container must be a friend.

class	SmartRefList< TYPE >

class	SmartRefMap< TYPE >

StreamBuffer &	operator<< (StreamBuffer &_s, const SmartRef< TYPE > &ptr)
	Output Streamer operator.

StreamBuffer &	operator>> (StreamBuffer &_s, SmartRef< TYPE > &ptr)
	Input Streamer operator.

Detailed Description

template<class TYPE>
class SmartRef< TYPE >

Kernel objects: SmartRef.

Description: The SmartRef class allows transparent handling of object links within the data store. Links are unloaded a priori and will only be loaded "on demand", i.e. when dereferenced.

SmartRefs should behave in the same way as normal pointers; The SmartRef object in fact is a smart pointer construct intercepting the dereference operators.

When loading, the executed code resides in the non templated base class. This ensures, that the templated code is minimized and code blow up is inhibited.

Using SmartRefs StreamBuffers are able to also save the references on data conversion requests.

Base Class: SmartRefBase

Dependencies:

Base class: GaudiKernel/SmartRefBase.h

History :

+---------+----------------------------------------------+--------+
|    Date |                 Comment                      | Who    |
+---------+----------------------------------------------+--------+
| 21/04/99| Initial version.                             | MF     |
| 16/01/04| Move base class into aggregation.            | MF     |
+---------+----------------------------------------------+--------+

Author: M.Frank Version: 1.0

Definition at line 62 of file SmartRef.h.

Member Typedef Documentation

template<class TYPE>

typedef TYPE SmartRef< TYPE >::entry_type

Entry type definition.

Definition at line 71 of file SmartRef.h.

Member Enumeration Documentation

template<class TYPE>

anonymous enum

Enumerator:

VALID
INVALID

Definition at line 69 of file SmartRef.h.

{ VALID = StreamBuffer::VALID, INVALID = StreamBuffer::INVALID };

Constructor & Destructor Documentation

template<class TYPE>

SmartRef< TYPE >::SmartRef ( )

inline

Standard Constructor.

Definition at line 79 of file SmartRef.h.

              {
    m_base.m_hintID = INVALID;
    m_base.m_linkID = INVALID;
    m_target = 0;
    _setEnvironment(0, 0);
  }

template<class TYPE>

SmartRef< TYPE >::SmartRef ( TYPE * pObject )

inline

Standard Constructor with initialisation.

Definition at line 86 of file SmartRef.h.

                           {
    m_base.m_hintID = INVALID;
    m_base.m_linkID = INVALID;
    m_target = pObject;
    _setEnvironment(0, 0);
  }

template<class TYPE>

SmartRef< TYPE >::SmartRef ( const TYPE * pObject )

inline

Standard Constructor with initialisation from const object.

Definition at line 93 of file SmartRef.h.

                                 {
    m_base.m_hintID = INVALID;
    m_base.m_linkID = INVALID;
    m_target = const_cast<TYPE*>(pObject);
    _setEnvironment(0, 0);
  }

template<class TYPE>

SmartRef< TYPE >::SmartRef ( const SmartRef< TYPE > & copy )

inline

Copy Constructor.

Definition at line 100 of file SmartRef.h.

                                   {
    m_base.m_hintID = copy.m_base.m_hintID;
    m_base.m_linkID = copy.m_base.m_linkID;
    m_target = copy.m_target;
    _setEnvironment(copy.m_base.m_data, copy.m_base.m_contd);
  }

template<class TYPE>

SmartRef< TYPE >::SmartRef	(	long	hint,
		long	link,
		TYPE *	obj = `0`
	)

inline

Constructor.

Definition at line 107 of file SmartRef.h.

                                                  {
    m_base.m_hintID = hint;
    m_base.m_linkID = link;
    m_target = obj;
    _setEnvironment(0, 0);
  }

template<class TYPE>

SmartRef< TYPE >::SmartRef	(	const ContainedObject *	pObj,
		long	hint,
		long	link,
		TYPE *	obj = `0`
	)

inline

Constructor for references to contained objects passing environment.

Definition at line 114 of file SmartRef.h.

                                                                               {
    m_base.m_hintID = hint;
    m_base.m_linkID = link;
    m_target = obj;
    const DataObject* src = (0==pObj) ? 0 : pObj->parent();
    _setEnvironment(src, pObj);
  }

template<class TYPE>

SmartRef< TYPE >::SmartRef	(	const DataObject *	pObj,
		long	hint,
		long	link,
		TYPE *	obj = `0`
	)

inline

Constructor for references to contained objects passing environment.

Definition at line 122 of file SmartRef.h.

                                                                          {
    m_base.m_hintID = hint;
    m_base.m_linkID = link;
    m_target = obj;
    _setEnvironment(pObj, 0);
  }

template<class TYPE>

SmartRef< TYPE >::SmartRef	(	const DataObject *	pObj,
		long	hint,
		TYPE *	obj = `0`
	)

inline

Constructor for references to DataObjects passing environment.

Definition at line 129 of file SmartRef.h.

                                                               {
    m_base.m_hintID = hint;
    m_base.m_linkID = INVALID;
    m_target = obj;
    _setEnvironment(pObj, 0);
  }

Member Function Documentation

template<class TYPE>

const SmartRef<TYPE>& SmartRef< TYPE >::_setEnvironment	(	const DataObject *	pObj,
		const ContainedObject *	pContd
	)		const

inline

Set the environment (CONST)

Definition at line 196 of file SmartRef.h.

                                                                                                        {
    m_base.m_data  = pObj;
    m_base.m_contd = pContd;
    m_base.setObjectType(data());
    return *this;
  }

template<class TYPE>

SmartRef<TYPE>& SmartRef< TYPE >::_setEnvironment	(	const DataObject *	pObj,
		const ContainedObject *	pContd
	)

inline

Set the environment (CONST)

Definition at line 203 of file SmartRef.h.

                                                                                            {
    m_base.m_data  = pObj;
    m_base.m_contd = pContd;
    m_base.setObjectType(data());
    return *this;
  }

template<class TYPE>

TYPE* SmartRef< TYPE >::data ( )

inline

Access to raw data pointer.

Definition at line 163 of file SmartRef.h.

                  {
    return const_cast<TYPE*>(m_target);
  }

template<class TYPE>

const TYPE* SmartRef< TYPE >::data ( ) const

inline

Definition at line 166 of file SmartRef.h.

                              {
    return m_target;
  }

template<class TYPE>

long SmartRef< TYPE >::hintID ( ) const

inline

Access hint id:

Definition at line 147 of file SmartRef.h.

                          {
    return m_base.m_hintID;
  }

template<class TYPE>

long SmartRef< TYPE >::linkID ( ) const

inline

Access link id:

Definition at line 151 of file SmartRef.h.

                          {
    return m_base.m_linkID;
  }

template<class TYPE>

SmartRef< TYPE >::operator const TYPE * ( ) const

inline

Implicit type conversion to const object.

Definition at line 249 of file SmartRef.h.

{ return SmartRef<TYPE>::target(); }

template<class TYPE>

SmartRef< TYPE >::operator TYPE * ( )

inline

Implicit type conversion.

Definition at line 251 of file SmartRef.h.

{ return SmartRef<TYPE>::target(); }

template<class TYPE>

bool SmartRef< TYPE >::operator!= ( const SmartRef< TYPE > & c ) const

inline

NON-Equality operator.

Definition at line 192 of file SmartRef.h.

                                                     {
    return !(this->operator==(c));
  }

template<class TYPE>

SmartRef<TYPE>& SmartRef< TYPE >::operator() ( ContainedObject * pObj )

inline

operator(): assigns parent object for serialisation

Definition at line 210 of file SmartRef.h.

                                                        {
    const DataObject* src = (0==pObj) ? 0 : pObj->parent();
    return _setEnvironment(src, pObj);
  }

template<class TYPE>

const SmartRef<TYPE>& SmartRef< TYPE >::operator() ( const ContainedObject * pObj ) const

inline

operator() const: assigns parent object for serialisation

Definition at line 215 of file SmartRef.h.

                                                                         {
    const DataObject* src = (0==pObj) ? 0 : pObj->parent();
    return _setEnvironment(src, pObj);
  }

template<class TYPE>

SmartRef<TYPE>& SmartRef< TYPE >::operator() ( DataObject * pObj )

inline

operator(): assigns parent object for serialisation

Definition at line 220 of file SmartRef.h.

                                                   {
    return _setEnvironment(pObj,0);
  }

template<class TYPE>

const SmartRef<TYPE>& SmartRef< TYPE >::operator() ( const DataObject * pObj ) const

inline

operator() const: assigns parent object for serialisation

Definition at line 224 of file SmartRef.h.

                                                                    {
    return _setEnvironment(pObj,0);
  }

template<class TYPE>

TYPE& SmartRef< TYPE >::operator* ( )

inline

Dereference operator.

Definition at line 241 of file SmartRef.h.

{ return *SmartRef<TYPE>::target(); }

template<class TYPE>

const TYPE& SmartRef< TYPE >::operator* ( ) const

inline

Dereference operator.

Definition at line 243 of file SmartRef.h.

{ return *SmartRef<TYPE>::target(); }

template<class TYPE>

TYPE* SmartRef< TYPE >::operator-> ( )

inline

Dereference operator.

Definition at line 245 of file SmartRef.h.

{ return SmartRef<TYPE>::target(); }

template<class TYPE>

const TYPE* SmartRef< TYPE >::operator-> ( ) const

inline

Dereference operator to const object.

Definition at line 247 of file SmartRef.h.

{ return SmartRef<TYPE>::target(); }

template<class TYPE>

SmartRef<TYPE>& SmartRef< TYPE >::operator= ( const SmartRef< TYPE > & c )

inline

Assignment.

Definition at line 228 of file SmartRef.h.

                                                      {
    m_target = c.m_target;
    m_base.m_hintID = c.m_base.m_hintID;
    m_base.m_linkID = c.m_base.m_linkID;
    return _setEnvironment(c.m_base.m_data, c.m_base.m_contd);  }

template<class TYPE>

SmartRef<TYPE>& SmartRef< TYPE >::operator= ( TYPE * pObject )

inline

Assignment.

Definition at line 234 of file SmartRef.h.

                                             {
    m_target = pObject;
    m_base.m_hintID = INVALID;
    m_base.m_linkID = INVALID;
    return *this;
  }

template<class TYPE>

bool SmartRef< TYPE >::operator== ( const SmartRef< TYPE > & c ) const

inline

Equality operator.

Definition at line 176 of file SmartRef.h.

                                                     {
    if ( 0 != m_target && 0 != c.m_target )   {
      return m_target == c.m_target;
    }
    else if ( 0 == m_target && 0 == c.m_target )    {
      return m_base.isEqual(m_target,c.m_base);
    }
    else if ( 0 != m_target && 0 == c.m_target )  {
      return m_base.isEqualEx(m_target, c.m_base);
    }
    else if ( 0 == m_target && 0 != c.m_target )  {
      return c.m_base.isEqualEx(c.m_target, m_base);
    }
    return false;
  }

template<class TYPE>

const std::string& SmartRef< TYPE >::path ( ) const

inline

Return the path of the linked object inside the data store.

Definition at line 174 of file SmartRef.h.

{ return m_base.path(); }

template<class TYPE >

StreamBuffer & SmartRef< TYPE >::readRef ( StreamBuffer & s )

inline

Read the reference from the stream buffer (needed due to stupid G++ compiler)

Definition at line 304 of file SmartRef.h.

                                                        {
  m_target = dynamic_cast<TYPE*>( m_base.readObject(m_target, s) );
  return s;
}

template<class TYPE>

void SmartRef< TYPE >::set	(	DataObject *	pObj,
		long	hint_id,
		long	link_id
	)

inline

Setup smart reference when reading. Must be allowed from external sources.

Definition at line 155 of file SmartRef.h.

                                                         {
     m_base.set(pObj, hint_id, link_id);
  }

template<class TYPE>

bool SmartRef< TYPE >::shouldFollowLink ( const DataObject * ) const

inline

Standard destructor.

Check if link should be followed: link must be valid and object not yet loaded

Definition at line 139 of file SmartRef.h.

                                                     {
    return (0 == m_target && m_base.m_hintID != INVALID );
  }

template<class TYPE>

bool SmartRef< TYPE >::shouldFollowLink ( const ContainedObject * ) const

inline

Check if link should be followed: link must be valid and object not yet loaded.

Definition at line 143 of file SmartRef.h.

                                                          {
    return (0 == m_target && m_base.m_hintID != INVALID && m_base.m_linkID != INVALID );
  }

template<class TYPE >

const TYPE * SmartRef< TYPE >::target ( ) const

inline

Access to the object.

Access to the object (CONST)

Definition at line 288 of file SmartRef.h.

                                           {
  if ( 0 == m_target )    {
    m_target = dynamic_cast<const TYPE*>(m_base.accessData(m_target));
  }
  return m_target;
}

template<class TYPE >

TYPE * SmartRef< TYPE >::target ( )

inline

Access to the object.

Definition at line 279 of file SmartRef.h.

                              {
  if ( 0 == m_target )    {
    m_target = dynamic_cast<const TYPE*>(m_base.accessData(m_target));
  }
  return const_cast<TYPE*>(m_target);
}

template<class TYPE>

const std::type_info* SmartRef< TYPE >::type ( ) const

inline

Access to embedded type.

Definition at line 159 of file SmartRef.h.

                                      {
    return &typeid(TYPE);
  }

template<class TYPE >

StreamBuffer & SmartRef< TYPE >::writeRef ( StreamBuffer & s ) const

inline

Write the reference to the stream buffer (needed due to stupid G++ compiler)

Definition at line 297 of file SmartRef.h.

                                                                  {
  m_base.writeObject(m_target, s);
  return s;
}

Friends And Related Function Documentation

template<class TYPE>

StreamBuffer& operator<<	(	StreamBuffer &	_s,
		const SmartRef< TYPE > &	ptr
	)

friend

Output Streamer operator.

Definition at line 258 of file SmartRef.h.

                                                                                 {
    return ptr.writeRef(_s);
  }

template<class TYPE>

StreamBuffer& operator>>	(	StreamBuffer &	_s,
		SmartRef< TYPE > &	ptr
	)

friend

Input Streamer operator.

Definition at line 263 of file SmartRef.h.

                                                                             {
    return ptr.readRef(_s);
  }

template<class TYPE>

friend class SmartRefArray< TYPE >

friend

The container must be a friend.

Definition at line 64 of file SmartRef.h.

template<class TYPE>

friend class SmartRefList< TYPE >

friend

Definition at line 65 of file SmartRef.h.

template<class TYPE>

friend class SmartRefMap< TYPE >

friend

Definition at line 66 of file SmartRef.h.

Member Data Documentation

template<class TYPE>

SmartRefBase SmartRef< TYPE >::m_base

protected

Definition at line 73 of file SmartRef.h.

template<class TYPE>

const TYPE* SmartRef< TYPE >::m_target

mutableprotected

Pointer to target data object.

Definition at line 75 of file SmartRef.h.

The documentation for this class was generated from the following file:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r7/GaudiKernel/GaudiKernel/SmartRef.h

Gaudi Framework, version v23r7

Public Types

Public Member Functions

Protected Attributes

Friends

Detailed Description

template<class TYPE> class SmartRef< TYPE >

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation

template<class TYPE>
class SmartRef< TYPE >
