AIDA implementation for 1 D histograms using ROOT THD1. More...

#include <H1D.h>

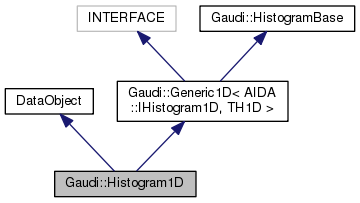

Inheritance diagram for Gaudi::Histogram1D:

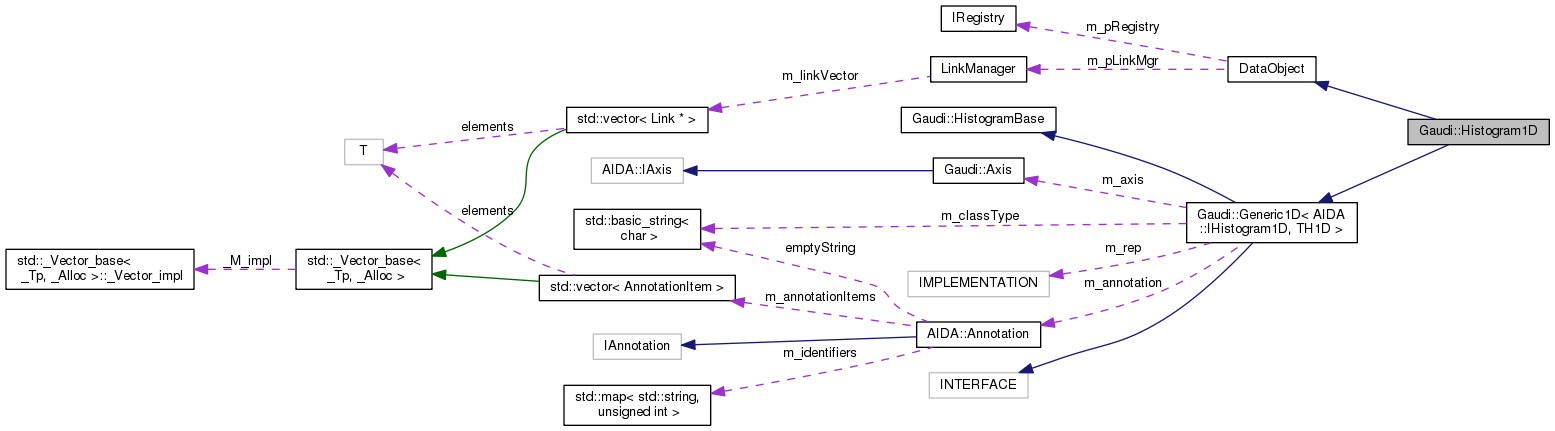

Collaboration diagram for Gaudi::Histogram1D:

Public Member Functions
	Histogram1D ()
	Standard constructor.

	Histogram1D (TH1D *rep)
	Standard constructor with initialization. The histogram representation will be adopted.

virtual	~Histogram1D ()
	Destructor.

virtual void	adoptRepresentation (TObject *rep)
	Adopt ROOT histogram representation.

virtual bool	setBinContents (int i, int entries, double height, double error, double centre)
	set bin content (entries and centre are not used )

virtual bool	reset ()
	need to overwrite reset to reset the sums

virtual bool	setStatistics (int allEntries, double eqBinEntries, double mean, double rms)
	set histogram statistics

virtual bool	fill (double x, double weight)
	Fill the Profile1D with a value and the corresponding weight.

bool	setRms (double rms)
	Update histogram RMS.

void	copyFromAida (const AIDA::IHistogram1D &h)
	Create new histogram from any AIDA based histogram.

virtual const CLID &	clID () const
	Retrieve reference to class defininition identifier.

StreamBuffer &	serialize (StreamBuffer &s)
	Serialization mechanism, Serialize the object for reading.

StreamBuffer &	serialize (StreamBuffer &s) const
	Serialization mechanism, Serialize the object for writing.

Public Member Functions inherited from DataObject
	DataObject ()
	Standard Constructor.

	DataObject (const DataObject &)
	Copy Constructor.

virtual	~DataObject ()
	Standard Destructor.

virtual unsigned long	addRef ()
	Add reference to object.

virtual unsigned long	release ()
	release reference to object

const std::string &	name () const
	Retreive DataObject name. It is the name when registered in the store.

virtual StatusCode	update ()
	Provide empty placeholder for internal object reconfiguration callback.

void	setRegistry (IRegistry *pRegistry)
	Set pointer to Registry.

IRegistry *	registry () const
	Get pointer to Registry.

LinkManager *	linkMgr () const
	Retrieve Link manager.

unsigned char	version () const
	Retrieve version number of this object representation.

void	setVersion (unsigned char vsn)
	Set version number of this object representation.

unsigned long	refCount () const
	Return the refcount.

virtual std::ostream &	fillStream (std::ostream &s) const
	Fill the output stream (ASCII)

Public Member Functions inherited from Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >
	Generic1D ()
	Default constructor.

virtual	~Generic1D ()
	Default destructor.

virtual const std::string &	userLevelClassType () const
	The AIDA user-level unterface leaf class type.

virtual void *	cast (const std::string &cl) const
	Manual cast by class name.

TObject *	representation () const
	ROOT object implementation.

virtual std::string	title () const
	Get the title of the object.

virtual bool	setTitle (const std::string &title)
	Set the title of the object.

std::string	name () const
	object name

bool	setName (const std::string &newName)
	Set the name of the object.

virtual AIDA::IAnnotation &	annotation ()
	Access annotation object.

virtual const AIDA::IAnnotation &	annotation () const
	Access annotation object (cons)

Axis &	axis ()
	Access to axis object.

const Axis &	axis () const
	Get the x axis of the IHistogram1D.

virtual int	entries () const
	Get the number or all the entries.

virtual int	allEntries () const
	Get the number or all the entries, both in range and underflow/overflow bins of the IProfile.

virtual int	extraEntries () const
	Get the number of entries in the underflow and overflow bins.

virtual int	binEntries (int index) const
	Number of entries in the corresponding bin (ie the number of times fill was called for this bin).

virtual double	binRms (int index) const

virtual double	sumBinHeights () const
	Get the sum of in range bin heights in the IProfile.

virtual double	sumAllBinHeights () const
	Get the sum of all the bins heights (including underflow and overflow bin).

virtual double	sumExtraBinHeights () const
	Get the sum of the underflow and overflow bin height.

virtual double	minBinHeight () const
	Get the minimum height of the in-range bins.

virtual double	maxBinHeight () const
	Get the maximum height of the in-range bins.

virtual double	equivalentBinEntries () const
	Number of equivalent entries, i.e. `SUM[ weight ] ^ 2 / SUM[ weight^2 ]`

virtual bool	scale (double scaleFactor)
	Scale the weights and the errors of all the IHistogram's bins (in-range and out-of-range ones) by a given scale factor.

virtual bool	add (const INTERFACE &profile)
	Modifies this IProfile1D by adding the contents of profile to it.

virtual int	rIndex (int index) const
	operator methods

virtual double	binMean (int index) const
	The weighted mean of a bin.

virtual double	binHeight (int index) const
	Total height of the corresponding bin (ie the sum of the weights in this bin).

virtual double	binError (int index) const
	The error of a given bin.

virtual double	mean () const
	The mean of the whole IHistogram1D.

virtual double	rms () const
	The RMS of the whole IHistogram1D.

virtual int	coordToIndex (double coord) const
	Get the bin number corresponding to a given coordinate along the x axis.

virtual int	dimension () const
	Get the Histogram's dimension.

virtual std::ostream &	print (std::ostream &s) const
	Print (ASCII) the histogram into the output stream.

virtual std::ostream &	write (std::ostream &s) const
	Write (ASCII) the histogram table into the output stream.

virtual int	write (const char *file_name) const
	Write (ASCII) the histogram table into a file.

template<>
void *	cast (const std::string &className) const

template<>
int	binEntries (int index) const

template<>
void	adoptRepresentation (TObject *rep)
	Adopt ROOT histogram representation.

template<>
int	binEntries (int index) const

template<>
void *	cast (const std::string &className) const

template<>
void	adoptRepresentation (TObject *rep)
	Adopt ROOT histogram representation.

Public Member Functions inherited from Gaudi::HistogramBase
virtual	~HistogramBase ()

Static Public Member Functions
static const CLID &	classID ()

Static Public Member Functions inherited from DataObject
static const CLID &	classID ()
	Retrieve reference to class definition structure (static access)

Protected Attributes
double	m_sumwx
	cache sumwx when setting contents since I don't have bin mean

Protected Attributes inherited from Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >
Axis	m_axis
	Axis member.

AIDA::Annotation	m_annotation
	Object annotations.

IMPLEMENTATION *	m_rep
	Reference to underlying implementation.

std::string	m_classType

int	m_sumEntries

Private Member Functions
void	init (const std::string &title, bool initialize_axis=true)

void	initSums ()

Additional Inherited Members
Public Types inherited from Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >
typedef Generic1D< INTERFACE, IMPLEMENTATION >	Base

Friends inherited from DataObject

Detailed Description

AIDA implementation for 1 D histograms using ROOT THD1.

Author: M.Frank

Definition at line 17 of file H1D.h.

Constructor & Destructor Documentation

Gaudi::Histogram1D::Histogram1D ( )

Standard constructor.

Definition at line 60 of file H1D.cpp.

                               {
  m_rep = new TH1D();
  init("",false);
}

Gaudi::Histogram1D::Histogram1D ( TH1D * rep )

Standard constructor with initialization. The histogram representation will be adopted.

Definition at line 65 of file H1D.cpp.

                                        {
  m_rep = rep;
  init(m_rep->GetTitle());
  initSums();
}

virtual Gaudi::Histogram1D::~Histogram1D ( )

inlinevirtual

Destructor.

Definition at line 30 of file H1D.h.

{}

Member Function Documentation

void Gaudi::Histogram1D::adoptRepresentation ( TObject * rep )

virtual

Adopt ROOT histogram representation.

Reimplemented from Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >.

Definition at line 100 of file H1D.cpp.

                                                        {
  Gaudi::Generic1D<AIDA::IHistogram1D,TH1D>::adoptRepresentation(rep);
  if ( m_rep )  {
    init(m_rep->GetTitle());
    initSums();
  }
}

static const CLID& Gaudi::Histogram1D::classID ( )

inlinestatic

Definition at line 47 of file H1D.h.

{ return CLID_H1D; }

virtual const CLID& Gaudi::Histogram1D::clID ( ) const

inlinevirtual

Retrieve reference to class defininition identifier.

Reimplemented from DataObject.

Definition at line 46 of file H1D.h.

{ return classID(); }

void Gaudi::Histogram1D::copyFromAida ( const AIDA::IHistogram1D & h )

Create new histogram from any AIDA based histogram.

Definition at line 164 of file H1D.cpp.

                                                              {
 // implement here the copy
  std::string tit = h.title()+"Copy";
  delete m_rep;
  if (h.axis().isFixedBinning() )  {
    m_rep = new TH1D(tit.c_str(),tit.c_str(),h.axis().bins(),h.axis().lowerEdge(),h.axis().upperEdge());
  }
  else {
    Edges e;
    for (int i =0; i < h.axis().bins(); ++i)  {
      e.push_back(h.axis().binLowerEdge(i));
    }
    // add also upperedges at the end
    e.push_back(h.axis().upperEdge() );
    m_rep = new TH1D(tit.c_str(),tit.c_str(),e.size()-1,&e.front());
  }
  m_axis.initialize(m_rep->GetXaxis(),false);
  m_rep->Sumw2();
  m_sumEntries = 0;
  m_sumwx = 0;
  // sumw
  double sumw = h.sumBinHeights();
  // sumw2
  double sumw2 = 0;
  if (h.equivalentBinEntries() != 0)
    sumw2 = ( sumw * sumw ) /h.equivalentBinEntries();
  double sumwx = h.mean()*h.sumBinHeights();
  double sumwx2 = (h.mean()*h.mean() + h.rms()*h.rms() )*h.sumBinHeights();
  // copy the contents in
  for (int i=-2; i < axis().bins(); ++i) {
    // root binning starts from one !
    m_rep->SetBinContent(rIndex(i),h.binHeight(i) );
    m_rep->SetBinError(rIndex(i),h.binError(i) );
  }
  // need to do set entries after setting contents otherwise root will recalulate them
  // taking into account how many time  SetBinContents() has been called
  m_rep->SetEntries(h.allEntries());
    // stat vector
  std::vector<double> stat(11);
  stat[0] = sumw;
  stat[1] = sumw2;
  stat[2] = sumwx;
  stat[3] = sumwx2;
  m_rep->PutStats(&stat.front());
}

bool Gaudi::Histogram1D::fill	(	double	x,
		double	weight
	)

virtual

Fill the Profile1D with a value and the corresponding weight.

Definition at line 159 of file H1D.cpp.

                                                      {
  (weight == 1.) ? m_rep->Fill(x) : m_rep->Fill(x,weight);
  return true;
}

void Gaudi::Histogram1D::init	(	const std::string &	title,
		bool	initialize_axis = `true`
	)

private

Definition at line 71 of file H1D.cpp.

                                                                         {
  m_classType = "IHistogram1D";
  if ( initialize_axis )  {
    m_axis.initialize(m_rep->GetXaxis(),false);
  }
  const TArrayD* a = m_rep->GetSumw2();
  if ( 0 == a || (a && a->GetSize()==0) ) m_rep->Sumw2();
  setTitle(title);
  m_rep->SetDirectory(0);
  m_sumEntries = 0;
  m_sumwx = 0;
}

void Gaudi::Histogram1D::initSums ( )

private

Definition at line 84 of file H1D.cpp.

                                 {
  m_sumwx = 0;
  m_sumEntries = 0;
  for(int i=1, n=m_rep->GetNbinsX(); i<=n; ++i)    {
    m_sumwx += m_rep->GetBinContent(i)*m_rep->GetBinCenter(i);
    m_sumEntries += (int)m_rep->GetBinContent(i);
  }
}

bool Gaudi::Histogram1D::reset ( )

virtual

need to overwrite reset to reset the sums

Reimplemented from Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >.

Definition at line 93 of file H1D.cpp.

                               {
  m_sumwx = 0;
  m_sumEntries = 0;
  return Base::reset();
}

StreamBuffer & Gaudi::Histogram1D::serialize ( StreamBuffer & s )

Serialization mechanism, Serialize the object for reading.

Parameters

s	the StreamBuffer containing the data to be read

Returns: the resulting StreamBuffer, after reading

Definition at line 217 of file H1D.cpp.

                                                         {
  //DataObject::serialize(s);
  std::string title;
  int size;
  s >> size;
  for (int j = 0; j < size; j++) {
    std::string key, value;
    s >> key >> value;
    annotation().addItem (key, value);
    if ("Title" == key) {
      title = value;
    }
  }
  double lowerEdge, upperEdge, binHeight, binError;
  int    isFixedBinning, bins;
  s >> isFixedBinning >> bins;
  if ( m_rep ) delete m_rep;
  if ( isFixedBinning ) {
    s >> lowerEdge >> upperEdge;
    m_rep = new TH1D(title.c_str(),title.c_str(),bins,lowerEdge,upperEdge);
  } else {
    Edges edges;
    edges.resize(bins);
    for ( int i = 0; i <= bins; ++i )
      s >> *(double*)&edges[i];
    m_rep = new TH1D(title.c_str(),title.c_str(),edges.size()-1,&edges.front());
  }
  m_axis.initialize(m_rep->GetXaxis(),true);
  m_rep->Sumw2();
  m_sumEntries = 0;
  m_sumwx = 0;
  for ( int i = 0; i <= bins + 1; ++i ) {
    s >> binHeight >> binError;
    m_rep->SetBinContent( i, binHeight );
    m_rep->SetBinError( i, binError );
  }
  Stat_t allEntries;
  s >> allEntries;
  m_rep->SetEntries( allEntries );
  Stat_t stats[4];                                    // stats array
  s >> stats[0] >> stats[1] >> stats[2] >> stats[3];
  m_rep->PutStats( stats );
  return s;
}

StreamBuffer & Gaudi::Histogram1D::serialize ( StreamBuffer & s ) const

Serialization mechanism, Serialize the object for writing.

Parameters

s	the StreamBuffer where to write the data

Returns: the resulting StreamBuffer, after wrinting

Definition at line 264 of file H1D.cpp.

                                                               {
  //DataObject::serialize(s);
  s << static_cast<int>( annotation().size() );
  for (int i = 0; i < annotation().size(); i++) {
    s << annotation().key(i);
    s << annotation().value(i);
  }
  const AIDA::IAxis & axis( this->axis() );
  const int isFixedBinning = axis.isFixedBinning();
  const int bins = axis.bins();
  s << isFixedBinning << bins;
  if ( isFixedBinning ) {
    s << axis.lowerEdge();
  }
  else {
    for ( int i = 0; i < bins; ++i )
      s << axis.binLowerEdge(i);
  }
  s << axis.upperEdge();
  for ( int i = 0; i <= bins + 1; ++i )
    s << m_rep->GetBinContent(i) << m_rep->GetBinError( i );
  s << m_rep->GetEntries();
  Stat_t stats[4];  // stats array
  m_rep->GetStats( stats );
  s << stats[0] << stats[1] << stats[2] << stats[3];
  return s;
}

bool Gaudi::Histogram1D::setBinContents	(	int	i,
		int	entries,
		double	height,
		double	error,
		double	centre
	)

virtual

set bin content (entries and centre are not used )

Definition at line 108 of file H1D.cpp.

                                                                                                 {
  m_rep->SetBinContent(rIndex(i),height);
  m_rep->SetBinError(rIndex(i),error);
  // accumulate sumwx for in range bins
  if (i != AIDA::IAxis::UNDERFLOW_BIN && i !=  AIDA::IAxis::OVERFLOW_BIN )
    m_sumwx  += centre*height;
  m_sumEntries += entries;
  return true;
}

bool Gaudi::Histogram1D::setRms ( double rms )

Update histogram RMS.

Definition at line 124 of file H1D.cpp.

                                        {
  m_rep->SetEntries(m_sumEntries);
  std::vector<double> stat(11);
  // sum weights
  stat[0] =  sumBinHeights();
  stat[1] = 0;
  if (equivalentBinEntries() != 0)
    stat[1] = (  sumBinHeights() * sumBinHeights() ) / equivalentBinEntries();
  stat[2] = m_sumwx;
  double mean = 0;
  if ( sumBinHeights() != 0 ) mean =  m_sumwx/ sumBinHeights();
  stat[3] = ( mean*mean + rms*rms )* sumBinHeights();
  m_rep->PutStats(&stat.front());
  return true;
}

bool Gaudi::Histogram1D::setStatistics	(	int	allEntries,
		double	eqBinEntries,
		double	mean,
		double	rms
	)

virtual

set histogram statistics

Definition at line 141 of file H1D.cpp.

                                                                                              {
  m_rep->SetEntries(allEntries);
  // fill statistcal vector for Root
  std::vector<double> stat(11);
  // sum weights
  stat[0] =  sumBinHeights();
  // sum weights **2
  stat[1] = 0;
  if (eqBinEntries != 0)
    stat[1] = (  sumBinHeights() * sumBinHeights() ) / eqBinEntries;
  // sum weights * x
  stat[2] = mean*sumBinHeights();
  // sum weight * x **2
  stat[3] = ( mean*mean + rms*rms )* sumBinHeights();
  m_rep->PutStats(&stat.front());
  return true;
}

Member Data Documentation

double Gaudi::Histogram1D::m_sumwx

protected

cache sumwx when setting contents since I don't have bin mean

Definition at line 23 of file H1D.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r8/GaudiCommonSvc/src/HistogramSvc/H1D.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r8/GaudiCommonSvc/src/HistogramSvc/H1D.cpp

Gaudi Framework, version v23r8

Public Member Functions

Static Public Member Functions

Protected Attributes

Private Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
