IComponentManager Class Reference

#include <GaudiKernel/IComponentManager.h>

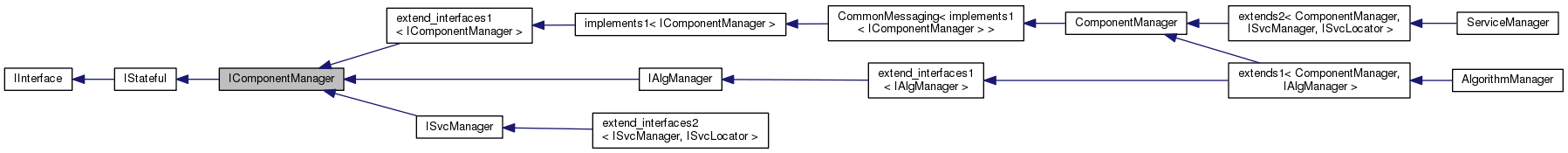

Inheritance diagram for IComponentManager:

Collaboration diagram for IComponentManager:

Public Member Functions
	DeclareInterfaceID (IComponentManager, 1, 0)
	InterfaceID.
virtual const InterfaceID &	componentBaseInterface () const =0
	Basic interface id of the managed components.
virtual	~IComponentManager ()
	Virtual destructor.
Public Member Functions inherited from IStateful
	DeclareInterfaceID (IStateful, 1, 0)
	InterfaceID.
virtual	~IStateful ()
virtual StatusCode	configure ()=0
	Configuration (from OFFLINE to CONFIGURED).
virtual StatusCode	initialize ()=0
	Initialization (from CONFIGURED to INITIALIZED).
virtual StatusCode	start ()=0
	Start (from INITIALIZED to RUNNING).
virtual StatusCode	stop ()=0
	Stop (from RUNNING to INITIALIZED).
virtual StatusCode	finalize ()=0
	Finalize (from INITIALIZED to CONFIGURED).
virtual StatusCode	terminate ()=0
	Initialization (from CONFIGURED to OFFLINE).
virtual StatusCode	reinitialize ()=0
	Initialization (from INITIALIZED or RUNNING to INITIALIZED, via CONFIGURED).
virtual StatusCode	restart ()=0
	Initialization (from RUNNING to RUNNING, via INITIALIZED).
virtual Gaudi::StateMachine::State	FSMState () const =0
	Get the current state.
virtual Gaudi::StateMachine::State	targetFSMState () const =0
	When we are in the middle of a transition, get the state where the transition is leading us.
Public Member Functions inherited from IInterface
virtual void *	i_cast (const InterfaceID &) const =0
	main cast function
virtual std::vector< std::string >	getInterfaceNames () const =0
	Returns a vector of strings containing the names of all the implemented interfaces.
virtual unsigned long	addRef ()=0
	Increment the reference count of Interface instance.
virtual unsigned long	release ()=0
	Release Interface instance.
virtual unsigned long	refCount () const =0
	Current reference count.
virtual StatusCode	queryInterface (const InterfaceID &ti, void **pp)=0
	Set the void** to the pointer to the requested interface of the instance.
virtual	~IInterface ()
	Virtual destructor.

Additional Inherited Members
Public Types inherited from IInterface
enum	Status { SUCCESS = 1, NO_INTERFACE, VERSMISMATCH, LAST_ERROR }
	Return status. More...
typedef Gaudi::InterfaceId < IInterface, 0, 0 >	iid
	Interface ID.
typedef mpl::set1< iid >	ext_iids
	Extra interfaces.
Static Public Member Functions inherited from IInterface
static const InterfaceID &	interfaceID ()
	Return an instance of InterfaceID identifying the interface.

Detailed Description

Author

Marco Clemencic

Definition at line 11 of file IComponentManager.h.

Constructor & Destructor Documentation

IComponentManager::~IComponentManager ( )

virtual

Virtual destructor.

Definition at line 19 of file VirtualDestructors.cpp.

{}

Member Function Documentation

virtual const InterfaceID& IComponentManager::componentBaseInterface ( ) const

pure virtual

Basic interface id of the managed components.

Implemented in ComponentManager.

IComponentManager::DeclareInterfaceID	(	IComponentManager	,
		1	,
		0
	)

InterfaceID.

---

The documentation for this class was generated from the following files:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r8/GaudiKernel/GaudiKernel/IComponentManager.h
• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r8/GaudiKernel/src/Lib/VirtualDestructors.cpp
