A small to stream Data I/O. More...

#include <OutputStream.h>

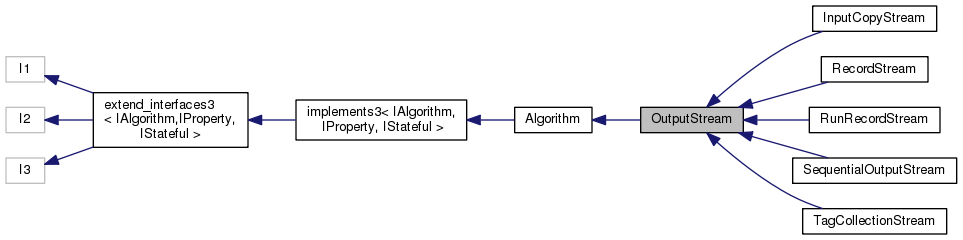

Inheritance diagram for OutputStream:

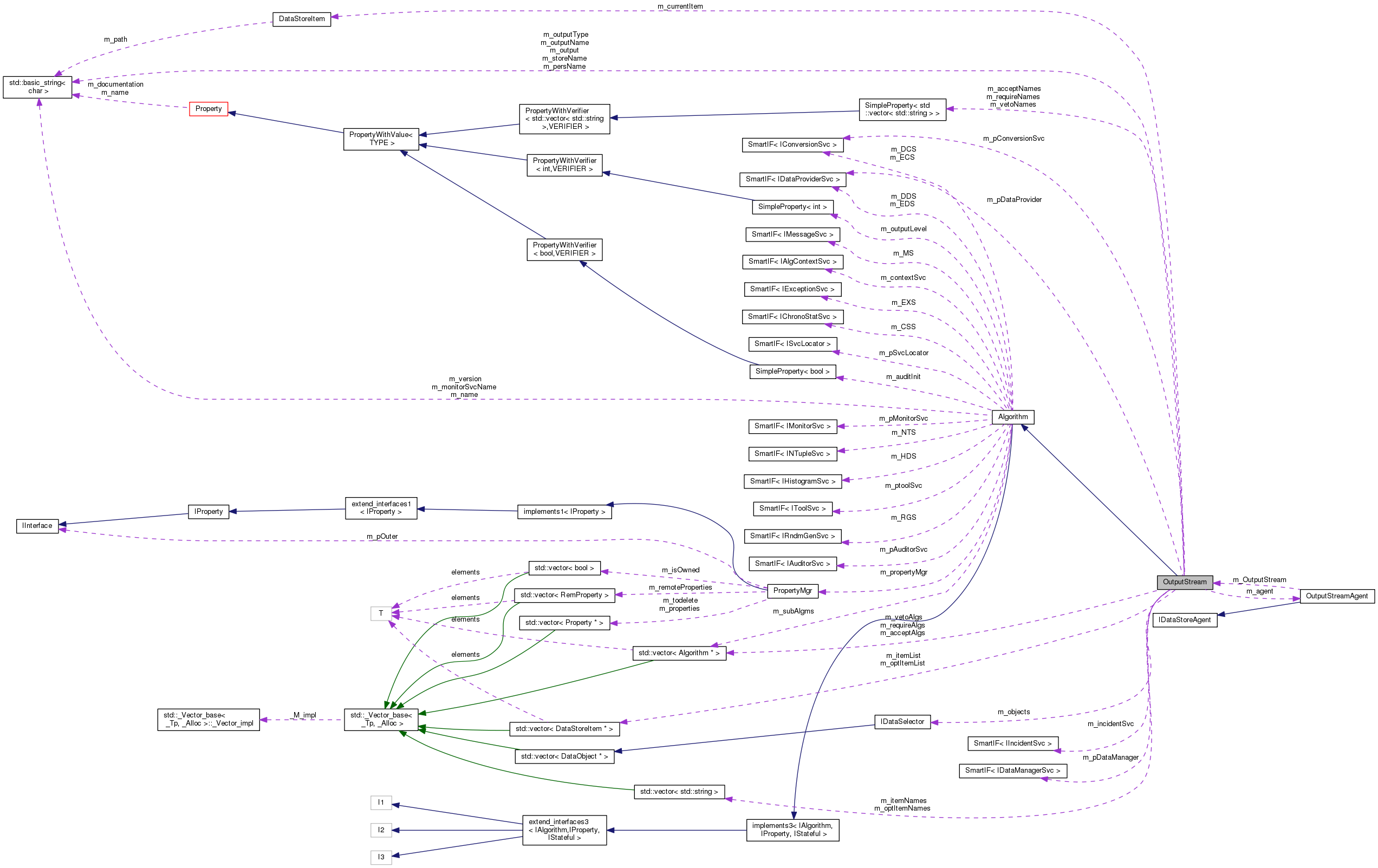

Collaboration diagram for OutputStream:

Public Types
typedef std::vector < DataStoreItem * >	Items

typedef std::vector< std::string >	ItemNames

Public Member Functions
	OutputStream (const std::string &name, ISvcLocator *pSvcLocator)
	Standard algorithm Constructor.

virtual	~OutputStream ()
	Standard Destructor.

virtual StatusCode	initialize ()
	Initialize OutputStream.

virtual StatusCode	finalize ()
	Terminate OutputStream.

virtual StatusCode	execute ()
	Working entry point.

virtual StatusCode	connectConversionSvc ()

virtual bool	collect (IRegistry *dir, int level)
	Store agent's classback.

virtual StatusCode	collectObjects ()
	Collect all objects to be written to the output stream.

void	clearItems (Items &itms)
	Clear item list.

void	addItem (Items &itms, const std::string &descriptor)
	Add item to output streamer list.

void	clearSelection ()
	Clear list of selected objects.

IDataSelector *	selectedObjects ()
	Return the list of selected objects.

Public Member Functions inherited from Algorithm
	Algorithm (const std::string &name, ISvcLocator *svcloc, const std::string &version=PACKAGE_VERSION)
	Constructor.

virtual	~Algorithm ()
	Destructor.

virtual StatusCode	sysStart ()
	Reinitialization method invoked by the framework.

virtual StatusCode	sysInitialize ()
	Initialization method invoked by the framework.

virtual StatusCode	sysReinitialize ()
	Reinitialization method invoked by the framework.

virtual StatusCode	sysRestart ()
	Restart method invoked by the framework.

virtual StatusCode	sysExecute ()
	The actions to be performed by the algorithm on an event.

virtual StatusCode	sysStop ()
	System stop.

virtual StatusCode	sysFinalize ()
	System finalization.

virtual StatusCode	sysBeginRun ()
	beginRun method invoked by the framework.

virtual StatusCode	sysEndRun ()
	endRun method invoked by the framework.

virtual const std::string &	name () const
	The identifying name of the algorithm object.

virtual const std::string &	version () const

virtual StatusCode	configure ()
	Dummy implementation of IStateful::configure() method.

virtual StatusCode	terminate ()
	Dummy implementation of IStateful::terminate() method.

virtual StatusCode	start ()
	the default (empty) implementation of IStateful::start() method

virtual StatusCode	stop ()
	the default (empty) implementation of IStateful::stop() method

virtual StatusCode	reinitialize ()
	the default (empty) implementation of IStateful::reinitialize() method

virtual StatusCode	restart ()
	the default (empty) implementation of IStateful::restart() method

virtual bool	isExecuted () const
	Has this algorithm been executed since the last reset?

virtual void	setExecuted (bool state)
	Set the executed flag to the specified state.

virtual void	resetExecuted ()
	Reset the executed state of the Algorithm for the duration of the current event.

virtual StatusCode	beginRun ()
	Algorithm begin run.

virtual StatusCode	endRun ()
	Algorithm end run. This method is called at the end of the event loop.

virtual Gaudi::StateMachine::State	FSMState () const
	returns the current state of the algorithm

virtual Gaudi::StateMachine::State	targetFSMState () const
	returns the state the algorithm will be in after the ongoing transition

virtual bool	isEnabled () const
	Is this algorithm enabled or disabled?

virtual bool	filterPassed () const
	Did this algorithm pass or fail its filter criterion for the last event?

virtual void	setFilterPassed (bool state)
	Set the filter passed flag to the specified state.

template<class T >
StatusCode	service (const std::string &name, T *&psvc, bool createIf=true) const
	Access a service by name, creating it if it doesn't already exist.

template<class T >
StatusCode	service (const std::string &svcType, const std::string &svcName, T *&psvc) const
	Access a service by name and type, creating it if it doesn't already exist.

SmartIF< IService >	service (const std::string &name, const bool createIf=true, const bool quiet=false) const
	Return a pointer to the service identified by name (or "type/name")

void	setOutputLevel (int level)
	Set the output level for current algorithm.

SmartIF< IAuditorSvc > &	auditorSvc () const
	The standard auditor service.May not be invoked before sysInitialize() has been invoked.

SmartIF< IChronoStatSvc > &	chronoSvc () const
	The standard Chrono & Stat service, Return a pointer to the service if present.

SmartIF< IChronoStatSvc > &	chronoStatService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< IDataProviderSvc > &	detSvc () const
	The standard detector data service.

SmartIF< IDataProviderSvc > &	detDataService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< IConversionSvc > &	detCnvSvc () const
	The standard detector data persistency conversion service.

SmartIF< IConversionSvc > &	detDataCnvService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< IDataProviderSvc > &	eventSvc () const
	The standard event data service.

SmartIF< IDataProviderSvc > &	evtSvc () const
	shortcut for method eventSvc

SmartIF< IDataProviderSvc > &	eventDataService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< IConversionSvc > &	eventCnvSvc () const
	The standard event data persistency conversion service.

SmartIF< IConversionSvc > &	eventDataCnvService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< IHistogramSvc > &	histoSvc () const
	The standard histogram service.

SmartIF< IHistogramSvc > &	histogramDataService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< IMessageSvc > &	msgSvc () const
	The standard message service.

SmartIF< IMessageSvc > &	messageService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< INTupleSvc > &	ntupleSvc () const
	The standard N tuple service.

SmartIF< INTupleSvc > &	ntupleService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< IRndmGenSvc > &	randSvc () const
	AIDA-based NTuple service Returns a pointer to the AIDATuple service if present.

SmartIF< IToolSvc > &	toolSvc () const
	The standard ToolSvc service, Return a pointer to the service if present.

SmartIF< IExceptionSvc > &	exceptionSvc () const
	Get the exception Service.

SmartIF< IAlgContextSvc > &	contextSvc () const
	get Algorithm Context Service

SmartIF< ISvcLocator > &	serviceLocator () const
	The standard service locator.

SmartIF< ISvcLocator > &	svcLoc () const
	shortcut for method serviceLocator

bool	registerContext () const
	register for Algorithm Context Service?

StatusCode	createSubAlgorithm (const std::string &type, const std::string &name, Algorithm *&pSubAlg)
	Create a sub algorithm.

std::vector< Algorithm * > *	subAlgorithms () const
	List of sub-algorithms. Returns a pointer to a vector of (sub) Algorithms.

virtual StatusCode	setProperty (const Property &p)
	Implementation of IProperty::setProperty.

virtual StatusCode	setProperty (const std::string &s)
	Implementation of IProperty::setProperty.

virtual StatusCode	setProperty (const std::string &n, const std::string &v)
	Implementation of IProperty::setProperty.

virtual StatusCode	getProperty (Property *p) const
	Implementation of IProperty::getProperty.

virtual const Property &	getProperty (const std::string &name) const
	Implementation of IProperty::getProperty.

virtual StatusCode	getProperty (const std::string &n, std::string &v) const
	Implementation of IProperty::getProperty.

virtual const std::vector < Property * > &	getProperties () const
	Implementation of IProperty::getProperties.

StatusCode	setProperties ()
	Set the algorithm's properties.

template<class T >
Property *	declareProperty (const std::string &name, T &property, const std::string &doc="none") const
	Declare the named property.

Property *	declareRemoteProperty (const std::string &name, IProperty *rsvc, const std::string &rname="") const
	Declare remote named properties.

SmartIF< IMonitorSvc > &	monitorSvc () const
	Access the monitor service.

template<class T >
void	declareInfo (const std::string &name, const T &var, const std::string &desc) const
	Declare monitoring information.

void	declareInfo (const std::string &name, const std::string &format, const void *var, int size, const std::string &desc) const
	Declare monitoring information (special case)

template<class TYPE >
StatusCode	setProperty (const std::string &name, const TYPE &value)
	set the property form the value

Protected Member Functions
StatusCode	decodeAcceptAlgs ()
	Decode list of Algorithms that this stream accepts.

void	acceptAlgsHandler (Property &theProp)
	Handler for AcceptAlgs Property.

StatusCode	decodeRequireAlgs ()
	Decode list of Algorithms that this stream requires.

void	requireAlgsHandler (Property &theProp)
	Handler for RequireAlgs Property.

StatusCode	decodeVetoAlgs ()
	Decode list of Algorithms that this stream is vetoed by.

void	vetoAlgsHandler (Property &theProp)
	Handler for VetoAlgs Property.

StatusCode	decodeAlgorithms (StringArrayProperty &theNames, std::vector< Algorithm * > *theAlgs)
	Decode specified list of Algorithms.

bool	isEventAccepted () const
	Test whether this event should be output.

DataStoreItem *	findItem (const std::string &path)
	Find single item identified by its path (exact match)

virtual StatusCode	writeObjects ()
	Select the different objects and write them to file.

virtual bool	hasInput () const
	Tell if the instance has been configured with input items or not.

Protected Member Functions inherited from Algorithm
bool	isInitialized () const
	Has the Algorithm already been initialized?

bool	isFinalized () const
	Has the Algorithm already been finalized?

int	outputLevel () const
	retrieve the Algorithm output level

IntegerProperty &	outputLevelProperty ()
	Accessor for the Message level property.

void	initOutputLevel (Property &prop)
	callback for output level property

Protected Attributes
SmartIF< IIncidentSvc >	m_incidentSvc
	Reference to the indicent service.

bool	m_doPreLoad
	Flag indicating wether data pre-loading should be performed.

bool	m_doPreLoadOpt
	Flag indicating whether optional items should be preloaded.

bool	m_verifyItems
	Flag to indicate that item consistency should be checked.

std::string	m_storeName
	Name of the service managing the data store.

std::string	m_persName
	Name of the persistency service capable to write data from the store.

std::string	m_output
	Name of the output file specification.

std::string	m_outputName
	Name of the output file.

std::string	m_outputType
	Output type: NEW(NEW,CREATE,WRITE,RECREATE), UPDATE)

OutputStreamAgent *	m_agent
	Keep reference of agent.

SmartIF< IDataProviderSvc >	m_pDataProvider
	Keep reference to the data provider service.

SmartIF< IDataManagerSvc >	m_pDataManager
	Keep reference to the data manager service.

SmartIF< IConversionSvc >	m_pConversionSvc
	Keep reference to the data conversion service.

DataStoreItem *	m_currentItem
	Keep track of the current item.

ItemNames	m_itemNames
	Vector of item names.

Items	m_itemList
	Vector of items to be saved to this stream.

ItemNames	m_optItemNames
	Vector of item names.

Items	m_optItemList
	Vector of optional items to be saved to this stream.

IDataSelector	m_objects
	Collection of objects being selected.

int	m_events
	Number of events written to this output stream.

StringArrayProperty	m_acceptNames
	Vector of names of Algorithms that this stream accepts.

StringArrayProperty	m_requireNames
	Vector of names of Algorithms that this stream requires.

StringArrayProperty	m_vetoNames
	Vector of names of Algorithms that this stream is vetoed by.

std::vector< Algorithm * > *	m_acceptAlgs
	Vector of Algorithms that this stream accepts.

std::vector< Algorithm * > *	m_requireAlgs
	Vector of Algorithms that this stream requires.

std::vector< Algorithm * > *	m_vetoAlgs
	Vector of Algorithms that this stream is vetoed by.

bool	m_fireIncidents
	should I fire incidents for writing opening/closing etc?

Friends
class	AlgFactory< OutputStream >

class	Factory< OutputStream, IAlgorithm (std::string, ISvcLocator )>

Detailed Description

A small to stream Data I/O.

Author: M.Frank author R. Lambert Version: 1.0

Definition at line 32 of file OutputStream.h.

Member Typedef Documentation

typedef std::vector<std::string> OutputStream::ItemNames

Definition at line 38 of file OutputStream.h.

typedef std::vector<DataStoreItem*> OutputStream::Items

Definition at line 37 of file OutputStream.h.

Constructor & Destructor Documentation

OutputStream::OutputStream	(	const std::string &	name,
		ISvcLocator *	pSvcLocator
	)

Standard algorithm Constructor.

in the baseclass, always fire the incidents by default in e.g. RecordStream this will be set to false, and configurable

in the baseclass, always fire the incidents by default in RecordStream this will be set to false, and configurable

Definition at line 31 of file OutputStream.cpp.

 : Algorithm(name, pSvcLocator)
{
  m_doPreLoad      = true;
  m_doPreLoadOpt   = false;
  m_verifyItems    = true;
  m_output         = "";
  m_outputName     = "";
  m_outputType     = "UPDATE";
  m_storeName      = "EventDataSvc";
  m_persName       = "EventPersistencySvc";
  m_agent          = new OutputStreamAgent(this);
  m_acceptAlgs     = new std::vector<Algorithm*>();
  m_requireAlgs    = new std::vector<Algorithm*>();
  m_vetoAlgs       = new std::vector<Algorithm*>();
  m_fireIncidents  = true;
  declareProperty("ItemList",         m_itemNames);
  declareProperty("OptItemList",      m_optItemNames);
  declareProperty("Preload",          m_doPreLoad);
  declareProperty("PreloadOptItems",  m_doPreLoadOpt);
  declareProperty("Output",           m_output);
  declareProperty("OutputFile",       m_outputName);
  declareProperty("EvtDataSvc",       m_storeName);
  declareProperty("EvtConversionSvc", m_persName);
  declareProperty("AcceptAlgs",       m_acceptNames);
  declareProperty("RequireAlgs",      m_requireNames);
  declareProperty("VetoAlgs",         m_vetoNames);
  declareProperty("VerifyItems",      m_verifyItems);
  // Associate action handlers with the AcceptAlgs, RequireAlgs & VetoAlgs properties
  m_acceptNames.declareUpdateHandler ( &OutputStream::acceptAlgsHandler , this );
  m_requireNames.declareUpdateHandler( &OutputStream::requireAlgsHandler, this );
  m_vetoNames.declareUpdateHandler   ( &OutputStream::vetoAlgsHandler   , this );
}

OutputStream::~OutputStream ( )

virtual

Standard Destructor.

Definition at line 71 of file OutputStream.cpp.

                              {
  delete m_agent;
  delete m_acceptAlgs;
  delete m_requireAlgs;
  delete m_vetoAlgs;
}

Member Function Documentation

void OutputStream::acceptAlgsHandler ( Property & theProp )

protected

Handler for AcceptAlgs Property.

Definition at line 447 of file OutputStream.cpp.

                                                   {
  StatusCode sc = decodeAlgorithms( m_acceptNames, m_acceptAlgs );
  if (sc.isFailure()) {
    throw GaudiException("Failure in OutputStream::decodeAlgorithms",
                         "OutputStream::acceptAlgsHandler",sc);
  }
}

void OutputStream::addItem	(	Items &	itms,
		const std::string &	descriptor
	)

Add item to output streamer list.

Definition at line 333 of file OutputStream.cpp.

                                                                     {
    MsgStream log(msgSvc(), name());
  int level = 0;
  size_t sep = descriptor.rfind("#");
  std::string obj_path (descriptor,0,sep);
  std::string slevel   (descriptor,sep+1,descriptor.length());
  if ( slevel == "*" )  {
    level = 9999999;
  }
  else   {
    level = atoi(slevel.c_str());
  }
  if ( m_verifyItems )  {
    size_t idx = obj_path.find("/",1);
    while(idx != std::string::npos)  {
      std::string sub_item = obj_path.substr(0,idx);
      if ( 0 == findItem(sub_item) )   {
        addItem(itms, sub_item+"#1");
      }
      idx = obj_path.find("/",idx+1);
    }
  }
  DataStoreItem* item = new DataStoreItem(obj_path, level);
  if(log.level() <= MSG::DEBUG )
    log << MSG::DEBUG << "Adding OutputStream item " << item->path()
        << " with " << item->depth()
        << " level(s)." << endmsg;
  itms.push_back( item );
}

void OutputStream::clearItems ( Items & itms )

Clear item list.

Definition at line 313 of file OutputStream.cpp.

                                             {
  for ( Items::iterator i = itms.begin(); i != itms.end(); i++ )    {
    delete (*i);
  }
  itms.erase(itms.begin(), itms.end());
}

void OutputStream::clearSelection ( )

Clear list of selected objects.

Definition at line 308 of file OutputStream.cpp.

                                      {
  m_objects.erase(m_objects.begin(), m_objects.end());
}

bool OutputStream::collect	(	IRegistry *	dir,
		int	level
	)

virtual

Store agent's classback.

Definition at line 235 of file OutputStream.cpp.

                                                       {
  if ( level < m_currentItem->depth() )   {
    if ( dir->object() != 0 )   {
      /*
      std::cout << "Analysing ("
                << dir->name()
                << ") Object:"
                << ((dir->object()==0) ? "UNLOADED" : "LOADED")
                << std::endl;
      */
      m_objects.push_back(dir->object());
      return true;
    }
  }
  return false;
}

StatusCode OutputStream::collectObjects ( )

virtual

Collect all objects to be written to the output stream.

Reimplemented in InputCopyStream.

Definition at line 253 of file OutputStream.cpp.

                                          {
  MsgStream log(msgSvc(), name());
  StatusCode status = StatusCode::SUCCESS;
  Items::iterator i;
  // Traverse the tree and collect the requested objects
  for ( i = m_itemList.begin(); i != m_itemList.end(); i++ )    {
    DataObject* obj = 0;
    m_currentItem = (*i);
    StatusCode iret = m_pDataProvider->retrieveObject(m_currentItem->path(), obj);
    if ( iret.isSuccess() )  {
      iret = m_pDataManager->traverseSubTree(obj, m_agent);
      if ( !iret.isSuccess() )  {
        status = iret;
      }
    }
    else  {
      log << MSG::ERROR << "Cannot write mandatory object(s) (Not found) "
          << m_currentItem->path() << endmsg;
      status = iret;
    }
  }
  // Traverse the tree and collect the requested objects (tolerate missing items here)
  for ( i = m_optItemList.begin(); i != m_optItemList.end(); i++ )    {
    DataObject* obj = 0;
    m_currentItem = (*i);
    StatusCode iret = m_pDataProvider->retrieveObject(m_currentItem->path(), obj);
    if ( iret.isSuccess() )  {
      iret = m_pDataManager->traverseSubTree(obj, m_agent);
    }
    if ( !iret.isSuccess() )    {
      if(log.level() <= MSG::DEBUG )
        log << MSG::DEBUG << "Ignore request to write non-mandatory object(s) "
            << m_currentItem->path() << endmsg;
    }
  }
  if (status.isSuccess()){
    // Remove duplicates from the list of objects, preserving the order in the list
    std::set<DataObject*> unique;
    std::vector<DataObject*> tmp; // temporary vector with the reduced list
    tmp.reserve(m_objects.size());
    for (std::vector<DataObject*>::iterator o = m_objects.begin(); o != m_objects.end(); ++o) {
      if (!unique.count(*o)) {
        // if the pointer is not in the set, add it to both the set and the temporary vector
        unique.insert(*o);
        tmp.push_back(*o);
      }
    }
    m_objects.swap(tmp); // swap the data of the two vectors
  }
  return status;
}

StatusCode OutputStream::connectConversionSvc ( )

virtual

Definition at line 364 of file OutputStream.cpp.

                                                {
  StatusCode status = StatusCode(StatusCode::FAILURE, true);
  MsgStream log(msgSvc(), name());
  // Get output file from input
  std::string dbType, svc, shr;
  Tokenizer tok(true);
  tok.analyse(m_output, " ", "", "", "=", "'", "'");
  for(Tokenizer::Items::iterator i = tok.items().begin(); i != tok.items().end(); ++i)   {
    const std::string& tag = (*i).tag();
    const std::string& val = (*i).value();
    switch( ::toupper(tag[0]) )    {
    case 'D':
      m_outputName = val;
      break;
    case 'T':
      dbType = val;
      break;
    case 'S':
      switch( ::toupper(tag[1]) )   {
      case 'V':    svc = val;      break;
      case 'H':    shr = "YES";    break;
      }
      break;
    case 'O':   // OPT='<NEW<CREATE,WRITE,RECREATE>, UPDATE>'
      switch( ::toupper(val[0]) )   {
      case 'R':
        if ( ::strncasecmp(val.c_str(),"RECREATE",3)==0 )
          m_outputType = "RECREATE";
        else if ( ::strncasecmp(val.c_str(),"READ",3)==0 )
          m_outputType = "READ";
        break;
      case 'C':
      case 'N':
      case 'W':
        m_outputType = "NEW";
        break;
      case 'U':
        m_outputType = "UPDATE";
        break;
      default:
        m_outputType = "???";
        break;
      }
      break;
    default:
      break;
    }
  }
  if ( !shr.empty() ) m_outputType += "|SHARED";
  // Get access to the default Persistency service
  // The default service is the same for input as for output.
  // If this is not desired, then a specialized OutputStream must overwrite
  // this value.
  if ( dbType.length() > 0 || svc.length() > 0 )   {
    std::string typ = dbType.length()>0 ? dbType : svc;
    SmartIF<IPersistencySvc> ipers(serviceLocator()->service(m_persName));
    if( !ipers.isValid() )   {
      log << MSG::FATAL << "Unable to locate IPersistencySvc interface of " << m_persName << endmsg;
      return StatusCode::FAILURE;
    }
    IConversionSvc *cnvSvc = 0;
    status = ipers->getService(typ, cnvSvc);
    if( !status.isSuccess() )   {
      log << MSG::FATAL << "Unable to locate IConversionSvc interface of database type " << typ << endmsg;
      return status;
    }
    // Increase reference count and keep service.
    m_pConversionSvc = cnvSvc;
  }
  else    {
    log << MSG::FATAL
        << "Unable to locate IConversionSvc interface (Unknown technology) " << endmsg
        << "You either have to specify a technology name or a service name!" << endmsg
        << "Please correct the job option \"" << name() << ".Output\" !"     << endmsg;
    return StatusCode::FAILURE;
  }
  return StatusCode::SUCCESS;
}

StatusCode OutputStream::decodeAcceptAlgs ( )

protected

Decode list of Algorithms that this stream accepts.

Definition at line 443 of file OutputStream.cpp.

                                           {
  return decodeAlgorithms( m_acceptNames, m_acceptAlgs );
}

StatusCode OutputStream::decodeAlgorithms	(	StringArrayProperty &	theNames,
		std::vector< Algorithm * > *	theAlgs
	)

protected

Decode specified list of Algorithms.

Definition at line 479 of file OutputStream.cpp.

{
  // Reset the list of Algorithms
  theAlgs->clear( );
  MsgStream log( msgSvc( ), name( ) );
  StatusCode result = StatusCode::FAILURE;
  SmartIF<IAlgManager> theAlgMgr(serviceLocator());
  if ( theAlgMgr.isValid() ) {
    // Build the list of Algorithms from the names list
    const std::vector<std::string> nameList = theNames.value( );
    std::vector<std::string>::const_iterator it;
    std::vector<std::string>::const_iterator itend = nameList.end( );
    for (it = nameList.begin(); it != itend; ++it) {
      // Check whether the supplied name corresponds to an existing
      // Algorithm object.
      const std::string &theName = (*it);
      SmartIF<IAlgorithm> &theIAlg = theAlgMgr->algorithm(theName);
      Algorithm*  theAlgorithm;
      if ( theIAlg.isValid() ) {
        result = StatusCode::SUCCESS;
        try{
          theAlgorithm = dynamic_cast<Algorithm*>(theIAlg.get());
        } catch(...){
          result = StatusCode::FAILURE;
        }
      }
      if ( result.isSuccess( ) ) {
        // Check that the specified algorithm doesn't already exist in the list
        std::vector<Algorithm*>::iterator ita;
        std::vector<Algorithm*>::iterator itaend = theAlgs->end( );
        for (ita = theAlgs->begin(); ita != itaend; ++ita) {
          Algorithm* existAlgorithm = (*ita);
          if ( theAlgorithm == existAlgorithm ) {
            result = StatusCode::FAILURE;
            break;
          }
        }
        if ( result.isSuccess( ) ) {
          theAlgorithm->addRef();
          theAlgs->push_back( theAlgorithm );
        }
      }
      else {
        log << MSG::INFO << theName << " doesn't exist - ignored" << endmsg;
      }
    }
    result = StatusCode::SUCCESS;
  }
  else {
    log << MSG::FATAL << "Can't locate ApplicationMgr!!!" << endmsg;
  }
  return result;
}

StatusCode OutputStream::decodeRequireAlgs ( )

protected

Decode list of Algorithms that this stream requires.

Definition at line 455 of file OutputStream.cpp.

                                             {
  return decodeAlgorithms( m_requireNames, m_requireAlgs );
}

StatusCode OutputStream::decodeVetoAlgs ( )

protected

Decode list of Algorithms that this stream is vetoed by.

Definition at line 467 of file OutputStream.cpp.

                                          {
  return decodeAlgorithms( m_vetoNames, m_vetoAlgs );
}

StatusCode OutputStream::execute ( )

virtual

Working entry point.

Reimplemented in SequentialOutputStream, RecordStream, and RunRecordStream.

Definition at line 174 of file OutputStream.cpp.

                                 {
  // Clear any previously existing item list
  clearSelection();
  // Test whether this event should be output
  if ( isEventAccepted() )  {
    StatusCode sc = writeObjects();
    clearSelection();
    m_events++;
    if(sc.isSuccess() && m_fireIncidents)
      m_incidentSvc->fireIncident(Incident(m_outputName,
                                           IncidentType::WroteToOutputFile));
    else if(m_fireIncidents)
      m_incidentSvc->fireIncident(Incident(m_outputName,
                                           IncidentType::FailOutputFile));
    return sc;
  }
  return StatusCode::SUCCESS;
}

StatusCode OutputStream::finalize ( )

virtual

Terminate OutputStream.

Reimplemented from Algorithm.

Reimplemented in TagCollectionStream, InputCopyStream, RecordStream, and RunRecordStream.

Definition at line 159 of file OutputStream.cpp.

                                  {
  MsgStream log(msgSvc(), name());
  log << MSG::INFO << "Events output: " << m_events << endmsg;
  if(m_fireIncidents) m_incidentSvc->fireIncident(Incident(m_outputName,
                                       IncidentType::EndOutputFile));
  m_incidentSvc.reset();
  m_pDataProvider.reset();
  m_pDataManager.reset();
  m_pConversionSvc.reset();
  clearItems(m_optItemList);
  clearItems(m_itemList);
  return StatusCode::SUCCESS;
}

DataStoreItem * OutputStream::findItem ( const std::string & path )

protected

Find single item identified by its path (exact match)

Definition at line 322 of file OutputStream.cpp.

                                             {
  for(Items::const_iterator i=m_itemList.begin(); i != m_itemList.end(); ++i)  {
    if ( (*i)->path() == path )  return (*i);
  }
  for(Items::const_iterator j=m_optItemList.begin(); j != m_optItemList.end(); ++j)  {
    if ( (*j)->path() == path )  return (*j);
  }
  return 0;
}

bool OutputStream::hasInput ( ) const

protectedvirtual

Tell if the instance has been configured with input items or not.

Reimplemented in InputCopyStream.

Definition at line 583 of file OutputStream.cpp.

                                  {
  return !(m_itemNames.empty() && m_optItemNames.empty());
}

StatusCode OutputStream::initialize ( )

virtual

Initialize OutputStream.

Reimplemented from Algorithm.

Reimplemented in TagCollectionStream, and InputCopyStream.

Definition at line 79 of file OutputStream.cpp.

                                    {
  MsgStream log(msgSvc(), name());
  // Reset the number of events written
  m_events = 0;
  // Get access to the DataManagerSvc
  m_pDataManager = serviceLocator()->service(m_storeName);
  if( !m_pDataManager.isValid() )   {
    log << MSG::FATAL << "Unable to locate IDataManagerSvc interface" << endmsg;
    return StatusCode::FAILURE;
  }
  // Get access to the IncidentService
  m_incidentSvc = serviceLocator()->service("IncidentSvc");
  if( !m_incidentSvc.isValid() )  {
    log << MSG::WARNING << "Error retrieving IncidentSvc." << endmsg;
    return StatusCode::FAILURE;
  }
  // Get access to the assigned data service
  m_pDataProvider = serviceLocator()->service(m_storeName);
  if( !m_pDataProvider.isValid() )   {
    log << MSG::FATAL << "Unable to locate IDataProviderSvc interface of " << m_storeName << endmsg;
    return StatusCode::FAILURE;
  }
  if ( hasInput() )  {
    StatusCode status = connectConversionSvc();
    if( !status.isSuccess() )   {
      log << MSG::FATAL << "Unable to connect to conversion service." << endmsg;
      if(m_outputName!="" && m_fireIncidents) m_incidentSvc->fireIncident(Incident(m_outputName,
                                           IncidentType::FailOutputFile));
      return status;
    }
  }
  // Clear the list with optional items
  clearItems(m_optItemList);
  // Clear the item list
  clearItems(m_itemList);
  ItemNames::iterator i;
  // Take the new item list from the properties.
  for(i = m_itemNames.begin(); i != m_itemNames.end(); i++)   {
    addItem( m_itemList, *i );
  }
  // Take the new item list from the properties.
  for(i = m_optItemNames.begin(); i != m_optItemNames.end(); i++)   {
    addItem( m_optItemList, *i );
  }
  // Take the item list to the data service preload list.
  if ( m_doPreLoad )    {
    for(Items::iterator j = m_itemList.begin(); j != m_itemList.end(); j++)   {
      m_pDataProvider->addPreLoadItem( *(*j) ).ignore();
    }
    // Not working: bad reference counting! pdataSvc->release();
  }
  if ( m_doPreLoadOpt )    {
    for(Items::iterator j=m_optItemList.begin(); j!=m_optItemList.end(); j++) {
      m_pDataProvider->addPreLoadItem( *(*j) );
    }
  }
  log << MSG::INFO << "Data source: " << m_storeName  << " output: " << m_output << endmsg;
  // Decode the accept, required and veto Algorithms. The logic is the following:
  //  a. The event is accepted if all lists are empty.
  //  b. The event is provisionally accepted if any Algorithm in the accept list
  //     has been executed and has indicated that its filter is passed. This
  //     provisional acceptance can be overridden by the other lists.
  //  c. The event is rejected unless all Algorithms in the required list have
  //     been executed and have indicated that their filter passed.
  //  d. The event is rejected if any Algorithm in the veto list has been
  //     executed and has indicated that its filter has passed.
  decodeAcceptAlgs ().ignore();
  decodeRequireAlgs().ignore();
  decodeVetoAlgs   ().ignore();
  return StatusCode::SUCCESS;
}

bool OutputStream::isEventAccepted ( ) const

protected

Test whether this event should be output.

Definition at line 537 of file OutputStream.cpp.

                                           {
  typedef std::vector<Algorithm*>::iterator AlgIter;
  bool result = true;
  // Loop over all Algorithms in the accept list to see
  // whether any have been executed and have their filter
  // passed flag set. Any match causes the event to be
  // provisionally accepted.
  if ( ! m_acceptAlgs->empty() ) {
    result = false;
    for(AlgIter i=m_acceptAlgs->begin(),end=m_acceptAlgs->end(); i != end; ++i) {
      if ( (*i)->isExecuted() && (*i)->filterPassed() ) {
        result = true;
        break;
      }
    }
  }
  // Loop over all Algorithms in the required list to see
  // whether all have been executed and have their filter
  // passed flag set. Any mismatch causes the event to be
  // rejected.
  if ( result && ! m_requireAlgs->empty() ) {
    for(AlgIter i=m_requireAlgs->begin(),end=m_requireAlgs->end(); i != end; ++i) {
      if ( !(*i)->isExecuted() || !(*i)->filterPassed() ) {
        result = false;
        break;
      }
    }
  }
  // Loop over all Algorithms in the veto list to see
  // whether any have been executed and have their filter
  // passed flag set. Any match causes the event to be
  // rejected.
  if ( result && ! m_vetoAlgs->empty() ) {
    for(AlgIter i=m_vetoAlgs->begin(),end=m_vetoAlgs->end(); i != end; ++i) {
      if ( (*i)->isExecuted() && (*i)->filterPassed() ) {
        result = false;
        break;
      }
    }
  }
  return result;
}

void OutputStream::requireAlgsHandler ( Property & theProp )

protected

Handler for RequireAlgs Property.

Definition at line 459 of file OutputStream.cpp.

                                                    {
  StatusCode sc = decodeAlgorithms( m_requireNames, m_requireAlgs );
  if (sc.isFailure()) {
    throw GaudiException("Failure in OutputStream::decodeAlgorithms",
                         "OutputStream::requireAlgsHandler",sc);
  }
}

IDataSelector* OutputStream::selectedObjects ( )

inline

Return the list of selected objects.

Definition at line 147 of file OutputStream.h.

                                      {
    return &m_objects;
  }

void OutputStream::vetoAlgsHandler ( Property & theProp )

protected

Handler for VetoAlgs Property.

Definition at line 471 of file OutputStream.cpp.

                                                 {
  StatusCode sc = decodeAlgorithms( m_vetoNames, m_vetoAlgs );
  if (sc.isFailure()) {
    throw GaudiException("Failure in OutputStream::decodeAlgorithms",
                         "OutputStream::vetoAlgsHandler",sc);
  }
}

StatusCode OutputStream::writeObjects ( )

protectedvirtual

Select the different objects and write them to file.

Reimplemented in TagCollectionStream, and SequentialOutputStream.

Definition at line 194 of file OutputStream.cpp.

                                       {
  // Connect the output file to the service
  StatusCode status = collectObjects();
  if ( status.isSuccess() )   {
    IDataSelector*  sel = selectedObjects();
    if ( sel->begin() != sel->end() )  {
      status = m_pConversionSvc->connectOutput(m_outputName, m_outputType);
      if ( status.isSuccess() )   {
        // Now pass the collection to the persistency service
        IDataSelector::iterator j;
        IOpaqueAddress* pAddress = 0;
        for ( j = sel->begin(); j != sel->end(); j++ )    {
          StatusCode iret = m_pConversionSvc->createRep( *j, pAddress );
          if ( !iret.isSuccess() )      {
            status = iret;
            continue;
          }
          IRegistry* pReg = (*j)->registry();
          pReg->setAddress(pAddress);
        }
        for ( j = sel->begin(); j != sel->end(); j++ )    {
          IRegistry* pReg = (*j)->registry();
          StatusCode iret = m_pConversionSvc->fillRepRefs( pReg->address(), *j );
          if ( !iret.isSuccess() )      {
            status = iret;
          }
        }
        // Commit the data if there was no error; otherwise possibly discard
        if ( status.isSuccess() )  {
          status = m_pConversionSvc->commitOutput(m_outputName, true);
        }
        else   {
          m_pConversionSvc->commitOutput(m_outputName, false).ignore();
        }
      }
    }
  }
  return status;
}

Friends And Related Function Documentation

friend class AlgFactory< OutputStream >

friend

Definition at line 33 of file OutputStream.h.

friend class Factory< OutputStream, IAlgorithm *(std::string, ISvcLocator *)>

friend

Definition at line 34 of file OutputStream.h.

Member Data Documentation

std::vector<Algorithm*>* OutputStream::m_acceptAlgs

protected

Vector of Algorithms that this stream accepts.

Definition at line 87 of file OutputStream.h.

StringArrayProperty OutputStream::m_acceptNames

protected

Vector of names of Algorithms that this stream accepts.

Definition at line 81 of file OutputStream.h.

OutputStreamAgent* OutputStream::m_agent

protected

Keep reference of agent.

Definition at line 59 of file OutputStream.h.

DataStoreItem* OutputStream::m_currentItem

protected

Keep track of the current item.

Definition at line 67 of file OutputStream.h.

bool OutputStream::m_doPreLoad

protected

Flag indicating wether data pre-loading should be performed.

Definition at line 43 of file OutputStream.h.

bool OutputStream::m_doPreLoadOpt

protected

Flag indicating whether optional items should be preloaded.

Definition at line 45 of file OutputStream.h.

int OutputStream::m_events

protected

Number of events written to this output stream.

Definition at line 79 of file OutputStream.h.

bool OutputStream::m_fireIncidents

protected

should I fire incidents for writing opening/closing etc?

Definition at line 122 of file OutputStream.h.

SmartIF<IIncidentSvc> OutputStream::m_incidentSvc

protected

Reference to the indicent service.

Definition at line 41 of file OutputStream.h.

Items OutputStream::m_itemList

protected

Vector of items to be saved to this stream.

Definition at line 71 of file OutputStream.h.

ItemNames OutputStream::m_itemNames

protected

Vector of item names.

Definition at line 69 of file OutputStream.h.

IDataSelector OutputStream::m_objects

protected

Collection of objects being selected.

Definition at line 77 of file OutputStream.h.

Items OutputStream::m_optItemList

protected

Vector of optional items to be saved to this stream.

Definition at line 75 of file OutputStream.h.

ItemNames OutputStream::m_optItemNames

protected

Vector of item names.

Definition at line 73 of file OutputStream.h.

std::string OutputStream::m_output

protected

Name of the output file specification.

Definition at line 53 of file OutputStream.h.

std::string OutputStream::m_outputName

protected

Name of the output file.

Definition at line 55 of file OutputStream.h.

std::string OutputStream::m_outputType

protected

Output type: NEW(NEW,CREATE,WRITE,RECREATE), UPDATE)

Definition at line 57 of file OutputStream.h.

SmartIF<IConversionSvc> OutputStream::m_pConversionSvc

protected

Keep reference to the data conversion service.

Definition at line 65 of file OutputStream.h.

SmartIF<IDataManagerSvc> OutputStream::m_pDataManager

protected

Keep reference to the data manager service.

Definition at line 63 of file OutputStream.h.

SmartIF<IDataProviderSvc> OutputStream::m_pDataProvider

protected

Keep reference to the data provider service.

Definition at line 61 of file OutputStream.h.

std::string OutputStream::m_persName

protected

Name of the persistency service capable to write data from the store.

Definition at line 51 of file OutputStream.h.

std::vector<Algorithm*>* OutputStream::m_requireAlgs

protected

Vector of Algorithms that this stream requires.

Definition at line 89 of file OutputStream.h.

StringArrayProperty OutputStream::m_requireNames

protected

Vector of names of Algorithms that this stream requires.

Definition at line 83 of file OutputStream.h.

std::string OutputStream::m_storeName

protected

Name of the service managing the data store.

Definition at line 49 of file OutputStream.h.

bool OutputStream::m_verifyItems

protected

Flag to indicate that item consistency should be checked.

Definition at line 47 of file OutputStream.h.

std::vector<Algorithm*>* OutputStream::m_vetoAlgs

protected

Vector of Algorithms that this stream is vetoed by.

Definition at line 91 of file OutputStream.h.

StringArrayProperty OutputStream::m_vetoNames

protected

Vector of names of Algorithms that this stream is vetoed by.

Definition at line 85 of file OutputStream.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r8/GaudiCommonSvc/src/PersistencySvc/OutputStream.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r8/GaudiCommonSvc/src/PersistencySvc/OutputStream.cpp

Gaudi Framework, version v23r8

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
