NTuple converter class definition for NTuples writted/read using ROOT. More...

#include <Root/RootNTupleCnv.h>

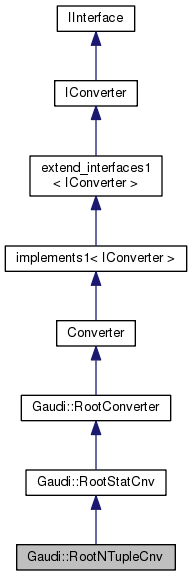

Inheritance diagram for Gaudi::RootNTupleCnv:

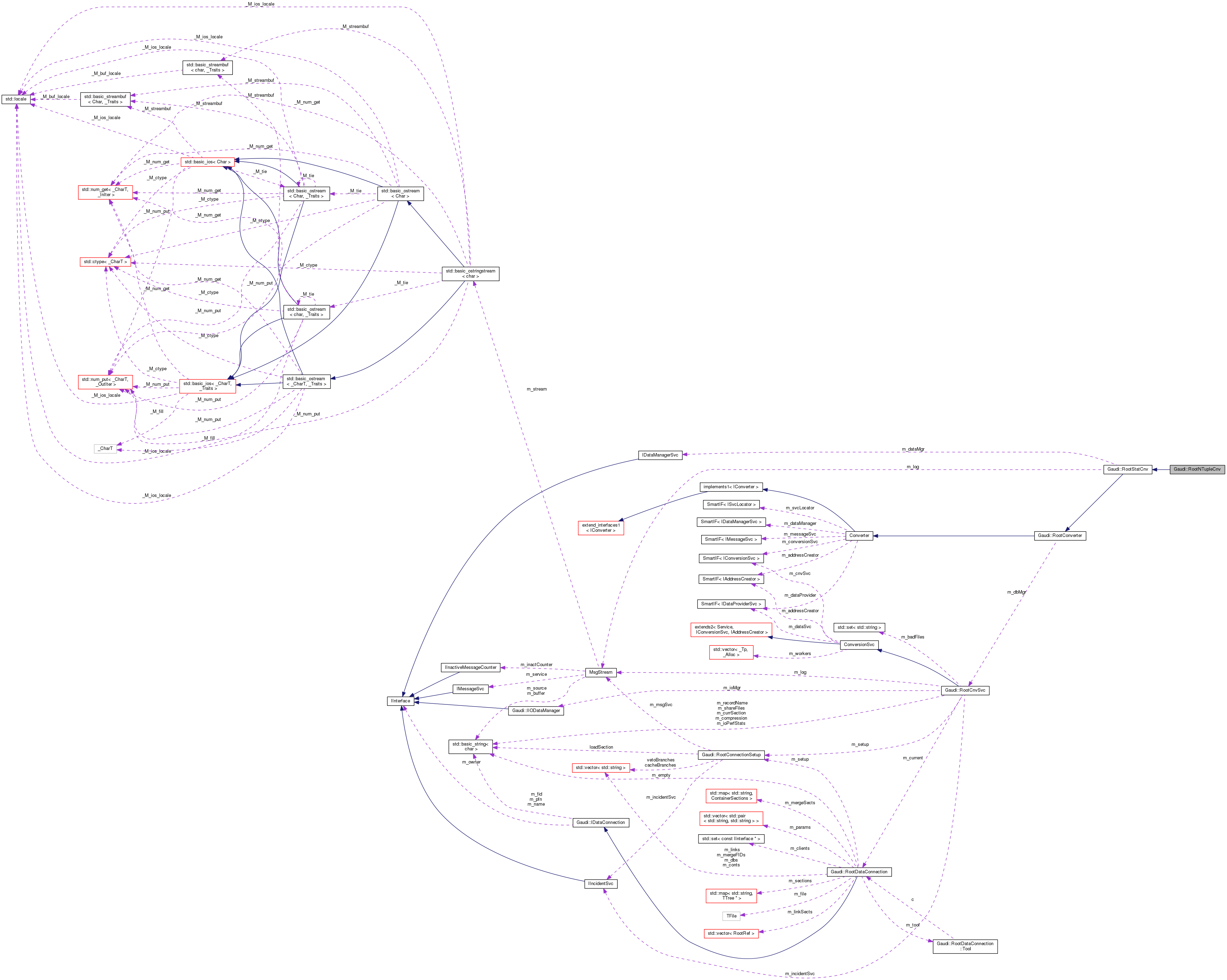

Collaboration diagram for Gaudi::RootNTupleCnv:

Public Member Functions
	RootNTupleCnv (long typ, const CLID &clid, ISvcLocator svc, RootCnvSvc mgr)
	Standard constructor.

virtual	~RootNTupleCnv ()
	Standard destructor.

virtual StatusCode	createRep (DataObject pObj, IOpaqueAddress &refpAdd)
	Converter overrides: Convert the transient object to the requested representation.

virtual StatusCode	fillRepRefs (IOpaqueAddress pAdd, DataObject pObj)
	Resolve the references of the converted object.

virtual StatusCode	createObj (IOpaqueAddress pAddress, DataObject &refpObject)
	Converter overrides: Update the references of an updated transient object.

virtual StatusCode	fillObjRefs (IOpaqueAddress , DataObject )
	Converter overrides: Update the references of an updated transient object.

virtual StatusCode	updateObj (IOpaqueAddress pAddress, DataObject pObject)
	Update the transient object: NTuples end here when reading records.

virtual StatusCode	updateObjRefs (IOpaqueAddress , DataObject )
	Converter overrides: Update the references of an updated transient object.

virtual StatusCode	updateRep (IOpaqueAddress , DataObject )
	Converter overrides: Update the converted representation of a transient object.

virtual StatusCode	updateRepRefs (IOpaqueAddress , DataObject )
	Converter overrides: Update the converted representation of a transient object.

Public Member Functions inherited from Gaudi::RootStatCnv
	RootStatCnv (long typ, const CLID &clid, ISvcLocator svc, RootCnvSvc mgr)
	Initializing Constructor.

virtual	~RootStatCnv ()
	Standard Destructor.

Public Member Functions inherited from Gaudi::RootConverter
	RootConverter (long typ, const CLID &clid, ISvcLocator svc, RootCnvSvc mgr)
	Initializing Constructor.

virtual	~RootConverter ()
	Standard Destructor.

virtual long	repSvcType () const
	Retrieve the class type of the data store the converter uses.

Public Member Functions inherited from Converter
virtual StatusCode	setDataProvider (IDataProviderSvc *svc)
	Set Data provider service.

virtual SmartIF < IDataProviderSvc > &	dataProvider () const
	Get Data provider service.

virtual StatusCode	setConversionSvc (IConversionSvc *svc)
	Set conversion service the converter is connected to.

virtual SmartIF< IConversionSvc > &	conversionSvc () const
	Get conversion service the converter is connected to.

virtual StatusCode	setAddressCreator (IAddressCreator *creator)
	Set address creator facility.

virtual SmartIF < IAddressCreator > &	addressCreator () const
	Retrieve address creator facility.

virtual const CLID &	objType () const
	Retrieve the class type of objects the converter produces.

virtual long	i_repSvcType () const
	Retrieve the class type of the data store the converter uses.

	Converter (long storage_type, const CLID &class_type, ISvcLocator *svc=0)
	Standard Constructor.

template<class T >
StatusCode	service (const std::string &name, T *&psvc, bool createIf=false) const
	Access a service by name, creating it if it doesn't already exist.

template<class T >
StatusCode	service (const std::string &type, const std::string &name, T *&psvc) const
	Access a service by name, type creating it if it doesn't already exist.

SmartIF< IService >	service (const std::string &name, const bool createIf=true) const
	Return a pointer to the service identified by name (or "type/name")

Protected Member Functions
StatusCode	i__updateObjRoot (RootAddress rpA, INTuple tupl, TTree tree, RootDataConnection con)
	Update the transient object: NTuples end here when reading records.

Protected Member Functions inherited from Gaudi::RootStatCnv
MsgStream &	log () const
	Helper to use mesage logger.

virtual StatusCode	initialize ()
	Initialize converter object.

virtual StatusCode	finalize ()
	Finalize converter object.

virtual const std::string	containerName (IRegistry *pDir) const
	Retrieve the name of the container a given object is placed into.

virtual const std::string	fileName (IRegistry *pReg) const
	Retrieve the name of the file a given object is placed into.

virtual const std::string	topLevel (IRegistry *pReg) const
	Retrieve the full path of the file a given object is placed into.

StatusCode	makeError (const std::string &msg, bool throw_exception=false) const
	Helper method to issue error messages.

StatusCode	saveDescription (const std::string &path, const std::string &ident, const std::string &desc, const std::string &opt, const CLID &clid)
	Save statistics object description.

Additional Inherited Members
Public Types inherited from implements1< IConverter >
typedef implements1	base_class
	Typedef to this class.

typedef extend_interfaces1 < IConverter >	extend_interfaces_base
	Typedef to the base of this class.

typedef extend_interfaces_base::ext_iids	interfaces
	MPL set of all the implemented interfaces.

Static Public Member Functions inherited from IInterface
static const InterfaceID &	interfaceID ()
	Return an instance of InterfaceID identifying the interface.

Protected Attributes inherited from Gaudi::RootStatCnv
IDataManagerSvc *	m_dataMgr
	Reference to data manager service to manipulate the TES.

MsgStream *	m_log
	Reference to logger object.

Detailed Description

NTuple converter class definition for NTuples writted/read using ROOT.

Description: Definition of the generic converter for row wise and column wise Ntuples.

Author: M.Frank

Version: 1.0

Definition at line 35 of file RootNTupleCnv.h.

Constructor & Destructor Documentation

Gaudi::RootNTupleCnv::RootNTupleCnv	(	long	typ,
		const CLID &	clid,
		ISvcLocator *	svc,
		RootCnvSvc *	mgr
	)

inline

Standard constructor.

Parameters

clid	[IN] Class ID of the object type to be converted.
db	[IN] Pointer to POOL database interface
svc	[IN] Pointer to Gaudi service locator

Returns: Reference to RootNTupleCnv object

Definition at line 55 of file RootNTupleCnv.h.

: RootStatCnv(typ, clid, svc, mgr) {}

virtual Gaudi::RootNTupleCnv::~RootNTupleCnv ( )

inlinevirtual

Standard destructor.

Definition at line 59 of file RootNTupleCnv.h.

{}

Member Function Documentation

StatusCode RootNTupleCnv::createObj	(	IOpaqueAddress *	pAddress,
		DataObject *&	refpObject
	)

virtual

Converter overrides: Update the references of an updated transient object.

Parameters

pAddress	[IN] Valid pointer to the object's opaque address
refpObject	[OUT] Location to store pointer to DataObject

Returns: Status code indicating success or failure

Reimplemented from Gaudi::RootConverter.

Definition at line 138 of file RootNTupleCnv.cpp.

                                                                         {
  StatusCode status = S_FAIL;
  RootDataConnection* con = 0;
  IRegistry* pRegistry = pAddr->registry();
  RootAddress* rpA = dynamic_cast<RootAddress*>(pAddr);
  string  path    = fileName(pRegistry);
  string  cntName = containerName(pRegistry);
  string* par     = const_cast<string*>(pAddr->par());
  status = m_dbMgr->connectDatabase(path,IDataConnection::READ,&con);
  if ( status.isSuccess() ) {
    string par_val, par_guid;
    TBranch* b = con->getBranch("##Descriptors","GaudiStatisticsDescription");
    if ( b ) {
      RootNTupleDescriptor* ptr;
      auto_ptr<RootNTupleDescriptor> dsc(ptr=new RootNTupleDescriptor());
      b->SetAddress(&ptr);
      for(Long64_t i=0, nent = b->GetEntries(); i<nent; ++i) {
        int nb = b->GetEntry(i);
        if ( nb > 1 ) {
          if ( ptr->container == cntName )  {
            par_val  = ptr->description;
            break;
          }
        }
      }
    }
    par[2] = _tr(cntName);
    TTree* tree = con->getSection(par[2]);
    if ( 0 == tree ) {
      return makeError("Failed to access N-Tuple tree:"+cntName);
    }
    if ( !par_val.empty() )      {
      SmartIF<INTupleSvc> ntupleSvc(dataProvider());
      if ( ntupleSvc.isValid() )  {
        char c;
        CLID clid;
        int siz, typ;
        string title;
        NTuple::Tuple* nt = 0;
        istringstream is(par_val);
        getline(is, title, ';') >> clid >> c >> siz >> c;
        status = ntupleSvc->create(clid, title, nt);
        for ( int j = 0; j < siz && status.isSuccess(); j++ ) {
          is >> c;
          getline(is, title, ';') >> typ >> c;
          switch ( typ )
          {
          case DataTypeInfo::UCHAR:
            status = createItem(tree, nt, is, title, true, (unsigned char)0);
            break;
          case DataTypeInfo::USHORT:
            status = createItem(tree, nt, is, title, true, (unsigned short)0);
            break;
          case DataTypeInfo::UINT:
            status = createItem(tree, nt, is, title, true, (unsigned int)0);
            break;
          case DataTypeInfo::ULONG:
            status = createItem(tree, nt, is, title, true, (unsigned long)0);
            break;
          case DataTypeInfo::CHAR:
            status = createItem(tree, nt, is, title, true, char(0));
            break;
          case DataTypeInfo::SHORT:
            status = createItem(tree, nt, is, title, true, short(0));
            break;
          case DataTypeInfo::INT:
            status = createItem(tree, nt, is, title, true, int(0));
            break;
          case DataTypeInfo::LONG:
            status = createItem(tree, nt, is, title, true, long(0));
            break;
          case DataTypeInfo::BOOL:
            status = createItem(tree, nt, is, title, true, false);
            break;
          case DataTypeInfo::FLOAT:
            status = createItem(tree, nt, is, title, true, float(0.0));
            break;
          case DataTypeInfo::DOUBLE:
            status = createItem(tree, nt, is, title, true, double(0.0));
            break;
            /*
            case DataTypeInfo::NTCHAR:
            case DataTypeInfo::LONG_NTCHAR:
            status =
            createItem(tree, nt, is, title, true, (char*)0);
            break;
            case DataTypeInfo::STRING:
            case DataTypeInfo::LONG_STRING:
            status =
            createItem(tree, nt, is, title, true, string(""));
            break;
            */
          case DataTypeInfo::OBJECT_ADDR:
            status = createItem(tree, nt, is, title, false, (IOpaqueAddress*)0);
            break;
          case DataTypeInfo::POINTER:
            status = createItem(tree, nt, is, title, true, (void*)0);
            break;
          case DataTypeInfo::UNKNOWN:
          default:
            status = S_FAIL;
            break;
          }
          if ( !status.isSuccess() )  {
            log() << MSG::FATAL
              << "Error connecting (Unknown) column:" << j << endmsg
              << par_val << endmsg;
            return makeError("createObj[NTuple]> Cannot determine column!");
          }
        }
        if ( status.isSuccess() )  {
          unsigned long* ipar = const_cast<unsigned long*>(rpA->ipar());
          log() << MSG::DEBUG << "Created N-tuple with description:"
            << par_val << endl;
          ipar[0] = (unsigned long)con;
          ipar[1] = ~0x0UL;
          rpA->section = tree;
          refpObject  = nt;
        }
        else {
          refpObject = 0;
          if ( nt ) nt->release();
        }
      }
    }
  }
  return status;
}

StatusCode RootNTupleCnv::createRep	(	DataObject *	pObj,
		IOpaqueAddress *&	refpAdd
	)

virtual

Converter overrides: Convert the transient object to the requested representation.

Convert the transient object to the requested representation.

Parameters

pObj	[IN] Valid pointer to DataObject
refpAdd	[OUT] Location to store pointer to the object's opaque address

Returns: Status code indicating success or failure

Reimplemented from Gaudi::RootConverter.

Definition at line 401 of file RootNTupleCnv.cpp.

                                                                             {
  IRegistry* pRegistry = pObj->registry();
  if ( 0 != pRegistry )  {
    pAddr = pRegistry->address();
    if ( 0 != pAddr ) {
      return S_OK;
    }
    RootDataConnection* con = 0;
    string path    = fileName(pRegistry);
    string cntName = containerName(pRegistry);
    string secName = cntName.c_str();
    const INTuple* nt = dynamic_cast<const INTuple*>(pObj);
    StatusCode status = m_dbMgr->connectDatabase(path, IDataConnection::UPDATE, &con);
    if ( !status.isSuccess() ) {
      return makeError("Failed to access Tuple file:"+path);
    }
    TTree* tree = con->getSection(_tr(secName),true);
    if ( 0 != nt )  {
      const INTuple::ItemContainer& items = nt->items();
      ostringstream os;
      size_t item_no;
      string desc;
      os << nt->title()<<';'<<pObj->clID()<<';'<<items.size()<< ';';
      map<string,TBranch*> branches;
      TBranch* b = 0;
      for(item_no = 0; item_no < items.size(); ++item_no ) {
        INTupleItem* it = items[item_no];
        if ( it->hasIndex() )   {
          INTupleItem* itm = it->indexItem();
          const string& n = itm->name();
          switch( itm->type() )
          {
          case DataTypeInfo::UCHAR:
            desc = n+"/b";
            b = tree->Branch(n.c_str(),(void*)itm->buffer(),desc.c_str());
            break;
          case DataTypeInfo::USHORT:
            desc = n+"/s";
            b = tree->Branch(n.c_str(),(void*)itm->buffer(),desc.c_str());
            break;
          case DataTypeInfo::UINT:
            desc = n+"/i";
            b = tree->Branch(n.c_str(),(void*)itm->buffer(),desc.c_str());
            break;
          case DataTypeInfo::ULONG:
            desc = n+"/l";
            b = tree->Branch(n.c_str(),(void*)itm->buffer(),desc.c_str());
            break;
          case DataTypeInfo::CHAR:
            desc = n+"/B";
            b = tree->Branch(n.c_str(),(void*)itm->buffer(),desc.c_str());
            break;
          case DataTypeInfo::SHORT:
            desc = n+"/S";
            b = tree->Branch(n.c_str(),(void*)itm->buffer(),desc.c_str());
            break;
          case DataTypeInfo::INT:
            desc = n+"/I";
            b = tree->Branch(n.c_str(),(void*)itm->buffer(),desc.c_str());
            break;
          case DataTypeInfo::LONG:
            desc = n+"/L";
            b = tree->Branch(n.c_str(),(void*)itm->buffer(),desc.c_str());
            break;
          default:
            return makeError("Column "+it->index()+" is not a valid index column!");
          }
          branches[n] = b;
        }
      }
      for(item_no = 0; item_no < items.size(); ++item_no ) {
        INTupleItem* it = items[item_no];
        const string& n = it->name();
        os << '{'
          << n               << ';'
          << it->type()      << ';'
          << it->length()    << ';'
          << it->ndim()      << ';'
          << it->hasIndex()  << ';';
        if ( it->hasIndex() )   {
          os << it->index() << ';';
          INTupleItem* itm = it->indexItem();
          switch( itm->type() )
          {
          case DataTypeInfo::UCHAR:
            putRange(os, dynamic_cast<NTuple::_Data<unsigned char>*>(itm));
            break;
          case DataTypeInfo::USHORT:
            putRange(os, dynamic_cast<NTuple::_Data<unsigned short>*>(itm));
            break;
          case DataTypeInfo::UINT:
            putRange(os, dynamic_cast<NTuple::_Data<unsigned int>*>(itm));
            break;
          case DataTypeInfo::ULONG:
            putRange(os, dynamic_cast<NTuple::_Data<unsigned long>*>(itm));
            break;
          case DataTypeInfo::CHAR:
            putRange(os, dynamic_cast<NTuple::_Data<char>*>(itm));
            break;
          case DataTypeInfo::SHORT:
            putRange(os, dynamic_cast<NTuple::_Data<short>*>(itm));
            break;
          case DataTypeInfo::INT:
            putRange(os, dynamic_cast<NTuple::_Data<int>*>(itm));
            break;
          case DataTypeInfo::LONG:
            putRange(os, dynamic_cast<NTuple::_Data<long>*>(itm));
            break;
          default:
            return makeError("NTuple:"+pRegistry->name()+" Column "+it->index()+
              " is not a valid index column!");
          }
        }
        for ( long k = 0; k < it->ndim(); k++ )  {
          os << it->dim(k) << ';';
        }
        desc = n;
        TClass* cl = 0;
        switch(it->type())
        {
        case DataTypeInfo::STRING:
          desc = "/C";
          os << 0 << ';' << 0 << ';';
          break;
        case DataTypeInfo::NTCHAR:
          desc = "/C";
          os << 0 << ';' << 0 << ';';
          break;
        case DataTypeInfo::OBJECT_ADDR:
          if ( it->length() == 1 )  {
            desc = System::typeinfoName(typeid(RootRef));
            os << 0 << ';' << 0 << ';';
            cl = gROOT->GetClass(desc.c_str(),kTRUE);
          }
          break;
        case DataTypeInfo::POINTER:
          if ( it->length() == 1 )  {
            ROOT::Reflex::Type typ = ROOT::Reflex::Type::ByName(it->typeName());
            desc = typ.Name(ROOT::Reflex::SCOPED);
            os << 0 << ';' << 0 << ';';
            cl = gROOT->GetClass(desc.c_str(),kTRUE);
          }
          break;
        case DataTypeInfo::UCHAR:
          desc = "/b";
          putRange(os, dynamic_cast<NTuple::_Data<unsigned char>*>(it));
          break;
        case DataTypeInfo::USHORT:
          desc = "/s";
          putRange(os, dynamic_cast<NTuple::_Data<unsigned short>*>(it));
          break;
        case DataTypeInfo::UINT:
          desc = "/i";
          putRange(os, dynamic_cast<NTuple::_Data<unsigned int>*>(it));
          break;
        case DataTypeInfo::ULONG:
          desc = "/l";
          putRange(os, dynamic_cast<NTuple::_Data<unsigned long>*>(it));
          break;
        case DataTypeInfo::CHAR:
          desc = "/B";
          putRange(os, dynamic_cast<NTuple::_Data<char>*>(it));
          break;
        case DataTypeInfo::SHORT:
          desc = "/S";
          putRange(os, dynamic_cast<NTuple::_Data<short>*>(it));
          break;
        case DataTypeInfo::INT:
          desc = "/I";
          putRange(os, dynamic_cast<NTuple::_Data<int>*>(it));
          break;
        case DataTypeInfo::LONG:
          desc = "/L";
          putRange(os, dynamic_cast<NTuple::_Data<long>*>(it));
          break;
        case DataTypeInfo::BOOL:
          desc = "/b";
          putRange(os, dynamic_cast<NTuple::_Data<bool>*>(it));
          break;
        case DataTypeInfo::FLOAT:
          desc = "/F";
          putRange(os, dynamic_cast<NTuple::_Data<float>*>(it));
          break;
        case DataTypeInfo::DOUBLE:
          desc = "/D";
          putRange(os, dynamic_cast<NTuple::_Data<double>*>(it));
          break;
        case DataTypeInfo::UNKNOWN:
        default:
          return makeError("Create item[FAIL]: "+it->name());
        }
        os << '}';
        if ( branches.find(n) == branches.end() ) {
          string tmp;
          char text[32];
          switch(it->ndim())
          {
          case 0:
            desc = n+desc;
            break;
          case 2:
            sprintf(text,"[%ld]",it->dim(0));
            tmp = text;
          case 1:
            if ( it->hasIndex() )   {
              INTupleItem* itm = it->indexItem();
              desc = n + tmp + "[" + itm->name() + "]" + desc;
            }
            else {
              sprintf(text,"[%ld]",it->dim(0));
              desc = n + tmp + text + desc;
            }
          }
          log() << MSG::DEBUG << "Create branch:" << n << " Desc:" << desc
            << " of type:" << it->type() << endmsg;
          switch(it->type())
          {
          case DataTypeInfo::OBJECT_ADDR:
            branches[n] = tree->Branch(n.c_str(),cl->GetName(),(void*)it->buffer());
            break;
          case DataTypeInfo::POINTER:
            branches[n] = tree->Branch(n.c_str(),cl->GetName(),(void*)it->buffer());
            break;
          default:
            branches[n] = tree->Branch(n.c_str(),(void*)it->buffer(),desc.c_str());
            break;
          }
        }
      }
      log() << MSG::DEBUG << "Save description:" << path << " -> " << cntName << endmsg
        << os.str() << endmsg;
      status = saveDescription(path,cntName,os.str(),"",pObj->clID());
      if ( status.isSuccess() )  {
        status = m_dbMgr->commitOutput(path, true);
        if ( status.isSuccess() ) {
          string spar[] = { path, cntName};
          unsigned long ipar[] = { (unsigned long)con, ~0x0u };
          status = m_dbMgr->createAddress(repSvcType(),pObj->clID(),spar,ipar,pAddr);
          if ( status.isSuccess() ) {
            RootAddress* rpA = dynamic_cast<RootAddress*>(pAddr);
            ((unsigned long*)rpA->ipar())[0] = (unsigned long)con;
            rpA->section = tree;
          }
          else  {
            pAddr->release();
            pAddr = 0;
          }
        }
      }
      return status;
    }
  }
  return S_FAIL;
}

virtual StatusCode Gaudi::RootNTupleCnv::fillObjRefs	(	IOpaqueAddress *	,
		DataObject *
	)

inlinevirtual

Converter overrides: Update the references of an updated transient object.

Parameters

pAddress	[IN] Valid pointer to the object's opaque address
pObject	[IN] Valid pointer to DataObject

Returns: Status code indicating success or failure

Reimplemented from Gaudi::RootConverter.

Definition at line 100 of file RootNTupleCnv.h.

{ return StatusCode::SUCCESS; }

StatusCode RootNTupleCnv::fillRepRefs	(	IOpaqueAddress *	pAdd,
		DataObject *	pObj
	)

virtual

Resolve the references of the converted object.

Parameters

pAdd	[IN] Valid pointer to the object's opaque address
pObj	[IN] Valid pointer to DataObject

Returns: Status code indicating success or failure

Reimplemented from Gaudi::RootConverter.

Definition at line 659 of file RootNTupleCnv.cpp.

                                                                               {
  typedef INTuple::ItemContainer Cont;
  INTuple* tupl = dynamic_cast<INTuple*>(pObj);
  IRegistry* pReg = pObj->registry();
  RootAddress* rpA = dynamic_cast<RootAddress*>(pAddr);
  if ( tupl && pReg && rpA )  {
    string cntName = containerName(pReg);
    unsigned long* ipar = const_cast<unsigned long*>(pAddr->ipar());
    RootDataConnection* con = (RootDataConnection*)rpA->ipar()[0];
    if ( con ) {
      TTree* tree = rpA->section;
      if ( tree ) {
        Cont& it = tupl->items();
        size_t k, n = it.size();
        vector<RootRef*> paddr(n);
        vector<RootRef>  addr(n);
        for(k = 0; k < n; ++k)      {
          IOpaqueAddress* pA = 0;
          Cont::value_type j = it[k];
          switch( j->type() )
          {
          case DataTypeInfo::OBJECT_ADDR:
            pA = (*(IOpaqueAddress**)j->buffer());
            paddr[k] = &addr[k];
            addr[k].reset();
            if ( pA )  {
              con->makeRef(pA->registry(),addr[k]);
              addr[k].entry = pA->ipar()[1];
            }
            tree->SetBranchAddress(j->name().c_str(),&paddr[k]);
            break;
          default:
            break;
          }
        }
        int nb = tree->Fill();
        if ( nb>1 ) ++ipar[1];
        for(k = 0; k < n; ++k) it[k]->reset();
        return nb>1 ? StatusCode::SUCCESS : StatusCode::FAILURE;
      }
      return makeError("fillRepRefs> Failed to access data tree:"+cntName);
    }
    return makeError("fillRepRefs> Failed to access data source!");
  }
  return makeError("fillRepRefs> Invalid Tuple reference.");
}

StatusCode RootNTupleCnv::i__updateObjRoot	(	RootAddress *	rpA,
		INTuple *	tupl,
		TTree *	tree,
		RootDataConnection *	con
	)

protected

Update the transient object: NTuples end here when reading records.

Definition at line 294 of file RootNTupleCnv.cpp.

                                                                                                                 {
  typedef INTuple::ItemContainer Cont;
  const string*   par = rpA->par();
  unsigned long* ipar = const_cast<unsigned long*>(rpA->ipar());
  ++ipar[1];
  if ( Long64_t(ipar[1]) <= tree->GetEntries() ) {
    GenericAddress* pA = 0;
    Cont& it = tupl->items();
    size_t k, n = it.size();
    vector<RootRef*> paddr(n);
    vector<RootRef>  addr(n);
    for(k = 0; k < n; ++k)      {
      Cont::value_type j = it[k];
      switch( j->type() )
      {
      case DataTypeInfo::OBJECT_ADDR:
        paddr[k] = &addr[k];
        tree->SetBranchAddress(j->name().c_str(),&paddr[k]);
        break;
      default:
        break;
      }
    }
    ULong64_t last = (ULong64_t)tree->GetEntries();
    ISelectStatement* sel = tupl->selector();
    if ( sel ) {
      string criteria = (sel && (sel->type() & ISelectStatement::STRING))
        ? sel->criteria() : string("");
      if ( !(criteria.length() == 0 || criteria == "*") )  {
        if ( rpA->select == 0 ) {
          log() << MSG::DEBUG << "Selection criteria: " << criteria << "  "  << ipar[1] << endmsg;
          rpA->select = new TTreeFormula(tree->GetName(),criteria.c_str(), tree);
        }
        rpA->select->SetTree(tree);
        for( ; ipar[1] < last; ++ipar[1]) { // loop on all selected entries
          tree->LoadTree(ipar[1]);
          rpA->select->GetNdata();
          if ( fabs(rpA->select->EvalInstance(0)) > std::numeric_limits<float>::epsilon() ) {
            break;
          }
          log() << MSG::DEBUG << par[0] << "/" << par[1] << " SKIP Entry: " << ipar[1] << endmsg;
        }
      }
    }
    if ( ipar[1] < last ) {
      unsigned long entry = ipar[1];
      if ( tree->GetEntry(entry) > 1 )   {
        RootRef *r = 0;
        string  *spar = 0;
        for(k = 0; k < n; ++k)      {
          Cont::value_type j = it[k];
          switch( j->type() )
          {
          case DataTypeInfo::OBJECT_ADDR:
            r = paddr[k];
            pA = (*(GenericAddress**)j->buffer());
            if ( pA ) { // Fill only if item is connected!
              spar = (string*)pA->par();
              ipar = (unsigned long*)pA->ipar();
              log() << MSG::DEBUG;
              pair<const RootRef*,const RootDataConnection::ContainerSection*> ls = con->getMergeSection(tree->GetName(),entry);
              if ( ls.first )  {
                if ( ls.first->dbase >= 0 ) {
                  // Now patch the references and links 'en block' to be efficient
                  // First the leafs from the TES
                  r->dbase     += ls.first->dbase;
                  r->container += ls.first->container;
                  r->link      += ls.first->link;
                  if ( log().isActive() ) {
                    log() << "Refs: LS [" << entry << "] -> "
                      << ls.first->dbase << "," << ls.first->container
                      << "," << ls.first->link
                      << "," << ls.first->entry
                      << " DB:" << con->getDb(r->dbase)
                      << endmsg;
                  }
                }
              }
              spar[0] = con->getDb(r->dbase);
              spar[1] = con->getCont(r->container);
              spar[2] = con->getLink(r->link);
              ipar[0] = 0;
              ipar[1] = r->entry;
              pA->setClID(r->clid);
              pA->setSvcType(r->svc);
              break;
            }
            break;
          default:
            break;
          }
        }
        return StatusCode::SUCCESS;
      }
      log() << MSG::ERROR << "Failed to read data from NTuple tree." << endmsg;
      return StatusCode::FAILURE;
    }
    log() << MSG::INFO << "End of input Ntuple." << endmsg;
    return StatusCode::FAILURE;
  }
  return StatusCode::FAILURE;
}

StatusCode RootNTupleCnv::updateObj	(	IOpaqueAddress *	pAddress,
		DataObject *	pObject
	)

virtual

Update the transient object: NTuples end here when reading records.

Parameters

pAddress	[IN] Valid pointer to the object's opaque address
pObject	[IN] Valid pointer to DataObject

Returns: Status code indicating success or failure

Reimplemented from Converter.

Definition at line 268 of file RootNTupleCnv.cpp.

                                                                            {
  INTuple* tupl = dynamic_cast<INTuple*>(pObj);
  RootAddress* rpA = dynamic_cast<RootAddress*>(pAddr);
  if ( 0 != tupl && 0 != rpA )  {
    RootDataConnection* con = (RootDataConnection*)rpA->ipar()[0];
    if ( con )   {
      TTree* tree = rpA->section;
      if ( tree ) {
        con->resetAge();
        if ( con->tool()->refs() )
          return i__updateObjRoot(rpA,tupl,tree,con);
#ifdef __POOL_COMPATIBILITY
        // POOL compatibility mode:
        return i__updateObjPool(rpA,tupl,tree,con);
#else
        return makeError("Failed to access reference branch for data tree:"+rpA->par()[1]);
#endif
      }
      return makeError("Failed to access data tree:"+pAddr->par()[1]);
    }
    return makeError("updateObj> Failed to access data source!");
  }
  return makeError("updateObj> Invalid Tuple reference.");
}

virtual StatusCode Gaudi::RootNTupleCnv::updateObjRefs	(	IOpaqueAddress *	,
		DataObject *
	)

inlinevirtual

Converter overrides: Update the references of an updated transient object.

Parameters

pAddress	[IN] Valid pointer to the object's opaque address
pObject	[IN] Valid pointer to DataObject

Returns: Status code indicating success or failure

Reimplemented from Converter.

Definition at line 122 of file RootNTupleCnv.h.

{ return StatusCode::SUCCESS; }

virtual StatusCode Gaudi::RootNTupleCnv::updateRep	(	IOpaqueAddress *	,
		DataObject *
	)

inlinevirtual

Converter overrides: Update the converted representation of a transient object.

Parameters

pAddress	[IN] Valid pointer to the object's opaque address
pObject	[IN] Valid pointer to DataObject

Returns: Status code indicating success or failure

Reimplemented from Converter.

Definition at line 134 of file RootNTupleCnv.h.

{ return StatusCode::SUCCESS; }

virtual StatusCode Gaudi::RootNTupleCnv::updateRepRefs	(	IOpaqueAddress *	,
		DataObject *
	)

inlinevirtual

Converter overrides: Update the converted representation of a transient object.

Parameters

pAddress	[IN] Valid pointer to the object's opaque address
pObject	[IN] Valid pointer to DataObject

Returns: Status code indicating success or failure

Reimplemented from Converter.

Definition at line 146 of file RootNTupleCnv.h.

{ return StatusCode::SUCCESS; }

The documentation for this class was generated from the following files:

/afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r9/RootCnv/RootCnv/RootNTupleCnv.h
/afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r9/RootCnv/src/RootNTupleCnv.cpp

Gaudi Framework, version v23r9

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
