NTuple::File Class Reference

Small class representing an N tuple file in the transient store. More...

#include <NTuple.h>

Inheritance diagram for NTuple::File:

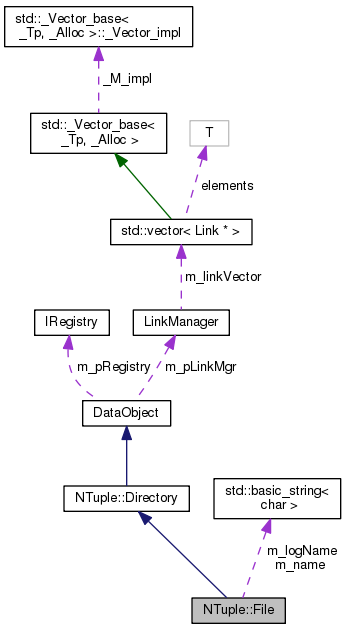

Collaboration diagram for NTuple::File:

Public Member Functions
	File ()
	File (long type, const std::string name, const std::string &logName)
	Standard constructor.
virtual	~File ()
	Standard destructor.
virtual const CLID &	clID () const
	class ID of the object
void	setType (const long typ)
	Set access type.
long	type () const
	Return access type.
const std::string &	name () const
	Retrun physical file name.
void	setName (const std::string &nam)
	Set access type.
const std::string &	logicalName () const
void	setLogicalName (const std::string &l)
void	setOpen (bool flag)
	Set "open" flag.
bool	isOpen () const
	Access "open" flag.
Public Member Functions inherited from NTuple::Directory
	Directory ()
	Standard constructor.
virtual	~Directory ()
	Standard destructor.
Public Member Functions inherited from DataObject
	DataObject ()
	Standard Constructor.
	DataObject (const DataObject &)
	Copy Constructor.
virtual	~DataObject ()
	Standard Destructor.
virtual unsigned long	addRef ()
	Add reference to object.
virtual unsigned long	release ()
	release reference to object
const std::string &	name () const
	Retreive DataObject name. It is the name when registered in the store.
virtual StatusCode	update ()
	Provide empty placeholder for internal object reconfiguration callback.
void	setRegistry (IRegistry *pRegistry)
	Set pointer to Registry.
IRegistry *	registry () const
	Get pointer to Registry.
LinkManager *	linkMgr () const
	Retrieve Link manager.
unsigned char	version () const
	Retrieve version number of this object representation.
void	setVersion (unsigned char vsn)
	Set version number of this object representation.
unsigned long	refCount () const
	Return the refcount.
virtual std::ostream &	fillStream (std::ostream &s) const
	Fill the output stream (ASCII)

Static Public Member Functions
static const CLID &	classID ()
	class ID of the object
Static Public Member Functions inherited from NTuple::Directory
static const CLID &	classID ()
	class ID of the object
Static Public Member Functions inherited from DataObject
static const CLID &	classID ()
	Retrieve reference to class definition structure (static access)

Protected Attributes
std::string	m_name
	Physical file name.
std::string	m_logName
	Logical file name.
long	m_type
	Access type.
bool	m_isOpen
	Flag to indicate wether the file was opened already.

Detailed Description

Small class representing an N tuple file in the transient store.

Definition at line 1085 of file NTuple.h.

Constructor & Destructor Documentation

NTuple::File::File ( )

inline

Definition at line 1096 of file NTuple.h.

           : m_type(0), m_isOpen(false)   {
    }

NTuple::File::File ( long  type, const std::string  name, const std::string &  logName  )

inline

Standard constructor.

Definition at line 1099 of file NTuple.h.

    : m_name(name), m_logName(logName), m_type(type), m_isOpen(false)  {
    }

virtual NTuple::File::~File ( )

inlinevirtual

Standard destructor.

Definition at line 1103 of file NTuple.h.

                      {
    }

Member Function Documentation

static const CLID& NTuple::File::classID ( )

inlinestatic

class ID of the object

Definition at line 1106 of file NTuple.h.

                                    {
      return CLID_NTupleFile;
    }

virtual const CLID& NTuple::File::clID ( ) const

inlinevirtual

class ID of the object

Reimplemented from NTuple::Directory.

Definition at line 1110 of file NTuple.h.

                                          {
      return classID();
    }

bool NTuple::File::isOpen ( ) const

inline

Access "open" flag.

Definition at line 1142 of file NTuple.h.

                            {
      return m_isOpen;
    }

const std::string& NTuple::File::logicalName ( ) const

inline

Definition at line 1130 of file NTuple.h.

                                              {
      return m_logName;
    }

const std::string& NTuple::File::name ( ) const

inline

Retrun physical file name.

Definition at line 1122 of file NTuple.h.

                                       {
      return m_name;
    }

void NTuple::File::setLogicalName ( const std::string &  l )

inline

Definition at line 1134 of file NTuple.h.

                                              {
      m_logName = l;
    }

void NTuple::File::setName ( const std::string &  nam )

inline

Set access type.

Definition at line 1126 of file NTuple.h.

                                          {
      m_name = nam;
    }

void NTuple::File::setOpen ( bool  flag )

inline

Set "open" flag.

Definition at line 1138 of file NTuple.h.

                                {
      m_isOpen = flag;
    }

void NTuple::File::setType ( const long  typ )

inline

Set access type.

Definition at line 1114 of file NTuple.h.

                                   {
      m_type = typ;
    }

long NTuple::File::type ( ) const

inline

Return access type.

Definition at line 1118 of file NTuple.h.

                           {
      return m_type;
    }

Member Data Documentation

bool NTuple::File::m_isOpen

protected

Flag to indicate wether the file was opened already.

Definition at line 1094 of file NTuple.h.

std::string NTuple::File::m_logName

protected

Logical file name.

Definition at line 1090 of file NTuple.h.

std::string NTuple::File::m_name

protected

Physical file name.

Definition at line 1088 of file NTuple.h.

long NTuple::File::m_type

protected

Access type.

Definition at line 1092 of file NTuple.h.

---

The documentation for this class was generated from the following file:

• /afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r9/GaudiKernel/GaudiKernel/NTuple.h
