The simplest concrete implementation of class TupleObj with 3 arbitrary error handlers Any types (classes, functions, etc.) which supports the semantics. More...

#include <TupleDetail.h>

Inheritance diagram for Tuples::detail::TupleObjImp< HANDLER1, HANDLER2 >:

[legend]

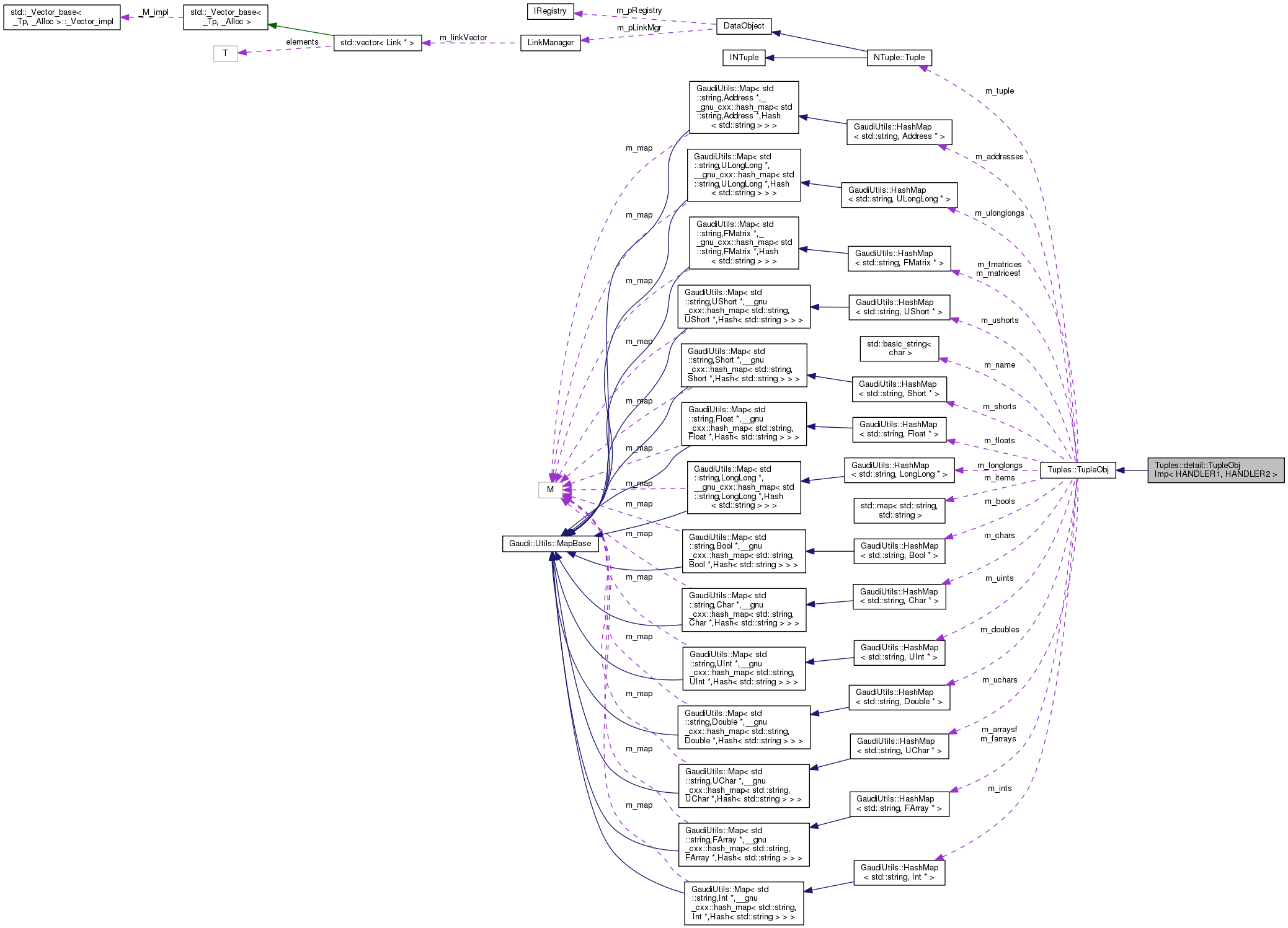

Collaboration diagram for Tuples::detail::TupleObjImp< HANDLER1, HANDLER2 >:

[legend]

Public Member Functions
	TupleObjImp (HANDLER1 handler1, HANDLER2 handler2, const std::string &name, NTuple::Tuple *tuple, const CLID &clid=CLID_ColumnWiseTuple, const Tuples::Type type=Tuples::NTUPLE)
	constructor

virtual StatusCode	Error (const std::string &msg, const StatusCode sc=StatusCode::FAILURE) const

virtual StatusCode	Warning (const std::string &msg, const StatusCode sc=StatusCode::FAILURE) const

Public Member Functions inherited from Tuples::TupleObj
StatusCode	column (const std::string &name, const float value)
	Set the value for selected tuple column.

StatusCode	column (const std::string &name, const double value)
	Set the value for the selected tuple column If the column does not exist, it will be automatically created and appended to the tuple.

StatusCode	column (const std::string &name, const short value)
	Set the value for selected tuple column.

StatusCode	column (const std::string &name, const short value, const short minv, const short maxv)
	Set the value for selected tuple column.

StatusCode	column (const std::string &name, const unsigned short value)
	Set the value for selected tuple column.

StatusCode	column (const std::string &name, const unsigned short value, const unsigned short minv, const unsigned short maxv)
	Set the value for selected tuple column.

StatusCode	column (const std::string &name, const char value)
	Set the value for selected tuple column.

StatusCode	column (const std::string &name, const char value, const char minv, const char maxv)
	Set the value for selected tuple column.

StatusCode	column (const std::string &name, const unsigned char value)
	Set the value for selected tuple column.

StatusCode	column (const std::string &name, const unsigned char value, const unsigned char minv, const unsigned char maxv)
	Set the value for selected tuple column.

StatusCode	column (const std::string &name, const int value)
	Set the value for selected tuple column.

StatusCode	column (const std::string &name, const int value, const int minv, const int maxv)
	Set the value for selected tuple column.

StatusCode	column (const std::string &name, const unsigned int value)
	Set the value for selected tuple column.

StatusCode	column (const std::string &name, const unsigned int value, const unsigned int minv, const unsigned int maxv)
	Set the value for selected tuple column.

StatusCode	column (const std::string &name, const long value)
	Set the value for the selected tuple column.

StatusCode	column (const std::string &name, const long value, const long minv, const long maxv)
	Set the value for selected tuple column.

StatusCode	column (const std::string &name, const unsigned long value)
	Set the value for selected tuple column.

StatusCode	column (const std::string &name, const unsigned long value, const unsigned long minv, const unsigned long maxv)
	Set the value for selected tuple column.

StatusCode	column (const std::string &name, const long long value)
	Set the value for selected tuple column.

StatusCode	column (const std::string &name, const long long value, const long long minv, const long long maxv)
	Set the value for selected tuple column.

StatusCode	column (const std::string &name, const unsigned long long value)
	Set the value for selected tuple column.

StatusCode	column (const std::string &name, const unsigned long long value, const unsigned long long minv, const unsigned long long maxv)
	Set the value for selected tuple column.

StatusCode	column (const std::string &name, const signed char value)
	Set the value for the selected tuple column.

StatusCode	column (const std::string &name, const bool value)
	Set the value for selected tuple column.

StatusCode	column (const std::string &name, IOpaqueAddress *address)
	Put IOpaqueAddress in POOL-based NTuple.

StatusCode	column (IOpaqueAddress *address)
	Put IOpaqueAddress in NTuple.

StatusCode	fill (const char *format...)
	Set the values for several columns simultaneously.

template<class DATA >
StatusCode	farray (const std::string &name, DATA first, DATA last, const std::string &length, const size_t maxv)
	Add an indexed array (of type float) to N-tuple.

template<class DATA >
StatusCode	farray (const std::string &name, const DATA &data, const std::string &length, const size_t maxv)
	Add an indexed array (of type float) to N-tuple.

template<class FUNCTION , class DATA >
StatusCode	farray (const std::string &name, const FUNCTION &function, DATA first, DATA last, const std::string &length, const size_t maxv)
	Put an indexed array into LoKi-style N-Tuple.

template<class FUNC1 , class FUNC2 , class DATA >
StatusCode	farray (const std::string &name1, const FUNC1 &func1, const std::string &name2, const FUNC2 &func2, DATA first, DATA last, const std::string &length, const size_t maxv)
	Put two functions from one data array into LoKi-style N-Tuple simultaneously (effective!)

template<class FUNC1 , class FUNC2 , class FUNC3 , class DATA >
StatusCode	farray (const std::string &name1, const FUNC1 &func1, const std::string &name2, const FUNC2 &func2, const std::string &name3, const FUNC3 &func3, DATA first, DATA last, const std::string &length, const size_t maxv)
	Put three functions from one data array into LoKi-style N-Tuple simultaneously (effective!)

template<class FUNC1 , class FUNC2 , class FUNC3 , class FUNC4 , class DATA >
StatusCode	farray (const std::string &name1, const FUNC1 &func1, const std::string &name2, const FUNC2 &func2, const std::string &name3, const FUNC3 &func3, const std::string &name4, const FUNC4 &func4, DATA first, DATA last, const std::string &length, const size_t maxv)
	Put four functions from one data array into LoKi-style N-Tuple simultaneously (effective!)

template<class MATRIX >
StatusCode	fmatrix (const std::string &name, const MATRIX &data, size_t rows, const MIndex &cols, const std::string &length, const size_t maxv)
	Fill N-Tuple with data from variable-size matrix.

template<class DATA >
StatusCode	fmatrix (const std::string &name, DATA first, DATA last, const MIndex &cols, const std::string &length, const size_t maxv)
	Fill N-Tuple with data from variable-size matrix.

template<class FUN , class DATA >
StatusCode	fmatrix (const std::string &name, FUN funF, FUN funL, DATA first, DATA last, const std::string &length, const size_t maxv)
	fill N-Tuple with matrix of "direct-product" of "data-vector" [first,last) and "function-vector" [funF, funL)

template<class DATA >
StatusCode	array (const std::string &name, DATA first, DATA last)
	fill N-Tuple with fixed-size array

template<class ARRAY >
StatusCode	array (const std::string &name, const ARRAY &data, const MIndex &length)
	fill N-Tuple with fixed-size array

template<class ARRAY >
StatusCode	array (const std::string &name, const ARRAY &data)
	fill N-Tuple with fixed-size array

template<class MATRIX >
StatusCode	matrix (const std::string &name, const MATRIX &data, const MIndex &rows, const MIndex &cols)
	fill N-Tuple with fixed-size matrix

template<class TYPE >
StatusCode	column (const std::string &name, const ROOT::Math::LorentzVector< TYPE > &v)
	Useful shortcut to put LorentzVector directly into N-Tuple:

template<class TYPE , class TAG >
StatusCode	column (const std::string &name, const ROOT::Math::DisplacementVector3D< TYPE, TAG > &v)
	Useful shortcut to put 3D-Vector directly into N-Tuple:

template<class TYPE , class TAG >
StatusCode	column (const std::string &name, const ROOT::Math::PositionVector3D< TYPE, TAG > &v)
	Useful shortcut to put 3D-Vector directly into N-Tuple:

template<class TYPE , unsigned int DIM>
StatusCode	array (const std::string &name, const ROOT::Math::SVector< TYPE, DIM > &vect)
	shortcut to put SVector into N-tuple:

template<class TYPE , unsigned int D1, unsigned int D2, class REP >
StatusCode	matrix (const std::string &name, const ROOT::Math::SMatrix< TYPE, D1, D2, REP > &mtrx)
	shortcut to put Smatrix into N-tuple:

template<class KEY , class VALUE >
StatusCode	fmatrix (const std::string &name, const GaudiUtils::VectorMap< KEY, VALUE > &info, const std::string &length, const size_t maxv=100)
	shortcut to put "ExtraInfo" fields of major into N-Tuple

template<class TYPE >
StatusCode	put (const std::string &name, const TYPE *obj)
	The function allows to add almost arbitrary object into N-tuple.

StatusCode	write ()
	write a record to NTuple

const std::string &	name () const
	get the name

NTuple::Tuple *	tuple () const
	provide the access to underlying Gaudi N-tuple

unsigned long	refCount () const
	return the reference counter

unsigned long	addRef ()
	add the reference to TupleObj

void	release ()
	release the reference to TupleObj if reference counter becomes zero, object will be automatically deleted

const CLID &	clid () const
	accessor to the N-Tuple CLID

Tuples::Type	type () const
	accessor to the N-Tuple type

bool	columnWise () const
	column wise NTuple ?

bool	rowWise () const
	row wise NTuple ?

bool	evtColType () const
	Event collection ?

bool	valid () const
	valid pointer to tuple ?

bool	invalid () const
	invalid pointer to tuple ?

bool	addItem (const std::string &name, const std::string &type)
	add the item name into the list of known items

bool	goodItem (const std::string &name) const
	check the uniqueness of the name

const ItemMap &	items () const
	get the full list of booked items

Protected Member Functions
virtual	~TupleObjImp ()
	empty protected destructor

Protected Member Functions inherited from Tuples::TupleObj
	TupleObj (const std::string &name, NTuple::Tuple *tuple, const CLID &clid=CLID_ColumnWiseTuple, const Tuples::Type type=Tuples::NTUPLE)
	Standard constructor.

virtual	~TupleObj ()
	destructor is protected

Private Attributes
HANDLER1	m_handler1

HANDLER2	m_handler2

Additional Inherited Members
Public Types inherited from Tuples::TupleObj
typedef NTuple::Item< bool >	Bool
	basic type for int items

typedef NTuple::Item< char >	Char
	basic type for int items

typedef NTuple::Item< unsigned char >	UChar
	basic type for unsigned int items

typedef NTuple::Item< short >	Short
	basic type for int items

typedef NTuple::Item< unsigned short >	UShort
	basic type for unsigned int items

typedef NTuple::Item< int >	Int
	basic type for int items

typedef NTuple::Item< unsigned int >	UInt
	basic type for unsigned int items

typedef NTuple::Item< long long >	LongLong
	basic type for unsigned long long items

typedef NTuple::Item< unsigned long long >	ULongLong
	basic type for unsigned long long items

typedef NTuple::Item< float >	Float
	basic type for float items

typedef NTuple::Item< double >	Double
	basic type for double items

typedef NTuple::Item < IOpaqueAddress * >	Address
	basic type for address items

typedef NTuple::Array< float >	FArray
	basic type for array of floats

typedef NTuple::Matrix< float >	FMatrix
	basic type for matrix of floats

typedef unsigned short	MIndex

typedef std::map< std::string, std::string >	ItemMap

Detailed Description

template<class HANDLER1, class HANDLER2>
class Tuples::detail::TupleObjImp< HANDLER1, HANDLER2 >

The simplest concrete implementation of class TupleObj with 3 arbitrary error handlers Any types (classes, functions, etc.) which supports the semantics.

HANDLER obj = .. ;
StatusCode obj( msg , sc )

can be used as error handler, e.g.

void print_error   ( const std::string& msg , StatusCode sc )
 { std::cout <<
   "Error"   << msg << " code " << sc.getCode() << std::endl ; }
void print_warning ( const std::string& msg , StatusCode sc )
 { std::cout <<
   "Warning" << msg << " code " << sc.getCode() << std::endl ; }
void print_print   ( const std::string& msg , StatusCode sc )
 { std::cout << msg << " code " << sc.getCode() << std::endl ; }
NTuple::Tuple* tuple = ... ;
TupleObj* obj =
 createTupleObj( print_errror   ,
                 print_warning  ,
                 print_print    ,
                 " my tuple "   , ntuple ) ;

Templated helper functions allow to avoid heavy semantics of dealing with explicit type

Few concrete error handlers for dealing with classes, which supports member functions Error and Warning ( e.g. class GaudiAlgorithm or class GaudiTool ) are provided

Author: Vanya BELYAEV Ivan..nosp@m.Bely.nosp@m.aev@i.nosp@m.tep..nosp@m.ru

Date: 2004-1-24

Definition at line 79 of file TupleDetail.h.

Constructor & Destructor Documentation

template<class HANDLER1, class HANDLER2>

Tuples::detail::TupleObjImp< HANDLER1, HANDLER2 >::TupleObjImp	(	HANDLER1	handler1,
		HANDLER2	handler2,
		const std::string &	name,
		NTuple::Tuple *	tuple,
		const CLID &	clid = `CLID_ColumnWiseTuple`,
		const Tuples::Type	type = `Tuples::NTUPLE`
	)

inline

constructor

Parameters

handler1	error handler
handler2	warning handler
name	Name of the NTuple
tuple	NTuple itself
clid	NTuple CLID
type	NTuple type

Definition at line 90 of file TupleDetail.h.

        : TupleObj ( name , tuple , clid, type )
        , m_handler1 ( handler1 )
        , m_handler2 ( handler2 )
      {}

template<class HANDLER1, class HANDLER2>

virtual Tuples::detail::TupleObjImp< HANDLER1, HANDLER2 >::~TupleObjImp ( )

inlineprotectedvirtual

empty protected destructor

Definition at line 114 of file TupleDetail.h.

{}

Member Function Documentation

template<class HANDLER1, class HANDLER2>

virtual StatusCode Tuples::detail::TupleObjImp< HANDLER1, HANDLER2 >::Error	(	const std::string &	msg,
		const StatusCode	sc = `StatusCode::FAILURE`
	)		const

inlinevirtual

Implements Tuples::TupleObj.

Definition at line 103 of file TupleDetail.h.

{ m_handler1 ( name() + " " + msg , sc ) ; return sc ; }

template<class HANDLER1, class HANDLER2>

virtual StatusCode Tuples::detail::TupleObjImp< HANDLER1, HANDLER2 >::Warning	(	const std::string &	msg,
		const StatusCode	sc = `StatusCode::FAILURE`
	)		const

inlinevirtual

Implements Tuples::TupleObj.

Definition at line 108 of file TupleDetail.h.

{ m_handler2 ( name() + " " + msg , sc ) ; return sc ; }

Member Data Documentation

template<class HANDLER1, class HANDLER2>

HANDLER1 Tuples::detail::TupleObjImp< HANDLER1, HANDLER2 >::m_handler1

private

Definition at line 116 of file TupleDetail.h.

template<class HANDLER1, class HANDLER2>

HANDLER2 Tuples::detail::TupleObjImp< HANDLER1, HANDLER2 >::m_handler2

private

Definition at line 117 of file TupleDetail.h.

The documentation for this class was generated from the following file:

/afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r9/GaudiAlg/GaudiAlg/TupleDetail.h

Gaudi Framework, version v23r9

Public Member Functions

Protected Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

template<class HANDLER1, class HANDLER2> class Tuples::detail::TupleObjImp< HANDLER1, HANDLER2 >

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<class HANDLER1, class HANDLER2>
class Tuples::detail::TupleObjImp< HANDLER1, HANDLER2 >
