DODBasicMapper Class Reference

Default implementation of a DataOnDemand mapper. More...

#include <IncidentSvc/DODBasicMapper.h>

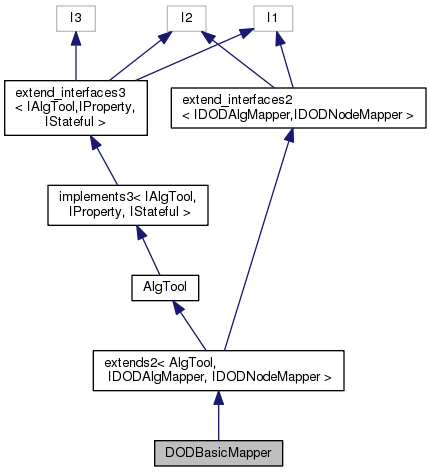

Inheritance diagram for DODBasicMapper:

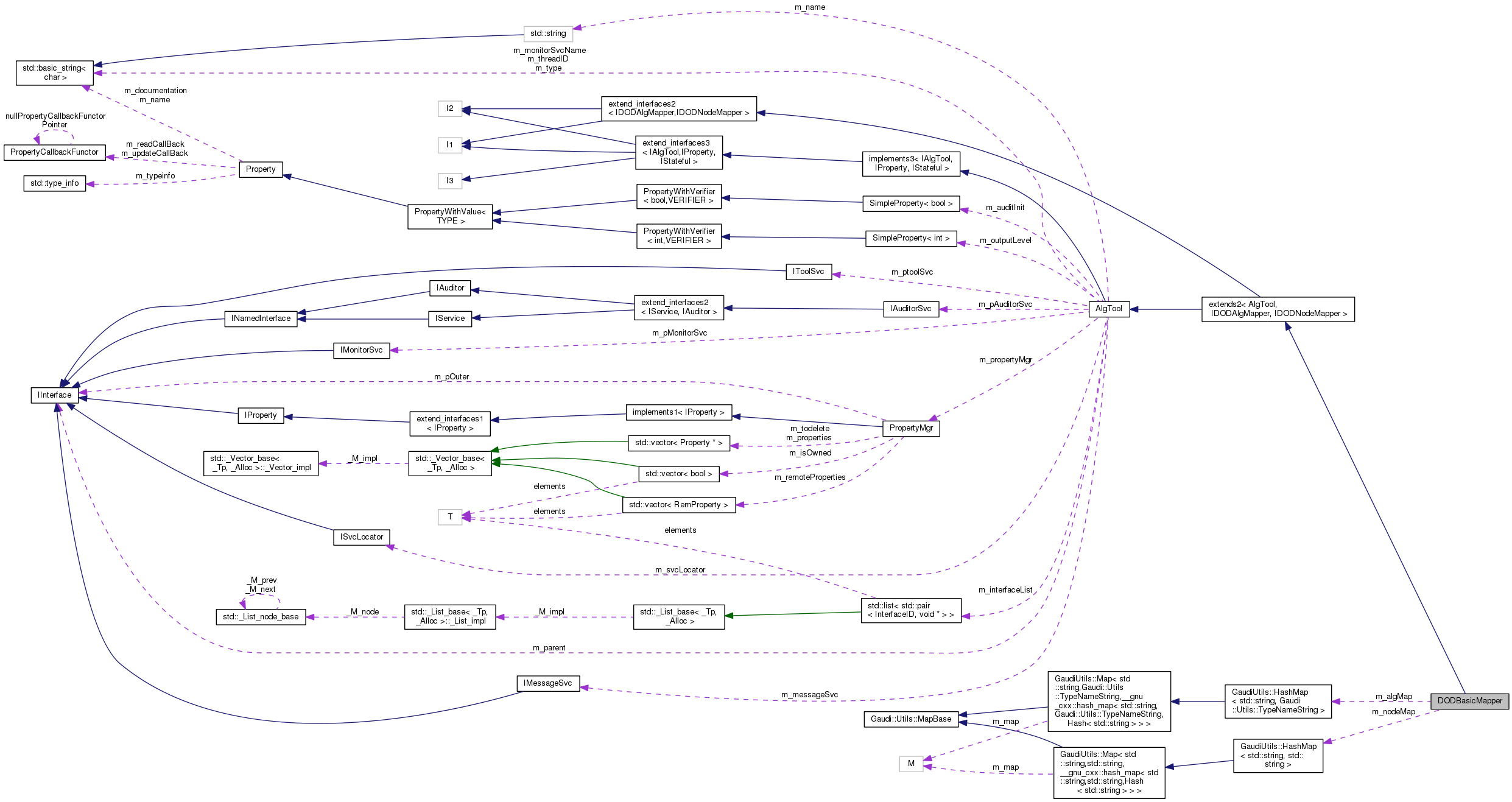

Collaboration diagram for DODBasicMapper:

Public Member Functions
	DODBasicMapper (const std::string &type, const std::string &name, const IInterface *parent)
	Standard constructor.
virtual	~DODBasicMapper ()
	Destructor.
virtual Gaudi::Utils::TypeNameString	algorithmForPath (const std::string &path)
virtual std::string	nodeTypeForPath (const std::string &path)
Public Member Functions inherited from extends2< AlgTool, IDODAlgMapper, IDODNodeMapper >
	extends2 (A1 a1, A2 a2, A3 a3)
	Templated constructor with 3 arguments.
	extends2 (A1 a1, A2 a2)
	Templated constructor with 2 arguments.
	extends2 (A1 a1)
	Templated constructor with 1 argument.
	extends2 ()
	Default constructor.
virtual void *	i_cast (const InterfaceID &tid) const
	Implementation of IInterface::i_cast.
virtual StatusCode	queryInterface (const InterfaceID &ti, void **pp)
	Implementation of IInterface::queryInterface.
virtual std::vector< std::string >	getInterfaceNames () const
	Implementation of IInterface::getInterfaceNames.
virtual	~extends2 ()
	Virtual destructor.
Public Member Functions inherited from AlgTool
virtual const std::string &	name () const
	Retrieve full identifying name of the concrete tool object.
virtual const std::string &	type () const
	Retrieve type (concrete class) of the sub-algtool.
virtual const IInterface *	parent () const
	Retrieve parent of the sub-algtool.
virtual StatusCode	configure ()
virtual StatusCode	initialize ()
virtual StatusCode	start ()
virtual StatusCode	stop ()
virtual StatusCode	finalize ()
virtual StatusCode	terminate ()
virtual StatusCode	reinitialize ()
virtual StatusCode	restart ()
virtual Gaudi::StateMachine::State	FSMState () const
virtual Gaudi::StateMachine::State	targetFSMState () const
virtual StatusCode	sysInitialize ()
	Initialize AlgTool.
virtual StatusCode	sysStart ()
	Start AlgTool.
virtual StatusCode	sysStop ()
	Stop AlgTool.
virtual StatusCode	sysFinalize ()
	Finalize AlgTool.
virtual StatusCode	sysReinitialize ()
	Initialize AlgTool.
virtual StatusCode	sysRestart ()
	Start AlgTool.
virtual StatusCode	setProperty (const Property &p)
	Default implementations for IProperty interface.
virtual StatusCode	setProperty (const std::string &s)
virtual StatusCode	setProperty (const std::string &n, const std::string &v)
virtual StatusCode	getProperty (Property *p) const
virtual const Property &	getProperty (const std::string &name) const
virtual StatusCode	getProperty (const std::string &n, std::string &v) const
virtual const std::vector < Property * > &	getProperties () const
PropertyMgr *	getPropertyMgr ()
template<class TYPE >
StatusCode	setProperty (const std::string &name, const TYPE &value)
	set the property form the value
	AlgTool (const std::string &type, const std::string &name, const IInterface *parent)
	Standard Constructor.
ISvcLocator *	serviceLocator () const
	Retrieve pointer to service locator.
ISvcLocator *	svcLoc () const
	shortcut for the method service locator
IMessageSvc *	msgSvc () const
	Retrieve pointer to message service.
IToolSvc *	toolSvc () const
	The standard ToolSvc service, Return a pointer to the service if present.
StatusCode	setProperties ()
	Method for setting declared properties to the values specified in the jobOptions via the job option service.
template<class T >
StatusCode	service (const std::string &name, T *&svc, bool createIf=true) const
	Access a service by name, creating it if it doesn't already exist.
template<class T >
StatusCode	service (const std::string &type, const std::string &name, T *&svc) const
	Access a service by name, type creating it if it doesn't already exist.
SmartIF< IService >	service (const std::string &name, const bool createIf=true, const bool quiet=false) const
	Return a pointer to the service identified by name (or "type/name")
void	declInterface (const InterfaceID &, void *)
	declare interface
template<class T >
Property *	declareProperty (const std::string &name, T &property, const std::string &doc="none") const
	Declare the named property.
Property *	declareRemoteProperty (const std::string &name, IProperty *rsvc, const std::string &rname="") const
	Declare remote named properties.
IAuditorSvc *	auditorSvc () const
	Access the auditor service.
IMonitorSvc *	monitorSvc () const
	Access the monitor service.
template<class T >
void	declareInfo (const std::string &name, const T &var, const std::string &desc) const
	Declare monitoring information.
void	declareInfo (const std::string &name, const std::string &format, const void *var, int size, const std::string &desc) const
	Declare monitoring information (special case)
Public Member Functions inherited from extend_interfaces2< I1, I2 >
virtual	~extend_interfaces2 ()
	Virtual destructor.

Private Types
typedef GaudiUtils::HashMap < std::string, Gaudi::Utils::TypeNameString >	AlgMap
typedef GaudiUtils::HashMap < std::string, std::string >	NodeMap

Private Attributes
AlgMap	m_algMap
NodeMap	m_nodeMap

Additional Inherited Members
Public Types inherited from extends2< AlgTool, IDODAlgMapper, IDODNodeMapper >
typedef extends2	base_class
	Typedef to this class.
typedef extend_interfaces2 < IDODAlgMapper, IDODNodeMapper >	extend_interfaces_base
	Typedef to the base of this class.
typedef extend_interfaces_base::ext_iids	interfaces
	MPL set of all the implemented interfaces.
Protected Member Functions inherited from AlgTool
int	outputLevel () const
	get tool's output level
IntegerProperty &	outputLevelProperty ()
	Accessor for the Message level property.
void	initOutputLevel (Property &prop)
	callback for output level property
virtual	~AlgTool ()

Detailed Description

Default implementation of a DataOnDemand mapper.

Author

Marco Clemencic

Date

16/01/2012

Definition at line 19 of file DODBasicMapper.h.

Member Typedef Documentation

typedef GaudiUtils::HashMap<std::string, Gaudi::Utils::TypeNameString> DODBasicMapper::AlgMap

private

Definition at line 33 of file DODBasicMapper.h.

typedef GaudiUtils::HashMap<std::string, std::string> DODBasicMapper::NodeMap

private

Definition at line 34 of file DODBasicMapper.h.

Constructor & Destructor Documentation

DODBasicMapper::DODBasicMapper	(	const std::string &	type,
		const std::string &	name,
		const IInterface *	parent
	)

Standard constructor.

Definition at line 38 of file DODBasicMapper.cpp.

  : base_class(type, name, parent)
{
  declareProperty("Nodes", m_nodeMap,
                  "Map of the type of nodes to be associated to paths (path -> data_type).");
  declareProperty("Algorithms", m_algMap,
                  "Map of algorithms to be used to produce entries (path -> alg_name).");
}

DODBasicMapper::~DODBasicMapper ( )

virtual

Destructor.

Definition at line 50 of file DODBasicMapper.cpp.

{}

Member Function Documentation

Gaudi::Utils::TypeNameString DODBasicMapper::algorithmForPath ( const std::string &  path )

virtual

See Also

IDODAlgMapper

Definition at line 53 of file DODBasicMapper.cpp.

{
  AlgMap::iterator alg = m_algMap.find(path);
  return (alg != m_algMap.end()) ? alg->second : "";
}

std::string DODBasicMapper::nodeTypeForPath ( const std::string &  path )

virtual

See Also

IDODNodeMapper

Definition at line 60 of file DODBasicMapper.cpp.

{
  NodeMap::iterator node = m_nodeMap.find(path);
  return (node != m_nodeMap.end()) ? node->second : "";
}

Member Data Documentation

AlgMap DODBasicMapper::m_algMap

private

Definition at line 36 of file DODBasicMapper.h.

NodeMap DODBasicMapper::m_nodeMap

private

Definition at line 37 of file DODBasicMapper.h.

---

The documentation for this class was generated from the following files:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v24r2/GaudiCoreSvc/src/IncidentSvc/DODBasicMapper.h
• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v24r2/GaudiCoreSvc/src/IncidentSvc/DODBasicMapper.cpp
