#include <GaudiKernel/DataStreamTool.h>

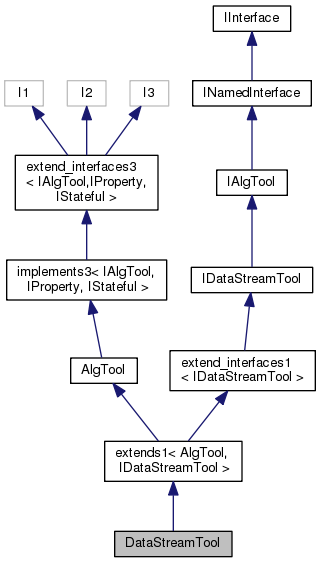

Inheritance diagram for DataStreamTool:

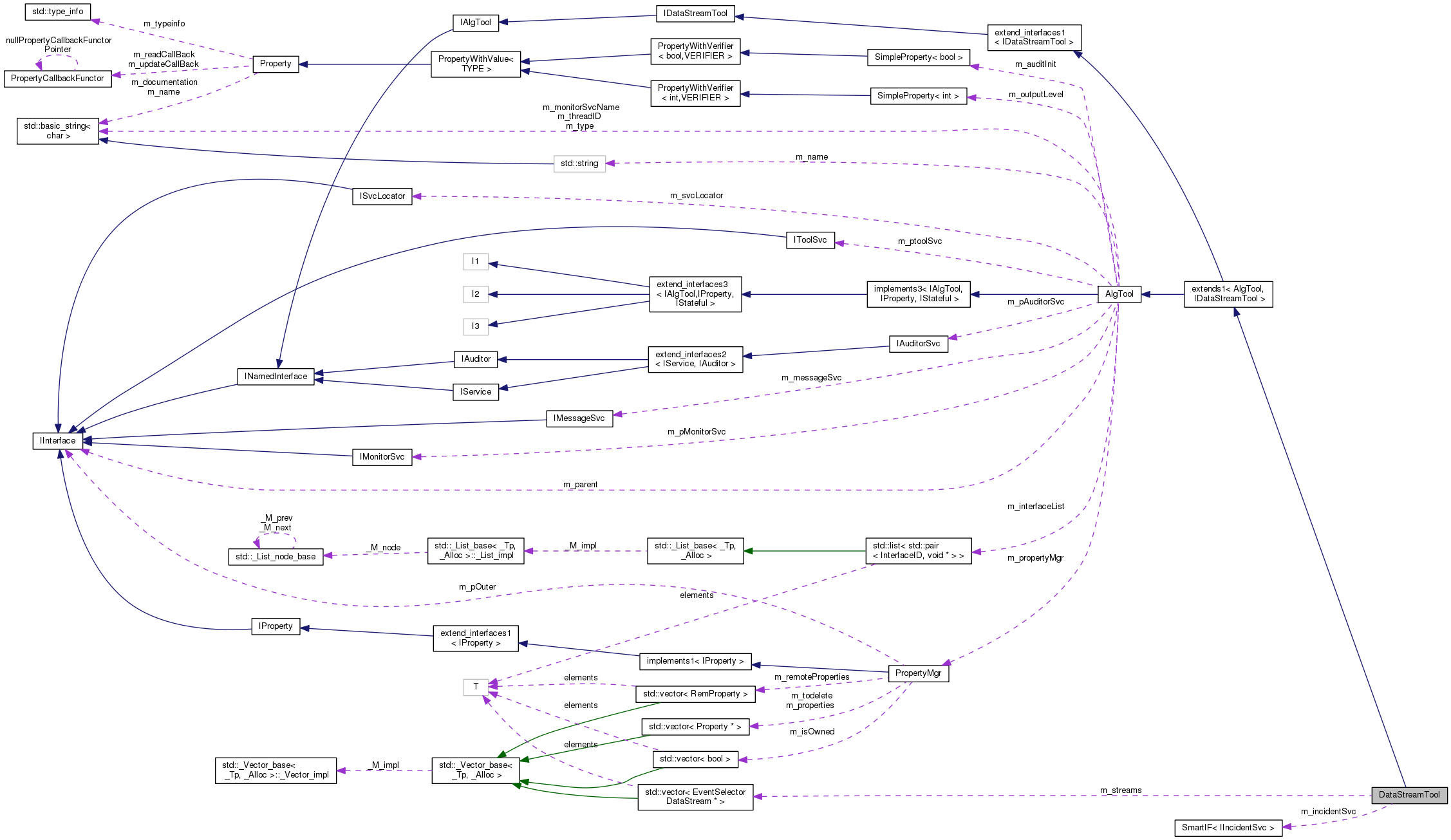

Collaboration diagram for DataStreamTool:

Public Types
typedef std::vector < EventSelectorDataStream * >	Streams

typedef std::vector < StringProperty >	Properties

Public Types inherited from extends1< AlgTool, IDataStreamTool >
typedef extends1	base_class
	Typedef to this class.

typedef extend_interfaces1 < IDataStreamTool >	extend_interfaces_base
	Typedef to the base of this class.

typedef extend_interfaces_base::ext_iids	interfaces
	MPL set of all the implemented interfaces.

Public Types inherited from extend_interfaces1< IDataStreamTool >
typedef IDataStreamTool::iid::iids::type	ext_iids
	MPL set of interfaces extended by this one.

Public Types inherited from IDataStreamTool
typedef std::vector< std::string >	StreamSpecs

typedef long	size_type

Public Member Functions
	DataStreamTool (const std::string &type, const std::string &name, const IInterface *parent)
	Standard constructor.

virtual	~DataStreamTool ()
	Destructor.

virtual StatusCode	initialize ()

virtual StatusCode	addStream (const std::string &)

virtual StatusCode	addStreams (const StreamSpecs &)

virtual StatusCode	eraseStream (const std::string &)

virtual StatusCode	finalize ()

virtual StatusCode	initializeStream (EventSelectorDataStream *)
	Initialize newly opened stream.

virtual StatusCode	finalizeStream (EventSelectorDataStream *)
	Finalize no longer needed stream.

virtual StatusCode	getNextStream (const EventSelectorDataStream *&, size_type &)

virtual StatusCode	getPreviousStream (const EventSelectorDataStream *&, size_type &)

virtual Streams &	getStreams ()

virtual EventSelectorDataStream *	lastStream ()

virtual Streams::iterator	beginOfStreams ()

virtual Streams::iterator	endOfStreams ()

virtual EventSelectorDataStream *	getStream (const std::string &)
	Retrieve stream by name.

virtual EventSelectorDataStream *	getStream (size_type)

virtual size_type	size ()

virtual StatusCode	clear ()

Public Member Functions inherited from extends1< AlgTool, IDataStreamTool >
	extends1 (A1 a1, A2 a2, A3 a3)
	Templated constructor with 3 arguments.

	extends1 (A1 a1, A2 a2)
	Templated constructor with 2 arguments.

	extends1 (A1 a1)
	Templated constructor with 1 argument.

	extends1 ()
	Default constructor.

virtual void *	i_cast (const InterfaceID &tid) const
	Implementation of IInterface::i_cast.

virtual StatusCode	queryInterface (const InterfaceID &ti, void **pp)
	Implementation of IInterface::queryInterface.

virtual std::vector< std::string >	getInterfaceNames () const
	Implementation of IInterface::getInterfaceNames.

virtual	~extends1 ()
	Virtual destructor.

Public Member Functions inherited from AlgTool
virtual const std::string &	name () const
	Retrieve full identifying name of the concrete tool object.

virtual const std::string &	type () const
	Retrieve type (concrete class) of the sub-algtool.

virtual const IInterface *	parent () const
	Retrieve parent of the sub-algtool.

virtual StatusCode	configure ()

virtual StatusCode	start ()

virtual StatusCode	stop ()

virtual StatusCode	terminate ()

virtual StatusCode	reinitialize ()

virtual StatusCode	restart ()

virtual Gaudi::StateMachine::State	FSMState () const

virtual Gaudi::StateMachine::State	targetFSMState () const

virtual StatusCode	sysInitialize ()
	Initialize AlgTool.

virtual StatusCode	sysStart ()
	Start AlgTool.

virtual StatusCode	sysStop ()
	Stop AlgTool.

virtual StatusCode	sysFinalize ()
	Finalize AlgTool.

virtual StatusCode	sysReinitialize ()
	Initialize AlgTool.

virtual StatusCode	sysRestart ()
	Start AlgTool.

virtual StatusCode	setProperty (const Property &p)
	Default implementations for IProperty interface.

virtual StatusCode	setProperty (const std::string &s)

virtual StatusCode	setProperty (const std::string &n, const std::string &v)

virtual StatusCode	getProperty (Property *p) const

virtual const Property &	getProperty (const std::string &name) const

virtual StatusCode	getProperty (const std::string &n, std::string &v) const

virtual const std::vector < Property * > &	getProperties () const

PropertyMgr *	getPropertyMgr ()

template<class TYPE >
StatusCode	setProperty (const std::string &name, const TYPE &value)
	set the property form the value

	AlgTool (const std::string &type, const std::string &name, const IInterface *parent)
	Standard Constructor.

ISvcLocator *	serviceLocator () const
	Retrieve pointer to service locator.

ISvcLocator *	svcLoc () const
	shortcut for the method service locator

IMessageSvc *	msgSvc () const
	Retrieve pointer to message service.

IToolSvc *	toolSvc () const
	The standard ToolSvc service, Return a pointer to the service if present.

StatusCode	setProperties ()
	Method for setting declared properties to the values specified in the jobOptions via the job option service.

template<class T >
StatusCode	service (const std::string &name, T *&svc, bool createIf=true) const
	Access a service by name, creating it if it doesn't already exist.

template<class T >
StatusCode	service (const std::string &type, const std::string &name, T *&svc) const
	Access a service by name, type creating it if it doesn't already exist.

SmartIF< IService >	service (const std::string &name, const bool createIf=true, const bool quiet=false) const
	Return a pointer to the service identified by name (or "type/name")

void	declInterface (const InterfaceID &, void *)
	declare interface

template<class T >
Property *	declareProperty (const std::string &name, T &property, const std::string &doc="none") const
	Declare the named property.

Property *	declareRemoteProperty (const std::string &name, IProperty *rsvc, const std::string &rname="") const
	Declare remote named properties.

IAuditorSvc *	auditorSvc () const
	Access the auditor service.

IMonitorSvc *	monitorSvc () const
	Access the monitor service.

template<class T >
void	declareInfo (const std::string &name, const T &var, const std::string &desc) const
	Declare monitoring information.

void	declareInfo (const std::string &name, const std::string &format, const void *var, int size, const std::string &desc) const
	Declare monitoring information (special case)

Public Member Functions inherited from extend_interfaces1< IDataStreamTool >
virtual	~extend_interfaces1 ()
	Virtual destructor.

Public Member Functions inherited from IDataStreamTool
	DeclareInterfaceID (IDataStreamTool, 2, 0)
	InterfaceID.

Public Member Functions inherited from IAlgTool
	DeclareInterfaceID (IAlgTool, 3, 0)
	InterfaceID.

virtual	~IAlgTool ()
	Virtual destructor.

virtual const std::string &	type () const =0
	The type of an AlgTool, meaning the concrete AlgTool class.

virtual const IInterface *	parent () const =0
	The parent of the concrete AlgTool.

virtual StatusCode	configure ()=0
	Configuration (from OFFLINE to CONFIGURED).

virtual StatusCode	start ()=0
	Start (from INITIALIZED to RUNNING).

virtual StatusCode	stop ()=0
	Stop (from RUNNING to INITIALIZED).

virtual StatusCode	terminate ()=0
	Initialization (from CONFIGURED to OFFLINE).

virtual StatusCode	reinitialize ()=0
	Initialization (from INITIALIZED or RUNNING to INITIALIZED, via CONFIGURED).

virtual StatusCode	restart ()=0
	Initialization (from RUNNING to RUNNING, via INITIALIZED).

virtual Gaudi::StateMachine::State	FSMState () const =0
	Get the current state.

virtual StatusCode	sysInitialize ()=0
	Initialization of the Tool.

virtual StatusCode	sysStart ()=0
	Initialization of the Tool.

virtual StatusCode	sysStop ()=0
	Initialization of the Tool.

virtual StatusCode	sysFinalize ()=0
	Finalization of the Tool.

virtual StatusCode	sysReinitialize ()=0
	Initialization of the Tool.

virtual StatusCode	sysRestart ()=0
	Initialization of the Tool.

virtual unsigned long	refCount () const =0
	Current number of reference counts.

Public Member Functions inherited from INamedInterface
	DeclareInterfaceID (INamedInterface, 1, 0)
	InterfaceID.

virtual const std::string &	name () const =0
	Retrieve the name of the instance.

virtual	~INamedInterface ()
	Virtual destructor (always needed for abstract classes).

Public Member Functions inherited from IInterface
virtual unsigned long	addRef ()=0
	Increment the reference count of Interface instance.

virtual unsigned long	release ()=0
	Release Interface instance.

virtual	~IInterface ()
	Virtual destructor.

Protected Member Functions
virtual StatusCode	createSelector (const std::string &, const std::string &, IEvtSelector *&)

virtual StatusCode	createStream (const std::string &, const std::string &, EventSelectorDataStream *&)

StatusCode	connectStream (EventSelectorDataStream *)
	Connect single stream by reference.

StatusCode	connectStream (const std::string &)
	Connect single stream by name.

Streams::iterator	getStreamIterator (const std::string &)

Protected Attributes
size_type	m_streamID

size_type	m_streamCount

Streams	m_streams

StreamSpecs	m_streamSpecs

SmartIF< IIncidentSvc >	m_incidentSvc
	Reference to the incident service.

bool	m_reconfigure

Private Member Functions
	DataStreamTool (const DataStreamTool &)
	Fake copy constructor (never implemented).

DataStreamTool &	operator= (const DataStreamTool &)
	Fake assignment operator (never implemented).

Additional Inherited Members
Static Public Member Functions inherited from IInterface
static const InterfaceID &	interfaceID ()
	Return an instance of InterfaceID identifying the interface.

Detailed Description

Author: Andres Felipe Osorio Oliveros; Marco Clemencic

Date: 2006-09-21

Definition at line 29 of file DataStreamTool.h.

Member Typedef Documentation

typedef std::vector<StringProperty> DataStreamTool::Properties

Definition at line 33 of file DataStreamTool.h.

typedef std::vector<EventSelectorDataStream*> DataStreamTool::Streams

Definition at line 32 of file DataStreamTool.h.

Constructor & Destructor Documentation

DataStreamTool::DataStreamTool	(	const std::string &	type,
		const std::string &	name,
		const IInterface *	parent
	)

Standard constructor.

Definition at line 36 of file DataStreamTool.cpp.

  : base_class ( type, name , parent )
{
  //declareInterface<IDataStreamTool>(this);
  m_incidentSvc       = 0;
  m_streamCount       = 0;
  m_streamID          = 0;
}

DataStreamTool::~DataStreamTool ( )

virtual

Destructor.

Definition at line 51 of file DataStreamTool.cpp.

{

}

DataStreamTool::DataStreamTool ( const DataStreamTool & )

private

Fake copy constructor (never implemented).

Member Function Documentation

StatusCode DataStreamTool::addStream ( const std::string & input )

virtual

Implements IDataStreamTool.

Definition at line 76 of file DataStreamTool.cpp.

                                                            {
  if ( NULL != getStream(input) )   {
    MsgStream log(msgSvc(), name());
    log << MSG::WARNING << "Input stream " << input << "already in use" << endmsg;
  }
  m_streamSpecs.push_back(input);
  std::ostringstream strname;
  strname << name() << '_' << ++m_streamCount;
  EventSelectorDataStream* s = 0;
  StatusCode status = createStream(strname.str(), input , s );
  if( status.isSuccess() && 0 != s ) {
    s->addRef();
    m_streams.push_back(s);
    status = StatusCode::SUCCESS;
  }
  else {
    MsgStream log(msgSvc(), name());
    if (s) {
      s->release();
      log << MSG::ERROR << "Error connecting/creating Stream: " << s << endmsg;
    }
    log << MSG::ERROR << "Error connecting/creating Stream: " << input << endmsg;
    status = StatusCode::FAILURE;
  }
  return status;
}

StatusCode DataStreamTool::addStreams ( const StreamSpecs & inputs )

virtual

Implements IDataStreamTool.

Definition at line 111 of file DataStreamTool.cpp.

                                                                {
  StatusCode status = StatusCode::SUCCESS;
  for ( StreamSpecs::const_iterator itr = inputs.begin(); itr != inputs.end() && status.isSuccess(); ++itr )    {
    status = addStream(*itr);
  }
  return status;
}

virtual Streams::iterator DataStreamTool::beginOfStreams ( )

inlinevirtual

Definition at line 66 of file DataStreamTool.h.

{return m_streams.begin(); };

StatusCode DataStreamTool::clear ( )

virtual

Implements IDataStreamTool.

Definition at line 249 of file DataStreamTool.cpp.

{
  StatusCode iret, status = StatusCode::SUCCESS;
  iret.ignore();
  MsgStream log(msgSvc(), name());
  // disconnect the streams
  for ( StreamSpecs::const_iterator il = m_streamSpecs.begin(); il != m_streamSpecs.end(); il++ ) {
    EventSelectorDataStream* s = getStream(*il);
    if ( NULL != s )   {
      if ( s->isInitialized() )    {
        iret = finalizeStream(s);
        if ( !iret.isSuccess() )  {
          log << MSG::ERROR << "Error finalizing Stream" << *il << endmsg;
          status = iret;
        }
      }
      iret = eraseStream( *il );
      if ( !iret.isSuccess() )    {
        log << MSG::ERROR << "Error diconnecting Stream" << *il << endmsg;
        status = iret;
      }
    }
  }
  m_streamSpecs.clear();
  return status;
}

StatusCode DataStreamTool::connectStream ( EventSelectorDataStream * s )

protected

Connect single stream by reference.

Definition at line 282 of file DataStreamTool.cpp.

{
  if ( 0 != s )   {
    s->addRef();
    m_streams.push_back(s);
    return StatusCode::SUCCESS;
  }
  return StatusCode::FAILURE;
}

StatusCode DataStreamTool::connectStream ( const std::string & info )

protected

Connect single stream by name.

Definition at line 295 of file DataStreamTool.cpp.

{
  if ( NULL != getStream(info) )   {
    MsgStream log(msgSvc(), name());
    log << MSG::WARNING << "Input stream " << info << "already in use" << endmsg;
  }
  std::ostringstream nam;
  nam << name() << '_' << ++m_streamCount;
  EventSelectorDataStream* s = 0;
  StatusCode status = createStream(nam.str(), info, s);
  if ( status.isSuccess() )   {
    return connectStream(s);
  }
  s->release();
  return status;
}

StatusCode DataStreamTool::createSelector	(	const std::string &	nam,
		const std::string &	typ,
		IEvtSelector *&	sel
	)

protectedvirtual

Implements IDataStreamTool.

Definition at line 158 of file DataStreamTool.cpp.

                                                                                                        {
  IService* isvc = ROOT::Reflex::PluginService::Create<IService*>(typ, nam, serviceLocator());
  if ( isvc ) {
    StatusCode status = isvc->queryInterface(IEvtSelector::interfaceID(), (void**)&sel);
    if ( status.isSuccess() ) {
      return status;
    }
    sel = 0;
    isvc->release();
  }
  MsgStream log(msgSvc(), name());
  log << MSG::ERROR << "Failed to create IEvtSelector " << typ << "/" << nam << endmsg;
  return StatusCode::FAILURE;
}

StatusCode DataStreamTool::createStream	(	const std::string &	nam,
		const std::string &	info,
		EventSelectorDataStream *&	stream
	)

protectedvirtual

Implements IDataStreamTool.

Definition at line 209 of file DataStreamTool.cpp.

                                                                           {
  stream = new EventSelectorDataStream(nam, info, serviceLocator());
  return StatusCode::SUCCESS;
}

virtual Streams::iterator DataStreamTool::endOfStreams ( )

inlinevirtual

Definition at line 68 of file DataStreamTool.h.

{return m_streams.end(); };

StatusCode DataStreamTool::eraseStream ( const std::string & info )

virtual

Implements IDataStreamTool.

Definition at line 196 of file DataStreamTool.cpp.

                                                                 {
  Streams::iterator i = getStreamIterator(info);
  if ( m_streams.end() != i )   {
    (*i)->release();
    m_streams.erase(i);
    return StatusCode::SUCCESS;
  }
  return StatusCode::FAILURE;
}

StatusCode DataStreamTool::finalize ( )

virtual

Reimplemented from AlgTool.

Definition at line 125 of file DataStreamTool.cpp.

                                    {
  clear().ignore();
  m_incidentSvc = 0; // release
  return AlgTool::finalize();
}

StatusCode DataStreamTool::finalizeStream ( EventSelectorDataStream * s )

virtual

Finalize no longer needed stream.

Implements IDataStreamTool.

Definition at line 174 of file DataStreamTool.cpp.

                                                                      {
  if ( s )    {
    IEvtSelector* sel = const_cast<IEvtSelector*>(s->selector());
    if ( sel )    {
      SmartIF<IService> isvc(sel);
      if ( isvc.isValid() )   {
        isvc->finalize().ignore();
        s->finalize().ignore();
        // Fire EndStream "Incident"
        m_incidentSvc->fireIncident(Incident(name(),IncidentType::EndStream));
        return StatusCode::SUCCESS;
      }
      // Failed to get service interface of sub-event selector
      return StatusCode::FAILURE;
    }
    // No selector (yet) attached - no need to finalize it!
    return StatusCode::SUCCESS;
  }
  return StatusCode::FAILURE;
}

StatusCode DataStreamTool::getNextStream	(	const EventSelectorDataStream *&	esds,
		size_type &	dsid
	)

virtual

Implements IDataStreamTool.

Definition at line 322 of file DataStreamTool.cpp.

{
  EventSelectorDataStream * nextStream = getStream(dsid);
  if ( NULL == nextStream ) return StatusCode::FAILURE; //<-end of streams reached
  esds = nextStream;
  ++m_streamID;
  return StatusCode::SUCCESS;
}

StatusCode DataStreamTool::getPreviousStream	(	const EventSelectorDataStream *&	esds,
		size_type &	dsid
	)

virtual

Implements IDataStreamTool.

Definition at line 335 of file DataStreamTool.cpp.

{
  EventSelectorDataStream * previousStream = getStream(dsid);
  if (  NULL == previousStream ) return StatusCode::FAILURE; //<-begin of streams reached
  esds = previousStream;
  --m_streamID;
  return StatusCode::SUCCESS;
}

EventSelectorDataStream * DataStreamTool::getStream ( const std::string & info )

virtual

Retrieve stream by name.

Implements IDataStreamTool.

Definition at line 217 of file DataStreamTool.cpp.

                                                                           {
  Streams::iterator i = getStreamIterator(info);
  if ( m_streams.end() == i ) return NULL;
  return *i;
}

EventSelectorDataStream * DataStreamTool::getStream ( size_type pos )

virtual

Implements IDataStreamTool.

Definition at line 232 of file DataStreamTool.cpp.

                                                                   {
  if ( (pos >= 0) && ((size_t)pos < m_streams.size()) ) // pos has to point inside the vector
    return m_streams[pos];
  else
    return 0;
}

DataStreamTool::Streams::iterator DataStreamTool::getStreamIterator ( const std::string & info )

protected

Definition at line 223 of file DataStreamTool.cpp.

                                                                                        {
  for ( Streams::iterator i = m_streams.begin(); i != m_streams.end(); i++ )    {
    if ( (*i)->definition() == info )    {
      return i;
    }
  }
  return m_streams.end();
}

virtual Streams& DataStreamTool::getStreams ( )

inlinevirtual

Definition at line 62 of file DataStreamTool.h.

{ return m_streams; };

StatusCode DataStreamTool::initialize ( )

virtual

Reimplemented from AlgTool.

Definition at line 55 of file DataStreamTool.cpp.

                                      {
  MsgStream logger(msgSvc(), name());
  StatusCode status = AlgTool::initialize();
  if( !status.isSuccess() )  {
    logger << MSG::FATAL << "Error. Cannot initialize base class." << endmsg;
    return status;
  }
  // Get the references to the services that are needed by the ApplicationMgr itself
  m_incidentSvc = serviceLocator()->service("IncidentSvc");
  if( !m_incidentSvc.isValid() )  {
    logger << MSG::FATAL << "Error retrieving IncidentSvc." << endmsg;
    return StatusCode::FAILURE;
  }
  return StatusCode::SUCCESS;
}

StatusCode DataStreamTool::initializeStream ( EventSelectorDataStream * s )

virtual

Initialize newly opened stream.

Implements IDataStreamTool.

Definition at line 132 of file DataStreamTool.cpp.

                                                                        {
  IEvtSelector* sel = 0;
  StatusCode status = s->initialize();
  if ( status.isSuccess() )   {
    status = createSelector(s->name(), s->selectorType(), sel);
    if ( status.isSuccess() )   {
      SmartIF<IProperty> prop(sel); //Att: IProperty, IService used to point to EventSelector
      SmartIF<IService>  isvc(sel);
      s->setSelector(sel);
      sel->release();  // No need of this interface anymore, it is passed to the stream
      if ( prop.isValid( ) && isvc.isValid( ) )   {
        const Properties& p = s->properties();
        for(Properties::const_iterator i=p.begin(); i!=p.end(); i++)   {
          prop->setProperty((*i)).ignore();
        }
        int output_level = this->outputLevel();
        prop->setProperty(IntegerProperty("OutputLevel",output_level)).ignore();
        // FIXME: (MCl) Why do we have to initialize the selector here?
        return isvc->sysInitialize();
      }
    }
  }
  return StatusCode::FAILURE;
}

EventSelectorDataStream * DataStreamTool::lastStream ( )

virtual

Implements IDataStreamTool.

Definition at line 239 of file DataStreamTool.cpp.

{
  if (m_streams.size() > 1 )
    return *(--m_streams.end());
  else return *m_streams.begin();
}

DataStreamTool& DataStreamTool::operator= ( const DataStreamTool & )

private

Fake assignment operator (never implemented).

virtual size_type DataStreamTool::size ( )

inlinevirtual

Implements IDataStreamTool.

Definition at line 75 of file DataStreamTool.h.

{ return m_streams.size(); };

Member Data Documentation

SmartIF<IIncidentSvc> DataStreamTool::m_incidentSvc

protected

Reference to the incident service.

Definition at line 101 of file DataStreamTool.h.

bool DataStreamTool::m_reconfigure

protected

Definition at line 103 of file DataStreamTool.h.

size_type DataStreamTool::m_streamCount

protected

Definition at line 94 of file DataStreamTool.h.

size_type DataStreamTool::m_streamID

protected

Definition at line 92 of file DataStreamTool.h.

Streams DataStreamTool::m_streams

protected

Definition at line 96 of file DataStreamTool.h.

StreamSpecs DataStreamTool::m_streamSpecs

protected

Definition at line 98 of file DataStreamTool.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v24r2/GaudiKernel/GaudiKernel/DataStreamTool.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v24r2/GaudiKernel/src/Lib/DataStreamTool.cpp

Gaudi Framework, version v24r2

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
