Description: More...

Inheritance diagram for Gaudi::RootAddress:

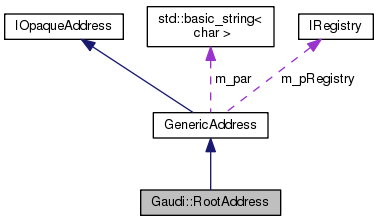

Collaboration diagram for Gaudi::RootAddress:

Public Member Functions
	RootAddress (long svc, const CLID &clid, const std::string &p1="", const std::string &p2="", unsigned long ip1=0, unsigned long ip2=0)
	Full constructor.

virtual	~RootAddress ()
	Standard Destructor.

Public Member Functions inherited from GenericAddress
	GenericAddress ()
	Dummy constructor.

	GenericAddress (const GenericAddress &copy)
	Standard Constructor.

	GenericAddress (long svc, const CLID &clid, const std::string &p1="", const std::string &p2="", unsigned long ip1=0, unsigned long ip2=0)
	Standard Constructor.

virtual	~GenericAddress ()
	Standard Destructor.

virtual unsigned long	addRef ()
	Add reference to object.

virtual unsigned long	release ()
	release reference to object

virtual IRegistry *	registry () const
	Pointer to directory.

virtual void	setRegistry (IRegistry *pRegistry)
	Set pointer to directory.

const CLID &	clID () const
	Access : Retrieve class ID of the link.

void	setClID (const CLID &clid)
	Access : Set class ID of the link.

long	svcType () const
	Access : retrieve the storage type of the class id.

void	setSvcType (long typ)
	Access : set the storage type of the class id.

virtual const std::string *	par () const
	Retrieve string parameters.

virtual const unsigned long *	ipar () const
	Retrieve integer parameters.

Public Member Functions inherited from IOpaqueAddress
virtual	~IOpaqueAddress ()
	destructor

Public Attributes
TTreeFormula *	select
	Pointer to ROOT select statement (filled for N-tuples only)

TTree *	section
	Pointer to ROOT TTree (filled for N-tuples only)

Additional Inherited Members
Protected Attributes inherited from GenericAddress
unsigned long	m_refCount
	Reference count.

long	m_svcType
	Storage type.

CLID	m_clID
	Class id.

std::string	m_par [3]
	String parameters to be accessed.

unsigned long	m_ipar [2]
	Integer parameters to be accessed.

IRegistry *	m_pRegistry
	Pointer to corresponding directory.

Detailed Description

Description:

Definition of a transient link which is capable of locating an object in the persistent storage.

Definition at line 38 of file RootAddress.h.

Constructor & Destructor Documentation

Gaudi::RootAddress::RootAddress	(	long	svc,
		const CLID &	clid,
		const std::string &	p1 = `""`,
		const std::string &	p2 = `""`,
		unsigned long	ip1 = `0`,
		unsigned long	ip2 = `0`
	)

inline

Full constructor.

Definition at line 47 of file RootAddress.h.

: GenericAddress(svc,clid,p1,p2,ip1,ip2), select(0), section(0) { }

virtual Gaudi::RootAddress::~RootAddress ( )

inlinevirtual

Standard Destructor.

Definition at line 55 of file RootAddress.h.

{ if ( select ) delete select; select = 0; }

TTree* Gaudi::RootAddress::section

Pointer to ROOT TTree (filled for N-tuples only)

Definition at line 43 of file RootAddress.h.

TTreeFormula* Gaudi::RootAddress::select

Pointer to ROOT select statement (filled for N-tuples only)

Definition at line 41 of file RootAddress.h.

The documentation for this class was generated from the following file:
