Base for Google Auditors. More...

#include <GoogleAuditor.cpp>

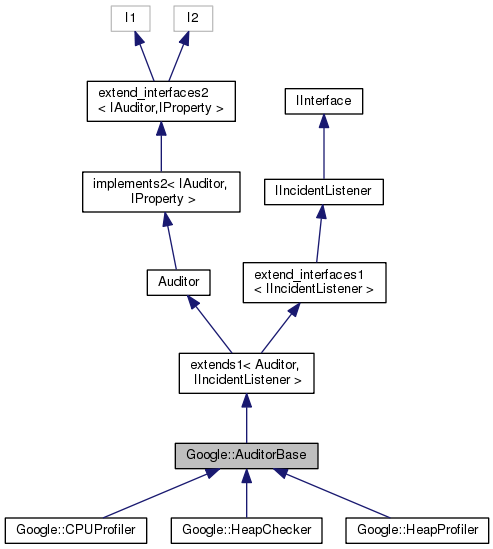

Inheritance diagram for Google::AuditorBase:

Collaboration diagram for Google::AuditorBase:

Public Member Functions
	AuditorBase (const std::string &name, ISvcLocator *pSvcLocator)
	Constructor.

virtual	~AuditorBase ()
	Destructor.

StatusCode	initialize ()
	Initialize the auditor base.

StatusCode	finalize ()
	Finalize the auditor base.

void	handle (const Incident &incident)
	Implement the handle method for the Incident service.

void	before (StandardEventType type, INamedInterface *i)
	The following methods are meant to be implemented by the child class...

void	before (CustomEventTypeRef type, INamedInterface *i)

void	before (StandardEventType type, const std::string &s)

void	before (CustomEventTypeRef, const std::string &s)

void	after (StandardEventType type, INamedInterface *i, const StatusCode &sc)

void	after (CustomEventTypeRef type, INamedInterface *i, const StatusCode &sc)

void	after (StandardEventType type, const std::string &s, const StatusCode &sc)

void	after (CustomEventTypeRef, const std::string &s, const StatusCode &)

void	beforeInitialize (INamedInterface *i)

void	beforeReinitialize (INamedInterface *i)

void	beforeExecute (INamedInterface *i)

void	beforeBeginRun (INamedInterface *i)

void	beforeEndRun (INamedInterface *i)

void	beforeFinalize (INamedInterface *i)

void	afterInitialize (INamedInterface *i)

void	afterReinitialize (INamedInterface *i)

void	afterExecute (INamedInterface *i, const StatusCode &s)

void	afterBeginRun (INamedInterface *i)

void	afterEndRun (INamedInterface *i)

void	afterFinalize (INamedInterface *i)

Public Member Functions inherited from extends1< Auditor, IIncidentListener >
	extends1 (A1 a1, A2 a2, A3 a3)
	Templated constructor with 3 arguments.

	extends1 (A1 a1, A2 a2)
	Templated constructor with 2 arguments.

	extends1 (A1 a1)
	Templated constructor with 1 argument.

	extends1 ()
	Default constructor.

virtual void *	i_cast (const InterfaceID &tid) const
	Implementation of IInterface::i_cast.

virtual StatusCode	queryInterface (const InterfaceID &ti, void **pp)
	Implementation of IInterface::queryInterface.

virtual std::vector< std::string >	getInterfaceNames () const
	Implementation of IInterface::getInterfaceNames.

virtual	~extends1 ()
	Virtual destructor.

Public Member Functions inherited from Auditor
	Auditor (const std::string &name, ISvcLocator *svcloc)
	Constructor.

virtual	~Auditor ()
	Destructor.

StatusCode	sysInitialize ()
	Initialization method invoked by the framework.

StatusCode	sysFinalize ()
	Finalization method invoked by the framework.

virtual const std::string &	name () const

virtual bool	isEnabled () const

SmartIF< IMessageSvc > &	msgSvc () const
	The standard message service.

int	outputLevel () const
	Retrieve the output level of current auditor.

void	setOutputLevel (int level)
	Set the output level for current auditor.

SmartIF< ISvcLocator > &	serviceLocator () const
	The standard service locator.

template<class T >
StatusCode	service (const std::string &name, T *&svc, bool createIf=false) const
	Access a service by name, creating it if it doesn't already exist.

virtual StatusCode	setProperty (const Property &p)
	Set a value of a property of an auditor.

virtual StatusCode	setProperty (const std::string &s)
	Implementation of IProperty::setProperty.

virtual StatusCode	setProperty (const std::string &n, const std::string &v)
	Implementation of IProperty::setProperty.

virtual StatusCode	getProperty (Property *p) const
	Get the value of a property.

virtual const Property &	getProperty (const std::string &name) const
	Get the property by name.

virtual StatusCode	getProperty (const std::string &n, std::string &v) const
	Implementation of IProperty::getProperty.

const std::vector< Property * > &	getProperties () const
	Get all properties.

template<class TYPE >
StatusCode	setProperty (const std::string &name, const TYPE &value)
	set the property form the value

StatusCode	setProperties ()
	Set the auditor's properties.

template<class T >
Property *	declareProperty (const std::string &name, T &property, const std::string &doc="none") const
	Declare the named property.

Public Member Functions inherited from extend_interfaces1< IIncidentListener >
virtual	~extend_interfaces1 ()
	Virtual destructor.

Public Member Functions inherited from IIncidentListener
	DeclareInterfaceID (IIncidentListener, 2, 0)
	InterfaceID.

Public Member Functions inherited from IInterface
virtual unsigned long	addRef ()=0
	Increment the reference count of Interface instance.

virtual unsigned long	release ()=0
	Release Interface instance.

virtual unsigned long	refCount () const =0
	Current reference count.

virtual	~IInterface ()
	Virtual destructor.

Protected Member Functions
virtual void	google_before (const std::string &s)=0
	Start the google tool.

virtual void	google_after (const std::string &s)=0
	stop the google tool

virtual bool	alreadyRunning ()=0
	check if we are already running the tool

Protected Attributes
MsgStream	m_log
	Messaging object.

Private Member Functions
void	startAudit ()
	Start a full event audit.

void	stopAudit ()
	stop a full event audit

bool	isSequencer (INamedInterface *i) const
	Check if the component in question is a GaudiSequencer or a Sequencer.

Private Attributes
std::vector< std::string >	m_when
	When to audit the algorithms.

std::vector< std::string >	m_veto
	Veto list. Any component in this list will not be audited.

std::vector< std::string >	m_list
	Any component in this list will be audited. If empty, all will be done.

unsigned long long	m_eventsToSkip
	Number of events to skip before auditing.

bool	m_skipSequencers
	Boolean indicating if sequencers should be skipped or not.

int	m_freq
	The frequency to audit events. -1 means all events.

bool	m_audit
	Internal flag to say if auditing is enabled or not for the current event.

unsigned long long	m_nEvts
	Number of events processed.

bool	m_fullEventAudit
	Flag to indicate if full event auditing is enabled or not.

unsigned long long	m_nSampleEvents
	Number of events to include in a full event audit.

unsigned long long	m_sampleEventCount
	Internal count of the number of events currently processed during an audit.

bool	m_inFullAudit
	Internal flag to indicate if we are current in a full event audit.

std::string	m_startedBy
	Name of the component we are currently auditing.

Additional Inherited Members
Public Types inherited from extends1< Auditor, IIncidentListener >
typedef extends1	base_class
	Typedef to this class.

typedef extend_interfaces1 < IIncidentListener >	extend_interfaces_base
	Typedef to the base of this class.

typedef extend_interfaces_base::ext_iids	interfaces
	MPL set of all the implemented interfaces.

Static Public Member Functions inherited from IInterface
static const InterfaceID &	interfaceID ()
	Return an instance of InterfaceID identifying the interface.

Detailed Description

Base for Google Auditors.

Author: Chris Jones

Date: 18/04/2011

Definition at line 35 of file GoogleAuditor.cpp.

Constructor & Destructor Documentation

Google::AuditorBase::AuditorBase	(	const std::string &	name,
		ISvcLocator *	pSvcLocator
	)

Constructor.

Definition at line 285 of file GoogleAuditor.cpp.

    : base_class ( name , pSvcLocator )
    , m_log      ( msgSvc() , name )
    , m_audit    ( false )
    , m_nEvts    ( 0 )
    , m_sampleEventCount( 0 )
    , m_inFullAudit ( false )
  {
    {
      // Note: 'tmp' is needed to avoid an issue with list_of and C++11.
      const std::vector<std::string> tmp =
        boost::assign::list_of
          ("Initialize")
          ("ReInitialize")
          ("Execute")
          ("BeginRun")
          ("EndRun")
          ("Finalize");
      m_when = tmp;
    }
    declareProperty("ActivateAt", m_when,
                    "List of phases to activate the Auditoring during" );
    declareProperty("DisableFor", m_veto,
                    "List of component names to disable the auditing for" );
    declareProperty("EnableFor", m_list );
    declareProperty("ProfileFreq", m_freq = -1,
                    "The frequence to audit events. -1 means all events" );
    declareProperty("DoFullEventProfile", m_fullEventAudit = false,
                    "If true, instead of individually auditing components, the full event (or events) will be audited in one go" );
    declareProperty("FullEventNSampleEvents", m_nSampleEvents = 1,
                    "The number of events to include in a full event audit, if enabled" );
    declareProperty("SkipEvents", m_eventsToSkip = 0,
                    "Number of events to skip before activating the auditing" );
    declareProperty("SkipSequencers", m_skipSequencers = true,
                    "If true, auditing will be skipped for Sequencer objects." );
  }

virtual Google::AuditorBase::~AuditorBase ( )

inlinevirtual

Destructor.

Definition at line 44 of file GoogleAuditor.cpp.

{ }

Member Function Documentation

void Google::AuditorBase::after	(	StandardEventType	type,
		INamedInterface *	i,
		const StatusCode &	sc
	)

inlinevirtual

Reimplemented from Auditor.

Definition at line 187 of file GoogleAuditor.cpp.

    {
      if ( !m_skipSequencers || !isSequencer(i) )
      {
        std::ostringstream t;
        t << type;
        after(t.str(),i,sc);
      }
    }

void Google::AuditorBase::after	(	CustomEventTypeRef	type,
		INamedInterface *	i,
		const StatusCode &	sc
	)

inlinevirtual

Reimplemented from Auditor.

Definition at line 197 of file GoogleAuditor.cpp.

    {
      if ( !m_skipSequencers || !isSequencer(i) )
      {
        after(type,i->name(),sc);
      }
    }

void Google::AuditorBase::after	(	StandardEventType	type,
		const std::string &	s,
		const StatusCode &	sc
	)

inlinevirtual

Reimplemented from Auditor.

Definition at line 205 of file GoogleAuditor.cpp.

    {
      std::ostringstream t;
      t << type;
      after(t.str(),s,sc);
    }

void Google::AuditorBase::after	(	CustomEventTypeRef	,
		const std::string &	s,
		const StatusCode &
	)

inlinevirtual

Reimplemented from Auditor.

Definition at line 212 of file GoogleAuditor.cpp.

    {
      if ( !m_fullEventAudit && m_audit &&
           std::find(m_veto.begin(),m_veto.end(),s) == m_veto.end() &&
           ( m_list.empty() || std::find(m_list.begin(),m_list.end(),s) != m_list.end() ) )
      {
        if ( s == m_startedBy )
        {
          std::ostringstream t;
          t << s << "-Event" << m_nEvts;
          google_after(t.str());
        }
      }
    }

void Google::AuditorBase::afterBeginRun ( INamedInterface * i )

inlinevirtual

Reimplemented from Auditor.

Definition at line 238 of file GoogleAuditor.cpp.

{ return after(IAuditor::BeginRun,i,StatusCode::SUCCESS); }

void Google::AuditorBase::afterEndRun ( INamedInterface * i )

inlinevirtual

Reimplemented from Auditor.

Definition at line 239 of file GoogleAuditor.cpp.

{ return after(IAuditor::EndRun,i,StatusCode::SUCCESS); }

void Google::AuditorBase::afterExecute	(	INamedInterface *	i,
		const StatusCode &	s
	)

inlinevirtual

Reimplemented from Auditor.

Definition at line 237 of file GoogleAuditor.cpp.

{ return after(IAuditor::Execute,i,s); }

void Google::AuditorBase::afterFinalize ( INamedInterface * i )

inlinevirtual

Reimplemented from Auditor.

Definition at line 240 of file GoogleAuditor.cpp.

{ return after(IAuditor::Finalize,i,StatusCode::SUCCESS); }

void Google::AuditorBase::afterInitialize ( INamedInterface * i )

inlinevirtual

Reimplemented from Auditor.

Definition at line 235 of file GoogleAuditor.cpp.

{ return after(IAuditor::Initialize,i,StatusCode::SUCCESS); }

void Google::AuditorBase::afterReinitialize ( INamedInterface * i )

inlinevirtual

Reimplemented from Auditor.

Definition at line 236 of file GoogleAuditor.cpp.

{ return after(IAuditor::ReInitialize,i,StatusCode::SUCCESS); }

virtual bool Google::AuditorBase::alreadyRunning ( )

protectedpure virtual

check if we are already running the tool

Implemented in Google::CPUProfiler, Google::HeapChecker, and Google::HeapProfiler.

void Google::AuditorBase::before	(	StandardEventType	evt,
		INamedInterface *	obj
	)

inlinevirtual

The following methods are meant to be implemented by the child class...

Reimplemented from Auditor.

Definition at line 141 of file GoogleAuditor.cpp.

    {
      if ( !m_skipSequencers || !isSequencer(i) )
      {
        before(type,i->name());
      }
    }

void Google::AuditorBase::before	(	CustomEventTypeRef	type,
		INamedInterface *	i
	)

inlinevirtual

Reimplemented from Auditor.

Definition at line 149 of file GoogleAuditor.cpp.

    {
      if ( !m_skipSequencers || !isSequencer(i) )
      {
        before(type,i->name());
      }
    }

void Google::AuditorBase::before	(	StandardEventType	type,
		const std::string &	s
	)

inlinevirtual

Reimplemented from Auditor.

Definition at line 157 of file GoogleAuditor.cpp.

    {
      std::ostringstream t;
      t << type;
      before(t.str(),s);
    }

void Google::AuditorBase::before	(	CustomEventTypeRef	,
		const std::string &	s
	)

inlinevirtual

Reimplemented from Auditor.

Definition at line 164 of file GoogleAuditor.cpp.

    {
      if ( !m_fullEventAudit && m_audit &&
           std::find(m_veto.begin(),m_veto.end(),s) == m_veto.end() &&
           ( m_list.empty() || std::find(m_list.begin(),m_list.end(),s) != m_list.end() ) )
      {
        if ( !alreadyRunning() )
        {
          m_log << MSG::INFO << "Starting Auditor for " << s << endmsg;
          m_startedBy = s;
          std::ostringstream t;
          t << s << "-Event" << m_nEvts;
          google_before(t.str());
        }
        else
        {
          m_log << MSG::WARNING
                << "Auditor already running. Cannot be started for " << s
                << endmsg;
        }
      }
    }

void Google::AuditorBase::beforeBeginRun ( INamedInterface * i )

inlinevirtual

Reimplemented from Auditor.

Definition at line 231 of file GoogleAuditor.cpp.

{ return before(IAuditor::BeginRun,i); }

void Google::AuditorBase::beforeEndRun ( INamedInterface * i )

inlinevirtual

Reimplemented from Auditor.

Definition at line 232 of file GoogleAuditor.cpp.

{ return before(IAuditor::EndRun,i); }

void Google::AuditorBase::beforeExecute ( INamedInterface * i )

inlinevirtual

Reimplemented from Auditor.

Definition at line 230 of file GoogleAuditor.cpp.

{ return before(IAuditor::Execute,i); }

void Google::AuditorBase::beforeFinalize ( INamedInterface * i )

inlinevirtual

Reimplemented from Auditor.

Definition at line 233 of file GoogleAuditor.cpp.

{ return before(IAuditor::Finalize,i); }

void Google::AuditorBase::beforeInitialize ( INamedInterface * i )

inlinevirtual

Reimplemented from Auditor.

Definition at line 228 of file GoogleAuditor.cpp.

{ return before(IAuditor::Initialize,i); }

void Google::AuditorBase::beforeReinitialize ( INamedInterface * i )

inlinevirtual

Reimplemented from Auditor.

Definition at line 229 of file GoogleAuditor.cpp.

{ return before(IAuditor::ReInitialize,i); }

StatusCode Google::AuditorBase::finalize ( )

inlinevirtual

Finalize the auditor base.

Reimplemented from Auditor.

Definition at line 60 of file GoogleAuditor.cpp.

    {
      if ( alreadyRunning() ) stopAudit();
      return StatusCode::SUCCESS;
    }

virtual void Google::AuditorBase::google_after ( const std::string & s )

protectedpure virtual

stop the google tool

Implemented in Google::CPUProfiler, Google::HeapChecker, and Google::HeapProfiler.

virtual void Google::AuditorBase::google_before ( const std::string & s )

protectedpure virtual

Start the google tool.

Implemented in Google::CPUProfiler, Google::HeapChecker, and Google::HeapProfiler.

void Google::AuditorBase::handle ( const Incident & incident )

inlinevirtual

Implement the handle method for the Incident service.

This is used to inform the tool of software incidents.

Parameters

incident The incident identifier

Implements IIncidentListener.

Definition at line 106 of file GoogleAuditor.cpp.

    {
      if ( IncidentType::BeginEvent == incident.type() )
      {
        ++m_nEvts;
        m_audit = ( m_nEvts > m_eventsToSkip &&
                    ( m_freq < 0            ||
                      m_nEvts == 1          ||
                      m_nEvts % m_freq == 0  ) );
        m_log << MSG::DEBUG << "Event " << m_nEvts
              << " Audit=" << m_audit << endmsg;
        if ( m_fullEventAudit )
        {
          if ( m_inFullAudit )
          {
            if ( m_sampleEventCount >= m_nSampleEvents &&
                 alreadyRunning() )
            {
              stopAudit();
            }
            else
            {
              ++m_sampleEventCount;
            }
          }
          if ( m_audit && !m_inFullAudit && !alreadyRunning() )
          {
            startAudit();
          }
        }
      }
    }

StatusCode Google::AuditorBase::initialize ( )

inlinevirtual

Initialize the auditor base.

Reimplemented from Auditor.

Reimplemented in Google::HeapChecker.

Definition at line 47 of file GoogleAuditor.cpp.

    {
      m_log << MSG::INFO << "Initialised" << endmsg;
      SmartIF<IIncidentSvc> inSvc(serviceLocator()->service("IncidentSvc"));
      if ( ! inSvc.isValid() ) return StatusCode::FAILURE;
      inSvc->addListener( this, IncidentType::BeginEvent );
      return StatusCode::SUCCESS;
    }

bool Google::AuditorBase::isSequencer ( INamedInterface * i ) const

inlineprivate

Check if the component in question is a GaudiSequencer or a Sequencer.

Definition at line 93 of file GoogleAuditor.cpp.

    {
      return ( dynamic_cast<GaudiSequencer*>(i) != NULL ||
               dynamic_cast<Sequencer*>(i)      != NULL );
    }

void Google::AuditorBase::startAudit ( )

inlineprivate

Start a full event audit.

Definition at line 69 of file GoogleAuditor.cpp.

    {
      m_log << MSG::INFO << " -> Starting full audit from event " << m_nEvts << " to "
            << m_nEvts+m_nSampleEvents << endmsg;
      m_inFullAudit = true;
      m_sampleEventCount = 1;
      std::ostringstream t;
      t << "FULL-Events" << m_nEvts << "To" << m_nEvts+m_nSampleEvents ;
      google_before(t.str());
    }

void Google::AuditorBase::stopAudit ( )

inlineprivate

stop a full event audit

Definition at line 81 of file GoogleAuditor.cpp.

    {
      m_log << MSG::INFO << " -> Stopping full audit" << endmsg;
      std::ostringstream t;
      t << "FULL-Events" << m_nEvts << "To" << m_nEvts+m_nSampleEvents ;
      google_after(t.str());
      m_inFullAudit = false;
      m_sampleEventCount = 0;
    }

Member Data Documentation

bool Google::AuditorBase::m_audit

private

Internal flag to say if auditing is enabled or not for the current event.

Definition at line 269 of file GoogleAuditor.cpp.

unsigned long long Google::AuditorBase::m_eventsToSkip

private

Number of events to skip before auditing.

Definition at line 263 of file GoogleAuditor.cpp.

int Google::AuditorBase::m_freq

private

The frequency to audit events. -1 means all events.

Definition at line 267 of file GoogleAuditor.cpp.

bool Google::AuditorBase::m_fullEventAudit

private

Flag to indicate if full event auditing is enabled or not.

Definition at line 273 of file GoogleAuditor.cpp.

bool Google::AuditorBase::m_inFullAudit

private

Internal flag to indicate if we are current in a full event audit.

Definition at line 279 of file GoogleAuditor.cpp.

std::vector<std::string> Google::AuditorBase::m_list

private

Any component in this list will be audited. If empty, all will be done.

Definition at line 261 of file GoogleAuditor.cpp.

MsgStream Google::AuditorBase::m_log

mutableprotected

Messaging object.

Definition at line 255 of file GoogleAuditor.cpp.

unsigned long long Google::AuditorBase::m_nEvts

private

Number of events processed.

Definition at line 271 of file GoogleAuditor.cpp.

unsigned long long Google::AuditorBase::m_nSampleEvents

private

Number of events to include in a full event audit.

Definition at line 275 of file GoogleAuditor.cpp.

unsigned long long Google::AuditorBase::m_sampleEventCount

private

Internal count of the number of events currently processed during an audit.

Definition at line 277 of file GoogleAuditor.cpp.

bool Google::AuditorBase::m_skipSequencers

private

Boolean indicating if sequencers should be skipped or not.

Definition at line 265 of file GoogleAuditor.cpp.

std::string Google::AuditorBase::m_startedBy

private

Name of the component we are currently auditing.

Definition at line 281 of file GoogleAuditor.cpp.

std::vector<std::string> Google::AuditorBase::m_veto

private

Veto list. Any component in this list will not be audited.

Definition at line 260 of file GoogleAuditor.cpp.

std::vector<std::string> Google::AuditorBase::m_when

private

When to audit the algorithms.

Definition at line 259 of file GoogleAuditor.cpp.

The documentation for this class was generated from the following file:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v24r2/GaudiProfiling/src/component/google/GoogleAuditor.cpp

Gaudi Framework, version v24r2

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
