#include <ITHistSvc.h>

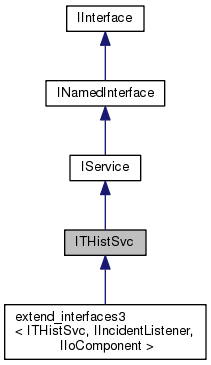

Inheritance diagram for ITHistSvc:

Collaboration diagram for ITHistSvc:

Public Member Functions
	DeclareInterfaceID (ITHistSvc, 2, 0)
	InterfaceID.

virtual StatusCode	regHist (const std::string &name)=0

virtual StatusCode	regHist (const std::string &name, TH1 *)=0

virtual StatusCode	regHist (const std::string &name, TH2 *)=0

virtual StatusCode	regHist (const std::string &name, TH3 *)=0

virtual StatusCode	getHist (const std::string &name, TH1 *&) const =0

virtual StatusCode	getHist (const std::string &name, TH2 *&) const =0

virtual StatusCode	getHist (const std::string &name, TH3 *&) const =0

virtual StatusCode	regTree (const std::string &name)=0

virtual StatusCode	regTree (const std::string &name, TTree *)=0

virtual StatusCode	getTree (const std::string &name, TTree *&) const =0

virtual StatusCode	deReg (const std::string &name)=0

virtual StatusCode	deReg (TObject *obj)=0

virtual std::vector< std::string >	getHists () const =0

virtual std::vector< std::string >	getTrees () const =0

virtual std::vector< std::string >	getGraphs () const =0

virtual StatusCode	getTHists (TDirectory *td, TList &, bool recurse=false) const =0

virtual StatusCode	getTHists (const std::string &name, TList &, bool recurse=false) const =0

virtual StatusCode	getTHists (TDirectory *td, TList &, bool recurse=false, bool reg=false)=0

virtual StatusCode	getTHists (const std::string &name, TList &, bool recurse=false, bool reg=false)=0

virtual StatusCode	getTTrees (TDirectory *td, TList &, bool recurse=false) const =0

virtual StatusCode	getTTrees (const std::string &name, TList &, bool recurse=false) const =0

virtual StatusCode	getTTrees (TDirectory *td, TList &, bool recurse=false, bool reg=false)=0

virtual StatusCode	getTTrees (const std::string &name, TList &, bool recurse=false, bool reg=false)=0

virtual StatusCode	regGraph (const std::string &name)=0

virtual StatusCode	regGraph (const std::string &name, TGraph *)=0

virtual StatusCode	getGraph (const std::string &name, TGraph *&) const =0

virtual bool	exists (const std::string &name) const =0

virtual	~ITHistSvc ()
	virtual destructor

Public Member Functions inherited from IService
	DeclareInterfaceID (IService, 3, 0)
	InterfaceID.

virtual StatusCode	sysInitialize ()=0
	Initialize Service.

virtual StatusCode	sysStart ()=0
	Start Service.

virtual StatusCode	sysStop ()=0
	Stop Service.

virtual StatusCode	sysFinalize ()=0
	Finalize Service.

virtual StatusCode	sysReinitialize ()=0
	Re-initialize the Service.

virtual StatusCode	sysRestart ()=0
	Re-start the Service.

virtual StatusCode	configure ()=0
	Configuration (from OFFLINE to CONFIGURED).

virtual StatusCode	initialize ()=0
	Initialization (from CONFIGURED to INITIALIZED).

virtual StatusCode	start ()=0
	Start (from INITIALIZED to RUNNING).

virtual StatusCode	stop ()=0
	Stop (from RUNNING to INITIALIZED).

virtual StatusCode	finalize ()=0
	Finalize (from INITIALIZED to CONFIGURED).

virtual StatusCode	terminate ()=0
	Initialization (from CONFIGURED to OFFLINE).

virtual StatusCode	reinitialize ()=0
	Initialization (from INITIALIZED or RUNNING to INITIALIZED, via CONFIGURED).

virtual StatusCode	restart ()=0
	Initialization (from RUNNING to RUNNING, via INITIALIZED).

virtual Gaudi::StateMachine::State	FSMState () const =0
	Get the current state.

virtual Gaudi::StateMachine::State	targetFSMState () const =0
	When we are in the middle of a transition, get the state where the transition is leading us.

virtual	~IService ()
	virtual destructor

Public Member Functions inherited from INamedInterface
	DeclareInterfaceID (INamedInterface, 1, 0)
	InterfaceID.

virtual const std::string &	name () const =0
	Retrieve the name of the instance.

virtual	~INamedInterface ()
	Virtual destructor (always needed for abstract classes).

Public Member Functions inherited from IInterface
virtual void *	i_cast (const InterfaceID &) const =0
	main cast function

virtual std::vector< std::string >	getInterfaceNames () const =0
	Returns a vector of strings containing the names of all the implemented interfaces.

virtual unsigned long	addRef ()=0
	Increment the reference count of Interface instance.

virtual unsigned long	release ()=0
	Release Interface instance.

virtual unsigned long	refCount () const =0
	Current reference count.

virtual StatusCode	queryInterface (const InterfaceID &ti, void **pp)=0
	Set the void** to the pointer to the requested interface of the instance.

virtual	~IInterface ()
	Virtual destructor.

Additional Inherited Members
Public Types inherited from IInterface
enum	Status { SUCCESS = 1, NO_INTERFACE, VERSMISMATCH, LAST_ERROR }
	Return status. More...

typedef Gaudi::InterfaceId < IInterface, 0, 0 >	iid
	Interface ID.

typedef mpl::set1< iid >	ext_iids
	Extra interfaces.

Static Public Member Functions inherited from IInterface
static const InterfaceID &	interfaceID ()
	Return an instance of InterfaceID identifying the interface.

Protected Member Functions inherited from IService
virtual void	setServiceManager (ISvcManager *)=0

Detailed Description

Definition at line 19 of file ITHistSvc.h.

Constructor & Destructor Documentation

virtual ITHistSvc::~ITHistSvc ( )

inlinevirtual

virtual destructor

Definition at line 73 of file ITHistSvc.h.

{}

Member Function Documentation

ITHistSvc::DeclareInterfaceID	(	ITHistSvc	,
		2	,
		0
	)

InterfaceID.

virtual StatusCode ITHistSvc::deReg ( const std::string & name )

pure virtual

virtual StatusCode ITHistSvc::deReg ( TObject * obj )

pure virtual

virtual bool ITHistSvc::exists ( const std::string & name ) const

pure virtual

virtual StatusCode ITHistSvc::getGraph	(	const std::string &	name,
		TGraph *&
	)		const

pure virtual

virtual std::vector<std::string> ITHistSvc::getGraphs ( ) const

pure virtual

virtual StatusCode ITHistSvc::getHist	(	const std::string &	name,
		TH1 *&
	)		const

pure virtual

virtual StatusCode ITHistSvc::getHist	(	const std::string &	name,
		TH2 *&
	)		const

pure virtual

virtual StatusCode ITHistSvc::getHist	(	const std::string &	name,
		TH3 *&
	)		const

pure virtual

virtual std::vector<std::string> ITHistSvc::getHists ( ) const

pure virtual

virtual StatusCode ITHistSvc::getTHists	(	TDirectory *	td,
		TList &	,
		bool	recurse = `false`
	)		const

pure virtual

virtual StatusCode ITHistSvc::getTHists	(	const std::string &	name,
		TList &	,
		bool	recurse = `false`
	)		const

pure virtual

virtual StatusCode ITHistSvc::getTHists	(	TDirectory *	td,
		TList &	,
		bool	recurse = `false`,
		bool	reg = `false`
	)

pure virtual

virtual StatusCode ITHistSvc::getTHists	(	const std::string &	name,
		TList &	,
		bool	recurse = `false`,
		bool	reg = `false`
	)

pure virtual

virtual StatusCode ITHistSvc::getTree	(	const std::string &	name,
		TTree *&
	)		const

pure virtual

virtual std::vector<std::string> ITHistSvc::getTrees ( ) const

pure virtual

virtual StatusCode ITHistSvc::getTTrees	(	TDirectory *	td,
		TList &	,
		bool	recurse = `false`
	)		const

pure virtual

virtual StatusCode ITHistSvc::getTTrees	(	const std::string &	name,
		TList &	,
		bool	recurse = `false`
	)		const

pure virtual

virtual StatusCode ITHistSvc::getTTrees	(	TDirectory *	td,
		TList &	,
		bool	recurse = `false`,
		bool	reg = `false`
	)

pure virtual

virtual StatusCode ITHistSvc::getTTrees	(	const std::string &	name,
		TList &	,
		bool	recurse = `false`,
		bool	reg = `false`
	)

pure virtual

virtual StatusCode ITHistSvc::regGraph ( const std::string & name )

pure virtual

virtual StatusCode ITHistSvc::regGraph	(	const std::string &	name,
		TGraph *
	)

pure virtual

virtual StatusCode ITHistSvc::regHist ( const std::string & name )

pure virtual

virtual StatusCode ITHistSvc::regHist	(	const std::string &	name,
		TH1 *
	)

pure virtual

virtual StatusCode ITHistSvc::regHist	(	const std::string &	name,
		TH2 *
	)

pure virtual

virtual StatusCode ITHistSvc::regHist	(	const std::string &	name,
		TH3 *
	)

pure virtual

virtual StatusCode ITHistSvc::regTree ( const std::string & name )

pure virtual

virtual StatusCode ITHistSvc::regTree	(	const std::string &	name,
		TTree *
	)

pure virtual

The documentation for this class was generated from the following file:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v24r2/GaudiKernel/GaudiKernel/ITHistSvc.h
