IgHookTrace Class Reference

#include <IgHook_IgHookTrace.h>

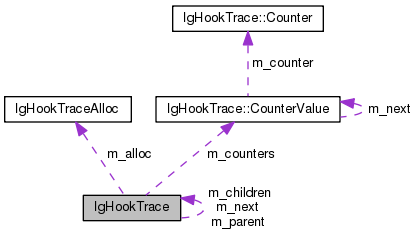

Collaboration diagram for IgHookTrace:

Classes
struct	Counter
	Nearly dummy object type to identify a counter. More...
class	CounterValue
	Value for a counter chained from a trace. More...

Public Member Functions
void *	operator new (size_t n, IgHookTraceAlloc *alloc=0)
	IgHookTrace (IgHookTrace *parent=0, void *address=0)
IgHookTrace *	parent (void)
IgHookTrace *	next (void)
void *	address (void)
bool	symbol (const char *&sym, const char *&lib, int &offset, int &liboffset)
IgHookTrace *	children (void)
IgHookTrace *	child (void *address)
CounterValue *	counters (void)
CounterValue *	counter (Counter *id)
void	merge (IgHookTrace *other)

Static Public Member Functions
static int	stacktrace (void **addresses, int nmax)
static void *	tosymbol (void *address)
static bool	symbol (void *address, const char *&sym, const char *&lib, int &offset, int &liboffset)

Private Attributes
IgHookTraceAlloc *	m_alloc
IgHookTrace *	m_parent
IgHookTrace *	m_next
IgHookTrace *	m_children
void *	m_address
CounterValue *	m_counters

Detailed Description

Definition at line 28 of file IgHook_IgHookTrace.h.

Constructor & Destructor Documentation

IgHookTrace::IgHookTrace	(	IgHookTrace *	parent = 0,
		void *	address = 0
	)

Definition at line 205 of file IgHook_IgHookTrace.cpp.

    : m_alloc (parent ? parent->m_alloc : new IgHookTraceAlloc),
      m_parent (parent),
      m_next (parent ? parent->m_children : 0),
      m_children (0),
      m_address (address),
      m_counters (0)
{ if (m_parent) m_parent->m_children = this; }

Member Function Documentation

void * IgHookTrace::address

(

void

)

Definition at line 223 of file IgHook_IgHookTrace.cpp.

{ return m_address; }

IgHookTrace* IgHookTrace::child

(

void *

address

)

IgHookTrace* IgHookTrace::children

(

void

)

CounterValue* IgHookTrace::counter

(

Counter *

id

)

CounterValue* IgHookTrace::counters

(

void

)

void IgHookTrace::merge

(

IgHookTrace *

other

)

IgHookTrace * IgHookTrace::next

(

void

)

Definition at line 219 of file IgHook_IgHookTrace.cpp.

{ return m_next; }

void * IgHookTrace::operator new	(	size_t	n,
		IgHookTraceAlloc *	alloc = 0
	)

Definition at line 202 of file IgHook_IgHookTrace.cpp.

{ return alloc ? alloc->allocate (n) : ::operator new (n); }

IgHookTrace * IgHookTrace::parent

(

void

)

Definition at line 215 of file IgHook_IgHookTrace.cpp.

{ return m_parent; }

static int IgHookTrace::stacktrace ( void **  addresses, int  nmax  )

static

bool IgHookTrace::symbol ( void *  address, const char *&  sym, const char *&  lib, int &  offset, int &  liboffset  )

static

Definition at line 227 of file IgHook_IgHookTrace.cpp.

{
    sym = lib = 0;
    offset = 0;
    liboffset = (unsigned long) address;

    Dl_info info;
    if (dladdr (address, &info))
    {
    if (info.dli_fname && info.dli_fname [0])
        lib = info.dli_fname;

    if (info.dli_fbase)
        liboffset = (unsigned long) address - (unsigned long) info.dli_fbase;

    if (info.dli_saddr)
        offset = (unsigned long) address - (unsigned long) info.dli_saddr;

    if (info.dli_sname && info.dli_sname [0])
        sym = info.dli_sname;

    return true;
    }

    return false;
}

bool IgHookTrace::symbol	(	const char *&	sym,
		const char *&	lib,
		int &	offset,
		int &	liboffset
	)

Definition at line 259 of file IgHook_IgHookTrace.cpp.

{ return symbol (m_address, sym, lib, offset, liboffset); }

void * IgHookTrace::tosymbol ( void *  address )

static

Definition at line 263 of file IgHook_IgHookTrace.cpp.

{
    Dl_info info;
    return (dladdr (address, &info)
        && info.dli_fname
        && info.dli_fname [0]
        && info.dli_saddr)
    ? info.dli_saddr : address;
}

Member Data Documentation

void* IgHookTrace::m_address

private

Definition at line 100 of file IgHook_IgHookTrace.h.

IgHookTraceAlloc* IgHookTrace::m_alloc

private

Definition at line 96 of file IgHook_IgHookTrace.h.

IgHookTrace* IgHookTrace::m_children

private

Definition at line 99 of file IgHook_IgHookTrace.h.

CounterValue* IgHookTrace::m_counters

private

Definition at line 101 of file IgHook_IgHookTrace.h.

IgHookTrace* IgHookTrace::m_next

private

Definition at line 98 of file IgHook_IgHookTrace.h.

IgHookTrace* IgHookTrace::m_parent

private

Definition at line 97 of file IgHook_IgHookTrace.h.

---

The documentation for this class was generated from the following files:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v24r2/GaudiProfiling/src/component/IgHook_IgHookTrace.h
• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v24r2/GaudiProfiling/src/component/IgHook_IgHookTrace.cpp
