#include <RefTable.h>

Inheritance diagram for RefTable1toN< FROM, TO >:

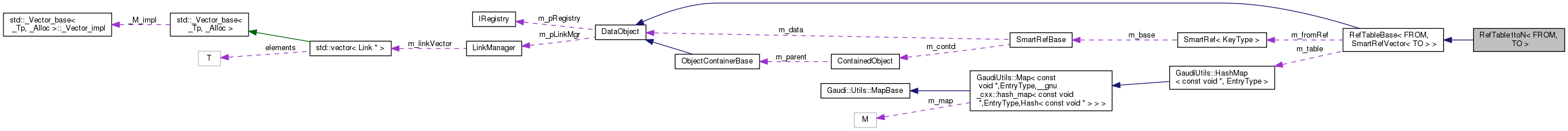

Collaboration diagram for RefTable1toN< FROM, TO >:

Public Member Functions
	RefTable1toN (const CLID &clid, int len=16)
	Standard Constructor.

virtual	~RefTable1toN ()
	Standard Destructor.

virtual const CLID &	clID () const
	Retrieve reference to class definition structure.

bool	insert (const FROM from, TO to)
	Insert new Entry into Reference container.

bool	insert (const FROM *from, const SmartRef< TO > &to)
	Insert new Entry into Reference container.

bool	insert (const FROM *from, const EntryType &to)
	Insert new Entry into Reference container.

EntryType &	reference (const FROM *from)
	Find Reference from it's source entry.

const EntryType &	reference (const FROM *from) const
	Find Reference from it's source entry (CONST)

bool	isReferenced (const FROM *from, const EntryType &to)
	Check if two entries are Referenced to each other.

bool	isReferenced (const FROM from, const TO to)
	Check if two entries are Referenced to each other.

bool	isReferenced (const FROM *from, const SmartRef< TO > &to)
	Check if two entries are Referenced to each other.

Public Member Functions inherited from RefTableBase< FROM, SmartRefVector< TO > >
	RefTableBase (const CLID &clid, int len)
	Constructors.

virtual	~RefTableBase ()
	Destructor.

virtual void	clear ()
	Clear Reference map.

iterator	begin ()
	Start of direct access iterator.

const_iterator	begin () const
	Start of direct access iterator (CONST)

iterator	end ()
	End of direct access iterator.

const_iterator	end () const
	End of direct access iterator (CONST)

long	size () const
	Size of References.

void	reserve (int len)
	Size of References.

virtual StreamBuffer &	serialize (StreamBuffer &s) const
	Serialize the object for writing.

virtual StreamBuffer &	serialize (StreamBuffer &s)
	Serialize the object for reading.

Public Member Functions inherited from DataObject
	DataObject ()
	Standard Constructor.

	DataObject (const DataObject &)
	Copy Constructor.

virtual	~DataObject ()
	Standard Destructor.

virtual unsigned long	addRef ()
	Add reference to object.

virtual unsigned long	release ()
	release reference to object

const std::string &	name () const
	Retreive DataObject name. It is the name when registered in the store.

virtual StatusCode	update ()
	Provide empty placeholder for internal object reconfiguration callback.

void	setRegistry (IRegistry *pRegistry)
	Set pointer to Registry.

IRegistry *	registry () const
	Get pointer to Registry.

LinkManager *	linkMgr () const
	Retrieve Link manager.

unsigned char	version () const
	Retrieve version number of this object representation.

void	setVersion (unsigned char vsn)
	Set version number of this object representation.

unsigned long	refCount () const
	Return the refcount.

virtual std::ostream &	fillStream (std::ostream &s) const
	Fill the output stream (ASCII)

Additional Inherited Members
Public Types inherited from RefTableBase< FROM, SmartRefVector< TO > >
typedef FROM	KeyType

typedef SmartRefVector< TO >	EntryType

typedef RefTableBase< FROM, EntryType >	BaseType

typedef GaudiUtils::HashMap < const void *, EntryType >	TableType
	Define Reference map.

typedef TableType::iterator	iterator
	Definition of map iterator.

typedef TableType::const_iterator	const_iterator
	Definition of map iterator (CONST)

Static Public Member Functions inherited from DataObject
static const CLID &	classID ()
	Retrieve reference to class definition structure (static access)

Public Attributes inherited from RefTableBase< FROM, SmartRefVector< TO > >
CLID	m_clid
	Class id of the reference table.

Protected Member Functions inherited from RefTableBase< FROM, SmartRefVector< TO > >
bool	insertMapElement (const KeyType *from, EntryType &to)
	Insert new Entry into Reference container.

EntryType *	i_reference (const KeyType *from)
	Find Reference from it's source entry.

const EntryType *	i_reference (const KeyType *from) const
	Find Reference from it's source entry (CONST)

Friends inherited from DataObject

Detailed Description

template<class FROM, class TO>
class RefTable1toN< FROM, TO >

Definition at line 209 of file RefTable.h.

Constructor & Destructor Documentation

template<class FROM , class TO >

RefTable1toN< FROM, TO >::RefTable1toN	(	const CLID &	clid,
		int	len = `16`
	)

inline

Standard Constructor.

Definition at line 213 of file RefTable.h.

: RefTableBase< FROM , SmartRefVector<TO> >(clid, len) {

}

template<class FROM , class TO >

virtual RefTable1toN< FROM, TO >::~RefTable1toN ( )

inlinevirtual

Standard Destructor.

Definition at line 217 of file RefTable.h.

{

}

Member Function Documentation

template<class FROM , class TO >

virtual const CLID& RefTable1toN< FROM, TO >::clID ( ) const

inlinevirtual

Retrieve reference to class definition structure.

Reimplemented from DataObject.

Definition at line 220 of file RefTable.h.

                                      {
    return m_clid;
  }

template<class FROM , class TO >

bool RefTable1toN< FROM, TO >::insert	(	const FROM *	from,
		TO *	to
	)

inline

Insert new Entry into Reference container.

Definition at line 224 of file RefTable.h.

                                             {
    EntryType* entry = i_reference(from);
    if ( 0 == entry )   {
      bool result = insertMapElement(from, EntryType());
      EntryType* newEntry = i_reference(from);
      if ( !( 0 == newEntry) )    {
        newEntry->push_back( SmartRef<TO>(to) );
        return true;
      }
      return false;
    }
    entry->push_back( SmartRef<TO>(to) );
    return true;
  }

template<class FROM , class TO >

bool RefTable1toN< FROM, TO >::insert	(	const FROM *	from,
		const SmartRef< TO > &	to
	)

inline

Insert new Entry into Reference container.

Definition at line 239 of file RefTable.h.

                                                             {
    EntryType* entry = i_reference(from);
    if ( 0 == entry )   {
      bool result = insertMapElement(from, EntryType());
      EntryType* newEntry = i_reference(from);
      if ( !(0 == newEntry) )    {
        newEntry->push_back( to );
        return true;
      }
      return false;
    }
    entry->push_back( to );
    return true;
  }

template<class FROM , class TO >

bool RefTable1toN< FROM, TO >::insert	(	const FROM *	from,
		const EntryType &	to
	)

inline

Insert new Entry into Reference container.

Definition at line 254 of file RefTable.h.

                                                          {
    return insertMapElement(from, const_cast<EntryType&>(to));
  }

template<class FROM , class TO >

bool RefTable1toN< FROM, TO >::isReferenced	(	const FROM *	from,
		const EntryType &	to
	)

inline

Check if two entries are Referenced to each other.

Definition at line 270 of file RefTable.h.

                                                              {
    const EntryType* e = i_reference(from);
    return (0 == e) ? false : (*e == to);
  }

template<class FROM , class TO >

bool RefTable1toN< FROM, TO >::isReferenced	(	const FROM *	from,
		const TO *	to
	)

inline

Check if two entries are Referenced to each other.

Definition at line 275 of file RefTable.h.

                                                       {
    return isReferenced(from, SmartRef<TO>(to));
  }

template<class FROM , class TO >

bool RefTable1toN< FROM, TO >::isReferenced	(	const FROM *	from,
		const SmartRef< TO > &	to
	)

inline

Check if two entries are Referenced to each other.

Definition at line 279 of file RefTable.h.

                                                                 {
    const EntryType* e = i_reference(from);
    if ( 0 != assoc )   {
      SmartRefVector<TO>::const_iterator i = std::find(e->begin(), e->end(), to);
      return (i == e->end()) ? false : true;
    }
    return false;
  }

template<class FROM , class TO >

EntryType& RefTable1toN< FROM, TO >::reference ( const FROM * from )

inline

Find Reference from it's source entry.

Definition at line 258 of file RefTable.h.

                                          {
    static EntryType empty;
    EntryType* e = i_reference(from);
    return (0 == e) ? empty : *e;
  }

template<class FROM , class TO >

const EntryType& RefTable1toN< FROM, TO >::reference ( const FROM * from ) const

inline

Find Reference from it's source entry (CONST)

Definition at line 264 of file RefTable.h.

                                                      {
    static EntryType empty;
    EntryType* e = i_reference(from);
    return (0 == e) ? empty : (*e);
  }

The documentation for this class was generated from the following file:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v24r2/GaudiKernel/GaudiKernel/RefTable.h

Gaudi Framework, version v24r2
