Generic converter to save/read AIDA_ROOT histograms using ROOT. More...

#include <RHistogramCnv.h>

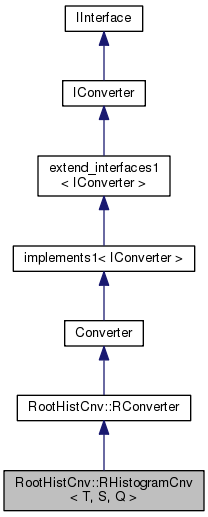

Inheritance diagram for RootHistCnv::RHistogramCnv< T, S, Q >:

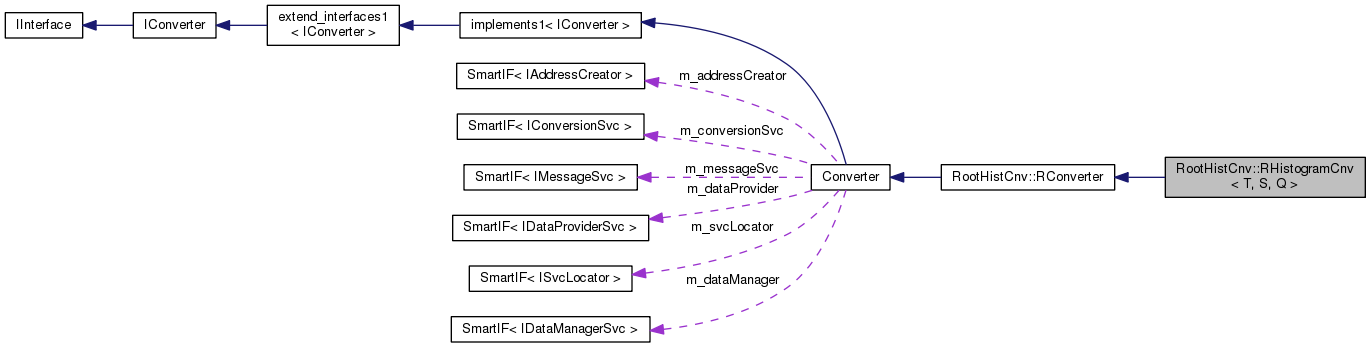

Collaboration diagram for RootHistCnv::RHistogramCnv< T, S, Q >:

Classes
struct	TTH

Public Member Functions
virtual StatusCode	createObj (IOpaqueAddress pAddr, DataObject &refpObj)
	Create the transient representation of an object.

virtual StatusCode	updateObj (IOpaqueAddress , DataObject )
	Update the transient object from the other representation.

virtual TObject *	createPersistent (DataObject *pObj)
	Create the persistent representation of the histogram object.

	RHistogramCnv (ISvcLocator *svc)
	Standard constructor.

virtual	~RHistogramCnv ()

Public Member Functions inherited from RootHistCnv::RConverter
virtual StatusCode	createRep (DataObject pObj, IOpaqueAddress &refpAddr)
	Convert the transient object to the requested representation.

long	repSvcType () const
	Retrieve the class type of the data store the converter uses.

StatusCode	error (const std::string &msg)

StatusCode	regTFile (const std::string, const TFile *)

StatusCode	findTFile (const std::string, TFile *&)

std::string	diskDirectory (const std::string &loc)

std::string	directory (const std::string &loc)

void	setDirectory (const std::string &loc)

void	setDiskDirectory (const std::string &loc)

StatusCode	createDirectory (const std::string &loc)

StatusCode	createDiskDirectory (const std::string &loc)

std::string	getDirectory ()

std::string	convertId (const std::string &) const

Public Member Functions inherited from Converter
virtual StatusCode	initialize ()
	Initialize the converter.

virtual StatusCode	finalize ()
	Initialize the converter.

virtual StatusCode	setDataProvider (IDataProviderSvc *svc)
	Set Data provider service.

virtual SmartIF < IDataProviderSvc > &	dataProvider () const
	Get Data provider service.

virtual StatusCode	setConversionSvc (IConversionSvc *svc)
	Set conversion service the converter is connected to.

virtual SmartIF< IConversionSvc > &	conversionSvc () const
	Get conversion service the converter is connected to.

virtual StatusCode	setAddressCreator (IAddressCreator *creator)
	Set address creator facility.

virtual SmartIF < IAddressCreator > &	addressCreator () const
	Retrieve address creator facility.

virtual const CLID &	objType () const
	Retrieve the class type of objects the converter produces.

virtual long	i_repSvcType () const
	Retrieve the class type of the data store the converter uses.

virtual StatusCode	fillObjRefs (IOpaqueAddress pAddress, DataObject pObject)
	Resolve the references of the created transient object.

virtual StatusCode	updateObjRefs (IOpaqueAddress pAddress, DataObject pObject)
	Update the references of an updated transient object.

virtual StatusCode	fillRepRefs (IOpaqueAddress pAddress, DataObject pObject)
	Resolve the references of the converted object.

virtual StatusCode	updateRep (IOpaqueAddress pAddress, DataObject pObject)
	Update the converted representation of a transient object.

virtual StatusCode	updateRepRefs (IOpaqueAddress pAddress, DataObject pObject)
	Update the references of an already converted object.

	Converter (long storage_type, const CLID &class_type, ISvcLocator *svc=0)
	Standard Constructor.

template<class T >
StatusCode	service (const std::string &name, T *&psvc, bool createIf=false) const
	Access a service by name, creating it if it doesn't already exist.

template<class T >
StatusCode	service (const std::string &type, const std::string &name, T *&psvc) const
	Access a service by name, type creating it if it doesn't already exist.

SmartIF< IService >	service (const std::string &name, const bool createIf=true) const
	Return a pointer to the service identified by name (or "type/name")

Static Public Member Functions
static const CLID &	classID ()
	Inquire class type.

Static Public Member Functions inherited from RootHistCnv::RConverter
static long	storageType ()
	Inquire storage type.

Additional Inherited Members
Public Types inherited from implements1< IConverter >
typedef implements1	base_class
	Typedef to this class.

typedef extend_interfaces1 < IConverter >	extend_interfaces_base
	Typedef to the base of this class.

typedef extend_interfaces_base::ext_iids	interfaces
	MPL set of all the implemented interfaces.

Protected Member Functions inherited from RootHistCnv::RConverter
	RConverter (const CLID &clid, ISvcLocator *svc)
	Standard constructor.

virtual	~RConverter ()
	Standard destructor.

virtual StatusCode	readObject (IOpaqueAddress pAddr, DataObject &refpObj)
	Create the transient representation of an object.

StatusCode	createAddress (DataObject pObject, TDirectory pDir, TObject pTObject, IOpaqueAddress &refpAddr)
	Create address of the transient object according to the requested representation.

StatusCode	createAddress (const std::string &rzdir, const CLID &clid, long id, TObject pTobj, IOpaqueAddress &refpAddress)

StatusCode	createAddress (const std::string &rzdir, const CLID &clid, const std::string &title, TObject pTobj, IOpaqueAddress &refpAddress)

TDirectory *	changeDirectory (DataObject *pObject)
	Switch to object directory (=Parent directory)

Detailed Description

template<typename T, typename S, typename Q>
class RootHistCnv::RHistogramCnv< T, S, Q >

Generic converter to save/read AIDA_ROOT histograms using ROOT.

This converter shortcuts the AIDA binding and takes advantage of the underlying implementation of transient histograms using ROOT.

Note: THxY::Copy cannot be used - only THxY::Add !

Author: Markus Frank

Definition at line 30 of file RHistogramCnv.h.

Constructor & Destructor Documentation

template<typename T , typename S , typename Q >

RootHistCnv::RHistogramCnv< T, S, Q >::RHistogramCnv ( ISvcLocator * svc )

inline

Standard constructor.

Definition at line 88 of file RHistogramCnv.h.

: RConverter(classID(), svc) {}

template<typename T , typename S , typename Q >

virtual RootHistCnv::RHistogramCnv< T, S, Q >::~RHistogramCnv ( )

inlinevirtual

Definition at line 89 of file RHistogramCnv.h.

{}

Member Function Documentation

const CLID & RootHistCnv::RootHistCnvH3DCnv::classID ( )

static

Inquire class type.

Definition at line 9 of file RHistogramCnv.cpp.

{ return CLID_ProfileH; }

template<typename T , typename S , typename Q >

virtual StatusCode RootHistCnv::RHistogramCnv< T, S, Q >::createObj	(	IOpaqueAddress *	pAddr,
		DataObject *&	refpObj
	)

inlinevirtual

Create the transient representation of an object.

Reimplemented from Converter.

Definition at line 36 of file RHistogramCnv.h.

                                                                              {
      refpObj = ROOT::Reflex::PluginService::CreateWithId<DataObject*>(objType());
      RootObjAddress *r = dynamic_cast<RootObjAddress*>(pAddr);
      Q* h = dynamic_cast<Q*>(refpObj);
      if ( r && h )   {
        // Need to flip representation .... clumsy for the time being, because
        // THXY constructor has no "generic" copy constructor
        std::auto_ptr<T> p(new T());
        S *s = dynamic_cast<S*>(r->tObj());
        if ( s && p.get() )  {
          TTH<S>* casted = (TTH<S>*)s;
          TArray* a = dynamic_cast<TArray*>(s);
          casted->CopyH(*p);
          if ( 0 != a )  {
            p->Set(a->GetSize());
            p->Reset();
            p->Add(s);
            h->adoptRepresentation(p.release());
            return StatusCode::SUCCESS;
          }
        }
      }
      return error("Cannot create histogram - invalid address.");
    }

template<typename T , typename S , typename Q >

virtual TObject* RootHistCnv::RHistogramCnv< T, S, Q >::createPersistent ( DataObject * pObj )

inlinevirtual

Create the persistent representation of the histogram object.

Reimplemented from RootHistCnv::RConverter.

Definition at line 65 of file RHistogramCnv.h.

                                                          {
      Q* h = dynamic_cast<Q*>(pObj);
      if ( 0 != h ) {
        T *r = dynamic_cast<T*>(h->representation());
        if ( r )   {
          T* c = new T();
          TArray* a = dynamic_cast<TArray*>(r);
          ((TTH<S>*)r)->CopyH(*c);
          if ( 0 != a )  {
            c->Set(a->GetSize());
            c->Reset();
            c->Add(r);
            c->SetName(pObj->registry()->name().c_str()+1);
            return c;
          }
        }
      }
      error("Histogram object is invalid!");
      return 0;
    }

template<typename T , typename S , typename Q >

virtual StatusCode RootHistCnv::RHistogramCnv< T, S, Q >::updateObj	(	IOpaqueAddress *	,
		DataObject *
	)

inlinevirtual

Update the transient object from the other representation.

Reimplemented from Converter.

Definition at line 61 of file RHistogramCnv.h.

                                                                    {
      return StatusCode::SUCCESS;
    }

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v24r2/RootHistCnv/src/RHistogramCnv.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v24r2/RootHistCnv/src/RHistogramCnv.cpp
