#include <RootObjAddress.h>

Inheritance diagram for RootHistCnv::RootObjAddress:

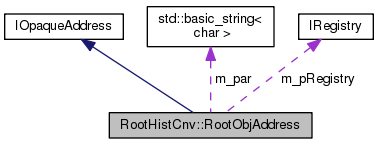

Collaboration diagram for RootHistCnv::RootObjAddress:

Public Member Functions
	RootObjAddress ()
	Dummy constructor.

	RootObjAddress (const RootObjAddress &copy)

	RootObjAddress (long svc, const CLID &clid, const std::string &p1="", const std::string &p2="", unsigned long ip1=0, unsigned long ip2=0, TObject *tObj=0)
	Standard Constructor.

virtual	~RootObjAddress ()
	Standard Destructor.

virtual unsigned long	addRef ()
	Add reference to object.

virtual unsigned long	release ()
	release reference to object

virtual IRegistry *	registry () const
	Pointer to directory.

virtual void	setRegistry (IRegistry *pRegistry)
	Set pointer to directory.

virtual const CLID &	clID () const
	Access : Retrieve class ID of the link.

virtual void	setClID (const CLID &clid)
	Access : Set class ID of the link.

virtual long	svcType () const
	Access : retrieve the storage type of the class id.

virtual void	setSvcType (long typ)
	Access : set the storage type of the class id.

virtual const std::string *	par () const
	Retrieve string parameters.

virtual const unsigned long *	ipar () const
	Retrieve integer parameters.

virtual TObject *	tObj () const
	Retrieve TObject* ptr.

Public Member Functions inherited from IOpaqueAddress
virtual	~IOpaqueAddress ()
	destructor

Protected Attributes
unsigned long	m_refCount

long	m_svcType
	Storage type.

CLID	m_clID
	Class id.

std::string	m_par [2]
	String parameters to be accessed.

unsigned long	m_ipar [2]
	Integer parameters to be accessed.

IRegistry *	m_pRegistry
	Pointer to corresponding directory.

TObject *	m_tObj
	Pointer to TObject.

Detailed Description

Definition at line 10 of file RootObjAddress.h.

Constructor & Destructor Documentation

RootHistCnv::RootObjAddress::RootObjAddress ( )

inline

Dummy constructor.

Definition at line 32 of file RootObjAddress.h.

      : m_refCount(0),
      m_svcType(0),
      m_clID(0),
      m_pRegistry(0),
      m_tObj(0)
    {
      m_ipar[0]=m_ipar[1]=0xFFFFFFFF;
    }

RootHistCnv::RootObjAddress::RootObjAddress ( const RootObjAddress & copy )

inline

Definition at line 42 of file RootObjAddress.h.

      : IOpaqueAddress(copy),
    m_refCount(0),
    m_svcType(copy.m_svcType),
    m_clID(copy.m_clID),
    m_pRegistry(copy.m_pRegistry),
    m_tObj(copy.m_tObj)
    {
      m_par[0]  = copy.m_par[0];
      m_par[1]  = copy.m_par[1];
      m_ipar[0] = copy.m_ipar[0];
      m_ipar[1] = copy.m_ipar[1];
    }

RootHistCnv::RootObjAddress::RootObjAddress	(	long	svc,
		const CLID &	clid,
		const std::string &	p1 = `""`,
		const std::string &	p2 = `""`,
		unsigned long	ip1 = `0`,
		unsigned long	ip2 = `0`,
		TObject *	tObj = `0`
	)

inline

Standard Constructor.

Definition at line 57 of file RootObjAddress.h.

      : m_refCount(0),
      m_svcType(svc),
      m_clID(clid),
      m_pRegistry(0),
      m_tObj(tObj)
    {
      m_par[0]  = p1;
      m_par[1]  = p2;
      m_ipar[0] = ip1;
      m_ipar[1] = ip2;
    }

virtual RootHistCnv::RootObjAddress::~RootObjAddress ( )

inlinevirtual

Standard Destructor.

Definition at line 77 of file RootObjAddress.h.

{

}

Member Function Documentation

virtual unsigned long RootHistCnv::RootObjAddress::addRef ( )

inlinevirtual

Add reference to object.

Implements IOpaqueAddress.

Definition at line 81 of file RootObjAddress.h.

                                        {
      return ++m_refCount;
    }

virtual const CLID& RootHistCnv::RootObjAddress::clID ( ) const

inlinevirtual

Access : Retrieve class ID of the link.

Implements IOpaqueAddress.

Definition at line 101 of file RootObjAddress.h.

                                        {
      return m_clID;
    }

virtual const unsigned long* RootHistCnv::RootObjAddress::ipar ( ) const

inlinevirtual

Retrieve integer parameters.

Implements IOpaqueAddress.

Definition at line 121 of file RootObjAddress.h.

                                                {
      return m_ipar;
    }

virtual const std::string* RootHistCnv::RootObjAddress::par ( ) const

inlinevirtual

Retrieve string parameters.

Implements IOpaqueAddress.

Definition at line 117 of file RootObjAddress.h.

                                           {
      return m_par;
    }

virtual IRegistry* RootHistCnv::RootObjAddress::registry ( ) const

inlinevirtual

Pointer to directory.

Implements IOpaqueAddress.

Definition at line 93 of file RootObjAddress.h.

                                              {
      return m_pRegistry;
    }

virtual unsigned long RootHistCnv::RootObjAddress::release ( )

inlinevirtual

release reference to object

Implements IOpaqueAddress.

Definition at line 85 of file RootObjAddress.h.

                                        {
      int cnt = --m_refCount;
      if ( 0 == cnt )   {
    delete this;
      }
      return cnt;
    }

virtual void RootHistCnv::RootObjAddress::setClID ( const CLID & clid )

inlinevirtual

Access : Set class ID of the link.

Definition at line 105 of file RootObjAddress.h.

                                             {
      m_clID = clid;
    }

virtual void RootHistCnv::RootObjAddress::setRegistry ( IRegistry * pRegistry )

inlinevirtual

Set pointer to directory.

Implements IOpaqueAddress.

Definition at line 97 of file RootObjAddress.h.

                                                     {
      m_pRegistry = pRegistry;
    }

virtual void RootHistCnv::RootObjAddress::setSvcType ( long typ )

inlinevirtual

Access : set the storage type of the class id.

Definition at line 113 of file RootObjAddress.h.

                                         {
      m_svcType = typ;
    }

virtual long RootHistCnv::RootObjAddress::svcType ( ) const

inlinevirtual

Access : retrieve the storage type of the class id.

Implements IOpaqueAddress.

Definition at line 109 of file RootObjAddress.h.

                                     {
      return m_svcType;
    }

virtual TObject* RootHistCnv::RootObjAddress::tObj ( ) const

inlinevirtual

Retrieve TObject* ptr.

Definition at line 126 of file RootObjAddress.h.

                                  {
      return m_tObj;
    }

Member Data Documentation

CLID RootHistCnv::RootObjAddress::m_clID

protected

Class id.

Definition at line 19 of file RootObjAddress.h.

unsigned long RootHistCnv::RootObjAddress::m_ipar[2]

protected

Integer parameters to be accessed.

Definition at line 23 of file RootObjAddress.h.

std::string RootHistCnv::RootObjAddress::m_par[2]

protected

String parameters to be accessed.

Definition at line 21 of file RootObjAddress.h.

IRegistry* RootHistCnv::RootObjAddress::m_pRegistry

protected

Pointer to corresponding directory.

Definition at line 25 of file RootObjAddress.h.

unsigned long RootHistCnv::RootObjAddress::m_refCount

protected

Definition at line 15 of file RootObjAddress.h.

long RootHistCnv::RootObjAddress::m_svcType

protected

Storage type.

Definition at line 17 of file RootObjAddress.h.

TObject* RootHistCnv::RootObjAddress::m_tObj

protected

Pointer to TObject.

Definition at line 27 of file RootObjAddress.h.

The documentation for this class was generated from the following file:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v24r2/RootHistCnv/src/RootObjAddress.h

Gaudi Framework, version v24r2
