GenericAddress Class Reference

Generic Transient Address. More...

#include <GaudiKernel/GenericAddress.h>

Inheritance diagram for GenericAddress:

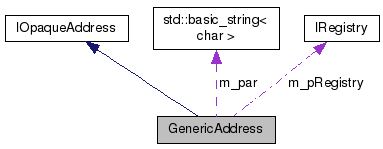

Collaboration diagram for GenericAddress:

Public Member Functions
	GenericAddress ()
	Dummy constructor.
	GenericAddress (const GenericAddress &copy)
	Standard Constructor.
	GenericAddress (long svc, const CLID &clid, const std::string &p1="", const std::string &p2="", unsigned long ip1=0, unsigned long ip2=0)
	Standard Constructor.
virtual	~GenericAddress ()
	Standard Destructor.
virtual unsigned long	addRef ()
	Add reference to object.
virtual unsigned long	release ()
	release reference to object
virtual IRegistry *	registry () const
	Pointer to directory.
virtual void	setRegistry (IRegistry *pRegistry)
	Set pointer to directory.
const CLID &	clID () const
	Access : Retrieve class ID of the link.
void	setClID (const CLID &clid)
	Access : Set class ID of the link.
long	svcType () const
	Access : retrieve the storage type of the class id.
void	setSvcType (long typ)
	Access : set the storage type of the class id.
virtual const std::string *	par () const
	Retrieve string parameters.
virtual const unsigned long *	ipar () const
	Retrieve integer parameters.
Public Member Functions inherited from IOpaqueAddress
virtual	~IOpaqueAddress ()
	destructor

Protected Attributes
unsigned long	m_refCount
	Reference count.
long	m_svcType
	Storage type.
CLID	m_clID
	Class id.
std::string	m_par [3]
	String parameters to be accessed.
unsigned long	m_ipar [2]
	Integer parameters to be accessed.
IRegistry *	m_pRegistry
	Pointer to corresponding directory.

Detailed Description

Generic Transient Address.

The generic transient address describes the recipe to load/save a persistent object from/to its transient representation.

Author

Markus Frank

Version

1.0

Definition at line 21 of file GenericAddress.h.

Constructor & Destructor Documentation

GenericAddress::GenericAddress ( )

inline

Dummy constructor.

Definition at line 38 of file GenericAddress.h.

    : m_refCount(0),
      m_svcType(0),
      m_clID(0),
      m_pRegistry(0)
  {
    m_ipar[0]=m_ipar[1]=0xFFFFFFFF;
  }

GenericAddress::GenericAddress ( const GenericAddress &  copy )

inline

Standard Constructor.

Definition at line 47 of file GenericAddress.h.

    : IOpaqueAddress(copy),
      m_refCount(0),
      m_svcType(copy.m_svcType),
      m_clID(copy.m_clID),
      m_pRegistry(copy.m_pRegistry)
  {
    m_par[0]  = copy.m_par[0];
    m_par[1]  = copy.m_par[1];
    m_ipar[0] = copy.m_ipar[0];
    m_ipar[1] = copy.m_ipar[1];
  }

GenericAddress::GenericAddress ( long  svc, const CLID &  clid, const std::string &  p1 = "", const std::string &  p2 = "", unsigned long  ip1 = 0, unsigned long  ip2 = 0  )

inline

Standard Constructor.

Definition at line 60 of file GenericAddress.h.

    : m_refCount(0),
      m_svcType(svc),
      m_clID(clid),
      m_pRegistry(0)
  {
    m_par[0]  = p1;
    m_par[1]  = p2;
    m_ipar[0] = ip1;
    m_ipar[1] = ip2;
  }

virtual GenericAddress::~GenericAddress ( )

inlinevirtual

Standard Destructor.

Definition at line 78 of file GenericAddress.h.

                              {
  }

Member Function Documentation

virtual unsigned long GenericAddress::addRef ( )

inlinevirtual

Add reference to object.

Implements IOpaqueAddress.

Definition at line 82 of file GenericAddress.h.

                                      {
    return ++m_refCount;
  }

const CLID& GenericAddress::clID ( ) const

inlinevirtual

Access : Retrieve class ID of the link.

Implements IOpaqueAddress.

Definition at line 102 of file GenericAddress.h.

                              {
    return m_clID;
  }

virtual const unsigned long* GenericAddress::ipar ( ) const

inlinevirtual

Retrieve integer parameters.

Implements IOpaqueAddress.

Definition at line 122 of file GenericAddress.h.

                                              {
    return m_ipar;
  }

virtual const std::string* GenericAddress::par ( ) const

inlinevirtual

Retrieve string parameters.

Implements IOpaqueAddress.

Definition at line 118 of file GenericAddress.h.

                                         {
    return m_par;
  }

virtual IRegistry* GenericAddress::registry ( ) const

inlinevirtual

Pointer to directory.

Implements IOpaqueAddress.

Definition at line 94 of file GenericAddress.h.

                                            {
    return m_pRegistry;
  }

virtual unsigned long GenericAddress::release ( )

inlinevirtual

release reference to object

Implements IOpaqueAddress.

Definition at line 86 of file GenericAddress.h.

                                      {
    int cnt = --m_refCount;
    if ( 0 == cnt )   {
      delete this;
    }
    return cnt;
  }

void GenericAddress::setClID ( const CLID &  clid )

inline

Access : Set class ID of the link.

Definition at line 106 of file GenericAddress.h.

                                   {
    m_clID = clid;
  }

virtual void GenericAddress::setRegistry ( IRegistry *  pRegistry )

inlinevirtual

Set pointer to directory.

Implements IOpaqueAddress.

Definition at line 98 of file GenericAddress.h.

                                                   {
    m_pRegistry = pRegistry;
  }

void GenericAddress::setSvcType ( long  typ )

inline

Access : set the storage type of the class id.

Definition at line 114 of file GenericAddress.h.

                               {
    m_svcType = typ;
  }

long GenericAddress::svcType ( ) const

inlinevirtual

Access : retrieve the storage type of the class id.

Implements IOpaqueAddress.

Definition at line 110 of file GenericAddress.h.

                           {
    return m_svcType;
  }

Member Data Documentation

CLID GenericAddress::m_clID

protected

Class id.

Definition at line 28 of file GenericAddress.h.

unsigned long GenericAddress::m_ipar[2]

protected

Integer parameters to be accessed.

Definition at line 32 of file GenericAddress.h.

std::string GenericAddress::m_par[3]

protected

String parameters to be accessed.

Definition at line 30 of file GenericAddress.h.

IRegistry* GenericAddress::m_pRegistry

protected

Pointer to corresponding directory.

Definition at line 34 of file GenericAddress.h.

unsigned long GenericAddress::m_refCount

protected

Reference count.

Definition at line 24 of file GenericAddress.h.

long GenericAddress::m_svcType

protected

Storage type.

Definition at line 26 of file GenericAddress.h.

---

The documentation for this class was generated from the following file:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v25r0/GaudiKernel/GaudiKernel/GenericAddress.h
