Implements the time measurement inside a sequencer. More...

#include <SequencerTimerTool.h>

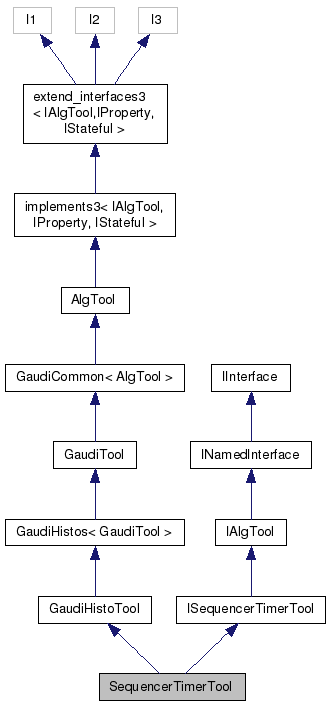

Inheritance diagram for SequencerTimerTool:

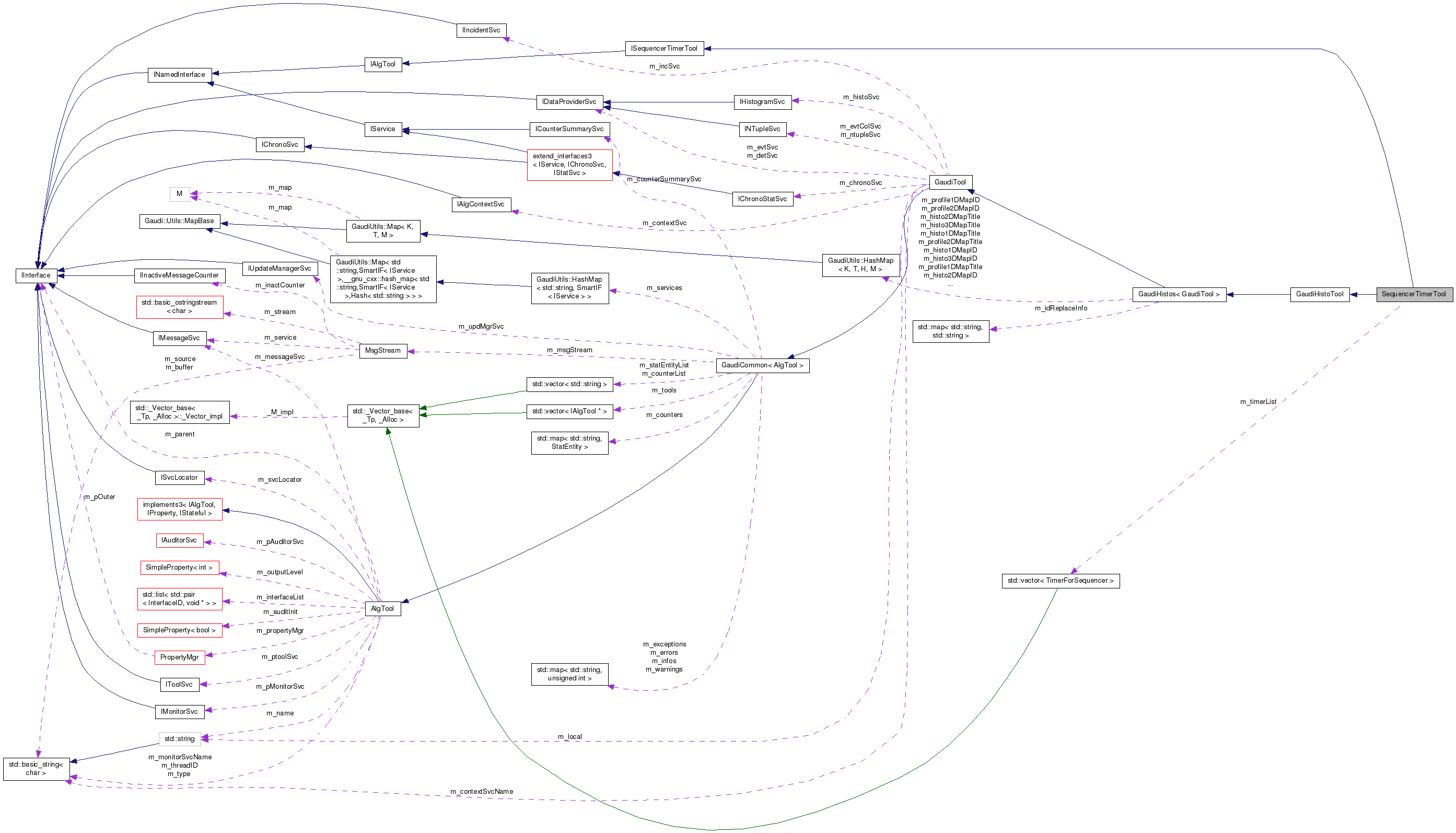

Collaboration diagram for SequencerTimerTool:

Public Member Functions
	SequencerTimerTool (const std::string &type, const std::string &name, const IInterface *parent)
	Standard constructor.

virtual	~SequencerTimerTool ()
	Destructor.

virtual StatusCode	initialize ()
	initialize method, to compute the normalization factor

virtual StatusCode	finalize ()
	finalize method, to print the time summary table

virtual int	addTimer (const std::string &name)
	add a timer entry with the specified name

virtual void	increaseIndent ()
	Increase the indentation of the name.

virtual void	decreaseIndent ()
	Decrease the indentation of the name.

void	start (int index)
	start the counter, i.e.

double	stop (int index)
	stop the counter, return the elapsed time

double	lastTime (int index)
	returns the last time

const std::string &	name (int index)
	returns the name of the counter

int	indexByName (const std::string &name)
	returns the index of the counter with that name, or -1

virtual bool	globalTiming ()
	returns the flag telling that global timing is wanted

virtual void	saveHistograms ()
	prepares and saves the timing histograms

Public Member Functions inherited from ISequencerTimerTool
	DeclareInterfaceID (ISequencerTimerTool, 3, 0)
	InterfaceID.

virtual	~ISequencerTimerTool ()
	Destructor.

Public Member Functions inherited from IAlgTool
	DeclareInterfaceID (IAlgTool, 3, 0)
	InterfaceID.

virtual	~IAlgTool ()
	Virtual destructor.

virtual const std::string &	type () const =0
	The type of an AlgTool, meaning the concrete AlgTool class.

virtual const IInterface *	parent () const =0
	The parent of the concrete AlgTool.

virtual StatusCode	configure ()=0
	Configuration (from OFFLINE to CONFIGURED).

virtual StatusCode	start ()=0
	Start (from INITIALIZED to RUNNING).

virtual StatusCode	stop ()=0
	Stop (from RUNNING to INITIALIZED).

virtual StatusCode	terminate ()=0
	Initialization (from CONFIGURED to OFFLINE).

virtual StatusCode	reinitialize ()=0
	Initialization (from INITIALIZED or RUNNING to INITIALIZED, via CONFIGURED).

virtual StatusCode	restart ()=0
	Initialization (from RUNNING to RUNNING, via INITIALIZED).

virtual Gaudi::StateMachine::State	FSMState () const =0
	Get the current state.

virtual StatusCode	sysInitialize ()=0
	Initialization of the Tool.

virtual StatusCode	sysStart ()=0
	Initialization of the Tool.

virtual StatusCode	sysStop ()=0
	Initialization of the Tool.

virtual StatusCode	sysFinalize ()=0
	Finalization of the Tool.

virtual StatusCode	sysReinitialize ()=0
	Initialization of the Tool.

virtual StatusCode	sysRestart ()=0
	Initialization of the Tool.

virtual unsigned long	refCount () const =0
	Current number of reference counts.

Public Member Functions inherited from INamedInterface
	DeclareInterfaceID (INamedInterface, 1, 0)
	InterfaceID.

virtual const std::string &	name () const =0
	Retrieve the name of the instance.

virtual	~INamedInterface ()
	Virtual destructor (always needed for abstract classes).

Public Member Functions inherited from IInterface
virtual void *	i_cast (const InterfaceID &) const =0
	main cast function

virtual std::vector< std::string >	getInterfaceNames () const =0
	Returns a vector of strings containing the names of all the implemented interfaces.

virtual unsigned long	addRef ()=0
	Increment the reference count of Interface instance.

virtual unsigned long	release ()=0
	Release Interface instance.

virtual StatusCode	queryInterface (const InterfaceID &ti, void **pp)=0
	Set the void** to the pointer to the requested interface of the instance.

virtual	~IInterface ()
	Virtual destructor.

Private Attributes
int	m_shots
	Number of shots for CPU normalization.

bool	m_normalised
	Is the time scaled to a nominal PIII ?

int	m_indent
	Amount of indentation.

std::vector< TimerForSequencer >	m_timerList

double	m_normFactor
	Factor to convert to standard CPU (1 GHz PIII)

double	m_speedRatio

bool	m_globalTiming

std::string::size_type	m_headerSize
	Size of the name field.

Additional Inherited Members
Public Types inherited from GaudiHistos< GaudiTool >
typedef GaudiAlg::HistoID	HistoID
	the actual type for histogram identifier

typedef GaudiAlg::Histo1DMapID	Histo1DMapID
	the actual type for (ID)->(1D histogram) mapping

typedef GaudiAlg::Histo1DMapTitle	Histo1DMapTitle
	the actual type for title->(1D histogram) mapping

typedef GaudiAlg::Histo2DMapID	Histo2DMapID
	the actual type for (ID)->(2D histogram) mapping

typedef GaudiAlg::Histo2DMapTitle	Histo2DMapTitle
	the actual type for title->(2D histogram) mapping

typedef GaudiAlg::Histo3DMapID	Histo3DMapID
	the actual type for (ID)->(3D histogram) mapping

typedef GaudiAlg::Histo3DMapTitle	Histo3DMapTitle
	the actual type for title->(3D histogram) mapping

typedef GaudiAlg::Profile1DMapID	Profile1DMapID
	the actual type for (ID)->(1D profile histogram) mapping

typedef GaudiAlg::Profile1DMapTitle	Profile1DMapTitle
	the actual type for title->(1D profile histogram) mapping

typedef GaudiAlg::Profile2DMapID	Profile2DMapID
	the actual type for (ID)->(2D profile histogram) mapping

typedef GaudiAlg::Profile2DMapTitle	Profile2DMapTitle
	the actual type for title->(2D profile histogram) mapping

typedef GaudiAlg::HistoBinEdges	HistoBinEdges
	Edges for variable binning.

Public Types inherited from IInterface
enum	Status { SUCCESS = 1, NO_INTERFACE, VERSMISMATCH, LAST_ERROR }
	Return status. More...

typedef Gaudi::InterfaceId < IInterface, 0, 0 >	iid
	Interface ID.

typedef mpl::set1< iid >	ext_iids
	Extra interfaces.

Static Public Member Functions inherited from GaudiTool
static bool	enableSummary (bool)
	enable/disable summary

static bool	summaryEnabled ()
	is summary enabled?

Static Public Member Functions inherited from IInterface
static const InterfaceID &	interfaceID ()
	Return an instance of InterfaceID identifying the interface.

Protected Types inherited from GaudiCommon< AlgTool >
typedef std::map< std::string, StatEntity >	Statistics
	the actual type of general counters

typedef std::map< std::string, unsigned int >	Counter
	the actual type error/warning counter

typedef std::vector< IAlgTool * >	AlgTools
	storage for active tools

typedef GaudiUtils::HashMap < std::string, SmartIF < IService > >	Services
	storage for active services

Protected Member Functions inherited from GaudiHistoTool
	GaudiHistoTool (const std::string &type, const std::string &name, const IInterface *parent)
	Standard constructor (protected)

virtual	~GaudiHistoTool ()
	destructor, virtual and protected

Protected Attributes inherited from GaudiCommon< AlgTool >
ICounterSummarySvc *	m_counterSummarySvc
	a pointer to the CounterSummarySvc

std::vector< std::string >	m_counterList
	list of counters to declare. Set by property CounterList. This can be a regular expression.

std::vector< std::string >	m_statEntityList

Static Protected Attributes inherited from GaudiCommon< AlgTool >
static const bool	IgnoreRootInTES
	Simple definition to be used with the new useRootInTES argument get<TYPE> and put methods.

static const bool	UseRootInTES
	Simple definition to be used with the new useRootInTES argument get<TYPE> and put methods.

Detailed Description

Implements the time measurement inside a sequencer.

The width of the timing table column printing the algorithm name
is 30 by default. That can be changed via
@verbatim

TimingAuditor().addTool(SequencerTimerTool, name = "TIMER") TimingAuditor().TIMER.NameSize = 50

@author Olivier Callot
@date   2004-05-19

Definition at line 27 of file SequencerTimerTool.h.

Constructor & Destructor Documentation

SequencerTimerTool::SequencerTimerTool	(	const std::string &	type,
		const std::string &	name,
		const IInterface *	parent
	)

Standard constructor.

Definition at line 26 of file SequencerTimerTool.cpp.

    : GaudiHistoTool ( type, name , parent )
    , m_indent( 0 )
    , m_normFactor( 0.001 )
    , m_speedRatio(0)
{
  declareInterface<ISequencerTimerTool>(this);
  m_shots = 3500000 ; // 1s on 2.8GHz Xeon, gcc 3.2, -o2
  declareProperty( "shots"        , m_shots );
  declareProperty( "Normalised"   , m_normalised = false );
  declareProperty( "GlobalTiming" , m_globalTiming = false );
  declareProperty( "NameSize"     , m_headerSize = 30,
                   "Number of characters to be used in algorithm name column" );
  // Histograms are disabled by default in this tool.
  setProperty("HistoProduce", false).ignore();
}

SequencerTimerTool::~SequencerTimerTool ( )

virtual

Destructor.

Definition at line 48 of file SequencerTimerTool.cpp.

{}

Member Function Documentation

int SequencerTimerTool::addTimer ( const std::string & name )

virtual

add a timer entry with the specified name

Implements ISequencerTimerTool.

Definition at line 151 of file SequencerTimerTool.cpp.

{
  std::string myName;
  if ( 0 < m_indent )
  {
    const std::string prefix( m_indent, ' ' );
    myName += prefix;
  }
  myName += name;
  if ( myName.size() < m_headerSize )
  {
    const std::string space( m_headerSize - myName.size(), ' ' );
    myName += space ;
  }
  //myName = myName.substr( 0, m_headerSize );
  m_timerList.push_back( TimerForSequencer( myName,
                                            m_headerSize,
                                            m_normFactor ) );
  return m_timerList.size() - 1;
}

virtual void SequencerTimerTool::decreaseIndent ( )

inlinevirtual

Decrease the indentation of the name.

Implements ISequencerTimerTool.

Definition at line 59 of file SequencerTimerTool.h.

  {
    m_indent -= 2;
    if ( 0 > m_indent ) m_indent = 0;
  }

StatusCode SequencerTimerTool::finalize ( )

virtual

finalize method, to print the time summary table

Reimplemented from GaudiHistoTool.

Definition at line 83 of file SequencerTimerTool.cpp.

{
  std::string line(m_headerSize + 68, '-');
  info() << line << endmsg
         << "This machine has a speed about "
         << format( "%6.2f", 1000.*m_speedRatio)
         << " times the speed of a 2.8 GHz Xeon.";
  if ( m_normalised ) info() <<" *** All times are renormalized ***";
  info() << endmsg << TimerForSequencer::header( m_headerSize ) << endmsg
         << line << endmsg;
  std::string lastName = "";
  for ( unsigned int kk=0 ; m_timerList.size() > kk ; kk++ )
  {
    if ( lastName == m_timerList[kk].name() ) continue; // suppress duplicate
    lastName = m_timerList[kk].name();
    info() << m_timerList[kk] << endmsg;
  }
  info() << line << endmsg;
  return GaudiHistoTool::finalize();
}

virtual bool SequencerTimerTool::globalTiming ( )

inlinevirtual

returns the flag telling that global timing is wanted

Implements ISequencerTimerTool.

Definition at line 81 of file SequencerTimerTool.h.

{ return m_globalTiming; };

virtual void SequencerTimerTool::increaseIndent ( )

inlinevirtual

Increase the indentation of the name.

Implements ISequencerTimerTool.

Definition at line 56 of file SequencerTimerTool.h.

{ m_indent += 2; }

int SequencerTimerTool::indexByName ( const std::string & name )

virtual

returns the index of the counter with that name, or -1

Implements ISequencerTimerTool.

Definition at line 110 of file SequencerTimerTool.cpp.

{
  std::string::size_type beg = name.find_first_not_of(" \t");
  std::string::size_type end = name.find_last_not_of(" \t");
  std::string temp = name.substr( beg, end-beg+1 );
  for ( unsigned int kk=0 ; m_timerList.size() > kk ; kk++ ) {
    beg =  m_timerList[kk].name().find_first_not_of(" \t");
    end =  m_timerList[kk].name().find_last_not_of(" \t");
    if ( m_timerList[kk].name().substr(beg,end-beg+1) == temp ) return kk;
  }
  return -1;
}

StatusCode SequencerTimerTool::initialize ( )

virtual

initialize method, to compute the normalization factor

Reimplemented from GaudiHistoTool.

Definition at line 54 of file SequencerTimerTool.cpp.

{
  const StatusCode sc = GaudiHistoTool::initialize();
  if ( sc.isFailure() ) return sc;
  double sum = 0;
  TimerForSequencer norm( "normalize", m_headerSize, m_normFactor );
  norm.start();
  IRndmGenSvc* rsvc = svc<IRndmGenSvc>( "RndmGenSvc", true );
  { // Use dummy loop suggested by Vanya Belyaev:
    Rndm::Numbers gauss;
    gauss.initialize( rsvc , Rndm::Gauss(0.,1.0) ).ignore();
    unsigned int shots = m_shots;
    while( 0 < --shots ) { sum += gauss() * sum ; }
  }
  norm.stop();
  double time = norm.lastCpu();
  m_speedRatio = 1./time;
  info() << "This machine has a speed about "
         << format( "%6.2f", 1000.*m_speedRatio)
         << " times the speed of a 2.8 GHz Xeon." << endmsg ;
  if ( m_normalised ) {
    m_normFactor = m_speedRatio;
  }
  return sc;
}

double SequencerTimerTool::lastTime ( int index )

inlinevirtual

returns the last time

Implements ISequencerTimerTool.

Definition at line 72 of file SequencerTimerTool.h.

{ return m_timerList[index].lastTime(); }

const std::string& SequencerTimerTool::name ( int index )

inlinevirtual

returns the name of the counter

Implements ISequencerTimerTool.

Definition at line 75 of file SequencerTimerTool.h.

{ return m_timerList[index].name(); }

void SequencerTimerTool::saveHistograms ( )

virtual

prepares and saves the timing histograms

Implements ISequencerTimerTool.

Definition at line 126 of file SequencerTimerTool.cpp.

{
  if ( produceHistos() )
  {
    info() << "Saving Timing histograms" << endmsg;
    const size_t bins = m_timerList.size();
    AIDA::IHistogram1D* histoTime = book("ElapsedTime", 0, bins, bins);
    AIDA::IHistogram1D* histoCPU  = book("CPUTime", 0, bins, bins);
    AIDA::IHistogram1D* histoCount  = book("Count", 0, bins, bins);
    TH1D* tHtime  = Gaudi::Utils::Aida2ROOT::aida2root(histoTime);
    TH1D* tHCPU   = Gaudi::Utils::Aida2ROOT::aida2root(histoCPU);
    TH1D* tHCount = Gaudi::Utils::Aida2ROOT::aida2root(histoCount);
    for ( size_t kk = 0 ; bins > kk ; kk++ )
    {
      TimerForSequencer &tfsq = m_timerList[kk];
      tHtime->Fill(tfsq.name().c_str(), tfsq.elapsedTotal());
      tHCPU->Fill(tfsq.name().c_str(), tfsq.cpuTotal());
      tHCount->Fill(tfsq.name().c_str(), tfsq.count());
    }
  }
}

void SequencerTimerTool::start ( int index )

inlinevirtual

start the counter, i.e.

register the current time

Implements ISequencerTimerTool.

Definition at line 66 of file SequencerTimerTool.h.

{ m_timerList[index].start(); }

double SequencerTimerTool::stop ( int index )

inlinevirtual

stop the counter, return the elapsed time

Implements ISequencerTimerTool.

Definition at line 69 of file SequencerTimerTool.h.

{ return m_timerList[index].stop(); }

Member Data Documentation

bool SequencerTimerTool::m_globalTiming

private

Definition at line 94 of file SequencerTimerTool.h.

std::string::size_type SequencerTimerTool::m_headerSize

private

Size of the name field.

Definition at line 95 of file SequencerTimerTool.h.

int SequencerTimerTool::m_indent

private

Amount of indentation.

Definition at line 90 of file SequencerTimerTool.h.

bool SequencerTimerTool::m_normalised

private

Is the time scaled to a nominal PIII ?

Definition at line 89 of file SequencerTimerTool.h.

double SequencerTimerTool::m_normFactor

private

Factor to convert to standard CPU (1 GHz PIII)

Definition at line 92 of file SequencerTimerTool.h.

int SequencerTimerTool::m_shots

private

Number of shots for CPU normalization.

Definition at line 88 of file SequencerTimerTool.h.

double SequencerTimerTool::m_speedRatio

private

Definition at line 93 of file SequencerTimerTool.h.

std::vector<TimerForSequencer> SequencerTimerTool::m_timerList

private

Definition at line 91 of file SequencerTimerTool.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v25r0/GaudiAlg/src/components/SequencerTimerTool.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v25r0/GaudiAlg/src/components/SequencerTimerTool.cpp

Gaudi Framework, version v25r0

Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
