SimpleProperty concrete class which implements the full Property interface. More...

#include <GaudiKernel/Property.h>

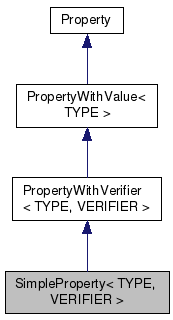

Inheritance diagram for SimpleProperty< TYPE, VERIFIER >:

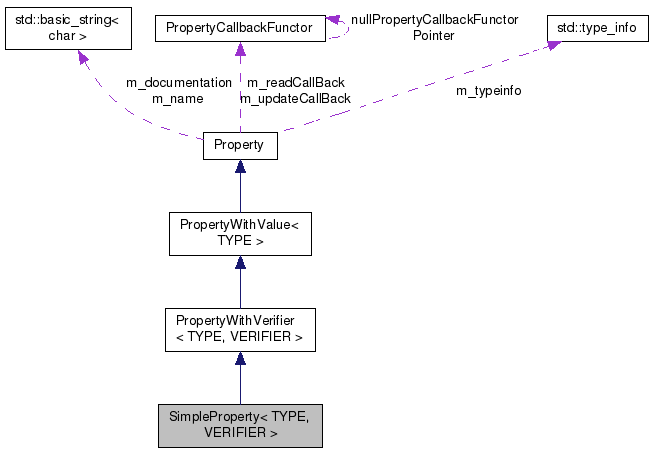

Collaboration diagram for SimpleProperty< TYPE, VERIFIER >:

Public Member Functions
	SimpleProperty (VERIFIER verifier=VERIFIER())
	"Almost default" constructor from verifier

	SimpleProperty (const TYPE &value, VERIFIER verifier=VERIFIER())
	The constructor from the value and verifier (ATLAS needs it!)

	SimpleProperty (const std::string &name, const TYPE &value, VERIFIER verifier=VERIFIER())
	The constructor from the name, value and verifier.

template<class OTHER >
	SimpleProperty (const PropertyWithValue< OTHER > &right)
	constructor from other property type

	SimpleProperty (const SimpleProperty &right)
	copy constructor (must be!)

virtual	~SimpleProperty ()
	virtual Destructor

virtual SimpleProperty *	clone () const
	implementation of Property::clone

SimpleProperty &	operator= (const TYPE &value)
	assignment form the value

template<class OTHER >
SimpleProperty &	operator= (const PropertyWithValue< OTHER > &right)
	assignment form the other property type

Public Member Functions inherited from PropertyWithVerifier< TYPE, VERIFIER >
VERIFIER &	verifier ()

const VERIFIER &	verifier () const

bool	set (const TYPE &value)
	update the value of the property/check the verifier

virtual bool	setValue (const TYPE &value)
	implementation of PropertyWithValue::setValue

template<class OTHER , class OTHERVERIFIER >
PropertyWithVerifier &	operator= (const PropertyWithVerifier< OTHER, OTHERVERIFIER > &right)
	templated assignment

template<class OTHER >
PropertyWithVerifier &	operator= (const PropertyWithValue< OTHER > &right)
	templated assignment

PropertyWithVerifier &	operator= (const TYPE &right)
	assignment

Public Member Functions inherited from PropertyWithValue< TYPE >
	operator const TYPE & () const
	implicit conversion to the type

const TYPE &	value () const
	explicit conversion

virtual bool	assign (const Property &source)
	get the value from another property

virtual bool	load (Property &dest) const
	set value for another property

virtual StatusCode	fromString (const std::string &s)
	string -> value

virtual std::string	toString () const
	value -> string

virtual void	toStream (std::ostream &out) const
	value -> stream

Public Member Functions inherited from Property
const std::string &	name () const
	property name

const std::string &	documentation () const
	property documentation

const std::type_info *	type_info () const
	property type-info

std::string	type () const
	property type

const PropertyCallbackFunctor *	readCallBack () const
	Call-back functor at reading: the functor is owned by property!

const PropertyCallbackFunctor *	updateCallBack () const
	Call-back functor for update: the functor is owned by property!

virtual void	declareReadHandler (PropertyCallbackFunctor *pf)
	set new callback for reading

virtual void	declareUpdateHandler (PropertyCallbackFunctor *pf)
	set new callback for update

template<class HT >
void	declareReadHandler (void(HT::MF)(Property &), HT instance)

template<class HT >
void	declareUpdateHandler (void(HT::MF)(Property &), HT instance)

virtual void	useReadHandler () const
	use the call-back function at reading

virtual bool	useUpdateHandler ()
	use the call-back function at update

virtual	~Property ()
	virtual destructor

void	setName (const std::string &value)
	set the new value for the property name

void	setDocumentation (const std::string &documentation)
	set the documentation string

virtual std::ostream &	fillStream (std::ostream &) const
	the printout of the property value

Protected Types
typedef Gaudi::Utils::PropertyTypeTraits < TYPE >	Traits

Additional Inherited Members
Public Types inherited from PropertyWithValue< TYPE >
typedef Gaudi::Utils::PropertyTypeTraits < TYPE >	Traits
	the type-traits for properties

typedef Traits::PVal	PVal
	the actual storage type

Protected Member Functions inherited from PropertyWithVerifier< TYPE, VERIFIER >
	PropertyWithVerifier (const std::string &name, typename Gaudi::Utils::PropertyTypeTraits< TYPE >::PVal value, const bool owner, const VERIFIER &verifier)
	the constructor with property name and value

virtual	~PropertyWithVerifier ()
	virtual destructor

Protected Attributes inherited from Property
PropertyCallbackFunctor *	m_readCallBack

PropertyCallbackFunctor *	m_updateCallBack

Detailed Description

template<class TYPE, class VERIFIER>
class SimpleProperty< TYPE, VERIFIER >

SimpleProperty concrete class which implements the full Property interface.

Author: Paul Maley; CTDay; Vanya BELYAEV ibely.nosp@m.aev@.nosp@m.physi.nosp@m.cs.s.nosp@m.yr.ed.nosp@m.u

Definition at line 15 of file HistoProperty.h.

Member Typedef Documentation

template<class TYPE, class VERIFIER>

typedef Gaudi::Utils::PropertyTypeTraits<TYPE> SimpleProperty< TYPE, VERIFIER >::Traits

protected

Definition at line 510 of file Property.h.

Constructor & Destructor Documentation

template<class TYPE , class VERIFIER>

SimpleProperty< TYPE, VERIFIER >::SimpleProperty ( VERIFIER verifier = VERIFIER() )

"Almost default" constructor from verifier

The constructor from verifier.

Definition at line 547 of file Property.h.

  : PropertyWithVerifier<TYPE,VERIFIER>
( "" , Traits::new_() , true , verifier )
{}

template<class TYPE, class VERIFIER>

SimpleProperty< TYPE, VERIFIER >::SimpleProperty	(	const TYPE &	value,
		VERIFIER	verifier = `VERIFIER()`
	)

The constructor from the value and verifier (ATLAS needs it!)

The constructor from the value and verifier.

Definition at line 556 of file Property.h.

  : PropertyWithVerifier<TYPE,VERIFIER>
( "" , Traits::new_(value) , true , verifier )
{}

template<class TYPE, class VERIFIER>

SimpleProperty< TYPE, VERIFIER >::SimpleProperty	(	const std::string &	name,
		const TYPE &	value,
		VERIFIER	verifier = `VERIFIER()`
	)

The constructor from the name, value and verifier.

Definition at line 566 of file Property.h.

  : PropertyWithVerifier<TYPE,VERIFIER>
( name , Traits::new_(value) , true , verifier )
{}

template<class TYPE , class VERIFIER >

template<class OTHER >

SimpleProperty< TYPE, VERIFIER >::SimpleProperty ( const PropertyWithValue< OTHER > & right )

constructor from other property type

Definition at line 578 of file Property.h.

  : PropertyWithVerifier<TYPE,VERIFIER>
( right.name() , Traits::new_( right.value() ) , true , VERIFIER() )
{}

template<class TYPE, class VERIFIER>

SimpleProperty< TYPE, VERIFIER >::SimpleProperty ( const SimpleProperty< TYPE, VERIFIER > & right )

copy constructor (must be!)

Definition at line 587 of file Property.h.

  : PropertyWithVerifier<TYPE,VERIFIER>
( right.name() , Traits::new_( right.value() ) , true , right.verifier() )
{}

template<class TYPE , class VERIFIER >

SimpleProperty< TYPE, VERIFIER >::~SimpleProperty ( )

virtual

virtual Destructor

Definition at line 595 of file Property.h.

{}

Member Function Documentation

template<class TYPE , class VERIFIER >

SimpleProperty< TYPE, VERIFIER > * SimpleProperty< TYPE, VERIFIER >::clone ( ) const

inlinevirtual

implementation of Property::clone

Implements Property.

Definition at line 602 of file Property.h.

{ return new SimpleProperty(*this) ; }

template<class TYPE, class VERIFIER >

SimpleProperty< TYPE, VERIFIER > & SimpleProperty< TYPE, VERIFIER >::operator= ( const TYPE & value )

inline

assignment form the value

Definition at line 610 of file Property.h.

{
  PropertyWithVerifier<TYPE,VERIFIER>::operator=( value );
  return *this ;
}

template<class TYPE , class VERIFIER >

template<class OTHER >

SimpleProperty< TYPE, VERIFIER > & SimpleProperty< TYPE, VERIFIER >::operator= ( const PropertyWithValue< OTHER > & right )

inline

assignment form the other property type

Definition at line 623 of file Property.h.

{
  PropertyWithVerifier<TYPE,VERIFIER>::operator=( right );
  return *this ;
}

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v25r0/GaudiKernel/GaudiKernel/HistoProperty.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v25r0/GaudiKernel/GaudiKernel/Property.h
