SimplePropertyRef< TYPE, VERIFIER > Class Template Reference

SimplePropertyRef templated class. More...

#include <GaudiKernel/Property.h>

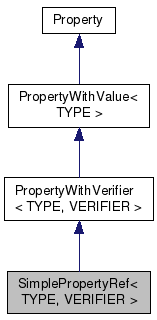

Inheritance diagram for SimplePropertyRef< TYPE, VERIFIER >:

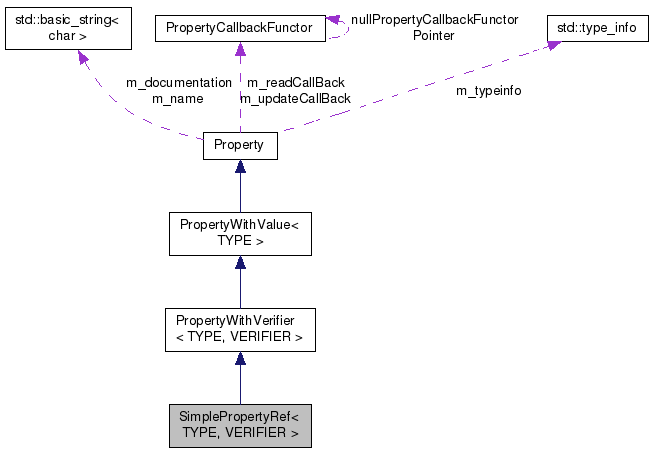

Collaboration diagram for SimplePropertyRef< TYPE, VERIFIER >:

Public Member Functions
	SimplePropertyRef (const std::string &name, TYPE &value, VERIFIER verifier=VERIFIER())
	Constructor from the name, the value and the verifier.
	SimplePropertyRef (const SimplePropertyRef &right)
	copy constructor (must be!)
virtual	~SimplePropertyRef ()
	virtual Destructor
virtual SimplePropertyRef *	clone () const
	implementation of Property::clone
SimplePropertyRef &	operator= (const TYPE &value)
	assignment form the value
template<class OTHER >
SimplePropertyRef &	operator= (const PropertyWithValue< OTHER > &right)
	assignment form the other property type
Public Member Functions inherited from PropertyWithVerifier< TYPE, VERIFIER >
VERIFIER &	verifier ()
const VERIFIER &	verifier () const
bool	set (const TYPE &value)
	update the value of the property/check the verifier
virtual bool	setValue (const TYPE &value)
	implementation of PropertyWithValue::setValue
template<class OTHER , class OTHERVERIFIER >
PropertyWithVerifier &	operator= (const PropertyWithVerifier< OTHER, OTHERVERIFIER > &right)
	templated assignment
template<class OTHER >
PropertyWithVerifier &	operator= (const PropertyWithValue< OTHER > &right)
	templated assignment
PropertyWithVerifier &	operator= (const TYPE &right)
	assignment
Public Member Functions inherited from PropertyWithValue< TYPE >
	operator const TYPE & () const
	implicit conversion to the type
const TYPE &	value () const
	explicit conversion
virtual bool	assign (const Property &source)
	get the value from another property
virtual bool	load (Property &dest) const
	set value for another property
virtual StatusCode	fromString (const std::string &s)
	string -> value
virtual std::string	toString () const
	value -> string
virtual void	toStream (std::ostream &out) const
	value -> stream
Public Member Functions inherited from Property
const std::string &	name () const
	property name
const std::string &	documentation () const
	property documentation
const std::type_info *	type_info () const
	property type-info
std::string	type () const
	property type
const PropertyCallbackFunctor *	readCallBack () const
	Call-back functor at reading: the functor is owned by property!
const PropertyCallbackFunctor *	updateCallBack () const
	Call-back functor for update: the functor is owned by property!
virtual void	declareReadHandler (PropertyCallbackFunctor *pf)
	set new callback for reading
virtual void	declareUpdateHandler (PropertyCallbackFunctor *pf)
	set new callback for update
template<class HT >
void	declareReadHandler (void(HT::*MF)(Property &), HT *instance)
template<class HT >
void	declareUpdateHandler (void(HT::*MF)(Property &), HT *instance)
virtual void	useReadHandler () const
	use the call-back function at reading
virtual bool	useUpdateHandler ()
	use the call-back function at update
virtual	~Property ()
	virtual destructor
void	setName (const std::string &value)
	set the new value for the property name
void	setDocumentation (const std::string &documentation)
	set the documentation string
virtual std::ostream &	fillStream (std::ostream &) const
	the printout of the property value

Private Member Functions
	SimplePropertyRef ()

Additional Inherited Members
Public Types inherited from PropertyWithValue< TYPE >
typedef Gaudi::Utils::PropertyTypeTraits < TYPE >	Traits
	the type-traits for properties
typedef Traits::PVal	PVal
	the actual storage type
Protected Member Functions inherited from PropertyWithVerifier< TYPE, VERIFIER >
	PropertyWithVerifier (const std::string &name, typename Gaudi::Utils::PropertyTypeTraits< TYPE >::PVal value, const bool owner, const VERIFIER &verifier)
	the constructor with property name and value
virtual	~PropertyWithVerifier ()
	virtual destructor
Protected Attributes inherited from Property
PropertyCallbackFunctor *	m_readCallBack
PropertyCallbackFunctor *	m_updateCallBack

Detailed Description

template<class TYPE, class VERIFIER>
class SimplePropertyRef< TYPE, VERIFIER >

SimplePropertyRef templated class.

Author

Paul Maley

CTDay

Vanya BELYAEV ibely.nosp@m.aev@.nosp@m.physi.nosp@m.cs.s.nosp@m.yr.ed.nosp@m.u

Definition at line 16 of file HistoProperty.h.

Constructor & Destructor Documentation

template<class TYPE , class VERIFIER >

SimplePropertyRef< TYPE, VERIFIER >::SimplePropertyRef	(	const std::string &	name,
		TYPE &	value,
		VERIFIER	verifier = VERIFIER()
	)

Constructor from the name, the value and the verifier.

Parameters

value

NB! non-const reference

Definition at line 670 of file Property.h.

  : PropertyWithVerifier<TYPE,VERIFIER> ( name , &value , false , verifier )
{}

template<class TYPE , class VERIFIER >

SimplePropertyRef< TYPE, VERIFIER >::SimplePropertyRef

(

const SimplePropertyRef< TYPE, VERIFIER > &

right

)

copy constructor (must be!)

Definition at line 680 of file Property.h.

  : PropertyWithVerifier<TYPE,VERIFIER>
( right.name() , right.i_get() , false , right.verifier() )
{}

template<class TYPE , class VERIFIER >

SimplePropertyRef< TYPE, VERIFIER >::~SimplePropertyRef ( )

virtual

virtual Destructor

Definition at line 688 of file Property.h.

{}

template<class TYPE, class VERIFIER>

SimplePropertyRef< TYPE, VERIFIER >::SimplePropertyRef ( )

private

Member Function Documentation

template<class TYPE , class VERIFIER >

SimplePropertyRef< TYPE, VERIFIER > * SimplePropertyRef< TYPE, VERIFIER >::clone ( ) const

inlinevirtual

implementation of Property::clone

Implements Property.

Definition at line 695 of file Property.h.

{ return new SimplePropertyRef(*this) ; }

template<class TYPE , class VERIFIER >

SimplePropertyRef< TYPE, VERIFIER > & SimplePropertyRef< TYPE, VERIFIER >::operator= ( const TYPE &  value )

inline

assignment form the value

assignment from the value

Definition at line 703 of file Property.h.

{
  PropertyWithVerifier<TYPE,VERIFIER>::operator=( value ) ;
  return *this ;
}

template<class TYPE , class VERIFIER >

template<class OTHER >

SimplePropertyRef< TYPE, VERIFIER > & SimplePropertyRef< TYPE, VERIFIER >::operator= ( const PropertyWithValue< OTHER > &  right )

inline

assignment form the other property type

Definition at line 716 of file Property.h.

{
  PropertyWithVerifier<TYPE,VERIFIER>::operator=( right );
  return *this ;
}

---

The documentation for this class was generated from the following files:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v25r0/GaudiKernel/GaudiKernel/HistoProperty.h
• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v25r0/GaudiKernel/GaudiKernel/Property.h
