Handle to be used in lieu of naked pointers to tools. More...

#include <GaudiKernel/ToolHandle.h>

Inheritance diagram for ToolHandle< T >:

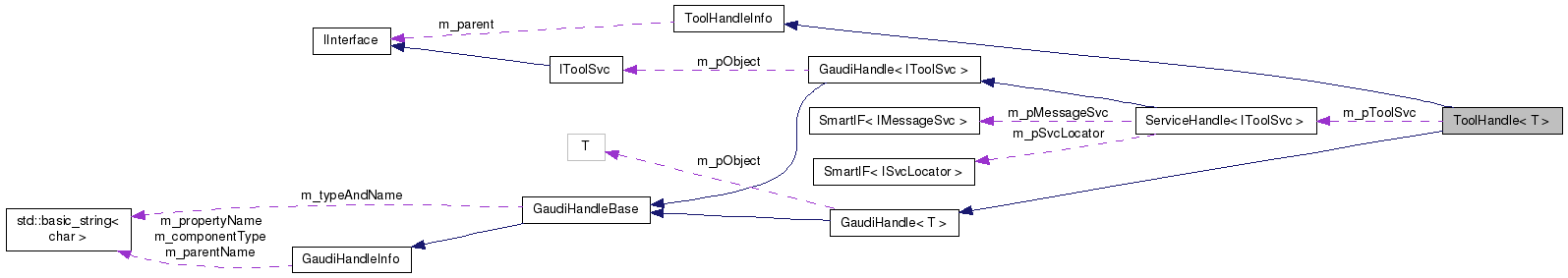

Collaboration diagram for ToolHandle< T >:

Public Member Functions
	ToolHandle (const IInterface *parent=0, bool createIf=true)
	Constructor for a tool with default tool type and name.

	ToolHandle (const std::string &toolTypeAndName, const IInterface *parent=0, bool createIf=true)
	Create a handle ('smart pointer') to a tool.

StatusCode	retrieve () const
	Retrieve the AlgTool.

StatusCode	release () const
	Release the AlgTool.

virtual StatusCode	retrieve (T *&algTool) const
	Do the real retrieval of the AlgTool.

virtual StatusCode	release (T *algTool) const
	Do the real release of the AlgTool.

Public Member Functions inherited from ToolHandleInfo
virtual	~ToolHandleInfo ()

bool	isPublic () const

bool	createIf () const

const IInterface *	parent () const

const std::string	toolComponentType (const IInterface *parent) const

const std::string	toolParentName (const IInterface *parent) const

Public Member Functions inherited from GaudiHandle< T >
	GaudiHandle (const GaudiHandle &other)
	Copy constructor needed for correct ref-counting.

GaudiHandle &	operator= (const GaudiHandle &other)
	Assignment operator for correct ref-counting.

StatusCode	retrieve () const
	Retrieve the component.

StatusCode	release () const
	Release the component.

	operator bool () const
	For testing if handle has component.

T &	operator* ()

T *	operator-> ()

T &	operator* () const

T *	operator-> () const

std::string	getDefaultType ()
	Helper function to get default type string from the class type.

std::string	getDefaultName ()

Public Member Functions inherited from GaudiHandleBase
std::string	typeAndName () const
	The full type and name: "type/name".

std::string	type () const
	The concrete component class name: the part before the '/'.

std::string	name () const
	The instance name: the part after the '/'.

bool	empty () const
	Check if the handle has been set to empty string (i.e.

void	setTypeAndName (const std::string &myTypeAndName)
	The component "type/name" string.

void	setName (const std::string &myName)
	Set the instance name (part after the '/') without changing the class type.

const std::string	pythonPropertyClassName () const
	Name of the componentType with "Handle" appended.

const std::string	messageName () const
	name used for printing messages

virtual const std::string	pythonRepr () const
	Python representation of handle, i.e.

Public Member Functions inherited from GaudiHandleInfo
virtual	~GaudiHandleInfo ()
	virtual destructor so that derived class destructor is called.

const std::string &	componentType () const

const std::string &	propertyName () const
	name as used in declareProperty(name,gaudiHandle)

void	setPropertyName (const std::string &propName)
	set name as used in declareProperty(name,gaudiHandle).

const std::string &	parentName () const
	The name of the parent.

Private Attributes
ServiceHandle< IToolSvc >	m_pToolSvc

Additional Inherited Members
Protected Member Functions inherited from ToolHandleInfo
	ToolHandleInfo (const IInterface *parent=0, bool createIf=true)

Protected Member Functions inherited from GaudiHandle< T >
	GaudiHandle (const std::string &myTypeAndName, const std::string &myComponentType, const std::string &myParentName)

Detailed Description

template<class T>
class ToolHandle< T >

Handle to be used in lieu of naked pointers to tools.

This allows better control through the framework of tool loading and usage. T is the AlgTool interface class (or concrete class) of the tool to use, and must derive from IAlgTool.

Author: Wim Lavrijsen WLavr.nosp@m.ijse.nosp@m.n@lbl.nosp@m..gov; Marti.nosp@m.n.Wo.nosp@m.udstr.nosp@m.a@ce.nosp@m.rn.ch

Definition at line 24 of file PropertyMgr.h.

Constructor & Destructor Documentation

template<class T>

ToolHandle< T >::ToolHandle	(	const IInterface *	parent = `0`,
		bool	createIf = `true`
	)

inline

Constructor for a tool with default tool type and name.

Can be called only if the type T is a concrete tool type (not an interface), and you want to use the default name.

Definition at line 88 of file ToolHandle.h.

    : ToolHandleInfo(parent,createIf),
      GaudiHandle<T>( GaudiHandle<T>::getDefaultType(),
              ToolHandleInfo::toolComponentType(parent),
              ToolHandleInfo::toolParentName(parent) ),
      m_pToolSvc( "ToolSvc", GaudiHandleBase::parentName() )
  {}

template<class T>

ToolHandle< T >::ToolHandle	(	const std::string &	toolTypeAndName,
		const IInterface *	parent = `0`,
		bool	createIf = `true`
	)

inline

Create a handle ('smart pointer') to a tool.

The arguments are passed on to ToolSvc, and have the same meaning:

StatusCode ToolSvc::retrieveTool ( const std::string& type            ,
                                   T*&                tool            ,
             const IInterface*  parent   = 0    ,
             bool               createIf = true )

Parameters

toolType,:	"MyToolType/MyToolName" "MyToolType" is short for "MyToolType/MyToolType" 'MyToolType' is the name of the class of the concrete tool 'MyToolName' is to distinguish several tool instances of the same class
parent,:	the parent Algorithm,Tool or Service of which this tool is a member. If non-zero, the the tool is a private tool of the parent, otherwise it is a public (shared) tool.
createIf,:	if true, create tool if not yet existing.

Definition at line 113 of file ToolHandle.h.

    : ToolHandleInfo(parent,createIf),
      GaudiHandle<T>( toolTypeAndName,
              ToolHandleInfo::toolComponentType(parent),
              ToolHandleInfo::toolParentName(parent) ),
      m_pToolSvc( "ToolSvc", GaudiHandleBase::parentName() )
  {}

Member Function Documentation

template<class T>

StatusCode ToolHandle< T >::release ( ) const

inline

Release the AlgTool.

Function must be repeated here to avoid hiding the function release( T*& )

Definition at line 129 of file ToolHandle.h.

                             { // not really const, because it updates m_pObject
    return GaudiHandle<T>::release();
  }

template<class T>

virtual StatusCode ToolHandle< T >::release ( T * algTool ) const

inlinevirtual

Do the real release of the AlgTool.

Reimplemented from GaudiHandle< T >.

Definition at line 141 of file ToolHandle.h.

                                                 {
    return m_pToolSvc->releaseTool( algTool );
  }

template<class T>

StatusCode ToolHandle< T >::retrieve ( ) const

inline

Retrieve the AlgTool.

Release existing tool if needed. Function must be repeated here to avoid hiding the function retrieve( T*& )

Definition at line 123 of file ToolHandle.h.

                              { // not really const, because it updates m_pObject
    return GaudiHandle<T>::retrieve();
  }

template<class T>

virtual StatusCode ToolHandle< T >::retrieve ( T *& algTool ) const

inlinevirtual

Do the real retrieval of the AlgTool.

Implements GaudiHandle< T >.

Definition at line 134 of file ToolHandle.h.

                                                   {
    return m_pToolSvc->retrieve( GaudiHandleBase::typeAndName(), T::interfaceID(),
                 (IAlgTool*&)(algTool),
                 ToolHandleInfo::parent(), ToolHandleInfo::createIf() );
  }

Member Data Documentation

template<class T>

ServiceHandle<IToolSvc> ToolHandle< T >::m_pToolSvc

mutableprivate

Definition at line 149 of file ToolHandle.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v25r0/GaudiKernel/GaudiKernel/PropertyMgr.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v25r0/GaudiKernel/GaudiKernel/ToolHandle.h

Gaudi Framework, version v25r0
