Gaudi::Histogram3D Class Reference

AIDA implementation for 2 D histograms using ROOT THD2. More...

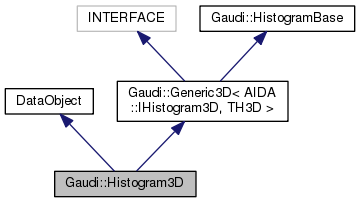

Inheritance diagram for Gaudi::Histogram3D:
Inheritance graph
[legend]

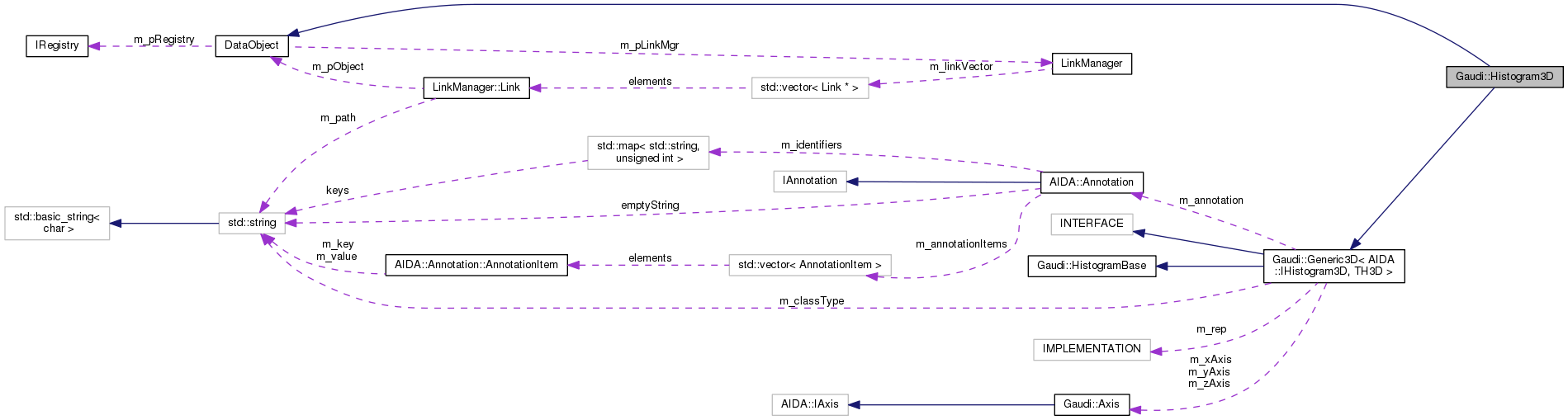

Collaboration diagram for Gaudi::Histogram3D:
Collaboration graph
[legend]

Public Member Functions

 Histogram3D ()
 Standard Constructor.

 Histogram3D (TH3D *rep)
 Standard Constructor.

virtual ~Histogram3D ()
 Destructor.

bool fill (double x, double y, double z, double weight)
 Fill bin content.

virtual bool setBinContents (int i, int j, int k, int entries, double height, double error, double centreX, double centreY, double centreZ)
 Fast filling method for a given bin. It can be also the over/underflow bin.

virtual bool setRms (double rmsX, double rmsY, double rmsZ)
 Sets the rms of the histogram.

virtual bool reset ()

void * cast (const std::string &className) const
 Introspection method.

void copyFromAida (const AIDA::IHistogram3D &h)
 Create new histogram from any AIDA based histogram.

virtual const CLID & clID () const
 Retrieve reference to class defininition identifier.

- Public Member Functions inherited from DataObject
 DataObject ()
 Standard Constructor.

 DataObject (const DataObject &)
 Copy Constructor.

virtual ~DataObject ()
 Standard Destructor.

virtual unsigned long addRef ()
 Add reference to object.

virtual unsigned long release ()
 release reference to object

const std::string & name () const
 Retreive DataObject name. It is the name when registered in the store.

virtual StatusCode update ()
 Provide empty placeholder for internal object reconfiguration callback.

void setRegistry (IRegistry *pRegistry)
 Set pointer to Registry.

IRegistry * registry () const
 Get pointer to Registry.

LinkManager * linkMgr () const
 Retrieve Link manager.

unsigned char version () const
 Retrieve version number of this object representation.

void setVersion (unsigned char vsn)
 Set version number of this object representation.

unsigned long refCount () const
 Return the refcount.

virtual std::ostream & fillStream (std::ostream &s) const
 Fill the output stream (ASCII)

- Public Member Functions inherited from Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >
 Generic3D ()
 Default constructor.

virtual ~Generic3D ()
 Destructor.

TObject * representation () const
 ROOT object implementation.

virtual void adoptRepresentation (TObject *rep)
 Adopt ROOT histogram representation.

virtual int dimension () const
 Get the Histogram's dimension.

virtual std::string title () const
 Get the title of the object.

virtual bool setTitle (const std::string &title)
 Set the title of the object.

virtual std::string name () const
 object name

bool setName (const std::string &newName)
 Sets the name of the object.

virtual AIDA::IAnnotation & annotation ()
 Access annotation object.

virtual const AIDA::IAnnotation & annotation () const
 Access annotation object (cons)

virtual int entries () const
 Get the number or all the entries.

virtual int allEntries () const
 Get the number or all the entries, both in range and underflow/overflow bins of the IProfile.

virtual double sumBinHeights () const
 Get the sum of in range bin heights in the IProfile.

virtual double sumAllBinHeights () const
 Get the sum of all the bins heights (including underflow and overflow bin).

virtual double sumExtraBinHeights () const
 Get the sum of the underflow and overflow bin height.

virtual double minBinHeight () const
 Get the minimum height of the in-range bins.

virtual double maxBinHeight () const
 Get the maximum height of the in-range bins.

int rIndexX (int index) const

int rIndexY (int index) const

int rIndexZ (int index) const

double binMeanX (int indexX, int, int) const
 The weighted mean along the x axis of a given bin.

double binMeanY (int, int indexY, int) const
 The weighted mean along the y axis of a given bin.

double binMeanZ (int, int, int indexZ) const
 The weighted mean along the z axis of a given bin.

int binEntries (int indexX, int indexY, int indexZ) const
 Number of entries in the corresponding bin (ie the number of times fill was calle d for this bin).

virtual int binEntriesX (int index) const
 Sum of all the entries of the bins along a given x bin.

virtual int binEntriesY (int index) const
 Sum of all the entries of the bins along a given y bin.

virtual int binEntriesZ (int index) const
 Sum of all the entries of the bins along a given z bin.

double binHeight (int indexX, int indexY, int indexZ) const
 Total height of the corresponding bin (ie the sum of the weights in this bin).

virtual double binHeightX (int index) const
 Sum of all the heights of the bins along a given x bin.

virtual double binHeightY (int index) const
 Sum of all the heights of the bins along a given y bin.

virtual double binHeightZ (int index) const
 Sum of all the heights of the bins along a given z bin.

virtual double binError (int indexX, int indexY, int indexZ) const
 The error of a given bin.

virtual double meanX () const
 The mean of the IHistogram3D along the x axis.

virtual double meanY () const
 The mean of the IHistogram3D along the y axis.

virtual double meanZ () const
 The mean of the IHistogram3D along the z axis.

virtual double rmsX () const
 The RMS of the IHistogram3D along the x axis.

virtual double rmsY () const
 The RMS of the IHistogram3D along the y axis.

virtual double rmsZ () const
 The RMS of the IHistogram3D along the z axis.

virtual const AIDA::IAxis & xAxis () const
 Get the x axis of the IHistogram3D.

virtual const AIDA::IAxis & yAxis () const
 Get the y axis of the IHistogram3D.

virtual const AIDA::IAxis & zAxis () const
 Get the z axis of the IHistogram3D.

virtual int coordToIndexX (double coord) const
 Get the bin number corresponding to a given coordinate along the x axis.

virtual int coordToIndexY (double coord) const
 Get the bin number corresponding to a given coordinate along the y axis.

virtual int coordToIndexZ (double coord) const
 Get the bin number corresponding to a given coordinate along the z axis.

virtual double equivalentBinEntries () const
 Number of equivalent entries, i.e. SUM[ weight ] ^ 2 / SUM[ weight^2 ]

virtual bool scale (double scaleFactor)
 Scale the weights and the errors of all the IHistogram's bins (in-range and out-of-range ones) by a given scale factor.

virtual bool add (const INTERFACE &hist)
 Add to this Histogram3D the contents of another IHistogram3D.

int extraEntries () const

virtual std::ostream & print (std::ostream &s) const
 Print (ASCII) the histogram into the output stream.

virtual std::ostream & write (std::ostream &s) const
 Write (ASCII) the histogram table into the output stream.

virtual int write (const char *file_name) const
 Write (ASCII) the histogram table into a file.

template<>
void adoptRepresentation (TObject *rep)
 Adopt ROOT histogram representation.

- Public Member Functions inherited from Gaudi::HistogramBase
virtual ~HistogramBase ()


Static Public Member Functions

static const CLID & classID ()

- Static Public Member Functions inherited from DataObject
static const CLID & classID ()
 Retrieve reference to class definition structure (static access)


Protected Attributes

double m_sumwx

double m_sumwy

double m_sumwz

- Protected Attributes inherited from Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >
Gaudi::Axis m_xAxis

Gaudi::Axis m_yAxis

Gaudi::Axis m_zAxis

AIDA::Annotation m_annotation
 Object annotations.

IMPLEMENTATION * m_rep
 Reference to underlying implementation.

std::string m_classType

int m_sumEntries


Additional Inherited Members

- Public Types inherited from Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >
typedef Generic3D< INTERFACE,
IMPLEMENTATION > 		Base

- Friends inherited from DataObject

Detailed Description

AIDA implementation for 2 D histograms using ROOT THD2.

Author
M.Frank

Definition at line 27 of file H3D.cpp.

Constructor & Destructor Documentation

Gaudi::Histogram3D::Histogram3D ( )

Standard Constructor.

Definition at line 98 of file H3D.cpp.

{
m_rep = new TH3D();
setTitle("");
m_rep->Sumw2();
m_sumEntries = 0;
m_sumwx = 0;
m_sumwy = 0;
m_sumwz = 0;
m_rep->SetDirectory(0);
}
Gaudi::Histogram3D::Histogram3D ( TH3D *  rep)

Standard Constructor.

Definition at line 109 of file H3D.cpp.

{
m_rep = 0;
adoptRepresentation(rep);
m_sumEntries = 0;
m_sumwx = 0;
m_sumwy = 0;
m_sumwz = 0;
m_rep->SetDirectory(0);
}
virtual Gaudi::Histogram3D::~Histogram3D ( )
inlinevirtual

Destructor.

Definition at line 34 of file H3D.cpp.

{}

Member Function Documentation

void * Gaudi::Histogram3D::cast ( const std::string &  className) const

Introspection method.

Definition at line 147 of file H3D.cpp.

{
if (className == "AIDA::IHistogram3D") {
return (AIDA::IHistogram3D*)this;
}
else if (className == "AIDA::IHistogram") {
return (AIDA::IHistogram*)this;
}
return 0;
}
static const CLID& Gaudi::Histogram3D::classID ( )
inlinestatic

Definition at line 49 of file H3D.cpp.

{ return CLID_H3D; }
virtual const CLID& Gaudi::Histogram3D::clID ( ) const
inlinevirtual

Retrieve reference to class defininition identifier.

Reimplemented from DataObject.

Definition at line 48 of file H3D.cpp.

{ return classID(); }
void Gaudi::Histogram3D::copyFromAida ( const AIDA::IHistogram3D &  h)

Create new histogram from any AIDA based histogram.

Definition at line 190 of file H3D.cpp.

{
delete m_rep;
// implement here the copy
const char* tit = h.title().c_str();
if (h.xAxis().isFixedBinning() && h.yAxis().isFixedBinning() && h.zAxis().isFixedBinning() ) {
m_rep = new TH3D(tit,tit,
h.xAxis().bins(), h.xAxis().lowerEdge(), h.xAxis().upperEdge(),
h.yAxis().bins(), h.yAxis().lowerEdge(), h.yAxis().upperEdge(),
h.zAxis().bins(), h.zAxis().lowerEdge(), h.zAxis().upperEdge() );
}
else {
Edges eX, eY, eZ;
for (int i =0; i < h.xAxis().bins(); ++i)
eX.push_back(h.xAxis().binLowerEdge(i));
// add also upperedges at the end
eX.push_back(h.xAxis().upperEdge() );
for (int i =0; i < h.yAxis().bins(); ++i)
eY.push_back(h.yAxis().binLowerEdge(i));
// add also upperedges at the end
eY.push_back(h.yAxis().upperEdge() );
for (int i =0; i < h.zAxis().bins(); ++i)
eZ.push_back(h.zAxis().binLowerEdge(i));
// add also upperedges at the end
eZ.push_back(h.zAxis().upperEdge() );
m_rep = new TH3D(tit,tit,eX.size()-1,&eX.front(),eY.size()-1,&eY.front(),eZ.size()-1,&eZ.front());
}
m_xAxis.initialize(m_rep->GetXaxis(),true);
m_yAxis.initialize(m_rep->GetYaxis(),true);
m_zAxis.initialize(m_rep->GetZaxis(),true);
const TArrayD* a = m_rep->GetSumw2();
if ( 0 == a || (a && a->GetSize()==0) ) m_rep->Sumw2();
m_sumEntries = 0;
m_sumwx = 0;
m_sumwy = 0;
m_sumwz = 0;
// statistics
double sumw = h.sumBinHeights();
double sumw2 = 0;
if (h.equivalentBinEntries() != 0)
sumw2 = ( sumw * sumw ) /h.equivalentBinEntries();
double sumwx = h.meanX()*h.sumBinHeights();
double sumwx2 = (h.meanX()*h.meanX() + h.rmsX()*h.rmsX() )*h.sumBinHeights();
double sumwy = h.meanY()*h.sumBinHeights();
double sumwy2 = (h.meanY()*h.meanY() + h.rmsY()*h.rmsY() )*h.sumBinHeights();
double sumwz = h.meanZ()*h.sumBinHeights();
double sumwz2 = (h.meanZ()*h.meanZ() + h.rmsZ()*h.rmsZ() )*h.sumBinHeights();
double sumwxy = 0;
double sumwxz = 0;
double sumwyz = 0;
// copy the contents in (AIDA underflow/overflow are -2,-1)
for (int i=-2; i < xAxis().bins(); ++i) {
for (int j=-2; j < yAxis().bins(); ++j) {
for (int k=-2; k < zAxis().bins(); ++k) {
m_rep->SetBinContent(rIndexX(i), rIndexY(j), rIndexZ(k), h.binHeight(i,j,k) );
m_rep->SetBinError(rIndexX(i), rIndexY(j), rIndexZ(k), h.binError(i,j,k) );
// calculate statistics
if ( i >= 0 && j >= 0 && k >= 0) {
sumwxy += h.binHeight(i,j,k)*h.binMeanX(i,j,k)*h.binMeanY(i,j,k);
sumwxz += h.binHeight(i,j,k)*h.binMeanX(i,j,k)*h.binMeanZ(i,j,k);
sumwyz += h.binHeight(i,j,k)*h.binMeanY(i,j,k)*h.binMeanZ(i,j,k);
}
}
}
}
// need to do set entries after setting contents otherwise root will recalulate them
// taking into account how many time SetBinContents() has been called
m_rep->SetEntries(h.allEntries());
// fill stat vector
std::vector<double> stat(11);
stat[0] = sumw;
stat[1] = sumw2;
stat[2] = sumwx;
stat[3] = sumwx2;
stat[4] = sumwy;
stat[5] = sumwy2;
stat[6] = sumwxy;
stat[7] = sumwz;
stat[8] = sumwz2;
stat[9] = sumwxz;
stat[10] = sumwyz;
m_rep->PutStats(&stat.front());
}
bool Gaudi::Histogram3D::fill ( double  x,
double  y,
double  z,
double  weight
)

Fill bin content.

Definition at line 142 of file H3D.cpp.

{
m_rep->Fill ( x , y, z, weight );
return true;
}
bool Gaudi::Histogram3D::reset ( )
virtual

Definition at line 133 of file H3D.cpp.

{
m_sumwx = 0;
m_sumwy = 0;
m_sumwz = 0;
m_sumEntries = 0;
m_rep->Reset ( );
return true;
}
bool Gaudi::Histogram3D::setBinContents ( int  i,
int  j,
int  k,
int  entries,
double  height,
double  error,
double  centreX,
double  centreY,
double  centreZ
)
virtual

Fast filling method for a given bin. It can be also the over/underflow bin.

Definition at line 120 of file H3D.cpp.

{
m_rep->SetBinContent(rIndexX(i), rIndexY(j), rIndexZ(k), height);
m_rep->SetBinError(rIndexX(i), rIndexY(j), rIndexZ(k), error);
// accumulate sum bin centers
if (i >=0 && j >= 0 && k >= 0) {
m_sumwx += centreX*height;
m_sumwy += centreY*height;
m_sumwz += centreZ*height;
}
m_sumEntries += entries;
return true;
}
bool Gaudi::Histogram3D::setRms ( double  rmsX,
double  rmsY,
double  rmsZ
)
virtual

Sets the rms of the histogram.

Definition at line 163 of file H3D.cpp.

{
m_rep->SetEntries(m_sumEntries);
std::vector<double> stat(11);
// sum weights
stat[0] = sumBinHeights();
stat[1] = 0;
if (equivalentBinEntries() != 0)
stat[1] = ( sumBinHeights() * sumBinHeights() ) / equivalentBinEntries();
stat[2] = m_sumwx;
double meanX = 0;
if ( sumBinHeights() != 0 ) meanX = m_sumwx/ sumBinHeights();
stat[3] = ( meanX*meanX + rmsX*rmsX )* sumBinHeights();
stat[4] = m_sumwy;
double meanY = 0;
if ( sumBinHeights() != 0 ) meanY = m_sumwy/ sumBinHeights();
stat[5] = ( meanY*meanY + rmsY*rmsY )* sumBinHeights();
stat[6] = 0;
stat[7] = m_sumwz;
double meanZ = 0;
if ( sumBinHeights() != 0 ) meanZ = m_sumwz/ sumBinHeights();
stat[8] = ( meanZ*meanZ + rmsZ*rmsZ )* sumBinHeights();
// do not need to use sumwxy sumwxz and sumwyz
m_rep->PutStats(&stat.front());
return true;
}

Member Data Documentation

double Gaudi::Histogram3D::m_sumwx
protected

Definition at line 53 of file H3D.cpp.

double Gaudi::Histogram3D::m_sumwy
protected

Definition at line 54 of file H3D.cpp.

double Gaudi::Histogram3D::m_sumwz
protected

Definition at line 55 of file H3D.cpp.

The documentation for this class was generated from the following file:
Generated at Wed Jun 4 2014 14:49:04 for Gaudi Framework, version v25r2 by Doxygen version 1.8.2 written by Dimitri van Heesch, © 1997-2004
