Base class of array's of various gaudihandles. More...

#include <GaudiHandle.h>

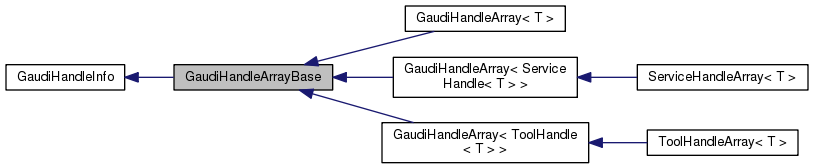

Inheritance diagram for GaudiHandleArrayBase:

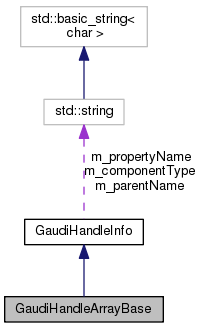

Collaboration diagram for GaudiHandleArrayBase:

Public Types
typedef std::vector < GaudiHandleBase * >	BaseHandleArray

typedef std::vector< const GaudiHandleBase * >	ConstBaseHandleArray

Public Member Functions
bool	setTypesAndNames (const std::vector< std::string > &myTypesAndNamesList)
	Set the array of handles from list of "type/name" strings in <myTypesAndNamesList>.

const std::vector< std::string >	typesAndNames () const
	Return a vector with "type/name" strings of all handles in the array.

const std::vector< std::string >	types () const
	Return a vector with "type" strings of all handles in the array.

const std::vector< std::string >	names () const
	Return a vector with "type/name" strings of all handles in the array.

const std::vector< std::string >	getBaseInfos (std::string(GaudiHandleBase::*pMemFunc)() const ) const
	Helper function to get a vector of strings filled with the return value of each tool of a member function if GaudiHandleBase.

virtual const std::string	pythonPropertyClassName () const
	Name of the componentType with "HandleArray" appended.

virtual const std::string	pythonRepr () const
	Python representation of array of handles, i.e.

virtual bool	push_back (const std::string &myHandleTypeAndName)=0
	Add a handle to the array with "type/name" given in <myHandleTypeAndName>.

virtual void	clear ()=0
	Clear the list of handles.

virtual bool	empty () const =0
	Return whether the list of tools is empty.

virtual ConstBaseHandleArray	getBaseArray () const =0
	Get a read-only vector of const GaudiHandleBase* pointing to the real handles.

virtual BaseHandleArray	getBaseArray ()=0
	Get a read-write vector of GaudiHandleBase* pointing to the real handles.

Public Member Functions inherited from GaudiHandleInfo
virtual	~GaudiHandleInfo ()
	virtual destructor so that derived class destructor is called.

const std::string &	componentType () const

const std::string &	propertyName () const
	name as used in declareProperty(name,gaudiHandle)

void	setPropertyName (const std::string &propName)
	set name as used in declareProperty(name,gaudiHandle).

const std::string &	parentName () const
	The name of the parent.

Protected Member Functions
	GaudiHandleArrayBase (const std::string &myComponentType, const std::string &myParentName)

Protected Member Functions inherited from GaudiHandleInfo
	GaudiHandleInfo (const std::string &myComponentType, const std::string &myParentName)
	Some basic information and helper functions shared between various handles/arrays.

Detailed Description

Base class of array's of various gaudihandles.

Used in communication with GaudiHandleArrayProperty. For that purpose is has some pure virtual functions. This is a non-templated class to one Property can handle all kinds of concrete handles.

Definition at line 293 of file GaudiHandle.h.

Member Typedef Documentation

typedef std::vector< GaudiHandleBase* > GaudiHandleArrayBase::BaseHandleArray

Definition at line 299 of file GaudiHandle.h.

typedef std::vector< const GaudiHandleBase* > GaudiHandleArrayBase::ConstBaseHandleArray

Definition at line 300 of file GaudiHandle.h.

Constructor & Destructor Documentation

GaudiHandleArrayBase::GaudiHandleArrayBase	(	const std::string &	myComponentType,
		const std::string &	myParentName
	)

inlineprotected

Definition at line 295 of file GaudiHandle.h.

: GaudiHandleInfo(myComponentType,myParentName)

{}

Member Function Documentation

virtual void GaudiHandleArrayBase::clear ( )

pure virtual

Clear the list of handles.

Implemented in GaudiHandleArray

Implemented in GaudiHandleArray< T >, GaudiHandleArray< ToolHandle< T > >, and GaudiHandleArray< ServiceHandle< T > >.

virtual bool GaudiHandleArrayBase::empty ( ) const

pure virtual

Return whether the list of tools is empty.

Implemented in GaudiHandleArray< T >, GaudiHandleArray< ToolHandle< T > >, and GaudiHandleArray< ServiceHandle< T > >.

virtual ConstBaseHandleArray GaudiHandleArrayBase::getBaseArray ( ) const

pure virtual

Get a read-only vector of const GaudiHandleBase* pointing to the real handles.

Implemented in GaudiHandleArray.

Implemented in GaudiHandleArray< T >, GaudiHandleArray< ToolHandle< T > >, and GaudiHandleArray< ServiceHandle< T > >.

virtual BaseHandleArray GaudiHandleArrayBase::getBaseArray ( )

pure virtual

Get a read-write vector of GaudiHandleBase* pointing to the real handles.

Implemented in GaudiHandleArray.

Implemented in GaudiHandleArray< T >, GaudiHandleArray< ToolHandle< T > >, and GaudiHandleArray< ServiceHandle< T > >.

const std::vector< std::string > GaudiHandleArrayBase::getBaseInfos ( std::string(GaudiHandleBase::*)() const pMemFunc ) const

Helper function to get a vector of strings filled with the return value of each tool of a member function if GaudiHandleBase.

Definition at line 74 of file GaudiHandle.cpp.

                                                                                       {
  std::vector< std::string > theList;
  const GaudiHandleArrayBase::ConstBaseHandleArray& baseArray = getBaseArray();
  GaudiHandleArrayBase::ConstBaseHandleArray::const_iterator it = baseArray.begin(),
    itEnd = baseArray.end();
  for ( ; it != itEnd; ++it ) theList.push_back( ((*it)->*pMemFunc)() );
  return theList;
}

const std::vector< std::string > GaudiHandleArrayBase::names ( ) const

Return a vector with "type/name" strings of all handles in the array.

Definition at line 91 of file GaudiHandle.cpp.

                                                               {
  return getBaseInfos( &GaudiHandleBase::name );
}

virtual bool GaudiHandleArrayBase::push_back ( const std::string & myHandleTypeAndName )

pure virtual

Add a handle to the array with "type/name" given in <myHandleTypeAndName>.

Return whether addition was successful or not. Must be implemented by derived class with concrete handle category.

Implemented in ToolHandleArray< T >, and ServiceHandleArray< T >.

const std::string GaudiHandleArrayBase::pythonPropertyClassName ( ) const

virtual

Name of the componentType with "HandleArray" appended.

Used as the python class name for the property in the genconf-generated configurables. The python class is defined in GaudiPython/python/GaudiHandles.py.

Implements GaudiHandleInfo.

Definition at line 95 of file GaudiHandle.cpp.

                                                                    {
  return componentType() + "HandleArray";
}

const std::string GaudiHandleArrayBase::pythonRepr ( ) const

virtual

Python representation of array of handles, i.e.

list of python handles. Can be used in the genconf-generated configurables. The corresponding python classes are defined in GaudiPython/GaudiHandles.py

Implements GaudiHandleInfo.

Definition at line 99 of file GaudiHandle.cpp.

                                                       {
  std::string repr = pythonPropertyClassName() + "([";
  const std::vector< std::string >& theList = typesAndNames();
  std::vector< std::string >::const_iterator it = theList.begin(),
    itEnd = theList.end(), itLast = itEnd - 1;
  for ( ; it != itEnd; ++it ) {
    repr += "'" + *it + "'";
    if ( it != itLast ) repr += ",";
  }
  repr += "])";
  return repr;
}

bool GaudiHandleArrayBase::setTypesAndNames ( const std::vector< std::string > & myTypesAndNamesList )

Set the array of handles from list of "type/name" strings in <myTypesAndNamesList>.

Return whether set was successful or not

Definition at line 63 of file GaudiHandle.cpp.

                                                                                                {
  clear();
  std::vector< std::string >::const_iterator it = myTypesAndNamesList.begin(),
    itEnd = myTypesAndNamesList.end();
  for ( ; it != itEnd; ++it ) {
    if ( !push_back( *it ) ) return false;
  }
  return true;
}

const std::vector< std::string > GaudiHandleArrayBase::types ( ) const

Return a vector with "type" strings of all handles in the array.

Definition at line 87 of file GaudiHandle.cpp.

                                                               {
  return getBaseInfos( &GaudiHandleBase::type );
}

const std::vector< std::string > GaudiHandleArrayBase::typesAndNames ( ) const

Return a vector with "type/name" strings of all handles in the array.

Inverse of setTypesAndNames()

Definition at line 83 of file GaudiHandle.cpp.

                                                                       {
  return getBaseInfos( &GaudiHandleBase::typeAndName );
}

The documentation for this class was generated from the following files:

/afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v25r2/GaudiKernel/GaudiKernel/GaudiHandle.h
/afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v25r2/GaudiKernel/src/Lib/GaudiHandle.cpp

Gaudi Framework, version v25r2
