GaudiUtils::Map< K, T, M > Class Template Reference

Extension of the STL map. More...

#include <Map.h>

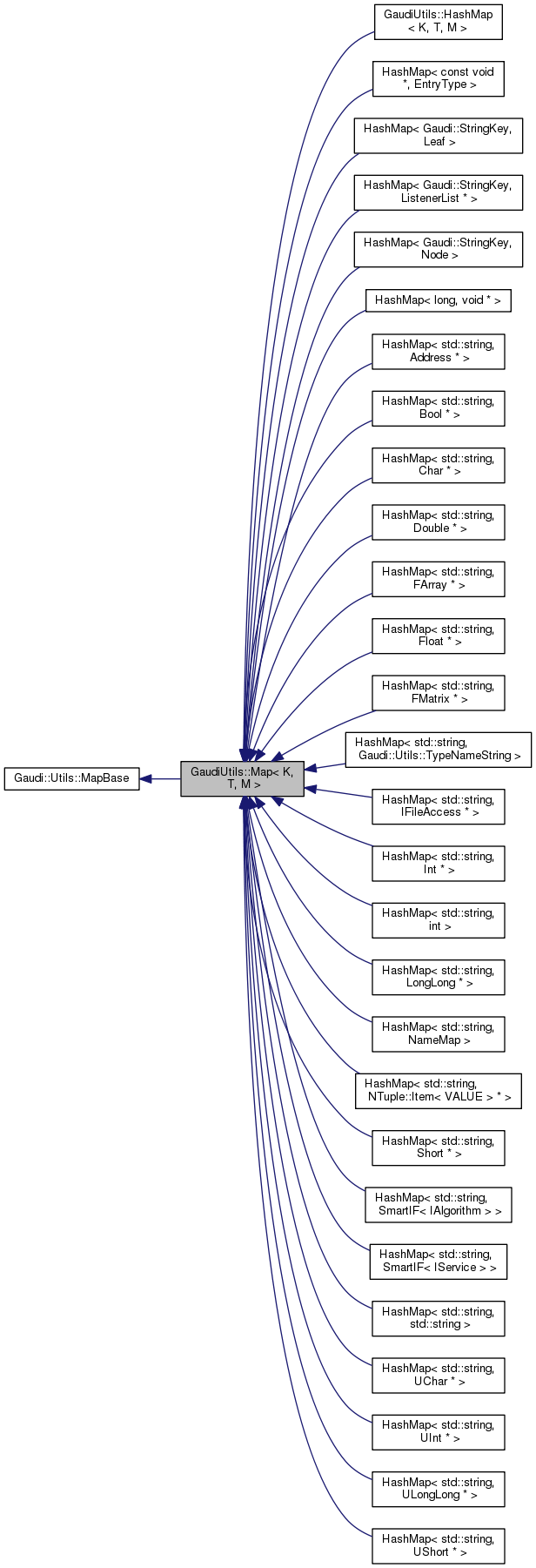

Inheritance diagram for GaudiUtils::Map< K, T, M >:
Inheritance graph
[legend]
Collaboration diagram for GaudiUtils::Map< K, T, M >:
Collaboration graph
[legend]

Public Types

typedef M map_type

typedef K key_type

typedef T mapped_type

typedef K argument_type

typedef T result_type

typedef std::pair< const K, T > value_type

typedef map_type::size_type size_type

typedef map_type::iterator iterator

typedef map_type::const_iterator const_iterator


Public Member Functions

 Map ()
 Standard constructor.

 Map (const map_type &other)
 Constructor from a standard map.

template<typename In >
 Map (In first, In last)
 Construct from a subset.

virtual ~Map ()
 Virtual destructor. You can inherit from this map type.

iterator begin ()

iterator end ()

const_iterator begin () const

const_iterator end () const

mapped_typeoperator[] (const key_type &key)

iterator find (const key_type &key)

const_iterator find (const key_type &key) const

size_type count (const key_type &key) const

iterator lower_bound (const key_type &key)

const_iterator lower_bound (const key_type &key) const

iterator upper_bound (const key_type &key)

const_iterator upper_bound (const key_type &key) const

std::pair< iterator, iteratorequal_range (const key_type &key)

std::pair< const_iterator,
const_iterator
equal_range (const key_type &key) const

std::pair< iterator, bool > insert (const value_type &val)

std::pair< iterator, bool > insert (const key_type &key, const mapped_type &val)

template<typename In >
void insert (In first, In last)

iterator insert (iterator, const value_type &val)

void erase (iterator pos)

size_type erase (const key_type &key)

void erase (iterator first, iterator last)

void clear ()

size_type size () const

size_type max_size () const

bool empty () const

void swap (map_type &other)

const result_typeoperator() (const argument_type &key) const
 Allow to use Map as an unary function.

const mapped_typeoperator[] (const key_type &key) const
 Access elements of a const Map.

const result_typeat (const argument_type &key) const
 checked access to the map

Exceptions
std::out_of_rangefor missing keys


Mapmerge (const map_type &other)
 Merge two maps.

Mapmerge (const Map &other)
 Merge two maps.

template<class K1 , class K2 , class K3 >
Mapmerge (const Map< K1, K2, K3 > &other)
 Merge two maps.

void update (const key_type &key, const mapped_type &mapped)

 operator map_type & ()
 Allows to use the Map wherever an std::map is explicitly requested.

 operator const map_type & () const

const key_typekey_at (const size_type index) const
 useful method for python decoration:

const mapped_typevalue_at (const size_type index) const
 useful method for python decoration:

- Public Member Functions inherited from Gaudi::Utils::MapBase
virtual ~MapBase ()
 virtual destructor


Protected Attributes

map_type m_map


Static Protected Attributes

static const result_type s_null_value = typename Map<K,T,M>::result_type()


Additional Inherited Members

- Protected Member Functions inherited from Gaudi::Utils::MapBase
void throw_out_of_range_exception () const
 throw std::out_of_range exception


Detailed Description

template<typename K, typename T, typename M = std::map<K,T>>
class GaudiUtils::Map< K, T, M >

Extension of the STL map.

Provides const accessors and can be extended by inheritance.

See Also
std::map Note: in order to make it possible to use either a map or a hash_map, reverse iterators are not defined.

Due to helper base class Gaudi::Utils::MapBase, this class is "python-friendly", and one can perform all python manipulaitons in intuitive way:

>>> m = ... ## get the map
>>> print m ## print the map a'la python class dict
...
>>> for key in m : print key, m[key] ## iteration over the map
...
>>> for key,value in m.iteritems() : print key, value
...
>>> keys = m.keys() ## get the list of keys
>>> values = m.values () ## get the list of values
>> items = m.items () ## get the list of items
>>> if 'one' in m ## check the presence of the key in map
>>> v = m.get(key', None) ## return m[key] for existing key, else None
>>> del m[key] ## erase the key form the map
>>> value m[key] ## unchecked access through the key
...
>>> m.update( key, value ) ## update/insert key/value pair
Attention
The syntax can be drastically simplified, if one redefines the setitem attribute:
>>> type(m).__setitem__ = Gaudi.Utils.MapBase.__setitem__
>>> m[key] = value ## much more intuitive semantics for key insertion

In a similar way __getitem__ and __delitem__ methods can be redefined.

Attention
To avoid the unnesessary expansion of dictionaries it is recommended to exclude from dictionary the following methods:
  • lower_bound
  • upper_bound
  • equal_range
  • insert
Warning
This action is required for HashMap to avodi the compilation problems
See Also
Gaudi::Utils::MapBase
Author
Marco Clemencic
Date
2005-10-06

Definition at line 82 of file Map.h.

Member Typedef Documentation

template<typename K, typename T, typename M = std::map<K,T>>
typedef K GaudiUtils::Map< K, T, M >::argument_type

Definition at line 92 of file Map.h.

template<typename K, typename T, typename M = std::map<K,T>>
typedef map_type::const_iterator GaudiUtils::Map< K, T, M >::const_iterator

Definition at line 99 of file Map.h.

template<typename K, typename T, typename M = std::map<K,T>>
typedef map_type::iterator GaudiUtils::Map< K, T, M >::iterator

Definition at line 98 of file Map.h.

template<typename K, typename T, typename M = std::map<K,T>>
typedef K GaudiUtils::Map< K, T, M >::key_type

Definition at line 88 of file Map.h.

template<typename K, typename T, typename M = std::map<K,T>>
typedef M GaudiUtils::Map< K, T, M >::map_type

Definition at line 87 of file Map.h.

template<typename K, typename T, typename M = std::map<K,T>>
typedef T GaudiUtils::Map< K, T, M >::mapped_type

Definition at line 89 of file Map.h.

template<typename K, typename T, typename M = std::map<K,T>>
typedef T GaudiUtils::Map< K, T, M >::result_type

Definition at line 93 of file Map.h.

template<typename K, typename T, typename M = std::map<K,T>>
typedef map_type::size_type GaudiUtils::Map< K, T, M >::size_type

Definition at line 96 of file Map.h.

template<typename K, typename T, typename M = std::map<K,T>>
typedef std::pair<const K,T> GaudiUtils::Map< K, T, M >::value_type

Definition at line 94 of file Map.h.

Constructor & Destructor Documentation

template<typename K, typename T, typename M = std::map<K,T>>
GaudiUtils::Map< K, T, M >::Map ( )
inline

Standard constructor.

Definition at line 112 of file Map.h.

: m_map() {}
template<typename K, typename T, typename M = std::map<K,T>>
GaudiUtils::Map< K, T, M >::Map ( const map_type other)
inline

Constructor from a standard map.

Definition at line 115 of file Map.h.

: m_map(other) {}
template<typename K, typename T, typename M = std::map<K,T>>
template<typename In >
GaudiUtils::Map< K, T, M >::Map ( In  first,
In  last
)
inline

Construct from a subset.

Definition at line 121 of file Map.h.

: m_map(first,last) {}
template<typename K, typename T, typename M = std::map<K,T>>
virtual GaudiUtils::Map< K, T, M >::~Map ( )
inlinevirtual

Virtual destructor. You can inherit from this map type.

Definition at line 124 of file Map.h.

{}

Member Function Documentation

template<typename K, typename T, typename M = std::map<K,T>>
const result_type& GaudiUtils::Map< K, T, M >::at ( const argument_type key) const
inline

checked access to the map

Exceptions
std::out_of_rangefor missing keys

Parameters
key(INPUT) the key
Returns
the value for the existing key

Definition at line 248 of file Map.h.

{
const_iterator it = m_map.find ( key ) ;
if ( it == m_map.end() ) { this->throw_out_of_range_exception () ; }
return it->second ;
}
template<typename K, typename T, typename M = std::map<K,T>>
iterator GaudiUtils::Map< K, T, M >::begin ( )
inline

Definition at line 130 of file Map.h.

{ return m_map.begin(); }
template<typename K, typename T, typename M = std::map<K,T>>
const_iterator GaudiUtils::Map< K, T, M >::begin ( ) const
inline

Definition at line 133 of file Map.h.

{ return m_map.begin(); }
template<typename K, typename T, typename M = std::map<K,T>>
void GaudiUtils::Map< K, T, M >::clear ( )
inline

Definition at line 176 of file Map.h.

{ m_map.clear(); }
template<typename K, typename T, typename M = std::map<K,T>>
size_type GaudiUtils::Map< K, T, M >::count ( const key_type key) const
inline

Definition at line 151 of file Map.h.

{ return m_map.count(key); }
template<typename K, typename T, typename M = std::map<K,T>>
bool GaudiUtils::Map< K, T, M >::empty ( ) const
inline

Definition at line 182 of file Map.h.

{ return size() == 0; }
template<typename K, typename T, typename M = std::map<K,T>>
iterator GaudiUtils::Map< K, T, M >::end ( )
inline

Definition at line 131 of file Map.h.

{ return m_map.end(); }
template<typename K, typename T, typename M = std::map<K,T>>
const_iterator GaudiUtils::Map< K, T, M >::end ( ) const
inline

Definition at line 134 of file Map.h.

{ return m_map.end(); }
template<typename K, typename T, typename M = std::map<K,T>>
std::pair<iterator,iterator> GaudiUtils::Map< K, T, M >::equal_range ( const key_type key)
inline

Definition at line 158 of file Map.h.

{ return m_map.equal_range(key); }
template<typename K, typename T, typename M = std::map<K,T>>
std::pair<const_iterator,const_iterator> GaudiUtils::Map< K, T, M >::equal_range ( const key_type key) const
inline

Definition at line 160 of file Map.h.

{ return m_map.equal_range(key); }
template<typename K, typename T, typename M = std::map<K,T>>
void GaudiUtils::Map< K, T, M >::erase ( iterator  pos)
inline

Definition at line 173 of file Map.h.

{ m_map.erase(pos); }
template<typename K, typename T, typename M = std::map<K,T>>
size_type GaudiUtils::Map< K, T, M >::erase ( const key_type key)
inline

Definition at line 174 of file Map.h.

{ return m_map.erase(key); }
template<typename K, typename T, typename M = std::map<K,T>>
void GaudiUtils::Map< K, T, M >::erase ( iterator  first,
iterator  last
)
inline

Definition at line 175 of file Map.h.

{ m_map.erase(first,last); }
template<typename K, typename T, typename M = std::map<K,T>>
iterator GaudiUtils::Map< K, T, M >::find ( const key_type key)
inline

Definition at line 148 of file Map.h.

{ return m_map.find(key); }
template<typename K, typename T, typename M = std::map<K,T>>
const_iterator GaudiUtils::Map< K, T, M >::find ( const key_type key) const
inline

Definition at line 149 of file Map.h.

{ return m_map.find(key); }
template<typename K, typename T, typename M = std::map<K,T>>
std::pair<iterator,bool> GaudiUtils::Map< K, T, M >::insert ( const value_type val)
inline

Definition at line 165 of file Map.h.

{ return m_map.insert(val); }
template<typename K, typename T, typename M = std::map<K,T>>
std::pair<iterator,bool> GaudiUtils::Map< K, T, M >::insert ( const key_type key,
const mapped_type val
)
inline

Definition at line 167 of file Map.h.

{ return insert ( value_type ( key , val ) ) ; }
template<typename K, typename T, typename M = std::map<K,T>>
template<typename In >
void GaudiUtils::Map< K, T, M >::insert ( In  first,
In  last
)
inline

Definition at line 170 of file Map.h.

{ m_map.insert(first,last); }
template<typename K, typename T, typename M = std::map<K,T>>
iterator GaudiUtils::Map< K, T, M >::insert ( iterator  ,
const value_type val
)
inline

Definition at line 171 of file Map.h.

{ return m_map.insert( /* pos, */ val ).first ; }
template<typename K, typename T, typename M = std::map<K,T>>
const key_type& GaudiUtils::Map< K, T, M >::key_at ( const size_type  index) const
inline

useful method for python decoration:

Parameters
index(INPUT) the index
Returns
the key at given index
Exceptions
std::out_of_rangefor invalid index

Definition at line 295 of file Map.h.

{
if ( index >= size() )
const_iterator it = this->begin() ;
std::advance ( it , index ) ;
return it -> first ;
}
template<typename K, typename T, typename M = std::map<K,T>>
iterator GaudiUtils::Map< K, T, M >::lower_bound ( const key_type key)
inline

Definition at line 153 of file Map.h.

{ return m_map.lower_bound(key); }
template<typename K, typename T, typename M = std::map<K,T>>
const_iterator GaudiUtils::Map< K, T, M >::lower_bound ( const key_type key) const
inline

Definition at line 154 of file Map.h.

{ return m_map.lower_bound(key); }
template<typename K, typename T, typename M = std::map<K,T>>
size_type GaudiUtils::Map< K, T, M >::max_size ( ) const
inline

Definition at line 181 of file Map.h.

{ return m_map.max_size(); }
template<typename K, typename T, typename M = std::map<K,T>>
Map& GaudiUtils::Map< K, T, M >::merge ( const map_type other)
inline

Merge two maps.

Definition at line 256 of file Map.h.

{
for ( typename map_type::const_iterator it = other.begin() ;
other.end() != it ; ++it ) { (*this)[it->first] = it->second ; }
return *this;
}
template<typename K, typename T, typename M = std::map<K,T>>
Map& GaudiUtils::Map< K, T, M >::merge ( const Map< K, T, M > &  other)
inline

Merge two maps.

Definition at line 263 of file Map.h.

{
for ( const_iterator it = other.begin() ;
other.end() != it ; ++it ) { (*this)[it->first] = it->second ; }
return *this;
}
template<typename K, typename T, typename M = std::map<K,T>>
template<class K1 , class K2 , class K3 >
Map& GaudiUtils::Map< K, T, M >::merge ( const Map< K1, K2, K3 > &  other)
inline

Merge two maps.

Definition at line 271 of file Map.h.

{
for ( typename Map<K1,K2,K3>::const_iterator it = other.begin() ;
other.end() != it ; ++it ) { (*this)[it->first] = it->second ; }
return *this;
}
template<typename K, typename T, typename M = std::map<K,T>>
GaudiUtils::Map< K, T, M >::operator const map_type & ( ) const
inline

Definition at line 286 of file Map.h.

{ return m_map ; }
template<typename K, typename T, typename M = std::map<K,T>>
GaudiUtils::Map< K, T, M >::operator map_type & ( )
inline

Allows to use the Map wherever an std::map is explicitly requested.

Definition at line 285 of file Map.h.

{ return m_map ; }
template<typename K, typename T, typename M = std::map<K,T>>
const result_type& GaudiUtils::Map< K, T, M >::operator() ( const argument_type key) const
inline

Allow to use Map as an unary function.

There is no automatic extension of the map for missing keys!

Attention
The behaviour is different from std::map
// OK:
KEY key = ... ;
std::cout << " Value: " << m(key) << std::end ; // it is OK!
// ERROR:
VALUE value = ... ;
m(key) = value ; // ERROR!
Parameters
keythe key
Returns
the mapped value(const reference!) for the existing key, and the default value overwise

return the default value

Definition at line 209 of file Map.h.

{
// static const result_type s_null_value;
const_iterator it = m_map.find(key);
if ( it != m_map.end() ) { return it->second ; }
return s_null_value; // return the default value
}
template<typename K, typename T, typename M = std::map<K,T>>
mapped_type& GaudiUtils::Map< K, T, M >::operator[] ( const key_type key)
inline

Definition at line 144 of file Map.h.

{ return m_map[key]; }
template<typename K, typename T, typename M = std::map<K,T>>
const mapped_type& GaudiUtils::Map< K, T, M >::operator[] ( const key_type key) const
inline

Access elements of a const Map.

There is no automatic extension of the map for missing keys!

Attention
The behaviour is different from std::map
// OK:
KEY key = ... ;
std::cout << " Value: " << m[key] << std::end ; // it is OK!
// ERROR:
VALUE value = ... ;
m[key] = value ; // ERROR!
Parameters
keythe key
Returns
the mapped value(const reference!) for the existing key, and the default value overwise

Definition at line 240 of file Map.h.

{ return (*this)(key); }
template<typename K, typename T, typename M = std::map<K,T>>
size_type GaudiUtils::Map< K, T, M >::size ( ) const
inline

Definition at line 180 of file Map.h.

{ return m_map.size(); }
template<typename K, typename T, typename M = std::map<K,T>>
void GaudiUtils::Map< K, T, M >::swap ( map_type other)
inline

Definition at line 183 of file Map.h.

{ m_map.swap(other); }
template<typename K, typename T, typename M = std::map<K,T>>
void GaudiUtils::Map< K, T, M >::update ( const key_type key,
const mapped_type mapped
)
inline

Definition at line 279 of file Map.h.

{ (*this)[ key ] = mapped ; }
template<typename K, typename T, typename M = std::map<K,T>>
iterator GaudiUtils::Map< K, T, M >::upper_bound ( const key_type key)
inline

Definition at line 155 of file Map.h.

{ return m_map.upper_bound(key); }
template<typename K, typename T, typename M = std::map<K,T>>
const_iterator GaudiUtils::Map< K, T, M >::upper_bound ( const key_type key) const
inline

Definition at line 156 of file Map.h.

{ return m_map.upper_bound(key); }
template<typename K, typename T, typename M = std::map<K,T>>
const mapped_type& GaudiUtils::Map< K, T, M >::value_at ( const size_type  index) const
inline

useful method for python decoration:

Parameters
index(INPUT) the index
Returns
the value at given index
Exceptions
std::out_of_rangefor invalid index

Definition at line 308 of file Map.h.

{
if ( index >= size() )
const_iterator it = this->begin() ;
std::advance ( it , index ) ;
return it -> second ;
}

Member Data Documentation

template<typename K, typename T, typename M = std::map<K,T>>
map_type GaudiUtils::Map< K, T, M >::m_map
protected

Definition at line 105 of file Map.h.

template<typename K, typename T, typename M = std::map<K,T>>
const Map< K, T, M >::result_type GaudiUtils::Map< K, T, M >::s_null_value = typename Map<K,T,M>::result_type()
staticprotected

Definition at line 106 of file Map.h.


The documentation for this class was generated from the following file:

Generated at Wed Jun 4 2014 14:49:06 for Gaudi Framework, version v25r2 by Doxygen version 1.8.2 written by Dimitri van Heesch, © 1997-2004
