IOpaqueAddress Class Reference

Opaque address interface definition. More...

#include <GaudiKernel/IOpaqueAddress.h>

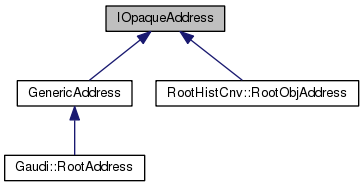

Inheritance diagram for IOpaqueAddress:

Public Member Functions
virtual	~IOpaqueAddress ()
	destructor
virtual unsigned long	addRef ()=0
	Add reference to object.
virtual unsigned long	release ()=0
	release reference to object
virtual const CLID &	clID () const =0
	Retrieve class information from link.
virtual long	svcType () const =0
	Retrieve service type.
virtual IRegistry *	registry () const =0
	Update branch name.
virtual void	setRegistry (IRegistry *r)=0
	Update directory pointer.
virtual const std::string *	par () const =0
	Retrieve String parameters.
virtual const unsigned long *	ipar () const =0
	Access to generic link parameters.

Detailed Description

Opaque address interface definition.

The opaque address defines the behaviour necesary to load and store transient objects.

Author

M.Frank

Version

1.0

Definition at line 24 of file IOpaqueAddress.h.

Constructor & Destructor Documentation

virtual IOpaqueAddress::~IOpaqueAddress ( )

inlinevirtual

destructor

Definition at line 28 of file IOpaqueAddress.h.

{ }

Member Function Documentation

virtual unsigned long IOpaqueAddress::addRef ( )

pure virtual

Add reference to object.

Implemented in GenericAddress, and RootHistCnv::RootObjAddress.

virtual const CLID& IOpaqueAddress::clID ( ) const

pure virtual

Retrieve class information from link.

Implemented in GenericAddress, and RootHistCnv::RootObjAddress.

virtual const unsigned long* IOpaqueAddress::ipar ( ) const

pure virtual

Access to generic link parameters.

Implemented in GenericAddress, and RootHistCnv::RootObjAddress.

virtual const std::string* IOpaqueAddress::par ( ) const

pure virtual

Retrieve String parameters.

Implemented in GenericAddress, and RootHistCnv::RootObjAddress.

virtual IRegistry* IOpaqueAddress::registry ( ) const

pure virtual

Update branch name.

Implemented in GenericAddress, and RootHistCnv::RootObjAddress.

virtual unsigned long IOpaqueAddress::release ( )

pure virtual

release reference to object

Implemented in GenericAddress, and RootHistCnv::RootObjAddress.

virtual void IOpaqueAddress::setRegistry ( IRegistry *  r )

pure virtual

Update directory pointer.

Implemented in GenericAddress, and RootHistCnv::RootObjAddress.

virtual long IOpaqueAddress::svcType ( ) const

pure virtual

Retrieve service type.

Implemented in GenericAddress, and RootHistCnv::RootObjAddress.

---

The documentation for this class was generated from the following file:

• /afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v25r2/GaudiKernel/GaudiKernel/IOpaqueAddress.h
