Small wrapper class for easy manipulation with generic counters and IStatSvc&ICounterSvc interface. More...

#include <GaudiKernel/Stat.h>

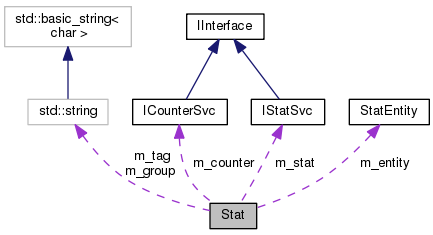

Collaboration diagram for Stat:

Public Member Functions
	Stat (StatEntity *entity=0, const std::string &name="", const std::string &group="")
	constructor from StatEntity, name and group :

	Stat (StatEntity &entity, const std::string &name="", const std::string &group="")
	constructor from StatEntity, name and group :

	Stat (IStatSvc *svc, const std::string &tag)
	constructor from IStatSvc, tag and value

	Stat (IStatSvc *svc, const std::string &tag, const double flag)
	constructor from IStatSvc, tag and value

	Stat (ICounterSvc *svc, const std::string &group, const std::string &name)
	constructor from ICounterSvc, group and name

	Stat (const Stat &right)
	copy constructor

Stat &	operator= (const Stat &right)
	Assignement operator.

	~Stat ()
	destructor

const StatEntity *	entity () const
	get the entity

const StatEntity *	operator-> () const
	dereference operaqtor

	operator const StatEntity & () const
	cast to StatEntity

bool	operator! () const
	check validity

Stat &	operator+= (const double f)
	General increment for the counter.

Stat &	operator++ ()
	Pre-increment operator for the counter.

Stat &	operator++ (int)
	Post-increment operator for the counter.

Stat &	operator-= (const double f)
	General decrement operator for the counter.

Stat &	operator-- ()
	Pre-decrement operator for the flag.

Stat &	operator-- (int)
	Post-decrement operator for the flag.

Stat &	operator+= (const StatEntity &right)
	increment with StatEntity object

Stat &	operator+= (const Stat &right)
	increment with other stat objects

std::string	toString () const
	representation as string

std::ostream &	print (std::ostream &o=std::cout) const
	printout to std::ostream

std::ostream &	fillStream (std::ostream &o) const
	printout to std::ostream

StatEntity *	counter () const
	alternative access to underlying counter (for ICounterSvc::CounterObj)

const std::string &	name () const
	counter name

const std::string &	group () const
	counter group (for ICounterSvc)

Private Attributes
StatEntity *	m_entity
	underlying counter

std::string	m_tag
	unique stat tag(name)

std::string	m_group

IStatSvc *	m_stat
	Stat service.

ICounterSvc *	m_counter
	Counter Service.

Detailed Description

Small wrapper class for easy manipulation with generic counters and IStatSvc&ICounterSvc interface.

It acts as "smart pointer" fro StatEntity objects, and allows manipulation with StatEntity objects, owned by GaudiCommon<TYPE> base class and/or IStatSvc/ICounterSvc

long nTracks = ... ;

Stat stat( chronoSvc() , "#tracks" , nTracks ) ;

Alternatively one can use operator methods:

long nTracks = ... ;
Stat stat( chronoSvc() , "#tracks" ) ;
stat += nTracks ;

Author: Vanya BELYAEV Ivan..nosp@m.Bely.nosp@m.aev@l.nosp@m.app..nosp@m.in2p3.nosp@m..fr

Date: 2007-08-02

Definition at line 50 of file Stat.h.

Constructor & Destructor Documentation

Stat::Stat	(	StatEntity *	entity = `0`,
		const std::string &	name = `""`,
		const std::string &	group = `""`
	)

inline

constructor from StatEntity, name and group :

StatEntity* entity = ... ;
// make helper object:
Stat stat ( entity ) ;

See Also: StatEntity

Parameters

entity	pointer to entity object
name	(optional) name of the object, for printout
group	(optional) group of the object, for printout

Definition at line 69 of file Stat.h.

    : m_entity  ( entity )
    , m_tag     ( name   )
    , m_group   ( group  )
    , m_stat    ( 0      )
    , m_counter ( 0      )
  {}

Stat::Stat	(	StatEntity &	entity,
		const std::string &	name = `""`,
		const std::string &	group = `""`
	)

inline

constructor from StatEntity, name and group :

// make helper object:

Stat stat = Stat( countter("Name") , "Name" ) ;

See Also: StatEntity; GaudiCommon::counter

Parameters

entity	reference to entity object
name	(optional) name of the object, for printout
group	(optional) group of the object, for printout

Definition at line 92 of file Stat.h.

    : m_entity  ( &entity )
    , m_tag     ( name    )
    , m_group   ( group   )
    , m_stat    ( 0       )
    , m_counter ( 0       )
  {}

Stat::Stat	(	IStatSvc *	svc,
		const std::string &	tag
	)

constructor from IStatSvc, tag and value

IStatSvc* svc = ... ;
double eTotal = .... ;
// get/create the counter from Stat Service
Stat eTot ( svc , "total energy" ) ;
eTot += eTotal ;

See Also: IStatSvc

Parameters

svc	pointer to Chrono&Stat Service tag unique tag for the entry

Definition at line 44 of file Stat.cpp.

  : m_entity  ( 0    )
  , m_tag     ( tag  )
  , m_group   (      )
  , m_stat    ( svc  )
  , m_counter ( 0    )
{
  if ( 0 != m_stat )
  {
    m_stat -> addRef() ;
    // get from the service
    const StatEntity* tmp = m_stat->stat ( tag ) ;
    if ( 0 == tmp )
    {
      // create if needed
      m_stat->stat ( tag , 0 ) ;
      tmp = m_stat->stat ( tag ) ;
      StatEntity* aux = const_cast<StatEntity*>( tmp );
      aux->reset () ;
    }
    m_entity = const_cast<StatEntity*> ( tmp ) ;
  }
}

Stat::Stat	(	IStatSvc *	svc,
		const std::string &	tag,
		const double	flag
	)

constructor from IStatSvc, tag and value

IStatSvc* svc = ... ;
double eTotal = .... ;
// get/create the counter from Stat Service
Stat stat( svc , "total energy" , eTotal ) ;

See Also: IStatSvc

Parameters

svc	pointer to Chrono&Stat Service tag unique tag for the entry
flag	"flag"(additive quantity) to be used

Definition at line 86 of file Stat.cpp.

  : m_entity  ( 0    )
  , m_tag     ( tag  )
  , m_group   (      )
  , m_stat    ( svc  )
  , m_counter ( 0    )
{
  if ( 0 != m_stat )
  {
    m_stat -> addRef() ;
    m_stat -> stat( tag , flag ) ;
    // get from the service
    m_entity = const_cast<StatEntity*>( m_stat -> stat ( tag ) ) ;
  }
}

Stat::Stat	(	ICounterSvc *	svc,
		const std::string &	group,
		const std::string &	name
	)

constructor from ICounterSvc, group and name

ICounterSvc* svc = ... ;
// get/create the counter from Counter Service
Stat stat( svc , "ECAL" , "TotalEnergy" ) ;

See Also: ICounterSvc::get; ICounterSvc::create

Parameters

svc	pointer to Counter Service
group	group name
name	counter name

Definition at line 112 of file Stat.cpp.

  : m_entity  ( 0     )
  , m_tag     ( name  )
  , m_group   ( group )
  , m_stat    ( 0     )
  , m_counter ( svc   )
{
  if ( 0 != m_counter )
  {
    m_counter -> addRef() ;
    // get from the service
    m_entity = m_counter -> get ( group , name ) ;
    // create if needed:
    if ( 0 == m_entity ) { m_counter -> create( group , name , 0 , m_entity ) ; }
  }
}

Stat::Stat ( const Stat & right )

copy constructor

Definition at line 133 of file Stat.cpp.

  : m_entity  ( right.m_entity  )
  , m_tag     ( right.m_tag     )
  , m_group   ( right.m_group   )
  , m_stat    ( right.m_stat    )
  , m_counter ( right.m_counter )
{
  if ( 0 != m_stat    ) { m_stat    -> addRef () ; }
  if ( 0 != m_counter ) { m_counter -> addRef () ; }
}

Stat::~Stat ( )

destructor

Definition at line 169 of file Stat.cpp.

{
  m_entity = 0 ;
  if ( 0 != m_stat    ) { m_stat    -> release() ; m_stat    = 0 ; }
  if ( 0 != m_counter ) { m_counter -> release() ; m_counter = 0 ; }
}

Member Function Documentation

StatEntity* Stat::counter ( ) const

inline

alternative access to underlying counter (for ICounterSvc::CounterObj)

Definition at line 282 of file Stat.h.

{ return m_entity ; }

const StatEntity* Stat::entity ( ) const

inline

get the entity

Definition at line 169 of file Stat.h.

{ return m_entity ; }

std::ostream& Stat::fillStream ( std::ostream & o ) const

inline

printout to std::ostream

Parameters

s	the reference to the output stream

Returns: the reference to the output stream

Definition at line 279 of file Stat.h.

{ return print ( o ) ; }

const std::string& Stat::group ( ) const

inline

counter group (for ICounterSvc)

Definition at line 286 of file Stat.h.

{ return m_group ; }

const std::string& Stat::name ( ) const

inline

counter name

Definition at line 284 of file Stat.h.

{ return m_tag ; }

Stat::operator const StatEntity & ( ) const

inline

cast to StatEntity

Definition at line 173 of file Stat.h.

{ return *entity() ; }

bool Stat::operator! ( ) const

inline

check validity

Definition at line 175 of file Stat.h.

{ return 0 == m_entity ; }

Stat& Stat::operator++ ( )

inline

Pre-increment operator for the counter.

Stat stat = ... ;
++stat ;

See Also: StatEntity

Returns: selfreference

Definition at line 211 of file Stat.h.

  {
    if ( 0 != m_entity ) { ++(*m_entity) ; }
    return *this ;
  }

Stat& Stat::operator++ ( int )

inline

Post-increment operator for the counter.

Stat stat = ... ;
stat++ ;

See Also: StatEntity

Returns: self-reference

Definition at line 228 of file Stat.h.

  {
    if ( 0 != m_entity ) { (*m_entity)++ ; }
    return *this ;
  }

Stat& Stat::operator+= ( const double f )

inline

General increment for the counter.

Stat stat = ... ;
const long nTracks = ... ;
stat += nTracks ;

See Also: StatEntity

Parameters

f	value to be added to the counter

Returns: selfreference

Definition at line 193 of file Stat.h.

  {
    if ( 0 != m_entity ) { (*m_entity) += f ; }
    return *this ;
  }

Stat& Stat::operator+= ( const StatEntity & right )

inline

increment with StatEntity object

Definition at line 256 of file Stat.h.

  {
    if ( 0 != m_entity ) { (*m_entity) += right ; }
    return *this ;
  }

Stat& Stat::operator+= ( const Stat & right )

inline

increment with other stat objects

Definition at line 262 of file Stat.h.

  {
    if ( 0 != right.entity() ) { (*this) += *right.entity() ; }
    return *this ;
  }

Stat& Stat::operator-- ( )

inline

Pre-decrement operator for the flag.

Definition at line 244 of file Stat.h.

  {
    if ( 0 != m_entity ) { --(*m_entity)   ; }
    return *this ;
  }

Stat& Stat::operator-- ( int )

inline

Post-decrement operator for the flag.

Definition at line 250 of file Stat.h.

  {
    if ( 0 != m_entity ) {   (*m_entity)-- ; }
    return *this ;
  }

Stat& Stat::operator-= ( const double f )

inline

General decrement operator for the counter.

See Also: StatEntity

Returns: self-reference

Parameters

f	counter decrement

Definition at line 238 of file Stat.h.

  {
    if ( 0 != m_entity ) { (*m_entity) -= f ; }
    return *this ;
  }

const StatEntity* Stat::operator-> ( ) const

inline

dereference operaqtor

Definition at line 171 of file Stat.h.

{ return entity() ; }

Stat & Stat::operator= ( const Stat & right )

Assignement operator.

Definition at line 146 of file Stat.cpp.

{
  if ( this == &right ) { return *this ; }
  m_entity = right.m_entity ;
  m_tag    = right.m_tag    ;
  m_group  = right.m_group  ;
  {
    IStatSvc* stat= right.m_stat ;
    if ( 0 !=   stat ) {   stat -> addRef()  ; }
    if ( 0 != m_stat ) { m_stat -> release() ; m_stat = 0 ; }
    m_stat = stat ;
  }
  {
    ICounterSvc* counter= right.m_counter ;
    if ( 0 !=    counter ) {   counter -> addRef()  ; }
    if ( 0 !=  m_counter ) { m_counter -> release() ; m_counter = 0 ; }
    m_counter = counter ;
  }
  return *this ;
}

std::ostream & Stat::print ( std::ostream & o = std::cout ) const

printout to std::ostream

Parameters

s	the reference to the output stream

Returns: the reference to the output stream

Definition at line 189 of file Stat.cpp.

{
  if ( m_group.empty() && m_tag.empty() )
  { return  0 == m_entity ? ( o << "NULL" ) : ( o << m_entity ) ; }
  if ( !m_group.empty() )
  {
    if ( 0 != m_entity )
    {
      return o << boost::format(" %|1$15s|::%|2$-15s| %|32t|%3%")
        % ( "\"" + m_group ) % ( m_tag + "\"") % (*m_entity) ;
    }
    else
    {
      return o << boost::format(" %|1$15s|::%|2$-15s| %|32t|%NULL%")
        % ( "\"" + m_group ) % ( m_tag + "\"") ;
    }
  }
  if ( 0 != m_entity )
  {
    return o << boost::format(" %|1$=30s| %|32t|%2%")
      % ("\"" + m_tag + "\"" ) % (*m_entity) ;
  }
  return o << boost::format(" %|1$=30s| %|32t|%NULL%")
    % ( "\"" + m_tag + "\"" ) ;
}

std::string Stat::toString ( ) const

representation as string

Definition at line 178 of file Stat.cpp.

{
  std::ostringstream ost ;
  print ( ost )  ;
  return ost.str () ;
}

Member Data Documentation

ICounterSvc* Stat::m_counter

private

Counter Service.

Definition at line 298 of file Stat.h.

StatEntity* Stat::m_entity

private

underlying counter

Definition at line 290 of file Stat.h.

std::string Stat::m_group

private

Definition at line 294 of file Stat.h.

IStatSvc* Stat::m_stat

private

Stat service.

Definition at line 296 of file Stat.h.

std::string Stat::m_tag

private

unique stat tag(name)

Definition at line 292 of file Stat.h.

The documentation for this class was generated from the following files:

/afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v25r2/GaudiKernel/GaudiKernel/Stat.h
/afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v25r2/GaudiKernel/src/Lib/Stat.cpp

Gaudi Framework, version v25r2

Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
