Event Class Reference

Essential information of the event used in examples It can be identified by "/Event". More...

#include <src/Test/Event.h>

Inheritance diagram for Event:

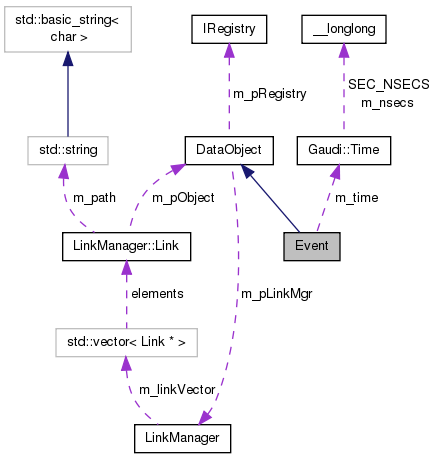

Collaboration diagram for Event:

Public Member Functions
	Event ()
	Constructors.
virtual	~Event ()
	Destructor.
virtual const CLID &	clID () const
	Retrieve reference to class definition structure.
long	event () const
	Retrieve event number.
void	setEvent (long value)
	Update event number.
long	run () const
	Retrieve run number.
void	setRun (long value)
	Update run number.
const Gaudi::Time &	time () const
	Retrieve reference to event time stamp.
void	setTime (const Gaudi::Time &value)
	Update reference to event time stamp.
virtual std::ostream &	fillStream (std::ostream &s) const
	Fill the output stream (ASCII)
Public Member Functions inherited from DataObject
	DataObject ()
	Standard Constructor.
	DataObject (const DataObject &)
	Copy Constructor.
virtual	~DataObject ()
	Standard Destructor.
virtual unsigned long	addRef ()
	Add reference to object.
virtual unsigned long	release ()
	release reference to object
const std::string &	name () const
	Retreive DataObject name. It is the name when registered in the store.
virtual StatusCode	update ()
	Provide empty placeholder for internal object reconfiguration callback.
	DataObject ()
	Standard Constructor.
	DataObject (const DataObject &)
	Copy Constructor.
virtual	~DataObject ()
	Standard Destructor.
virtual unsigned long	addRef ()
	Add reference to object.
virtual unsigned long	release ()
	release reference to object
const std::string &	name () const
	Retreive DataObject name. It is the name when registered in the store.
virtual StatusCode	update ()
	Provide empty placeholder for internal object reconfiguration callback.
void	setRegistry (IRegistry *pRegistry)
	Set pointer to Registry.
IRegistry *	registry () const
	Get pointer to Registry.
LinkManager *	linkMgr () const
	Retrieve Link manager.
unsigned char	version () const
	Retrieve version number of this object representation.
void	setVersion (unsigned char vsn)
	Set version number of this object representation.
unsigned long	refCount () const
	Return the refcount.
void	setRegistry (IRegistry *pRegistry)
	Set pointer to Registry.
IRegistry *	registry () const
	Get pointer to Registry.
LinkManager *	linkMgr () const
	Retrieve Link manager.
unsigned char	version () const
	Retrieve version number of this object representation.
void	setVersion (unsigned char vsn)
	Set version number of this object representation.
unsigned long	refCount () const
	Return the refcount.

Static Public Member Functions
static const CLID &	classID ()
Static Public Member Functions inherited from DataObject
static const CLID &	classID ()
	Retrieve reference to class definition structure (static access)
static const CLID &	classID ()
	Retrieve reference to class definition structure (static access)

Private Attributes
long	m_event
	Event number.
long	m_run
	Run number.
Gaudi::Time	m_time
	Time stamp.

Friends
std::ostream &	operator<< (std::ostream &s, const Event &obj)
	Output operator (ASCII)

Detailed Description

Essential information of the event used in examples It can be identified by "/Event".

Author

Pavel Binko

Definition at line 24 of file Event.h.

Constructor & Destructor Documentation

Event::Event ( )

inline

Constructors.

Definition at line 28 of file Event.h.

: DataObject(), m_event(0), m_run(0) { }

virtual Event::~Event ( )

inlinevirtual

Destructor.

Definition at line 30 of file Event.h.

{ }

Member Function Documentation

static const CLID& Event::classID ( )

inlinestatic

Definition at line 34 of file Event.h.

{ return CLID_Event; }

virtual const CLID& Event::clID ( ) const

inlinevirtual

Retrieve reference to class definition structure.

Reimplemented from DataObject.

Definition at line 33 of file Event.h.

{ return classID(); }

long Event::event ( ) const

inline

Retrieve event number.

Definition at line 37 of file Event.h.

{ return m_event; }

std::ostream & Event::fillStream ( std::ostream &  s ) const

inlinevirtual

Fill the output stream (ASCII)

Reimplemented from DataObject.

Definition at line 68 of file Event.h.

                                                          {
  return s
    << "class Event :"
    << "\n    Event number = "
    << std::setw(12)
    << m_event
    << "\n    Run number   = "
    << std::setw(12)
    << m_run
    << "\n    Time         = " << m_time;
}

long Event::run ( ) const

inline

Retrieve run number.

Definition at line 42 of file Event.h.

{ return m_run; }

void Event::setEvent ( long  value )

inline

Update event number.

Definition at line 39 of file Event.h.

{ m_event = value; }

void Event::setRun ( long  value )

inline

Update run number.

Definition at line 44 of file Event.h.

{ m_run = value; }

void Event::setTime ( const Gaudi::Time &  value )

inline

Update reference to event time stamp.

Definition at line 49 of file Event.h.

{ m_time = value; }

const Gaudi::Time& Event::time ( ) const

inline

Retrieve reference to event time stamp.

Definition at line 47 of file Event.h.

{ return m_time; }

Friends And Related Function Documentation

std::ostream& operator<< ( std::ostream &  s, const Event &  obj  )

friend

Output operator (ASCII)

Definition at line 52 of file Event.h.

                                                                    {
    return obj.fillStream(s);
  }

Member Data Documentation

long Event::m_event

private

Event number.

Definition at line 60 of file Event.h.

long Event::m_run

private

Run number.

Definition at line 62 of file Event.h.

Gaudi::Time Event::m_time

private

Time stamp.

Definition at line 64 of file Event.h.

---

The documentation for this class was generated from the following file:

• GaudiPython/src/Test/Event.h
