#include <src/PersistencySvc/DetPersistencySvc.h>

Inheritance diagram for DetPersistencySvc:

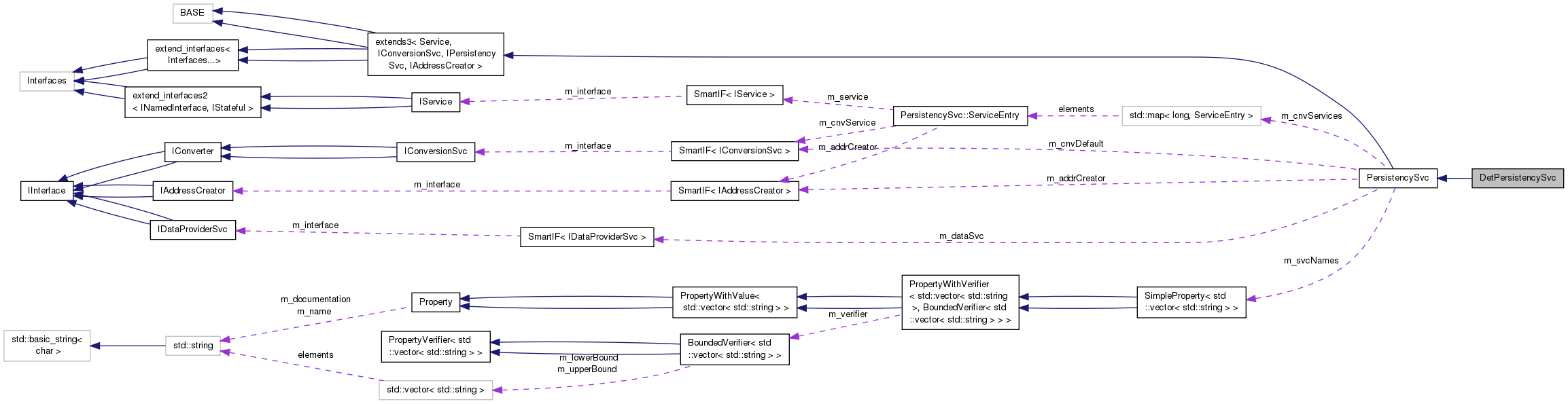

Collaboration diagram for DetPersistencySvc:

Public Member Functions
	DetPersistencySvc (const std::string &name, ISvcLocator *svc)

	~DetPersistencySvc () override=default

Public Member Functions inherited from PersistencySvc
long	repSvcType () const
	Return default service type. More...

const CLID &	objType () const
	Retrieve the class type of objects the converter produces. (DUMMY) More...

StatusCode	createObj (IOpaqueAddress pAddress, DataObject &refpObject) override
	Implementation of IConverter: Create the transient representation of an object. More...

StatusCode	fillObjRefs (IOpaqueAddress pAddress, DataObject pObject) override
	Implementation of IConverter: Resolve the references of the created transient object. More...

StatusCode	updateObj (IOpaqueAddress pAddress, DataObject refpObject) override
	Implementation of IConverter: Update the transient object from the other representation. More...

StatusCode	updateObjRefs (IOpaqueAddress pAddress, DataObject pObject) override
	Implementation of IConverter: Update the references of an updated transient object. More...

StatusCode	createRep (DataObject pObject, IOpaqueAddress &refpAddress) override
	Implementation of IConverter: Convert the transient object to the requested representation. More...

StatusCode	fillRepRefs (IOpaqueAddress pAddress, DataObject pObject) override
	Implementation of IConverter: Resolve the references of the converted object. More...

StatusCode	updateRep (IOpaqueAddress pAddress, DataObject pObject) override
	Implementation of IConverter: Update the converted representation of a transient object. More...

StatusCode	updateRepRefs (IOpaqueAddress pAddress, DataObject pObject) override
	Implementation of IConverter: Update the references of an already converted object. More...

StatusCode	setDataProvider (IDataProviderSvc *pStore) override
	Define transient datastore. More...

SmartIF< IDataProviderSvc > &	dataProvider () const override
	Access reference to transient datastore. More...

StatusCode	setConversionSvc (IConversionSvc *svc) override
	Set conversion service the converter is connected to. More...

SmartIF< IConversionSvc > &	conversionSvc () const override
	Get conversion service the converter is connected to. More...

StatusCode	setAddressCreator (IAddressCreator *creator) override
	Set address creator facility. More...

SmartIF< IAddressCreator > &	addressCreator () const override
	Retrieve address creator facility. More...

StatusCode	addConverter (IConverter *pConverter) override
	Add converter object to conversion service. More...

StatusCode	addConverter (const CLID &clid) override
	Add converter object to conversion service. More...

IConverter *	converter (const CLID &clid) override
	Retrieve converter from list. More...

StatusCode	removeConverter (const CLID &clid) override
	Remove converter object from conversion service (if present). More...

StatusCode	connectOutput (const std::string &outputFile, const std::string &openMode) override
	Connect the output file to the service with open mode. More...

StatusCode	connectOutput (const std::string &outputFile) override
	Connect the output file to the service. More...

StatusCode	commitOutput (const std::string &output, bool do_commit) override
	Commit pending output. More...

StatusCode	createAddress (long svc_type, const CLID &clid, const std::string pars, const unsigned long ipars, IOpaqueAddress *&refpAddress) override
	Create a Generic address using explicit arguments to identify a single object. More...

StatusCode	convertAddress (const IOpaqueAddress *pAddress, std::string &refAddress) override
	Convert an address to string form. More...

StatusCode	createAddress (long svc_type, const CLID &clid, const std::string &refAddress, IOpaqueAddress *&refpAddress) override
	Convert an address in string form to object form. More...

StatusCode	addCnvService (IConversionSvc *service) override
	Add a new Service. More...

StatusCode	removeCnvService (long type) override
	Remove a Service. More...

StatusCode	setDefaultCnvService (long type) override
	Set default service type. More...

StatusCode	getService (long service_type, IConversionSvc *&refpSvc) override
	Retrieve conversion service identified by technology. More...

StatusCode	getService (const std::string &service_type, IConversionSvc *&refpSvc) override
	Retrieve conversion service identified by technology. More...

StatusCode	initialize () override
	Initialize the service. More...

StatusCode	finalize () override
	stop the service. More...

	PersistencySvc (const std::string &name, ISvcLocator *svc)
	Standard Constructor. More...

	~PersistencySvc () override=default
	Standard Destructor. More...

Public Member Functions inherited from extends< BASE, Interfaces >
void *	i_cast (const InterfaceID &tid) const override
	Implementation of IInterface::i_cast. More...

StatusCode	queryInterface (const InterfaceID &ti, void **pp) override
	Implementation of IInterface::queryInterface. More...

std::vector< std::string >	getInterfaceNames () const override
	Implementation of IInterface::getInterfaceNames. More...

	~extends () override=default
	Virtual destructor. More...

void *	i_cast (const InterfaceID &tid) const override
	Implementation of IInterface::i_cast. More...

StatusCode	queryInterface (const InterfaceID &ti, void **pp) override
	Implementation of IInterface::queryInterface. More...

std::vector< std::string >	getInterfaceNames () const override
	Implementation of IInterface::getInterfaceNames. More...

	~extends () override=default
	Virtual destructor. More...

Public Member Functions inherited from extend_interfaces< Interfaces...>
	~extend_interfaces () override=default
	Virtual destructor. More...

	~extend_interfaces () override=default
	Virtual destructor. More...

Additional Inherited Members
Public Types inherited from extends< BASE, Interfaces >
typedef extends	base_class
	Typedef to this class. More...

typedef extend_interfaces< Interfaces...>	extend_interfaces_base
	Typedef to the base of this class. More...

typedef extends	base_class
	Typedef to this class. More...

typedef extend_interfaces< Interfaces...>	extend_interfaces_base
	Typedef to the base of this class. More...

Public Types inherited from extend_interfaces< Interfaces...>
using	ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids...>::type
	take union of the ext_iids of all Interfaces... More...

using	ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids...>::type
	take union of the ext_iids of all Interfaces... More...

Protected Types inherited from PersistencySvc
typedef std::map< long, ServiceEntry >	Services

Protected Member Functions inherited from PersistencySvc
void	svcNamesHandler (Property &theProp)
	Handlers for Service Names Property. More...

SmartIF< IConversionSvc > &	service (const std::string &nam)
	Retrieve conversion service by name. More...

SmartIF< IConversionSvc > &	service (long service_type)
	Retrieve conversion service from list. More...

SmartIF< IAddressCreator > &	addressCreator (long service_type)
	Retrieve address creator from list. More...

void	encodeAddrHdr (long service_type, const CLID &clid, std::string &address) const
	Retrieve string from storage type and clid. More...

void	decodeAddrHdr (const std::string &address, long &service_type, CLID &clid, std::string &address_trailer) const
	Retrieve storage type and clid from address header of string. More...

StatusCode	makeCall (int typ, IOpaqueAddress &pAddress, DataObject &pObject)
	Implementation helper. More...

bool	enable (bool value)
	Set enabled flag. More...

Protected Attributes inherited from PersistencySvc
long	m_cnvDefType = TEST_StorageType
	Default service type. More...

SmartIF< IDataProviderSvc >	m_dataSvc
	Pointer to datma provider service. More...

Services	m_cnvServices
	List of convermsion workers. More...

SmartIF< IConversionSvc >	m_cnvDefault
	Default output service. More...

StringArrayProperty	m_svcNames
	Names of services to be requested from the service locator and added by default. More...

bool	m_enable = true
	Flag to indicate that the service is enabled. More...

SmartIF< IAddressCreator >	m_addrCreator
	Pointer to the IAddressCreator interface of this, for addressCreator(). More...
