Description: More...

Inheritance diagram for Gaudi::RootAddress:

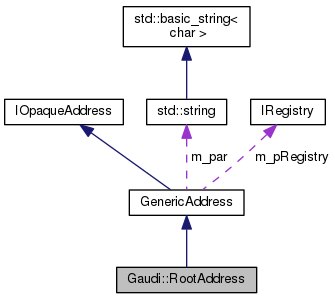

Collaboration diagram for Gaudi::RootAddress:

[legend]

Public Member Functions
	RootAddress (long svc, const CLID &clid, const std::string &p1="", const std::string &p2="", unsigned long ip1=0, unsigned long ip2=0)
	Full constructor. More...

virtual	~RootAddress ()
	Standard Destructor. More...

Public Member Functions inherited from GenericAddress
	GenericAddress ()=default
	Dummy constructor. More...

	GenericAddress (const GenericAddress &copy)
	Standard Copy Constructor (note: m_refCount is NOT copied) More...

	GenericAddress (long svc, const CLID &clid, std::string p1="", std::string p2="", unsigned long ip1=0, unsigned long ip2=0)
	Standard Constructor. More...

unsigned long	addRef () override
	Add reference to object. More...

unsigned long	release () override
	release reference to object More...

IRegistry *	registry () const override
	Pointer to directory. More...

void	setRegistry (IRegistry *pRegistry) override
	Set pointer to directory. More...

const CLID &	clID () const override
	Access : Retrieve class ID of the link. More...

void	setClID (const CLID &clid)
	Access : Set class ID of the link. More...

long	svcType () const override
	Access : retrieve the storage type of the class id. More...

void	setSvcType (long typ)
	Access : set the storage type of the class id. More...

const std::string *	par () const override
	Retrieve string parameters. More...

const unsigned long *	ipar () const override
	Retrieve integer parameters. More...

Public Member Functions inherited from IOpaqueAddress
virtual	~IOpaqueAddress ()=default
	destructor More...

Public Attributes
TTreeFormula *	select = nullptr
	Pointer to ROOT select statement (filled for N-tuples only) More...

TTree *	section = nullptr
	Pointer to ROOT TTree (filled for N-tuples only) More...

Additional Inherited Members
Protected Attributes inherited from GenericAddress
unsigned long	m_refCount = 0
	Reference count. More...

long	m_svcType = 0
	Storage type. More...

CLID	m_clID = 0
	Class id. More...

std::string	m_par [3]
	String parameters to be accessed. More...

unsigned long	m_ipar [2] = {0xFFFFFFFF, 0xFFFFFFFF}
	Integer parameters to be accessed. More...

IRegistry *	m_pRegistry = nullptr
	Pointer to corresponding directory. More...

Detailed Description

Description:

Definition of a transient link which is capable of locating an object in the persistent storage.

Definition at line 37 of file RootAddress.h.

Constructor & Destructor Documentation

Gaudi::RootAddress::RootAddress	(	long	svc,
		const CLID &	clid,
		const std::string &	p1 = `""`,
		const std::string &	p2 = `""`,
		unsigned long	ip1 = `0`,
		unsigned long	ip2 = `0`
	)

inline

Full constructor.

Definition at line 47 of file RootAddress.h.

         : GenericAddress( svc, clid, p1, p2, ip1, ip2 )
     {
     }

virtual Gaudi::RootAddress::~RootAddress ( )

inlinevirtual

Standard Destructor.

Definition at line 53 of file RootAddress.h.

53 { delete select; }

TTreeFormula * select

Pointer to ROOT select statement (filled for N-tuples only)

Definition: RootAddress.h:41

TTree* Gaudi::RootAddress::section = nullptr

Pointer to ROOT TTree (filled for N-tuples only)

Definition at line 43 of file RootAddress.h.

TTreeFormula* Gaudi::RootAddress::select = nullptr

Pointer to ROOT select statement (filled for N-tuples only)

Definition at line 41 of file RootAddress.h.

The documentation for this class was generated from the following file:
