Gaudi::DataHandleConfigurable Class Reference

Configurable entity associated with a DataHandle property. More...

#include <GaudiKernel/DataHandleConfigurable.h>

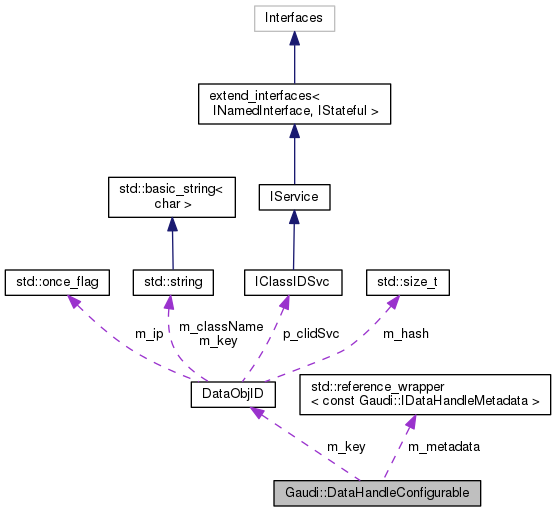

Collaboration diagram for Gaudi::DataHandleConfigurable:

Public Member Functions
	DataHandleConfigurable (const IDataHandleMetadata &metadata, DataObjID defaultKey)
	Initialize by providing access to the metadata singleton. More...
const IDataHandleMetadata &	metadata () const
	Propagate metadata of the underlying DataHandle type. More...
const DataObjID &	targetKey () const
	Tell what the currently configured target is. More...
void	setTargetKey (const DataObjID &key)
	Change the target of the data handle. More...

Private Attributes
std::reference_wrapper< const IDataHandleMetadata >	m_metadata
DataObjID	m_key

Friends
std::ostream &	operator<< (std::ostream &str, const DataHandleConfigurable &d)
	Boilerplate for Gaudi::Property compatibility. More...

Detailed Description

Configurable entity associated with a DataHandle property.

This class combines access to the IDataHandleMetadata with a configurable target DataObjID. It is what the Property machinery will eventually interact with.

Definition at line 18 of file DataHandleConfigurable.h.

Constructor & Destructor Documentation

Gaudi::DataHandleConfigurable::DataHandleConfigurable ( const IDataHandleMetadata &  metadata, DataObjID  defaultKey  )

inline

Initialize by providing access to the metadata singleton.

Definition at line 22 of file DataHandleConfigurable.h.

        : m_metadata( metadata ), m_key( std::move( defaultKey ) )
    {
    }

Member Function Documentation

const IDataHandleMetadata& Gaudi::DataHandleConfigurable::metadata ( ) const

inline

Propagate metadata of the underlying DataHandle type.

Definition at line 28 of file DataHandleConfigurable.h.

{ return m_metadata; }

void Gaudi::DataHandleConfigurable::setTargetKey ( const DataObjID &  key )

inline

Change the target of the data handle.

Definition at line 34 of file DataHandleConfigurable.h.

{ m_key = key; }

const DataObjID& Gaudi::DataHandleConfigurable::targetKey ( ) const

inline

Tell what the currently configured target is.

Definition at line 31 of file DataHandleConfigurable.h.

{ return m_key; }

Friends And Related Function Documentation

std::ostream& operator<< ( std::ostream &  str, const DataHandleConfigurable &  d  )

friend

Boilerplate for Gaudi::Property compatibility.

Definition at line 49 of file DataHandleConfigurable.cpp.

{
  return Gaudi::Utils::toStream( dhc, str );
}

Member Data Documentation

DataObjID Gaudi::DataHandleConfigurable::m_key

private

Definition at line 41 of file DataHandleConfigurable.h.

std::reference_wrapper<const IDataHandleMetadata> Gaudi::DataHandleConfigurable::m_metadata

private

Definition at line 40 of file DataHandleConfigurable.h.

---

The documentation for this class was generated from the following file:

• GaudiKernel/GaudiKernel/DataHandleConfigurable.h
