GenericAddress Class Reference

Generic Transient Address. More...

#include <GaudiKernel/GenericAddress.h>

Inheritance diagram for GenericAddress:

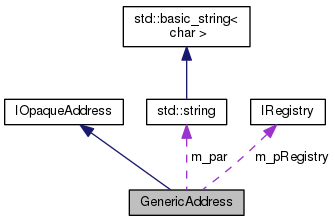

Collaboration diagram for GenericAddress:

Public Member Functions
	GenericAddress ()=default
	Dummy constructor. More...
	GenericAddress (const GenericAddress &copy)
	Standard Copy Constructor (note: m_refCount is NOT copied) More...
	GenericAddress (long svc, const CLID &clid, std::string p1="", std::string p2="", unsigned long ip1=0, unsigned long ip2=0)
	Standard Constructor. More...
unsigned long	addRef () override
	Add reference to object. More...
unsigned long	release () override
	release reference to object More...
IRegistry *	registry () const override
	Pointer to directory. More...
void	setRegistry (IRegistry *pRegistry) override
	Set pointer to directory. More...
const CLID &	clID () const override
	Access : Retrieve class ID of the link. More...
void	setClID (const CLID &clid)
	Access : Set class ID of the link. More...
long	svcType () const override
	Access : retrieve the storage type of the class id. More...
void	setSvcType (long typ)
	Access : set the storage type of the class id. More...
const std::string *	par () const override
	Retrieve string parameters. More...
const unsigned long *	ipar () const override
	Retrieve integer parameters. More...
Public Member Functions inherited from IOpaqueAddress
virtual	~IOpaqueAddress ()=default
	destructor More...

Protected Attributes
unsigned long	m_refCount = 0
	Reference count. More...
long	m_svcType = 0
	Storage type. More...
CLID	m_clID = 0
	Class id. More...
std::string	m_par [3]
	String parameters to be accessed. More...
unsigned long	m_ipar [2] = {0xFFFFFFFF, 0xFFFFFFFF}
	Integer parameters to be accessed. More...
IRegistry *	m_pRegistry = nullptr
	Pointer to corresponding directory. More...

Detailed Description

Generic Transient Address.

The generic transient address describes the recipe to load/save a persistent object from/to its transient representation.

Author

Markus Frank

Version

1.0

Definition at line 20 of file GenericAddress.h.

Constructor & Destructor Documentation

GenericAddress::GenericAddress ( )

default

Dummy constructor.

GenericAddress::GenericAddress ( const GenericAddress &  copy )

inline

Standard Copy Constructor (note: m_refCount is NOT copied)

Definition at line 39 of file GenericAddress.h.

      : IOpaqueAddress( copy ), m_svcType( copy.m_svcType ), m_clID( copy.m_clID ), m_pRegistry( copy.m_pRegistry ) {
    m_par[0]  = copy.m_par[0];
    m_par[1]  = copy.m_par[1];
    m_ipar[0] = copy.m_ipar[0];
    m_ipar[1] = copy.m_ipar[1];
  }

GenericAddress::GenericAddress ( long  svc, const CLID &  clid, std::string  p1 = "", std::string  p2 = "", unsigned long  ip1 = 0, unsigned long  ip2 = 0  )

inline

Standard Constructor.

Definition at line 47 of file GenericAddress.h.

      : m_svcType( svc ), m_clID( clid ) {
    m_par[0]  = std::move( p1 );
    m_par[1]  = std::move( p2 );
    m_ipar[0] = ip1;
    m_ipar[1] = ip2;
  }

Member Function Documentation

unsigned long GenericAddress::addRef ( )

inlineoverridevirtual

Add reference to object.

Implements IOpaqueAddress.

Definition at line 57 of file GenericAddress.h.

{ return ++m_refCount; }

const CLID& GenericAddress::clID ( ) const

inlineoverridevirtual

Access : Retrieve class ID of the link.

Implements IOpaqueAddress.

Definition at line 69 of file GenericAddress.h.

{ return m_clID; }

const unsigned long* GenericAddress::ipar ( ) const

inlineoverridevirtual

Retrieve integer parameters.

Implements IOpaqueAddress.

Definition at line 79 of file GenericAddress.h.

{ return m_ipar; }

const std::string* GenericAddress::par ( ) const

inlineoverridevirtual

Retrieve string parameters.

Implements IOpaqueAddress.

Definition at line 77 of file GenericAddress.h.

{ return m_par; }

IRegistry* GenericAddress::registry ( ) const

inlineoverridevirtual

Pointer to directory.

Implements IOpaqueAddress.

Definition at line 65 of file GenericAddress.h.

{ return m_pRegistry; }

unsigned long GenericAddress::release ( )

inlineoverridevirtual

release reference to object

Implements IOpaqueAddress.

Definition at line 59 of file GenericAddress.h.

                                   {
    int cnt = --m_refCount;
    if ( 0 == cnt ) delete this;
    return cnt;
  }

void GenericAddress::setClID ( const CLID &  clid )

inline

Access : Set class ID of the link.

Definition at line 71 of file GenericAddress.h.

{ m_clID = clid; }

void GenericAddress::setRegistry ( IRegistry *  pRegistry )

inlineoverridevirtual

Set pointer to directory.

Implements IOpaqueAddress.

Definition at line 67 of file GenericAddress.h.

{ m_pRegistry = pRegistry; }

void GenericAddress::setSvcType ( long  typ )

inline

Access : set the storage type of the class id.

Definition at line 75 of file GenericAddress.h.

{ m_svcType = typ; }

long GenericAddress::svcType ( ) const

inlineoverridevirtual

Access : retrieve the storage type of the class id.

Implements IOpaqueAddress.

Definition at line 73 of file GenericAddress.h.

{ return m_svcType; }

Member Data Documentation

CLID GenericAddress::m_clID = 0

protected

Class id.

Definition at line 27 of file GenericAddress.h.

unsigned long GenericAddress::m_ipar[2] = {0xFFFFFFFF, 0xFFFFFFFF}

protected

Integer parameters to be accessed.

Definition at line 31 of file GenericAddress.h.

std::string GenericAddress::m_par[3]

protected

String parameters to be accessed.

Definition at line 29 of file GenericAddress.h.

IRegistry* GenericAddress::m_pRegistry = nullptr

protected

Pointer to corresponding directory.

Definition at line 33 of file GenericAddress.h.

unsigned long GenericAddress::m_refCount = 0

protected

Reference count.

Definition at line 23 of file GenericAddress.h.

long GenericAddress::m_svcType = 0

protected

Storage type.

Definition at line 25 of file GenericAddress.h.

---

The documentation for this class was generated from the following file:

• GaudiKernel/GaudiKernel/GenericAddress.h
