Handle to be used in lieu of naked pointers to tools. More...

#include <GaudiKernel/ToolHandle.h>

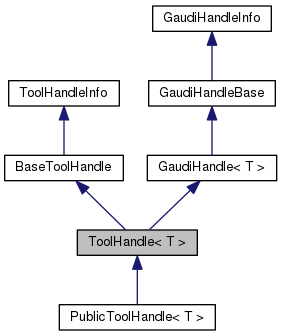

Inheritance diagram for ToolHandle< T >:

[legend]

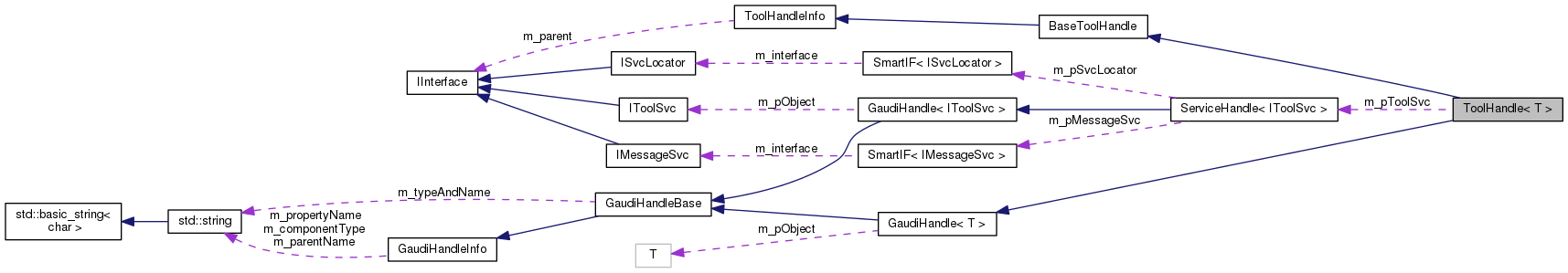

Collaboration diagram for ToolHandle< T >:

[legend]

Public Member Functions
	ToolHandle (const IInterface *parent=nullptr, bool createIf=true)
	Constructor for a tool with default tool type and name. More...

template<typename CT = T, typename NCT = typename std::remove_const<T>::type>
	ToolHandle (const ToolHandle< NCT > &other, typename std::enable_if< std::is_const< CT >::value &&!std::is_same< CT, NCT >::value >::type *=nullptr)
	Copy constructor from a non const T to const T tool handle. More...

	ToolHandle (const std::string &toolTypeAndName, const IInterface *parent=nullptr, bool createIf=true)
	Create a handle ('smart pointer') to a tool. More...

template<class OWNER , typename = std::enable_if_t<std::is_base_of<IProperty, OWNER>::value>>
	ToolHandle (OWNER *owner, std::string propName, std::string toolType, std::string doc="")
	Autodeclaring constructor with property propName, tool type/name and documentation. More...

StatusCode	initialize (const std::string &toolTypeAndName, const IInterface *parent=nullptr, bool createIf=true)

StatusCode	retrieve () const override
	Retrieve the AlgTool. More...

StatusCode	retrieve (DisableTool sd) override

StatusCode	retrieve (EnableTool sd) override

StatusCode	release () const
	Release the AlgTool. More...

StatusCode	retrieve (T *&algTool) const override
	Do the real retrieval of the AlgTool. More...

StatusCode	release (T *algTool) const override
	Do the real release of the AlgTool. More...

std::string	typeAndName () const override

std::add_const< T >::type *	get () const

T *	get ()

Public Member Functions inherited from BaseToolHandle
StatusCode	retrieve (IAlgTool *&tool) const

const IAlgTool *	get () const

IAlgTool *	get ()

bool	isEnabled () const
	Helper to check if the ToolHandle should be retrieved. More...

void	enable ()

void	disable ()

bool	setEnabled (const bool flag)

Public Member Functions inherited from ToolHandleInfo
virtual	~ToolHandleInfo ()=default

bool	isPublic () const noexcept

bool	createIf () const noexcept

const IInterface *	parent () const noexcept

Public Member Functions inherited from GaudiHandle< T >
template<typename CT = T, typename NCT = typename std::remove_const<T>::type>
	GaudiHandle (const GaudiHandle< NCT > &other, typename std::enable_if< std::is_const< CT >::value &&!std::is_same< CT, NCT >::value >::type *=nullptr)
	Copy constructor needed for correct ref-counting. More...

	GaudiHandle (const GaudiHandle &other)
	Copy constructor needed for correct ref-counting. More...

template<typename CT = T, typename NCT = typename std::remove_const<T>::type>
std::enable_if< std::is_const< CT >::value &&!std::is_same< CT, NCT >::value, GaudiHandle & >::type	operator= (const GaudiHandle< NCT > &other)
	Assignment operator for correct ref-counting. More...

GaudiHandle &	operator= (const GaudiHandle &other)
	Assignment operator for correct ref-counting. More...

StatusCode	retrieve () const
	Retrieve the component. More...

StatusCode	release () const
	Release the component. More...

bool	isValid () const
	Check if the handle is valid (try to retrive the object is not done yet). More...

	operator bool () const
	For testing if handle has component. More...

T *	get ()
	Return the wrapped pointer, not calling retrieve() if null. More...

std::add_const< T >::type *	get () const
	Return the wrapped pointer, not calling retrieve() if null. More...

bool	isSet () const
	True if the wrapped pointer is not null. More...

T &	operator* ()

T *	operator-> ()

std::add_const< T >::type &	operator* () const

std::add_const< T >::type *	operator-> () const

std::string	getDefaultType ()
	Helper function to get default type string from the class type. More...

std::string	getDefaultName ()

Public Member Functions inherited from GaudiHandleBase
std::string	typeAndName () const
	The full type and name: "type/name". More...

std::string	type () const
	The concrete component class name: the part before the '/'. More...

std::string	name () const
	The instance name: the part after the '/'. More...

bool	empty () const
	Check if the handle has been set to empty string (i.e. More...

void	setTypeAndName (std::string myTypeAndName)
	The component "type/name" string. More...

void	setName (const std::string &myName)
	Set the instance name (part after the '/') without changing the class type. More...

std::string	pythonPropertyClassName () const override
	Name of the componentType with "Handle" appended. More...

std::string	messageName () const
	name used for printing messages More...

std::string	pythonRepr () const override
	Python representation of handle, i.e. More...

Public Member Functions inherited from GaudiHandleInfo
virtual	~GaudiHandleInfo ()=default
	virtual destructor so that derived class destructor is called. More...

const std::string &	componentType () const

const std::string &	propertyName () const
	name as used in declareProperty(name,gaudiHandle) More...

void	setPropertyName (std::string propName)
	set name as used in declareProperty(name,gaudiHandle). More...

const std::string &	parentName () const
	The name of the parent. More...

Protected Member Functions
const IAlgTool *	getAsIAlgTool () const override

IAlgTool *	getAsIAlgTool () override

StatusCode	i_retrieve (IAlgTool *&algTool) const override

Protected Member Functions inherited from BaseToolHandle
	BaseToolHandle (const IInterface *parent=nullptr, bool createIf=true)

Protected Member Functions inherited from ToolHandleInfo
	ToolHandleInfo (const IInterface *parent=nullptr, bool createIf=true)

Protected Member Functions inherited from GaudiHandle< T >
	GaudiHandle (std::string myTypeAndName, std::string myComponentType, std::string myParentName)

Protected Member Functions inherited from GaudiHandleBase
	GaudiHandleBase (std::string myTypeAndName, std::string myComponentType, std::string myParentName)
	Create a handle ('smart pointer') to a gaudi component. More...

Protected Member Functions inherited from GaudiHandleInfo
	GaudiHandleInfo (std::string myComponentType, std::string myParentName)
	Some basic information and helper functions shared between various handles/arrays. More...

void	setComponentType (const std::string &componentType)
	The component type. More...

void	setParentName (const std::string &parent)
	The name of the parent. More...

Private Attributes
ServiceHandle< IToolSvc >	m_pToolSvc

Friends
class	Gaudi::Algorithm

class	AlgTool

class	Service

Additional Inherited Members
Public Types inherited from GaudiHandleBase
using	PropertyType = GaudiHandleProperty

Static Public Member Functions inherited from ToolHandleInfo
static std::string	toolComponentType (const IInterface *parent)

static std::string	toolParentName (const IInterface *parent)

Protected Attributes inherited from BaseToolHandle
bool	m_enabled = true

Protected Attributes inherited from ToolHandleInfo
const IInterface *	m_parent = nullptr

bool	m_createIf {true}

Detailed Description

template<class T>
class ToolHandle< T >

Handle to be used in lieu of naked pointers to tools.

This allows better control through the framework of tool loading and usage. T is the AlgTool interface class (or concrete class) of the tool to use, and must derive from IAlgTool.

Author: Wim Lavrijsen WLavr.nosp@m.ijse.nosp@m.n@lbl.nosp@m..gov; Marti.nosp@m.n.Wo.nosp@m.udstr.nosp@m.a@ce.nosp@m.rn.ch

Definition at line 125 of file ToolHandle.h.

Constructor & Destructor Documentation

template<class T>

ToolHandle< T >::ToolHandle	(	const IInterface *	parent = `nullptr`,
		bool	createIf = `true`
	)

inline

Constructor for a tool with default tool type and name.

Can be called only if the type T is a concrete tool type (not an interface), and you want to use the default name.

Definition at line 135 of file ToolHandle.h.

       : BaseToolHandle( parent, createIf )
       , GaudiHandle<T>( "", toolComponentType( parent ), toolParentName( parent ) )
       , m_pToolSvc( "ToolSvc", GaudiHandleBase::parentName() ) {}

template<class T>

template<typename CT = T, typename NCT = typename std::remove_const<T>::type>

ToolHandle< T >::ToolHandle	(	const ToolHandle< NCT > &	other,
		typename std::enable_if< std::is_const< CT >::value &&!std::is_same< CT, NCT >::value >::type *	= `nullptr`
	)

inline

Copy constructor from a non const T to const T tool handle.

Definition at line 142 of file ToolHandle.h.

       : BaseToolHandle( other.parent(), other.createIf() )
       , GaudiHandle<CT>( other )
       , m_pToolSvc( "ToolSvc", GaudiHandleBase::parentName() ) {}

template<class T>

ToolHandle< T >::ToolHandle	(	const std::string &	toolTypeAndName,
		const IInterface *	parent = `nullptr`,
		bool	createIf = `true`
	)

inline

Create a handle ('smart pointer') to a tool.

The arguments are passed on to ToolSvc, and have the same meaning:

StatusCode ToolSvc::retrieveTool ( const std::string& type            ,
                                   T*&                tool            ,
                                   const IInterface*  parent   = 0    ,
                                   bool               createIf = true )

Parameters

owner	class owning the ToolHandle
toolType	"MyToolType/MyToolName" "MyToolType" is short for "MyToolType/MyToolType" 'MyToolType' is the name of the class of the concrete tool 'MyToolName' is to distinguish several tool instances of the same class
parent	the parent Algorithm,Tool or Service of which this tool is a member. If non-zero, the the tool is a private tool of the parent, otherwise it is a public (shared) tool.
createIf	if true, create tool if not yet existing.

Definition at line 179 of file ToolHandle.h.

       : BaseToolHandle( parent, createIf )
       , GaudiHandle<T>( toolTypeAndName, toolComponentType( parent ), toolParentName( parent ) )
       , m_pToolSvc( "ToolSvc", GaudiHandleBase::parentName() ) {
   }

template<class T>

template<class OWNER , typename = std::enable_if_t<std::is_base_of<IProperty, OWNER>::value>>

ToolHandle< T >::ToolHandle	(	OWNER *	owner,
		std::string	propName,
		std::string	toolType,
		std::string	doc = `""`
	)

inline

Autodeclaring constructor with property propName, tool type/name and documentation.

Note: the use std::enable_if is required to avoid ambiguities

Definition at line 188 of file ToolHandle.h.

       : ToolHandle( owner ) {
     // convert name and type to a valid type/name string
     // - if type does not contain '/' use type/type
     // - otherwise type is already a type/name string
     if ( !toolType.empty() and toolType.find( '/' ) == std::string::npos ) { toolType += '/' + toolType; }
     owner->declareTool( *this, std::move( toolType ) ).ignore();
     auto p = owner->OWNER::PropertyHolderImpl::declareProperty( std::move( propName ), *this, std::move( doc ) );
     p->template setOwnerType<OWNER>();
   }

Member Function Documentation

template<class T>

std::add_const<T>::type* ToolHandle< T >::get ( ) const

inline

Definition at line 262 of file ToolHandle.h.

262 { return GaudiHandle<T>::get(); }

GaudiHandle::get

T * get()

Return the wrapped pointer, not calling retrieve() if null.

Definition: GaudiHandle.h:248

template<class T>

T* ToolHandle< T >::get ( )

inline

Definition at line 264 of file ToolHandle.h.

264 { return GaudiHandle<T>::get(); }

GaudiHandle::get

T * get()

Return the wrapped pointer, not calling retrieve() if null.

Definition: GaudiHandle.h:248

template<class T>

const IAlgTool* ToolHandle< T >::getAsIAlgTool ( ) const

inlineoverrideprotectedvirtual

Implements BaseToolHandle.

Definition at line 282 of file ToolHandle.h.

                                                  {
     // const cast to support T being const
     return GaudiHandle<T>::get();
   }

template<class T>

IAlgTool* ToolHandle< T >::getAsIAlgTool ( )

inlineoverrideprotectedvirtual

Implements BaseToolHandle.

Definition at line 287 of file ToolHandle.h.

                                      {
     // const cast to support T being const
     return ::details::nonConst( GaudiHandle<T>::get() );
   }

template<class T>

StatusCode ToolHandle< T >::i_retrieve ( IAlgTool *& algTool ) const

inlineoverrideprotectedvirtual

Implements BaseToolHandle.

Definition at line 292 of file ToolHandle.h.

                                                              {
     return m_pToolSvc->retrieve( typeAndName(), IAlgTool::interfaceID(), algTool, ToolHandleInfo::parent(),
                                  ToolHandleInfo::createIf() );
   }

template<class T>

StatusCode ToolHandle< T >::initialize	(	const std::string &	toolTypeAndName,
		const IInterface *	parent = `nullptr`,
		bool	createIf = `true`
	)

inline

Definition at line 200 of file ToolHandle.h.

                                                 {

     GaudiHandleBase::setTypeAndName( toolTypeAndName );
     GaudiHandleBase::setComponentType( toolComponentType( parent ) );
     GaudiHandleBase::setParentName( toolParentName( parent ) );

     m_parent   = parent;
     m_createIf = createIf;

     return m_pToolSvc.initialize( "ToolSvc", GaudiHandleBase::parentName() );
   }

template<class T>

StatusCode ToolHandle< T >::release ( ) const

inline

Release the AlgTool.

Function must be repeated here to avoid hiding the function release( T*& )

Definition at line 239 of file ToolHandle.h.

                              { // not really const, because it updates m_pObject
     return GaudiHandle<T>::release();
   }

template<class T>

StatusCode ToolHandle< T >::release ( T * algTool ) const

inlineoverridevirtual

Do the real release of the AlgTool.

Reimplemented from GaudiHandle< T >.

Definition at line 258 of file ToolHandle.h.

258 { return m_pToolSvc->releaseTool( ::details::nonConst( algTool ) ); }

ToolHandle::m_pToolSvc

ServiceHandle< IToolSvc > m_pToolSvc

Definition: ToolHandle.h:301

details::nonConst

std::remove_const_t< T > * nonConst(T *p)

Cast a pointer to a non const type.

Definition: GaudiHandle.h:20

IToolSvc::releaseTool

virtual StatusCode releaseTool(IAlgTool *tool)=0

Release the tool.

template<class T>

StatusCode ToolHandle< T >::retrieve ( ) const

inlineoverridevirtual

Retrieve the AlgTool.

Release existing tool if needed. Function must be repeated here to avoid hiding the function retrieve( T*& )

Implements BaseToolHandle.

Definition at line 215 of file ToolHandle.h.

                                        { // not really const, because it updates m_pObject
     return GaudiHandle<T>::retrieve();
   }

template<class T>

StatusCode ToolHandle< T >::retrieve ( DisableTool sd )

inlineoverridevirtual

Implements BaseToolHandle.

Definition at line 219 of file ToolHandle.h.

                                                  {
     if ( isEnabled() && sd == DisableTool{false} ) {
       return GaudiHandle<T>::retrieve();
     } else {
       disable();
       return StatusCode::SUCCESS;
     }
   }

template<class T>

StatusCode ToolHandle< T >::retrieve ( EnableTool sd )

inlineoverridevirtual

Implements BaseToolHandle.

Definition at line 228 of file ToolHandle.h.

                                                 {
     if ( isEnabled() && sd == EnableTool{true} ) {
       return GaudiHandle<T>::retrieve();
     } else {
       disable();
       return StatusCode::SUCCESS;
     }
   }

template<class T>

StatusCode ToolHandle< T >::retrieve ( T *& algTool ) const

inlineoverridevirtual

Do the real retrieval of the AlgTool.

Implements GaudiHandle< T >.

Definition at line 244 of file ToolHandle.h.

                                                     {
     IAlgTool* iface = nullptr;
     if ( i_retrieve( iface ).isFailure() ) { return StatusCode::FAILURE; }

     algTool = dynamic_cast<T*>( iface );
     if ( algTool == nullptr ) {
       throw GaudiException( "unable to dcast AlgTool " + typeAndName() + " to interface " +
                                 System::typeinfoName( typeid( T ) ),
                             typeAndName() + " retrieve", StatusCode::FAILURE );
     }
     return StatusCode::SUCCESS;
   }
