Description: More...

#include <src/RootTool.h>

Inheritance diagram for Gaudi::RootTool:

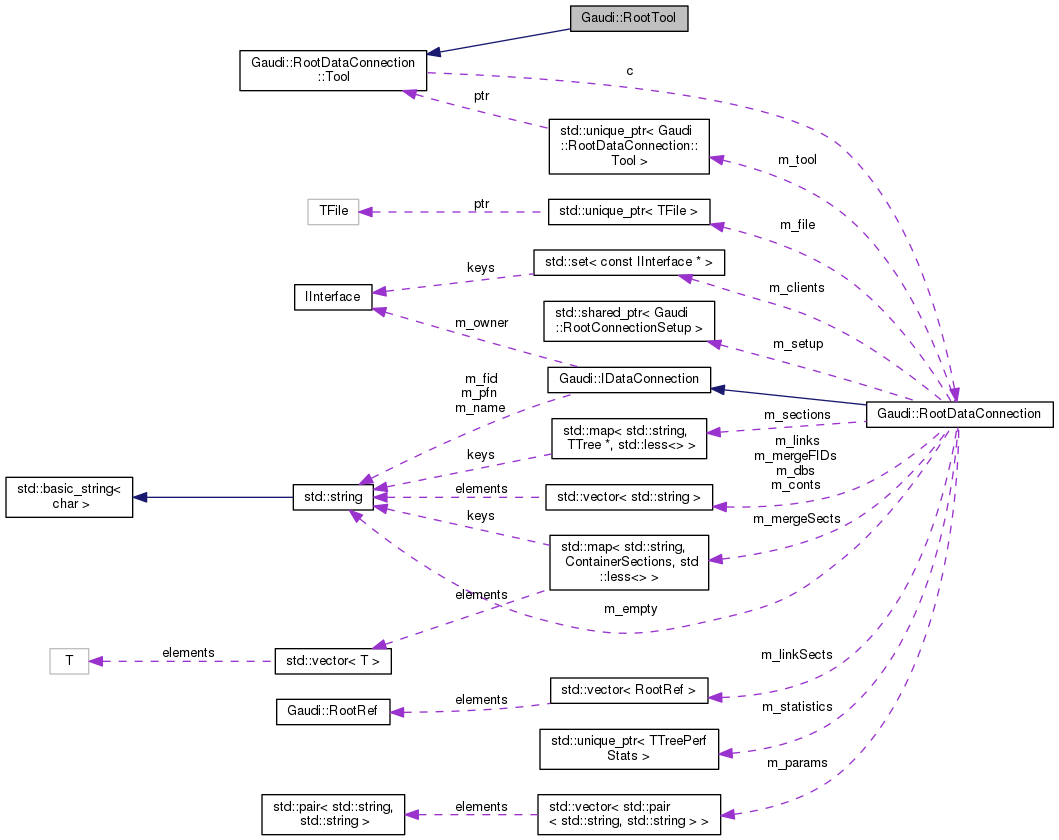

Collaboration diagram for Gaudi::RootTool:

[legend]

Public Member Functions
	RootTool (RootDataConnection *con)
	Standard constructor. More...

TBranch *	getBranch (boost::string_ref section, boost::string_ref branch_name) override
	Access data branch by name: Get existing branch in read only mode. More...

int	loadRefs (boost::string_ref section, boost::string_ref cnt, unsigned long entry, RootObjectRefs &refs) override
	Load references object from file. More...

void	addParam (ParamMap &c, char *p)
	Helper function to read params table. More...

void	addEntry (StringVec &c, char *val)
	Helper function to read string tables. More...

template<class C , class F >
StatusCode	readBranch (TTree t, const char nam, C &v, F pmf)
	Helper function to read internal file tables. More...

bool	get (const string &dsc, pair< string, ContainerSection > &e)
	Analyze the Sections table entries. More...

void	analyzeMergeMap (StringVec &tmp)
	Build merge sections from the Sections table entries. More...

StatusCode	readRefs () override
	Read reference tables. More...

string	getEntry (const string &c)
	Helper function to convert string vectors to branch entries. More...

string	getParam (const pair< string, string > &p)
	Helper function to convert parameter vectors to branch entries. More...

template<class C , class F >
StatusCode	saveBranch (const char *nam, C &v, F pmf)
	Helper function to save internal tables. More...

StatusCode	saveRefs () override
	Save/update reference tables. More...

Public Member Functions inherited from Gaudi::RootDataConnection::Tool
TTree *	refs () const

StringVec &	dbs () const

StringVec &	conts () const

StringVec &	links () const

ParamMap &	params () const

MsgStream &	msgSvc () const

const std::string &	name () const

Sections &	sections () const

LinkSections &	linkSections () const

MergeSections &	mergeSections () const

virtual	~Tool ()=default
	Default destructor. More...

virtual RootRef	poolRef (size_t) const
	Internal overload to facilitate the access to POOL files. More...

Additional Inherited Members
Protected Types inherited from Gaudi::RootDataConnection::Tool
typedef RootDataConnection::StringVec	StringVec

typedef RootDataConnection::ParamMap	ParamMap

typedef RootDataConnection::Sections	Sections

typedef RootDataConnection::MergeSections	MergeSections

typedef RootDataConnection::LinkSections	LinkSections

typedef RootDataConnection::ContainerSection	ContainerSection

typedef RootDataConnection::ContainerSections	ContainerSections

Protected Attributes inherited from Gaudi::RootDataConnection::Tool
RootDataConnection *	c
	Pointer to containing data connection object. More...

Detailed Description

Description:

Concrete implementation to read objects from POOL files.

Author: M.Frank

Version: 1.0

Concrete implementation to read objects from ROOT files.

Author: M.Frank

Version: 1.0

Definition at line 16 of file RootTool.h.

Constructor & Destructor Documentation

Gaudi::RootTool::RootTool ( RootDataConnection * con )

inline

Standard constructor.

Definition at line 19 of file RootTool.h.

19 { c = con; }

Gaudi::RootDataConnection::Tool::c

RootDataConnection * c

Pointer to containing data connection object.

Definition: RootDataConnection.h:203

Member Function Documentation

void Gaudi::RootTool::addEntry	(	StringVec &	c,
		char *	val
	)

inline

Helper function to read string tables.

Definition at line 102 of file RootTool.h.

102 { c.push_back( val ); }

Gaudi::RootDataConnection::Tool::c

RootDataConnection * c

Pointer to containing data connection object.

Definition: RootDataConnection.h:203

void Gaudi::RootTool::addParam	(	ParamMap &	c,
		char *	p
	)

inline

Helper function to read params table.

Definition at line 94 of file RootTool.h.

                                           {
       char* q = strchr( p, '=' );
       if ( q ) {
         *q = 0;
         c.emplace_back( p, ++q );
       }
     }

void Gaudi::RootTool::analyzeMergeMap ( StringVec & tmp )

inline

Build merge sections from the Sections table entries.

Definition at line 149 of file RootTool.h.

                                            {
       LinkSections&                  ls = linkSections();
       MergeSections&                 ms = mergeSections();
       pair<string, ContainerSection> e;
       MsgStream&                     msg = msgSvc();
       RootRef                        r;
       int                            cnt = 0;
       ls.clear();
       ms.clear();
       msg << MSG::VERBOSE;
       r.dbase = r.container = r.link = r.clid = r.svc = r.entry = 0;
       for ( const auto& i : tmp ) {
         if ( get( i, e ) ) {
           msg << "Added Merge Section:" << e.first << endmsg;
           ms[e.first].push_back( e.second );
           if ( e.first == "Links" )
             r.link = e.second.start;
           else if ( e.first == "Containers" )
             r.container = e.second.start;
           else if ( e.first == "Databases" )
             r.dbase = e.second.start;
           else if ( e.first == "Params" )
             r.svc = e.second.start;
         } else if ( i == "[END-OF-SECTION]" ) {
           r.entry = cnt;
           if ( msg.isActive() ) {
             msg << "Link Section [" << r.entry << "," << ls.size() << "] -> D:" << r.dbase << " C:" << r.container
                 << " L:" << r.link << " P:" << r.svc << endmsg;
           }
           ls.push_back( r );
           cnt++;
         }
       }
     }

bool Gaudi::RootTool::get	(	const string &	dsc,
		pair< string, ContainerSection > &	e
	)

inline

Analyze the Sections table entries.

Definition at line 130 of file RootTool.h.

                                                                      {
       if ( dsc != "[END-OF-SECTION]" ) {
         size_t id1 = dsc.find( "[CNT=" );
         size_t id2 = dsc.find( "[START=" );
         size_t id3 = dsc.find( "[LEN=" );
         if ( id1 != string::npos && id2 != string::npos && id3 != string::npos ) {
           string cnt            = dsc.substr( id1 + 5, id2 - 1 - 5 );
           int    section_start  = std::stoi( dsc.substr( id2 + 7, id3 - id2 - 8 ) );
           int    section_length = std::stoi( dsc.substr( id3 + 5, dsc.find( "]", id3 + 5 ) - id3 - 5 ) );
           e.first               = cnt;
           e.second              = ContainerSection( section_start, section_length );
           return true;
         }
       }
       e.first.clear();
       e.second = ContainerSection( -1, -1 );
       return false;
     }

TBranch* Gaudi::RootTool::getBranch	(	boost::string_ref	section,
		boost::string_ref	branch_name
	)

inlineoverridevirtual

Access data branch by name: Get existing branch in read only mode.

Implements Gaudi::RootDataConnection::Tool.

Definition at line 21 of file RootTool.h.

                                                                                         {
       std::string n = branch_name.to_string() + ".";
       for ( int i = 0, m = n.length() - 1; i < m; ++i )
         if ( !isalnum( n[i] ) ) n[i] = '_';
       TTree*   t = c->getSection( section );
       TBranch* b = t ? t->GetBranch( n.c_str() ) : nullptr;
       if ( !b ) b = t ? t->GetBranch( branch_name.to_string().c_str() ) : nullptr;
       if ( b ) b->SetAutoDelete( kFALSE );
       return b;
     }

string Gaudi::RootTool::getEntry ( const string & c )

inline

Helper function to convert string vectors to branch entries.

Definition at line 201 of file RootTool.h.

201 { return c; }

Gaudi::RootDataConnection::Tool::c

RootDataConnection * c

Pointer to containing data connection object.

Definition: RootDataConnection.h:203

string Gaudi::RootTool::getParam ( const pair< string, string > & p )

inline

Helper function to convert parameter vectors to branch entries.

Definition at line 203 of file RootTool.h.

203 { return p.first + "=" + p.second; }

int Gaudi::RootTool::loadRefs	(	boost::string_ref	section,
		boost::string_ref	cnt,
		unsigned long	entry,
		RootObjectRefs &	refs
	)

inlineoverridevirtual

Load references object from file.

Link manager:

Implements Gaudi::RootDataConnection::Tool.

Definition at line 32 of file RootTool.h.

                                                   {
       TBranch*        b     = getBranch( section, cnt.to_string() + "#R" );
       RootObjectRefs* prefs = &refs;
       if ( b ) {
         b->SetAddress( &prefs );
         int nb = b->GetEntry( entry );
         if ( nb >= 1 ) {
           const MergeSections& ms = c->mergeSections();
           if ( !ms.empty() ) {
             MsgStream& msg = msgSvc();
             msgSvc() << MSG::VERBOSE;
             pair<const RootRef*, const ContainerSection*> ls = c->getMergeSection( cnt, entry );
             if ( ls.first ) {
               if ( ls.first->dbase >= 0 ) {
                 // Now patch the references and links 'en block' to be efficient
                 // First the leafs from the TES
                 if ( msg.isActive() ) {
                   msg << "Refs: LS [" << entry << "] -> " << ls.first->dbase << "," << ls.first->container << ","
                       << ls.first->link << "," << ls.first->entry << endmsg;
                 }
                 for ( size_t j = 0, n = refs.refs.size(); j < n; ++j ) {
                   RootRef& r = refs.refs[j];
                   if ( r.entry >= 0 && r.dbase >= 0 ) {
                     int db = r.dbase + ls.first->dbase;
                     if ( c->getDb( db ) == c->fid() ) {
                       if ( r.dbase ) r.dbase += ls.first->dbase;
                       if ( r.container ) r.container += ls.first->container;
                       if ( r.link ) r.link += ls.first->link;
                       const string& rc = c->getCont( r.container );
                       auto          k  = ms.find( rc );
                       if ( k != ms.end() ) {
                         const auto& cs = ( *k ).second;
                         r.entry        = ( ls.first->entry >= 0 && ls.first->entry < (int)cs.size() )
                                       ? cs[ls.first->entry].start + r.entry
                                       : -1;
                         if ( msg.isActive() ) {
                           msg << "Add link [" << r.entry << "," << ls.first->entry << "," << ls.first->container << ","
                               << r.container << "," << r.entry << "] to -> " << rc << endmsg;
                         }
                       } else {
                         msg << MSG::WARNING << c->fid() << "  [" << c->getDb( db ) << "] Evt:" << entry
                             << " Invalid link to " << rc << endmsg;
                         msg << MSG::VERBOSE;
                       }
                     }
                   }
                 }
                 std::for_each( std::begin( refs.links ), std::end( refs.links ),
                                [&]( int& i ) { i += ls.first->link; } );
               }
               return nb;
             }
             return -1;
           }
           return nb;
         }
       }
       return -1;
     }

template<class C , class F >

StatusCode Gaudi::RootTool::readBranch	(	TTree *	t,
		const char *	nam,
		C &	v,
		F	pmf
	)

inline

Helper function to read internal file tables.

Definition at line 105 of file RootTool.h.

                                                                     {
       char     text[2048];
       TBranch* b = t->GetBranch( nam );
       if ( b ) {
         TLeaf* l = b->GetLeaf( nam );
         if ( l ) {
           StatusCode sc = StatusCode::SUCCESS;
           b->SetAddress( text );
           msgSvc() << MSG::VERBOSE;
           for ( Long64_t i = 0, n = b->GetEntries(); i < n; ++i ) {
             if ( b->GetEntry( i ) > 0 ) {
               char* p = (char*)l->GetValuePointer();
               msgSvc() << "Add Value[" << b->GetName() << "]:" << p << endmsg;
               ( this->*pmf )( v, p );
             } else {
               sc = RootDataConnection::Status::ROOT_READ_ERROR;
             }
           }
           return sc;
         }
       }
       msgSvc() << MSG::ERROR << "Failed to read '" << nam << "' table." << endmsg;
       return RootDataConnection::Status::ROOT_READ_ERROR;
     }

StatusCode Gaudi::RootTool::readRefs ( )

inlineoverridevirtual

Read reference tables.

Implements Gaudi::RootDataConnection::Tool.

Definition at line 184 of file RootTool.h.

                                    {
       TTree*     t = (TTree*)c->file()->Get( "Sections" );
       StatusCode sc( StatusCode::SUCCESS, true );
       StringVec  tmp;
       if ( t && !( sc = readBranch( t, "Sections", tmp, &RootTool::addEntry ) ).isSuccess() )
         return sc;
       else if ( refs() ) {
         analyzeMergeMap( tmp );
         if ( !( sc = readBranch( refs(), "Databases", dbs(), &RootTool::addEntry ) ).isSuccess() ) return sc;
         if ( !( sc = readBranch( refs(), "Containers", conts(), &RootTool::addEntry ) ).isSuccess() ) return sc;
         if ( !( sc = readBranch( refs(), "Links", links(), &RootTool::addEntry ) ).isSuccess() ) return sc;
         if ( !( sc = readBranch( refs(), "Params", params(), &RootTool::addParam ) ).isSuccess() ) return sc;
         return sc;
       }
       return StatusCode::FAILURE;
     }

template<class C , class F >

StatusCode Gaudi::RootTool::saveBranch	(	const char *	nam,
		C &	v,
		F	pmf
	)

inline

Helper function to save internal tables.

Definition at line 206 of file RootTool.h.

                                                           {
       Long64_t             i, n;
       string               val, typ = nam;
       StatusCode           sc = StatusCode::SUCCESS;
       TDirectory::TContext ctxt( c->file() );
       TBranch*             b = refs()->GetBranch( nam );
       if ( !b ) b = refs()->Branch( nam, 0, ( typ + "/C" ).c_str() );
       if ( b ) {
         for ( i = b->GetEntries(), n = Long64_t( v.size() ); i < n; ++i ) {
           val = ( this->*pmf )( v[size_t( i )] );
           b->SetAddress( (char*)val.c_str() );
           msgSvc() << MSG::VERBOSE << "Save Value[" << b->GetName() << "]:" << val << endmsg;
           if ( b->Fill() < 0 ) sc = StatusCode::FAILURE;
         }
         return sc;
       }
       return StatusCode::FAILURE;
     }

StatusCode Gaudi::RootTool::saveRefs ( )

inlineoverridevirtual

Save/update reference tables.

Implements Gaudi::RootDataConnection::Tool.

Definition at line 225 of file RootTool.h.

                                    {
       if ( refs() ) {
         if ( !saveBranch( "Databases", dbs(), &RootTool::getEntry ).isSuccess() ) return StatusCode::FAILURE;
         if ( !saveBranch( "Containers", conts(), &RootTool::getEntry ).isSuccess() ) return StatusCode::FAILURE;
         if ( !saveBranch( "Links", links(), &RootTool::getEntry ).isSuccess() ) return StatusCode::FAILURE;
         if ( !saveBranch( "Params", params(), &RootTool::getParam ).isSuccess() ) return StatusCode::FAILURE;
         return StatusCode::SUCCESS;
       }
       return StatusCode::FAILURE;
     }

The documentation for this class was generated from the following file:

RootCnv/src/RootTool.h

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
