Description: Base class converter for N-tuples and related classes. More...

#include <Root/RootStatCnv.h>

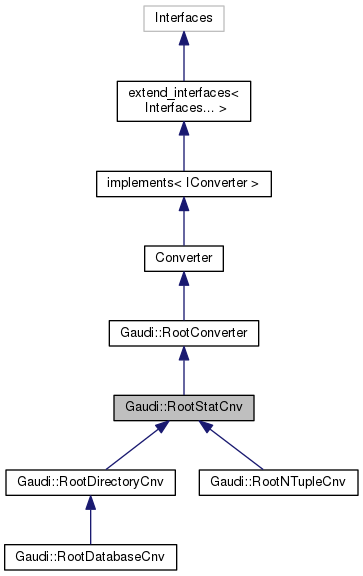

Inheritance diagram for Gaudi::RootStatCnv:

[legend]

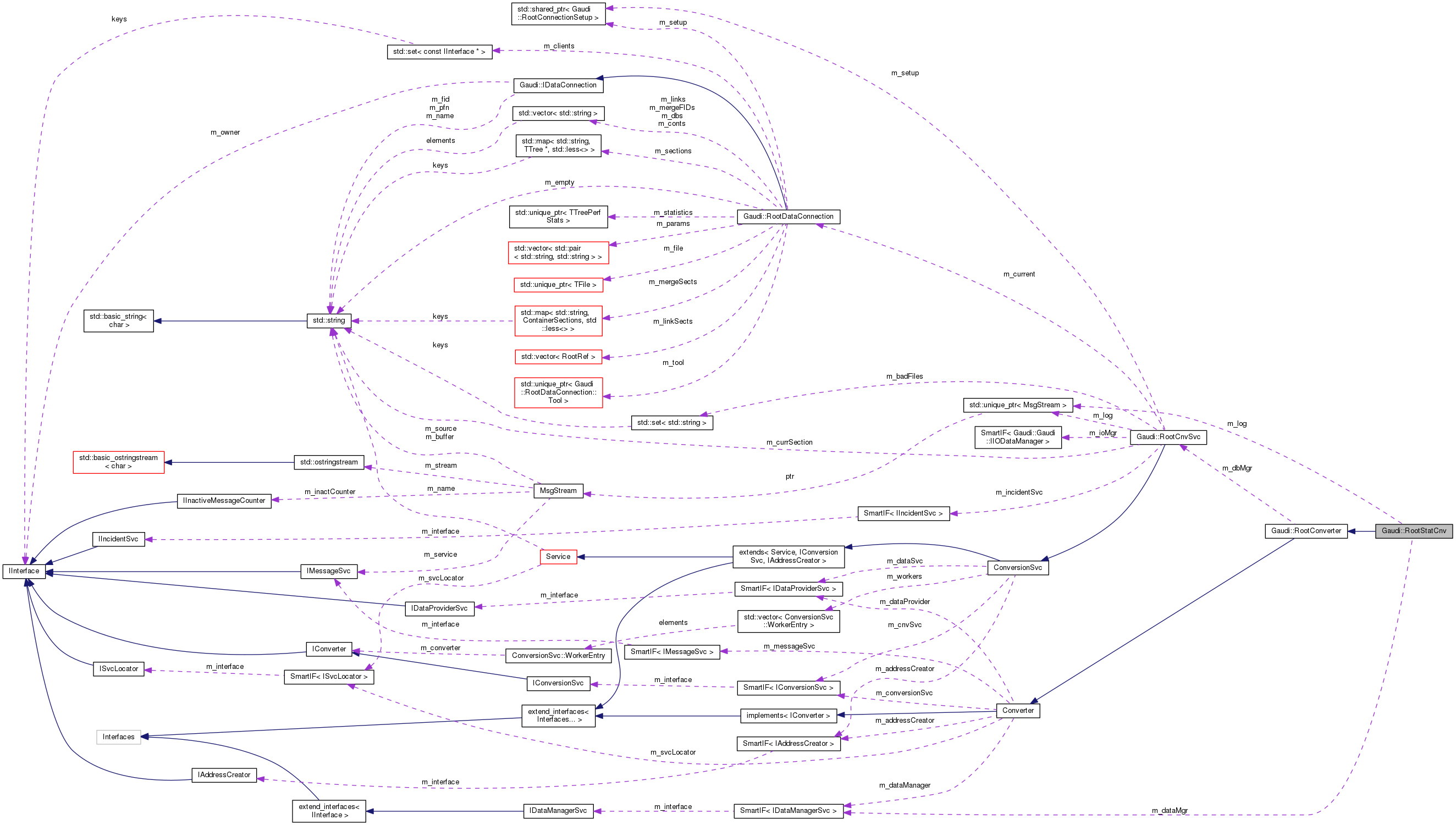

Collaboration diagram for Gaudi::RootStatCnv:

[legend]

Public Member Functions
	RootStatCnv (long typ, const CLID &clid, ISvcLocator svc, RootCnvSvc mgr)
	Initializing Constructor. More...

Public Member Functions inherited from Gaudi::RootConverter
	RootConverter (long typ, const CLID &clid, ISvcLocator svc, RootCnvSvc mgr)
	Initializing Constructor. More...

long	repSvcType () const override
	Retrieve the class type of the data store the converter uses. More...

StatusCode	createObj (IOpaqueAddress pAddr, DataObject &refpObj) override
	Converter overrides: Create transient object from persistent data. More...

StatusCode	fillObjRefs (IOpaqueAddress pAddr, DataObject pObj) override
	Resolve the references of the created transient object. More...

StatusCode	createRep (DataObject pObj, IOpaqueAddress &refpAddr) override
	Converter overrides: Convert the transient object to the requested representation. More...

StatusCode	fillRepRefs (IOpaqueAddress pAddr, DataObject pObj) override
	Resolve the references of the created transient object. More...

Public Member Functions inherited from Converter
StatusCode	initialize () override
	Initialize the converter. More...

StatusCode	finalize () override
	Initialize the converter. More...

StatusCode	setDataProvider (IDataProviderSvc *svc) override
	Set Data provider service. More...

SmartIF< IDataProviderSvc > &	dataProvider () const override
	Get Data provider service. More...

StatusCode	setConversionSvc (IConversionSvc *svc) override
	Set conversion service the converter is connected to. More...

SmartIF< IConversionSvc > &	conversionSvc () const override
	Get conversion service the converter is connected to. More...

StatusCode	setAddressCreator (IAddressCreator *creator) override
	Set address creator facility. More...

SmartIF< IAddressCreator > &	addressCreator () const override
	Retrieve address creator facility. More...

const CLID &	objType () const override
	Retrieve the class type of objects the converter produces. More...

virtual long	i_repSvcType () const
	Retrieve the class type of the data store the converter uses. More...

StatusCode	createObj (IOpaqueAddress pAddress, DataObject &refpObject) override
	Create the transient representation of an object. More...

StatusCode	fillObjRefs (IOpaqueAddress pAddress, DataObject pObject) override
	Resolve the references of the created transient object. More...

StatusCode	updateObj (IOpaqueAddress pAddress, DataObject refpObject) override
	Update the transient object from the other representation. More...

StatusCode	updateObjRefs (IOpaqueAddress pAddress, DataObject pObject) override
	Update the references of an updated transient object. More...

StatusCode	createRep (DataObject pObject, IOpaqueAddress &refpAddress) override
	Convert the transient object to the requested representation. More...

StatusCode	fillRepRefs (IOpaqueAddress pAddress, DataObject pObject) override
	Resolve the references of the converted object. More...

StatusCode	updateRep (IOpaqueAddress pAddress, DataObject pObject) override
	Update the converted representation of a transient object. More...

StatusCode	updateRepRefs (IOpaqueAddress pAddress, DataObject pObject) override
	Update the references of an already converted object. More...

	Converter (long storage_type, const CLID &class_type, ISvcLocator *svc=0)
	Standard Constructor. More...

template<class T >
StatusCode	service (const std::string &name, T *&psvc, bool createIf=false) const
	Access a service by name, creating it if it doesn't already exist. More...

template<class T >
StatusCode	service (const std::string &type, const std::string &name, T *&psvc) const
	Access a service by name, type creating it if it doesn't already exist. More...

SmartIF< IService >	service (const std::string &name, const bool createIf=true) const
	Return a pointer to the service identified by name (or "type/name") More...

Public Member Functions inherited from implements< IConverter >
void *	i_cast (const InterfaceID &tid) const override
	Implementation of IInterface::i_cast. More...

StatusCode	queryInterface (const InterfaceID &ti, void **pp) override
	Implementation of IInterface::queryInterface. More...

std::vector< std::string >	getInterfaceNames () const override
	Implementation of IInterface::getInterfaceNames. More...

	implements ()=default
	Default constructor. More...

	implements (const implements &)
	Copy constructor (zero the reference count) More...

implements &	operator= (const implements &)
	Assignment operator (do not touch the reference count). More...

unsigned long	addRef () override
	Reference Interface instance. More...

unsigned long	release () override
	Release Interface instance. More...

unsigned long	refCount () const override
	Current reference count. More...

Protected Member Functions
MsgStream &	log () const
	Helper to use mesage logger. More...

StatusCode	initialize () override
	Initialize converter object. More...

StatusCode	finalize () override
	Finalize converter object. More...

virtual const std::string	containerName (IRegistry *pDir) const
	Retrieve the name of the container a given object is placed into. More...

virtual const std::string	fileName (IRegistry *pReg) const
	Retrieve the name of the file a given object is placed into. More...

virtual const std::string	topLevel (IRegistry *pReg) const
	Retrieve the full path of the file a given object is placed into. More...

StatusCode	makeError (const std::string &msg, bool throw_exception=false) const
	Helper method to issue error messages. More...

StatusCode	saveDescription (const std::string &path, const std::string &ident, const std::string &desc, const std::string &opt, const CLID &clid)
	Save statistics object description. More...

Protected Member Functions inherited from Converter
SmartIF< ISvcLocator > &	serviceLocator () const
	Retrieve pointer to service locator. More...

SmartIF< IMessageSvc > &	msgSvc () const
	Retrieve pointer to message service. More...

SmartIF< IDataManagerSvc > &	dataManager () const
	Get Data Manager service. More...

Protected Attributes
SmartIF< IDataManagerSvc >	m_dataMgr
	Reference to data manager service to manipulate the TES. More...

std::unique_ptr< MsgStream >	m_log
	Reference to logger object. More...

Protected Attributes inherited from Gaudi::RootConverter
RootCnvSvc *	m_dbMgr
	Conversion service needed for proper operation to forward requests. More...

Protected Attributes inherited from implements< IConverter >
std::atomic_ulong	m_refCount
	Reference counter. More...

Additional Inherited Members
Public Types inherited from Converter
using	Factory = Gaudi::PluginService::Factory< IConverter (ISvcLocator )>

Public Types inherited from implements< IConverter >
using	base_class = implements< Interfaces... >
	Typedef to this class. More...

using	extend_interfaces_base = extend_interfaces< Interfaces... >
	Typedef to the base of this class. More...

using	iids = typename extend_interfaces_base::ext_iids

Public Types inherited from extend_interfaces< Interfaces... >
using	ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids... >::type
	take union of the ext_iids of all Interfaces... More...

Detailed Description

Description: Base class converter for N-tuples and related classes.

Author: M.Frank

Version: 1.0

Definition at line 30 of file RootStatCnv.h.

Constructor & Destructor Documentation

RootStatCnv::RootStatCnv	(	long	typ,
		const CLID &	clid,
		ISvcLocator *	svc,
		RootCnvSvc *	mgr
	)

Initializing Constructor.

Parameters

typ	[IN] Concrete storage type of the converter
clid	[IN] Class identifier of the object
svc	[IN] Pointer to service locator object

Returns: Reference to RootBaseCnv object

Definition at line 24 of file RootStatCnv.cpp.

25 : RootConverter( typ, clid, svc, mgr ) {}

Gaudi::RootConverter::RootConverter

RootConverter(long typ, const CLID &clid, ISvcLocator *svc, RootCnvSvc *mgr)

Initializing Constructor.

Definition: RootConverter.h:45

Member Function Documentation

const string RootStatCnv::containerName ( IRegistry * pDir ) const

protectedvirtual

Retrieve the name of the container a given object is placed into.

Parameters

pReg	[IN] Pointer to registry entry.

Returns: Name of the container the object should be put to.

Reimplemented in Gaudi::RootDatabaseCnv.

Definition at line 46 of file RootStatCnv.cpp.

                                                                {
   const string& path  = pReg->identifier();
   long          loc   = path.find( '/', 1 );
   string        local = "<local>";
   // local = "";
   if ( loc > 0 ) {
     loc = path.find( '/', ++loc );
     if ( loc > 0 ) { local += path.substr( loc ); }
   }
   // for(size_t i=0; i<local.length();++i)
   //  if ( !isalnum(local[i])) local[i] = '_';
   return local;
 }

const string RootStatCnv::fileName ( IRegistry * pReg ) const

protectedvirtual

Retrieve the name of the file a given object is placed into.

Parameters

pReg	[IN] Pointer to registry entry.

Returns: Name of the file the object should be put to.

Definition at line 61 of file RootStatCnv.cpp.

                                                           {
   string      path = topLevel( pReg );
   DataObject* pObj = nullptr;
   dataProvider()->retrieveObject( path, pObj );
   if ( pObj ) {
     NTuple::File* fptr = dynamic_cast<NTuple::File*>( pObj );
     if ( fptr ) { return fptr->name(); }
   }
   return "";
 }

StatusCode RootStatCnv::finalize ( )

overrideprotected

Finalize converter object.

Definition at line 39 of file RootStatCnv.cpp.

                                  {
   m_log.reset();
   m_dataMgr.reset();
   return RootConverter::finalize();
 }

StatusCode RootStatCnv::initialize ( )

overrideprotected

Initialize converter object.

Definition at line 28 of file RootStatCnv.cpp.

                                    {
   StatusCode sc = RootConverter::initialize();
   if ( sc.isSuccess() ) {
     m_dataMgr = dataProvider();
     if ( !m_dataMgr ) { return makeError( "Failed to access IDataManagerSvc interface." ); }
   }
   m_log.reset( new MsgStream( msgSvc(), System::typeinfoName( typeid( *this ) ) ) );
   return sc;
 }

MsgStream& Gaudi::RootStatCnv::log ( ) const

inlineprotected

Helper to use mesage logger.

Definition at line 38 of file RootStatCnv.h.

38 { return *m_log; }

Gaudi::RootStatCnv::m_log

std::unique_ptr< MsgStream > m_log

Reference to logger object.

Definition: RootStatCnv.h:35

StatusCode RootStatCnv::makeError	(	const std::string &	msg,
		bool	throw_exception = `false`
	)		const

protected

Helper method to issue error messages.

Parameters

msg	[IN] Text of the error message
throw_exc[IN]	If true throw an exception of type std::runtime_error

Returns: Status code indicating success or failure.

Definition at line 87 of file RootStatCnv.cpp.

                                                                               {
   if ( m_log ) {
     log() << MSG::ERROR << msg << endmsg;
   } else {
     MsgStream l( msgSvc(), "RootConverter" );
     l << MSG::ERROR << msg << endmsg;
   }
   if ( throw_exc ) {}
   return StatusCode::FAILURE;
 }

StatusCode RootStatCnv::saveDescription	(	const std::string &	path,
		const std::string &	ident,
		const std::string &	desc,
		const std::string &	opt,
		const CLID &	clid
	)

protected

Save statistics object description.

Parameters

path	[IN] Path of file to save the description on.
ident	[IN] Identifier of description to be saved.
desc	[IN] Description
opt	[IN] Optional description
guid	[IN] Object giud of described object
openMode	[IN] Mode of opening the file to save description

Returns: Status code indicating success or failure.

Definition at line 99 of file RootStatCnv.cpp.

                                                             {
   RootDataConnection* con    = nullptr;
   StatusCode          status = m_dbMgr->connectDatabase( path, IDataConnection::UPDATE, &con );
   if ( status.isSuccess() ) {
     TClass* cl = gROOT->GetClass( "Gaudi::RootNTupleDescriptor", kTRUE );
     if ( cl ) {
       RootNTupleDescriptor*                 ptr;
       std::unique_ptr<RootNTupleDescriptor> dsc( ptr = new RootNTupleDescriptor() );
       TBranch* b = con->getBranch( "##Descriptors", "GaudiStatisticsDescription", cl, ptr, 512, 0 );
       if ( b ) {
         dsc->description = desc;
         dsc->optional    = opt;
         dsc->container   = ident;
         dsc->clid        = clid;
         b->SetAddress( &ptr );
         int nb = b->Fill();
         if ( nb > 1 ) {
           log() << MSG::DEBUG << "Save description for " << ident << endmsg;
           return StatusCode::SUCCESS;
         }
       }
       return makeError( "Failed to access ROOT branch GaudiStatisticsDescription" );
     }
     return makeError( "Failed to access TClass RootNTupleDescriptor" );
   }
   return makeError( "Failed to access Tuple file:" + path );
 }

const string RootStatCnv::topLevel ( IRegistry * pReg ) const

protectedvirtual

Retrieve the full path of the file a given object is placed into.

Parameters

pReg	[IN] Pointer to registry entry.

Returns: Name of the file the object should be put to.

Definition at line 73 of file RootStatCnv.cpp.

                                                           {
   if ( pReg ) {
     string path = pReg->identifier();
     size_t idx  = path.find( '/', 1 );
     if ( idx != string::npos ) {
       idx = path.find( '/', idx + 1 );
       if ( idx != string::npos ) { path = path.substr( 0, idx ); }
       return path;
     }
   }
   return "";
 }

Member Data Documentation

SmartIF<IDataManagerSvc> Gaudi::RootStatCnv::m_dataMgr

protected

Reference to data manager service to manipulate the TES.

Definition at line 33 of file RootStatCnv.h.

std::unique_ptr<MsgStream> Gaudi::RootStatCnv::m_log

protected

Reference to logger object.

Definition at line 35 of file RootStatCnv.h.

The documentation for this class was generated from the following files:

RootCnv/RootCnv/RootStatCnv.h
RootCnv/src/RootStatCnv.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
