precedence::Duration Struct Reference

#include <src/PRGraph/PrecedenceRulesGraph.h>

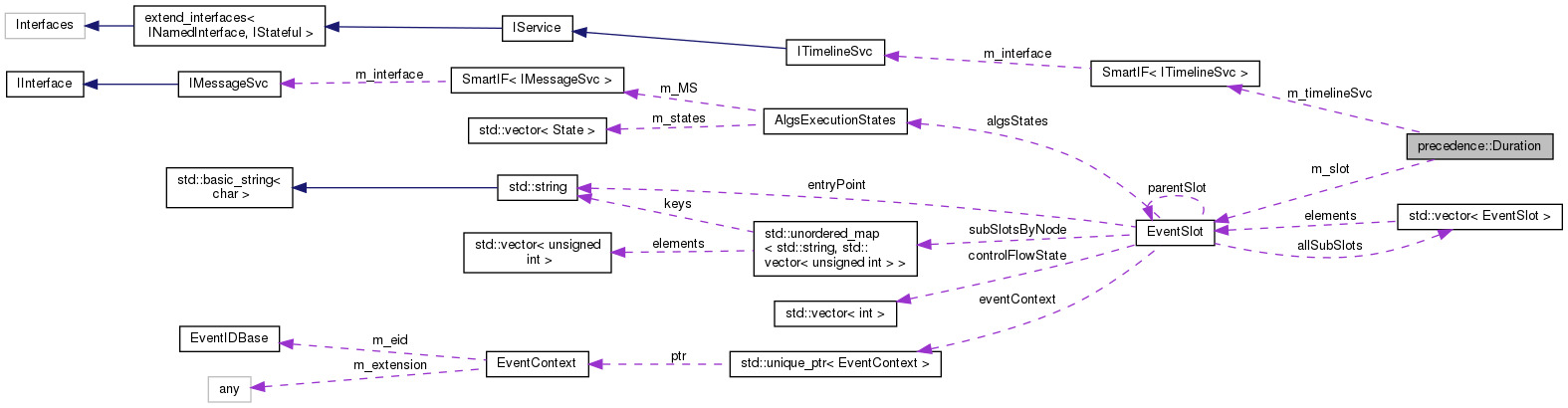

Collaboration diagram for precedence::Duration:

Public Member Functions
	Duration (const EventSlot &slot, SmartIF< ISvcLocator > &svcLocator)
std::string	operator() (const AlgoProps &props) const
std::string	operator() (const DecisionHubProps &) const
std::string	operator() (const DataProps &) const

Public Attributes
const EventSlot &	m_slot
SmartIF< ITimelineSvc >	m_timelineSvc

Detailed Description

Definition at line 338 of file PrecedenceRulesGraph.h.

Constructor & Destructor Documentation

Duration()

precedence::Duration::Duration ( const EventSlot &  slot, SmartIF< ISvcLocator > &  svcLocator  )

inline

Definition at line 339 of file PrecedenceRulesGraph.h.

                                                                        : m_slot( slot ) {
      SmartIF<IMessageSvc> msgSvc{svcLocator};
      MsgStream            log{msgSvc, "Duration.Getter"};

      // Figure if we can discover the algorithm timings
      m_timelineSvc = svcLocator->service<ITimelineSvc>( "TimelineSvc", false );
      if ( !m_timelineSvc.isValid() )
        log << MSG::WARNING << "Failed to locate the TimelineSvc: no way to add "
            << "algorithm's runtimes to the TTT dumps" << endmsg;
    }

Member Function Documentation

operator()() [1/3]

std::string precedence::Duration::operator() ( const AlgoProps &  props ) const

inline

Definition at line 350 of file PrecedenceRulesGraph.h.

                                                         {

      std::string time;

      if ( m_timelineSvc.isValid() ) {

        TimelineEvent te;
        te.algorithm = props.m_name;
        te.slot      = m_slot.eventContext->slot();
        te.event     = m_slot.eventContext->evt();

        m_timelineSvc->getTimelineEvent( te );
        time = std::to_string( std::chrono::duration_cast<std::chrono::nanoseconds>( te.end - te.start ).count() );
      }

      return time;
    }

operator()() [2/3]

std::string precedence::Duration::operator() ( const DecisionHubProps &  ) const

inline

Definition at line 368 of file PrecedenceRulesGraph.h.

{ return ""; }

operator()() [3/3]

std::string precedence::Duration::operator() ( const DataProps &  ) const

inline

Definition at line 370 of file PrecedenceRulesGraph.h.

{ return ""; }

Member Data Documentation

m_slot

const EventSlot& precedence::Duration::m_slot

Definition at line 372 of file PrecedenceRulesGraph.h.

m_timelineSvc

SmartIF<ITimelineSvc> precedence::Duration::m_timelineSvc

Definition at line 373 of file PrecedenceRulesGraph.h.

---

The documentation for this struct was generated from the following file:

• GaudiHive/src/PRGraph/PrecedenceRulesGraph.h
