Gaudi::RootTool Class Reference

Description: More...

#include <src/RootTool.h>

Inheritance diagram for Gaudi::RootTool:

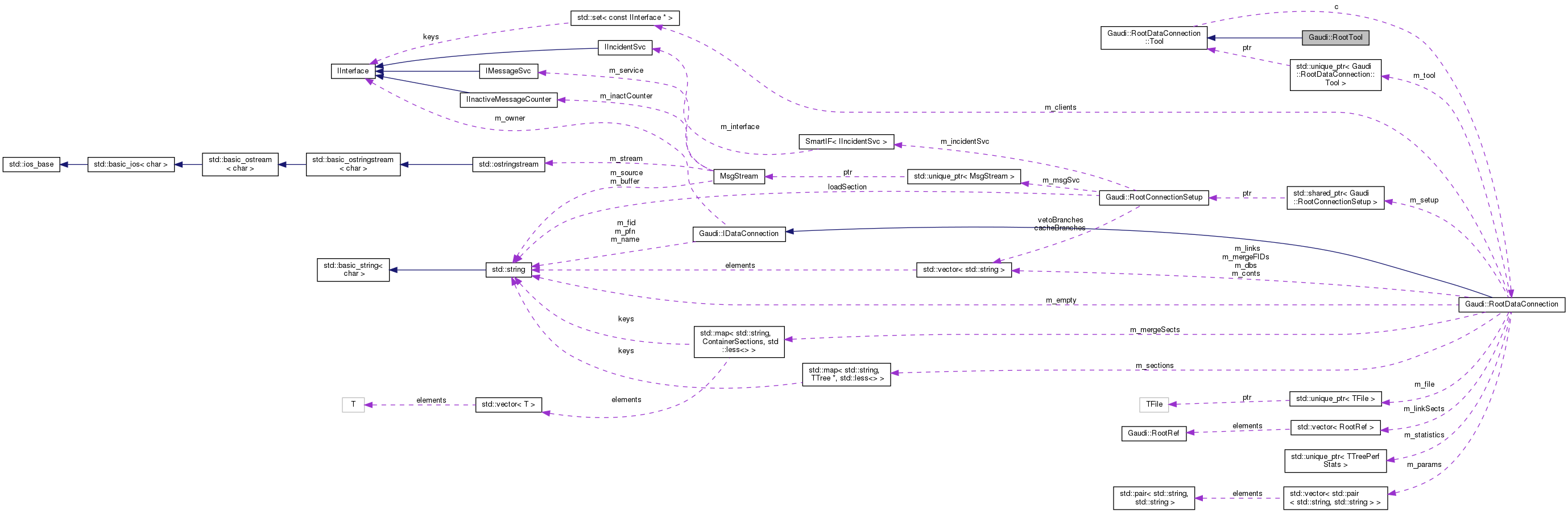

Collaboration diagram for Gaudi::RootTool:

Public Member Functions
	RootTool (RootDataConnection *con)
	Standard constructor. More...
TBranch *	getBranch (std::string_view section, std::string_view branch_name) override
	Access data branch by name: Get existing branch in read only mode. More...
int	loadRefs (std::string_view section, std::string_view cnt, unsigned long entry, RootObjectRefs &refs) override
	Load references object from file. More...
void	addParam (ParamMap &c, char *p)
	Helper function to read params table. More...
void	addEntry (StringVec &c, char *val)
	Helper function to read string tables. More...
template<class C , class F >
StatusCode	readBranch (TTree *t, const char *nam, C &v, F pmf)
	Helper function to read internal file tables. More...
bool	get (const string &dsc, pair< string, ContainerSection > &e)
	Analyze the Sections table entries. More...
void	analyzeMergeMap (StringVec &tmp)
	Build merge sections from the Sections table entries. More...
StatusCode	readRefs () override
	Read reference tables. More...
string	getEntry (const string &c)
	Helper function to convert string vectors to branch entries. More...
string	getParam (const pair< string, string > &p)
	Helper function to convert parameter vectors to branch entries. More...
template<class C , class F >
StatusCode	saveBranch (const char *nam, C &v, F pmf)
	Helper function to save internal tables. More...
StatusCode	saveRefs () override
	Save/update reference tables. More...
Public Member Functions inherited from Gaudi::RootDataConnection::Tool
TTree *	refs () const
StringVec &	dbs () const
StringVec &	conts () const
StringVec &	links () const
ParamMap &	params () const
MsgStream &	msgSvc () const
const std::string &	name () const
Sections &	sections () const
LinkSections &	linkSections () const
MergeSections &	mergeSections () const
virtual	~Tool ()=default
	Default destructor. More...
virtual RootRef	poolRef (size_t) const
	Internal overload to facilitate the access to POOL files. More...

Additional Inherited Members
Protected Types inherited from Gaudi::RootDataConnection::Tool
typedef RootDataConnection::StringVec	StringVec
typedef RootDataConnection::ParamMap	ParamMap
typedef RootDataConnection::Sections	Sections
typedef RootDataConnection::MergeSections	MergeSections
typedef RootDataConnection::LinkSections	LinkSections
typedef RootDataConnection::ContainerSection	ContainerSection
typedef RootDataConnection::ContainerSections	ContainerSections
Protected Attributes inherited from Gaudi::RootDataConnection::Tool
RootDataConnection *	c
	Pointer to containing data connection object. More...

Detailed Description

Description:

Concrete implementation to read objects from POOL files.

Author

M.Frank

Version

1.0

Concrete implementation to read objects from ROOT files.

Author

M.Frank

Version

1.0

Definition at line 26 of file RootTool.h.

Constructor & Destructor Documentation

RootTool()

Gaudi::RootTool::RootTool ( RootDataConnection *  con )

inline

Standard constructor.

Definition at line 29 of file RootTool.h.

{ c = con; }

Member Function Documentation

addEntry()

void Gaudi::RootTool::addEntry ( StringVec &  c, char *  val  )

inline

Helper function to read string tables.

Definition at line 112 of file RootTool.h.

{ c.push_back( val ); }

addParam()

void Gaudi::RootTool::addParam ( ParamMap &  c, char *  p  )

inline

Helper function to read params table.

Definition at line 104 of file RootTool.h.

                                          {
      char* q = strchr( p, '=' );
      if ( q ) {
        *q = 0;
        c.emplace_back( p, ++q );
      }
    }

analyzeMergeMap()

void Gaudi::RootTool::analyzeMergeMap ( StringVec &  tmp )

inline

Build merge sections from the Sections table entries.

Definition at line 159 of file RootTool.h.

                                           {
      LinkSections&                  ls = linkSections();
      MergeSections&                 ms = mergeSections();
      pair<string, ContainerSection> e;
      MsgStream&                     msg = msgSvc();
      RootRef                        r;
      int                            cnt = 0;
      ls.clear();
      ms.clear();
      msg << MSG::VERBOSE;
      r.dbase = r.container = r.link = r.clid = r.svc = r.entry = 0;
      for ( const auto& i : tmp ) {
        if ( get( i, e ) ) {
          msg << "Added Merge Section:" << e.first << endmsg;
          ms[e.first].push_back( e.second );
          if ( e.first == "Links" )
            r.link = e.second.start;
          else if ( e.first == "Containers" )
            r.container = e.second.start;
          else if ( e.first == "Databases" )
            r.dbase = e.second.start;
          else if ( e.first == "Params" )
            r.svc = e.second.start;
        } else if ( i == "[END-OF-SECTION]" ) {
          r.entry = cnt;
          if ( msg.isActive() ) {
            msg << "Link Section [" << r.entry << "," << ls.size() << "] -> D:" << r.dbase << " C:" << r.container
                << " L:" << r.link << " P:" << r.svc << endmsg;
          }
          ls.push_back( r );
          cnt++;
        }
      }
    }

get()

bool Gaudi::RootTool::get ( const string &  dsc, pair< string, ContainerSection > &  e  )

inline

Analyze the Sections table entries.

Definition at line 140 of file RootTool.h.

                                                                     {
      if ( dsc != "[END-OF-SECTION]" ) {
        size_t id1 = dsc.find( "[CNT=" );
        size_t id2 = dsc.find( "[START=" );
        size_t id3 = dsc.find( "[LEN=" );
        if ( id1 != string::npos && id2 != string::npos && id3 != string::npos ) {
          string cnt            = dsc.substr( id1 + 5, id2 - 1 - 5 );
          int    section_start  = std::stoi( dsc.substr( id2 + 7, id3 - id2 - 8 ) );
          int    section_length = std::stoi( dsc.substr( id3 + 5, dsc.find( "]", id3 + 5 ) - id3 - 5 ) );
          e.first               = cnt;
          e.second              = ContainerSection( section_start, section_length );
          return true;
        }
      }
      e.first.clear();
      e.second = ContainerSection( -1, -1 );
      return false;
    }

getBranch()

TBranch* Gaudi::RootTool::getBranch ( std::string_view  section, std::string_view  branch_name  )

inlineoverridevirtual

Access data branch by name: Get existing branch in read only mode.

Implements Gaudi::RootDataConnection::Tool.

Definition at line 31 of file RootTool.h.

                                                                                      {
      std::string n{branch_name};
      n += '.';
      for ( int i = 0, m = n.length() - 1; i < m; ++i )
        if ( !isalnum( n[i] ) ) n[i] = '_';
      TTree*   t = c->getSection( section );
      TBranch* b = t ? t->GetBranch( n.c_str() ) : nullptr;
      if ( !b ) b = t ? t->GetBranch( std::string{branch_name}.c_str() ) : nullptr;
      if ( b ) b->SetAutoDelete( kFALSE );
      return b;
    }

getEntry()

string Gaudi::RootTool::getEntry ( const string &  c )

inline

Helper function to convert string vectors to branch entries.

Definition at line 211 of file RootTool.h.

{ return c; }

getParam()

string Gaudi::RootTool::getParam ( const pair< string, string > &  p )

inline

Helper function to convert parameter vectors to branch entries.

Definition at line 213 of file RootTool.h.

{ return p.first + "=" + p.second; }

loadRefs()

int Gaudi::RootTool::loadRefs ( std::string_view  section, std::string_view  cnt, unsigned long  entry, RootObjectRefs &  refs  )

inlineoverridevirtual

Load references object from file.

Link manager:

Implements Gaudi::RootDataConnection::Tool.

Definition at line 43 of file RootTool.h.

                                                                                                                   {
      TBranch*        b     = getBranch( section, std::string{cnt} + "#R" );
      RootObjectRefs* prefs = &refs;
      if ( b ) {
        b->SetAddress( &prefs );
        int nb = b->GetEntry( entry );
        if ( nb >= 1 ) {
          const MergeSections& ms = c->mergeSections();
          if ( !ms.empty() ) {
            MsgStream& msg = msgSvc();
            msgSvc() << MSG::VERBOSE;
            pair<const RootRef*, const ContainerSection*> ls = c->getMergeSection( cnt, entry );
            if ( ls.first ) {
              if ( ls.first->dbase >= 0 ) {
                // Now patch the references and links 'en block' to be efficient
                // First the leafs from the TES
                if ( msg.isActive() ) {
                  msg << "Refs: LS [" << entry << "] -> " << ls.first->dbase << "," << ls.first->container << ","
                      << ls.first->link << "," << ls.first->entry << endmsg;
                }
                for ( size_t j = 0, n = refs.refs.size(); j < n; ++j ) {
                  RootRef& r = refs.refs[j];
                  if ( r.entry >= 0 && r.dbase >= 0 ) {
                    int db = r.dbase + ls.first->dbase;
                    if ( c->getDb( db ) == c->fid() ) {
                      if ( r.dbase ) r.dbase += ls.first->dbase;
                      if ( r.container ) r.container += ls.first->container;
                      if ( r.link ) r.link += ls.first->link;
                      const string& rc = c->getCont( r.container );
                      auto          k  = ms.find( rc );
                      if ( k != ms.end() ) {
                        const auto& cs = ( *k ).second;
                        r.entry        = ( ls.first->entry >= 0 && ls.first->entry < (int)cs.size() )
                                      ? cs[ls.first->entry].start + r.entry
                                      : -1;
                        if ( msg.isActive() ) {
                          msg << "Add link [" << r.entry << "," << ls.first->entry << "," << ls.first->container << ","
                              << r.container << "," << r.entry << "] to -> " << rc << endmsg;
                        }
                      } else {
                        msg << MSG::WARNING << c->fid() << "  [" << c->getDb( db ) << "] Evt:" << entry
                            << " Invalid link to " << rc << endmsg;
                        msg << MSG::VERBOSE;
                      }
                    }
                  }
                }
                std::for_each( std::begin( refs.links ), std::end( refs.links ),
                               [&]( int& i ) { i += ls.first->link; } );
              }
              return nb;
            }
            return -1;
          }
          return nb;
        }
      }
      return -1;
    }

readBranch()

template<class C , class F >

StatusCode Gaudi::RootTool::readBranch ( TTree *  t, const char *  nam, C &  v, F  pmf  )

inline

Helper function to read internal file tables.

Definition at line 115 of file RootTool.h.

                                                                    {
      char     text[2048];
      TBranch* b = t->GetBranch( nam );
      if ( b ) {
        TLeaf* l = b->GetLeaf( nam );
        if ( l ) {
          StatusCode sc = StatusCode::SUCCESS;
          b->SetAddress( text );
          msgSvc() << MSG::VERBOSE;
          for ( Long64_t i = 0, n = b->GetEntries(); i < n; ++i ) {
            if ( b->GetEntry( i ) > 0 ) {
              char* p = (char*)l->GetValuePointer();
              msgSvc() << "Add Value[" << b->GetName() << "]:" << p << endmsg;
              ( this->*pmf )( v, p );
            } else {
              sc = RootDataConnection::Status::ROOT_READ_ERROR;
            }
          }
          return sc;
        }
      }
      msgSvc() << MSG::ERROR << "Failed to read '" << nam << "' table." << endmsg;
      return RootDataConnection::Status::ROOT_READ_ERROR;
    }

readRefs()

StatusCode Gaudi::RootTool::readRefs ( )

inlineoverridevirtual

Read reference tables.

Implements Gaudi::RootDataConnection::Tool.

Definition at line 194 of file RootTool.h.

                                   {
      TTree*     t = (TTree*)c->file()->Get( "Sections" );
      StatusCode sc( StatusCode::SUCCESS, true );
      StringVec  tmp;
      if ( t && !( sc = readBranch( t, "Sections", tmp, &RootTool::addEntry ) ).isSuccess() )
        return sc;
      else if ( refs() ) {
        analyzeMergeMap( tmp );
        if ( !( sc = readBranch( refs(), "Databases", dbs(), &RootTool::addEntry ) ).isSuccess() ) return sc;
        if ( !( sc = readBranch( refs(), "Containers", conts(), &RootTool::addEntry ) ).isSuccess() ) return sc;
        if ( !( sc = readBranch( refs(), "Links", links(), &RootTool::addEntry ) ).isSuccess() ) return sc;
        if ( !( sc = readBranch( refs(), "Params", params(), &RootTool::addParam ) ).isSuccess() ) return sc;
        return sc;
      }
      return StatusCode::FAILURE;
    }

saveBranch()

template<class C , class F >

StatusCode Gaudi::RootTool::saveBranch ( const char *  nam, C &  v, F  pmf  )

inline

Helper function to save internal tables.

Definition at line 216 of file RootTool.h.

                                                          {
      Long64_t             i, n;
      string               val, typ = nam;
      StatusCode           sc = StatusCode::SUCCESS;
      TDirectory::TContext ctxt( c->file() );
      TBranch*             b = refs()->GetBranch( nam );
      if ( !b ) b = refs()->Branch( nam, 0, ( typ + "/C" ).c_str() );
      if ( b ) {
        for ( i = b->GetEntries(), n = Long64_t( v.size() ); i < n; ++i ) {
          val = ( this->*pmf )( v[size_t( i )] );
          b->SetAddress( (char*)val.c_str() );
          msgSvc() << MSG::VERBOSE << "Save Value[" << b->GetName() << "]:" << val << endmsg;
          if ( b->Fill() < 0 ) sc = StatusCode::FAILURE;
        }
        return sc;
      }
      return StatusCode::FAILURE;
    }

saveRefs()

StatusCode Gaudi::RootTool::saveRefs ( )

inlineoverridevirtual

Save/update reference tables.

Implements Gaudi::RootDataConnection::Tool.

Definition at line 235 of file RootTool.h.

                                   {
      if ( refs() ) {
        if ( !saveBranch( "Databases", dbs(), &RootTool::getEntry ).isSuccess() ) return StatusCode::FAILURE;
        if ( !saveBranch( "Containers", conts(), &RootTool::getEntry ).isSuccess() ) return StatusCode::FAILURE;
        if ( !saveBranch( "Links", links(), &RootTool::getEntry ).isSuccess() ) return StatusCode::FAILURE;
        if ( !saveBranch( "Params", params(), &RootTool::getParam ).isSuccess() ) return StatusCode::FAILURE;
        return StatusCode::SUCCESS;
      }
      return StatusCode::FAILURE;
    }

---

The documentation for this class was generated from the following file:

• RootCnv/src/RootTool.h
