TsDataSvc Class Reference

Data service base class. More...

#include <GaudiKernel/TsDataSvc.h>

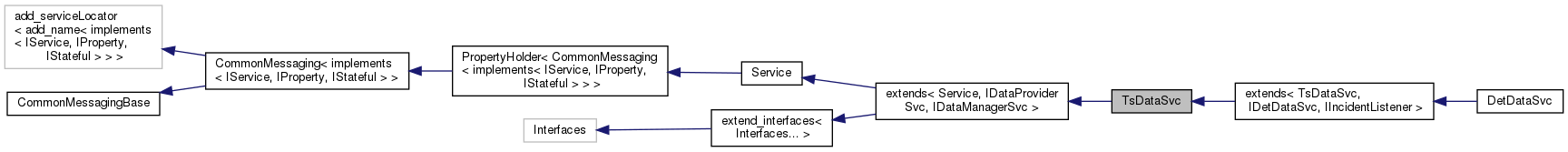

Inheritance diagram for TsDataSvc:

Collaboration diagram for TsDataSvc:

Public Member Functions
CLID	rootCLID () const override
	IDataManagerSvc: Accessor for root event CLID. More...
const std::string &	rootName () const override
	IDataManagerSvc: Accessor for root event name. More...
StatusCode	registerAddress (std::string_view fullPath, IOpaqueAddress *pAddress) override
	IDataManagerSvc: Register object address with the data store. More...
StatusCode	registerAddress (IRegistry *parentObj, std::string_view objectPath, IOpaqueAddress *pAddress) override
	IDataManagerSvc: Register object address with the data store. More...
StatusCode	unregisterAddress (std::string_view fullPath) override
	IDataManagerSvc: Unregister object address from the data store. More...
StatusCode	unregisterAddress (IRegistry *pParent, std::string_view objPath) override
	IDataManagerSvc: Unregister object address from the data store. More...
StatusCode	objectLeaves (const DataObject *pObject, std::vector< IRegistry * > &refLeaves) override
	IDataManagerSvc: Explore the object store: retrieve all leaves attached to the object. More...
StatusCode	objectLeaves (const IRegistry *pRegistry, std::vector< IRegistry * > &refLeaves) override
	IDataManagerSvc: Explore the object store: retrieve all leaves attached to the object. More...
StatusCode	objectParent (const DataObject *pObject, IRegistry *&refpParent) override
	IDataManagerSvc: Explore the object store: retrieve the object's parent. More...
StatusCode	objectParent (const IRegistry *pRegistry, IRegistry *&refpParent) override
	IDataManagerSvc: Explore the object store: retrieve the object's parent. More...
StatusCode	clearSubTree (std::string_view sub_tree_path) override
	IDataManagerSvc: Remove all data objects below the sub tree identified by its full path name. More...
StatusCode	clearSubTree (DataObject *pObject) override
	IDataManagerSvc: Remove all data objects below the sub tree identified by the object. More...
StatusCode	clearStore () override
	IDataManagerSvc: Remove all data objects in the data store. More...
StatusCode	traverseSubTree (std::string_view sub_tree_path, IDataStoreAgent *pAgent) override
	IDataManagerSvc: Analyze by traversing all data objects below the sub tree identified by its full path name. More...
StatusCode	traverseSubTree (DataObject *pObject, IDataStoreAgent *pAgent) override
	IDataManagerSvc: Analyze by traversing all data objects below the sub tree. More...
StatusCode	traverseTree (IDataStoreAgent *pAgent) override
	IDataManagerSvc: Analyze by traversing all data objects in the data store. More...
StatusCode	setRoot (std::string root_name, DataObject *pRootObj) override
	Initialize data store for new event by giving new event path and root object. More...
virtual StatusCode	i_setRoot (std::string root_name, DataObject *pRootObj)
	Initialize data store for new event by giving new event path and root object. More...
StatusCode	i_setRoot (DataObject *pRootObj)
StatusCode	setRoot (std::string root_path, IOpaqueAddress *pRootAddr) override
	Initialize data store for new event by giving new event path and address of root object. More...
virtual StatusCode	i_setRoot (std::string root_path, IOpaqueAddress *pRootAddr)
	Initialize data store for new event by giving new event path and address of root object. More...
StatusCode	i_setRoot (IOpaqueAddress *pRootAddr)
StatusCode	setDataLoader (IConversionSvc *svc, IDataProviderSvc *dpsvc=nullptr) override
	IDataManagerSvc: IDataManagerSvc: Pass a default data loader to the service and optionally a data provider. More...
StatusCode	addPreLoadItem (const DataStoreItem &item) override
	Add an item to the preload list. More...
StatusCode	removePreLoadItem (const DataStoreItem &item) override
	Remove an item from the preload list. More...
StatusCode	resetPreLoad () override
	Clear the preload list. More...
virtual StatusCode	preLoad (int depth, int load_depth, DataObject *pObject)
	Execute one level of preloading and recursively load until the final level is reached. More...
StatusCode	preLoad () override
	load all preload items of the list More...
StatusCode	registerObject (std::string_view parentPath, std::string_view objPath, DataObject *pObject) override
	Register object with the data store. More...
StatusCode	registerObject (DataObject *parentObj, std::string_view objPath, DataObject *pObject) override
	Register object with the data store. More...
StatusCode	unregisterObject (std::string_view fullPath) override
	Unregister object from the data store. More...
StatusCode	unregisterObject (DataObject *pObject) override
	Unregister object from the data store. More...
StatusCode	unregisterObject (DataObject *pObject, std::string_view objectPath) override
	Unregister object from the data store. More...
StatusCode	retrieveObject (IRegistry *pDirectory, std::string_view path, DataObject *&pObject) override
	Retrieve object from data store. More...
StatusCode	findObject (std::string_view fullPath, DataObject *&pObject) override
	Find object identified by its full path in the data store. More...
StatusCode	findObject (IRegistry *pDirectory, std::string_view path, DataObject *&pObject) override
	Find object identified by its full path in the data store. More...
StatusCode	linkObject (IRegistry *from, std::string_view objPath, DataObject *to) override
	Add a link to another object. More...
StatusCode	linkObject (std::string_view fullPath, DataObject *to) override
	Add a link to another object. More...
StatusCode	unlinkObject (IRegistry *from, std::string_view objPath) override
	Remove a link to another object. More...
StatusCode	unlinkObject (DataObject *fromObj, std::string_view objPath) override
	Remove a link to another object. More...
StatusCode	unlinkObject (std::string_view fullPath) override
	Remove a link to another object. More...
StatusCode	updateObject (IRegistry *pDirectory) override
	Update object identified by its directory entry. More...
StatusCode	updateObject (DataObject *toUpdate) override
	Update object. More...
StatusCode	initialize () override
	Service initialization. More...
StatusCode	reinitialize () override
	Service initialization. More...
StatusCode	finalize () override
	Service initialization. More...
	TsDataSvc (const TsDataSvc &)=delete
	no copy constructor More...
TsDataSvc &	operator= (const TsDataSvc &)=delete
	no assignment operator More...
virtual StatusCode	registerAddress (std::string_view fullPath, IOpaqueAddress *pAddress)=0
	Register object address with the data store. More...
StatusCode	registerAddress (DataObject *parentObj, std::string_view objectPath, IOpaqueAddress *pAddress)
	Register object address with the data store. More...
virtual StatusCode	registerAddress (IRegistry *parentObj, std::string_view objectPath, IOpaqueAddress *pAddress)=0
	Register object address with the data store. More...
virtual StatusCode	unregisterAddress (std::string_view fullPath)=0
	Unregister object address from the data store. More...
StatusCode	unregisterAddress (DataObject *pParent, std::string_view objPath)
	Unregister object address from the data store. More...
virtual StatusCode	unregisterAddress (IRegistry *pParent, std::string_view objPath)=0
	Unregister object address from the data store. More...
StatusCode	registerObject (std::string_view fullPath, DataObject *pObject)
	Register object with the data store. More...
virtual StatusCode	registerObject (std::string_view parentPath, std::string_view objectPath, DataObject *pObject)=0
	Register object with the data store. More...
StatusCode	registerObject (std::string_view parentPath, int item, DataObject *pObject)
	Register object with the data store. More...
virtual StatusCode	registerObject (DataObject *parentObj, std::string_view objectPath, DataObject *pObject)=0
	Register object with the data store. More...
StatusCode	registerObject (DataObject *parentObj, int item, DataObject *pObject)
	Register object with the data store. More...
virtual StatusCode	retrieveObject (IRegistry *pDirectory, std::string_view path, DataObject *&pObject)=0
	Retrieve object identified by its directory entry. More...
StatusCode	retrieveObject (std::string_view fullPath, DataObject *&pObject)
	Retrieve object identified by its full path from the data store. More...
StatusCode	retrieveObject (std::string_view parentPath, std::string_view objectPath, DataObject *&pObject)
	Retrieve object from data store. More...
StatusCode	retrieveObject (std::string_view parentPath, int item, DataObject *&pObject)
	Retrieve object from data store. More...
StatusCode	retrieveObject (DataObject *parentObj, std::string_view objectPath, DataObject *&pObject)
	Retrieve object from data store. More...
StatusCode	retrieveObject (DataObject *parentObj, int item, DataObject *&pObject)
	Retrieve object from data store. More...
virtual StatusCode	findObject (IRegistry *pDirectory, std::string_view path, DataObject *&pObject)=0
	Find object identified by its directory entry. More...
virtual StatusCode	findObject (std::string_view fullPath, DataObject *&pObject)=0
	Find object identified by its full path in the data store. More...
StatusCode	findObject (std::string_view parentPath, std::string_view objectPath, DataObject *&pObject)
	Find object identified by its parent object and the path to the object relative to the parent. More...
StatusCode	findObject (std::string_view parentPath, int item, DataObject *&pObject)
	Find object identified by its parent object and an integer identifier in the data store. More...
StatusCode	findObject (DataObject *parentObj, std::string_view objectPath, DataObject *&pObject)
	Find object identified by its parent object and the path to the object relative to the parent. More...
StatusCode	findObject (DataObject *parentObj, int item, DataObject *&pObject)
	Find object identified by its parent object and an integer identifier in the data store. More...
virtual StatusCode	linkObject (IRegistry *from, std::string_view objPath, DataObject *toObj)=0
	Add a link to another object. More...
StatusCode	linkObject (std::string_view fromPath, std::string_view objPath, DataObject *toObj)
	Add a link to another object. More...
StatusCode	linkObject (DataObject *fromObj, std::string_view objPath, DataObject *toObj)
	Add a link to another object. More...
virtual StatusCode	linkObject (std::string_view fullPath, DataObject *toObj)=0
	Add a link to another object. More...
virtual StatusCode	unlinkObject (IRegistry *from, std::string_view objPath)=0
	Remove a link to another object. More...
StatusCode	unlinkObject (std::string_view fromPath, std::string_view objPath)
	Remove a link to another object. More...
virtual StatusCode	unlinkObject (DataObject *fromObj, std::string_view objPath)=0
	Remove a link to another object. More...
virtual StatusCode	unlinkObject (std::string_view fullPath)=0
	Remove a link to another object. More...
Public Member Functions inherited from extends< Service, IDataProviderSvc, IDataManagerSvc >
void *	i_cast (const InterfaceID &tid) const override
	Implementation of IInterface::i_cast. More...
StatusCode	queryInterface (const InterfaceID &ti, void **pp) override
	Implementation of IInterface::queryInterface. More...
std::vector< std::string >	getInterfaceNames () const override
	Implementation of IInterface::getInterfaceNames. More...
Public Member Functions inherited from Service
const std::string &	name () const override
	Retrieve name of the service. More...
StatusCode	configure () override
StatusCode	initialize () override
StatusCode	start () override
StatusCode	stop () override
StatusCode	finalize () override
StatusCode	terminate () override
Gaudi::StateMachine::State	FSMState () const override
Gaudi::StateMachine::State	targetFSMState () const override
StatusCode	reinitialize () override
StatusCode	restart () override
StatusCode	sysInitialize () override
	Initialize Service. More...
StatusCode	sysStart () override
	Initialize Service. More...
StatusCode	sysStop () override
	Initialize Service. More...
StatusCode	sysFinalize () override
	Finalize Service. More...
StatusCode	sysReinitialize () override
	Re-initialize the Service. More...
StatusCode	sysRestart () override
	Re-initialize the Service. More...
	Service (std::string name, ISvcLocator *svcloc)
	Standard Constructor. More...
SmartIF< ISvcLocator > &	serviceLocator () const override
	Retrieve pointer to service locator. More...
StatusCode	setProperties ()
	Method for setting declared properties to the values specified for the job. More...
template<class T >
StatusCode	service (const std::string &name, const T *&psvc, bool createIf=true) const
	Access a service by name, creating it if it doesn't already exist. More...
template<class T >
StatusCode	service (const std::string &name, T *&psvc, bool createIf=true) const
template<typename IFace = IService>
SmartIF< IFace >	service (const std::string &name, bool createIf=true) const
template<class T >
StatusCode	service (const std::string &svcType, const std::string &svcName, T *&psvc) const
	Access a service by name and type, creating it if it doesn't already exist. More...
template<class T >
StatusCode	declareTool (ToolHandle< T > &handle, std::string toolTypeAndName, bool createIf=true)
	Declare used tool. More...
SmartIF< IAuditorSvc > &	auditorSvc () const
	The standard auditor service.May not be invoked before sysInitialize() has been invoked. More...
Public Member Functions inherited from PropertyHolder< CommonMessaging< implements< IService, IProperty, IStateful > > >
	PropertyHolder ()=default
Gaudi::Details::PropertyBase &	declareProperty (Gaudi::Details::PropertyBase &prop)
	Declare a property. More...
Gaudi::Details::PropertyBase *	declareProperty (const std::string &name, TYPE &value, const std::string &doc="none")
	Helper to wrap a regular data member and use it as a regular property. More...
Gaudi::Details::PropertyBase *	declareProperty (const std::string &name, Gaudi::Property< TYPE, VERIFIER, HANDLERS > &prop, const std::string &doc="none")
	Declare a PropertyBase instance setting name and documentation. More...
Gaudi::Details::PropertyBase *	declareRemoteProperty (const std::string &name, IProperty *rsvc, const std::string &rname="")
	Declare a remote property. More...
StatusCode	setProperty (const Gaudi::Details::PropertyBase &p) override
	set the property form another property More...
StatusCode	setProperty (const std::string &s) override
	set the property from the formatted string More...
StatusCode	setProperty (const std::string &n, const std::string &v) override
	set the property from name and the value More...
StatusCode	setProperty (const std::string &name, const TYPE &value)
	set the property form the value More...
StatusCode	getProperty (Gaudi::Details::PropertyBase *p) const override
	get the property More...
const Gaudi::Details::PropertyBase &	getProperty (const std::string &name) const override
	get the property by name More...
StatusCode	getProperty (const std::string &n, std::string &v) const override
	convert the property to the string More...
const std::vector< Gaudi::Details::PropertyBase * > &	getProperties () const override
	get all properties More...
bool	hasProperty (const std::string &name) const override
	Return true if we have a property with the given name. More...
	PropertyHolder (const PropertyHolder &)=delete
PropertyHolder &	operator= (const PropertyHolder &)=delete
Public Member Functions inherited from CommonMessaging< implements< IService, IProperty, IStateful > >
MSG::Level	msgLevel () const
	get the cached level (originally extracted from the embedded MsgStream) More...
bool	msgLevel (MSG::Level lvl) const
	get the output level from the embedded MsgStream More...
Public Member Functions inherited from CommonMessagingBase
virtual	~CommonMessagingBase ()=default
	Virtual destructor. More...
const SmartIF< IMessageSvc > &	msgSvc () const
	The standard message service. More...
MsgStream &	msgStream () const
	Return an uninitialized MsgStream. More...
MsgStream &	msgStream (const MSG::Level level) const
	Predefined configurable message stream for the efficient printouts. More...
MsgStream &	always () const
	shortcut for the method msgStream(MSG::ALWAYS) More...
MsgStream &	fatal () const
	shortcut for the method msgStream(MSG::FATAL) More...
MsgStream &	err () const
	shortcut for the method msgStream(MSG::ERROR) More...
MsgStream &	error () const
	shortcut for the method msgStream(MSG::ERROR) More...
MsgStream &	warning () const
	shortcut for the method msgStream(MSG::WARNING) More...
MsgStream &	info () const
	shortcut for the method msgStream(MSG::INFO) More...
MsgStream &	debug () const
	shortcut for the method msgStream(MSG::DEBUG) More...
MsgStream &	verbose () const
	shortcut for the method msgStream(MSG::VERBOSE) More...
MsgStream &	msg () const
	shortcut for the method msgStream(MSG::INFO) More...

Protected Member Functions
bool	checkRoot ()
	Check if root path is valid. More...
virtual IConversionSvc *	getDataLoader (IRegistry *pReg)
	Retrieve customizable data loader according to registry entry to be retrieved. More...
virtual DataObject *	createDefaultObject () const
	Create default objects in case forced creation of leaves is requested. More...
virtual StatusCode	loadObject (IRegistry *pNode)
	Invoke Persistency service to create transient object from its persistent representation. More...
virtual StatusCode	loadObject (IConversionSvc *pLoader, IRegistry *pNode)
	Invoke Persistency service to create transient object from its persistent representation. More...
StatusCode	retrieveEntry (DataSvcHelpers::RegistryEntry *pNode, std::string_view path, DataSvcHelpers::RegistryEntry *&pEntry)
	Retrieve registry entry from store. More...
DataObject *	handleDataFault (IRegistry *pReg, std::string_view path={})
	Invoke data fault handling if enabled. More...
Protected Member Functions inherited from Service
	~Service () override
	Standard Destructor. More...
int	outputLevel () const
	get the Service's output level More...
Protected Member Functions inherited from PropertyHolder< CommonMessaging< implements< IService, IProperty, IStateful > > >
Gaudi::Details::PropertyBase *	property (const std::string &name) const
Protected Member Functions inherited from CommonMessaging< implements< IService, IProperty, IStateful > >
MSG::Level	setUpMessaging () const
	Set up local caches. More...
MSG::Level	resetMessaging ()
	Reinitialize internal states. More...
void	updateMsgStreamOutputLevel (int level)
	Update the output level of the cached MsgStream. More...

Protected Attributes
tsDataSvcMutex	m_accessMutex
	Mutex to protect access to the store. More...
Protected Attributes inherited from Service
Gaudi::StateMachine::State	m_state = Gaudi::StateMachine::OFFLINE
	Service state. More...
Gaudi::StateMachine::State	m_targetState = Gaudi::StateMachine::OFFLINE
	Service state. More...
Gaudi::Property< int >	m_outputLevel {this, "OutputLevel", MSG::NIL, "output level"}
Gaudi::Property< bool >	m_auditInit {this, "AuditServices", false, " unused"}
Gaudi::Property< bool >	m_auditorInitialize {this, "AuditInitialize", false, "trigger auditor on initialize()"}
Gaudi::Property< bool >	m_auditorStart {this, "AuditStart", false, "trigger auditor on start()"}
Gaudi::Property< bool >	m_auditorStop {this, "AuditStop", false, "trigger auditor on stop()"}
Gaudi::Property< bool >	m_auditorFinalize {this, "AuditFinalize", false, "trigger auditor on finalize()"}
Gaudi::Property< bool >	m_auditorReinitialize {this, "AuditReinitialize", false, "trigger auditor on reinitialize()"}
Gaudi::Property< bool >	m_auditorRestart {this, "AuditRestart", false, "trigger auditor on restart()"}
SmartIF< IAuditorSvc >	m_pAuditorSvc
	Auditor Service. More...

Private Attributes
IConversionSvc *	m_dataLoader = nullptr
	Pointer to data loader service. More...
IIncidentSvc *	m_incidentSvc = nullptr
	Pointer to incident service. More...
Gaudi::Property< CLID >	m_rootCLID {this, "RootCLID", 110 , "CLID of root entry"}
Gaudi::Property< std::string >	m_rootName {this, "RootName", "/Event", "name of root entry"}
Gaudi::Property< bool >	m_forceLeaves {this, "ForceLeaves", false, "force creation of default leaves on registerObject"}
Gaudi::Property< std::vector< std::string > >	m_inhibitPathes {this, "InhibitPathes", {}, "inhibited leaves"}
Gaudi::Property< bool >	m_enableFaultHdlr
Gaudi::Property< std::string >	m_faultName {this, "DataFaultName", "DataFault", "Name of the data fault incident"}
Gaudi::Property< bool >	m_enableAccessHdlr
Gaudi::Property< std::string >	m_accessName {this, "DataAccessName", "DataAccess", "Name of the data access incident"}
std::vector< DataStoreItem >	m_preLoads
	Items to be pre-loaded. More...
std::unique_ptr< DataSvcHelpers::RegistryEntry >	m_root
	Pointer to root entry. More...

Additional Inherited Members
Public Types inherited from extends< Service, IDataProviderSvc, IDataManagerSvc >
using	base_class = extends
	Typedef to this class. More...
using	extend_interfaces_base = extend_interfaces< Interfaces... >
	Typedef to the base of this class. More...
Public Types inherited from Service
using	Factory = Gaudi::PluginService::Factory< IService *(const std::string &, ISvcLocator *)>
Public Types inherited from PropertyHolder< CommonMessaging< implements< IService, IProperty, IStateful > > >
using	PropertyHolderImpl = PropertyHolder< CommonMessaging< implements< IService, IProperty, IStateful > > >
	Typedef used to refer to this class from derived classes, as in. More...
Public Types inherited from CommonMessaging< implements< IService, IProperty, IStateful > >
using	base_class = CommonMessaging
Public Types inherited from extend_interfaces< Interfaces... >
using	ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids... >::type
	take union of the ext_iids of all Interfaces... More...

Detailed Description

Data service base class.

A data service manages the transient data stores and implements the IDataProviderSvc and IDataManagerSvc interfaces.

The accessor methods are protected with a lock. This is done having in mind the DetDataSvc and the retrieval of subdetectors in a multithreaded FW. This solution cannot solve the problem of having different conditions set available simultaneously but it is the simplest solution to allow multiple algorithms running concurrently to access detector components. In first approximation, since for the data we have the whiteboard, we protect only the retrieval of objects.

Author

Markus Frank

Sebastien Ponce

Danilo Piparo

Version

1.1

Definition at line 76 of file TsDataSvc.h.

Constructor & Destructor Documentation

TsDataSvc()

TsDataSvc::TsDataSvc ( const TsDataSvc &  )

delete

no copy constructor

Member Function Documentation

addPreLoadItem()

StatusCode TsDataSvc::addPreLoadItem ( const DataStoreItem &  item )

override

Add an item to the preload list.

Definition at line 766 of file TsDataSvc.cpp.

                                                                {
  auto i = std::find( m_preLoads.begin(), m_preLoads.end(), item );
  if ( i == m_preLoads.end() ) m_preLoads.push_back( item );
  return StatusCode::SUCCESS;
}

checkRoot()

bool TsDataSvc::checkRoot ( )

inlineprotected

Check if root path is valid.

Definition at line 282 of file TsDataSvc.h.

{ return 0 != m_root; }

clearStore()

StatusCode TsDataSvc::clearStore ( )

override

IDataManagerSvc: Remove all data objects in the data store.

Definition at line 114 of file TsDataSvc.cpp.

                                 {
  if ( !checkRoot() ) return Status::INVALID_ROOT;
  m_root.reset();
  return StatusCode::SUCCESS;
}

clearSubTree() [1/2]

StatusCode TsDataSvc::clearSubTree ( std::string_view  sub_tree_path )

override

IDataManagerSvc: Remove all data objects below the sub tree identified by its full path name.

Definition at line 88 of file TsDataSvc.cpp.

                                                                 {
  DataObject* pObject = nullptr;
  StatusCode  status  = findObject( sub_tree_path, pObject );
  if ( !status.isSuccess() ) return status;
  RegEntry* node_entry = CAST_REGENTRY( RegEntry*, pObject->registry() );
  if ( !node_entry ) return Status::INVALID_OBJECT;
  RegEntry* parent = node_entry->parentEntry();
  if ( !parent ) return Status::INVALID_PARENT;
  parent->remove( node_entry );
  return StatusCode::SUCCESS;
}

clearSubTree() [2/2]

StatusCode TsDataSvc::clearSubTree ( DataObject *  pObject )

override

IDataManagerSvc: Remove all data objects below the sub tree identified by the object.

Definition at line 103 of file TsDataSvc.cpp.

                                                        {
  if ( !checkRoot() ) return Status::INVALID_ROOT;
  RegEntry* entry = CAST_REGENTRY( RegEntry*, pObject->registry() );
  if ( !entry ) return Status::INVALID_OBJECT;
  RegEntry* parent = entry->parentEntry();
  if ( !parent ) return Status::INVALID_PARENT;
  parent->remove( entry );
  return StatusCode::SUCCESS;
}

createDefaultObject()

DataObject * TsDataSvc::createDefaultObject ( ) const

protectedvirtual

Create default objects in case forced creation of leaves is requested.

Definition at line 869 of file TsDataSvc.cpp.

{ return new DataObject(); }

finalize()

StatusCode TsDataSvc::finalize ( )

override

Service initialization.

Service initialisation.

Definition at line 850 of file TsDataSvc.cpp.

                               {
  // Nothing to do: just call base class initialisation
  setDataLoader( nullptr ).ignore();
  resetPreLoad().ignore();
  clearStore().ignore();
  if ( m_incidentSvc ) {
    m_incidentSvc->release();
    m_incidentSvc = nullptr;
  }
  return Service::finalize();
}

findObject() [1/8]

virtual StatusCode IDataProviderSvc::findObject

Find object identified by its directory entry.

The result will be returned in the second argument. In case the object is not present the pointer will be set to NULL. ** FASTEST ACCESS TO THE DATA STORE **

Parameters

pDirectory	Pointer to the object.
path	String with relative path to directory. Ideally ""!
pObject	Reference to the pointer of the object to be returned.

Returns

Status code indicating success or failure.

findObject() [2/8]

virtual StatusCode IDataProviderSvc::findObject

Find object identified by its full path in the data store.

The result will be returned in the second argument. In case the object is not present the pointer will be set to NULL.

Parameters

fullPath	Path name of the object.
pObject	Pointer to the object to be connected.

Returns

Status code indicating success or failure.

findObject() [3/8]

StatusCode IDataProviderSvc::findObject

inline

Find object identified by its parent object and the path to the object relative to the parent.

The result will be returned in the second argument. In case the object is not present the pointer will be set to NULL.

Parameters

parentPath	Path to parent node of the object.
objectPath	Relative path name of the object.
pObject	Reference to the pointer of the object to be returned.

Returns

Status code indicating success or failure.

Definition at line 334 of file IDataProviderSvc.h.

                                                                                                      {
    DataObject* parent = nullptr;
    StatusCode  status = findObject( parentPath, parent );
    return status.isSuccess() ? findObject( parent, objectPath, pObject ) : status;
  }

findObject() [4/8]

StatusCode IDataProviderSvc::findObject

inline

Find object identified by its parent object and an integer identifier in the data store.

In case the object is not present the pointer will be set to NULL.

Parameters

parentPath	Path to parent node of the object.
item	Item identifier.
pObject	Reference to the pointer of the object to be returned.

Returns

Status code indicating success or failure.

Definition at line 348 of file IDataProviderSvc.h.

                                                                                     {
    return findObject( parentPath, itemToPath( item ), pObject );
  }

findObject() [5/8]

StatusCode IDataProviderSvc::findObject

inline

Find object identified by its parent object and the path to the object relative to the parent.

The result will be returned in the second argument. In case the object is not present the pointer will be set to NULL.

Parameters

parentObj	Pointer to parent node of the object.
objectPath	Relative path name of the object.
pObject	Reference to the pointer of the object to be returned.

Returns

Status code indicating success or failure.

Definition at line 361 of file IDataProviderSvc.h.

                                                                                                  {
    return findObject( parentObj ? parentObj->registry() : nullptr, objectPath, pObject );
  }

findObject() [6/8]

StatusCode IDataProviderSvc::findObject

inline

Find object identified by its parent object and an integer identifier in the data store.

In case the object is not present the pointer will be set to NULL.

Parameters

parentObj	Pointer to parent node of the object.
item	Item identifier.
pObject	Reference to the pointer of the object to be returned.

Returns

Status code indicating success or failure.

Definition at line 373 of file IDataProviderSvc.h.

                                                                                 {
    return findObject( parentObj, itemToPath( item ), pObject );
  }

findObject() [7/8]

StatusCode TsDataSvc::findObject ( std::string_view  fullPath, DataObject *&  pObject  )

override

Find object identified by its full path in the data store.

Definition at line 647 of file TsDataSvc.cpp.

                                                                            {
  pObject = nullptr;
  STD_LOCK_GUARD_MACRO
  if ( !checkRoot() ) return Status::INVALID_ROOT;
  if ( path.empty() || path == m_rootName ) {
    pObject = m_root->object();
    return !pObject ? Status::OBJ_NOT_LOADED : Status::IDataProviderSvc_NO_ERROR;
  }
  return findObject( path.front() != SEPARATOR ? m_root.get() : nullptr, path, pObject );
}

findObject() [8/8]

StatusCode TsDataSvc::findObject ( IRegistry *  pDirectory, std::string_view  path, DataObject *&  pObject  )

override

Find object identified by its full path in the data store.

Retrieve object identified by its directory from the data store.

Definition at line 633 of file TsDataSvc.cpp.

                                                                                                  {
  STD_LOCK_GUARD_MACRO
  pObject               = nullptr;
  IRegistry* pReg       = ( pRegistry ? pRegistry : m_root.get() );
  RegEntry*  root_entry = CAST_REGENTRY( RegEntry*, pReg );
  if ( root_entry ) {
    if ( !path.empty() ) pReg = root_entry->find( path );
    if ( !pReg ) return Status::INVALID_OBJ_PATH;
    pObject = pReg->object();
  }
  return pObject ? Status::IDataProviderSvc_NO_ERROR : Status::OBJ_NOT_LOADED;
}

getDataLoader()

IConversionSvc * TsDataSvc::getDataLoader ( IRegistry *  pReg )

protectedvirtual

Retrieve customizable data loader according to registry entry to be retrieved.

Definition at line 874 of file TsDataSvc.cpp.

{ return m_dataLoader; }

handleDataFault()

DataObject * TsDataSvc::handleDataFault ( IRegistry *  pReg, std::string_view  path = {}  )

protected

Invoke data fault handling if enabled.

Parameters

pReg	[IN] Pointer to missing registry entry
path	[IN] Sub-path of requested object from pReg

Returns

Object corresponding to the specified leaf

Definition at line 439 of file TsDataSvc.cpp.

                                                                             {
  if ( m_enableFaultHdlr ) {
    IRegistry* pLeaf = nullptr;
    if ( pReg && path.empty() ) {
      DataIncident incident( name(), m_faultName, pReg->identifier() );
      m_incidentSvc->fireIncident( incident );
      return pReg->object();
    } else if ( pReg ) {
      std::string p = pReg->identifier();
      if ( path.front() != SEPARATOR ) p += SEPARATOR;
      p.append( path.data(), path.size() );
      DataIncident incident( name(), m_faultName, p );
      m_incidentSvc->fireIncident( incident );
      pLeaf = m_root->findLeaf( p );
    } else {
      std::string p = m_root->identifier();
      if ( path.front() != SEPARATOR ) p += SEPARATOR;
      p.append( path.data(), path.size() );
      DataIncident incident( name(), m_faultName, p );
      m_incidentSvc->fireIncident( incident );
      pLeaf = m_root->findLeaf( p );
    }
    if ( pLeaf ) return pLeaf->object();
  }
  return nullptr;
}

i_setRoot() [1/4]

StatusCode TsDataSvc::i_setRoot ( std::string  root_path, DataObject *  pRootObj  )

virtual

Initialize data store for new event by giving new event path and root object.

Does not clear the store before reinitializing it. This could lead to errors and should be handle with care. Use setRoot if unsure

Definition at line 159 of file TsDataSvc.cpp.

                                                                           {
  if ( pRootObj ) {
    m_root = std::make_unique<RegEntry>( std::move( root_path ) );
    m_root->makeHard( pRootObj );
    m_root->setDataSvc( this );
    // No done with GaudiHive. preLoad().ignore();
  }
  return StatusCode::SUCCESS;
}

i_setRoot() [2/4]

StatusCode TsDataSvc::i_setRoot ( DataObject *  pRootObj )

inline

Definition at line 169 of file TsDataSvc.h.

{ return i_setRoot( m_rootName, pRootObj ); }

i_setRoot() [3/4]

StatusCode TsDataSvc::i_setRoot ( std::string  root_path, IOpaqueAddress *  pRootAddr  )

virtual

Initialize data store for new event by giving new event path and address of root object.

Does not clear the store before reinitializing it. This could lead to errors and should be handle with care. Use setRoot if unsure

Definition at line 183 of file TsDataSvc.cpp.

                                                                                {
  if ( pRootAddr ) {
    m_root = std::make_unique<RegEntry>( std::move( root_path ) );
    m_root->makeHard( pRootAddr );
    m_root->setDataSvc( this );
    // Not done with GaudiHive. preLoad().ignore();
  }
  return StatusCode::SUCCESS;
}

i_setRoot() [4/4]

StatusCode TsDataSvc::i_setRoot ( IOpaqueAddress *  pRootAddr )

inline

Definition at line 180 of file TsDataSvc.h.

{ return i_setRoot( m_rootName, pRootAddr ); }

initialize()

StatusCode TsDataSvc::initialize ( )

override

Service initialization.

Definition at line 813 of file TsDataSvc.cpp.

                                 {
  // Nothing to do: just call base class initialisation
  StatusCode sc = Service::initialize();
  if ( !sc.isSuccess() ) return sc;
  sc = service( "IncidentSvc", m_incidentSvc, true );
  if ( UNLIKELY( !sc.isSuccess() ) ) { error() << "Failed to access incident service." << endmsg; }
  return sc;
}

linkObject() [1/6]

StatusCode IDataProviderSvc::linkObject

inline

Add a link to another object.

Both objects must already be registered with the data store. Once linked, the object can only be unregistered after unlinking.

Parameters

fromPath	Path to the object the link originates.
objPath	Path of the entry to be linked relative to from.
toObj	Pointer to the object the link points to.

Returns

Status code indicating success or failure.

Definition at line 489 of file IDataProviderSvc.h.

                                                                                              {
    DataObject* pO     = nullptr;
    StatusCode  status = retrieveObject( fromPath, pO );
    return status.isSuccess() ? linkObject( pO->registry(), objPath, toObj ) : status;
  }

linkObject() [2/6]

virtual StatusCode IDataProviderSvc::linkObject

Add a link to another object.

Both objects must already be registered with the data store. Once linked, the object can only be unregistered after unlinking.

Parameters

from	Pointer to data directory the link originates.
objPath	Path of the entry to be linked relative to from.
toObj	Pointer to the object the link points to.

Returns

Status code indicating success or failure.

linkObject() [3/6]

StatusCode IDataProviderSvc::linkObject

inline

Add a link to another object.

Both objects must already be registered with the data store. Once linked, the object can only be unregistered after unlinking.

Parameters

fromObj	Pointer to the object the link originates.
objPath	Path of the entry to be linked relative to from.
toObj	Pointer to the object the link points to.

Returns

Status code indicating success or failure.

Definition at line 590 of file IDataProviderSvc.h.

                                                                                                               {
  if ( fromObj ) {
    IRegistry* from_entry = fromObj->registry();
    if ( from_entry ) return linkObject( from_entry, objPath, toObj );
  }
  return Status::INVALID_PARENT;
}

linkObject() [4/6]

virtual StatusCode IDataProviderSvc::linkObject

Add a link to another object.

Both objects must already be registered with the data store. Once linked, the object can only be unregistered after unlinking.

Parameters

fullPath	Full path of the entry to be linked.
toObj	Pointer to the object the link points to.

Returns

Status code indicating success or failure.

linkObject() [5/6]

StatusCode TsDataSvc::linkObject ( IRegistry *  from, std::string_view  objPath, DataObject *  to  )

override

Add a link to another object.

Definition at line 697 of file TsDataSvc.cpp.

                                                                                          {
  STD_LOCK_GUARD_MACRO
  if ( !checkRoot() ) return Status::INVALID_ROOT;
  try {
    RegEntry* from_entry = CAST_REGENTRY( RegEntry*, from );
    if ( from_entry ) {
      // First check if both objects are already registered to the store
      RegEntry* to_entry = m_root->findLeaf( to );
      if ( !to_entry ) return Status::INVALID_OBJECT;
      auto sep = objPath.rfind( SEPARATOR );
      if ( sep > 0 && sep != std::string_view::npos ) { // in case the objPath is a sub-directory itself
        DataObject* pO = nullptr;
        StatusCode  sc = retrieveObject( from, objPath.substr( 0, sep ), pO );
        return sc.isSuccess() ? linkObject( pO->registry(), objPath.substr( sep ), to ) : sc;
      }
      // Now register the soft link
      StatusCode status = from_entry->add( std::string{objPath}, to, true );
      return status.isSuccess() ? Status::IDataProviderSvc_NO_ERROR : Status::DOUBL_OBJ_PATH;
    }
  } catch ( ... ) {}
  return Status::INVALID_PARENT;
}

linkObject() [6/6]

StatusCode TsDataSvc::linkObject ( std::string_view  fullPath, DataObject *  to  )

override

Add a link to another object.

Definition at line 721 of file TsDataSvc.cpp.

                                                                          {
  if ( fullPath.empty() ) return Status::INVALID_OBJ_PATH;
  if ( fullPath.front() == SEPARATOR ) {
    auto sep = fullPath.rfind( SEPARATOR );
    return linkObject( fullPath.substr( 0, sep ), fullPath.substr( sep ), to );
  }
  STD_LOCK_GUARD_MACRO
  return linkObject( m_root.get(), fullPath, to );
}

loadObject() [1/2]

StatusCode TsDataSvc::loadObject ( IRegistry *  pNode )

protectedvirtual

Invoke Persistency service to create transient object from its persistent representation.

Definition at line 469 of file TsDataSvc.cpp.

                                                       {
  IConversionSvc* pLoader = getDataLoader( pRegistry );
  return loadObject( pLoader, pRegistry );
}

loadObject() [2/2]

StatusCode TsDataSvc::loadObject ( IConversionSvc *  pLoader, IRegistry *  pNode  )

protectedvirtual

Invoke Persistency service to create transient object from its persistent representation.

Reimplemented in DetDataSvc.

Definition at line 477 of file TsDataSvc.cpp.

                                                                                {
  StatusCode  status  = Status::INVALID_OBJ_ADDR;
  DataObject* pObject = nullptr;
  STD_LOCK_GUARD_MACRO
  if ( !pLoader ) { // Precondition: Data loader must be present
    if ( handleDataFault( pRegistry ) )
      return StatusCode::SUCCESS;
    else
      return Status::NO_DATA_LOADER;
  }
  if ( !pRegistry ) { // Precondition: Directory must be valid
    if ( handleDataFault( pRegistry ) )
      return StatusCode::SUCCESS;
    else
      return Status::INVALID_OBJ_ADDR;
  }

  VERMSG << "Requested object " << pRegistry->identifier() << endmsg;

  if ( m_enableAccessHdlr ) {
    // Fire data access incident
    DataIncident incident( name(), m_accessName, pRegistry->identifier() );
    m_incidentSvc->fireIncident( incident );
  }
  if ( !m_inhibitPathes.empty() ) {
    const auto& ident   = pRegistry->identifier();
    auto        inhibit = std::find( m_inhibitPathes.begin(), m_inhibitPathes.end(), ident );
    if ( inhibit != m_inhibitPathes.end() ) return Status::NO_ACCESS;
  }
  IOpaqueAddress* pAddress = pRegistry->address();
  if ( !pAddress ) {                 // Precondition:
    return Status::INVALID_OBJ_ADDR; // Address must be valid
  }
  try {
    status = pLoader->createObj( pAddress, pObject ); // Call data loader
    if ( status.isSuccess() ) {

      VERMSG << "Object " << pRegistry->identifier() << " created" << endmsg;

      RegEntry* pEntry = CAST_REGENTRY( RegEntry*, pRegistry );
      pEntry->setObject( pObject );

      VERMSG << "Filling object " << pRegistry->identifier() << endmsg;
      status = pLoader->fillObjRefs( pAddress, pObject );
    }
  } catch ( const GaudiException& exc ) {
    if ( handleDataFault( pRegistry ) ) return StatusCode::SUCCESS;
    throw GaudiException( "GaudiException in loadObject() " + pRegistry->identifier(), name(), StatusCode::FAILURE,
                          exc );
  } catch ( const std::exception& x ) {
    if ( handleDataFault( pRegistry ) ) return StatusCode::SUCCESS;
    throw GaudiException( "std::exception in loadObject() " + pRegistry->identifier() + ": " +
                              System::typeinfoName( typeid( x ) ) + ", " + x.what(),
                          name(), StatusCode::FAILURE );
  } catch ( ... ) {
    if ( handleDataFault( pRegistry ) ) return StatusCode::SUCCESS;
    throw GaudiException( "UNKN exception in loadObject() " + pRegistry->identifier(), name(), StatusCode::FAILURE );
  }
  if ( !status.isSuccess() ) {
    if ( handleDataFault( pRegistry ) ) return StatusCode::SUCCESS;
  }
  ON_VERBOSE if ( status.isSuccess() ) {
    verbose() << "Object " << pRegistry->identifier() << " successfully loaded" << endmsg;
  }
  return status;
}

objectLeaves() [1/2]

StatusCode TsDataSvc::objectLeaves ( const DataObject *  pObject, std::vector< IRegistry * > &  refLeaves  )

override

IDataManagerSvc: Explore the object store: retrieve all leaves attached to the object.

IDataManagerSvc: Explore an object identified by its pointer.

Definition at line 218 of file TsDataSvc.cpp.

                                                                                             {
  if ( !pObject ) return Status::INVALID_OBJECT;
  return objectLeaves( pObject->registry(), leaves );
}

objectLeaves() [2/2]

StatusCode TsDataSvc::objectLeaves ( const IRegistry *  pRegistry, std::vector< IRegistry * > &  refLeaves  )

override

IDataManagerSvc: Explore the object store: retrieve all leaves attached to the object.

IDataManagerSvc: Explore an object identified by the pointer to the registry entry.

Definition at line 226 of file TsDataSvc.cpp.

                                                                                              {
  if ( !pRegistry ) return Status::INVALID_OBJECT;
  const RegEntry* node_entry = CAST_REGENTRY( const RegEntry*, pRegistry );
  if ( !node_entry ) return Status::INVALID_OBJECT;
  STD_LOCK_GUARD_MACRO
  leaves.insert( leaves.end(), node_entry->leaves().begin(), node_entry->leaves().end() );
  // leaves = node_entry->leaves();
  return StatusCode::SUCCESS;
}

objectParent() [1/2]

StatusCode TsDataSvc::objectParent ( const DataObject *  pObject, IRegistry *&  refpParent  )

override

IDataManagerSvc: Explore the object store: retrieve the object's parent.

Definition at line 203 of file TsDataSvc.cpp.

                                                                                      {
  if ( !pObject ) return Status::INVALID_OBJECT;
  return objectParent( pObject->registry(), refpParent );
}

objectParent() [2/2]

StatusCode TsDataSvc::objectParent ( const IRegistry *  pRegistry, IRegistry *&  refpParent  )

override

IDataManagerSvc: Explore the object store: retrieve the object's parent.

Definition at line 208 of file TsDataSvc.cpp.

                                                                                       {
  STD_LOCK_GUARD_MACRO
  if ( !checkRoot() ) return Status::INVALID_ROOT;
  const RegEntry* node_entry = CAST_REGENTRY( const RegEntry*, pRegistry );
  if ( !node_entry ) return Status::INVALID_OBJECT;
  refpParent = node_entry->parent();
  return StatusCode::SUCCESS;
}

operator=()

TsDataSvc& TsDataSvc::operator= ( const TsDataSvc &  )

delete

no assignment operator

preLoad() [1/2]

StatusCode TsDataSvc::preLoad ( int  depth, int  load_depth, DataObject *  pObject  )

virtual

Execute one level of preloading and recursively load until the final level is reached.

Preload one level deep, then recursively call the next level.

Parameters

depth	current level of loading from requested parent
load_depth	maximum level of object loading
pObject	pointer to next level root object

Returns

Status code indicating success or failure.

Definition at line 786 of file TsDataSvc.cpp.

                                                                              {
  // unused:  StatusCode sc = StatusCode::FAILURE;
  if ( pObject && depth++ < load_depth ) {
    RegEntry* dir = CAST_REGENTRY( RegEntry*, pObject->registry() );
    if ( dir ) {
      for ( const auto& i : *dir ) {
        DataObject* pObj   = nullptr;
        StatusCode  status = retrieveObject( pObject, i->name(), pObj );
        if ( status.isSuccess() && depth < load_depth ) { preLoad( depth, load_depth, pObj ).ignore(); }
      }
    }
  }
  return StatusCode::SUCCESS;
}

preLoad() [2/2]

StatusCode TsDataSvc::preLoad ( )

override

load all preload items of the list

Definition at line 802 of file TsDataSvc.cpp.

                              {
  DataObject* pObj = nullptr;
  for ( const auto& i : m_preLoads ) {
    StatusCode sc         = retrieveObject( i.path(), pObj );
    int        load_depth = i.depth();
    if ( sc.isSuccess() && load_depth > 1 ) { preLoad( 1, load_depth, pObj ).ignore(); }
  }
  return StatusCode::SUCCESS;
}

registerAddress() [1/5]

StatusCode TsDataSvc::registerAddress ( std::string_view  fullPath, IOpaqueAddress *  pAddress  )

override

IDataManagerSvc: Register object address with the data store.

Definition at line 237 of file TsDataSvc.cpp.

                                                                                         {
  if ( fullPath.empty() ) return Status::INVALID_OBJ_PATH;
  return registerAddress( fullPath.front() != SEPARATOR ? m_root.get() : nullptr, fullPath, pAddress );
}

registerAddress() [2/5]

virtual StatusCode IDataManagerSvc::registerAddress

Register object address with the data store.

Connect the object identified by its pointer to the node object identified by its path.

Parameters

fullPath	[IN] Path to parent node of the object.
pAddress	[IN] Pointer to the object to be registered.

Returns

Status code indicating success or failure.

registerAddress() [3/5]

StatusCode IDataManagerSvc::registerAddress

inline

Register object address with the data store.

Connect the object identified by its pointer to the parent object and the relative path of the object with respect to the parent.

Parameters

parentObj	[IN] Pointer to parent object.
objectPath	[IN] Path of the object relative to the parent node
pAddress	[IN] Pointer to the object to be connected.

Returns

Status code indicating success or failure.

Definition at line 215 of file IDataManagerSvc.h.

                                                                                                           {
    return registerAddress( parentObj ? parentObj->registry() : nullptr, objectPath, pAddress );
  }

registerAddress() [4/5]

virtual StatusCode IDataManagerSvc::registerAddress

Register object address with the data store.

Connect the object identified by its pointer to the parent object and the relative path of the object with respect to the parent.

Parameters

parentObj	[IN] Pointer to parent object.
objectPath	[IN] Path of the object relative to the parent node
pAddress	[IN] Pointer to the object to be connected.

Returns

Status code indicating success or failure.

registerAddress() [5/5]

StatusCode TsDataSvc::registerAddress ( IRegistry *  parentObj, std::string_view  objectPath, IOpaqueAddress *  pAddress  )

override

IDataManagerSvc: Register object address with the data store.

Definition at line 243 of file TsDataSvc.cpp.

                                                                                                              {
  if ( !checkRoot() ) return Status::INVALID_ROOT;
  if ( objPath.empty() ) return Status::INVALID_OBJ_PATH;
  if ( !parentObj ) {
    if ( objPath.front() != SEPARATOR ) { return registerAddress( m_root.get(), objPath, pAddress ); }
    auto sep = find( objPath, SEPARATOR, 1 );
    if ( sep == std::string_view::npos || objPath.substr( 0, sep ) != m_rootName.value() ) {
      return Status::INVALID_PARENT;
    }
    return registerAddress( m_root.get(), objPath.substr( sep ), pAddress );
  }
  if ( objPath.front() != SEPARATOR ) { return registerAddress( parentObj, SEPARATOR + objPath, pAddress ); }
  RegEntry* par_entry = CAST_REGENTRY( RegEntry*, parentObj );
  if ( !par_entry ) return Status::INVALID_PARENT;
  auto sep = objPath.rfind( SEPARATOR );
  if ( sep > 0 && sep != std::string_view::npos ) {
    auto      p_path  = objPath.substr( 0, sep );
    auto      o_path  = objPath.substr( sep );
    RegEntry* p_entry = par_entry->findLeaf( p_path );
    // Create default object leafs if the
    // intermediate nodes are not present
    if ( !p_entry && m_forceLeaves ) {
      DataObject* pLeaf = createDefaultObject();
      StatusCode  sc    = registerObject( par_entry->identifier(), p_path, pLeaf );
      if ( !sc.isSuccess() ) delete pLeaf;
      p_entry = par_entry->findLeaf( p_path );
    }
    if ( !p_entry ) return Status::INVALID_PARENT;
    return registerAddress( p_entry, o_path, pAddress );
  }
  StatusCode status = par_entry->add( std::string{objPath}, pAddress );
  return status.isSuccess() ? status : Status::DOUBL_OBJ_PATH;
}

registerObject() [1/7]

virtual StatusCode IDataProviderSvc::registerObject

Register object with the data store.

Connect the object identified by its pointer to the parent object and the relative path of the object with respect to the parent.

Parameters

parentObj	Pointer to parent object.
objectPath	Path of the object relative to the parent node
pObject	Pointer to the object to be connected.

Returns

Status code indicating success or failure.

registerObject() [2/7]

StatusCode IDataProviderSvc::registerObject

inline

Register object with the data store.

Connect the object identified by its pointer to the node object identified by its pointer.

Parameters

parentObj	Pointer to parent object.
item	item number of the object linked to the parent
pObject	Pointer to the object to be connected.

Returns

Status code indicating success or failure.

Definition at line 117 of file IDataProviderSvc.h.

                                                                                    {
    return registerObject( parentObj, itemToPath( item ), pObject );
  }

registerObject() [3/7]

StatusCode IDataProviderSvc::registerObject

inline

Register object with the data store.

Connect the object identified by its pointer to the parent object and an integer identifier.

Parameters

parentPath	Path to parent node of the object.
item	item number of the object linked to the parent
pObject	Pointer to the object to be registered.

Returns

Status code indicating success or failure.

Definition at line 95 of file IDataProviderSvc.h.

                                                                                        {
    return registerObject( parentPath, itemToPath( item ), pObject );
  }

registerObject() [4/7]

StatusCode IDataProviderSvc::registerObject

inline

Register object with the data store.

Connect the object identified by its pointer to the node object identified by its path.

Parameters

fullPath	Path to parent node of the object.
pObject	Pointer to the object to be registered.

Returns

Status code indicating success or failure.

Definition at line 72 of file IDataProviderSvc.h.

                                                                            {
    return registerObject( nullptr, fullPath, pObject );
  }

registerObject() [5/7]

virtual StatusCode IDataProviderSvc::registerObject

Register object with the data store.

Connect the object identified by the path to the parent object and the path of the object itself relative to the specified parent.

Parameters

parentPath	Path to parent node of the object.
objectPath	Path of the object relative to the parent node
pObject	Pointer to the object to be registered.

Returns

Status code indicating success or failure.

registerObject() [6/7]

StatusCode TsDataSvc::registerObject ( std::string_view  parentPath, std::string_view  objPath, DataObject *  pObject  )

override

Register object with the data store.

Definition at line 313 of file TsDataSvc.cpp.

                                                                                                             {
  DataObject* pO     = nullptr;
  StatusCode  status = retrieveObject( parentPath, pO );
  if ( !status.isSuccess() && m_forceLeaves ) {
    pO     = createDefaultObject();
    status = registerObject( parentPath, pO );
    if ( !status.isSuccess() ) pO->release();
  }
  return status.isSuccess() ? registerObject( pO, objPath, pObject ) : status;
}

registerObject() [7/7]

StatusCode TsDataSvc::registerObject ( DataObject *  parentObj, std::string_view  objPath, DataObject *  pObject  )

override

Register object with the data store.

Definition at line 325 of file TsDataSvc.cpp.

                                                                                                         {
  if ( !checkRoot() ) return Status::INVALID_ROOT;
  if ( !parentObj ) {
    if ( !objPath.empty() ) {
      if ( objPath.front() != SEPARATOR ) { return registerObject( m_rootName.value(), objPath, pObject ); }
      auto sep = find( objPath, SEPARATOR, 1 );
      if ( sep != std::string_view::npos ) {
        return registerObject( objPath.substr( 0, sep ), objPath.substr( sep ), pObject );
      }
    }
    return Status::INVALID_OBJ_PATH;
  }
  RegEntry* node_entry = CAST_REGENTRY( RegEntry*, parentObj->registry() );
  if ( node_entry ) {
    StatusCode status = Status::INVALID_PARENT;
    auto       sep    = find( objPath, SEPARATOR, 1 );
    if ( sep != std::string_view::npos ) {
      auto      p_path    = objPath.substr( 0, sep );
      auto      o_path    = objPath.substr( sep );
      RegEntry* par_entry = node_entry->findLeaf( p_path );
      // Create default object leafs if the
      // intermediate nodes are not present
      if ( !par_entry && m_forceLeaves ) {
        DataObject* pLeaf = createDefaultObject();
        StatusCode  sc    = registerObject( parentObj, p_path, pLeaf );
        if ( !sc.isSuccess() ) delete pLeaf;
        par_entry = node_entry->findLeaf( p_path );
      } else if ( par_entry && !par_entry->object() ) {
        status = retrieveEntry( node_entry, p_path, par_entry );
        if ( !status.isSuccess() && !par_entry->address() && m_forceLeaves ) {
          DataObject* pLeaf = createDefaultObject();
          StatusCode  sc    = registerObject( parentObj, p_path, pLeaf );
          if ( !sc.isSuccess() ) delete pLeaf;
          par_entry = node_entry->findLeaf( p_path );
        }
      }
      node_entry = par_entry;
      if ( node_entry ) {
        DataObject* obj = node_entry->object();
        if ( obj ) status = registerObject( obj, o_path, pObject );
      }
    } else {
      RegEntry* leaf = node_entry->findLeaf( objPath );
      if ( !leaf ) {
        status = node_entry->add( std::string{objPath}, pObject );
      } else {
        DataObject* obj = leaf->object();
        if ( !obj ) {
          if ( !pObject ) {
            error() << "registerObject: trying to register null DataObject" << endmsg;
            return StatusCode::FAILURE;
          } else {
            pObject->setRegistry( leaf );
          }
          leaf->setAddress( nullptr );
          leaf->setObject( pObject );
          status = StatusCode::SUCCESS;
        } else {
          status = Status::DOUBL_OBJ_PATH;
        }
      }
    }
    return status;
  }
  return Status::INVALID_PARENT;
}

reinitialize()

StatusCode TsDataSvc::reinitialize ( )

override

Service initialization.

Service reinitialization.

Definition at line 823 of file TsDataSvc.cpp.

                                   {
  StatusCode sc;
  // the finalize part is copied here
  setDataLoader( nullptr ).ignore();
  resetPreLoad().ignore();
  clearStore().ignore();
  if ( m_incidentSvc ) {
    m_incidentSvc->release();
    m_incidentSvc = nullptr;
  }
  // re-initialize the base class
  sc = Service::reinitialize();
  if ( UNLIKELY( !sc.isSuccess() ) ) {
    error() << "Unable to reinitialize base class" << endmsg;
    return sc;
  }
  // the initialize part is copied here
  sc = service( "IncidentSvc", m_incidentSvc, true );
  if ( UNLIKELY( !sc.isSuccess() ) ) {
    error() << "Failed to access incident service." << endmsg;
    return sc;
  }
  // return
  return StatusCode::SUCCESS;
}

removePreLoadItem()

StatusCode TsDataSvc::removePreLoadItem ( const DataStoreItem &  item )

override

Remove an item from the preload list.

Definition at line 773 of file TsDataSvc.cpp.

                                                                   {
  auto i = std::remove( m_preLoads.begin(), m_preLoads.end(), item );
  m_preLoads.erase( i, m_preLoads.end() );
  return StatusCode::SUCCESS;
}

resetPreLoad()

StatusCode TsDataSvc::resetPreLoad ( )

override

Clear the preload list.

Definition at line 780 of file TsDataSvc.cpp.

                                   {
  m_preLoads.clear();
  return StatusCode::SUCCESS;
}

retrieveEntry()

StatusCode TsDataSvc::retrieveEntry ( DataSvcHelpers::RegistryEntry *  pNode, std::string_view  path, DataSvcHelpers::RegistryEntry *&  pEntry  )

protected

Retrieve registry entry from store.

Definition at line 545 of file TsDataSvc.cpp.

                                                                                                 {
  auto       sep    = find( path, SEPARATOR, 1 );
  StatusCode status = StatusCode( Status::INVALID_ROOT, true );
  pEntry            = nullptr;
  STD_LOCK_GUARD_MACRO
  // A.Valassi 16.08.2001 avoid core dump if store is empty
  if ( checkRoot() ) {
    if ( !parentObj ) {
      if ( path.empty() || path == m_rootName ) return retrieveEntry( m_root.get(), "", pEntry );
      if ( path.front() != SEPARATOR ) return retrieveEntry( m_root.get(), path, pEntry );
      if ( sep == std::string_view::npos ) return Status::INVALID_OBJ_PATH;
      if ( !m_root->object() ) {
        RegEntry* r = nullptr;
        status      = retrieveEntry( m_root.get(), "", r );
        if ( !status.isSuccess() ) return status;
      }
      return retrieveEntry( m_root.get(), path.substr( sep ), pEntry );
    }
    if ( sep != std::string_view::npos ) { // the string contains a separator (after pos 0)
      auto p_path = path.substr( 0, sep );
      auto o_path = path.substr( sep );
      if ( !parentObj->object() ) { // if the parent object has not been loaded yet, load it now
        status = loadObject( parentObj );
        if ( !status.isSuccess() ) return status;
      }
      RegEntry* root_entry = parentObj->findLeaf( p_path );
      if ( !root_entry && m_enableFaultHdlr ) {
        // If not even the parent is there, an incident
        // to load the parent must be fired...
        handleDataFault( parentObj, p_path );
        root_entry = parentObj->findLeaf( p_path );
      }
      if ( root_entry ) {
        DataObject* pO = root_entry->object();
        if ( !pO ) {
          // Object is not loaded: load the object if at all possible
          status = loadObject( root_entry );
          if ( !status.isSuccess() ) return status;
        }
        if ( root_entry->isSoft() ) { root_entry = CAST_REGENTRY( RegEntry*, pO->registry() ); }
        return retrieveEntry( root_entry, o_path, pEntry );
      }
      return status;
    } else if ( path.empty() ) {
      pEntry = parentObj;
    } else {
      if ( !parentObj->object() ) { // if the parent object has not been loaded yet, load it now
        status = loadObject( parentObj );
        if ( !status.isSuccess() ) return status;
      }
      // last leave in search: find leaf and load
      pEntry = parentObj->findLeaf( path );
      // If no registry entry was found, trigger incident for action-on-demand
      if ( !pEntry && m_enableFaultHdlr ) {
        handleDataFault( parentObj, path );
        pEntry = ( path.empty() ? parentObj : parentObj->findLeaf( path ) );
      }
    }
    // Check results and return
    if ( !pEntry ) {
      status = Status::INVALID_OBJ_PATH;
    } else if ( !pEntry->object() ) {
      status = loadObject( pEntry );
    } else if ( m_enableAccessHdlr ) {
      // Fire data access incident
      // I do not know if this is a good idea....
      // This fires too often!
      //
      // DataIncident incident(name(), m_accessName, pEntry->identifier());
      // m_incidentSvc->fireIncident(incident);
      status = StatusCode::SUCCESS;
    } else {
      status = StatusCode::SUCCESS;
    }
  }
  return status;
}

retrieveObject() [1/7]

virtual StatusCode IDataProviderSvc::retrieveObject

Retrieve object identified by its directory entry.

The result will be returned in the second argument. In case the object is not present it will be loaded and converted if possible. ** FASTEST ACCESS TO THE DATA STORE **

Parameters

pDirectory	Pointer to the object.
path	String with relative path to directory. Ideally ""!
pObject	Reference to the pointer of the object to be returned.

Returns

Status code indicating success or failure.

retrieveObject() [2/7]

StatusCode IDataProviderSvc::retrieveObject

inline

Retrieve object from data store.

The object to be retrieved is identified by the path of the parent object and the relative path with respect to the node. In case the object is not present it will be loaded and converted if possible.

Parameters

parentPath	Path to parent node of the object.
objectPath	Path of the object relative to the parent.
pObject	Reference to the pointer of the object to be returned.

Returns

Status code indicating success or failure.

Definition at line 257 of file IDataProviderSvc.h.

                                                                                                          {
    DataObject* parent = nullptr;
    StatusCode  status = retrieveObject( parentPath, parent );
    return status.isSuccess() ? retrieveObject( parent, objectPath, pObject ) : status;
  }

retrieveObject() [3/7]

StatusCode IDataProviderSvc::retrieveObject

inline

Retrieve object from data store.

The object to be retrieved is identified by the path to the parent object and an integer identifier. In case the object is not present it will be loaded and converted if possible.

Parameters

parentPath	Path to parent node of the object.
item	Item identifier.
pObject	Reference to the pointer of the object to be returned.

Returns

Status code indicating success or failure.

Definition at line 273 of file IDataProviderSvc.h.

                                                                                         {
    return retrieveObject( parentPath, itemToPath( item ), pObject );
  }

retrieveObject() [4/7]

StatusCode IDataProviderSvc::retrieveObject

inline

Retrieve object identified by its full path from the data store.

The result will be returned in the second argument. In case the object is not present it will be loaded and converted if possible.

Parameters

fullPath	Path name of the object.
pObject	Reference to the pointer of the object to be returned.

Returns

Status code indicating success or failure.

Definition at line 243 of file IDataProviderSvc.h.

                                                                             {
    return retrieveObject( static_cast<IRegistry*>( nullptr ), fullPath, pObject );
  }

retrieveObject() [5/7]

StatusCode IDataProviderSvc::retrieveObject

inline

Retrieve object from data store.

The object to be retrieved is identified by the pointer to the parent object and the relative path with respect to the node. In case the object is not present it will be loaded and converted if possible.

Parameters

parentObj	Pointer to parent node of the object.
objectPath	Path of the object relative to the parent.
pObject	Reference to the pointer of the object to be returned.

Returns

Status code indicating success or failure.

Definition at line 287 of file IDataProviderSvc.h.

                                                                                                      {
    return retrieveObject( parentObj ? parentObj->registry() : nullptr, objectPath, pObject );
  }

retrieveObject() [6/7]

StatusCode IDataProviderSvc::retrieveObject

inline

Retrieve object from data store.

The object to be retrieved is identified by the pointer to the parent object and an integer identifier. In case the object is not present it will be loaded and converted if possible.

Parameters

parentObj	Pointer to parent node of the object.
item	Item identifier.
pObject	Reference to the pointer of the object to be returned.

Returns

Status code indicating success or failure.

Definition at line 301 of file IDataProviderSvc.h.

                                                                                     {
    return retrieveObject( parentObj, itemToPath( item ), pObject );
  }

retrieveObject() [7/7]

StatusCode TsDataSvc::retrieveObject ( IRegistry *  pDirectory, std::string_view  path, DataObject *&  pObject  )

override

Retrieve object from data store.

Retrieve object identified by its directory from the data store.

Definition at line 624 of file TsDataSvc.cpp.

                                                                                                      {
  pObject           = nullptr;
  RegEntry * result = nullptr, *parent = CAST_REGENTRY( RegEntry*, pRegistry );
  StatusCode status = retrieveEntry( parent, path, result );
  if ( status.isSuccess() ) pObject = result->object();
  return status;
}

rootCLID()

CLID TsDataSvc::rootCLID ( ) const

override

IDataManagerSvc: Accessor for root event CLID.

CLID for root Event.

Definition at line 863 of file TsDataSvc.cpp.

{ return ( (CLID)m_rootCLID ); }

rootName()

const std::string & TsDataSvc::rootName ( ) const

override

IDataManagerSvc: Accessor for root event name.

Name for root Event.

Definition at line 866 of file TsDataSvc.cpp.

{ return ( m_rootName ); }

setDataLoader()

StatusCode TsDataSvc::setDataLoader ( IConversionSvc *  svc, IDataProviderSvc *  dpsvc = nullptr  )

override

IDataManagerSvc: IDataManagerSvc: Pass a default data loader to the service and optionally a data provider.

IDataManagerSvc: Pass a default data loader to the service.

Definition at line 194 of file TsDataSvc.cpp.

                                                                                          {
  if ( pDataLoader ) pDataLoader->addRef();
  if ( m_dataLoader ) m_dataLoader->release();
  if ( pDataLoader ) { pDataLoader->setDataProvider( dpsvc == nullptr ? this : dpsvc ).ignore(); }
  m_dataLoader = pDataLoader;
  return StatusCode::SUCCESS;
}

setRoot() [1/2]

StatusCode TsDataSvc::setRoot ( std::string  root_path, DataObject *  pRootObj  )

override

Initialize data store for new event by giving new event path and root object.

Takes care to clear the store before reinitializing it

Definition at line 149 of file TsDataSvc.cpp.

                                                                         {
  clearStore().ignore();
  return i_setRoot( std::move( root_path ), pRootObj );
}

setRoot() [2/2]

StatusCode TsDataSvc::setRoot ( std::string  root_path, IOpaqueAddress *  pRootAddr  )

override

Initialize data store for new event by giving new event path and address of root object.

Takes care to clear the store before reinitializing it

Definition at line 173 of file TsDataSvc.cpp.

                                                                              {
  clearStore().ignore();
  return i_setRoot( std::move( root_path ), pRootAddr );
}

traverseSubTree() [1/2]

StatusCode TsDataSvc::traverseSubTree ( std::string_view  sub_tree_path, IDataStoreAgent *  pAgent  )

override

IDataManagerSvc: Analyze by traversing all data objects below the sub tree identified by its full path name.

IDataManagerSvc: Analyse by traversing all data objects below the sub tree identified by its full path name.

Definition at line 123 of file TsDataSvc.cpp.

                                                                                             {
  DataObject* pO     = nullptr;
  StatusCode  status = findObject( sub_tree_path, pO );
  return status.isSuccess() ? traverseSubTree( pO, pAgent ) : status;
}

traverseSubTree() [2/2]

StatusCode TsDataSvc::traverseSubTree ( DataObject *  pObject, IDataStoreAgent *  pAgent  )

override

IDataManagerSvc: Analyze by traversing all data objects below the sub tree.

IDataManagerSvc: Analyse by traversing all data objects below the sub tree.

Definition at line 130 of file TsDataSvc.cpp.

                                                                                    {
  STD_LOCK_GUARD_MACRO
  if ( !checkRoot() ) return Status::INVALID_ROOT;
  RegEntry* entry = CAST_REGENTRY( RegEntry*, pObject->registry() );
  if ( !entry ) return Status::INVALID_OBJECT;
  return entry->traverseTree( pAgent );
}

traverseTree()

StatusCode TsDataSvc::traverseTree ( IDataStoreAgent *  pAgent )

override

IDataManagerSvc: Analyze by traversing all data objects in the data store.

IDataManagerSvc: Analyse by traversing all data objects in the data store.

Definition at line 139 of file TsDataSvc.cpp.

                                                            {
  STD_LOCK_GUARD_MACRO
  if ( !checkRoot() ) return Status::INVALID_ROOT;
  return m_root->traverseTree( pAgent );
}

unlinkObject() [1/7]

virtual StatusCode IDataProviderSvc::unlinkObject

Remove a link to another object.

Both objects must be registered with the data store. This entry point can be used to unlink objects e.g. in order to unregister them.

Parameters

from	Pointer to data directory the link originates.
objPath	Path of the entry to be linked relative to from.

Returns

Status code indicating success or failure.

unlinkObject() [2/7]

virtual StatusCode IDataProviderSvc::unlinkObject

Remove a link to another object.

Both objects must be registered with the data store. This entry point can be used to unlink objects e.g. in order to unregister them.

Parameters

fromObj	Pointer to the object the link originates.
objPath	Path of the entry to be linked relative to from.

Returns

Status code indicating success or failure.

unlinkObject() [3/7]

StatusCode IDataProviderSvc::unlinkObject

inline

Remove a link to another object.

Both objects must be registered with the data store. This entry point can be used to unlink objects e.g. in order to unregister them.

Parameters

fromPath	Path to the object the link originates.
objPath	Path of the entry to be linked relative to from.

Returns

Status code indicating success or failure.

Definition at line 532 of file IDataProviderSvc.h.

                                                                             {
    DataObject* pObject = nullptr;
    StatusCode  status  = findObject( fromPath, pObject );
    return status.isSuccess() ? unlinkObject( pObject->registry(), objPath ) : status;
  }

unlinkObject() [4/7]

virtual StatusCode IDataProviderSvc::unlinkObject

Remove a link to another object.

Both objects must be registered with the data store. This entry point can be used to unlink objects e.g. in order to unregister them.

Parameters

fullPath

Full path of the entry to be linked.

Returns

Status code indicating success or failure.

unlinkObject() [5/7]

StatusCode TsDataSvc::unlinkObject ( IRegistry *  from, std::string_view  objPath  )

override

Remove a link to another object.

Definition at line 732 of file TsDataSvc.cpp.

                                                                            {
  STD_LOCK_GUARD_MACRO
  if ( !checkRoot() ) return Status::INVALID_ROOT;
  try {
    RegEntry* from_entry = CAST_REGENTRY( RegEntry*, from );
    if ( from_entry ) {
      auto sep = objPath.rfind( SEPARATOR );
      if ( sep > 0 && sep != std::string_view::npos ) { // in case the objPath is a sub-directory itself
        DataObject* pO = nullptr;
        StatusCode  sc = findObject( from, objPath.substr( 0, sep ), pO );
        return sc.isSuccess() ? unlinkObject( pO->registry(), objPath.substr( sep ) ) : sc;
      }
      StatusCode status = from_entry->remove( objPath );
      return status.isSuccess() ? status : Status::INVALID_OBJ_PATH;
    }
  } catch ( ... ) {}
  return Status::INVALID_PARENT;
}

unlinkObject() [6/7]

StatusCode TsDataSvc::unlinkObject ( DataObject *  fromObj, std::string_view  objPath  )

override

Remove a link to another object.

Definition at line 760 of file TsDataSvc.cpp.

                                                                             {
  if ( !checkRoot() ) return Status::INVALID_ROOT;
  return unlinkObject( m_root->findLeaf( from ), objPath );
}

unlinkObject() [7/7]

StatusCode TsDataSvc::unlinkObject ( std::string_view  fullPath )

override

Remove a link to another object.

Definition at line 752 of file TsDataSvc.cpp.

                                                            {
  if ( fullPath.empty() ) return Status::INVALID_OBJ_PATH;
  if ( fullPath.front() != SEPARATOR ) { return unlinkObject( m_root.get(), fullPath ); }
  auto sep = fullPath.rfind( SEPARATOR );
  return unlinkObject( fullPath.substr( 0, sep ), fullPath.substr( sep ) );
}

unregisterAddress() [1/5]

virtual StatusCode IDataManagerSvc::unregisterAddress

Unregister object address from the data store.

The object is identified by full path name.

Parameters

fullPath

[IN] Path name of the object.

Returns

Status code indicating success or failure.

unregisterAddress() [2/5]

virtual StatusCode IDataManagerSvc::unregisterAddress

Unregister object address from the data store.

The object is identified by parent object and the path of the object relative to the parent.

Parameters

pParent	[IN] Pointer to parent object.
objPath	[IN] Path name of the object relative to the parent.

Returns

Status code indicating success or failure.

unregisterAddress() [3/5]

StatusCode IDataManagerSvc::unregisterAddress

inline

Unregister object address from the data store.

The object is identified by parent object and the path of the object relative to the parent.

Parameters

pParent	[IN] Pointer to parent object.
objPath	[IN] Path name of the object relative to the parent.

Returns

Status code indicating success or failure.

Definition at line 243 of file IDataManagerSvc.h.

                                                                              {
    return unregisterAddress( pParent ? pParent->registry() : nullptr, objPath );
  }

unregisterAddress() [4/5]

StatusCode TsDataSvc::unregisterAddress ( std::string_view  fullPath )

override

IDataManagerSvc: Unregister object address from the data store.

Definition at line 278 of file TsDataSvc.cpp.

                                                                 {
  if ( fullPath.empty() ) return Status::INVALID_OBJ_PATH;
  return unregisterAddress( fullPath.front() != SEPARATOR ? m_root.get() : nullptr, fullPath );
}

unregisterAddress() [5/5]

StatusCode TsDataSvc::unregisterAddress ( IRegistry *  pParent, std::string_view  objPath  )

override

IDataManagerSvc: Unregister object address from the data store.

Definition at line 284 of file TsDataSvc.cpp.

                                                                                    {
  if ( !checkRoot() ) return Status::INVALID_ROOT;

  if ( objPath.empty() ) return Status::INVALID_OBJ_PATH;
  if ( !pParent ) {
    if ( objPath.front() != SEPARATOR ) { return unregisterAddress( m_root.get(), objPath ); }
    auto sep = find( objPath, SEPARATOR, 1 );
    if ( sep == std::string_view::npos || objPath.substr( 0, sep ) != m_rootName.value() ) {
      return Status::INVALID_PARENT;
    }
    return unregisterAddress( m_root.get(), objPath.substr( sep ) );
  }
  if ( objPath.front() != SEPARATOR ) { return unregisterAddress( pParent, SEPARATOR + objPath ); }
  RegEntry* node_entry = CAST_REGENTRY( RegEntry*, pParent );
  if ( node_entry ) {
    RegEntry* leaf_entry = node_entry->findLeaf( objPath );
    if ( leaf_entry ) {
      auto sep = objPath.rfind( SEPARATOR );
      if ( sep > 0 && sep != std::string_view::npos ) {
        return unregisterAddress( leaf_entry->parent(), objPath.substr( sep ) );
      }
      StatusCode status = node_entry->remove( objPath );
      if ( status.isSuccess() ) return status;
    }
  }
  return Status::INVALID_PARENT;
}

unregisterObject() [1/3]

StatusCode TsDataSvc::unregisterObject ( std::string_view  fullPath )

override

Unregister object from the data store.

Definition at line 393 of file TsDataSvc.cpp.

                                                                {
  DataObject* pObject = nullptr;
  StatusCode  status  = findObject( fullPath, pObject );
  if ( status.isFailure() ) return status;
  RegEntry* pEntry = CAST_REGENTRY( RegEntry*, pObject->registry() );
  if ( !pEntry ) return Status::INVALID_ROOT;
  if ( !pEntry->isEmpty() ) return Status::DIR_NOT_EMPTY;
  RegEntry* pParent = pEntry->parentEntry();
  if ( !pParent ) return Status::INVALID_PARENT;
  if ( pObject ) pObject->addRef();
  pParent->remove( pEntry );
  return StatusCode::SUCCESS;
}

unregisterObject() [2/3]

StatusCode TsDataSvc::unregisterObject ( DataObject *  pObject )

override

Unregister object from the data store.

Definition at line 408 of file TsDataSvc.cpp.

                                                            {
  if ( !checkRoot() ) return Status::INVALID_ROOT;
  RegEntry* entry = m_root->findLeaf( pObject );
  if ( !entry ) return Status::INVALID_OBJECT;
  RegEntry* parent = entry->parentEntry();
  if ( !parent ) return Status::INVALID_PARENT;
  if ( !entry->isEmpty() ) return Status::DIR_NOT_EMPTY;
  if ( entry->object() ) entry->object()->addRef();
  if ( parent ) parent->remove( entry );
  return StatusCode::SUCCESS;
}

unregisterObject() [3/3]

StatusCode TsDataSvc::unregisterObject ( DataObject *  pObject, std::string_view  objectPath  )

override

Unregister object from the data store.

Definition at line 421 of file TsDataSvc.cpp.

                                                                                          {
  if ( !checkRoot() ) return Status::INVALID_ROOT;
  try {
    RegEntry* parent = CAST_REGENTRY( RegEntry*, pParentObj->registry() );
    if ( parent ) {
      RegEntry* entry = parent->findLeaf( objectPath );
      if ( !entry ) return Status::INVALID_OBJECT;
      if ( !entry->isEmpty() ) return Status::DIR_NOT_EMPTY;
      if ( entry->object() ) entry->object()->addRef();
      parent->remove( entry );
      return StatusCode::SUCCESS;
    }
  } catch ( ... ) {}
  return Status::INVALID_PARENT;
}

updateObject() [1/2]

StatusCode TsDataSvc::updateObject ( IRegistry *  pDirectory )

override

Update object identified by its directory entry.

Update object.

Definition at line 659 of file TsDataSvc.cpp.

                                                         {
  if ( !pRegistry ) return Status::INVALID_OBJ_ADDR; // Precondition: Addres must be valid
  DataObject* toUpdate = pRegistry->object();
  return toUpdate ? updateObject( toUpdate ) : loadObject( pRegistry );
}

updateObject() [2/2]

StatusCode TsDataSvc::updateObject ( DataObject *  toUpdate )

override

Update object.

Definition at line 666 of file TsDataSvc.cpp.

                                                         {
  StatusCode status = Status::INVALID_OBJ_ADDR;
  if ( !toUpdate ) return Status::INVALID_OBJECT; // Precondition: Address must be valid
  IRegistry* pRegistry = toUpdate->registry();
  if ( !pRegistry ) return Status::INVALID_OBJECT; // Precondition: Need valid registry
  IOpaqueAddress* pAddress = pRegistry->address();
  if ( !pAddress ) return Status::INVALID_OBJ_ADDR; // Precondition: Need valid address
  STD_LOCK_GUARD_MACRO
  IConversionSvc* pLoader = getDataLoader( pRegistry );
  if ( !pLoader ) return Status::NO_DATA_LOADER; // Precondition: Data loader must be present
  if ( !m_inhibitPathes.empty() ) {
    auto& ident   = pRegistry->identifier();
    auto  inhibit = std::find( m_inhibitPathes.begin(), m_inhibitPathes.end(), ident );
    if ( inhibit != m_inhibitPathes.end() ) return Status::NO_ACCESS;
  }
  try {
    status = pLoader->updateObj( pAddress, toUpdate ); // Call data loader
    if ( status.isSuccess() ) { status = pLoader->updateObjRefs( pAddress, toUpdate ); }
  } catch ( const GaudiException& exc ) {
    throw GaudiException( "GaudiException in updateObject() " + pRegistry->name(), name(), StatusCode::FAILURE, exc );
  } catch ( const std::exception& x ) {
    throw GaudiException( "std::exception in updateObject() " + pRegistry->name() + ": " +
                              System::typeinfoName( typeid( x ) ) + ", " + x.what(),
                          name(), StatusCode::FAILURE );
  } catch ( ... ) {
    throw GaudiException( "UNKN exception in updateObject() " + pRegistry->name(), name(), StatusCode::FAILURE );
  }
  return status;
}

Member Data Documentation

m_accessMutex

tsDataSvcMutex TsDataSvc::m_accessMutex

protected

Mutex to protect access to the store.

Definition at line 314 of file TsDataSvc.h.

m_accessName

Gaudi::Property<std::string> TsDataSvc::m_accessName {this, "DataAccessName", "DataAccess", "Name of the data access incident"}

private

Definition at line 94 of file TsDataSvc.h.

m_dataLoader

IConversionSvc* TsDataSvc::m_dataLoader = nullptr

private

Pointer to data loader service.

Definition at line 79 of file TsDataSvc.h.

m_enableAccessHdlr

Gaudi::Property<bool> TsDataSvc::m_enableAccessHdlr

private

Initial value:

{this, "EnableAccessHandler", false,
                                           "enable incidents on data access requests"}

Definition at line 92 of file TsDataSvc.h.

m_enableFaultHdlr

Gaudi::Property<bool> TsDataSvc::m_enableFaultHdlr

private

Initial value:

{this, "EnableFaultHandler", false,
                                          "enable incidents on data creation requests"}

Definition at line 88 of file TsDataSvc.h.

m_faultName

Gaudi::Property<std::string> TsDataSvc::m_faultName {this, "DataFaultName", "DataFault", "Name of the data fault incident"}

private

Definition at line 90 of file TsDataSvc.h.

m_forceLeaves

Gaudi::Property<bool> TsDataSvc::m_forceLeaves {this, "ForceLeaves", false, "force creation of default leaves on registerObject"}

private

Definition at line 85 of file TsDataSvc.h.

m_incidentSvc

IIncidentSvc* TsDataSvc::m_incidentSvc = nullptr

private

Pointer to incident service.

Definition at line 81 of file TsDataSvc.h.

m_inhibitPathes

Gaudi::Property<std::vector<std::string> > TsDataSvc::m_inhibitPathes {this, "InhibitPathes", {}, "inhibited leaves"}

private

Definition at line 86 of file TsDataSvc.h.

m_preLoads

std::vector<DataStoreItem> TsDataSvc::m_preLoads

private

Items to be pre-loaded.

Definition at line 97 of file TsDataSvc.h.

m_root

std::unique_ptr<DataSvcHelpers::RegistryEntry> TsDataSvc::m_root

private

Pointer to root entry.

Definition at line 99 of file TsDataSvc.h.

m_rootCLID

Gaudi::Property<CLID> TsDataSvc::m_rootCLID {this, "RootCLID", 110 , "CLID of root entry"}

private

Definition at line 83 of file TsDataSvc.h.

m_rootName

Gaudi::Property<std::string> TsDataSvc::m_rootName {this, "RootName", "/Event", "name of root entry"}

private

Definition at line 84 of file TsDataSvc.h.

---

The documentation for this class was generated from the following files:

• GaudiKernel/GaudiKernel/TsDataSvc.h
• GaudiKernel/src/Lib/TsDataSvc.cpp
