Just a minor modification of MemoryAuditor to allow the output memory statistics table to be printed. More...

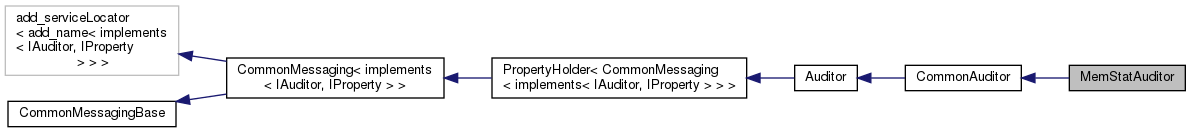

Inheritance diagram for MemStatAuditor:

[legend]

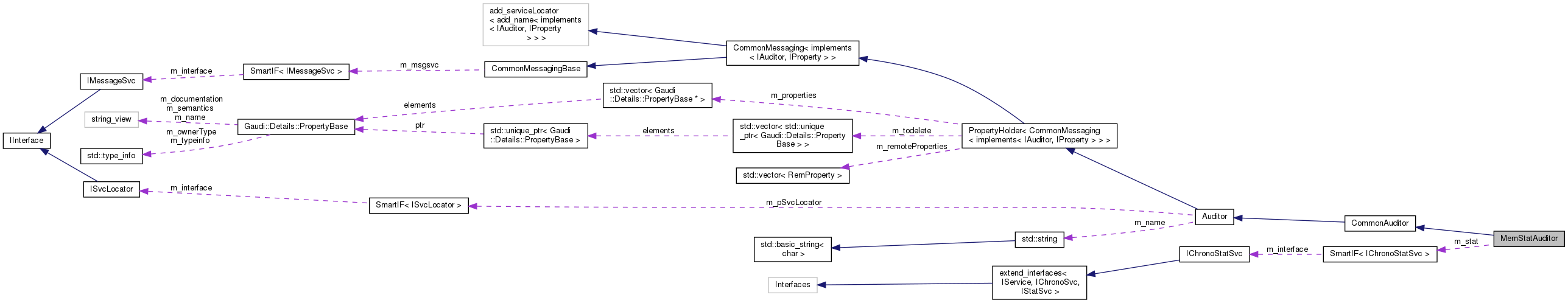

Collaboration diagram for MemStatAuditor:

[legend]

Public Member Functions
StatusCode	initialize () override

void	i_before (CustomEventTypeRef, std::string_view) override
	catch all "before" method, implemented in the derived class More...

void	i_after (CustomEventTypeRef evt, std::string_view caller, const StatusCode &) override
	catch all "after" method, implemented in the derived class More...

Public Member Functions inherited from CommonAuditor
	Auditor (std::string name, ISvcLocator *svcloc)
	Constructor. More...

	Auditor (const Auditor &a)=delete
	Constructor. More...

void	before (StandardEventType evt, const std::string &caller) override

void	before (StandardEventType evt, INamedInterface *caller) override

void	before (CustomEventTypeRef evt, const std::string &caller) override

void	before (CustomEventTypeRef evt, INamedInterface *caller) override

void	after (StandardEventType evt, const std::string &caller, const StatusCode &sc) override

void	after (StandardEventType evt, INamedInterface *caller, const StatusCode &sc) override

void	after (CustomEventTypeRef evt, const std::string &caller, const StatusCode &sc) override

void	after (CustomEventTypeRef evt, INamedInterface *caller, const StatusCode &sc) override

Public Member Functions inherited from Auditor
	Auditor (std::string name, ISvcLocator *svcloc)
	Constructor. More...

	Auditor (const Auditor &a)=delete

Auditor &	operator= (const Auditor &rhs)=delete

StatusCode	sysInitialize () override
	Initialization method invoked by the framework. More...

StatusCode	sysFinalize () override
	Finalization method invoked by the framework. More...

void	before (StandardEventType, INamedInterface *) override
	The following methods are meant to be implemented by the child class... More...

void	before (StandardEventType, const std::string &) override

void	before (CustomEventTypeRef, INamedInterface *) override

void	before (CustomEventTypeRef, const std::string &) override

void	after (StandardEventType, INamedInterface *, const StatusCode &) override

void	after (StandardEventType, const std::string &, const StatusCode &) override

void	after (CustomEventTypeRef, INamedInterface *, const StatusCode &) override

void	after (CustomEventTypeRef, const std::string &, const StatusCode &) override

void	beforeInitialize (INamedInterface *) override

void	afterInitialize (INamedInterface *) override

void	beforeReinitialize (INamedInterface *) override

void	afterReinitialize (INamedInterface *) override

void	beforeExecute (INamedInterface *) override

void	afterExecute (INamedInterface *, const StatusCode &) override

void	beforeFinalize (INamedInterface *) override

void	afterFinalize (INamedInterface *) override

virtual StatusCode	finalize ()

const std::string &	name () const override

bool	isEnabled () const override

SmartIF< ISvcLocator > &	serviceLocator () const override
	The standard service locator. More...

template<class T >
StatusCode	service (std::string_view name, T *&svc, bool createIf=false) const
	Access a service by name, creating it if it doesn't already exist. More...

template<class T = IService>
SmartIF< T >	service (std::string_view name, bool createIf=false) const

StatusCode	setProperties ()
	Set the auditor's properties. More...

Public Member Functions inherited from PropertyHolder< CommonMessaging< implements< IAuditor, IProperty > > >
	PropertyHolder ()=default

Gaudi::Details::PropertyBase &	declareProperty (Gaudi::Details::PropertyBase &prop)
	Declare a property. More...

Gaudi::Details::PropertyBase *	declareProperty (const std::string &name, TYPE &value, const std::string &doc="none")
	Helper to wrap a regular data member and use it as a regular property. More...

Gaudi::Details::PropertyBase *	declareProperty (const std::string &name, Gaudi::Property< TYPE, VERIFIER, HANDLERS > &prop, const std::string &doc="none")
	Declare a PropertyBase instance setting name and documentation. More...

Gaudi::Details::PropertyBase *	declareRemoteProperty (const std::string &name, IProperty *rsvc, const std::string &rname="")
	Declare a remote property. More...

StatusCode	setProperty (const Gaudi::Details::PropertyBase &p) override
	set the property form another property More...

StatusCode	setProperty (const std::string &s) override
	set the property from the formatted string More...

StatusCode	setProperty (const std::string &n, const std::string &v) override
	set the property from name and the value More...

StatusCode	setProperty (const std::string &name, const TYPE &value)
	set the property form the value More...

StatusCode	getProperty (Gaudi::Details::PropertyBase *p) const override
	get the property More...

const Gaudi::Details::PropertyBase &	getProperty (const std::string &name) const override
	get the property by name More...

StatusCode	getProperty (const std::string &n, std::string &v) const override
	convert the property to the string More...

const std::vector< Gaudi::Details::PropertyBase * > &	getProperties () const override
	get all properties More...

bool	hasProperty (const std::string &name) const override
	Return true if we have a property with the given name. More...

	PropertyHolder (const PropertyHolder &)=delete

PropertyHolder &	operator= (const PropertyHolder &)=delete

Public Member Functions inherited from CommonMessaging< implements< IAuditor, IProperty > >
MSG::Level	msgLevel () const
	get the cached level (originally extracted from the embedded MsgStream) More...

bool	msgLevel (MSG::Level lvl) const
	get the output level from the embedded MsgStream More...

Public Member Functions inherited from CommonMessagingBase
virtual	~CommonMessagingBase ()=default
	Virtual destructor. More...

const SmartIF< IMessageSvc > &	msgSvc () const
	The standard message service. More...

MsgStream &	msgStream () const
	Return an uninitialized MsgStream. More...

MsgStream &	msgStream (const MSG::Level level) const
	Predefined configurable message stream for the efficient printouts. More...

MsgStream &	always () const
	shortcut for the method msgStream(MSG::ALWAYS) More...

MsgStream &	fatal () const
	shortcut for the method msgStream(MSG::FATAL) More...

MsgStream &	err () const
	shortcut for the method msgStream(MSG::ERROR) More...

MsgStream &	error () const
	shortcut for the method msgStream(MSG::ERROR) More...

MsgStream &	warning () const
	shortcut for the method msgStream(MSG::WARNING) More...

MsgStream &	info () const
	shortcut for the method msgStream(MSG::INFO) More...

MsgStream &	debug () const
	shortcut for the method msgStream(MSG::DEBUG) More...

MsgStream &	verbose () const
	shortcut for the method msgStream(MSG::VERBOSE) More...

MsgStream &	msg () const
	shortcut for the method msgStream(MSG::INFO) More...

Private Member Functions
void	i_printinfo (std::string_view msg, CustomEventTypeRef evt, std::string_view caller)

Private Attributes
SmartIF< IChronoStatSvc >	m_stat

double	m_vSize = -1
	vsize of the previous call to printinfo More...

Additional Inherited Members
Public Types inherited from Auditor
using	Factory = Gaudi::PluginService::Factory< IAuditor (const std::string &, ISvcLocator )>

Public Types inherited from PropertyHolder< CommonMessaging< implements< IAuditor, IProperty > > >
using	PropertyHolderImpl = PropertyHolder< CommonMessaging< implements< IAuditor, IProperty > > >
	Typedef used to refer to this class from derived classes, as in. More...

Public Types inherited from CommonMessaging< implements< IAuditor, IProperty > >
using	base_class = CommonMessaging

Protected Member Functions inherited from CommonAuditor
bool	i_auditEventType (std::string_view evt)
	Check if we are requested to audit the passed event type. More...

Protected Member Functions inherited from PropertyHolder< CommonMessaging< implements< IAuditor, IProperty > > >
Gaudi::Details::PropertyBase *	property (const std::string &name) const

Protected Member Functions inherited from CommonMessaging< implements< IAuditor, IProperty > >
MSG::Level	setUpMessaging () const
	Set up local caches. More...

MSG::Level	resetMessaging ()
	Reinitialize internal states. More...

void	updateMsgStreamOutputLevel (int level)
	Update the output level of the cached MsgStream. More...

Detailed Description

Just a minor modification of MemoryAuditor to allow the output memory statistics table to be printed.

Author: Vanya Belyaev; Marco Clemencic

Date: 04/02/2001

Definition at line 28 of file MemStatAuditor.cpp.

Member Function Documentation

◆ i_after()

void MemStatAuditor::i_after	(	CustomEventTypeRef	evt,
		std::string_view	caller,
		const StatusCode &	sc
	)

inlineoverridevirtual

catch all "after" method, implemented in the derived class

Implements CommonAuditor.

Definition at line 38 of file MemStatAuditor.cpp.

                                                                                             {
     i_printinfo( "Memory usage has changed after", evt, caller );
   }

◆ i_before()

void MemStatAuditor::i_before	(	CustomEventTypeRef	evt,
		std::string_view	caller
	)

inlineoverridevirtual

catch all "before" method, implemented in the derived class

Implements CommonAuditor.

Definition at line 34 of file MemStatAuditor.cpp.

                                                                    {
     // It's not interesting to monitor the memory usage before the methods.
   }

◆ i_printinfo()

void MemStatAuditor::i_printinfo	(	std::string_view	msg,
		CustomEventTypeRef	evt,
		std::string_view	caller
	)

private

Definition at line 63 of file MemStatAuditor.cpp.

                                                                                                     {
   // cannot be exactly 0
   double deltaVSize = 0.00001;

   if ( procInfo pInfo; ProcStats::instance()->fetch( pInfo ) ) {

     if ( pInfo.vsize > 0 ) {
       if ( m_vSize > 0 ) { deltaVSize = pInfo.vsize - m_vSize; }
       // store the current VSize to be able to monitor the increment
       m_vSize = pInfo.vsize;
     }

     info() << msg << " " << caller << " " << evt << " \tvirtual size = " << pInfo.vsize << " MB"
            << " \tresident set size = " << pInfo.rss << " MB"
            << " deltaVsize = " << deltaVSize << "  MB" << endmsg;
   }
   // fill the stat for every call, not just when there is a change
   // only monitor the increment in VSize
   // Stat stv(m_stat, caller + ":VMemUsage", pInfo.vsize);
   // Stat str(m_stat, caller + ":RMemUsage", pInfo.rss);
   Stat sts( m_stat, std::string{caller}.append( ":VMem" ), deltaVSize );
 }

◆ initialize()

StatusCode MemStatAuditor::initialize ( )

overridevirtual

Reimplemented from Auditor.

Definition at line 52 of file MemStatAuditor.cpp.

                                       {
   return CommonAuditor::initialize().andThen( [&]() -> StatusCode {
     m_stat = serviceLocator()->service( "ChronoStatSvc" );
     if ( UNLIKELY( !m_stat ) ) {
       error() << "Cannot get ChronoStatSvc" << endmsg;
       return StatusCode::FAILURE;
     }
     return StatusCode::SUCCESS;
   } );
 }

Member Data Documentation

◆ m_stat

SmartIF<IChronoStatSvc> MemStatAuditor::m_stat

private

Definition at line 44 of file MemStatAuditor.cpp.

◆ m_vSize

double MemStatAuditor::m_vSize = -1

private

vsize of the previous call to printinfo

Definition at line 47 of file MemStatAuditor.cpp.

The documentation for this class was generated from the following file:

GaudiAud/src/MemStatAuditor.cpp
