DataSvc Class Reference

Data service base class. More...

#include <GaudiKernel/DataSvc.h>

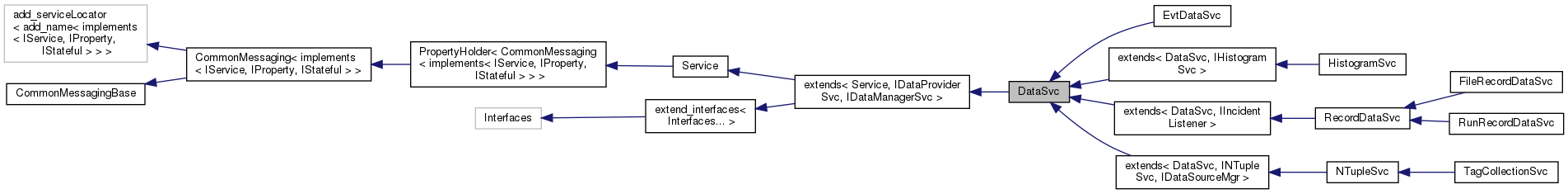

Inheritance diagram for DataSvc:

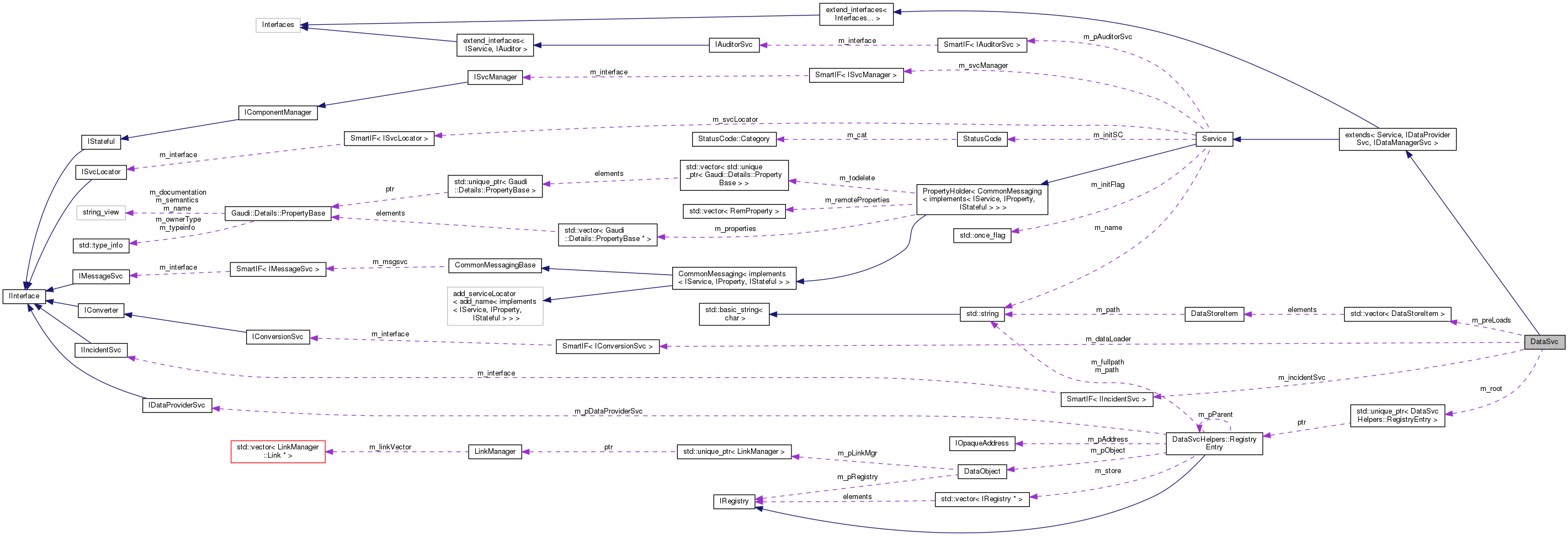

Collaboration diagram for DataSvc:

Public Member Functions
CLID	rootCLID () const override
	IDataManagerSvc: Accessor for root event CLID. More...
const std::string &	rootName () const override
	IDataManagerSvc: Accessor for root event name. More...
StatusCode	registerAddress (std::string_view fullPath, IOpaqueAddress *pAddress) override
	IDataManagerSvc: Register object address with the data store. More...
StatusCode	registerAddress (IRegistry *parentObj, std::string_view objectPath, IOpaqueAddress *pAddress) override
	IDataManagerSvc: Register object address with the data store. More...
StatusCode	unregisterAddress (std::string_view fullPath) override
	IDataManagerSvc: Unregister object address from the data store. More...
StatusCode	unregisterAddress (IRegistry *pParent, std::string_view objPath) override
	IDataManagerSvc: Unregister object address from the data store. More...
StatusCode	objectLeaves (const DataObject *pObject, std::vector< IRegistry * > &refLeaves) override
	IDataManagerSvc: Explore the object store: retrieve all leaves attached to the object. More...
StatusCode	objectLeaves (const IRegistry *pRegistry, std::vector< IRegistry * > &refLeaves) override
	IDataManagerSvc: Explore the object store: retrieve all leaves attached to the object. More...
StatusCode	objectParent (const DataObject *pObject, IRegistry *&refpParent) override
	IDataManagerSvc: Explore the object store: retrieve the object's parent. More...
StatusCode	objectParent (const IRegistry *pRegistry, IRegistry *&refpParent) override
	IDataManagerSvc: Explore the object store: retrieve the object's parent. More...
StatusCode	clearSubTree (std::string_view sub_tree_path) override
	IDataManagerSvc: Remove all data objects below the sub tree identified by its full path name. More...
StatusCode	clearSubTree (DataObject *pObject) override
	IDataManagerSvc: Remove all data objects below the sub tree identified by the object. More...
StatusCode	clearStore () override
	IDataManagerSvc: Remove all data objects in the data store. More...
StatusCode	traverseSubTree (std::string_view sub_tree_path, IDataStoreAgent *pAgent) override
	IDataManagerSvc: Analyze by traversing all data objects below the sub tree identified by its full path name. More...
StatusCode	traverseSubTree (DataObject *pObject, IDataStoreAgent *pAgent) override
	IDataManagerSvc: Analyze by traversing all data objects below the sub tree. More...
StatusCode	traverseTree (IDataStoreAgent *pAgent) override
	IDataManagerSvc: Analyze by traversing all data objects in the data store. More...
StatusCode	setRoot (std::string root_name, DataObject *pRootObj) override
	Initialize data store for new event by giving new event path and root object. More...
virtual StatusCode	i_setRoot (std::string root_name, DataObject *pRootObj)
	Initialize data store for new event by giving new event path and root object. More...
StatusCode	setRoot (std::string root_path, IOpaqueAddress *pRootAddr) override
	Initialize data store for new event by giving new event path and address of root object. More...
virtual StatusCode	i_setRoot (std::string root_path, IOpaqueAddress *pRootAddr)
	Initialize data store for new event by giving new event path and address of root object. More...
StatusCode	setDataLoader (IConversionSvc *svc, IDataProviderSvc *dpsvc=nullptr) override
	IDataManagerSvc: IDataManagerSvc: Pass a default data loader to the service and optionally a data provider. More...
StatusCode	addPreLoadItem (const DataStoreItem &item) override
	Add an item to the preload list. More...
StatusCode	removePreLoadItem (const DataStoreItem &item) override
	Remove an item from the preload list. More...
StatusCode	resetPreLoad () override
	Clear the preload list. More...
virtual StatusCode	preLoad (int depth, int load_depth, DataObject *pObject)
	Execute one level of preloading and recursively load until the final level is reached. More...
StatusCode	preLoad () override
	load all preload items of the list More...
StatusCode	registerObject (std::string_view parentPath, std::string_view objPath, DataObject *pObject) override
	Register object with the data store. More...
StatusCode	registerObject (DataObject *parentObj, std::string_view objPath, DataObject *pObject) override
	Register object with the data store. More...
StatusCode	unregisterObject (std::string_view fullPath) override
	Unregister object from the data store. More...
StatusCode	unregisterObject (DataObject *pObject) override
	Unregister object from the data store. More...
StatusCode	unregisterObject (DataObject *pObject, std::string_view objectPath) override
	Unregister object from the data store. More...
StatusCode	retrieveObject (IRegistry *pDirectory, std::string_view path, DataObject *&pObject) override
	Retrieve object from data store. More...
StatusCode	findObject (std::string_view fullPath, DataObject *&pObject) override
	Find object identified by its full path in the data store. More...
StatusCode	findObject (IRegistry *pDirectory, std::string_view path, DataObject *&pObject) override
	Find object identified by its full path in the data store. More...
StatusCode	linkObject (IRegistry *from, std::string_view objPath, DataObject *to) override
	Add a link to another object. More...
StatusCode	linkObject (std::string_view fullPath, DataObject *to) override
	Add a link to another object. More...
StatusCode	unlinkObject (IRegistry *from, std::string_view objPath) override
	Remove a link to another object. More...
StatusCode	unlinkObject (DataObject *fromObj, std::string_view objPath) override
	Remove a link to another object. More...
StatusCode	unlinkObject (std::string_view fullPath) override
	Remove a link to another object. More...
StatusCode	updateObject (IRegistry *pDirectory) override
	Update object identified by its directory entry. More...
StatusCode	updateObject (DataObject *toUpdate) override
	Update object. More...
StatusCode	initialize () override
	Service initialization. More...
StatusCode	reinitialize () override
	Service initialization. More...
StatusCode	finalize () override
	Service initialization. More...
	DataSvc (const DataSvc &)=delete
	copy constructor disabled More...
DataSvc &	operator= (const DataSvc &)=delete
	Fake assignment operator (never implemented). More...
virtual StatusCode	registerAddress (std::string_view fullPath, IOpaqueAddress *pAddress)=0
	Register object address with the data store. More...
StatusCode	registerAddress (DataObject *parentObj, std::string_view objectPath, IOpaqueAddress *pAddress)
	Register object address with the data store. More...
virtual StatusCode	registerAddress (IRegistry *parentObj, std::string_view objectPath, IOpaqueAddress *pAddress)=0
	Register object address with the data store. More...
virtual StatusCode	unregisterAddress (std::string_view fullPath)=0
	Unregister object address from the data store. More...
StatusCode	unregisterAddress (DataObject *pParent, std::string_view objPath)
	Unregister object address from the data store. More...
virtual StatusCode	unregisterAddress (IRegistry *pParent, std::string_view objPath)=0
	Unregister object address from the data store. More...
StatusCode	registerObject (std::string_view fullPath, DataObject *pObject)
	Register object with the data store. More...
virtual StatusCode	registerObject (std::string_view parentPath, std::string_view objectPath, DataObject *pObject)=0
	Register object with the data store. More...
StatusCode	registerObject (std::string_view parentPath, int item, DataObject *pObject)
	Register object with the data store. More...
virtual StatusCode	registerObject (DataObject *parentObj, std::string_view objectPath, DataObject *pObject)=0
	Register object with the data store. More...
StatusCode	registerObject (DataObject *parentObj, int item, DataObject *pObject)
	Register object with the data store. More...
virtual StatusCode	retrieveObject (IRegistry *pDirectory, std::string_view path, DataObject *&pObject)=0
	Retrieve object identified by its directory entry. More...
StatusCode	retrieveObject (std::string_view fullPath, DataObject *&pObject)
	Retrieve object identified by its full path from the data store. More...
StatusCode	retrieveObject (std::string_view parentPath, std::string_view objectPath, DataObject *&pObject)
	Retrieve object from data store. More...
StatusCode	retrieveObject (std::string_view parentPath, int item, DataObject *&pObject)
	Retrieve object from data store. More...
StatusCode	retrieveObject (DataObject *parentObj, std::string_view objectPath, DataObject *&pObject)
	Retrieve object from data store. More...
StatusCode	retrieveObject (DataObject *parentObj, int item, DataObject *&pObject)
	Retrieve object from data store. More...
virtual StatusCode	findObject (IRegistry *pDirectory, std::string_view path, DataObject *&pObject)=0
	Find object identified by its directory entry. More...
virtual StatusCode	findObject (std::string_view fullPath, DataObject *&pObject)=0
	Find object identified by its full path in the data store. More...
StatusCode	findObject (std::string_view parentPath, std::string_view objectPath, DataObject *&pObject)
	Find object identified by its parent object and the path to the object relative to the parent. More...
StatusCode	findObject (std::string_view parentPath, int item, DataObject *&pObject)
	Find object identified by its parent object and an integer identifier in the data store. More...
StatusCode	findObject (DataObject *parentObj, std::string_view objectPath, DataObject *&pObject)
	Find object identified by its parent object and the path to the object relative to the parent. More...
StatusCode	findObject (DataObject *parentObj, int item, DataObject *&pObject)
	Find object identified by its parent object and an integer identifier in the data store. More...
virtual StatusCode	linkObject (IRegistry *from, std::string_view objPath, DataObject *toObj)=0
	Add a link to another object. More...
StatusCode	linkObject (std::string_view fromPath, std::string_view objPath, DataObject *toObj)
	Add a link to another object. More...
StatusCode	linkObject (DataObject *fromObj, std::string_view objPath, DataObject *toObj)
	Add a link to another object. More...
virtual StatusCode	linkObject (std::string_view fullPath, DataObject *toObj)=0
	Add a link to another object. More...
virtual StatusCode	unlinkObject (IRegistry *from, std::string_view objPath)=0
	Remove a link to another object. More...
StatusCode	unlinkObject (std::string_view fromPath, std::string_view objPath)
	Remove a link to another object. More...
virtual StatusCode	unlinkObject (DataObject *fromObj, std::string_view objPath)=0
	Remove a link to another object. More...
virtual StatusCode	unlinkObject (std::string_view fullPath)=0
	Remove a link to another object. More...
Public Member Functions inherited from extends< Service, IDataProviderSvc, IDataManagerSvc >
void *	i_cast (const InterfaceID &tid) const override
	Implementation of IInterface::i_cast. More...
StatusCode	queryInterface (const InterfaceID &ti, void **pp) override
	Implementation of IInterface::queryInterface. More...
std::vector< std::string >	getInterfaceNames () const override
	Implementation of IInterface::getInterfaceNames. More...
Public Member Functions inherited from Service
const std::string &	name () const override
	Retrieve name of the service. More...
StatusCode	configure () override
StatusCode	initialize () override
StatusCode	start () override
StatusCode	stop () override
StatusCode	finalize () override
StatusCode	terminate () override
Gaudi::StateMachine::State	FSMState () const override
Gaudi::StateMachine::State	targetFSMState () const override
StatusCode	reinitialize () override
StatusCode	restart () override
StatusCode	sysInitialize () override
	Initialize Service. More...
StatusCode	sysStart () override
	Initialize Service. More...
StatusCode	sysStop () override
	Initialize Service. More...
StatusCode	sysFinalize () override
	Finalize Service. More...
StatusCode	sysReinitialize () override
	Re-initialize the Service. More...
StatusCode	sysRestart () override
	Re-initialize the Service. More...
	Service (std::string name, ISvcLocator *svcloc)
	Standard Constructor. More...
SmartIF< ISvcLocator > &	serviceLocator () const override
	Retrieve pointer to service locator. More...
StatusCode	setProperties ()
	Method for setting declared properties to the values specified for the job. More...
template<class T >
StatusCode	service (const std::string &name, const T *&psvc, bool createIf=true) const
	Access a service by name, creating it if it doesn't already exist. More...
template<class T >
StatusCode	service (const std::string &name, T *&psvc, bool createIf=true) const
template<typename IFace = IService>
SmartIF< IFace >	service (const std::string &name, bool createIf=true) const
template<class T >
StatusCode	service (const std::string &svcType, const std::string &svcName, T *&psvc) const
	Access a service by name and type, creating it if it doesn't already exist. More...
template<class T >
StatusCode	declareTool (ToolHandle< T > &handle, std::string toolTypeAndName, bool createIf=true)
	Declare used tool. More...
SmartIF< IAuditorSvc > &	auditorSvc () const
	The standard auditor service.May not be invoked before sysInitialize() has been invoked. More...
Public Member Functions inherited from PropertyHolder< CommonMessaging< implements< IService, IProperty, IStateful > > >
	PropertyHolder ()=default
Gaudi::Details::PropertyBase &	declareProperty (Gaudi::Details::PropertyBase &prop)
	Declare a property. More...
Gaudi::Details::PropertyBase *	declareProperty (const std::string &name, TYPE &value, const std::string &doc="none")
	Helper to wrap a regular data member and use it as a regular property. More...
Gaudi::Details::PropertyBase *	declareProperty (const std::string &name, Gaudi::Property< TYPE, VERIFIER, HANDLERS > &prop, const std::string &doc="none")
	Declare a PropertyBase instance setting name and documentation. More...
Gaudi::Details::PropertyBase *	declareRemoteProperty (const std::string &name, IProperty *rsvc, const std::string &rname="")
	Declare a remote property. More...
StatusCode	setProperty (const Gaudi::Details::PropertyBase &p) override
	set the property form another property More...
StatusCode	setProperty (const std::string &s) override
	set the property from the formatted string More...
StatusCode	setProperty (const std::string &n, const std::string &v) override
	set the property from name and the value More...
StatusCode	setProperty (const std::string &name, const TYPE &value)
	set the property form the value More...
StatusCode	getProperty (Gaudi::Details::PropertyBase *p) const override
	get the property More...
const Gaudi::Details::PropertyBase &	getProperty (const std::string &name) const override
	get the property by name More...
StatusCode	getProperty (const std::string &n, std::string &v) const override
	convert the property to the string More...
const std::vector< Gaudi::Details::PropertyBase * > &	getProperties () const override
	get all properties More...
bool	hasProperty (const std::string &name) const override
	Return true if we have a property with the given name. More...
	PropertyHolder (const PropertyHolder &)=delete
PropertyHolder &	operator= (const PropertyHolder &)=delete
Public Member Functions inherited from CommonMessaging< implements< IService, IProperty, IStateful > >
MSG::Level	msgLevel () const
	get the cached level (originally extracted from the embedded MsgStream) More...
bool	msgLevel (MSG::Level lvl) const
	get the output level from the embedded MsgStream More...
Public Member Functions inherited from CommonMessagingBase
virtual	~CommonMessagingBase ()=default
	Virtual destructor. More...
const SmartIF< IMessageSvc > &	msgSvc () const
	The standard message service. More...
MsgStream &	msgStream () const
	Return an uninitialized MsgStream. More...
MsgStream &	msgStream (const MSG::Level level) const
	Predefined configurable message stream for the efficient printouts. More...
MsgStream &	always () const
	shortcut for the method msgStream(MSG::ALWAYS) More...
MsgStream &	fatal () const
	shortcut for the method msgStream(MSG::FATAL) More...
MsgStream &	err () const
	shortcut for the method msgStream(MSG::ERROR) More...
MsgStream &	error () const
	shortcut for the method msgStream(MSG::ERROR) More...
MsgStream &	warning () const
	shortcut for the method msgStream(MSG::WARNING) More...
MsgStream &	info () const
	shortcut for the method msgStream(MSG::INFO) More...
MsgStream &	debug () const
	shortcut for the method msgStream(MSG::DEBUG) More...
MsgStream &	verbose () const
	shortcut for the method msgStream(MSG::VERBOSE) More...
MsgStream &	msg () const
	shortcut for the method msgStream(MSG::INFO) More...

Protected Member Functions
bool	checkRoot ()
	Check if root path is valid. More...
virtual IConversionSvc *	getDataLoader (IRegistry *pReg)
	Retrieve customizable data loader according to registry entry to be retrieved. More...
virtual DataObject *	createDefaultObject () const
	Create default objects in case forced creation of leaves is requested. More...
virtual StatusCode	loadObject (IRegistry *pNode)
	Invoke Persistency service to create transient object from its persistent representation. More...
virtual StatusCode	loadObject (IConversionSvc *pLoader, IRegistry *pNode)
	Invoke Persistency service to create transient object from its persistent representation. More...
StatusCode	retrieveEntry (DataSvcHelpers::RegistryEntry *pNode, std::string_view path, DataSvcHelpers::RegistryEntry *&pEntry)
	Retrieve registry entry from store. More...
DataObject *	handleDataFault (IRegistry *pReg, std::string_view path="")
	Invoke data fault handling if enabled. More...
Protected Member Functions inherited from Service
	~Service () override
	Standard Destructor. More...
int	outputLevel () const
	get the Service's output level More...
Protected Member Functions inherited from PropertyHolder< CommonMessaging< implements< IService, IProperty, IStateful > > >
Gaudi::Details::PropertyBase *	property (const std::string &name) const
Protected Member Functions inherited from CommonMessaging< implements< IService, IProperty, IStateful > >
MSG::Level	setUpMessaging () const
	Set up local caches. More...
MSG::Level	resetMessaging ()
	Reinitialize internal states. More...
void	updateMsgStreamOutputLevel (int level)
	Update the output level of the cached MsgStream. More...

Protected Attributes
SmartIF< IIncidentSvc >	m_incidentSvc = nullptr
	Pointer to incident service. More...
Gaudi::Property< CLID >	m_rootCLID {this, "RootCLID", 110 , "CLID of root entry"}
Gaudi::Property< std::string >	m_rootName {this, "RootName", "/Event", "name of root entry"}
std::unique_ptr< DataSvcHelpers::RegistryEntry >	m_root
	Pointer to root entry. More...
Protected Attributes inherited from Service
Gaudi::StateMachine::State	m_state = Gaudi::StateMachine::OFFLINE
	Service state. More...
Gaudi::StateMachine::State	m_targetState = Gaudi::StateMachine::OFFLINE
	Service state. More...
Gaudi::Property< int >	m_outputLevel {this, "OutputLevel", MSG::NIL, "output level"}
Gaudi::Property< bool >	m_auditInit {this, "AuditServices", false, " unused"}
Gaudi::Property< bool >	m_auditorInitialize {this, "AuditInitialize", false, "trigger auditor on initialize()"}
Gaudi::Property< bool >	m_auditorStart {this, "AuditStart", false, "trigger auditor on start()"}
Gaudi::Property< bool >	m_auditorStop {this, "AuditStop", false, "trigger auditor on stop()"}
Gaudi::Property< bool >	m_auditorFinalize {this, "AuditFinalize", false, "trigger auditor on finalize()"}
Gaudi::Property< bool >	m_auditorReinitialize {this, "AuditReinitialize", false, "trigger auditor on reinitialize()"}
Gaudi::Property< bool >	m_auditorRestart {this, "AuditRestart", false, "trigger auditor on restart()"}
SmartIF< IAuditorSvc >	m_pAuditorSvc
	Auditor Service. More...

Private Member Functions
StatusCode	i_retrieveEntry (DataSvcHelpers::RegistryEntry *parentObj, std::string_view path, DataSvcHelpers::RegistryEntry *&pEntry)
DataObject *	i_handleDataFault (IRegistry *pReg, std::string_view path=std::string_view{})

Private Attributes
SmartIF< IConversionSvc >	m_dataLoader = nullptr
	Pointer to data loader service. More...
Gaudi::Property< bool >	m_forceLeaves {this, "ForceLeaves", false, "force creation of default leaves on registerObject"}
Gaudi::Property< std::vector< std::string > >	m_inhibitPathes {this, "InhibitPathes", {}, "inhibited leaves"}
Gaudi::Property< bool >	m_enableFaultHdlr
Gaudi::Property< std::string >	m_faultName {this, "DataFaultName", "DataFault", "Name of the data fault incident"}
Gaudi::Property< bool >	m_enableAccessHdlr
Gaudi::Property< std::string >	m_accessName {this, "DataAccessName", "DataAccess", "Name of the data access incident"}
std::vector< DataStoreItem >	m_preLoads
	Items to be pre-loaded. More...

Additional Inherited Members
Public Types inherited from extends< Service, IDataProviderSvc, IDataManagerSvc >
using	base_class = extends
	Typedef to this class. More...
using	extend_interfaces_base = extend_interfaces< Interfaces... >
	Typedef to the base of this class. More...
Public Types inherited from Service
using	Factory = Gaudi::PluginService::Factory< IService *(const std::string &, ISvcLocator *)>
Public Types inherited from PropertyHolder< CommonMessaging< implements< IService, IProperty, IStateful > > >
using	PropertyHolderImpl = PropertyHolder< CommonMessaging< implements< IService, IProperty, IStateful > > >
	Typedef used to refer to this class from derived classes, as in. More...
Public Types inherited from CommonMessaging< implements< IService, IProperty, IStateful > >
using	base_class = CommonMessaging
Public Types inherited from extend_interfaces< Interfaces... >
using	ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids... >::type
	take union of the ext_iids of all Interfaces... More...

Detailed Description

Data service base class.

A data service manages the transient data stores and implements the IDataProviderSvc and IDataManagerSvc interfaces.

Author

Markus Frank

Sebastien Ponce

Version

1.0

Definition at line 52 of file DataSvc.h.

Constructor & Destructor Documentation

DataSvc()

DataSvc::DataSvc ( const DataSvc &  )

delete

copy constructor disabled

Member Function Documentation

addPreLoadItem()

StatusCode DataSvc::addPreLoadItem ( const DataStoreItem &  item )

override

Add an item to the preload list.

Definition at line 776 of file DataSvc.cpp.

                                                              {
  auto i = std::find( begin( m_preLoads ), end( m_preLoads ), item );
  if ( i == end( m_preLoads ) ) m_preLoads.push_back( item );
  return StatusCode::SUCCESS;
}

checkRoot()

bool DataSvc::checkRoot ( )

inlineprotected

Check if root path is valid.

Definition at line 263 of file DataSvc.h.

{ return 0 != m_root; }

clearStore()

StatusCode DataSvc::clearStore ( )

override

IDataManagerSvc: Remove all data objects in the data store.

Definition at line 111 of file DataSvc.cpp.

                               {
  if ( !checkRoot() ) return Status::INVALID_ROOT;
  m_root.reset();
  return StatusCode::SUCCESS;
}

clearSubTree() [1/2]

StatusCode DataSvc::clearSubTree ( std::string_view  sub_tree_path )

override

IDataManagerSvc: Remove all data objects below the sub tree identified by its full path name.

Definition at line 85 of file DataSvc.cpp.

                                                               {
  DataObject* pObject = nullptr;
  StatusCode  status  = findObject( sub_tree_path, pObject );
  if ( !status.isSuccess() ) return status;
  RegEntry* node_entry = CAST_REGENTRY( RegEntry*, pObject->registry() );
  if ( !node_entry ) return Status::INVALID_OBJECT;
  RegEntry* parent = node_entry->parentEntry();
  if ( !parent ) return Status::INVALID_PARENT;
  parent->remove( node_entry );
  return StatusCode::SUCCESS;
}

clearSubTree() [2/2]

StatusCode DataSvc::clearSubTree ( DataObject *  pObject )

override

IDataManagerSvc: Remove all data objects below the sub tree identified by the object.

Definition at line 100 of file DataSvc.cpp.

                                                      {
  if ( !checkRoot() ) return Status::INVALID_ROOT;
  RegEntry* entry = CAST_REGENTRY( RegEntry*, pObject->registry() );
  if ( !entry ) return Status::INVALID_OBJECT;
  RegEntry* parent = entry->parentEntry();
  if ( !parent ) return Status::INVALID_PARENT;
  parent->remove( entry );
  return StatusCode::SUCCESS;
}

createDefaultObject()

DataObject * DataSvc::createDefaultObject ( ) const

protectedvirtual

Create default objects in case forced creation of leaves is requested.

Definition at line 871 of file DataSvc.cpp.

{ return new DataObject(); }

finalize()

StatusCode DataSvc::finalize ( )

override

Service initialization.

Service initialisation.

Definition at line 855 of file DataSvc.cpp.

                             {
  // Nothing to do: just call base class initialisation
  setDataLoader( nullptr ).ignore();
  resetPreLoad().ignore();
  clearStore().ignore();
  m_incidentSvc.reset();
  return Service::finalize();
}

findObject() [1/8]

virtual StatusCode IDataProviderSvc::findObject

Find object identified by its directory entry.

The result will be returned in the second argument. In case the object is not present the pointer will be set to NULL. ** FASTEST ACCESS TO THE DATA STORE **

Parameters

pDirectory	Pointer to the object.
path	String with relative path to directory. Ideally ""!
pObject	Reference to the pointer of the object to be returned.

Returns

Status code indicating success or failure.

findObject() [2/8]

virtual StatusCode IDataProviderSvc::findObject

Find object identified by its full path in the data store.

The result will be returned in the second argument. In case the object is not present the pointer will be set to NULL.

Parameters

fullPath	Path name of the object.
pObject	Pointer to the object to be connected.

Returns

Status code indicating success or failure.

findObject() [3/8]

StatusCode IDataProviderSvc::findObject

inline

Find object identified by its parent object and the path to the object relative to the parent.

The result will be returned in the second argument. In case the object is not present the pointer will be set to NULL.

Parameters

parentPath	Path to parent node of the object.
objectPath	Relative path name of the object.
pObject	Reference to the pointer of the object to be returned.

Returns

Status code indicating success or failure.

Definition at line 334 of file IDataProviderSvc.h.

                                                                                                      {
    DataObject* parent = nullptr;
    StatusCode  status = findObject( parentPath, parent );
    return status.isSuccess() ? findObject( parent, objectPath, pObject ) : status;
  }

findObject() [4/8]

StatusCode IDataProviderSvc::findObject

inline

Find object identified by its parent object and an integer identifier in the data store.

In case the object is not present the pointer will be set to NULL.

Parameters

parentPath	Path to parent node of the object.
item	Item identifier.
pObject	Reference to the pointer of the object to be returned.

Returns

Status code indicating success or failure.

Definition at line 348 of file IDataProviderSvc.h.

                                                                                     {
    return findObject( parentPath, itemToPath( item ), pObject );
  }

findObject() [5/8]

StatusCode IDataProviderSvc::findObject

inline

Find object identified by its parent object and the path to the object relative to the parent.

The result will be returned in the second argument. In case the object is not present the pointer will be set to NULL.

Parameters

parentObj	Pointer to parent node of the object.
objectPath	Relative path name of the object.
pObject	Reference to the pointer of the object to be returned.

Returns

Status code indicating success or failure.

Definition at line 361 of file IDataProviderSvc.h.

                                                                                                  {
    return findObject( parentObj ? parentObj->registry() : nullptr, objectPath, pObject );
  }

findObject() [6/8]

StatusCode IDataProviderSvc::findObject

inline

Find object identified by its parent object and an integer identifier in the data store.

In case the object is not present the pointer will be set to NULL.

Parameters

parentObj	Pointer to parent node of the object.
item	Item identifier.
pObject	Reference to the pointer of the object to be returned.

Returns

Status code indicating success or failure.

Definition at line 373 of file IDataProviderSvc.h.

                                                                                 {
    return findObject( parentObj, itemToPath( item ), pObject );
  }

findObject() [7/8]

StatusCode DataSvc::findObject ( std::string_view  fullPath, DataObject *&  pObject  )

override

Find object identified by its full path in the data store.

Definition at line 650 of file DataSvc.cpp.

                                                                          {
  pObject = nullptr;
  if ( !checkRoot() ) return Status::INVALID_ROOT;
  if ( path.empty() || path == m_rootName.value() ) {
    pObject = m_root->object();
    return !pObject ? Status::OBJ_NOT_LOADED : Status::IDataProviderSvc_NO_ERROR;
  }
  return findObject( path.front() != SEPARATOR ? m_root.get() : nullptr, path, pObject );
}

findObject() [8/8]

StatusCode DataSvc::findObject ( IRegistry *  pDirectory, std::string_view  path, DataObject *&  pObject  )

override

Find object identified by its full path in the data store.

Retrieve object identified by its directory from the data store.

Definition at line 637 of file DataSvc.cpp.

                                                                                                {
  pObject               = nullptr;
  IRegistry* pReg       = ( pRegistry ? pRegistry : m_root.get() );
  RegEntry*  root_entry = CAST_REGENTRY( RegEntry*, pReg );
  if ( root_entry ) {
    if ( !path.empty() ) pReg = root_entry->find( path );
    if ( !pReg ) return Status::INVALID_OBJ_PATH;
    pObject = pReg->object();
  }
  return ( !pObject ) ? Status::OBJ_NOT_LOADED : Status::IDataProviderSvc_NO_ERROR;
}

getDataLoader()

IConversionSvc * DataSvc::getDataLoader ( IRegistry *  pReg )

protectedvirtual

Retrieve customizable data loader according to registry entry to be retrieved.

Reimplemented in NTupleSvc.

Definition at line 876 of file DataSvc.cpp.

{ return m_dataLoader.get(); }

handleDataFault()

DataObject * DataSvc::handleDataFault ( IRegistry *  pReg, std::string_view  path = ""  )

protected

Invoke data fault handling if enabled.

Parameters

pReg	[IN] Pointer to missing registry entry
path	[IN] Sub-path of requested object from pReg

Returns

Object corresponding to the specified leaf

Definition at line 435 of file DataSvc.cpp.

                                                                           {
  return i_handleDataFault( pReg, path );
}

i_handleDataFault()

DataObject * DataSvc::i_handleDataFault ( IRegistry *  pReg, std::string_view  path = std::string_view{}  )

private

Definition at line 439 of file DataSvc.cpp.

                                                                             {
  if ( m_enableFaultHdlr ) {
    IRegistry* pLeaf = nullptr;
    if ( pReg && path.empty() ) {
      DataIncident incident( name(), m_faultName, pReg->identifier() );
      m_incidentSvc->fireIncident( incident );
      return pReg->object();
    }
    if ( pReg ) {
      std::string p = pReg->identifier();
      if ( path.front() != SEPARATOR ) p += SEPARATOR;
      p.append( path.data(), path.size() );
      DataIncident incident( name(), m_faultName, p );
      m_incidentSvc->fireIncident( incident );
      pLeaf = m_root->findLeaf( p );
    } else {
      std::string p = m_root->identifier();
      if ( path.front() != SEPARATOR ) p += SEPARATOR;
      p.append( path.data(), path.size() );
      DataIncident incident( name(), m_faultName, p );
      m_incidentSvc->fireIncident( incident );
      pLeaf = m_root->findLeaf( p );
    }
    if ( pLeaf ) { return pLeaf->object(); }
  }
  return nullptr;
}

i_retrieveEntry()

StatusCode DataSvc::i_retrieveEntry ( DataSvcHelpers::RegistryEntry *  parentObj, std::string_view  path, DataSvcHelpers::RegistryEntry *&  pEntry  )

private

Definition at line 542 of file DataSvc.cpp.

                                                                                                 {
  // A.Valassi 16.08.2001 avoid core dump if store is empty
  if ( !checkRoot() ) return StatusCode( Status::INVALID_ROOT, true );

  static constexpr auto empty = std::string_view{};
  auto                  sep   = find( path, SEPARATOR, 1 );
  pEntry                      = nullptr;

  if ( !parentObj ) {
    if ( path.empty() || path == m_rootName.value() ) {
      parentObj = m_root.get();
      path      = empty;
    } else if ( path.front() != SEPARATOR ) {
      parentObj = m_root.get();
    } else if ( sep != std::string_view::npos ) {
      if ( !m_root->object() ) {
        RegEntry* r      = nullptr;
        auto      status = i_retrieveEntry( m_root.get(), empty, r );
        if ( !status.isSuccess() ) return status;
      }
      parentObj = m_root.get();
      path      = path.substr( sep );
    } else {
      return Status::INVALID_OBJ_PATH;
    }
    sep = find( path, SEPARATOR, 1 );
  }

  StatusCode status = StatusCode( Status::INVALID_ROOT, true );
  if ( sep != std::string_view::npos ) { // the string contains a separator (after pos 0)
    if ( !parentObj->object() ) {        // if the parent object has not been loaded yet, load it now
      status = loadObject( parentObj );
      if ( !status.isSuccess() ) return status;
    }
    auto      p_path     = path.substr( 0, sep );
    RegEntry* root_entry = parentObj->findLeaf( p_path );
    if ( !root_entry && m_enableFaultHdlr ) {
      // If not even the parent is there, an incident
      // to load the parent must be fired...
      i_handleDataFault( parentObj, p_path );
      root_entry = parentObj->findLeaf( p_path );
    }
    if ( root_entry ) {
      DataObject* pO = root_entry->object();
      if ( !pO ) {
        // Object is not loaded: load the object if at all possible
        status = loadObject( root_entry );
        if ( !status.isSuccess() ) return status;
      }
      if ( root_entry->isSoft() ) { root_entry = CAST_REGENTRY( RegEntry*, pO->registry() ); }
      return i_retrieveEntry( root_entry, path.substr( sep ), pEntry );
    }
    return status;
  } else if ( path.empty() ) {
    pEntry = parentObj;
  } else {
    if ( !parentObj->object() ) { // if the parent object has not been loaded yet, load it now
      status = loadObject( parentObj );
      if ( !status.isSuccess() ) return status;
    }
    // last leave in search: find leaf and load
    pEntry = parentObj->findLeaf( path );
    // If no registry entry was found, trigger incident for action-on-demand
    if ( !pEntry && m_enableFaultHdlr ) {
      i_handleDataFault( parentObj, path );
      pEntry = ( path.empty() ? parentObj : parentObj->findLeaf( path ) );
    }
  }

  // Check results and return
  if ( !pEntry ) return Status::INVALID_OBJ_PATH;
  if ( !pEntry->object() ) return loadObject( pEntry );

  if ( m_enableAccessHdlr ) {
    // Fire data access incident
    // I do not know if this is a good idea....
    // This fires too often!
    //
    // DataIncident incident(name(), m_accessName, pEntry->identifier());
    // m_incidentSvc->fireIncident(incident);
    return StatusCode::SUCCESS;
  }
  return StatusCode::SUCCESS;
}

i_setRoot() [1/2]

StatusCode DataSvc::i_setRoot ( std::string  root_path, DataObject *  pRootObj  )

virtual

Initialize data store for new event by giving new event path and root object.

Does not clear the store before reinitializing it. This could lead to errors and should be handle with care. Use setRoot if unsure

Definition at line 152 of file DataSvc.cpp.

                                                                         {
  if ( pRootObj ) {
    m_root = std::make_unique<RegEntry>( std::move( root_path ) );
    m_root->makeHard( pRootObj );
    m_root->setDataSvc( this );
    // No done with GaudiHive. preLoad().ignore();
  }
  return StatusCode::SUCCESS;
}

i_setRoot() [2/2]

StatusCode DataSvc::i_setRoot ( std::string  root_path, IOpaqueAddress *  pRootAddr  )

virtual

Initialize data store for new event by giving new event path and address of root object.

Does not clear the store before reinitializing it. This could lead to errors and should be handle with care. Use setRoot if unsure

Definition at line 176 of file DataSvc.cpp.

                                                                              {
  if ( pRootAddr ) {
    m_root = std::make_unique<RegEntry>( std::move( root_path ) );
    m_root->makeHard( pRootAddr );
    m_root->setDataSvc( this );
    // Not done with GaudiHive. preLoad().ignore();
  }
  return StatusCode::SUCCESS;
}

initialize()

StatusCode DataSvc::initialize ( )

override

Service initialization.

Definition at line 822 of file DataSvc.cpp.

                               {
  // Nothing to do: just call base class initialisation
  StatusCode sc = Service::initialize();
  if ( UNLIKELY( !sc.isSuccess() ) ) return sc;
  m_incidentSvc = service( "IncidentSvc", true );
  if ( UNLIKELY( !m_incidentSvc ) ) { error() << "Failed to access incident service." << endmsg; }
  return sc;
}

linkObject() [1/6]

StatusCode IDataProviderSvc::linkObject

inline

Add a link to another object.

Both objects must already be registered with the data store. Once linked, the object can only be unregistered after unlinking.

Parameters

fromPath	Path to the object the link originates.
objPath	Path of the entry to be linked relative to from.
toObj	Pointer to the object the link points to.

Returns

Status code indicating success or failure.

Definition at line 489 of file IDataProviderSvc.h.

                                                                                              {
    DataObject* pO     = nullptr;
    StatusCode  status = retrieveObject( fromPath, pO );
    return status.isSuccess() ? linkObject( pO->registry(), objPath, toObj ) : status;
  }

linkObject() [2/6]

virtual StatusCode IDataProviderSvc::linkObject

Add a link to another object.

Both objects must already be registered with the data store. Once linked, the object can only be unregistered after unlinking.

Parameters

from	Pointer to data directory the link originates.
objPath	Path of the entry to be linked relative to from.
toObj	Pointer to the object the link points to.

Returns

Status code indicating success or failure.

linkObject() [3/6]

StatusCode IDataProviderSvc::linkObject

inline

Add a link to another object.

Both objects must already be registered with the data store. Once linked, the object can only be unregistered after unlinking.

Parameters

fromObj	Pointer to the object the link originates.
objPath	Path of the entry to be linked relative to from.
toObj	Pointer to the object the link points to.

Returns

Status code indicating success or failure.

Definition at line 590 of file IDataProviderSvc.h.

                                                                                                               {
  if ( fromObj ) {
    IRegistry* from_entry = fromObj->registry();
    if ( from_entry ) return linkObject( from_entry, objPath, toObj );
  }
  return Status::INVALID_PARENT;
}

linkObject() [4/6]

virtual StatusCode IDataProviderSvc::linkObject

Add a link to another object.

Both objects must already be registered with the data store. Once linked, the object can only be unregistered after unlinking.

Parameters

fullPath	Full path of the entry to be linked.
toObj	Pointer to the object the link points to.

Returns

Status code indicating success or failure.

linkObject() [5/6]

StatusCode DataSvc::linkObject ( IRegistry *  from, std::string_view  objPath, DataObject *  to  )

override

Add a link to another object.

Definition at line 710 of file DataSvc.cpp.

                                                                                        {
  if ( !checkRoot() ) return Status::INVALID_ROOT;
  try {
    RegEntry* from_entry = CAST_REGENTRY( RegEntry*, from );
    if ( from_entry ) {
      // First check if both objects are already registered to the store
      RegEntry* to_entry = m_root->findLeaf( to );
      if ( !to_entry ) return Status::INVALID_OBJECT;
      auto sep = objPath.rfind( SEPARATOR );
      if ( sep > 0 && sep != std::string_view::npos ) { // in case the objPath is a sub-directory itself
        DataObject* pO = nullptr;
        StatusCode  sc = retrieveObject( from, objPath.substr( 0, sep ), pO );
        return sc.isSuccess() ? linkObject( pO->registry(), objPath.substr( sep ), to ) : sc;
      }
      // Now register the soft link
      StatusCode status = from_entry->add( to_string( objPath ), to, true );
      return status.isSuccess() ? Status::IDataProviderSvc_NO_ERROR : Status::DOUBL_OBJ_PATH;
    }
  } catch ( ... ) {}
  return Status::INVALID_PARENT;
}

linkObject() [6/6]

StatusCode DataSvc::linkObject ( std::string_view  fullPath, DataObject *  to  )

override

Add a link to another object.

Definition at line 733 of file DataSvc.cpp.

                                                                        {
  if ( fullPath.empty() ) return Status::INVALID_OBJ_PATH;
  if ( fullPath.front() != SEPARATOR ) { return linkObject( m_rootName.value(), fullPath, to ); }
  auto sep = fullPath.rfind( SEPARATOR );
  return linkObject( fullPath.substr( 0, sep ), fullPath.substr( sep ), to );
}

loadObject() [1/2]

StatusCode DataSvc::loadObject ( IRegistry *  pNode )

protectedvirtual

Invoke Persistency service to create transient object from its persistent representation.

Definition at line 470 of file DataSvc.cpp.

                                                     {
  IConversionSvc* pLoader = getDataLoader( pRegistry );
  return loadObject( pLoader, pRegistry );
}

loadObject() [2/2]

StatusCode DataSvc::loadObject ( IConversionSvc *  pLoader, IRegistry *  pNode  )

protectedvirtual

Invoke Persistency service to create transient object from its persistent representation.

Definition at line 478 of file DataSvc.cpp.

                                                                              {
  StatusCode  status  = Status::INVALID_OBJ_ADDR;
  DataObject* pObject = nullptr;
  if ( !pLoader ) { // Precondition: Data loader must be present
    return handleDataFault( pRegistry ) ? StatusCode::SUCCESS : StatusCode( Status::NO_DATA_LOADER );
  }
  if ( !pRegistry ) { // Precondition: Directory must be valid
    return handleDataFault( pRegistry ) ? StatusCode::SUCCESS : StatusCode( Status::INVALID_OBJ_ADDR );
  }

  VERMSG << "Requested object " << pRegistry->identifier() << endmsg;

  if ( m_enableAccessHdlr ) {
    // Fire data access incident
    DataIncident incident( name(), m_accessName, pRegistry->identifier() );
    m_incidentSvc->fireIncident( incident );
  }
  if ( !m_inhibitPathes.empty() ) {
    auto inhibit = std::find( m_inhibitPathes.begin(), m_inhibitPathes.end(), pRegistry->identifier() );
    if ( inhibit != m_inhibitPathes.end() ) { return Status::NO_ACCESS; }
  }
  IOpaqueAddress* pAddress = pRegistry->address();
  if ( !pAddress ) {                 // Precondition:
    return Status::INVALID_OBJ_ADDR; // Address must be valid
  }
  try {
    status = pLoader->createObj( pAddress, pObject ); // Call data loader
    if ( status.isSuccess() ) {

      VERMSG << "Object " << pRegistry->identifier() << " created" << endmsg;

      RegEntry* pEntry = CAST_REGENTRY( RegEntry*, pRegistry );
      pEntry->setObject( pObject );

      VERMSG << "Filling object " << pRegistry->identifier() << endmsg;
      status = pLoader->fillObjRefs( pAddress, pObject );
    }
  } catch ( const GaudiException& exc ) {
    if ( handleDataFault( pRegistry ) ) { return StatusCode::SUCCESS; }
    throw GaudiException( "GaudiException in loadObject() " + pRegistry->identifier(), name(), StatusCode::FAILURE,
                          exc );
  } catch ( const std::exception& x ) {
    if ( handleDataFault( pRegistry ) ) { return StatusCode::SUCCESS; }
    throw GaudiException( "std::exception in loadObject() " + pRegistry->identifier() + ": " +
                              System::typeinfoName( typeid( x ) ) + ", " + x.what(),
                          name(), StatusCode::FAILURE );
  } catch ( ... ) {
    if ( handleDataFault( pRegistry ) ) { return StatusCode::SUCCESS; }
    throw GaudiException( "UNKN exception in loadObject() " + pRegistry->identifier(), name(), StatusCode::FAILURE );
  }
  if ( !status.isSuccess() ) {
    if ( handleDataFault( pRegistry ) ) { return StatusCode::SUCCESS; }
  }
  ON_VERBOSE if ( status.isSuccess() ) {
    verbose() << "Object " << pRegistry->identifier() << " successfully loaded" << endmsg;
  }
  return status;
}

objectLeaves() [1/2]

StatusCode DataSvc::objectLeaves ( const DataObject *  pObject, std::vector< IRegistry * > &  refLeaves  )

override

IDataManagerSvc: Explore the object store: retrieve all leaves attached to the object.

IDataManagerSvc: Explore an object identified by its pointer.

Definition at line 208 of file DataSvc.cpp.

                                                                                           {
  if ( !pObject ) return Status::INVALID_OBJECT;
  return objectLeaves( pObject->registry(), leaves );
}

objectLeaves() [2/2]

StatusCode DataSvc::objectLeaves ( const IRegistry *  pRegistry, std::vector< IRegistry * > &  refLeaves  )

override

IDataManagerSvc: Explore the object store: retrieve all leaves attached to the object.

IDataManagerSvc: Explore an object identified by the pointer to the registry entry.

Definition at line 216 of file DataSvc.cpp.

                                                                                            {
  if ( !checkRoot() ) return Status::INVALID_ROOT;
  const RegEntry* node_entry = CAST_REGENTRY( const RegEntry*, pRegistry );
  if ( !node_entry ) return Status::INVALID_OBJECT;
  leaves = node_entry->leaves();
  return StatusCode::SUCCESS;
}

objectParent() [1/2]

StatusCode DataSvc::objectParent ( const DataObject *  pObject, IRegistry *&  refpParent  )

override

IDataManagerSvc: Explore the object store: retrieve the object's parent.

Definition at line 194 of file DataSvc.cpp.

                                                                                    {
  if ( !pObject ) return Status::INVALID_OBJECT;
  return objectParent( pObject->registry(), refpParent );
}

objectParent() [2/2]

StatusCode DataSvc::objectParent ( const IRegistry *  pRegistry, IRegistry *&  refpParent  )

override

IDataManagerSvc: Explore the object store: retrieve the object's parent.

Definition at line 199 of file DataSvc.cpp.

                                                                                     {
  if ( !checkRoot() ) return Status::INVALID_ROOT;
  const RegEntry* node_entry = CAST_REGENTRY( const RegEntry*, pRegistry );
  if ( !node_entry ) return Status::INVALID_OBJECT;
  refpParent = node_entry->parent();
  return StatusCode::SUCCESS;
}

operator=()

DataSvc& DataSvc::operator= ( const DataSvc &  )

delete

Fake assignment operator (never implemented).

preLoad() [1/2]

StatusCode DataSvc::preLoad ( int  depth, int  load_depth, DataObject *  pObject  )

virtual

Execute one level of preloading and recursively load until the final level is reached.

Preload one level deep, then recursively call the next level.

Parameters

depth	current level of loading from requested parent
load_depth	maximum level of object loading
pObject	pointer to next level root object

Returns

Status code indicating success or failure.

Definition at line 795 of file DataSvc.cpp.

                                                                            {
  // unused:  StatusCode sc = StatusCode::FAILURE;
  if ( pObject && depth++ < load_depth ) {
    RegEntry* dir = CAST_REGENTRY( RegEntry*, pObject->registry() );
    if ( dir ) {
      for ( const auto& i : *dir ) {
        DataObject* pObj   = nullptr;
        StatusCode  status = retrieveObject( pObject, i->name(), pObj );
        if ( status.isSuccess() && depth < load_depth ) { preLoad( depth, load_depth, pObj ).ignore(); }
      }
    }
  }
  return StatusCode::SUCCESS;
}

preLoad() [2/2]

StatusCode DataSvc::preLoad ( )

override

load all preload items of the list

Definition at line 811 of file DataSvc.cpp.

                            {
  DataObject* pObj = nullptr;
  for ( const auto& i : m_preLoads ) {
    StatusCode sc         = retrieveObject( i.path(), pObj );
    int        load_depth = i.depth();
    if ( sc.isSuccess() && load_depth > 1 ) { preLoad( 1, load_depth, pObj ).ignore(); }
  }
  return StatusCode::SUCCESS;
}

registerAddress() [1/5]

StatusCode DataSvc::registerAddress ( std::string_view  fullPath, IOpaqueAddress *  pAddress  )

override

IDataManagerSvc: Register object address with the data store.

Definition at line 225 of file DataSvc.cpp.

                                                                                       {
  if ( fullPath.empty() ) return Status::INVALID_OBJ_PATH;
  return registerAddress( fullPath.front() != SEPARATOR ? m_root.get() : nullptr, fullPath, pAddress );
}

registerAddress() [2/5]

virtual StatusCode IDataManagerSvc::registerAddress

Register object address with the data store.

Connect the object identified by its pointer to the node object identified by its path.

Parameters

fullPath	[IN] Path to parent node of the object.
pAddress	[IN] Pointer to the object to be registered.

Returns

Status code indicating success or failure.

registerAddress() [3/5]

StatusCode IDataManagerSvc::registerAddress

inline

Register object address with the data store.

Connect the object identified by its pointer to the parent object and the relative path of the object with respect to the parent.

Parameters

parentObj	[IN] Pointer to parent object.
objectPath	[IN] Path of the object relative to the parent node
pAddress	[IN] Pointer to the object to be connected.

Returns

Status code indicating success or failure.

Definition at line 215 of file IDataManagerSvc.h.

                                                                                                           {
    return registerAddress( parentObj ? parentObj->registry() : nullptr, objectPath, pAddress );
  }

registerAddress() [4/5]

virtual StatusCode IDataManagerSvc::registerAddress

Register object address with the data store.

Connect the object identified by its pointer to the parent object and the relative path of the object with respect to the parent.

Parameters

parentObj	[IN] Pointer to parent object.
objectPath	[IN] Path of the object relative to the parent node
pAddress	[IN] Pointer to the object to be connected.

Returns

Status code indicating success or failure.

registerAddress() [5/5]

StatusCode DataSvc::registerAddress ( IRegistry *  parentObj, std::string_view  objectPath, IOpaqueAddress *  pAddress  )

override

IDataManagerSvc: Register object address with the data store.

Definition at line 231 of file DataSvc.cpp.

                                                                                                            {
  if ( !checkRoot() ) return Status::INVALID_ROOT;
  if ( objPath.empty() ) return Status::INVALID_OBJ_PATH;

  if ( !parentObj ) {
    if ( objPath.front() != SEPARATOR ) { return registerAddress( m_root.get(), objPath, pAddress ); }
    auto sep = find( objPath, SEPARATOR, 1 );
    if ( sep == std::string_view::npos || objPath.substr( 0, sep ) != m_rootName.value() ) {
      return Status::INVALID_PARENT;
    }
    return registerAddress( m_root.get(), objPath.substr( sep ), pAddress );
  }
  if ( objPath.front() != SEPARATOR ) { return registerAddress( parentObj, char( SEPARATOR ) + objPath, pAddress ); }
  RegEntry* par_entry = CAST_REGENTRY( RegEntry*, parentObj );
  if ( !par_entry ) return Status::INVALID_PARENT;

  auto sep = objPath.rfind( SEPARATOR );
  if ( sep > 0 && sep != std::string_view::npos ) {
    auto      p_path  = objPath.substr( 0, sep );
    auto      o_path  = objPath.substr( sep );
    RegEntry* p_entry = par_entry->findLeaf( p_path );
    // Create default object leafs if the
    // intermediate nodes are not present
    if ( !p_entry && m_forceLeaves ) {
      DataObject* pLeaf = createDefaultObject();
      StatusCode  sc    = registerObject( par_entry->identifier(), p_path, pLeaf );
      if ( sc.isFailure() ) delete pLeaf;
      p_entry = par_entry->findLeaf( p_path );
    }
    if ( !p_entry ) return Status::INVALID_PARENT;
    return registerAddress( p_entry, o_path, pAddress );
  }
  StatusCode status = par_entry->add( to_string( objPath ), pAddress );
  return status.isSuccess() ? status : Status::DOUBL_OBJ_PATH;
}

registerObject() [1/7]

virtual StatusCode IDataProviderSvc::registerObject

Register object with the data store.

Connect the object identified by its pointer to the parent object and the relative path of the object with respect to the parent.

Parameters

parentObj	Pointer to parent object.
objectPath	Path of the object relative to the parent node
pObject	Pointer to the object to be connected.

Returns

Status code indicating success or failure.

registerObject() [2/7]

StatusCode IDataProviderSvc::registerObject

inline

Register object with the data store.

Connect the object identified by its pointer to the node object identified by its pointer.

Parameters

parentObj	Pointer to parent object.
item	item number of the object linked to the parent
pObject	Pointer to the object to be connected.

Returns

Status code indicating success or failure.

Definition at line 117 of file IDataProviderSvc.h.

                                                                                    {
    return registerObject( parentObj, itemToPath( item ), pObject );
  }

registerObject() [3/7]

StatusCode IDataProviderSvc::registerObject

inline

Register object with the data store.

Connect the object identified by its pointer to the parent object and an integer identifier.

Parameters

parentPath	Path to parent node of the object.
item	item number of the object linked to the parent
pObject	Pointer to the object to be registered.

Returns

Status code indicating success or failure.

Definition at line 95 of file IDataProviderSvc.h.

                                                                                        {
    return registerObject( parentPath, itemToPath( item ), pObject );
  }

registerObject() [4/7]

StatusCode IDataProviderSvc::registerObject

inline

Register object with the data store.

Connect the object identified by its pointer to the node object identified by its path.

Parameters

fullPath	Path to parent node of the object.
pObject	Pointer to the object to be registered.

Returns

Status code indicating success or failure.

Definition at line 72 of file IDataProviderSvc.h.

                                                                            {
    return registerObject( nullptr, fullPath, pObject );
  }

registerObject() [5/7]

virtual StatusCode IDataProviderSvc::registerObject

Register object with the data store.

Connect the object identified by the path to the parent object and the path of the object itself relative to the specified parent.

Parameters

parentPath	Path to parent node of the object.
objectPath	Path of the object relative to the parent node
pObject	Pointer to the object to be registered.

Returns

Status code indicating success or failure.

registerObject() [6/7]

StatusCode DataSvc::registerObject ( std::string_view  parentPath, std::string_view  objPath, DataObject *  pObject  )

override

Register object with the data store.

Definition at line 303 of file DataSvc.cpp.

                                                                                                           {
  DataObject* pO     = nullptr;
  StatusCode  status = retrieveObject( parentPath, pO );
  if ( !status.isSuccess() && m_forceLeaves ) {
    pO     = createDefaultObject();
    status = registerObject( parentPath, pO );
    if ( !status.isSuccess() ) pO->release();
  }
  return status.isSuccess() ? registerObject( pO, objPath, pObject ) : status;
}

registerObject() [7/7]

StatusCode DataSvc::registerObject ( DataObject *  parentObj, std::string_view  objPath, DataObject *  pObject  )

override

Register object with the data store.

Definition at line 315 of file DataSvc.cpp.

                                                                                                       {
  if ( !checkRoot() ) return Status::INVALID_ROOT;

  if ( !parentObj ) {
    if ( !objPath.empty() ) {
      if ( objPath.front() != SEPARATOR ) { return registerObject( m_rootName.value(), objPath, pObject ); }
      auto sep = find( objPath, SEPARATOR, 1 );
      if ( sep != std::string_view::npos ) {
        return registerObject( objPath.substr( 0, sep ), objPath.substr( sep ), pObject );
      }
    }
    return Status::INVALID_OBJ_PATH;
  }
  RegEntry* node_entry = CAST_REGENTRY( RegEntry*, parentObj->registry() );
  if ( node_entry ) {
    StatusCode status = Status::INVALID_PARENT;
    auto       sep    = find( objPath, SEPARATOR, 1 );
    if ( sep != std::string_view::npos ) {
      auto      p_path    = objPath.substr( 0, sep );
      auto      o_path    = objPath.substr( sep );
      RegEntry* par_entry = node_entry->findLeaf( p_path );
      // Create default object leafs if the
      // intermediate nodes are not present
      if ( !par_entry && m_forceLeaves ) {
        DataObject* pLeaf = createDefaultObject();
        StatusCode  sc    = registerObject( parentObj, p_path, pLeaf );
        if ( !sc.isSuccess() ) delete pLeaf;
        par_entry = node_entry->findLeaf( p_path );
      } else if ( par_entry && !par_entry->object() ) {
        status = i_retrieveEntry( node_entry, p_path, par_entry );
        if ( !status.isSuccess() && !par_entry->address() && m_forceLeaves ) {
          DataObject* pLeaf = createDefaultObject();
          StatusCode  sc    = registerObject( parentObj, p_path, pLeaf );
          if ( !sc.isSuccess() ) delete pLeaf;
          par_entry = node_entry->findLeaf( p_path );
        }
      }
      node_entry = par_entry;
      if ( node_entry ) {
        DataObject* obj = node_entry->object();
        if ( obj ) status = registerObject( obj, o_path, pObject );
      }
    } else {
      RegEntry* leaf = node_entry->findLeaf( objPath );
      if ( !leaf ) {
        status = node_entry->add( to_string( objPath ), pObject );
      } else {
        DataObject* obj = leaf->object();
        if ( !obj ) {
          if ( !pObject ) {
            error() << "registerObject: trying to register null DataObject" << endmsg;
            return StatusCode::FAILURE;
          }
          pObject->setRegistry( leaf );
          leaf->setAddress( nullptr );
          leaf->setObject( pObject );
          status = StatusCode::SUCCESS;
        } else {
          status = Status::DOUBL_OBJ_PATH;
        }
      }
    }
    return status;
  }
  return Status::INVALID_PARENT;
}

reinitialize()

StatusCode DataSvc::reinitialize ( )

override

Service initialization.

Service reinitialization.

Definition at line 832 of file DataSvc.cpp.

                                 {
  // the finalize part is copied here
  setDataLoader( nullptr ).ignore();
  resetPreLoad().ignore();
  clearStore().ignore();
  m_incidentSvc.reset();
  // re-initialize the base class
  StatusCode sc = Service::reinitialize();
  if ( UNLIKELY( !sc.isSuccess() ) ) {
    error() << "Unable to reinitialize base class" << endmsg;
    return sc;
  }
  // the initialize part is copied here
  m_incidentSvc = service( "IncidentSvc", true );
  if ( UNLIKELY( !m_incidentSvc ) ) {
    error() << "Failed to access incident service." << endmsg;
    return StatusCode::FAILURE;
  }
  // return
  return StatusCode::SUCCESS;
}

removePreLoadItem()

StatusCode DataSvc::removePreLoadItem ( const DataStoreItem &  item )

override

Remove an item from the preload list.

Definition at line 783 of file DataSvc.cpp.

                                                                 {
  m_preLoads.erase( std::remove( begin( m_preLoads ), end( m_preLoads ), item ), end( m_preLoads ) );
  return StatusCode::SUCCESS;
}

resetPreLoad()

StatusCode DataSvc::resetPreLoad ( )

override

Clear the preload list.

Definition at line 789 of file DataSvc.cpp.

                                 {
  m_preLoads.erase( begin( m_preLoads ), end( m_preLoads ) );
  return StatusCode::SUCCESS;
}

retrieveEntry()

StatusCode DataSvc::retrieveEntry ( DataSvcHelpers::RegistryEntry *  pNode, std::string_view  path, DataSvcHelpers::RegistryEntry *&  pEntry  )

protected

Retrieve registry entry from store.

Definition at line 538 of file DataSvc.cpp.

                                                                                               {
  return i_retrieveEntry( parentObj, path, pEntry );
}

retrieveObject() [1/7]

virtual StatusCode IDataProviderSvc::retrieveObject

Retrieve object identified by its directory entry.

The result will be returned in the second argument. In case the object is not present it will be loaded and converted if possible. ** FASTEST ACCESS TO THE DATA STORE **

Parameters

pDirectory	Pointer to the object.
path	String with relative path to directory. Ideally ""!
pObject	Reference to the pointer of the object to be returned.

Returns

Status code indicating success or failure.

retrieveObject() [2/7]

StatusCode IDataProviderSvc::retrieveObject

inline

Retrieve object from data store.

The object to be retrieved is identified by the path of the parent object and the relative path with respect to the node. In case the object is not present it will be loaded and converted if possible.

Parameters

parentPath	Path to parent node of the object.
objectPath	Path of the object relative to the parent.
pObject	Reference to the pointer of the object to be returned.

Returns

Status code indicating success or failure.

Definition at line 257 of file IDataProviderSvc.h.

                                                                                                          {
    DataObject* parent = nullptr;
    StatusCode  status = retrieveObject( parentPath, parent );
    return status.isSuccess() ? retrieveObject( parent, objectPath, pObject ) : status;
  }

retrieveObject() [3/7]

StatusCode IDataProviderSvc::retrieveObject

inline

Retrieve object from data store.

The object to be retrieved is identified by the pointer to the parent object and the relative path with respect to the node. In case the object is not present it will be loaded and converted if possible.

Parameters

parentObj	Pointer to parent node of the object.
objectPath	Path of the object relative to the parent.
pObject	Reference to the pointer of the object to be returned.

Returns

Status code indicating success or failure.

Definition at line 287 of file IDataProviderSvc.h.

                                                                                                      {
    return retrieveObject( parentObj ? parentObj->registry() : nullptr, objectPath, pObject );
  }

retrieveObject() [4/7]

StatusCode IDataProviderSvc::retrieveObject

inline

Retrieve object identified by its full path from the data store.

The result will be returned in the second argument. In case the object is not present it will be loaded and converted if possible.

Parameters

fullPath	Path name of the object.
pObject	Reference to the pointer of the object to be returned.

Returns

Status code indicating success or failure.

Definition at line 243 of file IDataProviderSvc.h.

                                                                             {
    return retrieveObject( static_cast<IRegistry*>( nullptr ), fullPath, pObject );
  }

retrieveObject() [5/7]

StatusCode IDataProviderSvc::retrieveObject

inline

Retrieve object from data store.

The object to be retrieved is identified by the pointer to the parent object and an integer identifier. In case the object is not present it will be loaded and converted if possible.

Parameters

parentObj	Pointer to parent node of the object.
item	Item identifier.
pObject	Reference to the pointer of the object to be returned.

Returns

Status code indicating success or failure.

Definition at line 301 of file IDataProviderSvc.h.

                                                                                     {
    return retrieveObject( parentObj, itemToPath( item ), pObject );
  }

retrieveObject() [6/7]

StatusCode IDataProviderSvc::retrieveObject

inline

Retrieve object from data store.

The object to be retrieved is identified by the path to the parent object and an integer identifier. In case the object is not present it will be loaded and converted if possible.

Parameters

parentPath	Path to parent node of the object.
item	Item identifier.
pObject	Reference to the pointer of the object to be returned.

Returns

Status code indicating success or failure.

Definition at line 273 of file IDataProviderSvc.h.

                                                                                         {
    return retrieveObject( parentPath, itemToPath( item ), pObject );
  }

retrieveObject() [7/7]

StatusCode DataSvc::retrieveObject ( IRegistry *  pDirectory, std::string_view  path, DataObject *&  pObject  )

override

Retrieve object from data store.

Retrieve object identified by its directory from the data store.

Definition at line 628 of file DataSvc.cpp.

                                                                                                    {
  pObject           = nullptr;
  RegEntry * result = nullptr, *parent = CAST_REGENTRY( RegEntry*, pRegistry );
  StatusCode status = i_retrieveEntry( parent, path, result );
  if ( status.isSuccess() ) pObject = result->object();
  return status;
}

rootCLID()

CLID DataSvc::rootCLID ( ) const

override

IDataManagerSvc: Accessor for root event CLID.

CLID for root Event.

Definition at line 865 of file DataSvc.cpp.

{ return (CLID)m_rootCLID; }

rootName()

const std::string & DataSvc::rootName ( ) const

override

IDataManagerSvc: Accessor for root event name.

Name for root Event.

Definition at line 868 of file DataSvc.cpp.

{ return m_rootName; }

setDataLoader()

StatusCode DataSvc::setDataLoader ( IConversionSvc *  svc, IDataProviderSvc *  dpsvc = nullptr  )

override

IDataManagerSvc: IDataManagerSvc: Pass a default data loader to the service and optionally a data provider.

IDataManagerSvc: Pass a default data loader to the service.

Definition at line 187 of file DataSvc.cpp.

                                                                                        {
  m_dataLoader = pDataLoader;
  if ( m_dataLoader ) m_dataLoader->setDataProvider( dpsvc ? dpsvc : this ).ignore();
  return StatusCode::SUCCESS;
}

setRoot() [1/2]

StatusCode DataSvc::setRoot ( std::string  root_path, DataObject *  pRootObj  )

override

Initialize data store for new event by giving new event path and root object.

Takes care to clear the store before reinitializing it

Definition at line 142 of file DataSvc.cpp.

                                                                       {
  clearStore().ignore();
  return i_setRoot( std::move( root_path ), pRootObj );
}

setRoot() [2/2]

StatusCode DataSvc::setRoot ( std::string  root_path, IOpaqueAddress *  pRootAddr  )

override

Initialize data store for new event by giving new event path and address of root object.

Takes care to clear the store before reinitializing it

Definition at line 166 of file DataSvc.cpp.

                                                                            {
  clearStore().ignore();
  return i_setRoot( std::move( root_path ), pRootAddr );
}

traverseSubTree() [1/2]

StatusCode DataSvc::traverseSubTree ( std::string_view  sub_tree_path, IDataStoreAgent *  pAgent  )

override

IDataManagerSvc: Analyze by traversing all data objects below the sub tree identified by its full path name.

IDataManagerSvc: Analyse by traversing all data objects below the sub tree identified by its full path name.

Definition at line 120 of file DataSvc.cpp.

                                                                                           {
  DataObject* pO     = nullptr;
  StatusCode  status = findObject( sub_tree_path, pO );
  return status.isSuccess() ? traverseSubTree( pO, pAgent ) : status;
}

traverseSubTree() [2/2]

StatusCode DataSvc::traverseSubTree ( DataObject *  pObject, IDataStoreAgent *  pAgent  )

override

IDataManagerSvc: Analyze by traversing all data objects below the sub tree.

IDataManagerSvc: Analyse by traversing all data objects below the sub tree.

Definition at line 127 of file DataSvc.cpp.

                                                                                  {
  RegEntry* entry = CAST_REGENTRY( RegEntry*, pObject->registry() );
  return entry ? entry->traverseTree( pAgent ) : Status::INVALID_OBJECT;
}

traverseTree()

StatusCode DataSvc::traverseTree ( IDataStoreAgent *  pAgent )

override

IDataManagerSvc: Analyze by traversing all data objects in the data store.

IDataManagerSvc: Analyse by traversing all data objects in the data store.

Definition at line 133 of file DataSvc.cpp.

                                                          {
  if ( !checkRoot() ) return Status::INVALID_ROOT;
  return m_root->traverseTree( pAgent );
}

unlinkObject() [1/7]

virtual StatusCode IDataProviderSvc::unlinkObject

Remove a link to another object.

Both objects must be registered with the data store. This entry point can be used to unlink objects e.g. in order to unregister them.

Parameters

fullPath

Full path of the entry to be linked.

Returns

Status code indicating success or failure.

unlinkObject() [2/7]

StatusCode IDataProviderSvc::unlinkObject

inline

Remove a link to another object.

Both objects must be registered with the data store. This entry point can be used to unlink objects e.g. in order to unregister them.

Parameters

fromPath	Path to the object the link originates.
objPath	Path of the entry to be linked relative to from.

Returns

Status code indicating success or failure.

Definition at line 532 of file IDataProviderSvc.h.

                                                                             {
    DataObject* pObject = nullptr;
    StatusCode  status  = findObject( fromPath, pObject );
    return status.isSuccess() ? unlinkObject( pObject->registry(), objPath ) : status;
  }

unlinkObject() [3/7]

virtual StatusCode IDataProviderSvc::unlinkObject

Remove a link to another object.

Both objects must be registered with the data store. This entry point can be used to unlink objects e.g. in order to unregister them.

Parameters

from	Pointer to data directory the link originates.
objPath	Path of the entry to be linked relative to from.

Returns

Status code indicating success or failure.

unlinkObject() [4/7]

virtual StatusCode IDataProviderSvc::unlinkObject

Remove a link to another object.

Both objects must be registered with the data store. This entry point can be used to unlink objects e.g. in order to unregister them.

Parameters

fromObj	Pointer to the object the link originates.
objPath	Path of the entry to be linked relative to from.

Returns

Status code indicating success or failure.

unlinkObject() [5/7]

StatusCode DataSvc::unlinkObject ( IRegistry *  from, std::string_view  objPath  )

override

Remove a link to another object.

Definition at line 741 of file DataSvc.cpp.

                                                                          {
  if ( !checkRoot() ) return Status::INVALID_ROOT;
  try {
    RegEntry* from_entry = CAST_REGENTRY( RegEntry*, from );
    if ( from_entry ) {
      auto sep = objPath.rfind( SEPARATOR );
      if ( sep > 0 && sep != std::string_view::npos ) { // in case the objPath is a sub-directory itself
        DataObject* pO = nullptr;
        StatusCode  sc = findObject( from, objPath.substr( 0, sep ), pO );
        return sc.isSuccess() ? unlinkObject( pO->registry(), objPath.substr( sep ) ) : sc;
      }
      StatusCode status = from_entry->remove( objPath );
      if ( status.isSuccess() ) return status;
      return Status::INVALID_OBJ_PATH;
    }
  } catch ( ... ) {}
  return Status::INVALID_PARENT;
}

unlinkObject() [6/7]

StatusCode DataSvc::unlinkObject ( DataObject *  fromObj, std::string_view  objPath  )

override

Remove a link to another object.

Definition at line 769 of file DataSvc.cpp.

                                                                           {
  if ( !checkRoot() ) return Status::INVALID_ROOT;
  IRegistry* from_entry = m_root->findLeaf( from );
  return unlinkObject( from_entry, objPath );
}

unlinkObject() [7/7]

StatusCode DataSvc::unlinkObject ( std::string_view  fullPath )

override

Remove a link to another object.

Definition at line 761 of file DataSvc.cpp.

                                                          {
  if ( fullPath.empty() ) return Status::INVALID_OBJ_PATH;
  if ( fullPath.front() != SEPARATOR ) return unlinkObject( m_rootName.value(), fullPath );
  auto sep = fullPath.rfind( SEPARATOR );
  return unlinkObject( fullPath.substr( 0, sep ), fullPath.substr( sep ) );
}

unregisterAddress() [1/5]

virtual StatusCode IDataManagerSvc::unregisterAddress

Unregister object address from the data store.

The object is identified by full path name.

Parameters

fullPath

[IN] Path name of the object.

Returns

Status code indicating success or failure.

unregisterAddress() [2/5]

StatusCode IDataManagerSvc::unregisterAddress

inline

Unregister object address from the data store.

The object is identified by parent object and the path of the object relative to the parent.

Parameters

pParent	[IN] Pointer to parent object.
objPath	[IN] Path name of the object relative to the parent.

Returns

Status code indicating success or failure.

Definition at line 243 of file IDataManagerSvc.h.

                                                                              {
    return unregisterAddress( pParent ? pParent->registry() : nullptr, objPath );
  }

unregisterAddress() [3/5]

virtual StatusCode IDataManagerSvc::unregisterAddress

Unregister object address from the data store.

The object is identified by parent object and the path of the object relative to the parent.

Parameters

pParent	[IN] Pointer to parent object.
objPath	[IN] Path name of the object relative to the parent.

Returns

Status code indicating success or failure.

unregisterAddress() [4/5]

StatusCode DataSvc::unregisterAddress ( std::string_view  fullPath )

override

IDataManagerSvc: Unregister object address from the data store.

Definition at line 268 of file DataSvc.cpp.

                                                               {
  if ( fullPath.empty() ) return Status::INVALID_OBJ_PATH;
  return unregisterAddress( fullPath.front() != SEPARATOR ? m_root.get() : nullptr, fullPath );
}

unregisterAddress() [5/5]

StatusCode DataSvc::unregisterAddress ( IRegistry *  pParent, std::string_view  objPath  )

override

IDataManagerSvc: Unregister object address from the data store.

Definition at line 274 of file DataSvc.cpp.

                                                                                  {
  if ( !checkRoot() ) return Status::INVALID_ROOT;
  if ( objPath.empty() ) return Status::INVALID_OBJ_PATH;

  if ( !pParent ) {
    if ( objPath.front() != SEPARATOR ) return unregisterAddress( m_root.get(), objPath );
    auto sep = find( objPath, SEPARATOR, 1 );
    if ( sep != std::string_view::npos && objPath.substr( 0, sep ) == m_rootName.value() ) {
      return unregisterAddress( m_root.get(), objPath.substr( sep ) );
    }
    return Status::INVALID_PARENT;
  }
  if ( objPath.front() != SEPARATOR ) { return unregisterAddress( pParent, char( SEPARATOR ) + objPath ); }
  RegEntry* node_entry = CAST_REGENTRY( RegEntry*, pParent );
  if ( node_entry ) {
    RegEntry* leaf_entry = node_entry->findLeaf( objPath );
    if ( leaf_entry ) {
      auto sep = objPath.rfind( SEPARATOR );
      if ( sep > 0 && sep != std::string_view::npos ) {
        return unregisterAddress( leaf_entry->parent(), objPath.substr( sep ) );
      }
      StatusCode status = node_entry->remove( objPath );
      if ( status.isSuccess() ) return status;
    }
  }
  return Status::INVALID_PARENT;
}

unregisterObject() [1/3]

StatusCode DataSvc::unregisterObject ( std::string_view  fullPath )

override

Unregister object from the data store.

Definition at line 383 of file DataSvc.cpp.

                                                              {
  DataObject* pObject = nullptr;
  StatusCode  status  = findObject( fullPath, pObject );
  if ( status.isFailure() ) return status;
  RegEntry* pEntry = CAST_REGENTRY( RegEntry*, pObject->registry() );
  if ( !pEntry ) return Status::INVALID_ROOT;
  if ( !pEntry->isEmpty() ) return Status::DIR_NOT_EMPTY;
  RegEntry* pParent = pEntry->parentEntry();
  if ( !pParent ) return Status::INVALID_PARENT;
  if ( pObject ) pObject->addRef();
  pParent->remove( pEntry );
  return StatusCode::SUCCESS;
}

unregisterObject() [2/3]

StatusCode DataSvc::unregisterObject ( DataObject *  pObject )

override

Unregister object from the data store.

Definition at line 398 of file DataSvc.cpp.

                                                          {
  if ( !checkRoot() ) return Status::INVALID_ROOT;
  RegEntry* entry = m_root->findLeaf( pObject );
  if ( !entry ) return Status::INVALID_OBJECT;
  RegEntry* parent = entry->parentEntry();
  if ( !parent ) return Status::INVALID_PARENT;
  if ( !entry->isEmpty() ) return Status::DIR_NOT_EMPTY;
  if ( entry->object() ) entry->object()->addRef();
  if ( parent ) parent->remove( entry );
  return StatusCode::SUCCESS;
}

unregisterObject() [3/3]

StatusCode DataSvc::unregisterObject ( DataObject *  pObject, std::string_view  objectPath  )

override

Unregister object from the data store.

Definition at line 411 of file DataSvc.cpp.

                                                                                        {
  if ( checkRoot() ) {
    try {
      RegEntry* parent = CAST_REGENTRY( RegEntry*, pParentObj->registry() );
      if ( parent ) {
        RegEntry* entry = parent->findLeaf( objectPath );
        if ( entry ) {
          if ( entry->isEmpty() ) {
            if ( entry->object() ) { entry->object()->addRef(); }
            parent->remove( entry );
            return StatusCode::SUCCESS;
          }
          return Status::DIR_NOT_EMPTY;
        }
        return Status::INVALID_OBJECT;
      }
    } catch ( ... ) {}
    return Status::INVALID_PARENT;
  }
  return Status::INVALID_ROOT;
}

updateObject() [1/2]

StatusCode DataSvc::updateObject ( IRegistry *  pDirectory )

override

Update object identified by its directory entry.

Update object.

Definition at line 661 of file DataSvc.cpp.

                                                       {
  if ( !pRegistry ) {                // Precondition:
    return Status::INVALID_OBJ_ADDR; // Addres must be valid
  }
  DataObject* toUpdate = pRegistry->object();
  if ( !toUpdate ) { // Try first to load
    return loadObject( pRegistry );
  }
  return updateObject( toUpdate );
}

updateObject() [2/2]

StatusCode DataSvc::updateObject ( DataObject *  toUpdate )

override

Update object.

Definition at line 673 of file DataSvc.cpp.

                                                       {
  StatusCode status = Status::INVALID_OBJ_ADDR;
  if ( !toUpdate ) {               // Precondition:
    return Status::INVALID_OBJECT; // Address must be valid
  }
  IRegistry* pRegistry = toUpdate->registry(); // Precondition:
  if ( !pRegistry ) {                          // Need valid registry
    return Status::INVALID_OBJECT;
  }
  IOpaqueAddress* pAddress = pRegistry->address(); // Precondition:
  if ( !pAddress ) {                               // Need valid address
    return Status::INVALID_OBJ_ADDR;
  }
  IConversionSvc* pLoader = getDataLoader( pRegistry );
  if ( !pLoader ) {                // Precondition:
    return Status::NO_DATA_LOADER; // Data loader must be present
  }
  if ( !m_inhibitPathes.empty() ) {
    auto inhibit = std::find( m_inhibitPathes.begin(), m_inhibitPathes.end(), pRegistry->identifier() );
    if ( inhibit != m_inhibitPathes.end() ) { return Status::NO_ACCESS; }
  }
  try {
    status = pLoader->updateObj( pAddress, toUpdate ); // Call data loader
    if ( status.isSuccess() ) { status = pLoader->updateObjRefs( pAddress, toUpdate ); }
  } catch ( const GaudiException& exc ) {
    throw GaudiException( "GaudiException in updateObject() " + pRegistry->name(), name(), StatusCode::FAILURE, exc );
  } catch ( const std::exception& x ) {
    throw GaudiException( "std::exception in updateObject() " + pRegistry->name() + ": " +
                              System::typeinfoName( typeid( x ) ) + ", " + x.what(),
                          name(), StatusCode::FAILURE );
  } catch ( ... ) {
    throw GaudiException( "UNKN exception in updateObject() " + pRegistry->name(), name(), StatusCode::FAILURE );
  }
  return status;
}

Member Data Documentation

m_accessName

Gaudi::Property<std::string> DataSvc::m_accessName {this, "DataAccessName", "DataAccess", "Name of the data access incident"}

private

Definition at line 74 of file DataSvc.h.

m_dataLoader

SmartIF<IConversionSvc> DataSvc::m_dataLoader = nullptr

private

Pointer to data loader service.

Definition at line 55 of file DataSvc.h.

m_enableAccessHdlr

Gaudi::Property<bool> DataSvc::m_enableAccessHdlr

private

Initial value:

{this, "EnableAccessHandler", false,
                                           "enable incidents on data access requests"}

Definition at line 72 of file DataSvc.h.

m_enableFaultHdlr

Gaudi::Property<bool> DataSvc::m_enableFaultHdlr

private

Initial value:

{this, "EnableFaultHandler", false,
                                          "enable incidents on data creation requests"}

Definition at line 68 of file DataSvc.h.

m_faultName

Gaudi::Property<std::string> DataSvc::m_faultName {this, "DataFaultName", "DataFault", "Name of the data fault incident"}

private

Definition at line 70 of file DataSvc.h.

m_forceLeaves

Gaudi::Property<bool> DataSvc::m_forceLeaves {this, "ForceLeaves", false, "force creation of default leaves on registerObject"}

private

Definition at line 65 of file DataSvc.h.

m_incidentSvc

SmartIF<IIncidentSvc> DataSvc::m_incidentSvc = nullptr

protected

Pointer to incident service.

Definition at line 59 of file DataSvc.h.

m_inhibitPathes

Gaudi::Property<std::vector<std::string> > DataSvc::m_inhibitPathes {this, "InhibitPathes", {}, "inhibited leaves"}

private

Definition at line 66 of file DataSvc.h.

m_preLoads

std::vector<DataStoreItem> DataSvc::m_preLoads

private

Items to be pre-loaded.

Definition at line 77 of file DataSvc.h.

m_root

std::unique_ptr<DataSvcHelpers::RegistryEntry> DataSvc::m_root

protected

Pointer to root entry.

Definition at line 81 of file DataSvc.h.

m_rootCLID

Gaudi::Property<CLID> DataSvc::m_rootCLID {this, "RootCLID", 110 , "CLID of root entry"}

protected

Definition at line 61 of file DataSvc.h.

m_rootName

Gaudi::Property<std::string> DataSvc::m_rootName {this, "RootName", "/Event", "name of root entry"}

protected

Definition at line 62 of file DataSvc.h.

---

The documentation for this class was generated from the following files:

• GaudiKernel/GaudiKernel/DataSvc.h
• GaudiKernel/src/Lib/DataSvc.cpp
