HistoTool Class Reference

Simple tool for histogramming (component) More...

#include <components/HistoTool.h>

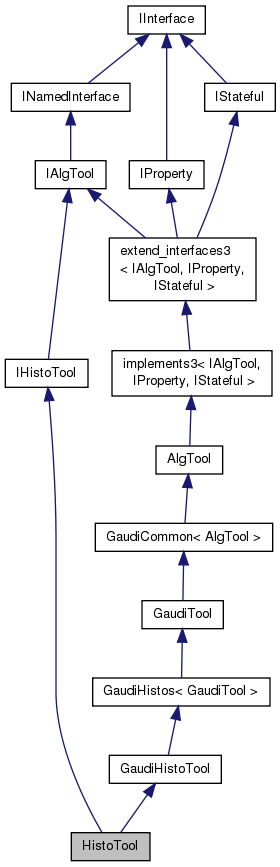

Inheritance diagram for HistoTool:

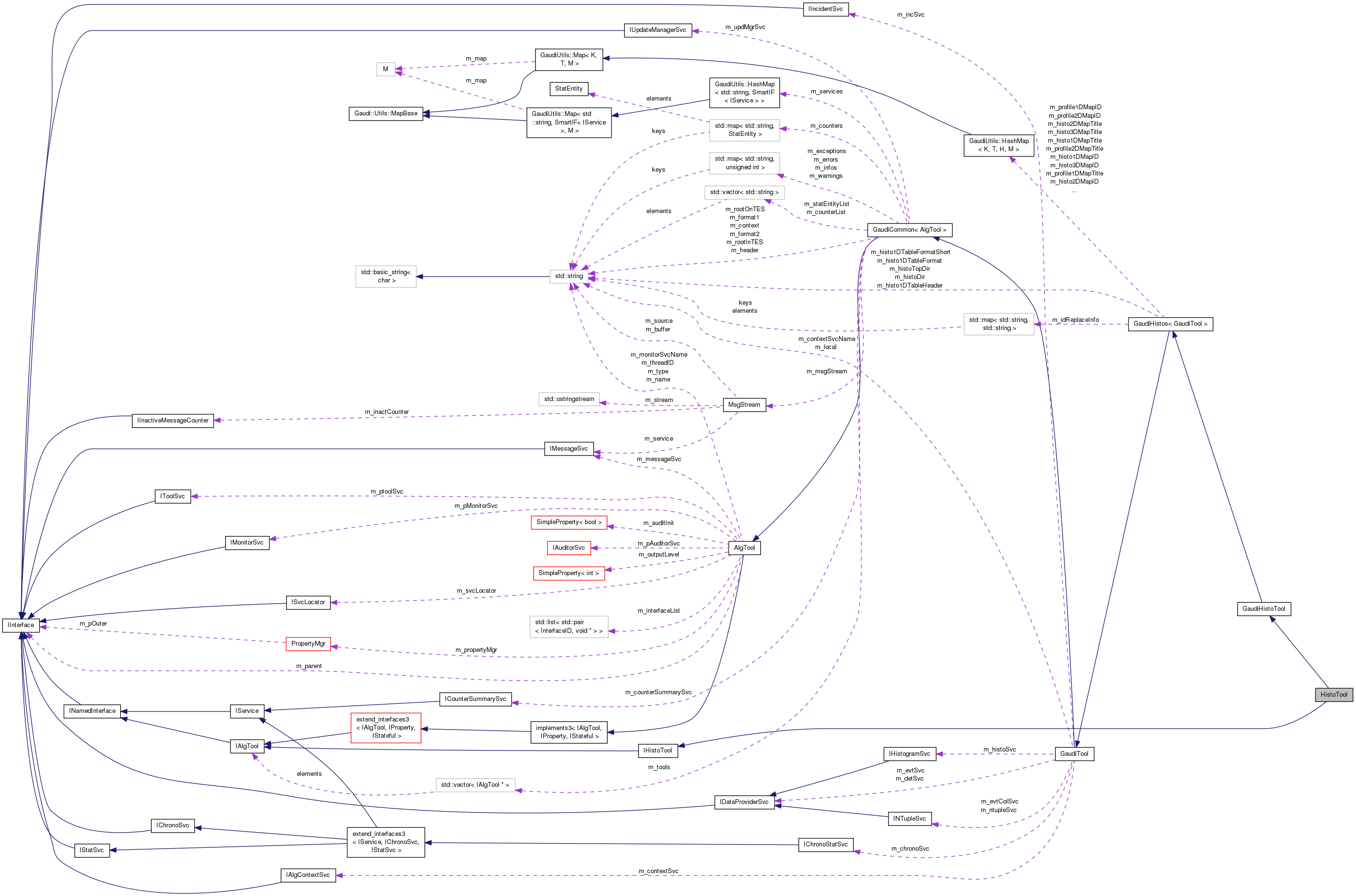

Collaboration diagram for HistoTool:

Public Types
typedef IHistoTool::HistoID	HistoID
Public Types inherited from GaudiHistos< GaudiTool >
typedef GaudiAlg::HistoID	HistoID
	the actual type for histogram identifier More...
typedef GaudiAlg::Histo1DMapID	Histo1DMapID
	the actual type for (ID)->(1D histogram) mapping More...
typedef GaudiAlg::Histo1DMapTitle	Histo1DMapTitle
	the actual type for title->(1D histogram) mapping More...
typedef GaudiAlg::Histo2DMapID	Histo2DMapID
	the actual type for (ID)->(2D histogram) mapping More...
typedef GaudiAlg::Histo2DMapTitle	Histo2DMapTitle
	the actual type for title->(2D histogram) mapping More...
typedef GaudiAlg::Histo3DMapID	Histo3DMapID
	the actual type for (ID)->(3D histogram) mapping More...
typedef GaudiAlg::Histo3DMapTitle	Histo3DMapTitle
	the actual type for title->(3D histogram) mapping More...
typedef GaudiAlg::Profile1DMapID	Profile1DMapID
	the actual type for (ID)->(1D profile histogram) mapping More...
typedef GaudiAlg::Profile1DMapTitle	Profile1DMapTitle
	the actual type for title->(1D profile histogram) mapping More...
typedef GaudiAlg::Profile2DMapID	Profile2DMapID
	the actual type for (ID)->(2D profile histogram) mapping More...
typedef GaudiAlg::Profile2DMapTitle	Profile2DMapTitle
	the actual type for title->(2D profile histogram) mapping More...
typedef GaudiAlg::HistoBinEdges	HistoBinEdges
	Edges for variable binning. More...
Public Types inherited from AlgTool
typedef Gaudi::PluginService::Factory3 < IAlgTool *, const std::string &, const std::string &, const IInterface * >	Factory
Public Types inherited from implements3< IAlgTool, IProperty, IStateful >
typedef implements3	base_class
	Typedef to this class. More...
typedef extend_interfaces3 < IAlgTool, IProperty, IStateful >	extend_interfaces_base
	Typedef to the base of this class. More...
typedef extend_interfaces_base::ext_iids	interfaces
	MPL set of all the implemented interfaces. More...
Public Types inherited from extend_interfaces3< IAlgTool, IProperty, IStateful >
typedef mpl::fold< typename IAlgTool::iid::iids::type, typename mpl::fold< typename IProperty::iid::iids::type, typename IStateful::iid::iids::type, mpl::insert< mpl::_1, mpl::_2 > >::type, mpl::insert< mpl::_1, mpl::_2 > >::type	ext_iids
	MPL set of interfaces extended by this one. More...
Public Types inherited from IInterface
enum	Status { SUCCESS = 1, NO_INTERFACE, VERSMISMATCH, LAST_ERROR }
	Return status. More...
typedef Gaudi::InterfaceId < IInterface, 0, 0 >	iid
	Interface ID. More...
typedef mpl::set1< iid >	ext_iids
	Extra interfaces. More...
Public Types inherited from IHistoTool
typedef Histos::HistoID	HistoID
	the actual type for histogram identifier (HBOOK style) More...

Public Member Functions
	HistoTool (const std::string &type, const std::string &name, const IInterface *parent)
	Standard constructor. More...
virtual	~HistoTool ()
virtual AIDA::IHistogram1D *	plot1D (const double value, const std::string &title, const double low, const double high, const unsigned long bins=100, const double weight=1.0) const
	fill the 1D histogram (book on demand) More...
virtual AIDA::IHistogram1D *	plot1D (const double value, const HistoID &ID, const std::string &title, const double low, const double high, const unsigned long bins=100, const double weight=1.0) const
	fill the 1D histogram with forced ID assignement (book on demand) More...
virtual AIDA::IHistogram2D *	plot2D (const double valueX, const double valueY, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const unsigned long binsX=50, const unsigned long binsY=50, const double weight=1.0) const
	fill the 2D histogram (book on demand) More...
virtual AIDA::IHistogram2D *	plot2D (const double valueX, const double valueY, const HistoID &ID, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const unsigned long binsX=50, const unsigned long binsY=50, const double weight=1.0) const
	fill the 2D histogram with forced ID assignment (book on demand) More...
virtual AIDA::IHistogram3D *	plot3D (const double valueX, const double valueY, const double valueZ, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const double lowZ, const double highZ, const unsigned long binsX=10, const unsigned long binsY=10, const unsigned long binsZ=10, const double weight=1.0) const
	fill the 3D histogram (book on demand) More...
virtual AIDA::IHistogram3D *	plot3D (const double valueX, const double valueY, const double valueZ, const HistoID &ID, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const double lowZ, const double highZ, const unsigned long binsX=10, const unsigned long binsY=10, const unsigned long binsZ=10, const double weight=1.0) const
	fill the 3D histogram with forced ID assignment (book on demand) More...
virtual AIDA::IHistogram1D *	book1D (const std::string &title, const double low=0, const double high=100, const unsigned long bins=100) const
	book the 1D histogram More...
virtual AIDA::IHistogram2D *	book2D (const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=50, const double lowY=0, const double highY=100, const unsigned long binsY=50) const
	book the 2D histogram More...
virtual AIDA::IHistogram3D *	book3D (const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=10, const double lowY=0, const double highY=100, const unsigned long binsY=10, const double lowZ=0, const double highZ=100, const unsigned long binsZ=10) const
	book the 3D histogram More...
virtual AIDA::IHistogram1D *	book1D (const HistoID &ID, const std::string &title="", const double low=0, const double high=100, const unsigned long bins=100) const
	book the 1D histogram with forced ID More...
virtual AIDA::IHistogram2D *	book2D (const HistoID &ID, const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=50, const double lowY=0, const double highY=100, const unsigned long binsY=50) const
	book the 2D histogram with forced ID More...
virtual AIDA::IHistogram3D *	book3D (const HistoID &ID, const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=10, const double lowY=0, const double highY=100, const unsigned long binsY=10, const double lowZ=0, const double highZ=100, const unsigned long binsZ=10) const
	book the 3D histogram with forced ID More...
virtual AIDA::IHistogram1D *	fill (AIDA::IHistogram1D *histo, const double value, const double weight, const std::string &title="") const
	fill the 1D histo with the value and weight More...
virtual AIDA::IHistogram2D *	fill (AIDA::IHistogram2D *histo, const double valueX, const double valueY, const double weight, const std::string &title="") const
	fill the 2D histo with the value and weight More...
virtual AIDA::IHistogram3D *	fill (AIDA::IHistogram3D *histo, const double valueX, const double valueY, const double valueZ, const double weight, const std::string &title="") const
	fill the 3D histo with the value and weight More...
virtual AIDA::IHistogram1D *	histo1D (const std::string &title) const
	access the EXISTING 1D histogram by title return the pointer to existing 1D histogram or NULL More...
virtual AIDA::IHistogram1D *	histo1D (const HistoID &ID) const
	access the EXISTING 1D histogram by ID return the pointer to existing 1D histogram or NULL More...
virtual AIDA::IHistogram2D *	histo2D (const std::string &title) const
	access the EXISTING 2D histogram by title return the pointer to existing 2D histogram or NULL More...
virtual AIDA::IHistogram2D *	histo2D (const HistoID &ID) const
	access the EXISTING 2D histogram by ID return the pointer to existing 2D histogram or NULL More...
virtual AIDA::IHistogram3D *	histo3D (const std::string &title) const
	access the EXISTING 3D histogram by title return the pointer to existing 3D histogram or NULL More...
virtual AIDA::IHistogram3D *	histo3D (const HistoID &ID) const
	access the EXISTING 3D histogram by ID return the pointer to existing 3D histogram or NULL More...
virtual bool	histoExists (const std::string &title) const
	check the existence AND validity of the histogram with given title More...
virtual bool	histoExists (const HistoID &ID) const
	check the existence AND validity of the histogram with given title More...
Public Member Functions inherited from GaudiHistos< GaudiTool >
AIDA::IHistogram1D *	plot1D (const double value, const std::string &title, const double low, const double high, const unsigned long bins=100, const double weight=1.0) const
	fill the 1D histogram (book on demand) More...
AIDA::IHistogram1D *	plot1D (const double value, const Gaudi::Histo1DDef &hdef, const double weight=1.0) const
	fill the 1D histogram (book on demand) More...
AIDA::IHistogram1D *	plot1D (const double value, const HistoID &ID, const std::string &title, const double low, const double high, const unsigned long bins=100, const double weight=1.0) const
	fill the 1D histogram with forced ID assignment (book on demand) More...
AIDA::IHistogram1D *	plot1D (const double value, const HistoID &ID, const Gaudi::Histo1DDef &hdef, const double weight=1.0) const
	fill the 1D histogram with forced ID assignment (book on demand) More...
AIDA::IHistogram1D *	plot1D (const double value, const std::string &title, const HistoBinEdges &edges, const double weight=1.0) const
	Fill the 1D variable binning histogram (book on demand) More...
AIDA::IHistogram1D *	plot1D (const double value, const HistoID &ID, const std::string &title, const HistoBinEdges &edges, const double weight=1.0) const
	fill the 1D variable binning histogram with forced ID assignment (book on demand) More...
AIDA::IHistogram1D *	plot (const double value, const std::string &title, const double low, const double high, const unsigned long bins=100, const double weight=1.0) const
	fill the 1D histogram (book on demand) More...
AIDA::IHistogram1D *	plot (const double value, const Gaudi::Histo1DDef &hdef, const double weight=1.0) const
	fill the 1D histogram (book on demand) More...
AIDA::IHistogram1D *	plot (const double value, const HistoID &ID, const std::string &title, const double low, const double high, const unsigned long bins=100, const double weight=1.0) const
	fill the 1D histogram with forced ID assignment (book on demand) More...
AIDA::IHistogram1D *	plot (const double value, const HistoID &ID, const Gaudi::Histo1DDef &hdef, const double weight=1.0) const
	fill the 1D histogram (book on demand) More...
AIDA::IHistogram1D *	plot (const FUNCTION &func, OBJECT first, OBJECT last, const std::string &title, const double low, const double high, const unsigned long bins=100) const
	fill the 1D histogram with information from [first,last) sequence More...
AIDA::IHistogram1D *	plot (const FUNCTION &func, OBJECT first, OBJECT last, const HistoID &ID, const std::string &title, const double low, const double high, const unsigned long bins=100) const
	fill the 1D histogram with forced ID and information from [first,last) sequence More...
AIDA::IHistogram1D *	plot (const FUNCTION &func, OBJECT first, OBJECT last, const std::string &title, const double low, const double high, const unsigned long bins, const WEIGHT &weight) const
	book and fill the 1D histogram with information from [first,last) sequence with given weight More...
AIDA::IHistogram1D *	plot (const FUNCTION &func, OBJECT first, OBJECT last, const HistoID &ID, const std::string &title, const double low, const double high, const unsigned long bins, const WEIGHT &weight) const
	book and fill the 1D histogram with forced ID and information from [first,last) sequence with given weight More...
AIDA::IHistogram2D *	plot2D (const double valueX, const double valueY, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const unsigned long binsX=50, const unsigned long binsY=50, const double weight=1.0) const
	fill the 2D histogram (book on demand) More...
AIDA::IHistogram2D *	plot2D (const double valueX, const double valueY, const HistoID &ID, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const unsigned long binsX=50, const unsigned long binsY=50, const double weight=1.0) const
	fill the 2D histogram with forced ID assignment (book on demand) More...
AIDA::IHistogram2D *	plot2D (const double valueX, const double valueY, const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY, const double weight=1.0) const
	Fill the 2D variable binning histogram (book on demand) More...
AIDA::IHistogram2D *	plot2D (const double valueX, const double valueY, const HistoID &ID, const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY, const double weight=1.0) const
	fill the 2D variable histogram with forced ID assignment (book on demand) More...
AIDA::IHistogram3D *	plot3D (const double valueX, const double valueY, const double valueZ, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const double lowZ, const double highZ, const unsigned long binsX=10, const unsigned long binsY=10, const unsigned long binsZ=10, const double weight=1.0) const
	fill the 3D histogram (book on demand) More...
AIDA::IHistogram3D *	plot3D (const double valueX, const double valueY, const double valueZ, const HistoID &ID, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const double lowZ, const double highZ, const unsigned long binsX=10, const unsigned long binsY=10, const unsigned long binsZ=10, const double weight=1.0) const
	fill the 3D histogram with forced ID assignment (book on demand) More...
AIDA::IHistogram3D *	plot3D (const double valueX, const double valueY, const double valueZ, const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY, const HistoBinEdges &edgesZ, const double weight=1.0) const
	Fill the 3D variable binning histogram (book on demand) More...
AIDA::IHistogram3D *	plot3D (const double valueX, const double valueY, const double valueZ, const HistoID &ID, const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY, const HistoBinEdges &edgesZ, const double weight=1.0) const
	fill the 3D histogram with forced ID assignment (book on demand) More...
AIDA::IProfile1D *	profile1D (const double valueX, const double valueY, const std::string &title, const double lowX, const double highX, const unsigned long binsX=100, const std::string &opt="", const double lowY=-std::numeric_limits< double >::max(), const double highY=std::numeric_limits< double >::max(), const double weight=1.0) const
	fill the 1D profile histogram (book on demand) More...
AIDA::IProfile1D *	profile1D (const double valueX, const double valueY, const HistoID &ID, const std::string &title, const double lowX, const double highX, const unsigned long binsX=100, const std::string &opt="", const double lowY=-std::numeric_limits< double >::max(), const double highY=std::numeric_limits< double >::max(), const double weight=1.0) const
	fill the 1D profile histogram with forced ID assignment (book on demand) More...
AIDA::IProfile1D *	profile1D (const double valueX, const double valueY, const std::string &title, const HistoBinEdges &edges, const double weight=1.0) const
	fill the 1D variable binning profile histogram (book on demand) More...
AIDA::IProfile1D *	profile1D (const double valueX, const double valueY, const HistoID &ID, const std::string &title, const HistoBinEdges &edges, const double weight=1.0) const
	fill the 1D variable binning profile histogram with forced ID assignment (book on demand) More...
AIDA::IProfile1D *	profile1D (const std::string &title) const
	access the EXISTING 1D profile histogram by title return the pointer to existing 1D profile histogram or NULL More...
AIDA::IProfile1D *	profile1D (const HistoID &ID) const
	access the EXISTING 1D profile histogram by ID return the pointer to existing 1D profile histogram or NULL More...
AIDA::IProfile2D *	profile2D (const double valueX, const double valueY, const double valueZ, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const unsigned long binsX=50, const unsigned long binsY=50, const double weight=1.0) const
	fill the 2D profile histogram (book on demand) More...
AIDA::IProfile2D *	profile2D (const double valueX, const double valueY, const double valueZ, const HistoID &ID, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const unsigned long binsX=50, const unsigned long binsY=50, const double weight=1.0) const
	fill the 2D profile histogram with forced ID assignment (book on demand) More...
AIDA::IProfile2D *	profile2D (const double valueX, const double valueY, const double valueZ, const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY, const double weight=1.0) const
	fill the 2D variable binning profile histogram (book on demand) More...
AIDA::IProfile2D *	profile2D (const double valueX, const double valueY, const double valueZ, const HistoID &ID, const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY, const double weight=1.0) const
	fill the 2D variable binning profile histogram with forced ID assignment (book on demand) More...
AIDA::IProfile2D *	profile2D (const std::string &title) const
	access the EXISTING 2D profile histogram by title return the pointer to existing 2D profile histogram or NULL More...
AIDA::IProfile2D *	profile2D (const HistoID &ID) const
	access the EXISTING 2D profile histogram by ID return the pointer to existing 2D profile histogram or NULL More...
AIDA::IHistogram1D *	book1D (const std::string &title, const double low=0, const double high=100, const unsigned long bins=100) const
	book the 1D histogram More...
AIDA::IHistogram1D *	book1D (const HistoID &ID, const std::string &title, const double low=0, const double high=100, const unsigned long bins=100) const
	book the 1D histogram with forced ID More...
AIDA::IHistogram1D *	book1D (const std::string &title, const HistoBinEdges &edges) const
	book the 1D variable binning histogram More...
AIDA::IHistogram1D *	book1D (const HistoID &ID, const std::string &title, const HistoBinEdges &edges) const
	book the 1D variable binning histogram with given ID More...
AIDA::IHistogram1D *	book (const std::string &title, const double low=0, const double high=100, const unsigned long bins=100) const
	book the 1D histogram More...
AIDA::IHistogram1D *	book (const Gaudi::Histo1DDef &hdef) const
	book the 1D histogram More...
AIDA::IHistogram1D *	book (const HistoID &ID, const std::string &title, const double low=0, const double high=100, const unsigned long bins=100) const
	book the 1D histogram with forced ID More...
AIDA::IHistogram1D *	book (const HistoID &ID, const Gaudi::Histo1DDef &hdef) const
	book the 1D histogram with forced ID More...
AIDA::IHistogram2D *	book2D (const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=50, const double lowY=0, const double highY=100, const unsigned long binsY=50) const
	book the 2D histogram More...
AIDA::IHistogram2D *	book2D (const HistoID &ID, const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=50, const double lowY=0, const double highY=100, const unsigned long binsY=50) const
	book the 2D histogram with forced ID More...
AIDA::IHistogram2D *	book2D (const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY) const
	book the 2D variable binning histogram More...
AIDA::IHistogram2D *	book2D (const HistoID &ID, const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY) const
	book the 2D variable binning histogram with given ID More...
AIDA::IHistogram3D *	book3D (const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=10, const double lowY=0, const double highY=100, const unsigned long binsY=10, const double lowZ=0, const double highZ=100, const unsigned long binsZ=10) const
	book the 3D histogram More...
AIDA::IHistogram3D *	book3D (const HistoID &ID, const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=10, const double lowY=0, const double highY=100, const unsigned long binsY=10, const double lowZ=0, const double highZ=100, const unsigned long binsZ=10) const
	book the 3D histogram with forced ID More...
AIDA::IHistogram3D *	book3D (const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY, const HistoBinEdges &edgesZ) const
	book the 3D variable binning histogram More...
AIDA::IHistogram3D *	book3D (const HistoID &ID, const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY, const HistoBinEdges &edgesZ) const
	book the 3D variable binning histogram with given ID More...
AIDA::IProfile1D *	bookProfile1D (const std::string &title, const double low=0, const double high=100, const unsigned long bins=100, const std::string &opt="", const double lowY=-std::numeric_limits< double >::max(), const double highY=std::numeric_limits< double >::max()) const
	book the 1D profile histogram More...
AIDA::IProfile1D *	bookProfile1D (const HistoID &ID, const std::string &title, const double low=0, const double high=100, const unsigned long bins=100, const std::string &opt="", const double lowY=-std::numeric_limits< double >::max(), const double highY=std::numeric_limits< double >::max()) const
	book the 1D profile histogram More...
AIDA::IProfile1D *	bookProfile1D (const std::string &title, const HistoBinEdges &edges) const
	book the 1D profile histogram More...
AIDA::IProfile1D *	bookProfile1D (const HistoID &ID, const std::string &title, const HistoBinEdges &edges) const
	book the 1D profile histogram More...
AIDA::IProfile2D *	bookProfile2D (const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=50, const double lowY=0, const double highY=100, const unsigned long binsY=50) const
	book the 2D profile histogram More...
AIDA::IProfile2D *	bookProfile2D (const HistoID &ID, const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=50, const double lowY=0, const double highY=100, const unsigned long binsY=50) const
	book the 2D profile histogram with forced ID More...
AIDA::IProfile2D *	bookProfile2D (const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY) const
	book the 2D profile histogram More...
AIDA::IProfile2D *	bookProfile2D (const HistoID &ID, const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY) const
	book the 2D profile histogram with forced ID More...
AIDA::IHistogram1D *	fill (AIDA::IHistogram1D *histo, const double value, const double weight, const std::string &title="") const
	fill the 1D histogram with the value and weight More...
AIDA::IHistogram2D *	fill (AIDA::IHistogram2D *histo, const double valueX, const double valueY, const double weight, const std::string &title="") const
	fill the 2D histogram with the value and weight More...
AIDA::IHistogram3D *	fill (AIDA::IHistogram3D *histo, const double valueX, const double valueY, const double valueZ, const double weight, const std::string &title="") const
	fill the 3D histogram with the value and weight More...
AIDA::IProfile1D *	fill (AIDA::IProfile1D *histo, const double valueX, const double valueY, const double weight, const std::string &title="") const
	fill the 1D profile histogram with the values and weight More...
AIDA::IProfile2D *	fill (AIDA::IProfile2D *histo, const double valueX, const double valueY, const double valueZ, const double weight, const std::string &title="") const
	fill the 2D profile histogram with the values and weight More...
AIDA::IHistogram1D *	histo1D (const std::string &title) const
	access the EXISTING 1D histogram by title return the pointer to existing 1D histogram or NULL More...
AIDA::IHistogram1D *	histo1D (const HistoID &ID) const
	access the EXISTING 1D histogram by ID return the pointer to existing 1D histogram or NULL More...
AIDA::IHistogram1D *	histo (const std::string &title) const
	access the EXISTING 1D histogram by title More...
AIDA::IHistogram1D *	histo (const HistoID &ID) const
	access the EXISTING 1D histogram by ID More...
AIDA::IHistogram2D *	histo2D (const std::string &title) const
	access the EXISTING 2D histogram by title return the pointer to existing 2D histogram or NULL More...
AIDA::IHistogram2D *	histo2D (const HistoID &ID) const
	access the EXISTING 2D histogram by ID return the pointer to existing 2D histogram or NULL More...
AIDA::IHistogram3D *	histo3D (const std::string &title) const
	access the EXISTING 3D histogram by title return the pointer to existing 3D histogram or NULL More...
AIDA::IHistogram3D *	histo3D (const HistoID &ID) const
	access the EXISTING 3D histogram by ID return the pointer to existing 3D histogram or NULL More...
bool	histoExists (const std::string &title) const
	check the existence AND validity of the histogram with given title More...
bool	histoExists (const HistoID &ID) const
	check the existence AND validity of the histogram with given title More...
unsigned int	totalNumberOfHistos () const
	Returns the total number of histograms (of all types) currently booked. More...
bool	produceHistos () const
	get the flag for histogram production (property "HistoProduce") More...
bool	fullDetail () const
	get flag to control output level of histograms More...
bool	checkForNaN () const
	get the flag for NaN checks (property "HistoCheckForNan") More...
bool	splitHistoDir () const
	get the flag for histogram path split (property "HistoSplitDir") More...
HistoID::NumericID	histoOffSet () const
	get the value for histogram offset (property "HistoOffSet") More...
const std::string &	histoTopDir () const
	get top-level histogram directory (property "HistoTopDir") More...
const std::string &	histoDir () const
	get histogram directory (property "HistoDir") More...
std::string	histoPath () const
	get the constructed histogram path More...
bool	histosPrint () const
	print histograms at finalization ? More...
bool	histoCountersPrint () const
	print histogram counters at finalization ? More...
bool	useNumericAutoIDs () const
	Use old style sequencial numerical automatically assigned IDs ? More...
int	printHistos (const MSG::Level level=MSG::ALWAYS) const
	perform the actual printout of histograms More...
const Histo1DMapTitle &	histo1DMapTitle () const
	get access to the map of all 1D histograms indexed via their title More...
const Histo1DMapID &	histo1DMapID () const
	get access to the map of all 1D histograms index via ID More...
const Histo2DMapTitle &	histo2DMapTitle () const
	get access to the map of all 2D histograms indexed via their title More...
const Histo2DMapID &	histo2DMapID () const
	get access to the map of 2D histograms index via ID More...
const Histo3DMapTitle &	histo3DMapTitle () const
	get access to the map of all 3D histograms indexed via their title More...
const Histo3DMapID &	histo3DMapID () const
	get access to the map of all 3D histograms index via a ID More...
const Profile1DMapTitle &	profile1DMapTitle () const
	get access to the map of all 1D profile histograms indexed via their title More...
const Profile1DMapID &	profile1DMapID () const
	get access to the map of 1D profile histograms index via a ID More...
const Profile2DMapTitle &	profile2DMapTitle () const
	get access to the map of all 2D profile histograms indexed via their title More...
const Profile2DMapID &	profile2DMapID () const
	get access to the map of 2D profile histograms index via a ID More...
void	setProduceHistos (const bool val)
	set the flag for histogram production (property "HistoProduce") More...
void	setFullDetail (const bool val)
	set flag to control output level of histograms More...
void	setCheckForNaN (const bool val)
	set the flag for NaN checks (property "HistoCheckForNan") More...
void	setSplitHistoDir (const bool val)
	set the flag for histogram path split (property "HistoSplitDir") More...
void	setHistoOffSet (const HistoID::NumericID val)
	set a value for histogram offset (property "HistoOffSet" More...
void	setHistoTopDir (const std::string &val)
	set top-level histogram directory (property "HistoTopDir") More...
void	setHistoDir (const std::string &val)
	set histogram directory (property "HistoDir") More...
	GaudiHistos (const std::string &name, ISvcLocator *pSvcLocator)
	Algorithm constructor. More...
	GaudiHistos (const std::string &type, const std::string &name, const IInterface *parent)
	Tool constructor. More...
virtual	~GaudiHistos ()
	Destructor. More...
Public Member Functions inherited from GaudiTool
INTupleSvc *	ntupleSvc () const
	Access the standard N-Tuple. More...
INTupleSvc *	evtColSvc () const
	Access the standard event collection service. More...
IDataProviderSvc *	detSvc () const
	accessor to detector service More...
IDataProviderSvc *	evtSvc () const
	accessor to event service service More...
IIncidentSvc *	incSvc () const
	accessor to Incident Service More...
IChronoStatSvc *	chronoSvc () const
	accessor to Chrono & Stat Service More...
IHistogramSvc *	histoSvc () const
	acessor to the histogram service More...
IAlgContextSvc *	contextSvc () const
	acessor to the Algorithm Context Service More...
DataObject *	put (IDataProviderSvc *svc, DataObject *object, const std::string &address, const bool useRootInTES=true) const
	Register a data object or container into Gaudi Event Transient Store. More...
DataObject *	put (DataObject *object, const std::string &address, const bool useRootInTES=true) const
	Register a data object or container into Gaudi Event Transient Store. More...
template<class TYPE >
Gaudi::Utils::GetData< TYPE > ::return_type	get (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Templated access to the data in Gaudi Transient Store. More...
template<class TYPE >
Gaudi::Utils::GetData< TYPE > ::return_type	getIfExists (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Templated access to the data in Gaudi Transient Store. More...
template<class TYPE >
Gaudi::Utils::GetData< TYPE > ::return_type	get (const std::string &location, const bool useRootInTES=true) const
	Templated access to the data from Gaudi Event Transient Store. More...
template<class TYPE >
Gaudi::Utils::GetData< TYPE > ::return_type	getIfExists (const std::string &location, const bool useRootInTES=true) const
	Templated access to the data in Gaudi Transient Store. More...
template<class TYPE >
TYPE *	getDet (IDataProviderSvc *svc, const std::string &location) const
	Templated access to the detector data from the Gaudi Detector Transient Store. More...
template<class TYPE >
Gaudi::Utils::GetData< TYPE > ::return_type	getDetIfExists (IDataProviderSvc *svc, const std::string &location) const
	Templated access to the detector data from the Gaudi Detector Transient Store. More...
template<class TYPE >
TYPE *	getDet (const std::string &location) const
	Templated access to the detector data from the Gaudi Detector Transient Store. More...
template<class TYPE >
Gaudi::Utils::GetData< TYPE > ::return_type	getDetIfExists (const std::string &location) const
	Templated access to the detector data from the Gaudi Detector Transient Store. More...
template<class TYPE >
bool	exist (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Check the existence of a data object or container in the Gaudi Transient Event Store. More...
template<class TYPE >
bool	exist (const std::string &location, const bool useRootInTES=true) const
	Check the existence of a data object or container in the Gaudi Transient Event Store. More...
template<class TYPE >
bool	existDet (IDataProviderSvc *svc, const std::string &location) const
	Check the existence of detector objects in the Gaudi Transient Detector Store. More...
template<class TYPE >
bool	existDet (const std::string &location) const
	Check the existence of detector objects in the Gaudi Transient Detector Store. More...
template<class TYPE , class TYPE2 >
Gaudi::Utils::GetData< TYPE > ::return_type	getOrCreate (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Get the existing data object from Gaudi Event Transient store. More...
template<class TYPE , class TYPE2 >
Gaudi::Utils::GetData< TYPE > ::return_type	getOrCreate (const std::string &location, const bool useRootInTES=true) const
	Get the existing data object from Gaudi Event Transient store. More...
Public Member Functions inherited from GaudiCommon< AlgTool >
Gaudi::Utils::GetData< TYPE > ::return_type	get (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Templated access to the data in Gaudi Transient Store. More...
Gaudi::Utils::GetData< TYPE > ::return_type	getIfExists (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Quicker version of the get function which bypasses the check on the retrieved data. More...
bool	exist (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Check the existence of a data object or container in the Gaudi Transient Event Store. More...
Gaudi::Utils::GetData< TYPE > ::return_type	getOrCreate (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Get the existing data object from Gaudi Event Transient store. More...
DataObject *	put (IDataProviderSvc *svc, DataObject *object, const std::string &location, const bool useRootInTES=true) const
	Register a data object or container into Gaudi Event Transient Store. More...
TOOL *	tool (const std::string &type, const std::string &name, const IInterface *parent=0, bool create=true) const
	Useful method for the easy location of tools. More...
TOOL *	tool (const std::string &type, const IInterface *parent=0, bool create=true) const
	A useful method for the easy location of tools. More...
SmartIF< SERVICE >	svc (const std::string &name, const bool create=true) const
	A useful method for the easy location of services. More...
IUpdateManagerSvc *	updMgrSvc () const
	Short-cut to locate the Update Manager Service. More...
StatusCode	Error (const std::string &msg, const StatusCode st=StatusCode::FAILURE, const size_t mx=10) const
	Print the error message and return with the given StatusCode. More...
StatusCode	Warning (const std::string &msg, const StatusCode st=StatusCode::FAILURE, const size_t mx=10) const
	Print the warning message and return with the given StatusCode. More...
StatusCode	Info (const std::string &msg, const StatusCode st=StatusCode::SUCCESS, const size_t mx=10) const
	Print the info message and return with the given StatusCode. More...
StatusCode	Print (const std::string &msg, const StatusCode st=StatusCode::SUCCESS, const MSG::Level lev=MSG::INFO) const
	Print the message and return with the given StatusCode. More...
void	Assert (const bool ok, const std::string &message="", const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Assertion - throw exception if the given condition is not fulfilled. More...
void	Assert (const bool ok, const char *message, const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Assertion - throw exception if the given condition is not fulfilled. More...
void	Exception (const std::string &msg, const GaudiException &exc, const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Create and (re)-throw a given GaudiException. More...
void	Exception (const std::string &msg, const std::exception &exc, const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Create and (re)-throw a given exception. More...
void	Exception (const std::string &msg="no message", const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Create and throw an exception with the given message. More...
MsgStream &	msgStream (const MSG::Level level) const
	Predefined configurable message stream for the efficient printouts. More...
MsgStream &	always () const
	shortcut for the method msgStream ( MSG::ALWAYS ) More...
MsgStream &	fatal () const
	shortcut for the method msgStream ( MSG::FATAL ) More...
MsgStream &	err () const
	shortcut for the method msgStream ( MSG::ERROR ) More...
MsgStream &	error () const
	shortcut for the method msgStream ( MSG::ERROR ) More...
MsgStream &	warning () const
	shortcut for the method msgStream ( MSG::WARNING ) More...
MsgStream &	info () const
	shortcut for the method msgStream ( MSG::INFO ) More...
MsgStream &	debug () const
	shortcut for the method msgStream ( MSG::DEBUG ) More...
MsgStream &	verbose () const
	shortcut for the method msgStream ( MSG::VERBOSE ) More...
MsgStream &	msg () const
	shortcut for the method msgStream ( MSG::INFO ) More...
const Statistics &	counters () const
	accessor to all counters More...
StatEntity &	counter (const std::string &tag) const
	accessor to certain counter by name More...
MSG::Level	msgLevel () const
	The current message service output level. More...
bool	msgLevel (const MSG::Level level) const
	Test the output level. More...
void	resetMsgStream () const
	Reset (delete) the current message stream object. More...
bool	typePrint () const
	Insert the actual C++ type of the algorithm/tool in the messages ? More...
bool	propsPrint () const
	Print properties at initialization ? More...
bool	statPrint () const
	Print statistical counters at finalization ? More...
bool	errorsPrint () const
	Print error counters at finalization ? More...
long	printStat (const MSG::Level level=MSG::ALWAYS) const
	perform the actual printout of statistical counters More...
long	printErrors (const MSG::Level level=MSG::ALWAYS) const
	perform the actual printout of error counters More...
long	printProps (const MSG::Level level=MSG::ALWAYS) const
	perform the actual printout of properties More...
void	registerCondition (const std::string &condition, StatusCode(CallerClass::*mf)()=NULL)
	register the current instance to the UpdateManagerSvc as a consumer for a condition. More...
void	registerCondition (const std::string &condition, CondType *&condPtrDest, StatusCode(CallerClass::*mf)()=NULL)
	register the current instance to the UpdateManagerSvc as a consumer for a condition. More...
void	registerCondition (char *condition, StatusCode(CallerClass::*mf)()=NULL)
	just to avoid conflicts with the version using a pointer to a template class. More...
void	registerCondition (TargetClass *condition, StatusCode(CallerClass::*mf)()=NULL)
	register the current instance to the UpdateManagerSvc as a consumer for a condition. More...
StatusCode	runUpdate ()
	asks the UpdateManagerSvc to perform an update of the instance (if needed) without waiting the next BeginEvent incident. More...
	GaudiCommon (const std::string &name, ISvcLocator *pSvcLocator)
	Algorithm constructor. More...
	GaudiCommon (const std::string &type, const std::string &name, const IInterface *parent)
	Tool constructor. More...
StatusCode	release (const IInterface *interface) const
	Manual forced (and 'safe') release of the active tool or service. More...
virtual unsigned long	release ()
	Un-hide IInterface::release (ICC warning #1125) More...
const AlgTools &	tools () const
	get the list of aquired tools More...
const Services &	services () const
	get the list of aquired services More...
const std::string &	context () const
	Returns the "context" string. Used to identify different processing states. More...
const std::string &	rootInTES () const
	Returns the "rootInTES" string. More...
double	globalTimeOffset () const
	Returns the "globalTimeOffset" double. More...
const std::string	fullTESLocation (const std::string &location, const bool useRootInTES) const
	Returns the full correct event location given the rootInTes settings. More...
Public Member Functions inherited from AlgTool
virtual StatusCode	queryInterface (const InterfaceID &riid, void **ppvUnknown)
	Query for a given interface. More...
virtual const std::string &	name () const
	Retrieve full identifying name of the concrete tool object. More...
virtual const std::string &	type () const
	Retrieve type (concrete class) of the sub-algtool. More...
virtual const IInterface *	parent () const
	Retrieve parent of the sub-algtool. More...
virtual StatusCode	configure ()
	Configuration (from OFFLINE to CONFIGURED). More...
virtual StatusCode	start ()
	Start (from INITIALIZED to RUNNING). More...
virtual StatusCode	stop ()
	Stop (from RUNNING to INITIALIZED). More...
virtual StatusCode	terminate ()
	Initialization (from CONFIGURED to OFFLINE). More...
virtual StatusCode	reinitialize ()
	Initialization (from INITIALIZED or RUNNING to INITIALIZED, via CONFIGURED). More...
virtual StatusCode	restart ()
	Initialization (from RUNNING to RUNNING, via INITIALIZED). More...
virtual Gaudi::StateMachine::State	FSMState () const
	Get the current state. More...
virtual Gaudi::StateMachine::State	targetFSMState () const
	When we are in the middle of a transition, get the state where the transition is leading us. More...
virtual StatusCode	sysInitialize ()
	Initialize AlgTool. More...
virtual StatusCode	sysStart ()
	Start AlgTool. More...
virtual StatusCode	sysStop ()
	Stop AlgTool. More...
virtual StatusCode	sysFinalize ()
	Finalize AlgTool. More...
virtual StatusCode	sysReinitialize ()
	Initialize AlgTool. More...
virtual StatusCode	sysRestart ()
	Start AlgTool. More...
virtual StatusCode	setProperty (const Property &p)
	Default implementations for IProperty interface. More...
virtual StatusCode	setProperty (const std::string &s)
	Set the property by string. More...
virtual StatusCode	setProperty (const std::string &n, const std::string &v)
	Set the property by std::string. More...
virtual StatusCode	getProperty (Property *p) const
	Get the property by property. More...
virtual const Property &	getProperty (const std::string &name) const
	Get the property by name. More...
virtual StatusCode	getProperty (const std::string &n, std::string &v) const
	Get the property by std::string. More...
virtual const std::vector < Property * > &	getProperties () const
	Get list of properties. More...
PropertyMgr *	getPropertyMgr ()
template<class TYPE >
StatusCode	setProperty (const std::string &name, const TYPE &value)
	set the property form the value More...
	AlgTool (const std::string &type, const std::string &name, const IInterface *parent)
	Standard Constructor. More...
ISvcLocator *	serviceLocator () const
	Retrieve pointer to service locator. More...
ISvcLocator *	svcLoc () const
	shortcut for the method service locator More...
IMessageSvc *	msgSvc () const
	Retrieve pointer to message service. More...
IToolSvc *	toolSvc () const
	The standard ToolSvc service, Return a pointer to the service if present. More...
StatusCode	setProperties ()
	Method for setting declared properties to the values specified in the jobOptions via the job option service. More...
template<class T >
StatusCode	service (const std::string &name, T *&svc, bool createIf=true) const
	Access a service by name, creating it if it doesn't already exist. More...
template<class T >
StatusCode	service (const std::string &type, const std::string &name, T *&svc) const
	Access a service by name, type creating it if it doesn't already exist. More...
SmartIF< IService >	service (const std::string &name, const bool createIf=true, const bool quiet=false) const
	Return a pointer to the service identified by name (or "type/name") More...
void	declInterface (const InterfaceID &, void *)
	declare interface More...
template<class T >
Property *	declareProperty (const std::string &name, T &property, const std::string &doc="none") const
	Declare the named property. More...
Property *	declareRemoteProperty (const std::string &name, IProperty *rsvc, const std::string &rname="") const
	Declare remote named properties. More...
IAuditorSvc *	auditorSvc () const
	Access the auditor service. More...
IMonitorSvc *	monitorSvc () const
	Access the monitor service. More...
template<class T >
void	declareInfo (const std::string &name, const T &var, const std::string &desc) const
	Declare monitoring information. More...
void	declareInfo (const std::string &name, const std::string &format, const void *var, int size, const std::string &desc) const
	Declare monitoring information (special case) More...
Public Member Functions inherited from extend_interfaces3< IAlgTool, IProperty, IStateful >
virtual	~extend_interfaces3 ()
	Virtual destructor. More...
Public Member Functions inherited from IAlgTool
	DeclareInterfaceID (IAlgTool, 3, 0)
	InterfaceID. More...
virtual	~IAlgTool ()
	Virtual destructor. More...
virtual unsigned long	refCount () const =0
	Current number of reference counts. More...
Public Member Functions inherited from INamedInterface
	DeclareInterfaceID (INamedInterface, 1, 0)
	InterfaceID. More...
virtual	~INamedInterface ()
	Virtual destructor (always needed for abstract classes). More...
Public Member Functions inherited from IInterface
virtual void *	i_cast (const InterfaceID &) const =0
	main cast function More...
virtual std::vector< std::string >	getInterfaceNames () const =0
	Returns a vector of strings containing the names of all the implemented interfaces. More...
virtual unsigned long	addRef ()=0
	Increment the reference count of Interface instance. More...
virtual	~IInterface ()
	Virtual destructor. More...
Public Member Functions inherited from IProperty
	DeclareInterfaceID (IProperty, 2, 0)
	InterfaceID. More...
Public Member Functions inherited from IStateful
	DeclareInterfaceID (IStateful, 1, 0)
	InterfaceID. More...
virtual	~IStateful ()
Public Member Functions inherited from IHistoTool
	DeclareInterfaceID (IHistoTool, 2, 0)
	InterfaceID. More...
AIDA::IHistogram1D *	plot (const double value, const std::string &title, const double low, const double high, const unsigned long bins=100, const double weight=1.0) const
	fill the 1D histogram (book on demand) More...
AIDA::IHistogram1D *	plot (const double value, const HistoID &ID, const std::string &title, const double low, const double high, const unsigned long bins=100, const double weight=1.0) const
	fill the 1D histogram with forced ID assignment (book on demand) More...
AIDA::IHistogram1D *	book (const std::string &title, const double low=0, const double high=100, const unsigned long bins=100) const
	book the 1D histogram More...
AIDA::IHistogram1D *	book (const HistoID &ID, const std::string &title="", const double low=0, const double high=100, const unsigned long bins=100) const
	book the 1D histogram with forced ID More...
AIDA::IHistogram1D *	histo (const std::string &title) const
	access the EXISTING 1D histogram by title More...
AIDA::IHistogram1D *	histo (const HistoID &ID) const
	access the EXISTING 1D histogram by ID More...
template<class FUNCTION , class OBJECT >
AIDA::IHistogram1D *	plot (const FUNCTION &func, OBJECT first, OBJECT last, const std::string &title, const double low, const double high, const unsigned long bins=100) const
	fill the 1D histogram with information from [first,last) sequence More...
template<class FUNCTION , class OBJECT >
AIDA::IHistogram1D *	plot (const FUNCTION &func, OBJECT first, OBJECT last, const HistoID &ID, const std::string &title, const double low, const double high, const unsigned long bins=100) const
	fill the 1D histogram with forced ID and information from [first,last) sequence More...
template<class FUNCTION , class OBJECT , class WEIGHT >
AIDA::IHistogram1D *	plot (const FUNCTION &func, OBJECT first, OBJECT last, const std::string &title, const double low, const double high, const unsigned long bins, const WEIGHT &weight) const
	book and fill the 1D histogram with information from [first,last) sequence with given weight More...
template<class FUNCTION , class OBJECT , class WEIGHT >
AIDA::IHistogram1D *	plot (const FUNCTION &func, OBJECT first, OBJECT last, const HistoID &ID, const std::string &title, const double low, const double high, const unsigned long bins, const WEIGHT &weight) const
	book and fill the 1D histogram with forced ID and information from [first,last) sequence with given weight More...

Private Member Functions
	HistoTool ()
	HistoTool (const HistoTool &)
HistoTool &	operator= (const HistoTool &)

Additional Inherited Members
Static Public Member Functions inherited from GaudiTool
static bool	enableSummary (bool)
	enable/disable summary More...
static bool	summaryEnabled ()
	is summary enabled? More...
Static Public Member Functions inherited from IInterface
static const InterfaceID &	interfaceID ()
	Return an instance of InterfaceID identifying the interface. More...
Protected Types inherited from GaudiCommon< AlgTool >
typedef std::map< std::string, StatEntity >	Statistics
	the actual type of general counters More...
typedef std::map< std::string, unsigned int >	Counter
	the actual type error/warning counter More...
typedef std::vector< IAlgTool * >	AlgTools
	storage for active tools More...
typedef GaudiUtils::HashMap < std::string, SmartIF < IService > >	Services
	storage for active services More...
Protected Member Functions inherited from GaudiHistoTool
	GaudiHistoTool (const std::string &type, const std::string &name, const IInterface *parent)
	Standard constructor (protected) More...
virtual	~GaudiHistoTool ()
	destructor, virtual and protected More...
virtual StatusCode	initialize ()
	standard initialization method More...
virtual StatusCode	finalize ()
	standard finalization method More...
Protected Member Functions inherited from GaudiHistos< GaudiTool >
std::string	convertTitleToID (const std::string &title) const
	Create an ID string from a title string. More...
Protected Member Functions inherited from GaudiTool
	GaudiTool (const std::string &type, const std::string &name, const IInterface *parent)
	Standard constructor. More...
virtual	~GaudiTool ()
	destructor, virtual and protected More...
Protected Member Functions inherited from GaudiCommon< AlgTool >
virtual	~GaudiCommon ()
	Destructor. More...
StatusCode	releaseTool (const IAlgTool *tool) const
	manual forced (and 'safe') release of the tool More...
StatusCode	releaseSvc (const IInterface *svc) const
	manual forced (and 'safe') release of the service More...
Protected Member Functions inherited from AlgTool
int	outputLevel () const
	get tool's output level More...
IntegerProperty &	outputLevelProperty ()
	Accessor for the Message level property. More...
void	initOutputLevel (Property &prop)
	callback for output level property More...
virtual	~AlgTool ()
Protected Member Functions inherited from IHistoTool
virtual	~IHistoTool ()
	destructor More...
Protected Attributes inherited from GaudiCommon< AlgTool >
ICounterSummarySvc *	m_counterSummarySvc
	a pointer to the CounterSummarySvc More...
std::vector< std::string >	m_counterList
	list of counters to declare. Set by property CounterList. This can be a regular expression. More...
std::vector< std::string >	m_statEntityList
Static Protected Attributes inherited from GaudiCommon< AlgTool >
static const bool	IgnoreRootInTES
	Simple definition to be used with the new useRootInTES argument get<TYPE> and put methods. More...
static const bool	UseRootInTES
	Simple definition to be used with the new useRootInTES argument get<TYPE> and put methods. More...

Detailed Description

Simple tool for histogramming (component)

Author

Vanya BELYAEV Ivan..nosp@m.Bely.nosp@m.aev@i.nosp@m.tep..nosp@m.ru

Date

2004-06-28

Definition at line 30 of file HistoTool.h.

Member Typedef Documentation

typedef IHistoTool::HistoID HistoTool::HistoID

Definition at line 34 of file HistoTool.h.

Constructor & Destructor Documentation

HistoTool::HistoTool	(	const std::string &	type,
		const std::string &	name,
		const IInterface *	parent
	)

Standard constructor.

See also

GaudiHistoTool

GaudiTool

AlgTool

Parameters

type	tool type
name	tool name
parent	pointer to the parent object

Definition at line 26 of file HistoTool.cpp.

  : GaudiHistoTool ( type, name , parent )
{
  declareInterface<IHistoTool>(this);
}

HistoTool::~HistoTool ( )

virtual

Definition at line 39 of file HistoTool.cpp.

{}

HistoTool::HistoTool ( )

private

HistoTool::HistoTool ( const HistoTool &  )

private

Member Function Documentation

virtual AIDA::IHistogram1D* HistoTool::book1D ( const std::string &  title, const double  low = 0, const double  high = 100, const unsigned long  bins = 100  ) const

inlinevirtual

book the 1D histogram

The histogram will be assigned a unique identifier

See also

IHistogram1D

Parameters

title	histogram title (must be unique within the algorithm)
low	low limit for histogram
high	high limit for histogram
bins	number of bins

Returns

pointer to AIDA 1D histogram

Implements IHistoTool.

Definition at line 171 of file HistoTool.h.

  {
    return GaudiHistoTool::book1D ( title , low , high , bins ) ;
  };

virtual AIDA::IHistogram1D* HistoTool::book1D ( const HistoID &  ID, const std::string &  title = "", const double  low = 0, const double  high = 100, const unsigned long  bins = 100  ) const

inlinevirtual

book the 1D histogram with forced ID

See also

IHistogram1D

Parameters

ID	unique histogram ID
title	histogram title (must be unique within the algorithm)
low	low limit for histogram
high	high limit for histogram
bins	number of bins

Returns

pointer to AIDA histogram

Implements IHistoTool.

Definition at line 213 of file HistoTool.h.

  {
    return GaudiHistoTool::book1D ( ID , title , low , high , bins ) ;
  };

virtual AIDA::IHistogram2D* HistoTool::book2D ( const std::string &  title, const double  lowX = 0, const double  highX = 100, const unsigned long  binsX = 50, const double  lowY = 0, const double  highY = 100, const unsigned long  binsY = 50  ) const

inlinevirtual

book the 2D histogram

The histogram will be assigned a unique identifier

See also

IHistogram2D

Parameters

title	histogram title (must be unique within the algorithm)
lowX	low x limit for histogram
highX	high x limit for histogram
binsX	number of bins in x
lowY	low y limit for histogram
highY	high y limit for histogram
binsY	number of bins in y

Returns

pointer to AIDA 2D histogram

Implements IHistoTool.

Definition at line 181 of file HistoTool.h.

  {
    return GaudiHistoTool::book2D ( title, lowX, highX, binsX, lowY, highY, binsY ) ;
  }

virtual AIDA::IHistogram2D* HistoTool::book2D ( const HistoID &  ID, const std::string &  title, const double  lowX = 0, const double  highX = 100, const unsigned long  binsX = 50, const double  lowY = 0, const double  highY = 100, const unsigned long  binsY = 50  ) const

inlinevirtual

book the 2D histogram with forced ID

See also

IHistogram2D

Parameters

ID	unique histogram ID
title	histogram title (must be unique within the algorithm)
low	low limit for histogram
high	high limit for histogram
bins	number of bins

Returns

pointer to AIDA histogram

Implements IHistoTool.

Definition at line 224 of file HistoTool.h.

  {
    return GaudiHistoTool::book2D ( ID, title, lowX, highX, binsX, lowY, highY, binsY ) ;
  }

virtual AIDA::IHistogram3D* HistoTool::book3D ( const std::string &  title, const double  lowX = 0, const double  highX = 100, const unsigned long  binsX = 10, const double  lowY = 0, const double  highY = 100, const unsigned long  binsY = 10, const double  lowZ = 0, const double  highZ = 100, const unsigned long  binsZ = 10  ) const

inlinevirtual

book the 3D histogram

The histogram will be assigned a unique identifier

See also

IHistogram3D

Parameters

title	histogram title (must be unique within the algorithm)
lowX	low x limit for histogram
highX	high x limit for histogram
binsX	number of bins in x
lowY	low y limit for histogram
highY	high y limit for histogram
binsY	number of bins in y
lowZ	low y limit for histogram
highZ	high y limit for histogram
binsZ	number of bins in y

Returns

pointer to AIDA 3D histogram

Implements IHistoTool.

Definition at line 194 of file HistoTool.h.

  {
    return GaudiHistoTool::book3D ( title,
                                    lowX, highX, binsX,
                                    lowY, highY, binsY,
                                    lowZ, highZ, binsZ ) ;
  }

virtual AIDA::IHistogram3D* HistoTool::book3D ( const HistoID &  ID, const std::string &  title, const double  lowX = 0, const double  highX = 100, const unsigned long  binsX = 10, const double  lowY = 0, const double  highY = 100, const unsigned long  binsY = 10, const double  lowZ = 0, const double  highZ = 100, const unsigned long  binsZ = 10  ) const

inlinevirtual

book the 3D histogram with forced ID

See also

IHistogram3D

Parameters

ID	unique histogram ID
title	histogram title (must be unique within the algorithm)
lowX	low x limit for histogram
highX	high x limit for histogram
binsX	number of bins in x
lowY	low y limit for histogram
highY	high y limit for histogram
binsY	number of bins in y
lowZ	low y limit for histogram
highZ	high y limit for histogram
binsZ	number of bins in y

Returns

pointer to AIDA 3D histogram

Implements IHistoTool.

Definition at line 238 of file HistoTool.h.

  {
    return GaudiHistoTool::book3D ( ID, title,
                                    lowX, highX, binsX,
                                    lowY, highY, binsY,
                                    lowZ, highZ, binsZ ) ;
  }

virtual AIDA::IHistogram1D* HistoTool::fill ( AIDA::IHistogram1D *  histo, const double  value, const double  weight, const std::string &  title = ""  ) const

inlinevirtual

fill the 1D histo with the value and weight

Parameters

histo	1D histogram to be filled
value	value to be put into the histogram
weight	weight to be used
title	histogram title (to be used for error report)

Returns

pointer to AIDA 1D histogram

Implements IHistoTool.

Definition at line 258 of file HistoTool.h.

  {
    return GaudiHistoTool::fill ( histo , value , weight , title ) ;
  };

virtual AIDA::IHistogram2D* HistoTool::fill ( AIDA::IHistogram2D *  histo, const double  valueX, const double  valueY, const double  weight, const std::string &  title = ""  ) const

inlinevirtual

fill the 2D histo with the value and weight

Parameters

histo	2D histogram to be filled
valueX	x value to be put into the histogram
valueY	y value to be put into the histogram
weight	weight to be used
title	histogram title (to be used for error report)

Returns

pointer to AIDA 2D histogram

Implements IHistoTool.

Definition at line 268 of file HistoTool.h.

  {
    return GaudiHistoTool::fill ( histo , valueX , valueY , weight , title ) ;
  };

virtual AIDA::IHistogram3D* HistoTool::fill ( AIDA::IHistogram3D *  histo, const double  valueX, const double  valueY, const double  valueZ, const double  weight, const std::string &  title = ""  ) const

inlinevirtual

fill the 3D histo with the value and weight

Parameters

histo	3D histogram to be filled
valueX	x value to be put into the histogram
valueY	y value to be put into the histogram
valueZ	z value to be put into the histogram
weight	weight to be used
title	histogram title (to be used for error report)

Returns

pointer to AIDA 3D histogram

Implements IHistoTool.

Definition at line 279 of file HistoTool.h.

  {
    return GaudiHistoTool::fill ( histo , valueX , valueY , valueZ, weight , title ) ;
  };

virtual AIDA::IHistogram1D* HistoTool::histo1D ( const std::string &  title ) const

inlinevirtual

access the EXISTING 1D histogram by title return the pointer to existing 1D histogram or NULL

Implements IHistoTool.

Definition at line 290 of file HistoTool.h.

  { return GaudiHistoTool::histo1D ( title ) ; }

virtual AIDA::IHistogram1D* HistoTool::histo1D ( const HistoID &  ID ) const

inlinevirtual

access the EXISTING 1D histogram by ID return the pointer to existing 1D histogram or NULL

Implements IHistoTool.

Definition at line 294 of file HistoTool.h.

  { return GaudiHistoTool::histo1D ( ID ) ; }

virtual AIDA::IHistogram2D* HistoTool::histo2D ( const std::string &  title ) const

inlinevirtual

access the EXISTING 2D histogram by title return the pointer to existing 2D histogram or NULL

Implements IHistoTool.

Definition at line 298 of file HistoTool.h.

  { return GaudiHistoTool::histo2D ( title ) ; }

virtual AIDA::IHistogram2D* HistoTool::histo2D ( const HistoID &  ID ) const

inlinevirtual

access the EXISTING 2D histogram by ID return the pointer to existing 2D histogram or NULL

Implements IHistoTool.

Definition at line 302 of file HistoTool.h.

  { return GaudiHistoTool::histo2D ( ID ) ; }

virtual AIDA::IHistogram3D* HistoTool::histo3D ( const std::string &  title ) const

inlinevirtual

access the EXISTING 3D histogram by title return the pointer to existing 3D histogram or NULL

Implements IHistoTool.

Definition at line 306 of file HistoTool.h.

  { return GaudiHistoTool::histo3D ( title ) ; }

virtual AIDA::IHistogram3D* HistoTool::histo3D ( const HistoID &  ID ) const

inlinevirtual

access the EXISTING 3D histogram by ID return the pointer to existing 3D histogram or NULL

Implements IHistoTool.

Definition at line 310 of file HistoTool.h.

  { return GaudiHistoTool::histo3D ( ID ) ; }

virtual bool HistoTool::histoExists ( const std::string &  title ) const

inlinevirtual

check the existence AND validity of the histogram with given title

Implements IHistoTool.

Definition at line 314 of file HistoTool.h.

  { return GaudiHistoTool::histoExists ( title ) ; }

virtual bool HistoTool::histoExists ( const HistoID &  ID ) const

inlinevirtual

check the existence AND validity of the histogram with given title

Implements IHistoTool.

Definition at line 318 of file HistoTool.h.

  { return GaudiHistoTool::histoExists ( ID ) ; }

HistoTool& HistoTool::operator= ( const HistoTool &  )

private

virtual AIDA::IHistogram1D* HistoTool::plot1D ( const double  value, const std::string &  title, const double  low, const double  high, const unsigned long  bins = 100, const double  weight = 1.0  ) const

inlinevirtual

fill the 1D histogram (book on demand)

const double mass = ... ;
plot1D( mass , "Invariant Mass" , 2.5 , 3.5 , 100 )

• This example illustrates the filling of the histogram titled "InvariantMass" with value mass .
• If the histogram with given title does not exist yet it will be automatically booked with parameters low equal to 2.5, parameters high equal to 3.5 and bins equal to 100.

The histogram will get a unique integer identifier automatically assigned.

See also

AIDA::IHistogram1D

Parameters

value	value to be filled
title	histogram title (must be unique within the algorithm)
low	low limit for histogram
high	high limit for histogram
bins	number of bins
weight	weight

Returns

pointer to AIDA 1D histogram

Implements IHistoTool.

Definition at line 57 of file HistoTool.h.

  {
    return GaudiHistoTool::plot1D
      ( value , title , low , high , bins , weight ) ;
  };

virtual AIDA::IHistogram1D* HistoTool::plot1D ( const double  value, const HistoID &  ID, const std::string &  title, const double  low, const double  high, const unsigned long  bins = 100, const double  weight = 1.0  ) const

inlinevirtual

fill the 1D histogram with forced ID assignement (book on demand)

const double mass = ... ;
plot1D( mass , 15 , "Invariant Mass" , 2.5 , 3.5 , 100 )

• This example illustrates the filling of the 1D histogram ID=15 titled "Invariant Mass" with value mass .
• If the histogram with given ID does not exist yet it will be automatically booked with parameters low equal to 2.5, parameters high equal to 3.5 and bins equal to 100.

Attention

If the histogram with given ID is already booked through automatic assignement of histogram ID, the error will not be detected. Therefore it is recommended to use non-trivial histogram ID offset (property "HistoOffSet") if one need to combine these techniques together It is still desirable to use the unique histogram title to avoid a bad interference.

Note : This method is more efficient that the similar method without forced ID, since the histogram lookup is faster using a numerical ID.

See also

AIDA::IHistogram1D

Parameters

value	value to be filled
ID	histogram identifier
title	histogram title (must be unique within the algorithm)
low	low limit for histogram
high	high limit for histogram
bins	number of bins
weight	weight

Returns

pointer to AIDA histogram

Implements IHistoTool.

Definition at line 71 of file HistoTool.h.

  {
    return GaudiHistoTool::plot1D
      ( value , ID , title , low , high , bins , weight ) ;
  };

virtual AIDA::IHistogram2D* HistoTool::plot2D ( const double  valueX, const double  valueY, const std::string &  title, const double  lowX, const double  highX, const double  lowY, const double  highY, const unsigned long  binsX = 50, const unsigned long  binsY = 50, const double  weight = 1.0  ) const

inlinevirtual

fill the 2D histogram (book on demand)

const double mass1 = ... ;
const double mass2 = ... ;
plot2D( mass1, mass2, "Invariant Mass2 versus Mass1" ,2.5 ,3.5, 4.5, 5.5, 100, 200 );

• This example illustrates the filling of the 2D histogram titled "Invariant Mass2 versus Mass1" with values mass1 and mass2 .
• If the histogram with given title does not exist yet it will be automatically booked with parameters lowX equal to 2.5, highX equal to 3.5, lowY equal to 4.5, highY equal to 5.5, binsX equal to 100 and binsY equal to 200.

The histogram will get a unique integer identifier automatically assigned

See also

AIDA::IHistogram2D

Parameters

valueX	x value to be filled
valueY	y value to be filled
title	histogram title (must be unique within the algorithm)
lowX	low x limit for histogram
highX	high x limit for histogram
lowY	low y limit for histogram
highY	high y limit for histogram
binsX	number of bins in x
binsY	number of bins in y
weight	weight

Returns

pointer to AIDA 2D histogram

Implements IHistoTool.

Definition at line 87 of file HistoTool.h.

  {
    return GaudiHistoTool::plot2D
      ( valueX, valueY, title, lowX, highX, lowY, highY, binsX, binsY, weight ) ;
  };

virtual AIDA::IHistogram2D* HistoTool::plot2D ( const double  valueX, const double  valueY, const HistoID &  ID, const std::string &  title, const double  lowX, const double  highX, const double  lowY, const double  highY, const unsigned long  binsX = 50, const unsigned long  binsY = 50, const double  weight = 1.0  ) const

inlinevirtual

fill the 2D histogram with forced ID assignment (book on demand)

const double mass1 = ... ;
const double mass2 = ... ;
plot2D( mass1, mass2, 15, "Invariant Mass2 versus Mass1" ,2.5 ,3.5, 4.5, 5.5, 100, 200 );

• This example illustrates the filling of the 2D histogram ID=15 titled "Invariant Mass2 versus Mass1" with values mass1 and mass2 .
• If the histogram with given title does not exist yet it will be automatically booked with parameters lowX equal to 2.5, highX equal to 3.5, lowY equal to 4.5, highY equal to 5.5, binsX equal to 100 and binsY equal to 200.

Attention

If the histogram with given ID is already booked through automatic assignment of histogram ID, the error will not be detected. Therefore it is recommended to use non-trivial histogram ID offset (property "HistoOffSet") if one need to combine these techniques together It is still desirable to use the unique histogram title to avoid a bad interference

Note : This method is more efficient that the similar method without forced ID, since the histogram lookup is faster using a numerical ID.

See also

AIDA::IHistogram2D

Parameters

valueX	x value to be filled
valueY	y value to be filled
ID	Histogram ID to use
title	histogram title (must be unique within the algorithm)
lowX	low x limit for histogram
highX	high x limit for histogram
lowY	low y limit for histogram
highY	high y limit for histogram
binsX	number of bins in x
binsY	number of bins in y
weight	weight

Returns

pointer to AIDA 2D histogram

Implements IHistoTool.

Definition at line 104 of file HistoTool.h.

  {
    return GaudiHistoTool::plot2D
      ( valueX, valueY, ID, title, lowX, highX, lowY, highY, binsX, binsY, weight ) ;
  };

virtual AIDA::IHistogram3D* HistoTool::plot3D ( const double  valueX, const double  valueY, const double  valueZ, const std::string &  title, const double  lowX, const double  highX, const double  lowY, const double  highY, const double  lowZ, const double  highZ, const unsigned long  binsX = 10, const unsigned long  binsY = 10, const unsigned long  binsZ = 10, const double  weight = 1.0  ) const

inlinevirtual

fill the 3D histogram (book on demand)

const double mass1 = ... ;
const double mass2 = ... ;
const double mass3 = ... ;
plot3D( X, Y, Z, "Space Points" ,2.5 ,3.5, 4.5, 5.5, 6.5, 7.5, 10, 20, 30 );

• This example illustrates the filling of the 3D histogram titled "Space Points" with values X, Y and Z.
• If the histogram with given title does not exist yet it will be automatically booked with parameters lowX equal to 2.5, highX equal to 3.5, lowY equal to 4.5, highY equal to 5.5, lowZ equal to 6.5, highZ equal to 7.5, binsX equal to 10, binsY equal to 20 and binsZ equal to 30.

The histogram will get a unique integer identifier automatically assigned

See also

AIDA::IHistogram3D

Parameters

valueX	x value to be filled
valueY	y value to be filled
valueZ	z value to be filled
title	histogram title (must be unique within the algorithm)
lowX	low x limit for histogram
highX	high x limit for histogram
lowY	low y limit for histogram
highY	high y limit for histogram
lowZ	low z limit for histogram
highZ	high z limit for histogram
binsX	number of bins in x
binsY	number of bins in y
binsZ	number of bins in z
weight	weight

Returns

pointer to AIDA 3D histogram

Implements IHistoTool.

Definition at line 124 of file HistoTool.h.

  {
    return GaudiHistoTool::plot3D
      ( valueX, valueY, valueZ, title,
        lowX, highX, lowY, highY, lowZ, highZ, binsX, binsY, binsZ, weight ) ;
  };

virtual AIDA::IHistogram3D* HistoTool::plot3D ( const double  valueX, const double  valueY, const double  valueZ, const HistoID &  ID, const std::string &  title, const double  lowX, const double  highX, const double  lowY, const double  highY, const double  lowZ, const double  highZ, const unsigned long  binsX = 10, const unsigned long  binsY = 10, const unsigned long  binsZ = 10, const double  weight = 1.0  ) const

inlinevirtual

fill the 3D histogram with forced ID assignment (book on demand)

const double mass1 = ... ;
const double mass2 = ... ;
const double mass3 = ... ;
plot3D( X, Y, Z, "Space Points" ,2.5 ,3.5, 4.5, 5.5, 6.5, 7.5, 10, 20, 30 );

• This example illustrates the filling of the 3D histogram titled "Space Points" with values X, Y and Z.
• If the histogram with given title does not exist yet it will be automatically booked with parameters lowX equal to 2.5, highX equal to 3.5, lowY equal to 4.5, highY equal to 5.5, lowZ equal to 6.5, highZ equal to 7.5, binsX equal to 10, binsY equal to 20 and binsZ equal to 30.

Attention

If the histogram with given ID is already booked through automatic assignment of histogram ID, the error will not be detected. Therefore it is recommended to use non-trivial histogram ID offset (property "HistoOffSet") if one need to combine these techniques together It is still desirable to use the unique histogram title to avoid a bad interference

Note : This method is more efficient that the similar method without forced ID, since the histogram lookup is faster using a numerical ID.

See also

AIDA::IHistogram3D

Parameters

valueX	x value to be filled
valueY	y value to be filled
valueZ	z value to be filled
ID	Histogram ID to use
title	histogram title (must be unique within the algorithm)
lowX	low x limit for histogram
highX	high x limit for histogram
lowY	low y limit for histogram
highY	high y limit for histogram
lowZ	low z limit for histogram
highZ	high z limit for histogram
binsX	number of bins in x
binsY	number of bins in y
binsZ	number of bins in z
weight	weight

Returns

pointer to AIDA 3D histogram

Implements IHistoTool.

Definition at line 146 of file HistoTool.h.

  {
    return GaudiHistoTool::plot3D
      ( valueX, valueY, valueZ, ID, title,
        lowX, highX, lowY, highY, lowZ, highZ, binsX, binsY, binsZ, weight ) ;
  };

---

The documentation for this class was generated from the following files:

• GaudiAlg/src/components/HistoTool.h
• GaudiAlg/src/components/HistoTool.cpp
