GaudiHistoAlg Class Reference

Simple class to extend the functionality of class GaudiAlgorithm. More...

#include <GaudiAlg/GaudiHistoAlg.h>

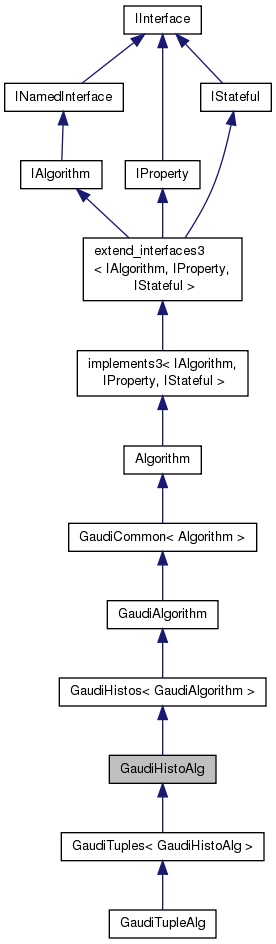

Inheritance diagram for GaudiHistoAlg:

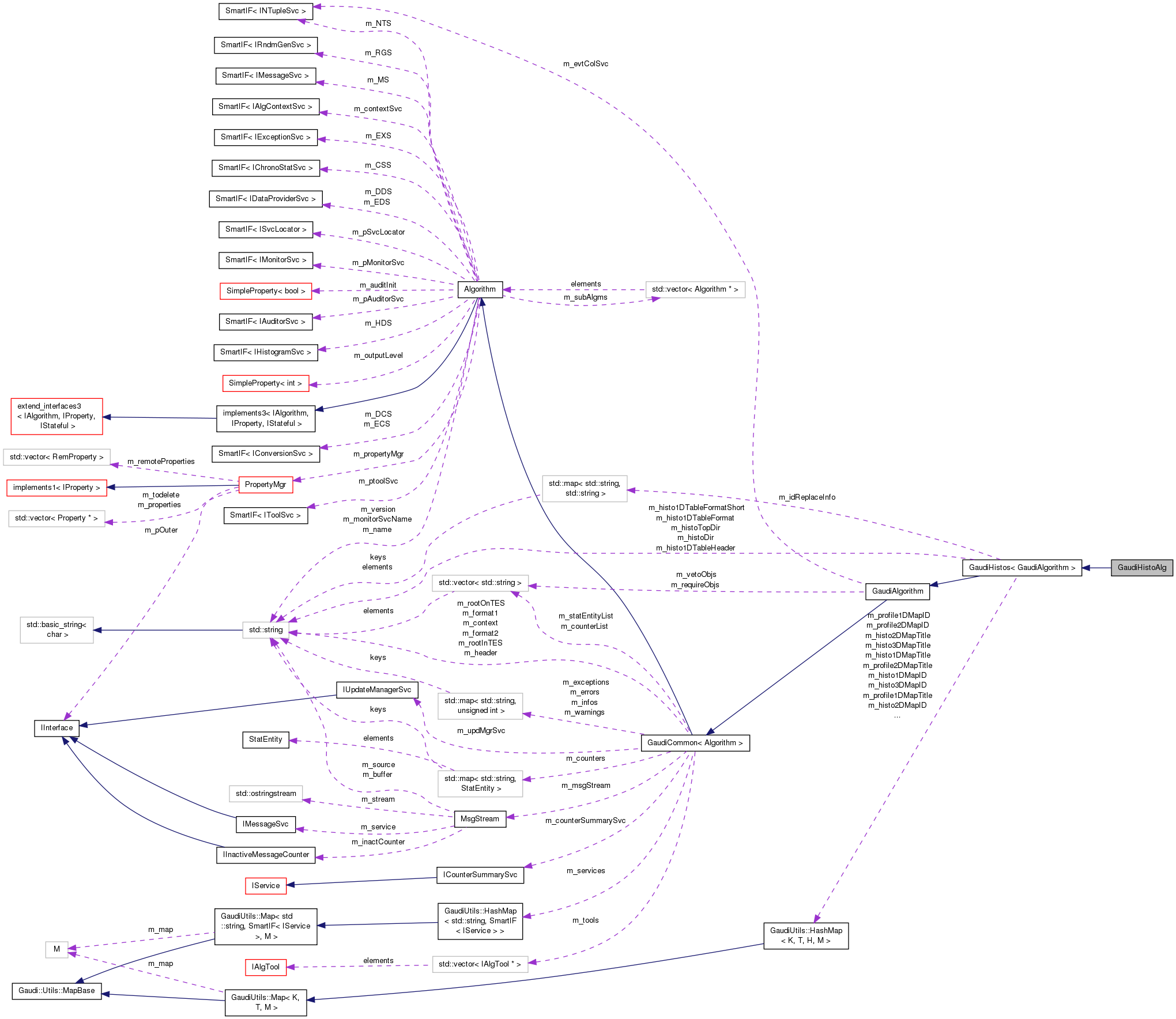

Collaboration diagram for GaudiHistoAlg:

Protected Member Functions
	GaudiHistoAlg (const std::string &name, ISvcLocator *pSvc)
	Standard constructor (protected) More...
virtual	~GaudiHistoAlg ()
	virtual destructor More...
virtual StatusCode	initialize ()
	standard initialization method More...
virtual StatusCode	finalize ()
	standard finalization method More...
Protected Member Functions inherited from GaudiHistos< GaudiAlgorithm >
std::string	convertTitleToID (const std::string &title) const
	Create an ID string from a title string. More...
Protected Member Functions inherited from GaudiCommon< Algorithm >
virtual	~GaudiCommon ()
	Destructor. More...
StatusCode	releaseTool (const IAlgTool *tool) const
	manual forced (and 'safe') release of the tool More...
StatusCode	releaseSvc (const IInterface *svc) const
	manual forced (and 'safe') release of the service More...
Protected Member Functions inherited from Algorithm
bool	isInitialized () const
	Has the Algorithm already been initialized? More...
bool	isFinalized () const
	Has the Algorithm already been finalized? More...
int	outputLevel () const
	retrieve the Algorithm output level More...
IntegerProperty &	outputLevelProperty ()
	Accessor for the Message level property. More...
void	initOutputLevel (Property &prop)
	callback for output level property More...

Private Member Functions
	GaudiHistoAlg ()
	GaudiHistoAlg (const GaudiHistoAlg &)
GaudiHistoAlg &	operator= (const GaudiHistoAlg &)

Additional Inherited Members
Public Types inherited from GaudiHistos< GaudiAlgorithm >
typedef GaudiAlg::HistoID	HistoID
	the actual type for histogram identifier More...
typedef GaudiAlg::Histo1DMapID	Histo1DMapID
	the actual type for (ID)->(1D histogram) mapping More...
typedef GaudiAlg::Histo1DMapTitle	Histo1DMapTitle
	the actual type for title->(1D histogram) mapping More...
typedef GaudiAlg::Histo2DMapID	Histo2DMapID
	the actual type for (ID)->(2D histogram) mapping More...
typedef GaudiAlg::Histo2DMapTitle	Histo2DMapTitle
	the actual type for title->(2D histogram) mapping More...
typedef GaudiAlg::Histo3DMapID	Histo3DMapID
	the actual type for (ID)->(3D histogram) mapping More...
typedef GaudiAlg::Histo3DMapTitle	Histo3DMapTitle
	the actual type for title->(3D histogram) mapping More...
typedef GaudiAlg::Profile1DMapID	Profile1DMapID
	the actual type for (ID)->(1D profile histogram) mapping More...
typedef GaudiAlg::Profile1DMapTitle	Profile1DMapTitle
	the actual type for title->(1D profile histogram) mapping More...
typedef GaudiAlg::Profile2DMapID	Profile2DMapID
	the actual type for (ID)->(2D profile histogram) mapping More...
typedef GaudiAlg::Profile2DMapTitle	Profile2DMapTitle
	the actual type for title->(2D profile histogram) mapping More...
typedef GaudiAlg::HistoBinEdges	HistoBinEdges
	Edges for variable binning. More...
Public Types inherited from Algorithm
typedef Gaudi::PluginService::Factory < IAlgorithm *, const std::string &, ISvcLocator * >	Factory
Public Types inherited from implements3< IAlgorithm, IProperty, IStateful >
typedef implements3	base_class
	Typedef to this class. More...
typedef extend_interfaces3 < IAlgorithm, IProperty, IStateful >	extend_interfaces_base
	Typedef to the base of this class. More...
typedef extend_interfaces_base::ext_iids	interfaces
	MPL set of all the implemented interfaces. More...
Public Types inherited from extend_interfaces3< IAlgorithm, IProperty, IStateful >
typedef mpl::fold< typename IAlgorithm::iid::iids::type, typename mpl::fold< typename IProperty::iid::iids::type, typename IStateful::iid::iids::type, mpl::insert< mpl::_1, mpl::_2 > >::type, mpl::insert< mpl::_1, mpl::_2 > >::type	ext_iids
	MPL set of interfaces extended by this one. More...
Public Types inherited from IInterface
enum	Status { SUCCESS = 1, NO_INTERFACE, VERSMISMATCH, LAST_ERROR }
	Return status. More...
typedef Gaudi::InterfaceId < IInterface, 0, 0 >	iid
	Interface ID. More...
typedef mpl::set1< iid >	ext_iids
	Extra interfaces. More...
Public Member Functions inherited from GaudiHistos< GaudiAlgorithm >
AIDA::IHistogram1D *	plot1D (const double value, const std::string &title, const double low, const double high, const unsigned long bins=100, const double weight=1.0) const
	fill the 1D histogram (book on demand) More...
AIDA::IHistogram1D *	plot1D (const double value, const Gaudi::Histo1DDef &hdef, const double weight=1.0) const
	fill the 1D histogram (book on demand) More...
AIDA::IHistogram1D *	plot1D (const double value, const HistoID &ID, const std::string &title, const double low, const double high, const unsigned long bins=100, const double weight=1.0) const
	fill the 1D histogram with forced ID assignment (book on demand) More...
AIDA::IHistogram1D *	plot1D (const double value, const HistoID &ID, const Gaudi::Histo1DDef &hdef, const double weight=1.0) const
	fill the 1D histogram with forced ID assignment (book on demand) More...
AIDA::IHistogram1D *	plot1D (const double value, const std::string &title, const HistoBinEdges &edges, const double weight=1.0) const
	Fill the 1D variable binning histogram (book on demand) More...
AIDA::IHistogram1D *	plot1D (const double value, const HistoID &ID, const std::string &title, const HistoBinEdges &edges, const double weight=1.0) const
	fill the 1D variable binning histogram with forced ID assignment (book on demand) More...
AIDA::IHistogram1D *	plot (const double value, const std::string &title, const double low, const double high, const unsigned long bins=100, const double weight=1.0) const
	fill the 1D histogram (book on demand) More...
AIDA::IHistogram1D *	plot (const double value, const Gaudi::Histo1DDef &hdef, const double weight=1.0) const
	fill the 1D histogram (book on demand) More...
AIDA::IHistogram1D *	plot (const double value, const HistoID &ID, const std::string &title, const double low, const double high, const unsigned long bins=100, const double weight=1.0) const
	fill the 1D histogram with forced ID assignment (book on demand) More...
AIDA::IHistogram1D *	plot (const double value, const HistoID &ID, const Gaudi::Histo1DDef &hdef, const double weight=1.0) const
	fill the 1D histogram (book on demand) More...
AIDA::IHistogram1D *	plot (const FUNCTION &func, OBJECT first, OBJECT last, const std::string &title, const double low, const double high, const unsigned long bins=100) const
	fill the 1D histogram with information from [first,last) sequence More...
AIDA::IHistogram1D *	plot (const FUNCTION &func, OBJECT first, OBJECT last, const HistoID &ID, const std::string &title, const double low, const double high, const unsigned long bins=100) const
	fill the 1D histogram with forced ID and information from [first,last) sequence More...
AIDA::IHistogram1D *	plot (const FUNCTION &func, OBJECT first, OBJECT last, const std::string &title, const double low, const double high, const unsigned long bins, const WEIGHT &weight) const
	book and fill the 1D histogram with information from [first,last) sequence with given weight More...
AIDA::IHistogram1D *	plot (const FUNCTION &func, OBJECT first, OBJECT last, const HistoID &ID, const std::string &title, const double low, const double high, const unsigned long bins, const WEIGHT &weight) const
	book and fill the 1D histogram with forced ID and information from [first,last) sequence with given weight More...
AIDA::IHistogram2D *	plot2D (const double valueX, const double valueY, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const unsigned long binsX=50, const unsigned long binsY=50, const double weight=1.0) const
	fill the 2D histogram (book on demand) More...
AIDA::IHistogram2D *	plot2D (const double valueX, const double valueY, const HistoID &ID, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const unsigned long binsX=50, const unsigned long binsY=50, const double weight=1.0) const
	fill the 2D histogram with forced ID assignment (book on demand) More...
AIDA::IHistogram2D *	plot2D (const double valueX, const double valueY, const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY, const double weight=1.0) const
	Fill the 2D variable binning histogram (book on demand) More...
AIDA::IHistogram2D *	plot2D (const double valueX, const double valueY, const HistoID &ID, const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY, const double weight=1.0) const
	fill the 2D variable histogram with forced ID assignment (book on demand) More...
AIDA::IHistogram3D *	plot3D (const double valueX, const double valueY, const double valueZ, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const double lowZ, const double highZ, const unsigned long binsX=10, const unsigned long binsY=10, const unsigned long binsZ=10, const double weight=1.0) const
	fill the 3D histogram (book on demand) More...
AIDA::IHistogram3D *	plot3D (const double valueX, const double valueY, const double valueZ, const HistoID &ID, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const double lowZ, const double highZ, const unsigned long binsX=10, const unsigned long binsY=10, const unsigned long binsZ=10, const double weight=1.0) const
	fill the 3D histogram with forced ID assignment (book on demand) More...
AIDA::IHistogram3D *	plot3D (const double valueX, const double valueY, const double valueZ, const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY, const HistoBinEdges &edgesZ, const double weight=1.0) const
	Fill the 3D variable binning histogram (book on demand) More...
AIDA::IHistogram3D *	plot3D (const double valueX, const double valueY, const double valueZ, const HistoID &ID, const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY, const HistoBinEdges &edgesZ, const double weight=1.0) const
	fill the 3D histogram with forced ID assignment (book on demand) More...
AIDA::IProfile1D *	profile1D (const double valueX, const double valueY, const std::string &title, const double lowX, const double highX, const unsigned long binsX=100, const std::string &opt="", const double lowY=-std::numeric_limits< double >::max(), const double highY=std::numeric_limits< double >::max(), const double weight=1.0) const
	fill the 1D profile histogram (book on demand) More...
AIDA::IProfile1D *	profile1D (const double valueX, const double valueY, const HistoID &ID, const std::string &title, const double lowX, const double highX, const unsigned long binsX=100, const std::string &opt="", const double lowY=-std::numeric_limits< double >::max(), const double highY=std::numeric_limits< double >::max(), const double weight=1.0) const
	fill the 1D profile histogram with forced ID assignment (book on demand) More...
AIDA::IProfile1D *	profile1D (const double valueX, const double valueY, const std::string &title, const HistoBinEdges &edges, const double weight=1.0) const
	fill the 1D variable binning profile histogram (book on demand) More...
AIDA::IProfile1D *	profile1D (const double valueX, const double valueY, const HistoID &ID, const std::string &title, const HistoBinEdges &edges, const double weight=1.0) const
	fill the 1D variable binning profile histogram with forced ID assignment (book on demand) More...
AIDA::IProfile1D *	profile1D (const std::string &title) const
	access the EXISTING 1D profile histogram by title return the pointer to existing 1D profile histogram or NULL More...
AIDA::IProfile1D *	profile1D (const HistoID &ID) const
	access the EXISTING 1D profile histogram by ID return the pointer to existing 1D profile histogram or NULL More...
AIDA::IProfile2D *	profile2D (const double valueX, const double valueY, const double valueZ, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const unsigned long binsX=50, const unsigned long binsY=50, const double weight=1.0) const
	fill the 2D profile histogram (book on demand) More...
AIDA::IProfile2D *	profile2D (const double valueX, const double valueY, const double valueZ, const HistoID &ID, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const unsigned long binsX=50, const unsigned long binsY=50, const double weight=1.0) const
	fill the 2D profile histogram with forced ID assignment (book on demand) More...
AIDA::IProfile2D *	profile2D (const double valueX, const double valueY, const double valueZ, const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY, const double weight=1.0) const
	fill the 2D variable binning profile histogram (book on demand) More...
AIDA::IProfile2D *	profile2D (const double valueX, const double valueY, const double valueZ, const HistoID &ID, const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY, const double weight=1.0) const
	fill the 2D variable binning profile histogram with forced ID assignment (book on demand) More...
AIDA::IProfile2D *	profile2D (const std::string &title) const
	access the EXISTING 2D profile histogram by title return the pointer to existing 2D profile histogram or NULL More...
AIDA::IProfile2D *	profile2D (const HistoID &ID) const
	access the EXISTING 2D profile histogram by ID return the pointer to existing 2D profile histogram or NULL More...
AIDA::IHistogram1D *	book1D (const std::string &title, const double low=0, const double high=100, const unsigned long bins=100) const
	book the 1D histogram More...
AIDA::IHistogram1D *	book1D (const HistoID &ID, const std::string &title, const double low=0, const double high=100, const unsigned long bins=100) const
	book the 1D histogram with forced ID More...
AIDA::IHistogram1D *	book1D (const std::string &title, const HistoBinEdges &edges) const
	book the 1D variable binning histogram More...
AIDA::IHistogram1D *	book1D (const HistoID &ID, const std::string &title, const HistoBinEdges &edges) const
	book the 1D variable binning histogram with given ID More...
AIDA::IHistogram1D *	book (const std::string &title, const double low=0, const double high=100, const unsigned long bins=100) const
	book the 1D histogram More...
AIDA::IHistogram1D *	book (const Gaudi::Histo1DDef &hdef) const
	book the 1D histogram More...
AIDA::IHistogram1D *	book (const HistoID &ID, const std::string &title, const double low=0, const double high=100, const unsigned long bins=100) const
	book the 1D histogram with forced ID More...
AIDA::IHistogram1D *	book (const HistoID &ID, const Gaudi::Histo1DDef &hdef) const
	book the 1D histogram with forced ID More...
AIDA::IHistogram2D *	book2D (const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=50, const double lowY=0, const double highY=100, const unsigned long binsY=50) const
	book the 2D histogram More...
AIDA::IHistogram2D *	book2D (const HistoID &ID, const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=50, const double lowY=0, const double highY=100, const unsigned long binsY=50) const
	book the 2D histogram with forced ID More...
AIDA::IHistogram2D *	book2D (const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY) const
	book the 2D variable binning histogram More...
AIDA::IHistogram2D *	book2D (const HistoID &ID, const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY) const
	book the 2D variable binning histogram with given ID More...
AIDA::IHistogram3D *	book3D (const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=10, const double lowY=0, const double highY=100, const unsigned long binsY=10, const double lowZ=0, const double highZ=100, const unsigned long binsZ=10) const
	book the 3D histogram More...
AIDA::IHistogram3D *	book3D (const HistoID &ID, const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=10, const double lowY=0, const double highY=100, const unsigned long binsY=10, const double lowZ=0, const double highZ=100, const unsigned long binsZ=10) const
	book the 3D histogram with forced ID More...
AIDA::IHistogram3D *	book3D (const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY, const HistoBinEdges &edgesZ) const
	book the 3D variable binning histogram More...
AIDA::IHistogram3D *	book3D (const HistoID &ID, const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY, const HistoBinEdges &edgesZ) const
	book the 3D variable binning histogram with given ID More...
AIDA::IProfile1D *	bookProfile1D (const std::string &title, const double low=0, const double high=100, const unsigned long bins=100, const std::string &opt="", const double lowY=-std::numeric_limits< double >::max(), const double highY=std::numeric_limits< double >::max()) const
	book the 1D profile histogram More...
AIDA::IProfile1D *	bookProfile1D (const HistoID &ID, const std::string &title, const double low=0, const double high=100, const unsigned long bins=100, const std::string &opt="", const double lowY=-std::numeric_limits< double >::max(), const double highY=std::numeric_limits< double >::max()) const
	book the 1D profile histogram More...
AIDA::IProfile1D *	bookProfile1D (const std::string &title, const HistoBinEdges &edges) const
	book the 1D profile histogram More...
AIDA::IProfile1D *	bookProfile1D (const HistoID &ID, const std::string &title, const HistoBinEdges &edges) const
	book the 1D profile histogram More...
AIDA::IProfile2D *	bookProfile2D (const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=50, const double lowY=0, const double highY=100, const unsigned long binsY=50) const
	book the 2D profile histogram More...
AIDA::IProfile2D *	bookProfile2D (const HistoID &ID, const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=50, const double lowY=0, const double highY=100, const unsigned long binsY=50) const
	book the 2D profile histogram with forced ID More...
AIDA::IProfile2D *	bookProfile2D (const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY) const
	book the 2D profile histogram More...
AIDA::IProfile2D *	bookProfile2D (const HistoID &ID, const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY) const
	book the 2D profile histogram with forced ID More...
AIDA::IHistogram1D *	fill (AIDA::IHistogram1D *histo, const double value, const double weight, const std::string &title="") const
	fill the 1D histogram with the value and weight More...
AIDA::IHistogram2D *	fill (AIDA::IHistogram2D *histo, const double valueX, const double valueY, const double weight, const std::string &title="") const
	fill the 2D histogram with the value and weight More...
AIDA::IHistogram3D *	fill (AIDA::IHistogram3D *histo, const double valueX, const double valueY, const double valueZ, const double weight, const std::string &title="") const
	fill the 3D histogram with the value and weight More...
AIDA::IProfile1D *	fill (AIDA::IProfile1D *histo, const double valueX, const double valueY, const double weight, const std::string &title="") const
	fill the 1D profile histogram with the values and weight More...
AIDA::IProfile2D *	fill (AIDA::IProfile2D *histo, const double valueX, const double valueY, const double valueZ, const double weight, const std::string &title="") const
	fill the 2D profile histogram with the values and weight More...
AIDA::IHistogram1D *	histo1D (const std::string &title) const
	access the EXISTING 1D histogram by title return the pointer to existing 1D histogram or NULL More...
AIDA::IHistogram1D *	histo1D (const HistoID &ID) const
	access the EXISTING 1D histogram by ID return the pointer to existing 1D histogram or NULL More...
AIDA::IHistogram1D *	histo (const std::string &title) const
	access the EXISTING 1D histogram by title More...
AIDA::IHistogram1D *	histo (const HistoID &ID) const
	access the EXISTING 1D histogram by ID More...
AIDA::IHistogram2D *	histo2D (const std::string &title) const
	access the EXISTING 2D histogram by title return the pointer to existing 2D histogram or NULL More...
AIDA::IHistogram2D *	histo2D (const HistoID &ID) const
	access the EXISTING 2D histogram by ID return the pointer to existing 2D histogram or NULL More...
AIDA::IHistogram3D *	histo3D (const std::string &title) const
	access the EXISTING 3D histogram by title return the pointer to existing 3D histogram or NULL More...
AIDA::IHistogram3D *	histo3D (const HistoID &ID) const
	access the EXISTING 3D histogram by ID return the pointer to existing 3D histogram or NULL More...
bool	histoExists (const std::string &title) const
	check the existence AND validity of the histogram with given title More...
bool	histoExists (const HistoID &ID) const
	check the existence AND validity of the histogram with given title More...
unsigned int	totalNumberOfHistos () const
	Returns the total number of histograms (of all types) currently booked. More...
bool	produceHistos () const
	get the flag for histogram production (property "HistoProduce") More...
bool	fullDetail () const
	get flag to control output level of histograms More...
bool	checkForNaN () const
	get the flag for NaN checks (property "HistoCheckForNan") More...
bool	splitHistoDir () const
	get the flag for histogram path split (property "HistoSplitDir") More...
HistoID::NumericID	histoOffSet () const
	get the value for histogram offset (property "HistoOffSet") More...
const std::string &	histoTopDir () const
	get top-level histogram directory (property "HistoTopDir") More...
const std::string &	histoDir () const
	get histogram directory (property "HistoDir") More...
std::string	histoPath () const
	get the constructed histogram path More...
bool	histosPrint () const
	print histograms at finalization ? More...
bool	histoCountersPrint () const
	print histogram counters at finalization ? More...
bool	useNumericAutoIDs () const
	Use old style sequencial numerical automatically assigned IDs ? More...
int	printHistos (const MSG::Level level=MSG::ALWAYS) const
	perform the actual printout of histograms More...
const Histo1DMapTitle &	histo1DMapTitle () const
	get access to the map of all 1D histograms indexed via their title More...
const Histo1DMapID &	histo1DMapID () const
	get access to the map of all 1D histograms index via ID More...
const Histo2DMapTitle &	histo2DMapTitle () const
	get access to the map of all 2D histograms indexed via their title More...
const Histo2DMapID &	histo2DMapID () const
	get access to the map of 2D histograms index via ID More...
const Histo3DMapTitle &	histo3DMapTitle () const
	get access to the map of all 3D histograms indexed via their title More...
const Histo3DMapID &	histo3DMapID () const
	get access to the map of all 3D histograms index via a ID More...
const Profile1DMapTitle &	profile1DMapTitle () const
	get access to the map of all 1D profile histograms indexed via their title More...
const Profile1DMapID &	profile1DMapID () const
	get access to the map of 1D profile histograms index via a ID More...
const Profile2DMapTitle &	profile2DMapTitle () const
	get access to the map of all 2D profile histograms indexed via their title More...
const Profile2DMapID &	profile2DMapID () const
	get access to the map of 2D profile histograms index via a ID More...
void	setProduceHistos (const bool val)
	set the flag for histogram production (property "HistoProduce") More...
void	setFullDetail (const bool val)
	set flag to control output level of histograms More...
void	setCheckForNaN (const bool val)
	set the flag for NaN checks (property "HistoCheckForNan") More...
void	setSplitHistoDir (const bool val)
	set the flag for histogram path split (property "HistoSplitDir") More...
void	setHistoOffSet (const HistoID::NumericID val)
	set a value for histogram offset (property "HistoOffSet" More...
void	setHistoTopDir (const std::string &val)
	set top-level histogram directory (property "HistoTopDir") More...
void	setHistoDir (const std::string &val)
	set histogram directory (property "HistoDir") More...
	GaudiHistos (const std::string &name, ISvcLocator *pSvcLocator)
	Algorithm constructor. More...
	GaudiHistos (const std::string &type, const std::string &name, const IInterface *parent)
	Tool constructor. More...
virtual	~GaudiHistos ()
	Destructor. More...
Public Member Functions inherited from GaudiAlgorithm
virtual StatusCode	execute ()
	standard execution method More...
virtual StatusCode	sysExecute ()
	the generic actions for the execution. More...
void	put (IDataProviderSvc *svc, DataObject *object, const std::string &address, const bool useRootInTES=true) const
	Register a data object or container into Gaudi Event Transient Store. More...
void	put (DataObject *object, const std::string &address, const bool useRootInTES=true) const
	Register a data object or container into Gaudi Event Transient Store. More...
template<class TYPE >
Gaudi::Utils::GetData< TYPE > ::return_type	get (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Templated access to the data in Gaudi Transient Store. More...
template<class TYPE >
Gaudi::Utils::GetData< TYPE > ::return_type	getIfExists (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Templated access to the data in Gaudi Transient Store. More...
template<class TYPE >
Gaudi::Utils::GetData< TYPE > ::return_type	get (const std::string &location, const bool useRootInTES=true) const
	Templated access to the data from Gaudi Event Transient Store. More...
template<class TYPE >
Gaudi::Utils::GetData< TYPE > ::return_type	getIfExists (const std::string &location, const bool useRootInTES=true) const
	Templated access to the data in Gaudi Transient Store. More...
template<class TYPE >
TYPE *	getDet (IDataProviderSvc *svc, const std::string &location) const
	Templated access to the detector data from the Gaudi Detector Transient Store. More...
template<class TYPE >
Gaudi::Utils::GetData< TYPE > ::return_type	getDetIfExists (IDataProviderSvc *svc, const std::string &location) const
	Templated access to the detector data from the Gaudi Detector Transient Store. More...
template<class TYPE >
TYPE *	getDet (const std::string &location) const
	Templated access to the detector data from the Gaudi Detector Transient Store. More...
template<class TYPE >
Gaudi::Utils::GetData< TYPE > ::return_type	getDetIfExists (const std::string &location) const
	Templated access to the detector data from the Gaudi Detector Transient Store. More...
template<class TYPE >
bool	exist (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Check the existence of a data object or container in the Gaudi Transient Event Store. More...
template<class TYPE >
bool	exist (const std::string &location, const bool useRootInTES=true) const
	Check the existence of a data object or container in the Gaudi Transient Event Store. More...
template<class TYPE >
bool	existDet (IDataProviderSvc *svc, const std::string &location) const
	Check the existence of detector objects in the Gaudi Transient Detector Store. More...
template<class TYPE >
bool	existDet (const std::string &location) const
	Check the existence of detector objects in the Gaudi Transient Detector Store. More...
template<class TYPE , class TYPE2 >
Gaudi::Utils::GetData< TYPE > ::return_type	getOrCreate (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Get the existing data object from Gaudi Event Transient store. More...
template<class TYPE , class TYPE2 >
Gaudi::Utils::GetData< TYPE > ::return_type	getOrCreate (const std::string &location, const bool useRootInTES=true) const
	Get the existing data object from Gaudi Event Transient store. More...
	GaudiAlgorithm (const std::string &name, ISvcLocator *pSvcLocator)
	Standard constructor (protected) More...
virtual	~GaudiAlgorithm ()
	destructor, virtual and protected More...
SmartIF< INTupleSvc > &	evtColSvc () const
	Access the standard event collection service. More...
Public Member Functions inherited from GaudiCommon< Algorithm >
Gaudi::Utils::GetData< TYPE > ::return_type	get (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Templated access to the data in Gaudi Transient Store. More...
Gaudi::Utils::GetData< TYPE > ::return_type	getIfExists (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Quicker version of the get function which bypasses the check on the retrieved data. More...
bool	exist (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Check the existence of a data object or container in the Gaudi Transient Event Store. More...
Gaudi::Utils::GetData< TYPE > ::return_type	getOrCreate (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Get the existing data object from Gaudi Event Transient store. More...
DataObject *	put (IDataProviderSvc *svc, DataObject *object, const std::string &location, const bool useRootInTES=true) const
	Register a data object or container into Gaudi Event Transient Store. More...
TOOL *	tool (const std::string &type, const std::string &name, const IInterface *parent=0, bool create=true) const
	Useful method for the easy location of tools. More...
TOOL *	tool (const std::string &type, const IInterface *parent=0, bool create=true) const
	A useful method for the easy location of tools. More...
SmartIF< SERVICE >	svc (const std::string &name, const bool create=true) const
	A useful method for the easy location of services. More...
IUpdateManagerSvc *	updMgrSvc () const
	Short-cut to locate the Update Manager Service. More...
StatusCode	Error (const std::string &msg, const StatusCode st=StatusCode::FAILURE, const size_t mx=10) const
	Print the error message and return with the given StatusCode. More...
StatusCode	Warning (const std::string &msg, const StatusCode st=StatusCode::FAILURE, const size_t mx=10) const
	Print the warning message and return with the given StatusCode. More...
StatusCode	Info (const std::string &msg, const StatusCode st=StatusCode::SUCCESS, const size_t mx=10) const
	Print the info message and return with the given StatusCode. More...
StatusCode	Print (const std::string &msg, const StatusCode st=StatusCode::SUCCESS, const MSG::Level lev=MSG::INFO) const
	Print the message and return with the given StatusCode. More...
void	Assert (const bool ok, const std::string &message="", const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Assertion - throw exception if the given condition is not fulfilled. More...
void	Assert (const bool ok, const char *message, const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Assertion - throw exception if the given condition is not fulfilled. More...
void	Exception (const std::string &msg, const GaudiException &exc, const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Create and (re)-throw a given GaudiException. More...
void	Exception (const std::string &msg, const std::exception &exc, const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Create and (re)-throw a given exception. More...
void	Exception (const std::string &msg="no message", const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Create and throw an exception with the given message. More...
MsgStream &	msgStream (const MSG::Level level) const
	Predefined configurable message stream for the efficient printouts. More...
MsgStream &	always () const
	shortcut for the method msgStream ( MSG::ALWAYS ) More...
MsgStream &	fatal () const
	shortcut for the method msgStream ( MSG::FATAL ) More...
MsgStream &	err () const
	shortcut for the method msgStream ( MSG::ERROR ) More...
MsgStream &	error () const
	shortcut for the method msgStream ( MSG::ERROR ) More...
MsgStream &	warning () const
	shortcut for the method msgStream ( MSG::WARNING ) More...
MsgStream &	info () const
	shortcut for the method msgStream ( MSG::INFO ) More...
MsgStream &	debug () const
	shortcut for the method msgStream ( MSG::DEBUG ) More...
MsgStream &	verbose () const
	shortcut for the method msgStream ( MSG::VERBOSE ) More...
MsgStream &	msg () const
	shortcut for the method msgStream ( MSG::INFO ) More...
const Statistics &	counters () const
	accessor to all counters More...
StatEntity &	counter (const std::string &tag) const
	accessor to certain counter by name More...
MSG::Level	msgLevel () const
	The current message service output level. More...
bool	msgLevel (const MSG::Level level) const
	Test the output level. More...
void	resetMsgStream () const
	Reset (delete) the current message stream object. More...
bool	typePrint () const
	Insert the actual C++ type of the algorithm/tool in the messages ? More...
bool	propsPrint () const
	Print properties at initialization ? More...
bool	statPrint () const
	Print statistical counters at finalization ? More...
bool	errorsPrint () const
	Print error counters at finalization ? More...
long	printStat (const MSG::Level level=MSG::ALWAYS) const
	perform the actual printout of statistical counters More...
long	printErrors (const MSG::Level level=MSG::ALWAYS) const
	perform the actual printout of error counters More...
long	printProps (const MSG::Level level=MSG::ALWAYS) const
	perform the actual printout of properties More...
void	registerCondition (const std::string &condition, StatusCode(CallerClass::*mf)()=NULL)
	register the current instance to the UpdateManagerSvc as a consumer for a condition. More...
void	registerCondition (const std::string &condition, CondType *&condPtrDest, StatusCode(CallerClass::*mf)()=NULL)
	register the current instance to the UpdateManagerSvc as a consumer for a condition. More...
void	registerCondition (char *condition, StatusCode(CallerClass::*mf)()=NULL)
	just to avoid conflicts with the version using a pointer to a template class. More...
void	registerCondition (TargetClass *condition, StatusCode(CallerClass::*mf)()=NULL)
	register the current instance to the UpdateManagerSvc as a consumer for a condition. More...
StatusCode	runUpdate ()
	asks the UpdateManagerSvc to perform an update of the instance (if needed) without waiting the next BeginEvent incident. More...
	GaudiCommon (const std::string &name, ISvcLocator *pSvcLocator)
	Algorithm constructor. More...
	GaudiCommon (const std::string &type, const std::string &name, const IInterface *parent)
	Tool constructor. More...
StatusCode	release (const IInterface *interface) const
	Manual forced (and 'safe') release of the active tool or service. More...
virtual unsigned long	release ()
	Un-hide IInterface::release (ICC warning #1125) More...
const AlgTools &	tools () const
	get the list of aquired tools More...
const Services &	services () const
	get the list of aquired services More...
const std::string &	context () const
	Returns the "context" string. Used to identify different processing states. More...
const std::string &	rootInTES () const
	Returns the "rootInTES" string. More...
double	globalTimeOffset () const
	Returns the "globalTimeOffset" double. More...
const std::string	fullTESLocation (const std::string &location, const bool useRootInTES) const
	Returns the full correct event location given the rootInTes settings. More...
Public Member Functions inherited from Algorithm
	Algorithm (const std::string &name, ISvcLocator *svcloc, const std::string &version=PACKAGE_VERSION)
	Constructor. More...
virtual	~Algorithm ()
	Destructor. More...
virtual StatusCode	sysStart ()
	Reinitialization method invoked by the framework. More...
virtual StatusCode	sysInitialize ()
	Initialization method invoked by the framework. More...
virtual StatusCode	sysReinitialize ()
	Reinitialization method invoked by the framework. More...
virtual StatusCode	sysRestart ()
	Restart method invoked by the framework. More...
virtual StatusCode	sysStop ()
	System stop. More...
virtual StatusCode	sysFinalize ()
	System finalization. More...
virtual StatusCode	sysBeginRun ()
	beginRun method invoked by the framework. More...
virtual StatusCode	sysEndRun ()
	endRun method invoked by the framework. More...
virtual const std::string &	name () const
	The identifying name of the algorithm object. More...
virtual const std::string &	version () const
	The version of the algorithm. More...
virtual StatusCode	configure ()
	Dummy implementation of IStateful::configure() method. More...
virtual StatusCode	terminate ()
	Dummy implementation of IStateful::terminate() method. More...
virtual StatusCode	start ()
	the default (empty) implementation of IStateful::start() method More...
virtual StatusCode	stop ()
	the default (empty) implementation of IStateful::stop() method More...
virtual StatusCode	reinitialize ()
	the default (empty) implementation of IStateful::reinitialize() method More...
virtual StatusCode	restart ()
	the default (empty) implementation of IStateful::restart() method More...
virtual bool	isExecuted () const
	Has this algorithm been executed since the last reset? More...
virtual void	setExecuted (bool state)
	Set the executed flag to the specified state. More...
virtual void	resetExecuted ()
	Reset the executed state of the Algorithm for the duration of the current event. More...
virtual StatusCode	beginRun ()
	Algorithm begin run. More...
virtual StatusCode	endRun ()
	Algorithm end run. This method is called at the end of the event loop. More...
virtual Gaudi::StateMachine::State	FSMState () const
	returns the current state of the algorithm More...
virtual Gaudi::StateMachine::State	targetFSMState () const
	returns the state the algorithm will be in after the ongoing transition More...
virtual bool	isEnabled () const
	Is this algorithm enabled or disabled? More...
virtual bool	filterPassed () const
	Did this algorithm pass or fail its filter criterion for the last event? More...
virtual void	setFilterPassed (bool state)
	Set the filter passed flag to the specified state. More...
template<class T >
StatusCode	service (const std::string &name, T *&psvc, bool createIf=true) const
	Access a service by name, creating it if it doesn't already exist. More...
template<class T >
StatusCode	service (const std::string &svcType, const std::string &svcName, T *&psvc) const
	Access a service by name and type, creating it if it doesn't already exist. More...
SmartIF< IService >	service (const std::string &name, const bool createIf=true, const bool quiet=false) const
	Return a pointer to the service identified by name (or "type/name") More...
void	setOutputLevel (int level)
	Set the output level for current algorithm. More...
SmartIF< IAuditorSvc > &	auditorSvc () const
	The standard auditor service.May not be invoked before sysInitialize() has been invoked. More...
SmartIF< IChronoStatSvc > &	chronoSvc () const
	The standard Chrono & Stat service, Return a pointer to the service if present. More...
SmartIF< IChronoStatSvc > &	chronoStatService () const
	Obsoleted name, kept due to the backwards compatibility. More...
SmartIF< IDataProviderSvc > &	detSvc () const
	The standard detector data service. More...
SmartIF< IDataProviderSvc > &	detDataService () const
	Obsoleted name, kept due to the backwards compatibility. More...
SmartIF< IConversionSvc > &	detCnvSvc () const
	The standard detector data persistency conversion service. More...
SmartIF< IConversionSvc > &	detDataCnvService () const
	Obsoleted name, kept due to the backwards compatibility. More...
SmartIF< IDataProviderSvc > &	eventSvc () const
	The standard event data service. More...
SmartIF< IDataProviderSvc > &	evtSvc () const
	shortcut for method eventSvc More...
SmartIF< IDataProviderSvc > &	eventDataService () const
	Obsoleted name, kept due to the backwards compatibility. More...
SmartIF< IConversionSvc > &	eventCnvSvc () const
	The standard event data persistency conversion service. More...
SmartIF< IConversionSvc > &	eventDataCnvService () const
	Obsoleted name, kept due to the backwards compatibility. More...
SmartIF< IHistogramSvc > &	histoSvc () const
	The standard histogram service. More...
SmartIF< IHistogramSvc > &	histogramDataService () const
	Obsoleted name, kept due to the backwards compatibility. More...
SmartIF< IMessageSvc > &	msgSvc () const
	The standard message service. More...
SmartIF< IMessageSvc > &	messageService () const
	Obsoleted name, kept due to the backwards compatibility. More...
SmartIF< INTupleSvc > &	ntupleSvc () const
	The standard N tuple service. More...
SmartIF< INTupleSvc > &	ntupleService () const
	Obsoleted name, kept due to the backwards compatibility. More...
SmartIF< IRndmGenSvc > &	randSvc () const
	AIDA-based NTuple service Returns a pointer to the AIDATuple service if present. More...
SmartIF< IToolSvc > &	toolSvc () const
	The standard ToolSvc service, Return a pointer to the service if present. More...
SmartIF< IExceptionSvc > &	exceptionSvc () const
	Get the exception Service. More...
SmartIF< IAlgContextSvc > &	contextSvc () const
	get Algorithm Context Service More...
SmartIF< ISvcLocator > &	serviceLocator () const
	The standard service locator. More...
SmartIF< ISvcLocator > &	svcLoc () const
	shortcut for method serviceLocator More...
bool	registerContext () const
	register for Algorithm Context Service? More...
StatusCode	createSubAlgorithm (const std::string &type, const std::string &name, Algorithm *&pSubAlg)
	Create a sub algorithm. More...
std::vector< Algorithm * > *	subAlgorithms () const
	List of sub-algorithms. Returns a pointer to a vector of (sub) Algorithms. More...
virtual StatusCode	setProperty (const Property &p)
	Implementation of IProperty::setProperty. More...
virtual StatusCode	setProperty (const std::string &s)
	Implementation of IProperty::setProperty. More...
virtual StatusCode	setProperty (const std::string &n, const std::string &v)
	Implementation of IProperty::setProperty. More...
virtual StatusCode	getProperty (Property *p) const
	Implementation of IProperty::getProperty. More...
virtual const Property &	getProperty (const std::string &name) const
	Implementation of IProperty::getProperty. More...
virtual StatusCode	getProperty (const std::string &n, std::string &v) const
	Implementation of IProperty::getProperty. More...
virtual const std::vector < Property * > &	getProperties () const
	Implementation of IProperty::getProperties. More...
StatusCode	setProperties ()
	Set the algorithm's properties. More...
template<class T >
Property *	declareProperty (const std::string &name, T &property, const std::string &doc="none") const
	Declare the named property. More...
Property *	declareRemoteProperty (const std::string &name, IProperty *rsvc, const std::string &rname="") const
	Declare remote named properties. More...
SmartIF< IMonitorSvc > &	monitorSvc () const
	Access the monitor service. More...
template<class T >
void	declareInfo (const std::string &name, const T &var, const std::string &desc) const
	Declare monitoring information. More...
void	declareInfo (const std::string &name, const std::string &format, const void *var, int size, const std::string &desc) const
	Declare monitoring information (special case) More...
template<class TYPE >
StatusCode	setProperty (const std::string &name, const TYPE &value)
	set the property form the value More...
Public Member Functions inherited from extend_interfaces3< IAlgorithm, IProperty, IStateful >
virtual	~extend_interfaces3 ()
	Virtual destructor. More...
Public Member Functions inherited from IAlgorithm
	DeclareInterfaceID (IAlgorithm, 4, 0)
	InterfaceID. More...
Public Member Functions inherited from INamedInterface
	DeclareInterfaceID (INamedInterface, 1, 0)
	InterfaceID. More...
virtual	~INamedInterface ()
	Virtual destructor (always needed for abstract classes). More...
Public Member Functions inherited from IInterface
virtual void *	i_cast (const InterfaceID &) const =0
	main cast function More...
virtual std::vector< std::string >	getInterfaceNames () const =0
	Returns a vector of strings containing the names of all the implemented interfaces. More...
virtual unsigned long	addRef ()=0
	Increment the reference count of Interface instance. More...
virtual unsigned long	refCount () const =0
	Current reference count. More...
virtual StatusCode	queryInterface (const InterfaceID &ti, void **pp)=0
	Set the void** to the pointer to the requested interface of the instance. More...
virtual	~IInterface ()
	Virtual destructor. More...
Public Member Functions inherited from IProperty
	DeclareInterfaceID (IProperty, 2, 0)
	InterfaceID. More...
Public Member Functions inherited from IStateful
	DeclareInterfaceID (IStateful, 1, 0)
	InterfaceID. More...
virtual	~IStateful ()
Static Public Member Functions inherited from IInterface
static const InterfaceID &	interfaceID ()
	Return an instance of InterfaceID identifying the interface. More...
Protected Types inherited from GaudiCommon< Algorithm >
typedef std::map< std::string, StatEntity >	Statistics
	the actual type of general counters More...
typedef std::map< std::string, unsigned int >	Counter
	the actual type error/warning counter More...
typedef std::vector< IAlgTool * >	AlgTools
	storage for active tools More...
typedef GaudiUtils::HashMap < std::string, SmartIF < IService > >	Services
	storage for active services More...
Protected Attributes inherited from GaudiCommon< Algorithm >
ICounterSummarySvc *	m_counterSummarySvc
	a pointer to the CounterSummarySvc More...
std::vector< std::string >	m_counterList
	list of counters to declare. Set by property CounterList. This can be a regular expression. More...
std::vector< std::string >	m_statEntityList
Static Protected Attributes inherited from GaudiCommon< Algorithm >
static const bool	IgnoreRootInTES
	Simple definition to be used with the new useRootInTES argument get<TYPE> and put methods. More...
static const bool	UseRootInTES
	Simple definition to be used with the new useRootInTES argument get<TYPE> and put methods. More...

Detailed Description

Simple class to extend the functionality of class GaudiAlgorithm.

Class is instrumented with a selection of plotting functions for easy creation of histograms.

Attention

See the class GaudiHistos, which implements the common functionality between GaudiHistoTool and GaudiHistoAlg

Author

Vanya BELYAEV Ivan..nosp@m.Bely.nosp@m.aev@i.nosp@m.tep..nosp@m.ru

Chris Jones Chris.nosp@m.toph.nosp@m.er.Ro.nosp@m.b.Jo.nosp@m.nes@c.nosp@m.ern..nosp@m.ch

Date

2003-12-11

Definition at line 38 of file GaudiHistoAlg.h.

Constructor & Destructor Documentation

GaudiHistoAlg::GaudiHistoAlg ( const std::string &  name, ISvcLocator *  pSvc  )

protected

Standard constructor (protected)

See also

GaudiAlgorithm

Algorithm

Parameters

name	name of the algorithm
pSvcLocator	poinetr to Service Locator

Definition at line 41 of file GaudiHistoAlg.cpp.

  : GaudiHistos<GaudiAlgorithm> ( name , pSvc ) { }

GaudiHistoAlg::~GaudiHistoAlg ( )

protectedvirtual

virtual destructor

Definition at line 49 of file GaudiHistoAlg.cpp.

{ }

GaudiHistoAlg::GaudiHistoAlg ( )

private

GaudiHistoAlg::GaudiHistoAlg ( const GaudiHistoAlg &  )

private

Member Function Documentation

StatusCode GaudiHistoAlg::finalize ( )

protectedvirtual

standard finalization method

See also

Algorithm

IAlgorithm

Returns

status code

Reimplemented from GaudiHistos< GaudiAlgorithm >.

Reimplemented in GaudiTuples< GaudiHistoAlg >, and GaudiTupleAlg.

Definition at line 65 of file GaudiHistoAlg.cpp.

{
  // finalize the base class and return
  return GaudiHistos<GaudiAlgorithm>::finalize();
}

StatusCode GaudiHistoAlg::initialize ( )

protectedvirtual

standard initialization method

See also

Algorithm

IAlgorithm

Returns

status code

Reimplemented from GaudiHistos< GaudiAlgorithm >.

Reimplemented in GaudiTuples< GaudiHistoAlg >, and GaudiTupleAlg.

Definition at line 55 of file GaudiHistoAlg.cpp.

{
  // initialize the base class and return
  return GaudiHistos<GaudiAlgorithm>::initialize();
}

GaudiHistoAlg& GaudiHistoAlg::operator= ( const GaudiHistoAlg &  )

private

---

The documentation for this class was generated from the following files:

• GaudiAlg/GaudiAlg/GaudiHistoAlg.h
• GaudiAlg/src/lib/GaudiHistoAlg.cpp
