AIDA implementation for 1 D profiles using ROOT TProfile. More...

#include <src/HistogramSvc/P1D.h>

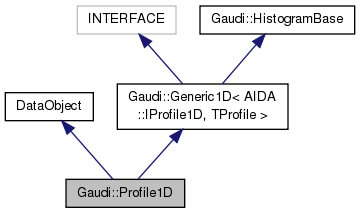

Inheritance diagram for Gaudi::Profile1D:

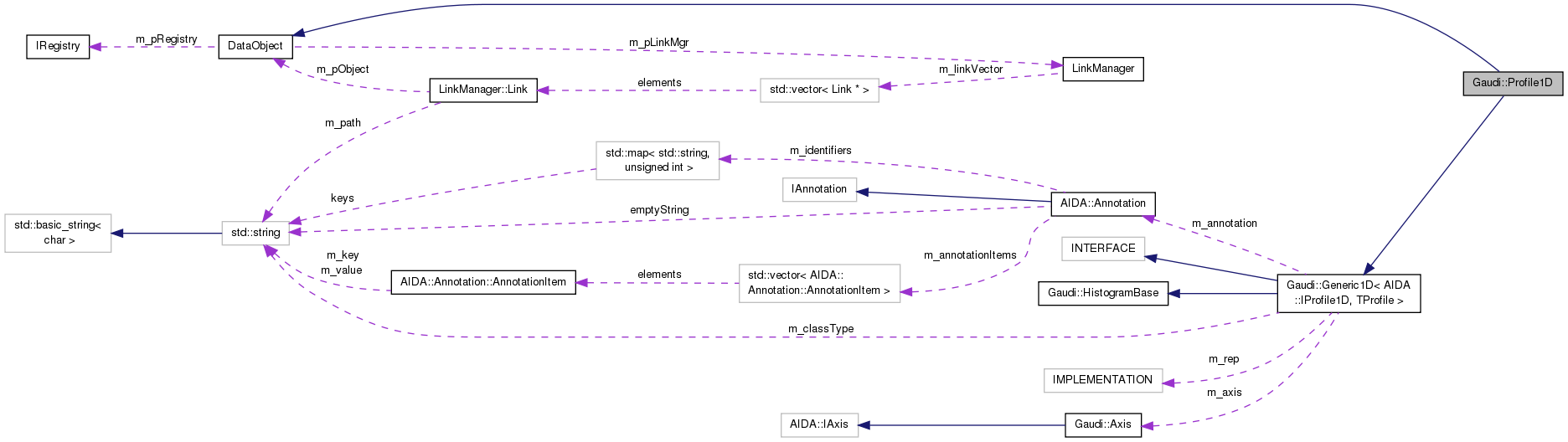

Collaboration diagram for Gaudi::Profile1D:

Public Member Functions
	Profile1D ()
	Default Constructor. More...

	Profile1D (TProfile *rep)
	Standard constructor with initialization. The histogram representation will be adopted. More...

virtual	~Profile1D ()
	Destructor. More...

virtual bool	fill (double x, double y, double weight=1.)
	Fill the Profile1D with a value and the corresponding weight. More...

virtual bool	setBinContents (int i, int entries, double height, double error, double spread, double centre)

virtual const CLID &	clID () const
	Retrieve reference to class defininition identifier. More...

Public Member Functions inherited from DataObject
	DataObject ()
	Standard Constructor. More...

	DataObject (const DataObject &)
	Copy Constructor. More...

virtual	~DataObject ()
	Standard Destructor. More...

virtual unsigned long	addRef ()
	Add reference to object. More...

virtual unsigned long	release ()
	release reference to object More...

const std::string &	name () const
	Retreive DataObject name. It is the name when registered in the store. More...

virtual StatusCode	update ()
	Provide empty placeholder for internal object reconfiguration callback. More...

void	setRegistry (IRegistry *pRegistry)
	Set pointer to Registry. More...

IRegistry *	registry () const
	Get pointer to Registry. More...

LinkManager *	linkMgr () const
	Retrieve Link manager. More...

unsigned char	version () const
	Retrieve version number of this object representation. More...

void	setVersion (unsigned char vsn)
	Set version number of this object representation. More...

unsigned long	refCount () const
	Return the refcount. More...

virtual std::ostream &	fillStream (std::ostream &s) const
	Fill the output stream (ASCII) More...

Public Member Functions inherited from Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >
	Generic1D ()
	Default constructor. More...

virtual	~Generic1D ()
	Default destructor. More...

virtual const std::string &	userLevelClassType () const
	The AIDA user-level unterface leaf class type. More...

virtual void *	cast (const std::string &cl) const
	Manual cast by class name. More...

TObject *	representation () const
	ROOT object implementation. More...

virtual void	adoptRepresentation (TObject *rep)
	Adopt ROOT histogram representation. More...

virtual std::string	title () const
	Get the title of the object. More...

virtual bool	setTitle (const std::string &title)
	Set the title of the object. More...

std::string	name () const
	object name More...

bool	setName (const std::string &newName)
	Set the name of the object. More...

virtual AIDA::IAnnotation &	annotation ()
	Access annotation object. More...

virtual const AIDA::IAnnotation &	annotation () const
	Access annotation object (cons) More...

Axis &	axis ()
	Access to axis object. More...

const Axis &	axis () const
	Get the x axis of the IHistogram1D. More...

virtual int	entries () const
	Get the number or all the entries. More...

virtual int	allEntries () const
	Get the number or all the entries, both in range and underflow/overflow bins of the IProfile. More...

virtual int	extraEntries () const
	Get the number of entries in the underflow and overflow bins. More...

virtual int	binEntries (int index) const
	Number of entries in the corresponding bin (ie the number of times fill was called for this bin). More...

virtual double	binRms (int index) const

virtual double	sumBinHeights () const
	Get the sum of in range bin heights in the IProfile. More...

virtual double	sumAllBinHeights () const
	Get the sum of all the bins heights (including underflow and overflow bin). More...

virtual double	sumExtraBinHeights () const
	Get the sum of the underflow and overflow bin height. More...

virtual double	minBinHeight () const
	Get the minimum height of the in-range bins. More...

virtual double	maxBinHeight () const
	Get the maximum height of the in-range bins. More...

virtual double	equivalentBinEntries () const
	Number of equivalent entries, i.e. `SUM[ weight ] ^ 2 / SUM[ weight^2 ]` More...

virtual bool	scale (double scaleFactor)
	Scale the weights and the errors of all the IHistogram's bins (in-range and out-of-range ones) by a given scale factor. More...

virtual bool	reset ()
	Reset the Histogram; as if just created. More...

virtual bool	add (const INTERFACE &profile)
	Modifies this IProfile1D by adding the contents of profile to it. More...

virtual int	rIndex (int index) const
	operator methods More...

virtual double	binMean (int index) const
	The weighted mean of a bin. More...

virtual double	binHeight (int index) const
	Total height of the corresponding bin (ie the sum of the weights in this bin). More...

virtual double	binError (int index) const
	The error of a given bin. More...

virtual double	mean () const
	The mean of the whole IHistogram1D. More...

virtual double	rms () const
	The RMS of the whole IHistogram1D. More...

virtual int	coordToIndex (double coord) const
	Get the bin number corresponding to a given coordinate along the x axis. More...

virtual int	dimension () const
	Get the Histogram's dimension. More...

virtual std::ostream &	print (std::ostream &s) const
	Print (ASCII) the histogram into the output stream. More...

virtual std::ostream &	write (std::ostream &s) const
	Write (ASCII) the histogram table into the output stream. More...

virtual int	write (const char *file_name) const
	Write (ASCII) the histogram table into a file. More...

template<>
void *	cast (const std::string &className) const

template<>
int	binEntries (int index) const

template<>
void	adoptRepresentation (TObject *rep)
	Adopt ROOT histogram representation. More...

template<>
int	binEntries (int index) const

template<>
void *	cast (const std::string &className) const

template<>
void	adoptRepresentation (TObject *rep)
	Adopt ROOT histogram representation. More...

Public Member Functions inherited from Gaudi::HistogramBase
virtual	~HistogramBase ()

Static Public Member Functions
static const CLID &	classID ()

Static Public Member Functions inherited from DataObject
static const CLID &	classID ()
	Retrieve reference to class definition structure (static access) More...

Private Types
typedef AIDA::IAnnotation	IAnnotation

Private Member Functions
void	init (const std::string &title, bool initialize_axis=true)

Additional Inherited Members
Public Types inherited from Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >
typedef Generic1D< INTERFACE, IMPLEMENTATION >	Base

Protected Attributes inherited from Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >
Axis	m_axis
	Axis member. More...

AIDA::Annotation	m_annotation
	Object annotations. More...

IMPLEMENTATION *	m_rep
	Reference to underlying implementation. More...

std::string	m_classType

int	m_sumEntries

Detailed Description

AIDA implementation for 1 D profiles using ROOT TProfile.

Author: M.Frank

Definition at line 20 of file P1D.h.

Member Typedef Documentation

typedef AIDA::IAnnotation Gaudi::Profile1D::IAnnotation

private

Definition at line 21 of file P1D.h.

Constructor & Destructor Documentation

Gaudi::Profile1D::Profile1D ( )

Default Constructor.

Definition at line 74 of file P1D.cpp.

                           {
   m_rep = new TProfile();
   init("",false);
 }

Gaudi::Profile1D::Profile1D ( TProfile * rep )

Standard constructor with initialization. The histogram representation will be adopted.

Definition at line 79 of file P1D.cpp.

                                         {
   m_rep = rep;
   init(m_rep->GetTitle());
 }

virtual Gaudi::Profile1D::~Profile1D ( )

inlinevirtual

Destructor.

Definition at line 30 of file P1D.h.

30 { }

Member Function Documentation

static const CLID& Gaudi::Profile1D::classID ( )

inlinestatic

Definition at line 36 of file P1D.h.

36 { return CLID_ProfileH; }

virtual const CLID& Gaudi::Profile1D::clID ( ) const

inlinevirtual

Retrieve reference to class defininition identifier.

Reimplemented from DataObject.

Definition at line 35 of file P1D.h.

35 { return classID(); }

Gaudi::Profile1D::classID

static const CLID & classID()

Definition: P1D.h:36

bool Gaudi::Profile1D::fill	(	double	x,
		double	y,
		double	weight = `1.`
	)

virtual

Fill the Profile1D with a value and the corresponding weight.

Definition at line 114 of file P1D.cpp.

                                                                {
   (weight == 1.) ? m_rep->Fill(x,y) : m_rep->Fill(x,y,weight);
   return true;
 }

void Gaudi::Profile1D::init	(	const std::string &	title,
		bool	initialize_axis = `true`
	)

private

Definition at line 84 of file P1D.cpp.

                                                                       {
   m_classType = "IProfile1D";
   setTitle(title);
   setName(title);
   if ( initialize_axis )  {
     axis().initialize(m_rep->GetXaxis(),false);
   }
   //m_rep->SetErrorOption("s");
   m_rep->SetDirectory(0);
   m_sumEntries = 0;
 }

bool Gaudi::Profile1D::setBinContents	(	int	i,
		int	entries,
		double	height,
		double	error,
		double	spread,
		double	centre
	)

virtual

Definition at line 96 of file P1D.cpp.

                                                                                                        {
   m_rep->SetBinEntries(rIndex(i), entries );
   // set content takes in root height * entries
   m_rep->SetBinContent(rIndex(i), height*entries );
   // set error takes sqrt of bin sum(w*y**2)
   double sumwy2Bin = ( spread*spread + height*height )*entries;
   m_rep->SetBinError(rIndex(i), sqrt(sumwy2Bin) );
   m_sumEntries += entries;
   // not very efficient (but do evey bin since root cannot figure out by himself)
   m_rep->SetEntries(m_sumEntries);
   return true;
 }

The documentation for this class was generated from the following files:

GaudiCommonSvc/src/HistogramSvc/P1D.h
GaudiCommonSvc/src/HistogramSvc/P1D.cpp
