PerfMonAuditor Class Reference

Performance Monitoring Auditor that uses Perfmon2 library to monitor algorithms. More...

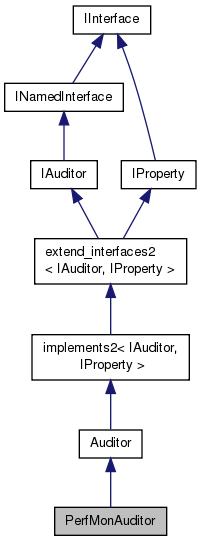

Inheritance diagram for PerfMonAuditor:

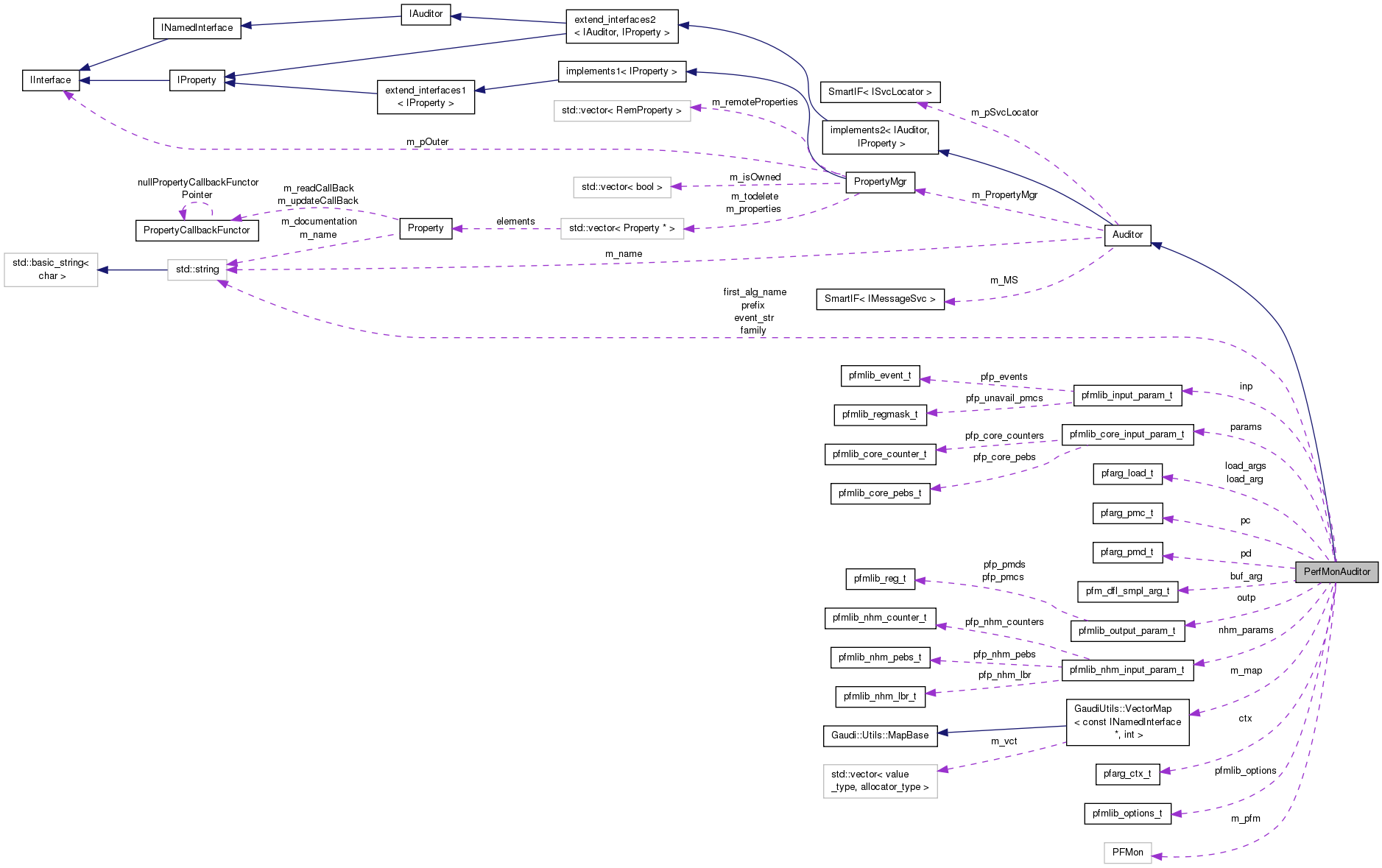

Collaboration diagram for PerfMonAuditor:

Public Member Functions
virtual void	before (StandardEventType evt, INamedInterface *alg)
	The following methods are meant to be implemented by the child class... More...
virtual void	after (StandardEventType evt, INamedInterface *alg, const StatusCode &sc)
	Audit the end of a standard "event". More...
virtual StatusCode	initialize ()
virtual StatusCode	finalize ()
int	is_nehalem ()
	PerfMonAuditor (const std::string &name, ISvcLocator *pSvc)
virtual	~PerfMonAuditor ()
Public Member Functions inherited from Auditor
	Auditor (const std::string &name, ISvcLocator *svcloc)
	Constructor. More...
virtual	~Auditor ()
	Destructor. More...
StatusCode	sysInitialize ()
	Initialization method invoked by the framework. More...
StatusCode	sysFinalize ()
	Finalization method invoked by the framework. More...
virtual void	before (StandardEventType, const std::string &)
	Audit the start of a standard "event" for callers that do not implement INamedInterface. More...
virtual void	before (CustomEventTypeRef, INamedInterface *)
	Audit the start of a custom "event". More...
virtual void	before (CustomEventTypeRef, const std::string &)
	Audit the start of a custom "event" for callers that do not implement INamedInterface. More...
virtual void	after (StandardEventType, const std::string &, const StatusCode &)
	Audit the end of a standard "event" for callers that do not implement INamedInterface. More...
virtual void	after (CustomEventTypeRef, INamedInterface *, const StatusCode &)
	Audit the end of a custom "event". More...
virtual void	after (CustomEventTypeRef, const std::string &, const StatusCode &)
	Audit the end of a custom "event" for callers that do not implement INamedInterface. More...
virtual void	beforeInitialize (INamedInterface *)
virtual void	afterInitialize (INamedInterface *)
virtual void	beforeReinitialize (INamedInterface *)
virtual void	afterReinitialize (INamedInterface *)
virtual void	beforeExecute (INamedInterface *)
virtual void	afterExecute (INamedInterface *, const StatusCode &)
virtual void	beforeFinalize (INamedInterface *)
virtual void	afterFinalize (INamedInterface *)
virtual void	beforeBeginRun (INamedInterface *)
virtual void	afterBeginRun (INamedInterface *)
virtual void	beforeEndRun (INamedInterface *)
virtual void	afterEndRun (INamedInterface *)
virtual const std::string &	name () const
	Retrieve the name of the instance. More...
virtual bool	isEnabled () const
	Tell if the auditor is enabled or not. More...
SmartIF< IMessageSvc > &	msgSvc () const
	The standard message service. More...
int	outputLevel () const
	Retrieve the output level of current auditor. More...
void	setOutputLevel (int level)
	Set the output level for current auditor. More...
SmartIF< ISvcLocator > &	serviceLocator () const
	The standard service locator. More...
template<class T >
StatusCode	service (const std::string &name, T *&svc, bool createIf=false) const
	Access a service by name, creating it if it doesn't already exist. More...
virtual StatusCode	setProperty (const Property &p)
	Set a value of a property of an auditor. More...
virtual StatusCode	setProperty (const std::string &s)
	Implementation of IProperty::setProperty. More...
virtual StatusCode	setProperty (const std::string &n, const std::string &v)
	Implementation of IProperty::setProperty. More...
virtual StatusCode	getProperty (Property *p) const
	Get the value of a property. More...
virtual const Property &	getProperty (const std::string &name) const
	Get the property by name. More...
virtual StatusCode	getProperty (const std::string &n, std::string &v) const
	Implementation of IProperty::getProperty. More...
const std::vector< Property * > &	getProperties () const
	Get all properties. More...
template<class TYPE >
StatusCode	setProperty (const std::string &name, const TYPE &value)
	set the property form the value More...
StatusCode	setProperties ()
	Set the auditor's properties. More...
template<class T >
Property *	declareProperty (const std::string &name, T &property, const std::string &doc="none") const
	Declare the named property. More...
Public Member Functions inherited from extend_interfaces2< IAuditor, IProperty >
virtual	~extend_interfaces2 ()
	Virtual destructor. More...
Public Member Functions inherited from IAuditor
	DeclareInterfaceID (IAuditor, 3, 0)
	InterfaceID. More...
Public Member Functions inherited from INamedInterface
	DeclareInterfaceID (INamedInterface, 1, 0)
	InterfaceID. More...
virtual	~INamedInterface ()
	Virtual destructor (always needed for abstract classes). More...
Public Member Functions inherited from IInterface
virtual void *	i_cast (const InterfaceID &) const =0
	main cast function More...
virtual std::vector< std::string >	getInterfaceNames () const =0
	Returns a vector of strings containing the names of all the implemented interfaces. More...
virtual unsigned long	addRef ()=0
	Increment the reference count of Interface instance. More...
virtual unsigned long	release ()=0
	Release Interface instance. More...
virtual unsigned long	refCount () const =0
	Current reference count. More...
virtual StatusCode	queryInterface (const InterfaceID &ti, void **pp)=0
	Set the void** to the pointer to the requested interface of the instance. More...
virtual	~IInterface ()
	Virtual destructor. More...
Public Member Functions inherited from IProperty
	DeclareInterfaceID (IProperty, 2, 0)
	InterfaceID. More...

Private Types
typedef GaudiUtils::VectorMap < const INamedInterface *, int >	Map

Private Member Functions
void	i_beforeInitialize (INamedInterface *alg)
void	i_afterInitialize (INamedInterface *alg)
void	i_beforeExecute (INamedInterface *alg)
void	i_afterExecute (INamedInterface *alg)
	PerfMonAuditor ()
	PerfMonAuditor (const PerfMonAuditor &)
PerfMonAuditor &	operator= (const PerfMonAuditor &)
void	startpm ()
void	pausepm ()
void	stoppm ()
void	finalizepm ()
int	detect_unavail_pmu_regs (int fd, pfmlib_regmask_t *r_pmcs, pfmlib_regmask_t *r_pmds)
int	detect_unavail_pmcs (int fd, pfmlib_regmask_t *r_pmcs)
void	pfm_bv_set (uint64_t *bv, uint16_t rnum)
int	pfm_bv_isset (uint64_t *bv, uint16_t rnum)
void	pfm_bv_copy (uint64_t *d, uint64_t *j, uint16_t n)
void	start_smpl ()
void	stop_smpl ()
void	finalize_smpl ()

Static Private Member Functions
static void	process_smpl_buf (pfm_dfl_smpl_hdr_t *hdr, size_t entry_size)
static void	sigio_handler (int, struct siginfo *, struct sigcontext *)

Private Attributes
PFMon &	m_pfm
Map	m_map
int	m_indent
bool	m_inEvent
int	is_nehalem_ret
pfmlib_input_param_t	inp
pfmlib_output_param_t	outp
pfarg_ctx_t	ctx
pfarg_pmd_t	pd [NUM_PMDS]
pfarg_pmc_t	pc [NUM_PMCS]
pfarg_load_t	load_arg
int	fd
unsigned int	i
int	ret
std::string	event_str [MAX_NUMBER_OF_PROGRAMMABLE_COUNTERS]
std::string	prefix
std::string	family
char	event_cstr [MAX_NUMBER_OF_PROGRAMMABLE_COUNTERS][MAX_EVENT_NAME_LENGTH]
char	prefix_cstr [MAX_PREFIX_NAME_LENGTH]
unsigned int	ph_ev_count
bool	inv [MAX_NUMBER_OF_PROGRAMMABLE_COUNTERS]
unsigned int	cmask [MAX_NUMBER_OF_PROGRAMMABLE_COUNTERS]
unsigned int	start_at_event
pfmlib_core_input_param_t	params
pfmlib_nhm_input_param_t	nhm_params
int	used_counters_number
bool	nehalem
bool	westmere
bool	core
bool	sampling
pfm_dfl_smpl_arg_t	buf_arg
pfarg_load_t	load_args
void *	buf_addr
unsigned	num_counters
unsigned int	max_pmd
pfmlib_options_t	pfmlib_options
int	level
bool	first_alg
std::string	first_alg_name
bool	event_count_reached

Additional Inherited Members
Public Types inherited from Auditor
typedef Gaudi::PluginService::Factory < IAuditor *, const std::string &, ISvcLocator * >	Factory
Public Types inherited from implements2< IAuditor, IProperty >
typedef implements2	base_class
	Typedef to this class. More...
typedef extend_interfaces2 < IAuditor, IProperty >	extend_interfaces_base
	Typedef to the base of this class. More...
typedef extend_interfaces_base::ext_iids	interfaces
	MPL set of all the implemented interfaces. More...
Public Types inherited from extend_interfaces2< IAuditor, IProperty >
typedef mpl::fold< typename IAuditor::iid::iids::type, typename IProperty::iid::iids::type, mpl::insert< mpl::_1, mpl::_2 > >::type	ext_iids
	MPL set of interfaces extended by this one. More...
Public Types inherited from IAuditor
enum	StandardEventType {   Initialize, ReInitialize, Execute, BeginRun,   EndRun, Finalize, Start, Stop,   ReStart }
	Defines the standard (= used by the framework) auditable event types. More...
typedef std::string	CustomEventType
	Type used to allow users to specify a custom event to be audit. More...
typedef const CustomEventType &	CustomEventTypeRef
	Used in function calls for optimization purposes. More...
Public Types inherited from IInterface
enum	Status { SUCCESS = 1, NO_INTERFACE, VERSMISMATCH, LAST_ERROR }
	Return status. More...
typedef Gaudi::InterfaceId < IInterface, 0, 0 >	iid
	Interface ID. More...
typedef mpl::set1< iid >	ext_iids
	Extra interfaces. More...
Static Public Member Functions inherited from IInterface
static const InterfaceID &	interfaceID ()
	Return an instance of InterfaceID identifying the interface. More...

Detailed Description

Performance Monitoring Auditor that uses Perfmon2 library to monitor algorithms.

Author

Daniele Francesco KRUSE danie.nosp@m.le.f.nosp@m.rance.nosp@m.sco..nosp@m.kruse.nosp@m.@cer.nosp@m.n.ch

Date

2009-10-28

Definition at line 200 of file PerfMonAuditor.cpp.

Member Typedef Documentation

typedef GaudiUtils::VectorMap<const INamedInterface*,int> PerfMonAuditor::Map

private

Definition at line 354 of file PerfMonAuditor.cpp.

Constructor & Destructor Documentation

PerfMonAuditor::PerfMonAuditor ( const std::string &  name, ISvcLocator *  pSvc  )

inline

Definition at line 272 of file PerfMonAuditor.cpp.

                                                          :     // standard constructor
   Auditor(name, pSvc),
   m_pfm(PFMon::instance()),
   m_map(),
   m_indent(0),
   m_inEvent(false)
  {
is_nehalem_ret = is_nehalem();
declareProperty("EVENT0", event_str[0]);
declareProperty("EVENT1", event_str[1]);
declareProperty("EVENT2", event_str[2]);
declareProperty("EVENT3", event_str[3]);
declareProperty("FAMILY", family);
declareProperty("PREFIX", prefix);
declareProperty("INV0", inv[0]);
declareProperty("INV1", inv[1]);
declareProperty("INV2", inv[2]);
declareProperty("INV3", inv[3]);
declareProperty("CMASK0", cmask[0]);
declareProperty("CMASK1", cmask[1]);
declareProperty("CMASK2", cmask[2]);
declareProperty("CMASK3", cmask[3]);
declareProperty("SP0", sp[0]);
declareProperty("SP1", sp[1]);
declareProperty("SP2", sp[2]);
declareProperty("SP3", sp[3]);
declareProperty("SAMPLE", sampling);
declareProperty("START_AT_EVENT", start_at_event);
declareProperty("IS_NEHALEM", is_nehalem_ret);

// MsgStream log(msgSvc(), name());

/*
// loading functions from PFM library
  void* handle = dlopen("libpfm.so", RTLD_NOW);
    if (!handle) {
//      log << MSG::ERROR << "Cannot open library: " << dlerror() << endmsg;
    }
  typedef void (*hello_t)();
    hello_t hello = (hello_t) dlsym(handle, "hello");
    if (!hello) {
//        log << MSG::ERROR << "Cannot load symbol 'hello': " << dlerror() << endmsg;
        dlclose(handle);
    }

    pfm_start = (pfm_start_t) dlsym(handle, "pfm_start");
    pfm_stop = (pfm_stop_t) dlsym(handle, "pfm_stop");
    pfm_self_stop = (pfm_self_stop_t) dlsym(handle, "pfm_stop"); //it's the same
    pfm_restart = (pfm_restart_t) dlsym(handle, "pfm_restart");
    //pfm_read_pmds = (pfm_read_pmds_t) dlsym(handle, "pfm_read_pmds");
    pfm_initialize = (pfm_initialize_t) dlsym(handle, "pfm_initialize");
    pfm_find_full_event = (pfm_find_full_event_t) dlsym(handle, "pfm_find_full_event");
    pfm_dispatch_events = (pfm_dispatch_events_t) dlsym(handle, "pfm_dispatch_events");
    pfm_create_context = (pfm_create_context_t) dlsym(handle, "pfm_create_context");
    pfm_write_pmcs = (pfm_write_pmcs_t) dlsym(handle, "pfm_write_pmcs");
    pfm_write_pmds = (pfm_write_pmds_t) dlsym(handle, "pfm_write_pmds");
    pfm_load_context = (pfm_load_context_t) dlsym(handle, "pfm_load_context");
    pfm_strerror = (pfm_strerror_t) dlsym(handle, "pfm_strerror");
    pfm_set_options = (pfm_set_options_t) dlsym(handle, "pfm_set_options");
    pfm_get_num_counters = (pfm_get_num_counters_t) dlsym(handle, "pfm_get_num_counters");
    // use it to do the calculation
//    log << MSG::INFO << "Calling hello..." << endmsg;
//    hello();

    // close the library
//    log << MSG::INFO << "Closing library..." << endmsg;
    dlclose(handle);
*/


  }

virtual PerfMonAuditor::~PerfMonAuditor ( )

inlinevirtual

Definition at line 346 of file PerfMonAuditor.cpp.

{}                                    // virtual destructor

PerfMonAuditor::PerfMonAuditor ( )

private

PerfMonAuditor::PerfMonAuditor ( const PerfMonAuditor &  )

private

Member Function Documentation

void PerfMonAuditor::after ( StandardEventType  , INamedInterface *  , const StatusCode &  sc  )

virtual

Audit the end of a standard "event".

Reimplemented from Auditor.

Definition at line 1069 of file PerfMonAuditor.cpp.

{
 switch(evt)
 {
  case IAuditor::Initialize:
   i_afterInitialize(alg);
   break;
  case IAuditor::Execute:
   i_afterExecute(alg);
   break;
  default:
   break;
 }
 return;
}

void PerfMonAuditor::before ( StandardEventType  evt, INamedInterface *  obj  )

virtual

The following methods are meant to be implemented by the child class...

Reimplemented from Auditor.

Definition at line 1053 of file PerfMonAuditor.cpp.

{
 switch(evt)
 {
  case IAuditor::Initialize:
   i_beforeInitialize(alg);
   break;
  case IAuditor::Execute:
   i_beforeExecute(alg);
   break;
  default:
   break;
 }
 return;
}

int PerfMonAuditor::detect_unavail_pmcs ( int  fd, pfmlib_regmask_t *  r_pmcs  )

inlineprivate

Definition at line 393 of file PerfMonAuditor.cpp.

{return detect_unavail_pmu_regs(fd, r_pmcs, NULL);}

int PerfMonAuditor::detect_unavail_pmu_regs ( int  fd, pfmlib_regmask_t *  r_pmcs, pfmlib_regmask_t *  r_pmds  )

private

StatusCode PerfMonAuditor::finalize ( )

virtual

Reimplemented from Auditor.

Definition at line 1045 of file PerfMonAuditor.cpp.

{
 if(sampling == 0) finalizepm();
 else finalize_smpl();
 return Auditor::finalize();
}

void PerfMonAuditor::finalize_smpl ( )

private

Definition at line 923 of file PerfMonAuditor.cpp.

{
   MsgStream log(msgSvc(), name());
   char filename[MAX_OUTPUT_FILENAME_LENGTH];
   bzero(filename, MAX_OUTPUT_FILENAME_LENGTH);
   char to_cat[50];
   gzFile outfile;
   int err;
   for(int i=0; i<used_counters_number; i++)
   {
    sprintf(filename, "%s_%s", prefix_cstr, event_cstr[i]);
    for(int j=0; j<(int)strlen(filename); j++)
    {
     if(filename[j]==':')
     {
      filename[j]='-';
     }
    }
    bzero(to_cat, 50);
    if(inv[i])
    {
     strcpy(to_cat, "_INV_1");
    }
    if(cmask[i]>0)
    {
     sprintf(to_cat, "%s_CMASK_%d", to_cat, cmask[i]);
    }
    sprintf(filename, "%s%s.txt.gz", filename, to_cat);
    outfile = gzopen(filename, "wb");
    if(outfile!=NULL)
    {
     if(nehalem)
     {
      gzprintf(outfile, "NHM ");
     }
     else if(westmere)
     {
      gzprintf(outfile, "WSM ");
     }
     else if(core)
     {
      gzprintf(outfile, "CORE ");
     }
     if(gzprintf(outfile, "%s %d %d %d\n", event_cstr[i], cmask[i], inv[i], sp[i]) < (int)strlen(event_cstr[i]))
     {
      log << MSG::ERROR << "ERROR: gzputs err: " << gzerror(outfile, &err) << ". Aborting..." << endmsg;
     }
     for(std::map<std::string, std::map<unsigned long, unsigned int> >::iterator it=samples[i].begin(); it!=samples[i].end(); it++)
     {
      unsigned long long sum = 0;
      for(std::map<unsigned long, unsigned int>::iterator jt=(it->second).begin(); jt!=(it->second).end(); jt++)
      {
       sum += jt->second;
      }
      if(gzprintf(outfile, "%s%%%llu\n", (it->first).c_str(), sum) < (int)((it->first).length()))
      {
       log << MSG::ERROR << "ERROR: gzputs err: " << gzerror(outfile, &err) << ". Aborting..." << endmsg;
      }
      for(std::map<unsigned long, unsigned int>::iterator jt=(it->second).begin(); jt!=(it->second).end(); jt++)
      {
       char sym_name[SYM_NAME_MAX_LENGTH];
       bzero(sym_name, SYM_NAME_MAX_LENGTH);
       const char *libName;
       const char *symbolName;
       int libOffset = 0;
       int offset = 0;
       void *sym_addr = IgHookTrace::tosymbol((void *)(jt->first));
       if(sym_addr != NULL)
       {
        bool success = IgHookTrace::symbol(sym_addr, symbolName, libName, offset, libOffset);
        if(success)
        {
         if(symbolName!=NULL && strlen(symbolName)>0)
         {
      strcpy(sym_name, symbolName);
      strcat(sym_name, " ");
         }
         else
         {
          strcpy(sym_name, "??? ");
         }
         if(libName!=NULL && strlen(libName)>0)
         {
          strcat(sym_name, libName);
      strcat(sym_name, " ");
         }
         else
         {
          strcat(sym_name, "??? ");
         }
         sprintf(sym_name, "%s%d ", sym_name, libOffset);
         if(strlen(sym_name)<=0)
         {
          log << MSG::ERROR << "ERROR: Symbol name length is zero. Aborting..." << endmsg;
         }
        }
        else
        {
         strcpy(sym_name,"??? ??? 0 ");
        }
       }
       else
       {
        strcpy(sym_name,"??? ??? 0 ");
       }
       if(gzprintf(outfile, "%s %d\n", sym_name, jt->second) < (int)strlen(sym_name))
       {
        log << MSG::ERROR << "ERROR: gzputs err: " << gzerror(outfile, &err) << endmsg;
       }
      }
     }
    }
    else
    {
     log << MSG::ERROR << "ERROR: Could not open file: " << filename << ". Aborting..." << endmsg;
    }
    gzclose(outfile);
   }
  }

void PerfMonAuditor::finalizepm ( )

private

Definition at line 546 of file PerfMonAuditor.cpp.

{
 MsgStream log(msgSvc(), name());
   log << MSG::INFO << "start of finalizepm ucn:" << used_counters_number << endmsg;
   char filename[MAX_OUTPUT_FILENAME_LENGTH];
   char to_cat[50];
   FILE *outfile;
   for(int i=0; i<used_counters_number; i++)
   {
    bzero(filename, MAX_OUTPUT_FILENAME_LENGTH);
    sprintf(filename, "%s_%s", prefix_cstr, event_cstr[i]);
    for(int j=0; j<(int)strlen(filename); j++)
    {
     if(filename[j]==':')
     {
      filename[j]='-';
     }
    }
    bzero(to_cat, 50);
    if(inv[i])
    {
     strcpy(to_cat, "_INV_1");
    }
    if(cmask[i]>0)
    {
     sprintf(to_cat, "%s_CMASK_%d", to_cat, cmask[i]);
    }
    sprintf(filename, "%s%s.txt", filename, to_cat);
    log << MSG::INFO << "Filename:" << filename << endmsg;
    outfile = fopen(filename, "w");
    if(nehalem)
    {
     fprintf(outfile, "NHM ");
    }
    else if(westmere)
    {
     fprintf(outfile, "WSM ");
    }
    else if(core)
    {
     fprintf(outfile, "CORE ");
    }
    fprintf(outfile, "%s %d %d %d\n", event_cstr[i], cmask[i], inv[i], sp[i]);
    for(std::map<std::string, std::vector<unsigned long int> >::iterator it=(results[i]).begin(); it!=(results[i]).end(); it++)
    {
     fprintf(outfile, "%s\n", (it->first).c_str());
     for(std::vector<unsigned long int>::iterator j=(it->second).begin(); j!=(it->second).end(); j++)
     {
      fprintf(outfile, "%lu\n", *j);
     }
    }
    fclose(outfile);
   }
}

void PerfMonAuditor::i_afterExecute ( INamedInterface *  alg )

private

Definition at line 1148 of file PerfMonAuditor.cpp.

{
 MsgStream log(msgSvc(), name());
 if(alg == 0)
 {
  return;
 }// log << MSG::INFO << "after:inside! " << alg->name() << endmsg;

 if(event_count_reached)
 {
   //log << MSG::INFO << "after:inside! " << alg->name() << endmsg;

  if(sampling == 0) stoppm();
  else stop_smpl();
  alg_stack.pop();
  --m_indent;
  if(!alg_stack.empty())
  {
   if(sampling == 0) startpm();
   else start_smpl(); //resuming father algorithm counting
   }
 }
 return;
}

void PerfMonAuditor::i_afterInitialize ( INamedInterface *  alg )

private

Definition at line 1094 of file PerfMonAuditor.cpp.

{
 if(alg == 0)
 {
  return;
 }
 return;
}

void PerfMonAuditor::i_beforeExecute ( INamedInterface *  alg )

private

Definition at line 1103 of file PerfMonAuditor.cpp.

{
 MsgStream log(msgSvc(), name());
 if(alg == 0)
 {
  return;
 }
 //log << MSG::INFO << "before:inside! " << alg->name() << endmsg;
 if(first_alg)
 {
  first_alg = false;
  first_alg_name = alg->name();
  //log << MSG::INFO << "first_alg_name= " << alg->name() << endmsg;
 }
 if(!event_count_reached)
 {
  if(!first_alg_name.compare(alg->name()))
  {
   ph_ev_count++;
   //log << MSG::INFO << "EVENT COUNT: " << ph_ev_count << endmsg;
   if(ph_ev_count==start_at_event)
   {
    event_count_reached = true;
    //log << MSG::INFO << "!!! EVENT COUNT REACHED: " << ph_ev_count << endmsg;
   }
  }
 }
 if(event_count_reached)
 {
   //log << MSG::INFO << "before:inside! " << alg->name() << endmsg;

  if(!alg_stack.empty())
  {
   if(sampling == 0) pausepm(); //pausing father algorithm counting
   else stop_smpl();
  }
  ++m_indent;
  std::vector <unsigned long int> zeroes(4,0);
  alg_stack.push(std::make_pair(alg, zeroes));
  if(sampling == 0) startpm();
  else start_smpl();
 }
 return;
}

void PerfMonAuditor::i_beforeInitialize ( INamedInterface *  alg )

private

Definition at line 1085 of file PerfMonAuditor.cpp.

{
 if(alg == 0)
 {
  return;
 }
 return;
}

StatusCode PerfMonAuditor::initialize ( )

virtual

Reimplemented from Auditor.

Definition at line 601 of file PerfMonAuditor.cpp.

{
 MsgStream log(msgSvc(), name());

 if (!m_pfm.loaded) {
  log << MSG::ERROR << "pfm library could not be loaded" << endmsg;
  return false;
 }

 log << MSG::INFO << "Initializing..." << endmsg;
 StatusCode sc = Auditor::initialize() ;
 if(sc.isFailure())
 {
  return sc;
 }
   used_counters_number = 0;
   for(int i=0; i<MAX_NUMBER_OF_PROGRAMMABLE_COUNTERS; i++)
   {
    if(event_str[i].length()>0) used_counters_number++;
   }
   for(int i=0; i<MAX_NUMBER_OF_PROGRAMMABLE_COUNTERS; i++)
   {
    strcpy(event_cstr[i], event_str[i].c_str());
   }
   strcpy(prefix_cstr, prefix.c_str());

 if(m_pfm.pfm_initialize() != PFMLIB_SUCCESS)
 {
 log << MSG::ERROR << "Cannot initialize perfmon!!" << endmsg;
 }
 ph_ev_count = 0;
 first_alg = true;
 event_count_reached = false;
 nehalem = false;
 core = false;
 westmere = false;
 if(family.compare("CORE")==0) core = true;
 else if(family.compare("NEHALEM")==0) nehalem = true;
 else if(family.compare("WESTMERE")==0) westmere = true;
 else
 {
  log << MSG::ERROR << "ERROR: Unsupported processor family " << family  << ". aborting..." << endmsg;
 }

 log << MSG::INFO << "Initialized!" << endmsg;
 return StatusCode::SUCCESS ;
}

int PerfMonAuditor::is_nehalem ( )

inline

Definition at line 217 of file PerfMonAuditor.cpp.

                   {
#ifdef __ICC
// Disable ICC remark #593: variable "x" was set but never used
#pragma warning(push)
#pragma warning(disable:593)
#endif
    int a,b,c,d;
    cpuid(1,a,b,c,d);
    int sse4_2_mask = 1 << 20;
    if(c & sse4_2_mask) return 1; else return 0;
#ifdef __ICC
#pragma warning(pop)
#endif
  }

PerfMonAuditor& PerfMonAuditor::operator= ( const PerfMonAuditor &  )

private

void PerfMonAuditor::pausepm ( )

private

Definition at line 525 of file PerfMonAuditor.cpp.

{
 MsgStream log(msgSvc(), name());
 m_pfm.pfm_stop(fd);
 if(m_pfm.pfm_read_pmds(fd, pd, inp.pfp_event_count) == -1)
 {
  log << MSG::ERROR << "Could not read pmds" << endmsg;
 }

   for(int i=0; i<used_counters_number; i++)
   {
 alg_stack.top().second[i] += pd[i].reg_value;
   }

 close(fd);
}

void PerfMonAuditor::pfm_bv_copy ( uint64_t *  d, uint64_t *  j, uint16_t  n  )

inlineprivate

Definition at line 396 of file PerfMonAuditor.cpp.

{if(n<=BPL) *d = *j; else {memcpy(d, j, (n>>LBPL)*sizeof(uint64_t));}}

int PerfMonAuditor::pfm_bv_isset ( uint64_t *  bv, uint16_t  rnum  )

inlineprivate

Definition at line 395 of file PerfMonAuditor.cpp.

{return bv[rnum>>LBPL] & (1UL <<(rnum&(BPL-1))) ? 1 : 0;}

void PerfMonAuditor::pfm_bv_set ( uint64_t *  bv, uint16_t  rnum  )

inlineprivate

Definition at line 394 of file PerfMonAuditor.cpp.

{bv[rnum>>LBPL] |= 1UL << (rnum&(BPL-1));}

void PerfMonAuditor::process_smpl_buf ( pfm_dfl_smpl_hdr_t *  hdr, size_t  entry_size  )

staticprivate

Definition at line 653 of file PerfMonAuditor.cpp.

{
   pfm_dfl_smpl_entry_t *ent;
   size_t pos, count;
   uint64_t entry;
   if(hdr->hdr_overflows == last_overflow && hdr->hdr_count == last_count)
   {
    printf("skipping identical set of samples...\n");
    return;
   }
   count = hdr->hdr_count;
   ent = (pfm_dfl_smpl_entry_t *)(hdr+1);
   pos = (unsigned long)ent;
   entry = collected_samples;
   while(count--)
   {
    //if(ent->ovfl_pmd>=0 && ent->ovfl_pmd<=3)
    if(ent->ovfl_pmd<=3)
    {
     ((samples[ent->ovfl_pmd])[(alg_stack.top().first)->name()])[(unsigned long)(ent->ip)]++;
    }
    pos += entry_size;
    ent = (pfm_dfl_smpl_entry_t *)pos;
    entry++;
   }
   collected_samples = entry;
   last_overflow = hdr->hdr_overflows;
   if (last_count != hdr->hdr_count && (last_count || last_overflow == 0))
   {
    collected_partial += hdr->hdr_count;
   }
   last_count = hdr->hdr_count;
 return;
}

void PerfMonAuditor::sigio_handler ( int  , struct siginfo *  , struct sigcontext *    )

staticprivate

Definition at line 694 of file PerfMonAuditor.cpp.

{
   //MsgStream log(msgSvc(), name());
   PFMon& pfm = PFMon::instance();
   pfarg_msg_t msg;
   int fd = ctx_fd;
   int r;
   if(fd != ctx_fd)
   {
    //log << MSG::ERROR << "ERROR: handler does not get valid file descriptor. Aborting..." << endmsg;
   }
   if(pfm.pfm_read_pmds(fd, pd_smpl+1, 1) == -1)
   {
    //log << MSG::ERROR << "ERROR: pfm_read_pmds: " << strerror(errno) << ". Aborting..." << endmsg;
   }
   while(true)
   {
    r = read(fd, &msg, sizeof(msg));
    if(r!=sizeof(msg))
    {
     if(r==-1 && errno==EINTR)
     {
      printf("read interrupted, retrying\n");
      continue;
     }
     //log << MSG::ERROR << "ERROR: cannot read overflow message: " << strerror(errno) << ". Aborting..." << endmsg;
    }
    break;
   }
   switch(msg.type)
   {
    case PFM_MSG_OVFL: // the sampling buffer is full
     process_smpl_buf(hdr, entry_size);
     ovfl_count++;
     if(pfm.pfm_restart(fd))
     {
      if(errno!=EBUSY)
      {
       //log << MSG::ERROR << "ERROR: pfm_restart error errno " << errno << ". Aborting..." << endmsg;
      }
      else
      {
       printf("pfm_restart: task probably terminated \n");
      }
     }
     break;
    default:
     //log << MSG::ERROR << "ERROR: unknown message type " << msg.type << ". Aborting..." << endmsg;
     break;
   }

}

void PerfMonAuditor::start_smpl ( )

private

Definition at line 756 of file PerfMonAuditor.cpp.

{
   MsgStream log(msgSvc(), name());
   ovfl_count = 0;
   num_smpl_pmds = 0;
   last_overflow = ~0;
   max_pmd = 0;
   memset(&pfmlib_options, 0, sizeof(pfmlib_options));
   pfmlib_options.pfm_debug   = 0;
   pfmlib_options.pfm_verbose = 0;
   m_pfm.pfm_set_options(&pfmlib_options);
   ret = m_pfm.pfm_initialize();
   if(ret != PFMLIB_SUCCESS)
   {
    log << MSG::ERROR << "ERROR: Cannot initialize library: " << m_pfm.pfm_strerror(ret) << ". Aborting..." << endmsg;
   }
   struct sigaction act;
   memset(&act, 0, sizeof(act));
   act.sa_handler = (sig_t)sigio_handler; // dlopen() ==>
   //act.sa_handler = (sig_t)&sigio_handler;
   sigaction(SIGIO, &act, 0);
   memset(&ctx, 0, sizeof(ctx));
   memset(&buf_arg, 0, sizeof(buf_arg));
   memset(&inp,0, sizeof(inp));
   memset(&outp,0, sizeof(outp));
   memset(pd_smpl, 0, sizeof(pd_smpl));
   memset(pc, 0, sizeof(pc));
   memset(&load_args, 0, sizeof(load_args));
   m_pfm.pfm_get_num_counters(&num_counters);
   memset(&params, 0, sizeof(params));
   memset(&nhm_params, 0, sizeof(nhm_params));

   for(int i=0; i<used_counters_number; i++)
   {
    ret = m_pfm.pfm_find_full_event(event_cstr[i], &inp.pfp_events[i]);
    if(ret != PFMLIB_SUCCESS)
    {
     log << MSG::ERROR << "ERROR: cannot find event: " << event_cstr[i] << ". Aborting..." << endmsg;
    }
   }
   inp.pfp_dfl_plm = PFM_PLM3;
   inp.pfp_event_count = 4;
   for(int i=0; i<used_counters_number; i++)
   {
    if(inv[i])
    {
     (params.pfp_core_counters[i]).flags |= PFM_CORE_SEL_INV;
     (nhm_params.pfp_nhm_counters[i]).flags |= PFM_NHM_SEL_INV;
    }
    if(cmask[i]>0)
    {
     (params.pfp_core_counters[i]).cnt_mask = cmask[i];
     (nhm_params.pfp_nhm_counters[i]).cnt_mask = cmask[i];
    }
   }
   if(nehalem || westmere)
   {
    ret = m_pfm.pfm_dispatch_events(&inp, &nhm_params, &outp, NULL);
   }
   else
   {
    ret = m_pfm.pfm_dispatch_events(&inp, &params, &outp, NULL);
   }
   if(ret != PFMLIB_SUCCESS)
   {
    log << MSG::ERROR << "ERROR: cannot configure events: " << m_pfm.pfm_strerror(ret) << ". Aborting..." << endmsg;
   }
   for(unsigned int i=0; i<outp.pfp_pmc_count; i++)
   {
    pc[i].reg_num   = outp.pfp_pmcs[i].reg_num;
    pc[i].reg_value = outp.pfp_pmcs[i].reg_value;
   }
   for(unsigned int i=0; i<outp.pfp_pmd_count; i++)
   {
    pd_smpl[i].reg_num = outp.pfp_pmds[i].reg_num;
    if(i)
    {
     pfm_bv_set(pd_smpl[0].reg_smpl_pmds, pd_smpl[i].reg_num);
     if(pd_smpl[i].reg_num>max_pmd)
     {
      max_pmd = pd_smpl[i].reg_num;
     }
     num_smpl_pmds++;
    }
   }
   for(int i=0; i<used_counters_number; i++)
   {
    pd_smpl[i].reg_flags |= PFM_REGFL_OVFL_NOTIFY | PFM_REGFL_RANDOM;
    pfm_bv_copy(pd_smpl[i].reg_reset_pmds, pd_smpl[i].reg_smpl_pmds, max_pmd);
    pd_smpl[i].reg_value = (uint64_t)(sp[i] * -1);
    pd_smpl[i].reg_short_reset = (uint64_t)(sp[i] * -1);
    pd_smpl[i].reg_long_reset = (uint64_t)(sp[i] * -1);
    pd_smpl[i].reg_random_seed = 5; //tocheck
    pd_smpl[i].reg_random_mask = 0xff; //tocheck
   }
   entry_size = sizeof(pfm_dfl_smpl_entry_t)+(num_smpl_pmds<<3);
   ctx.ctx_flags = 0;
   buf_arg.buf_size = 3*getpagesize()+512;
   ctx_fd = m_pfm.pfm_create_context(&ctx, (char *)FMT_NAME, &buf_arg, sizeof(buf_arg));
   if(ctx_fd==-1)
   {
    if(errno==ENOSYS)
    {
     log << MSG::ERROR << "ERROR: Your kernel does not have performance monitoring support! Aborting..." << endmsg;
    }
    log << MSG::ERROR << "ERROR: Can't create PFM context " << strerror(errno) << ". Aborting..." << endmsg;
   }
   buf_addr = mmap(NULL, (size_t)buf_arg.buf_size, PROT_READ, MAP_PRIVATE, ctx_fd, 0);
   if(buf_addr==MAP_FAILED)
   {
    log << MSG::ERROR << "ERROR: cannot mmap sampling buffer: " << strerror(errno) << ". Aborting..." << endmsg;
   }
   hdr = (pfm_dfl_smpl_hdr_t *)buf_addr;
   if(PFM_VERSION_MAJOR(hdr->hdr_version)<1)
   {
    log << MSG::ERROR << "ERROR: invalid buffer format version. Aborting..." << endmsg;
   }
   if(m_pfm.pfm_write_pmcs(ctx_fd, pc, outp.pfp_pmc_count))
   {
    log << MSG::ERROR << "ERROR: pfm_write_pmcs error errno " << strerror(errno) << ". Aborting..." << endmsg;
   }
   if(m_pfm.pfm_write_pmds(ctx_fd, pd_smpl, outp.pfp_pmd_count))
   {
    log << MSG::ERROR << "ERROR: pfm_write_pmds error errno " << strerror(errno) << ". Aborting..." << endmsg;
   }
   load_args.load_pid = getpid();
   if(m_pfm.pfm_load_context(ctx_fd, &load_args))
   {
    log << MSG::ERROR << "ERROR: pfm_load_context error errno " << strerror(errno) << ". Aborting..." << endmsg;
   }
   ret = fcntl(ctx_fd, F_SETFL, fcntl(ctx_fd, F_GETFL, 0) | O_ASYNC);
   if(ret == -1)
   {
    log << MSG::ERROR << "ERROR: cannot set ASYNC: " << strerror(errno) << ". Aborting..." << endmsg;
   }
   ret = fcntl(ctx_fd, F_SETOWN, getpid());
   if(ret == -1)
   {
    log << MSG::ERROR << "ERROR: cannot setown: " << strerror(errno) << ". Aborting..." << endmsg;
   }
   //pfm_self_start(ctx_fd); ==>
   m_pfm.pfm_start(ctx_fd, NULL);
  }

void PerfMonAuditor::startpm ( )

private

Definition at line 420 of file PerfMonAuditor.cpp.

{
   MsgStream log(msgSvc(), name());
   memset(&ctx,0, sizeof(ctx));
   memset(&inp,0, sizeof(inp));
   memset(&outp,0, sizeof(outp));
   memset(pd, 0, sizeof(pd));
   memset(pc, 0, sizeof(pc));
   memset(&load_arg, 0, sizeof(load_arg));
   memset(&params, 0, sizeof(params));
   memset(&nhm_params, 0, sizeof(nhm_params));

   for(int i=0; i<used_counters_number; i++)
   {
    ret = m_pfm.pfm_find_full_event(event_cstr[i], &inp.pfp_events[i]);
    if(ret != PFMLIB_SUCCESS)
    {
     log << MSG::ERROR << "ERROR: cannot find event: " << event_cstr[i] << ". Aborting..." << endmsg;
    }
   }
   inp.pfp_dfl_plm = PFM_PLM3;
   inp.pfp_event_count = 4;
   for(int i=0; i<used_counters_number; i++)
   {
    if(inv[i])
    {
     (params.pfp_core_counters[i]).flags |= PFM_CORE_SEL_INV;
     (nhm_params.pfp_nhm_counters[i]).flags |= PFM_NHM_SEL_INV;
    }
    if(cmask[i]>0)
    {
     (params.pfp_core_counters[i]).cnt_mask = cmask[i];
     (nhm_params.pfp_nhm_counters[i]).cnt_mask = cmask[i];
    }
   }
   if(nehalem || westmere)
   {
    ret = m_pfm.pfm_dispatch_events(&inp, &nhm_params, &outp, NULL);
   }
   else
   {
    ret = m_pfm.pfm_dispatch_events(&inp, &params, &outp, NULL);
   }
   if(ret != PFMLIB_SUCCESS)
   {
    log << MSG::ERROR << "ERROR: cannot dispatch events: " << m_pfm.pfm_strerror(ret) << ". Aborting..." << endmsg;
   }
   for(unsigned int i=0; i<outp.pfp_pmc_count; i++)
   {
    pc[i].reg_num = outp.pfp_pmcs[i].reg_num;
    pc[i].reg_value = outp.pfp_pmcs[i].reg_value;
   }
   for(unsigned int i=0; i<outp.pfp_pmd_count; i++)
   {
    pd[i].reg_num = outp.pfp_pmds[i].reg_num;
    pd[i].reg_value = 0;
   }
   fd = m_pfm.pfm_create_context(&ctx, NULL, 0, 0);
   if(fd == -1)
   {
    log << MSG::ERROR << "ERROR: Context not created. Aborting..." << endmsg;
   }
   if(m_pfm.pfm_write_pmcs(fd, pc, outp.pfp_pmc_count) == -1)
   {
    log << MSG::ERROR << "ERROR: Could not write pmcs. Aborting..." << endmsg;
   }
   if(m_pfm.pfm_write_pmds(fd, pd, outp.pfp_pmd_count) == -1)
   {
    log << MSG::ERROR << "ERROR: Could not write pmds. Aborting..." << endmsg;
   }
   load_arg.load_pid = getpid();
   if(m_pfm.pfm_load_context(fd, &load_arg) == -1)
   {
    log << MSG::ERROR << "ERROR: Could not load context. Aborting..." << endmsg;
//  MsgStream log(msgSvc(), name());
//  log << MSG::ERROR << "Could not read pmds" << endmsg;
   }

   m_pfm.pfm_start(fd, NULL);
}

void PerfMonAuditor::stop_smpl ( )

private

Definition at line 904 of file PerfMonAuditor.cpp.

  {
 MsgStream log(msgSvc(), name());
   m_pfm.pfm_self_stop(ctx_fd);
   process_smpl_buf(hdr, entry_size);
   close(ctx_fd);
   ret = munmap(hdr, (size_t)buf_arg.buf_size);
   if(ret)
   {
  log << MSG::ERROR << "Cannot unmap buffer: %s" << strerror(errno) << endmsg;
   }
   return;
  }

void PerfMonAuditor::stoppm ( )

private

Definition at line 508 of file PerfMonAuditor.cpp.

{
 MsgStream log(msgSvc(), name());
 m_pfm.pfm_stop(fd);
 if(m_pfm.pfm_read_pmds(fd, pd, inp.pfp_event_count) == -1)
 {
  log << MSG::ERROR << "Could not read pmds" << endmsg;
 }
   for(int i=0; i<used_counters_number; i++)
   {
 results[i][(alg_stack.top().first)->name()].push_back(alg_stack.top().second[i] + pd[i].reg_value);
   }

 close(fd);
}

Member Data Documentation

void* PerfMonAuditor::buf_addr

private

Definition at line 405 of file PerfMonAuditor.cpp.

pfm_dfl_smpl_arg_t PerfMonAuditor::buf_arg

private

Definition at line 403 of file PerfMonAuditor.cpp.

unsigned int PerfMonAuditor::cmask[MAX_NUMBER_OF_PROGRAMMABLE_COUNTERS]

private

Definition at line 382 of file PerfMonAuditor.cpp.

bool PerfMonAuditor::core

private

Definition at line 389 of file PerfMonAuditor.cpp.

pfarg_ctx_t PerfMonAuditor::ctx

private

Definition at line 364 of file PerfMonAuditor.cpp.

bool PerfMonAuditor::event_count_reached

private

Definition at line 415 of file PerfMonAuditor.cpp.

char PerfMonAuditor::event_cstr[MAX_NUMBER_OF_PROGRAMMABLE_COUNTERS][MAX_EVENT_NAME_LENGTH]

private

Definition at line 378 of file PerfMonAuditor.cpp.

std::string PerfMonAuditor::event_str[MAX_NUMBER_OF_PROGRAMMABLE_COUNTERS]

private

Definition at line 375 of file PerfMonAuditor.cpp.

std::string PerfMonAuditor::family

private

Definition at line 377 of file PerfMonAuditor.cpp.

int PerfMonAuditor::fd

private

Definition at line 368 of file PerfMonAuditor.cpp.

bool PerfMonAuditor::first_alg

private

Definition at line 413 of file PerfMonAuditor.cpp.

std::string PerfMonAuditor::first_alg_name

private

Definition at line 414 of file PerfMonAuditor.cpp.

unsigned int PerfMonAuditor::i

private

Definition at line 369 of file PerfMonAuditor.cpp.

pfmlib_input_param_t PerfMonAuditor::inp

private

Definition at line 362 of file PerfMonAuditor.cpp.

bool PerfMonAuditor::inv[MAX_NUMBER_OF_PROGRAMMABLE_COUNTERS]

private

Definition at line 381 of file PerfMonAuditor.cpp.

int PerfMonAuditor::is_nehalem_ret

private

Definition at line 360 of file PerfMonAuditor.cpp.

int PerfMonAuditor::level

private

Definition at line 411 of file PerfMonAuditor.cpp.

pfarg_load_t PerfMonAuditor::load_arg

private

Definition at line 367 of file PerfMonAuditor.cpp.

pfarg_load_t PerfMonAuditor::load_args

private

Definition at line 404 of file PerfMonAuditor.cpp.

int PerfMonAuditor::m_indent

private

Definition at line 356 of file PerfMonAuditor.cpp.

bool PerfMonAuditor::m_inEvent

private

Definition at line 357 of file PerfMonAuditor.cpp.

Map PerfMonAuditor::m_map

private

Definition at line 355 of file PerfMonAuditor.cpp.

PFMon& PerfMonAuditor::m_pfm

private

Definition at line 233 of file PerfMonAuditor.cpp.

unsigned int PerfMonAuditor::max_pmd

private

Definition at line 407 of file PerfMonAuditor.cpp.

bool PerfMonAuditor::nehalem

private

Definition at line 387 of file PerfMonAuditor.cpp.

pfmlib_nhm_input_param_t PerfMonAuditor::nhm_params

private

Definition at line 385 of file PerfMonAuditor.cpp.

unsigned PerfMonAuditor::num_counters

private

Definition at line 406 of file PerfMonAuditor.cpp.

pfmlib_output_param_t PerfMonAuditor::outp

private

Definition at line 363 of file PerfMonAuditor.cpp.

pfmlib_core_input_param_t PerfMonAuditor::params

private

Definition at line 384 of file PerfMonAuditor.cpp.

pfarg_pmc_t PerfMonAuditor::pc[NUM_PMCS]

private

Definition at line 366 of file PerfMonAuditor.cpp.

pfarg_pmd_t PerfMonAuditor::pd[NUM_PMDS]

private

Definition at line 365 of file PerfMonAuditor.cpp.

pfmlib_options_t PerfMonAuditor::pfmlib_options

private

Definition at line 408 of file PerfMonAuditor.cpp.

unsigned int PerfMonAuditor::ph_ev_count

private

Definition at line 380 of file PerfMonAuditor.cpp.

std::string PerfMonAuditor::prefix

private

Definition at line 376 of file PerfMonAuditor.cpp.

char PerfMonAuditor::prefix_cstr[MAX_PREFIX_NAME_LENGTH]

private

Definition at line 379 of file PerfMonAuditor.cpp.

int PerfMonAuditor::ret

private

Definition at line 370 of file PerfMonAuditor.cpp.

bool PerfMonAuditor::sampling

private

Definition at line 391 of file PerfMonAuditor.cpp.

unsigned int PerfMonAuditor::start_at_event

private

Definition at line 383 of file PerfMonAuditor.cpp.

int PerfMonAuditor::used_counters_number

private

Definition at line 386 of file PerfMonAuditor.cpp.

bool PerfMonAuditor::westmere

private

Definition at line 388 of file PerfMonAuditor.cpp.

---

The documentation for this class was generated from the following file:

• GaudiProfiling/src/component/PerfMonAuditor.cpp
