The IAuditor is the interface implmented by the AlgAuditor base class. More...

#include <GaudiKernel/IAuditor.h>

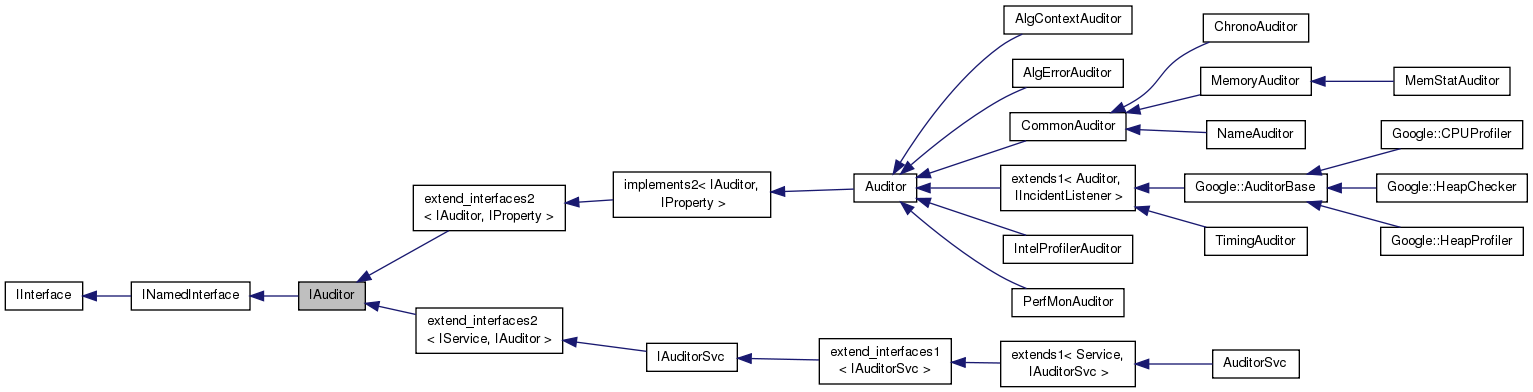

Inheritance diagram for IAuditor:

Collaboration diagram for IAuditor:

Public Types
enum	StandardEventType { Initialize, ReInitialize, Execute, BeginRun, EndRun, Finalize, Start, Stop, ReStart }
	Defines the standard (= used by the framework) auditable event types. More...

typedef std::string	CustomEventType
	Type used to allow users to specify a custom event to be audit. More...

typedef const CustomEventType &	CustomEventTypeRef
	Used in function calls for optimization purposes. More...

Public Types inherited from IInterface
enum	Status { SUCCESS = 1, NO_INTERFACE, VERSMISMATCH, LAST_ERROR }
	Return status. More...

typedef Gaudi::InterfaceId < IInterface, 0, 0 >	iid
	Interface ID. More...

typedef mpl::set1< iid >	ext_iids
	Extra interfaces. More...

Public Member Functions
	DeclareInterfaceID (IAuditor, 3, 0)
	InterfaceID. More...

virtual void	before (StandardEventType, INamedInterface *)=0
	Audit the start of a standard "event". More...

virtual void	before (StandardEventType, const std::string &)=0
	Audit the start of a standard "event" for callers that do not implement INamedInterface. More...

virtual void	before (CustomEventTypeRef, INamedInterface *)=0
	Audit the start of a custom "event". More...

virtual void	before (CustomEventTypeRef, const std::string &)=0
	Audit the start of a custom "event" for callers that do not implement INamedInterface. More...

virtual void	after (StandardEventType, INamedInterface *, const StatusCode &sc=StatusCode(StatusCode::SUCCESS, true))=0
	Audit the end of a standard "event". More...

virtual void	after (StandardEventType, const std::string &, const StatusCode &sc=StatusCode(StatusCode::SUCCESS, true))=0
	Audit the end of a standard "event" for callers that do not implement INamedInterface. More...

virtual void	after (CustomEventTypeRef, INamedInterface *, const StatusCode &sc=StatusCode(StatusCode::SUCCESS, true))=0
	Audit the end of a custom "event". More...

virtual void	after (CustomEventTypeRef, const std::string &, const StatusCode &sc=StatusCode(StatusCode::SUCCESS, true))=0
	Audit the end of a custom "event" for callers that do not implement INamedInterface. More...

virtual bool	isEnabled () const =0
	Tell if the auditor is enabled or not. More...

virtual void	beforeInitialize (INamedInterface *)=0

virtual void	afterInitialize (INamedInterface *)=0

virtual void	beforeReinitialize (INamedInterface *)=0

virtual void	afterReinitialize (INamedInterface *)=0

virtual void	beforeExecute (INamedInterface *)=0

virtual void	afterExecute (INamedInterface *, const StatusCode &)=0

virtual void	beforeBeginRun (INamedInterface *)=0

virtual void	afterBeginRun (INamedInterface *)=0

virtual void	beforeEndRun (INamedInterface *)=0

virtual void	afterEndRun (INamedInterface *)=0

virtual void	beforeFinalize (INamedInterface *)=0

virtual void	afterFinalize (INamedInterface *)=0

virtual StatusCode	sysInitialize ()=0
	Used by AuditorSvc. More...

virtual StatusCode	sysFinalize ()=0
	Used by AuditorSvc. More...

Public Member Functions inherited from INamedInterface
	DeclareInterfaceID (INamedInterface, 1, 0)
	InterfaceID. More...

virtual const std::string &	name () const =0
	Retrieve the name of the instance. More...

virtual	~INamedInterface ()
	Virtual destructor (always needed for abstract classes). More...

Public Member Functions inherited from IInterface
virtual void *	i_cast (const InterfaceID &) const =0
	main cast function More...

virtual std::vector< std::string >	getInterfaceNames () const =0
	Returns a vector of strings containing the names of all the implemented interfaces. More...

virtual unsigned long	addRef ()=0
	Increment the reference count of Interface instance. More...

virtual unsigned long	release ()=0
	Release Interface instance. More...

virtual unsigned long	refCount () const =0
	Current reference count. More...

virtual StatusCode	queryInterface (const InterfaceID &ti, void **pp)=0
	Set the void** to the pointer to the requested interface of the instance. More...

virtual	~IInterface ()
	Virtual destructor. More...

Additional Inherited Members
Static Public Member Functions inherited from IInterface
static const InterfaceID &	interfaceID ()
	Return an instance of InterfaceID identifying the interface. More...

Detailed Description

The IAuditor is the interface implmented by the AlgAuditor base class.

Concrete auditors, derived from the AlgAuditor base class are controlled via this interface.

Author: Marjorie Shapiro, LBNL; Marco Clemencic marco.nosp@m..cle.nosp@m.menci.nosp@m.c@ce.nosp@m.rn.ch

Definition at line 18 of file IAuditor.h.

Member Typedef Documentation

typedef std::string IAuditor::CustomEventType

Type used to allow users to specify a custom event to be audit.

Examples of custom events are callbacks (see patch #1725).

Definition at line 39 of file IAuditor.h.

typedef const CustomEventType& IAuditor::CustomEventTypeRef

Used in function calls for optimization purposes.

Definition at line 41 of file IAuditor.h.

Member Enumeration Documentation

enum IAuditor::StandardEventType

Defines the standard (= used by the framework) auditable event types.

Enumerator
Initialize
ReInitialize
Execute
BeginRun
EndRun
Finalize
Start
Stop
ReStart

Definition at line 24 of file IAuditor.h.

                          {
     Initialize,
     ReInitialize,
     Execute,
     BeginRun,
     EndRun,
     Finalize,
     Start,
     Stop,
     ReStart
   };
