IntelProfilerAuditor Class Reference

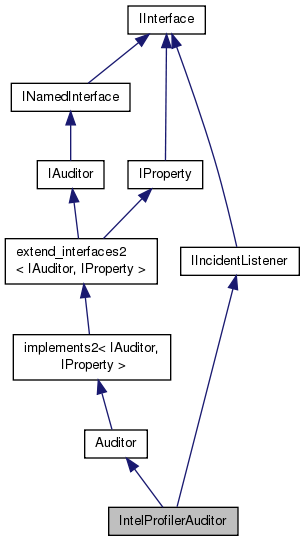

Inheritance diagram for IntelProfilerAuditor:

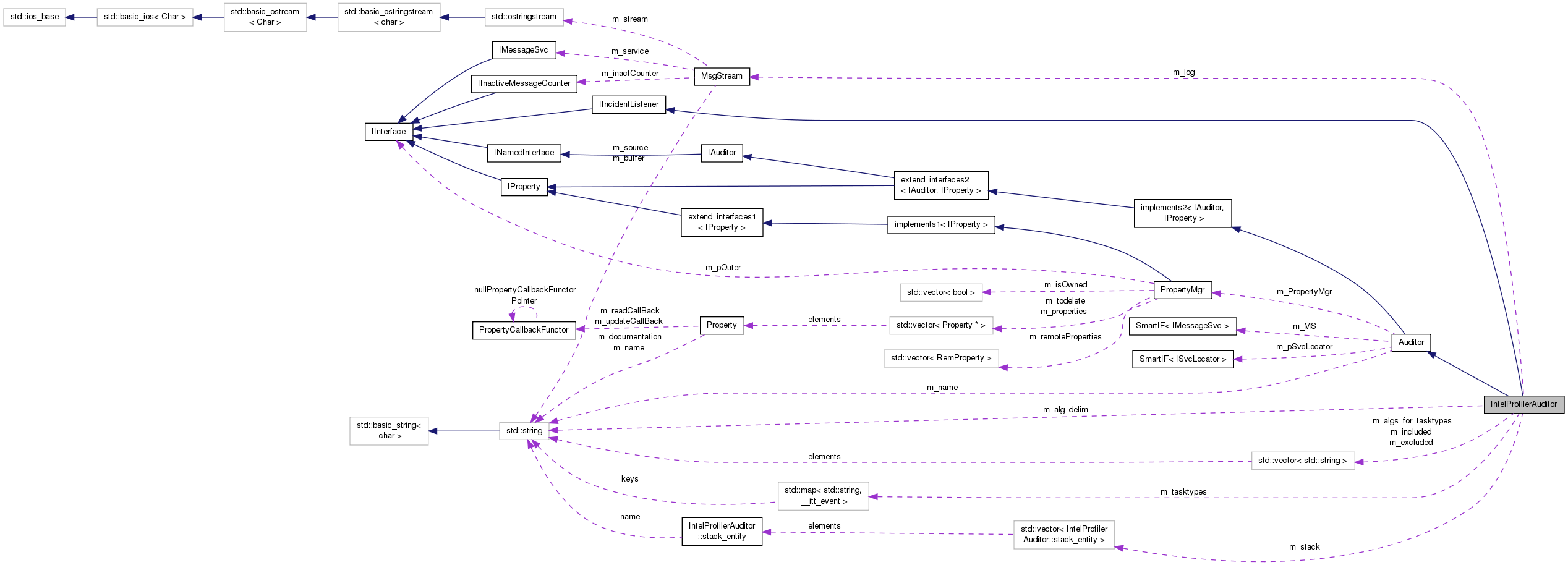

Collaboration diagram for IntelProfilerAuditor:

Classes
struct	stack_entity

Public Member Functions
	IntelProfilerAuditor (const std::string &name, ISvcLocator *pSvcLocator)
StatusCode	initialize ()
void	handle (const Incident &incident)
	Inform that a new incident has occurred. More...
void	before (StandardEventType type, INamedInterface *i)
	The following methods are meant to be implemented by the child class... More...
void	after (StandardEventType type, INamedInterface *i, const StatusCode &sc)
	Audit the end of a standard "event". More...
Public Member Functions inherited from Auditor
	Auditor (const std::string &name, ISvcLocator *svcloc)
	Constructor. More...
virtual	~Auditor ()
	Destructor. More...
StatusCode	sysInitialize ()
	Initialization method invoked by the framework. More...
StatusCode	sysFinalize ()
	Finalization method invoked by the framework. More...
virtual void	before (StandardEventType, const std::string &)
	Audit the start of a standard "event" for callers that do not implement INamedInterface. More...
virtual void	before (CustomEventTypeRef, INamedInterface *)
	Audit the start of a custom "event". More...
virtual void	before (CustomEventTypeRef, const std::string &)
	Audit the start of a custom "event" for callers that do not implement INamedInterface. More...
virtual void	after (StandardEventType, const std::string &, const StatusCode &)
	Audit the end of a standard "event" for callers that do not implement INamedInterface. More...
virtual void	after (CustomEventTypeRef, INamedInterface *, const StatusCode &)
	Audit the end of a custom "event". More...
virtual void	after (CustomEventTypeRef, const std::string &, const StatusCode &)
	Audit the end of a custom "event" for callers that do not implement INamedInterface. More...
virtual void	beforeInitialize (INamedInterface *)
virtual void	afterInitialize (INamedInterface *)
virtual void	beforeReinitialize (INamedInterface *)
virtual void	afterReinitialize (INamedInterface *)
virtual void	beforeExecute (INamedInterface *)
virtual void	afterExecute (INamedInterface *, const StatusCode &)
virtual void	beforeFinalize (INamedInterface *)
virtual void	afterFinalize (INamedInterface *)
virtual void	beforeBeginRun (INamedInterface *)
virtual void	afterBeginRun (INamedInterface *)
virtual void	beforeEndRun (INamedInterface *)
virtual void	afterEndRun (INamedInterface *)
virtual StatusCode	finalize ()
virtual const std::string &	name () const
	Retrieve the name of the instance. More...
virtual bool	isEnabled () const
	Tell if the auditor is enabled or not. More...
SmartIF< IMessageSvc > &	msgSvc () const
	The standard message service. More...
int	outputLevel () const
	Retrieve the output level of current auditor. More...
void	setOutputLevel (int level)
	Set the output level for current auditor. More...
SmartIF< ISvcLocator > &	serviceLocator () const
	The standard service locator. More...
template<class T >
StatusCode	service (const std::string &name, T *&svc, bool createIf=false) const
	Access a service by name, creating it if it doesn't already exist. More...
virtual StatusCode	setProperty (const Property &p)
	Set a value of a property of an auditor. More...
virtual StatusCode	setProperty (const std::string &s)
	Implementation of IProperty::setProperty. More...
virtual StatusCode	setProperty (const std::string &n, const std::string &v)
	Implementation of IProperty::setProperty. More...
virtual StatusCode	getProperty (Property *p) const
	Get the value of a property. More...
virtual const Property &	getProperty (const std::string &name) const
	Get the property by name. More...
virtual StatusCode	getProperty (const std::string &n, std::string &v) const
	Implementation of IProperty::getProperty. More...
const std::vector< Property * > &	getProperties () const
	Get all properties. More...
template<class TYPE >
StatusCode	setProperty (const std::string &name, const TYPE &value)
	set the property form the value More...
StatusCode	setProperties ()
	Set the auditor's properties. More...
template<class T >
Property *	declareProperty (const std::string &name, T &property, const std::string &doc="none") const
	Declare the named property. More...
Public Member Functions inherited from extend_interfaces2< IAuditor, IProperty >
virtual	~extend_interfaces2 ()
	Virtual destructor. More...
Public Member Functions inherited from IAuditor
	DeclareInterfaceID (IAuditor, 3, 0)
	InterfaceID. More...
Public Member Functions inherited from INamedInterface
	DeclareInterfaceID (INamedInterface, 1, 0)
	InterfaceID. More...
virtual	~INamedInterface ()
	Virtual destructor (always needed for abstract classes). More...
Public Member Functions inherited from IInterface
virtual void *	i_cast (const InterfaceID &) const =0
	main cast function More...
virtual std::vector< std::string >	getInterfaceNames () const =0
	Returns a vector of strings containing the names of all the implemented interfaces. More...
virtual unsigned long	addRef ()=0
	Increment the reference count of Interface instance. More...
virtual unsigned long	release ()=0
	Release Interface instance. More...
virtual unsigned long	refCount () const =0
	Current reference count. More...
virtual StatusCode	queryInterface (const InterfaceID &ti, void **pp)=0
	Set the void** to the pointer to the requested interface of the instance. More...
virtual	~IInterface ()
	Virtual destructor. More...
Public Member Functions inherited from IProperty
	DeclareInterfaceID (IProperty, 2, 0)
	InterfaceID. More...
Public Member Functions inherited from IIncidentListener
	DeclareInterfaceID (IIncidentListener, 2, 0)
	InterfaceID. More...

Private Member Functions
void	start_profiling_component (const std::string &name)
void	skip_profiling_component (const std::string &name)
void	start ()
void	pause ()
void	resume ()
void	stop ()
bool	hasIncludes () const
bool	isIncluded (const std::string &name) const
bool	isExcluded (const std::string &name) const
bool	isRunning () const
int	stackLevel () const
std::string	stackIndent (bool newLevel=false) const
std::string	taskTypeName (const std::string &component_name) const

Private Attributes
int	m_nStartFromEvent
int	m_nStopAtEvent
std::vector< std::string >	m_excluded
std::vector< std::string >	m_included
std::vector< std::string >	m_algs_for_tasktypes
std::string	m_alg_delim
bool	m_enable_frames
int	m_frames_rate
MsgStream	m_log
int	m_nEvents
__itt_domain *	domain
bool	m_isStarted
std::vector< stack_entity >	m_stack
TaskTypes	m_tasktypes

Additional Inherited Members
Public Types inherited from Auditor
typedef Gaudi::PluginService::Factory < IAuditor *, const std::string &, ISvcLocator * >	Factory
Public Types inherited from implements2< IAuditor, IProperty >
typedef implements2	base_class
	Typedef to this class. More...
typedef extend_interfaces2 < IAuditor, IProperty >	extend_interfaces_base
	Typedef to the base of this class. More...
typedef extend_interfaces_base::ext_iids	interfaces
	MPL set of all the implemented interfaces. More...
Public Types inherited from extend_interfaces2< IAuditor, IProperty >
typedef mpl::fold< typename IAuditor::iid::iids::type, typename IProperty::iid::iids::type, mpl::insert< mpl::_1, mpl::_2 > >::type	ext_iids
	MPL set of interfaces extended by this one. More...
Public Types inherited from IAuditor
enum	StandardEventType {   Initialize, ReInitialize, Execute, BeginRun,   EndRun, Finalize, Start, Stop,   ReStart }
	Defines the standard (= used by the framework) auditable event types. More...
typedef std::string	CustomEventType
	Type used to allow users to specify a custom event to be audit. More...
typedef const CustomEventType &	CustomEventTypeRef
	Used in function calls for optimization purposes. More...
Public Types inherited from IInterface
enum	Status { SUCCESS = 1, NO_INTERFACE, VERSMISMATCH, LAST_ERROR }
	Return status. More...
typedef Gaudi::InterfaceId < IInterface, 0, 0 >	iid
	Interface ID. More...
typedef mpl::set1< iid >	ext_iids
	Extra interfaces. More...
Static Public Member Functions inherited from IInterface
static const InterfaceID &	interfaceID ()
	Return an instance of InterfaceID identifying the interface. More...

Detailed Description

Definition at line 34 of file IntelProfilerAuditor.cpp.

Constructor & Destructor Documentation

IntelProfilerAuditor::IntelProfilerAuditor	(	const std::string &	name,
		ISvcLocator *	pSvcLocator
	)

Definition at line 122 of file IntelProfilerAuditor.cpp.

                            : Auditor(name, pSvcLocator), m_log(msgSvc(), name)
    ,m_nEvents(0), m_isStarted(false) {
  // ## Properties
  declareProperty("IncludeAlgorithms", m_included,
    "Names of included algorithms."
  );
  declareProperty("ExcludeAlgorithms", m_excluded,
    "Names of excluded algorithms."
  );
  declareProperty("StartFromEventN", m_nStartFromEvent = 1,
    "After what event we stop profiling. "
    "If 0 than we also profile finalization stage."
  );
  declareProperty("StopAtEventN", m_nStopAtEvent = 0,
    "After what event we stop profiling. "
    "If 0 than we also profile finalization stage. Default = 0."
  );
  declareProperty("ComponentsForTaskTypes", m_algs_for_tasktypes,
    "Algorithm name, for which intel amplifier task type will be created."
    "By default all algorithms have a corresponding task type.");
  declareProperty("TaskTypeNameDelimeter", m_alg_delim = " ",
    "The String delimiter between sequences/algorithms names in "
    "\"Task Type\" grouping at Amplifier. Default=\" \"."
  );
  declareProperty("EnableFrames", m_enable_frames = false,
    "Enable frames (needed for detecting slow events). Default=false."
  );
  declareProperty("FramesRate", m_frames_rate = 100,
    "Frames rate. The recommended maximum rate for calling the Frame API is "
    "1000 frames (events) per second. A higher rate may result in large product"
    " memory consumption and slow finalization. "
    "You need update \"slow-frames-threshold\" and \"fast-frames-threshold\" "
    "parameters of amplxe-cl tool to separate slow, medium and fast events. "
    "For use frames you need to switch on \"EnableFrames\". "
    "Default=100"
  );
}

Member Function Documentation

void IntelProfilerAuditor::after ( StandardEventType  , INamedInterface *  , const StatusCode &  sc  )

virtual

Audit the end of a standard "event".

Reimplemented from Auditor.

Definition at line 397 of file IntelProfilerAuditor.cpp.

                                          {
  // Skip unnecessary event types
  if (!((type == IAuditor::Execute) && m_isStarted)) return;

  if ((m_nEvents+1) % m_frames_rate == 0) {
    __itt_frame_end_v3(domain, NULL);
  }

  // Name of the current component
  const std::string& name = i->name();
  stack_entity state = m_stack.back();
  // Remove component from stack.
  m_stack.pop_back();


  if (state.event != 0) {
     m_log << MSG::DEBUG << stackIndent(true) << "End event for "
      << name << endmsg;
    __itt_event_end(state.event);

    if (state.parent_event != 0) {
      m_log << MSG::DEBUG << stackIndent() << "Resume event for "
        << state.parent_event << endmsg;
      __itt_event_start(state.parent_event);
    }
  }

  if (m_stack.empty()) {
    // Pause if there are no parent components (top algorithm).
    pause();
  } else if (state.status) {
    // If the profiling is running and we have parent component that is
    // paused then pause the profiling.
    if (!m_stack.back().status) {
      pause();
    }
  }else {
    // If the profiling was stopped, but the parent component should be profiled
    // then resume profiling.
    if (m_stack.back().status) {
      resume();
    }
  }
}

void IntelProfilerAuditor::before ( StandardEventType  evt, INamedInterface *  obj  )

virtual

The following methods are meant to be implemented by the child class...

Reimplemented from Auditor.

Definition at line 350 of file IntelProfilerAuditor.cpp.

                                                                            {
  // Skip unnecessary event types.
  if (!((type == IAuditor::Execute) && m_isStarted)) return;

  // Name of the current component.
  const std::string& name = i->name();
  //m_log << MSG::DEBUG <<  "Before: " << name << " " << type << endmsg;

  if (isRunning()) {
    if (isExcluded(name)) {
      // If profiling is running and component is explicitly excluded
      // then skip component.
      skip_profiling_component(name);
    }else{
      // If profiling is running and component is'not explicitly excluded
      // then start profiling for component (add to stack).
      start_profiling_component(name);
    }
  }else {
    if (hasIncludes()) {
      // If the profiling is not running and  "includes" is explicitly defined ...
      if (isIncluded(name)) {
        // and the current component is in the include's list then start the
        // component profiling.
        start_profiling_component(name);
      } else{
        // and the current component is not in the includes list then skip
        // a profiling of the component.
        skip_profiling_component(name);
      }
    }else {
        // If "Includes" property isn't present and the component is ...
        if (isExcluded(name)) {
          // in the excludes list then skip a profiling
          skip_profiling_component(name);
        }else{
          // not in the exclude list then start a profiling
          start_profiling_component(name);
        }
    }
  }
  if (m_nEvents % m_frames_rate == 0) {
    __itt_frame_begin_v3(domain, NULL);
  }

}

void IntelProfilerAuditor::handle ( const Incident &  )

virtual

Inform that a new incident has occurred.

Implements IIncidentListener.

Definition at line 332 of file IntelProfilerAuditor.cpp.

                                                          {
  if (IncidentType::BeginEvent != incident.type()) return;
  // Increment the event counter
  ++m_nEvents;

  if (m_nStartFromEvent == m_nEvents) {
    m_log << MSG::INFO << "Start profiling (event #" << m_nEvents << ")"
        << endmsg;
    start();
  }

  if (m_nStopAtEvent == m_nEvents) {
    m_log << MSG::INFO << "Stop profiling (event #" << m_nEvents << ")"
        << endmsg;
    stop();
  }
}

bool IntelProfilerAuditor::hasIncludes ( ) const

private

Definition at line 237 of file IntelProfilerAuditor.cpp.

                                             {
  return !m_included.empty();
}

StatusCode IntelProfilerAuditor::initialize ( )

virtual

Reimplemented from Auditor.

Definition at line 277 of file IntelProfilerAuditor.cpp.

                                            {
  m_log.setLevel(outputLevel());
  m_log << MSG::INFO << "Initialised" << endmsg;

  IIncidentSvc * inSvc = NULL;
  const StatusCode sc = serviceLocator()->service("IncidentSvc", inSvc);
  if (sc.isFailure())
    return sc;
  // Useful to start profiling only after some event, we don't need profile
  // initialization stage. For that we need to count events with BeginEvent
  // listener.
  inSvc->addListener(this, IncidentType::BeginEvent);
  // If the end event number don't setup we finish profiling at the end
  // of loop. We don't need profiling finalization stage.
  inSvc->addListener(this, IncidentType::EndProcessing);

  std::string str_excluded, str_included, str_eventtypes;
  BOOST_FOREACH(const std::string& name, m_excluded)
  {
    str_excluded += " " + name;
  }
  BOOST_FOREACH(const std::string& name, m_included)
  {
    str_included += " " + name;
  }

  BOOST_FOREACH(const std::string& name, m_algs_for_tasktypes)
  {
    str_eventtypes += " " + name;
  }

  if (!m_included.empty()) {
    m_log << MSG::INFO << "Included algorithms (" << m_included.size()
      << "): " << str_included << endmsg;
  }

  if (!m_excluded.empty()){
    m_log << MSG::INFO << "Excluded algorithms (" << m_excluded.size()
      << "): " << str_excluded << endmsg;
  }

  if (!m_algs_for_tasktypes.empty()){
    m_log << MSG::INFO << "Event types (" << m_algs_for_tasktypes.size()
      << "): " << str_eventtypes << endmsg;
  }

  // Create a profiler domain for detection of slow events.
  domain = __itt_domain_create("Event loop");
  domain->flags = m_enable_frames;

  return StatusCode::SUCCESS;
}

bool IntelProfilerAuditor::isExcluded ( const std::string &  name ) const

private

Definition at line 246 of file IntelProfilerAuditor.cpp.

                                                                 {
  return std::find(m_excluded.begin(), m_excluded.end(), name) !=
    m_excluded.end();
}

bool IntelProfilerAuditor::isIncluded ( const std::string &  name ) const

private

Definition at line 241 of file IntelProfilerAuditor.cpp.

                                                                 {
  return std::find(m_included.begin(), m_included.end(), name) !=
    m_included.end();
}

bool IntelProfilerAuditor::isRunning ( ) const

private

Definition at line 251 of file IntelProfilerAuditor.cpp.

                                           {
  return !m_stack.empty() && m_stack.back().status;
}

void IntelProfilerAuditor::pause ( )

private

Definition at line 218 of file IntelProfilerAuditor.cpp.

                                 {
  if (!m_isStarted) return;
  m_log << MSG::DEBUG << stackIndent() << "Pause" << endmsg;
  __itt_pause();
}

void IntelProfilerAuditor::resume ( )

private

Definition at line 212 of file IntelProfilerAuditor.cpp.

                                  {
  if (!m_isStarted) return;
  m_log << MSG::DEBUG << stackIndent() << "Resume" << endmsg;
  __itt_resume();
}

void IntelProfilerAuditor::skip_profiling_component ( const std::string &  name )

private

Definition at line 224 of file IntelProfilerAuditor.cpp.

                                                                         {
  if (!m_isStarted) return;
  m_stack.push_back(stack_entity(name, false));
  m_log << MSG::DEBUG << stackIndent() << "Skip component "
    << name << endmsg;
}

std::string IntelProfilerAuditor::stackIndent ( bool  newLevel = false ) const

private

Definition at line 259 of file IntelProfilerAuditor.cpp.

                                                              {
  std::stringstream indent(std::stringstream::out);
  indent << std::setw(stackLevel()*2+(newLevel?2:0)) << " ";
  return indent.str();
}

int IntelProfilerAuditor::stackLevel ( ) const

private

Definition at line 255 of file IntelProfilerAuditor.cpp.

                                           {
  return m_stack.size();
}

void IntelProfilerAuditor::start ( )

private

Definition at line 161 of file IntelProfilerAuditor.cpp.

                                 {
  m_isStarted = true;
  __itt_resume();
}

void IntelProfilerAuditor::start_profiling_component ( const std::string &  name )

private

Definition at line 166 of file IntelProfilerAuditor.cpp.

                                                                          {
  if (!m_isStarted) return;
  std::string typeName = taskTypeName(name);
  __itt_event taskId = 0;
  TaskTypes::const_iterator iter = m_tasktypes.find(typeName);
  if( iter != m_tasktypes.end()) {
    taskId = iter->second;
  }

  if(!taskId && m_algs_for_tasktypes.empty()) {
    // Create event
    taskId = __itt_event_create(typeName.c_str(), typeName.size());
    m_tasktypes.insert(TaskTypes::value_type(typeName, taskId));
  }

  stack_entity state = stack_entity(name, true, taskId);
  stack_entity* parent = !m_stack.empty()?&m_stack.back():NULL;

  if (parent != NULL) {
    if (parent->event) {
       state.parent_event = parent->event;
    } else {
      state.parent_event = parent->parent_event;
    }
  }

  if (taskId && state.parent_event) {
    m_log << MSG::DEBUG << stackIndent() << "Pause event " <<
      state.parent_event << endmsg;
    __itt_event_end(state.parent_event);
  }
  m_stack.push_back(state);

  m_log << MSG::DEBUG << stackIndent() << "Start profiling component "
    << typeName << endmsg;

  if (taskId) {
     // Start event
    m_log << MSG::DEBUG << stackIndent() << "Start event type "
      << state.event << " for "  << typeName << endmsg;
    __itt_event_start(state.event);
  }

  __itt_resume();
}

void IntelProfilerAuditor::stop ( )

private

Definition at line 231 of file IntelProfilerAuditor.cpp.

                                {
  if (!m_isStarted) return;
  m_isStarted = false;
  __itt_pause();
}

std::string IntelProfilerAuditor::taskTypeName ( const std::string &  component_name ) const

private

Definition at line 266 of file IntelProfilerAuditor.cpp.

                                                                        {
  std::string result;
  std::string delim = "";
  BOOST_FOREACH(const stack_entity& value,
     m_stack) {
    result += delim+value.name;
    delim = m_alg_delim;
  }
  return result+m_alg_delim+component_name;
}

Member Data Documentation

__itt_domain* IntelProfilerAuditor::domain

private

Definition at line 94 of file IntelProfilerAuditor.cpp.

std::string IntelProfilerAuditor::m_alg_delim

private

Definition at line 79 of file IntelProfilerAuditor.cpp.

std::vector<std::string> IntelProfilerAuditor::m_algs_for_tasktypes

private

Definition at line 76 of file IntelProfilerAuditor.cpp.

bool IntelProfilerAuditor::m_enable_frames

private

Definition at line 81 of file IntelProfilerAuditor.cpp.

std::vector<std::string> IntelProfilerAuditor::m_excluded

private

Definition at line 72 of file IntelProfilerAuditor.cpp.

int IntelProfilerAuditor::m_frames_rate

private

Definition at line 87 of file IntelProfilerAuditor.cpp.

std::vector<std::string> IntelProfilerAuditor::m_included

private

Definition at line 74 of file IntelProfilerAuditor.cpp.

bool IntelProfilerAuditor::m_isStarted

private

Definition at line 96 of file IntelProfilerAuditor.cpp.

MsgStream IntelProfilerAuditor::m_log

private

Definition at line 90 of file IntelProfilerAuditor.cpp.

int IntelProfilerAuditor::m_nEvents

private

Definition at line 92 of file IntelProfilerAuditor.cpp.

int IntelProfilerAuditor::m_nStartFromEvent

private

Definition at line 67 of file IntelProfilerAuditor.cpp.

int IntelProfilerAuditor::m_nStopAtEvent

private

Definition at line 70 of file IntelProfilerAuditor.cpp.

std::vector<stack_entity> IntelProfilerAuditor::m_stack

private

Definition at line 98 of file IntelProfilerAuditor.cpp.

TaskTypes IntelProfilerAuditor::m_tasktypes

private

Definition at line 100 of file IntelProfilerAuditor.cpp.

---

The documentation for this class was generated from the following file:

• GaudiProfiling/src/component/intel/IntelProfilerAuditor.cpp
